The ANSS event ID is uu50443120 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/uu50443120/executive.

2012/09/05 22:52:51 44.777 -110.932 8.7 3.51 Wyoming

Focal Mechanism

USGS/SLU Moment Tensor Solution ENS 2012/09/05 22:52:51:0 44.78 -110.93 8.7 3.5 Wyoming Stations used: IW.DLMT IW.FLWY IW.MOOW TA.H17A US.BOZ US.HLID US.RLMT WY.YFT WY.YHB WY.YMR WY.YNR WY.YPP WY.YUF Filtering commands used: hp c 0.03 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 2.40e+21 dyne-cm Mw = 3.52 Z = 9 km Plane Strike Dip Rake NP1 228 80 -165 NP2 135 75 -10 Principal Axes: Axis Value Plunge Azimuth T 2.40e+21 4 1 N 0.00e+00 72 259 P -2.40e+21 18 92 Moment Tensor: (dyne-cm) Component Value Mxx 2.39e+21 Mxy 1.04e+20 Mxz 1.77e+20 Myy -2.18e+21 Myz -6.87e+20 Mzz -2.08e+20 ###### T ##### ########## ######### ############################ -############################# ---##########################----- -----######################--------- -------##################------------- ----------##############---------------- -----------###########------------------ -------------#######---------------------- ---------------###------------------- -- ----------------#-------------------- P -- ---------------###------------------- -- ------------#######--------------------- ----------###########------------------- --------###############--------------- -----###################------------ ---#######################-------- ###########################--- ############################ ###################### ############## Global CMT Convention Moment Tensor: R T P -2.08e+20 1.77e+20 6.87e+20 1.77e+20 2.39e+21 -1.04e+20 6.87e+20 -1.04e+20 -2.18e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20120905225251/index.html

Preferred Solution

      STK = 135
      DIP = 75
     RAKE = -10
       MW = 3.52
       HS = 9.0

The NDK file is 20120905225251.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and M_L by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for M_L is adjusted to remove a linear distance trend in residuals to give a regionally defined M_L. The defined M_L uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

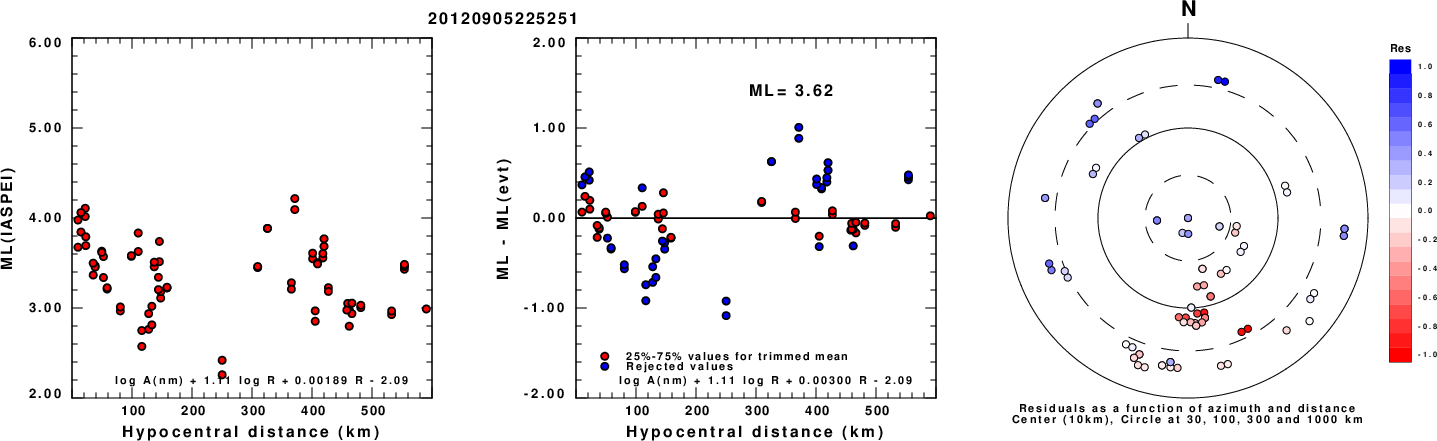

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

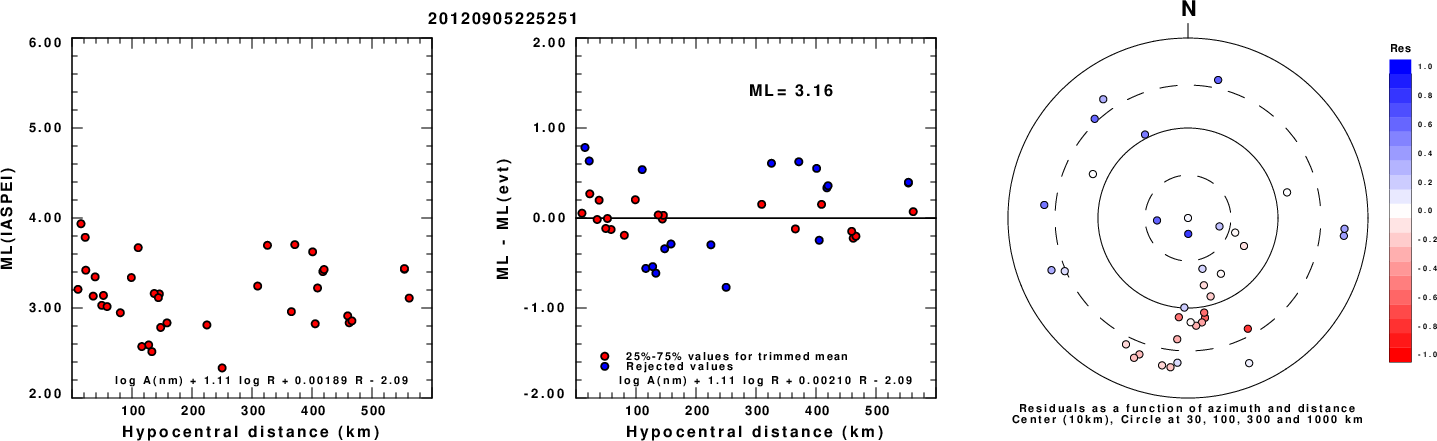

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

hp c 0.03 n 3
lp c 0.10 n 3

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    0.5   315    75   -25   3.01 0.2305
WVFGRD96    1.0   315    85   -10   3.05 0.2460
WVFGRD96    2.0   140    80     0   3.18 0.3326
WVFGRD96    3.0   135    65   -15   3.28 0.3775
WVFGRD96    4.0   135    70   -15   3.33 0.4109
WVFGRD96    5.0   135    70   -15   3.37 0.4412
WVFGRD96    6.0   135    75   -15   3.41 0.4632
WVFGRD96    7.0   135    75   -10   3.45 0.4804
WVFGRD96    8.0   135    75   -15   3.49 0.4995
WVFGRD96    9.0   135    75   -10   3.52 0.5027
WVFGRD96   10.0   135    80   -10   3.54 0.4994
WVFGRD96   11.0   320    80    20   3.57 0.4953
WVFGRD96   12.0   320    80    20   3.59 0.4975
WVFGRD96   13.0   320    80    20   3.60 0.4970
WVFGRD96   14.0   320    80    15   3.61 0.4943
WVFGRD96   15.0   320    80    15   3.63 0.4911
WVFGRD96   16.0   320    80    15   3.64 0.4864
WVFGRD96   17.0   320    80    10   3.64 0.4809
WVFGRD96   18.0   320    80    10   3.65 0.4747
WVFGRD96   19.0   320    80     5   3.65 0.4688
WVFGRD96   20.0   320    80     0   3.65 0.4617
WVFGRD96   21.0   315    75   -15   3.67 0.4564
WVFGRD96   22.0   145    75    20   3.62 0.4565
WVFGRD96   23.0   145    75    20   3.63 0.4559
WVFGRD96   24.0   145    75    25   3.64 0.4549
WVFGRD96   25.0   315    85   -20   3.69 0.4533
WVFGRD96   26.0   145    75    25   3.65 0.4538
WVFGRD96   27.0   145    75    30   3.66 0.4541
WVFGRD96   28.0   135    90    25   3.70 0.4536
WVFGRD96   29.0   140    80    30   3.68 0.4518

The best solution is

WVFGRD96    9.0   135    75   -10   3.52 0.5027

The mechanism corresponding to the best fit is

Figure 1. Waveform inversion focal mechanism

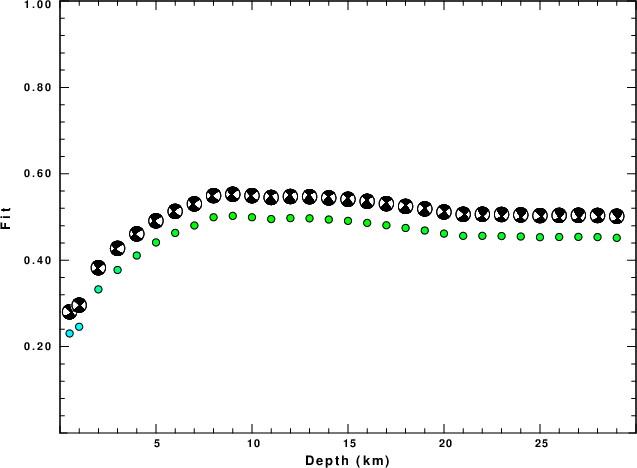

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

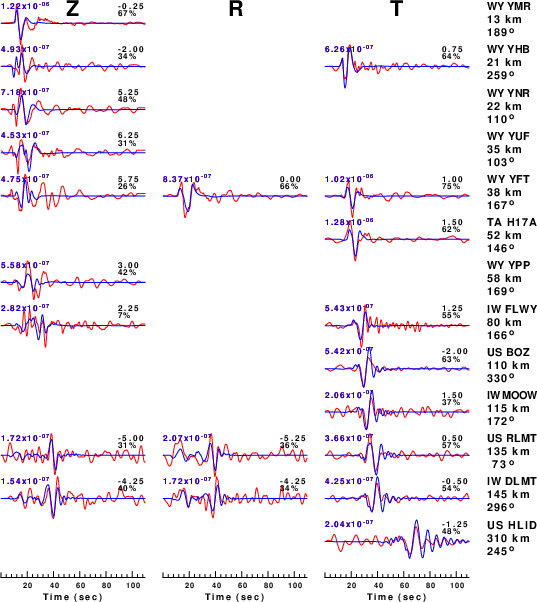

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

hp c 0.03 n 3
lp c 0.10 n 3

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

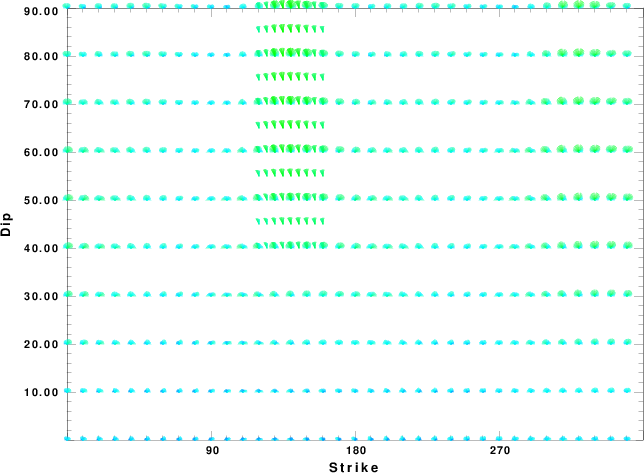

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

• The origin time and epicentral distance are incorrect
• The velocity model used for the inversion is incorrect
• The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

 Time_shift = A + B cos Azimuth + C Sin Azimuth

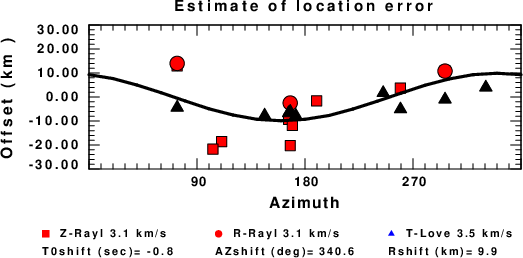

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
