Location

Location ANSS

The ANSS event ID is uu50443920 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/uu50443920/executive.

2012/08/07 05:07:15 44.753 -111.095 10.2 3.19 Montana

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2012/08/07 05:07:15:0  44.75 -111.10  10.2 3.2 Montana

 Stations used:
   IW.FLWY IW.FXWY IW.MOOW IW.REDW IW.SNOW TA.H17A US.BOZ
   US.LKWY WY.YFT WY.YMR WY.YPP WY.YUF

 Filtering commands used:
   hp c 0.02 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 6.03e+20 dyne-cm
  Mw = 3.12
  Z  = 9 km
  Plane   Strike  Dip  Rake
   NP1       67    74   -143
   NP2      325    55   -20
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   6.03e+20     12     192
    N   0.00e+00     50      87
    P  -6.03e+20     37     291

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     5.00e+20
       Mxy     2.50e+20
       Mxz    -2.26e+20
       Myy    -3.06e+20
       Myz     2.44e+20
       Mzz    -1.94e+20




                     ##############
                 ######################
              --------####################
             -------------#################
           ------------------################
          ---------------------###############
         ------------------------##############
        ------   -----------------############--
        ------ P -------------------########----
       -------   --------------------####--------
       -------------------------------#----------
       -----------------------------###----------
       -------------------------#######----------
        --------------------############--------
        --------------##################--------
         ################################------
          ###############################-----
           ##############################----
             ############################--
              #########   ##############--
                 ###### T #############
                     ##   #########



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.94e+20  -2.26e+20  -2.44e+20
 -2.26e+20   5.00e+20  -2.50e+20
 -2.44e+20  -2.50e+20  -3.06e+20


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20120807050715/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 325
      DIP = 55
     RAKE = -20
       MW = 3.12
       HS = 9.0

The NDK file is 20120807050715.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

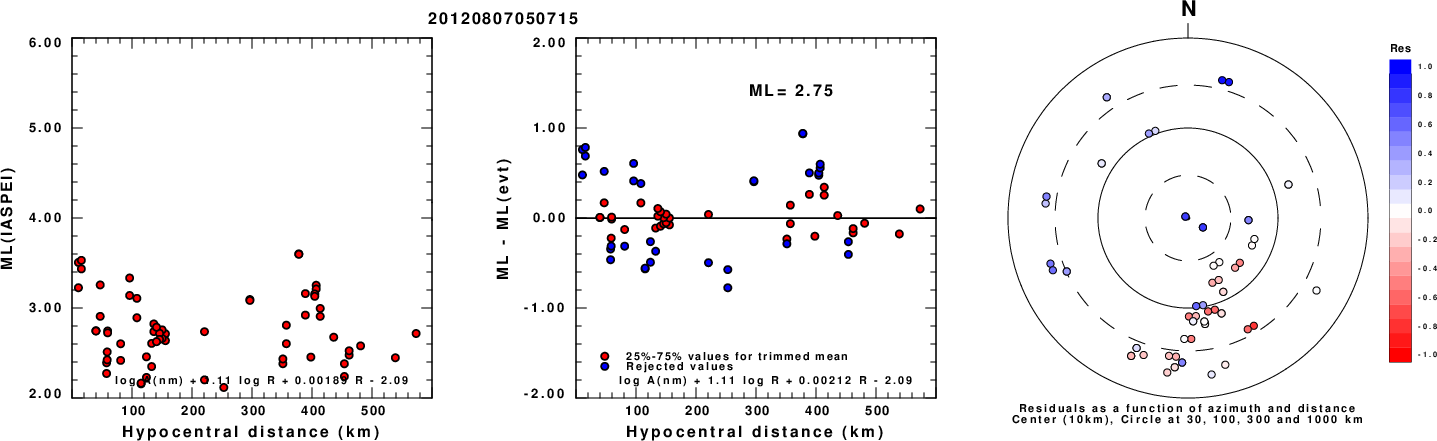

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

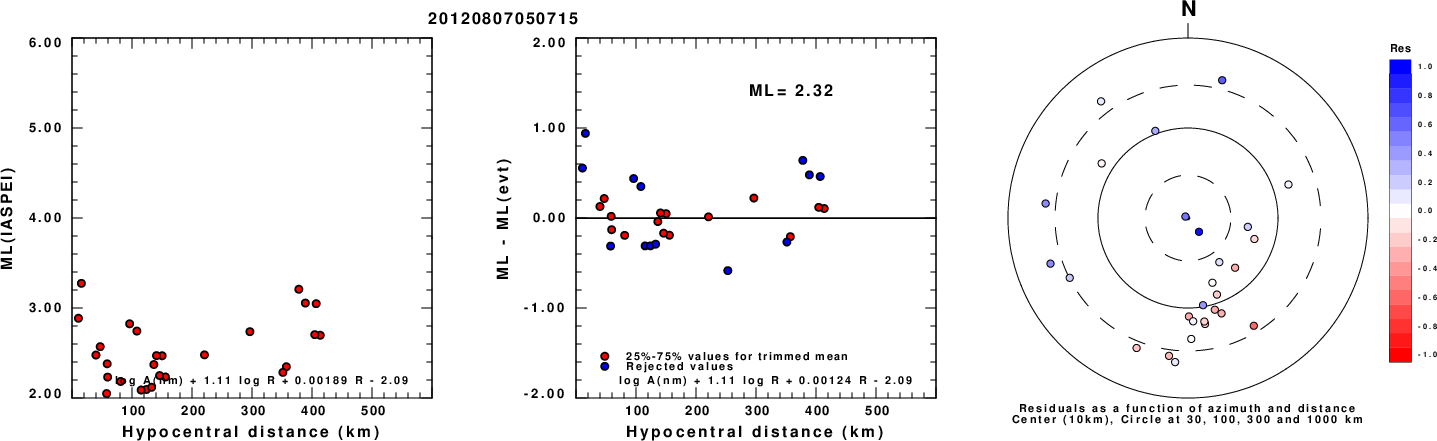

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

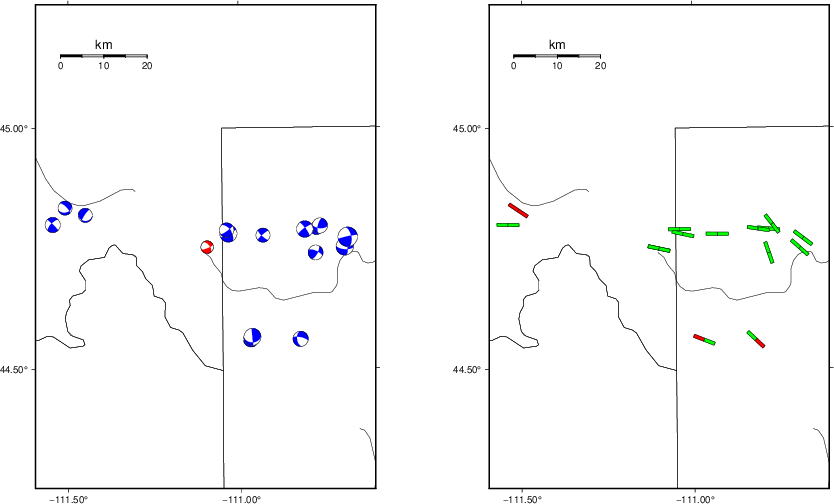

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

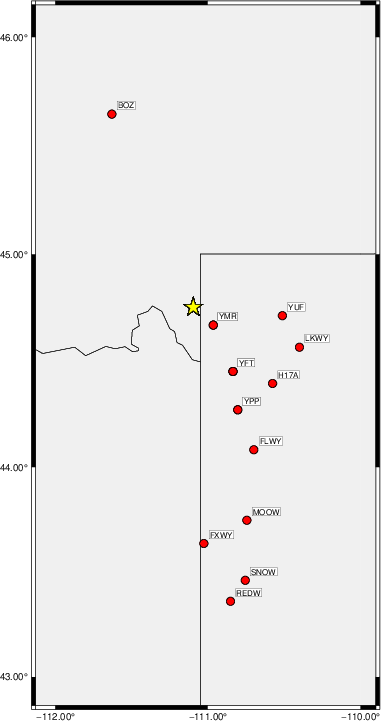

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

hp c 0.02 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    0.5    25    25    90   2.81 0.2566
WVFGRD96    1.0    10    30    65   2.80 0.2696
WVFGRD96    2.0     0    35    50   2.94 0.3838
WVFGRD96    3.0   335    35     5   2.98 0.4393
WVFGRD96    4.0   330    40    -5   2.99 0.4871
WVFGRD96    5.0   330    45   -10   3.00 0.5187
WVFGRD96    6.0   330    50   -10   3.02 0.5391
WVFGRD96    7.0   325    55   -20   3.05 0.5518
WVFGRD96    8.0   325    50   -15   3.11 0.5583
WVFGRD96    9.0   325    55   -20   3.12 0.5593
WVFGRD96   10.0   325    60   -25   3.14 0.5578
WVFGRD96   11.0   325    60   -25   3.16 0.5527
WVFGRD96   12.0   325    60   -25   3.18 0.5443
WVFGRD96   13.0   325    60   -25   3.19 0.5352
WVFGRD96   14.0   325    65   -35   3.22 0.5240
WVFGRD96   15.0   325    65   -40   3.24 0.5131
WVFGRD96   16.0   325    65   -40   3.25 0.5006
WVFGRD96   17.0   320    60   -40   3.26 0.4888
WVFGRD96   18.0   320    60   -45   3.28 0.4752
WVFGRD96   19.0   315    65   -65   3.34 0.4624
WVFGRD96   20.0   310    60   -65   3.34 0.4515
WVFGRD96   21.0   310    60   -70   3.36 0.4402
WVFGRD96   22.0   305    55   -70   3.36 0.4309
WVFGRD96   23.0   120    55   -70   3.41 0.4261
WVFGRD96   24.0   120    55   -70   3.42 0.4249
WVFGRD96   25.0   120    50   -70   3.42 0.4235
WVFGRD96   26.0   120    50   -70   3.43 0.4253
WVFGRD96   27.0   120    50   -70   3.43 0.4237
WVFGRD96   28.0   210    45   -60   3.44 0.4318
WVFGRD96   29.0   210    50   -65   3.44 0.4372

The best solution is

WVFGRD96    9.0   325    55   -20   3.12 0.5593

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

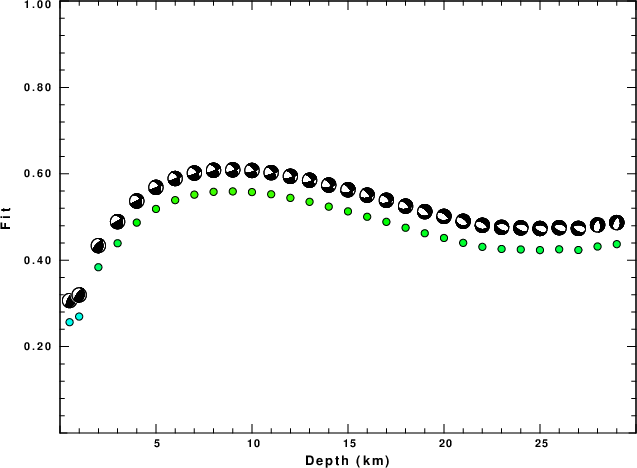

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

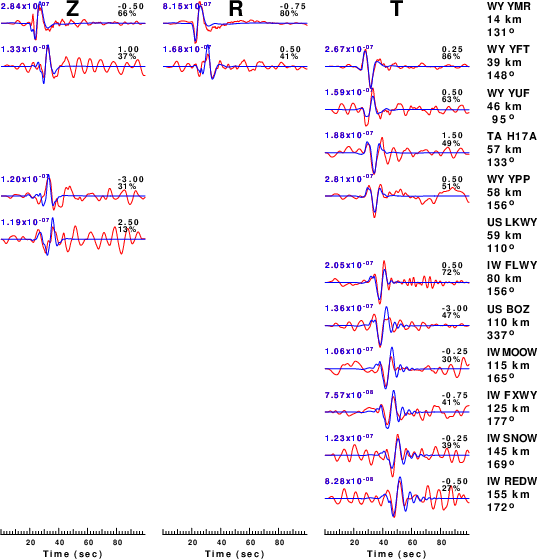

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

hp c 0.02 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

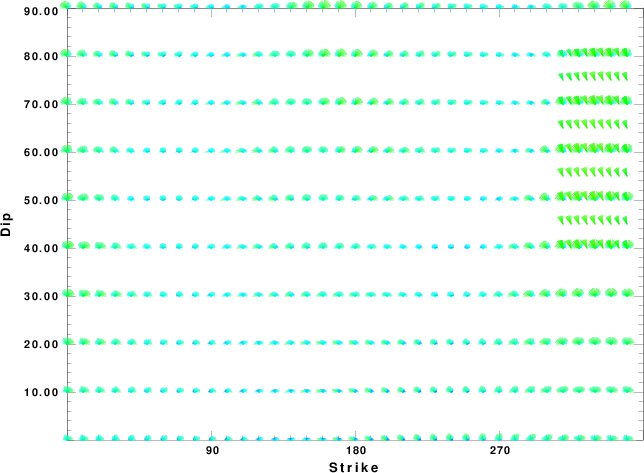

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

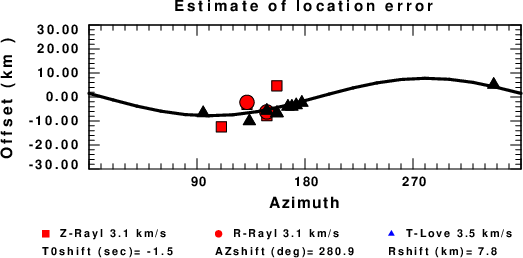

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Fri Apr 26 10:00:25 PM CDT 2024
