The ANSS event ID is uu50434775 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/uu50434775/executive.

2012/02/04 11:27:04 40.012 -111.507 12.7 3.64 Utah

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2012/02/04 11:27:04:0  40.01 -111.51  12.7 3.6 Utah

 Stations used:
   IW.FXWY IW.IMW IW.LOHW IW.MOOW IW.REDW IW.SNOW IW.TPAW
   US.DUG US.WUAZ UU.BRPU UU.CTU UU.CVRU UU.HVU UU.MPU UU.MTPU
   UU.NLU UU.PNSU UU.PSUT UU.RDMU UU.SPU UU.SRU UU.TMU WY.YFT
   WY.YPP WY.YUF

 Filtering commands used:
   hp c 0.02 n 3
   lp c 0.10 n 3
   br c 0.12 0.25 n 4 p 2

 Best Fitting Double Couple
  Mo = 4.17e+21 dyne-cm
  Mw = 3.68
  Z  = 14 km
  Plane   Strike  Dip  Rake
   NP1      175    85   175
   NP2      265    85     5
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   4.17e+21      7     130
    N   0.00e+00     83     310
    P  -4.17e+21      0     220

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -7.81e+20
       Mxy    -4.07e+21
       Mxz    -3.25e+20
       Myy     7.18e+20
       Myz     3.92e+20
       Mzz     6.31e+19




                     #####---------
                 #########-------------
              ############----------------
             #############-----------------
           ###############-------------------
          ################--------------------
         #################---------------------
        ##################----------------------
        ##################----------------------
       ###################-----------------------
       #################---######################
       ####----------------######################
       --------------------######################
        -------------------#####################
        -------------------#####################
         -------------------###################
          ------------------##############   #
           -----------------############## T
                -------------#############
              P -------------#############
                 ------------##########
                     ---------#####



 Global CMT Convention Moment Tensor:
      R          T          P
  6.31e+19  -3.25e+20  -3.92e+20
 -3.25e+20  -7.81e+20   4.07e+21
 -3.92e+20   4.07e+21   7.18e+20


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20120204112704/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 265
      DIP = 85
     RAKE = 5
       MW = 3.68
       HS = 14.0

The NDK file is 20120204112704.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
SLU
UUSS
 USGS/SLU Moment Tensor Solution
 ENS  2012/02/04 11:27:04:0  40.01 -111.51  12.7 3.6 Utah

 Stations used:
   IW.FXWY IW.IMW IW.LOHW IW.MOOW IW.REDW IW.SNOW IW.TPAW
   US.DUG US.WUAZ UU.BRPU UU.CTU UU.CVRU UU.HVU UU.MPU UU.MTPU
   UU.NLU UU.PNSU UU.PSUT UU.RDMU UU.SPU UU.SRU UU.TMU WY.YFT
   WY.YPP WY.YUF

 Filtering commands used:
   hp c 0.02 n 3
   lp c 0.10 n 3
   br c 0.12 0.25 n 4 p 2

 Best Fitting Double Couple
  Mo = 4.17e+21 dyne-cm
  Mw = 3.68
  Z  = 14 km
  Plane   Strike  Dip  Rake
   NP1      175    85   175
   NP2      265    85     5
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   4.17e+21      7     130
    N   0.00e+00     83     310
    P  -4.17e+21      0     220

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -7.81e+20
       Mxy    -4.07e+21
       Mxz    -3.25e+20
       Myy     7.18e+20
       Myz     3.92e+20
       Mzz     6.31e+19




                     #####---------
                 #########-------------
              ############----------------
             #############-----------------
           ###############-------------------
          ################--------------------
         #################---------------------
        ##################----------------------
        ##################----------------------
       ###################-----------------------
       #################---######################
       ####----------------######################
       --------------------######################
        -------------------#####################
        -------------------#####################
         -------------------###################
          ------------------##############   #
           -----------------############## T
                -------------#############
              P -------------#############
                 ------------##########
                     ---------#####



 Global CMT Convention Moment Tensor:
      R          T          P
  6.31e+19  -3.25e+20  -3.92e+20
 -3.25e+20  -7.81e+20   4.07e+21
 -3.92e+20   4.07e+21   7.18e+20


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20120204112704/index.html


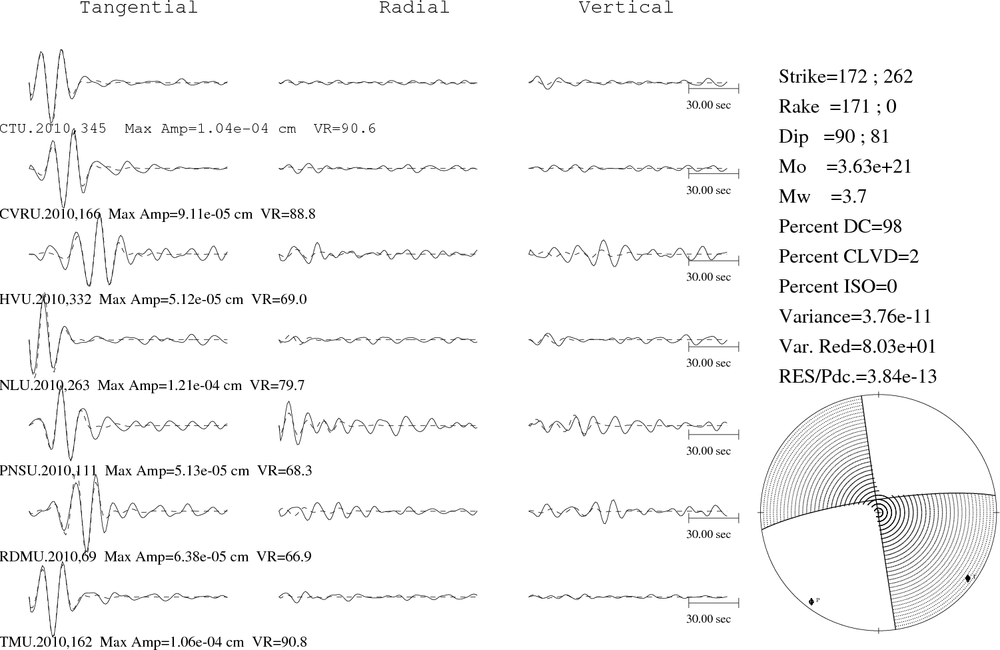

The WUS model was used for the inversion. The source depth is 9 km. The annotation for the station, e.g., TMU.2010.162, that the waveforms were filtered in the 10-20 second period range and that the epicenter-to-station azimuth was 162 degrees,

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

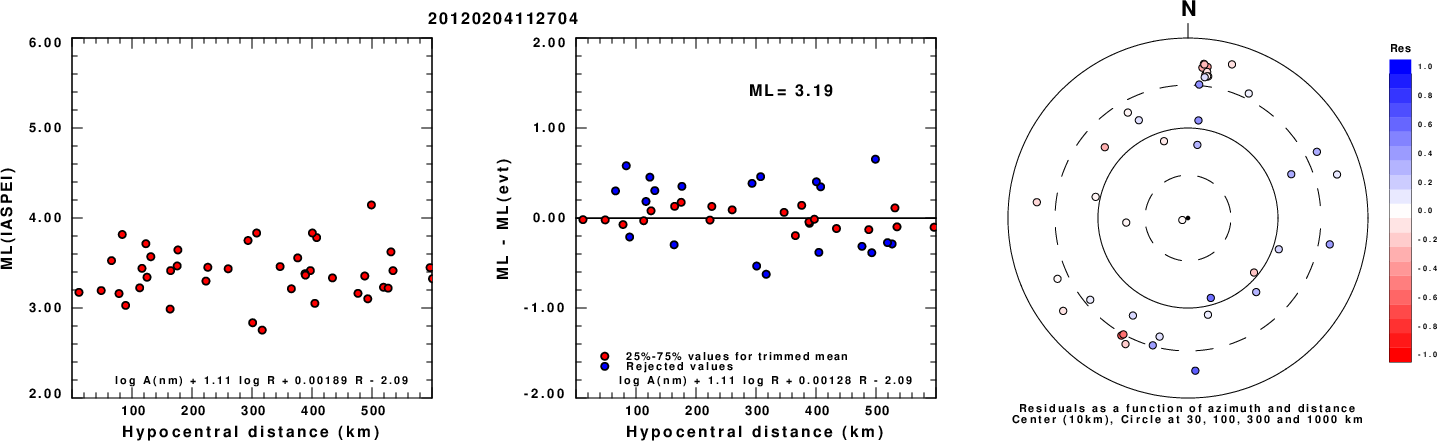

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

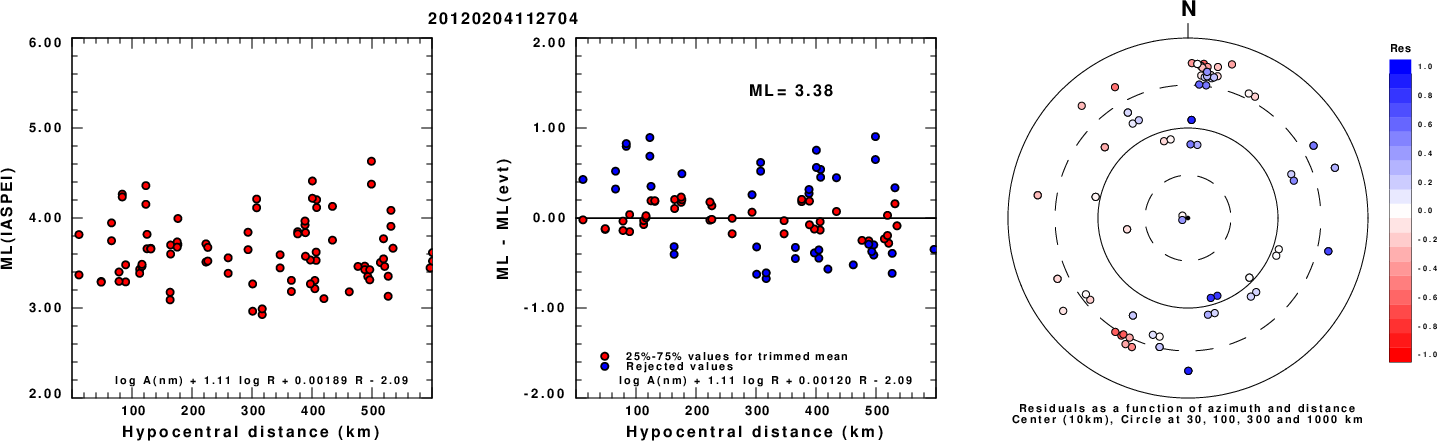

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

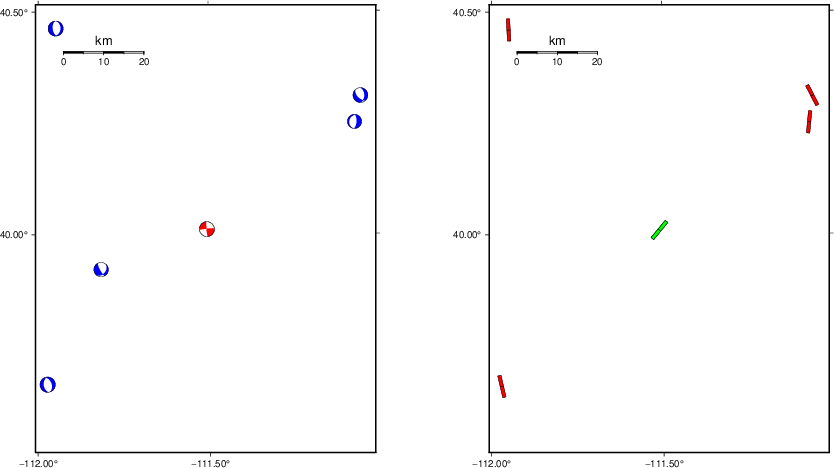

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

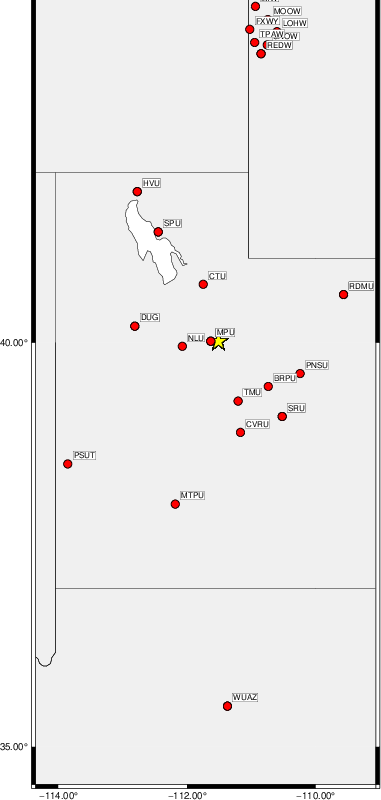

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

hp c 0.02 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    0.5    80    85   -15   3.05 0.2033
WVFGRD96    1.0    80    85    -5   3.11 0.2425
WVFGRD96    2.0    80    75     5   3.34 0.4576
WVFGRD96    3.0    80    75     5   3.41 0.5559
WVFGRD96    4.0    80    75     5   3.46 0.6192
WVFGRD96    5.0    80    75   -10   3.50 0.6592
WVFGRD96    6.0    80    80   -10   3.53 0.6837
WVFGRD96    7.0    80    80   -15   3.56 0.7019
WVFGRD96    8.0    80    85   -10   3.58 0.7146
WVFGRD96    9.0    80    85   -10   3.60 0.7255
WVFGRD96   10.0   260    80   -20   3.63 0.7325
WVFGRD96   11.0   265    80   -10   3.64 0.7386
WVFGRD96   12.0   265    80   -10   3.66 0.7422
WVFGRD96   13.0   265    85     5   3.66 0.7435
WVFGRD96   14.0   265    85     5   3.68 0.7435
WVFGRD96   15.0   265    80     0   3.69 0.7419
WVFGRD96   16.0   265    80     0   3.70 0.7392
WVFGRD96   17.0   265    80     0   3.71 0.7345
WVFGRD96   18.0   265    80     0   3.72 0.7290
WVFGRD96   19.0   265    80     0   3.73 0.7232
WVFGRD96   20.0   265    80     5   3.74 0.7166
WVFGRD96   21.0   265    80     5   3.75 0.7086
WVFGRD96   22.0   265    80     5   3.76 0.7006
WVFGRD96   23.0   265    80     5   3.76 0.6919
WVFGRD96   24.0   265    75     0   3.77 0.6820
WVFGRD96   25.0   265    75     0   3.78 0.6723
WVFGRD96   26.0   265    75     5   3.78 0.6626
WVFGRD96   27.0   265    75     5   3.79 0.6522
WVFGRD96   28.0   265    75     5   3.79 0.6413
WVFGRD96   29.0   265    75     5   3.80 0.6309

The best solution is

WVFGRD96   14.0   265    85     5   3.68 0.7435

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

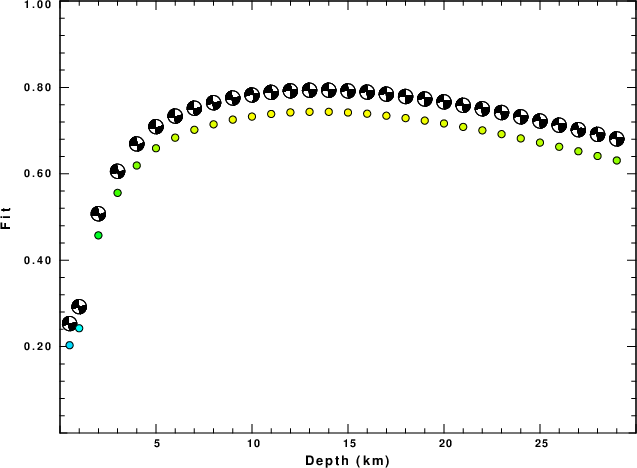

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

hp c 0.02 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2

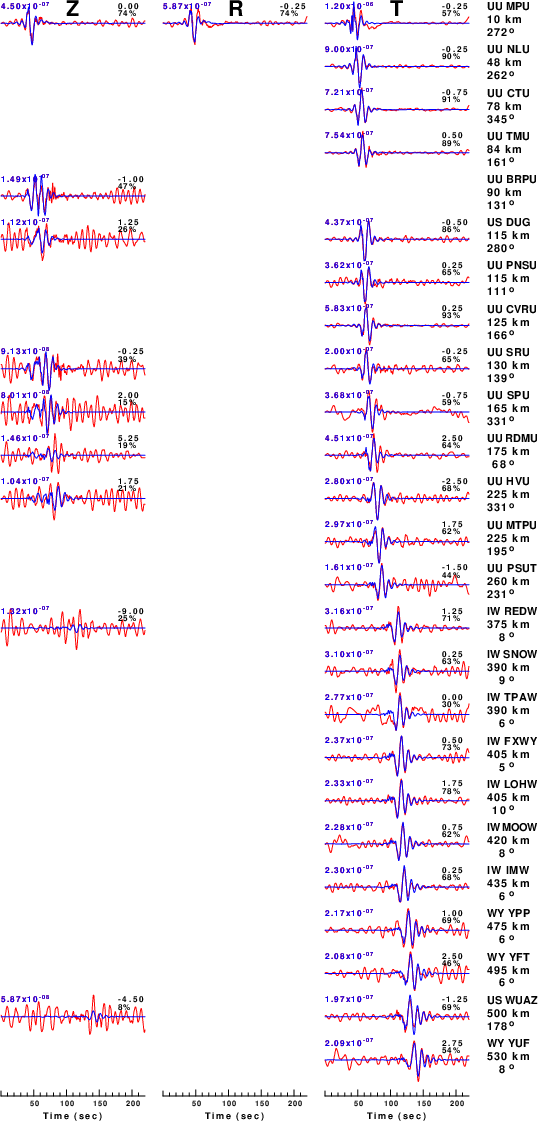

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

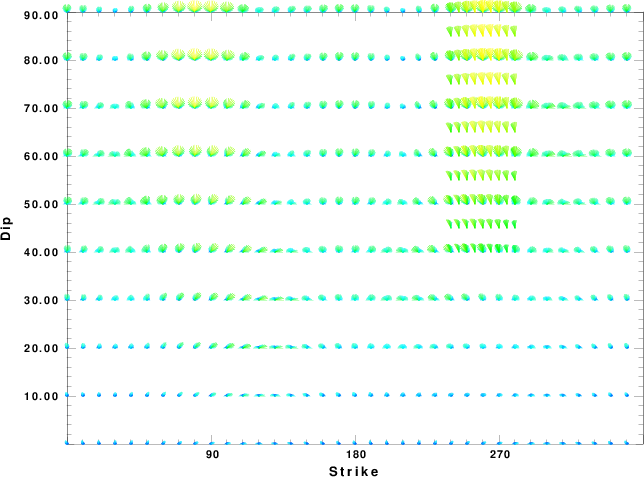

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

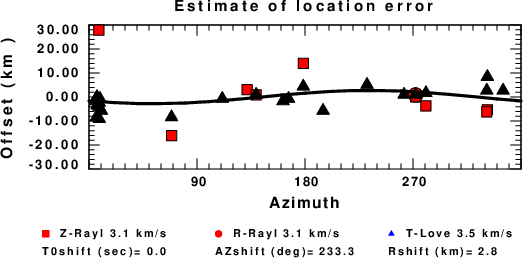

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Fri Apr 26 07:53:00 PM CDT 2024
