The ANSS event ID is ak0121altyj4 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0121altyj4/executive.

2012/01/28 18:11:38 63.586 -147.417 6.0 3.9 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2012/01/28 18:11:38:0  63.59 -147.42   6.0 3.9 Alaska

 Stations used:
   AK.BMR AK.BPAW AK.BRLK AK.CAST AK.CCB AK.COLD AK.DIV
   AK.EYAK AK.FID AK.FYU AK.GHO AK.KLU AK.KNK AK.MCK AK.MDM
   AK.MLY AK.PAX AK.RC01 AK.RND AK.SAW AK.SCM AK.SKN AK.SSN
   AK.SWD AK.TRF AT.MENT AT.PMR IU.COLA

 Filtering commands used:
   hp c 0.02 n 3
   lp c 0.06 n 3

 Best Fitting Double Couple
  Mo = 8.61e+21 dyne-cm
  Mw = 3.89
  Z  = 15 km
  Plane   Strike  Dip  Rake
   NP1       71    79   101
   NP2      205    15    45
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   8.61e+21     54     354
    N   0.00e+00     11     249
    P  -8.61e+21     34     152

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -1.75e+21
       Mxy     2.18e+21
       Mxz     7.56e+21
       Myy    -1.29e+21
       Myz    -2.29e+21
       Mzz     3.04e+21




                     ------#######-
                 -----#################
              ----########################
             ---###########################
           ----##############################
          ---#############   #################
         ---############## T ##################
        ---###############   ##################-
        ---##################################---
       ---###############################--------
       ---############################-----------
       ---#######################----------------
       ---##################---------------------
        --############--------------------------
        --###-----------------------------------
         ##------------------------------------
          ##---------------------   ----------
           ##-------------------- P ---------
             #-------------------   -------
              #---------------------------
                 ----------------------
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
  3.04e+21   7.56e+21   2.29e+21
  7.56e+21  -1.75e+21  -2.18e+21
  2.29e+21  -2.18e+21  -1.29e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20120128181138/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 205
      DIP = 15
     RAKE = 45
       MW = 3.89
       HS = 15.0

The NDK file is 20120128181138.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

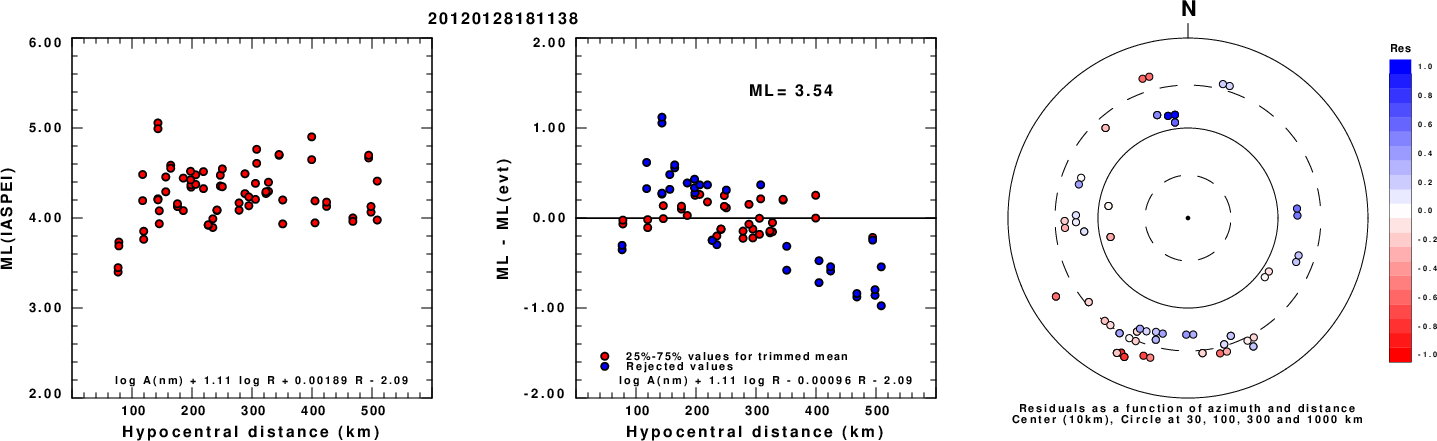

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

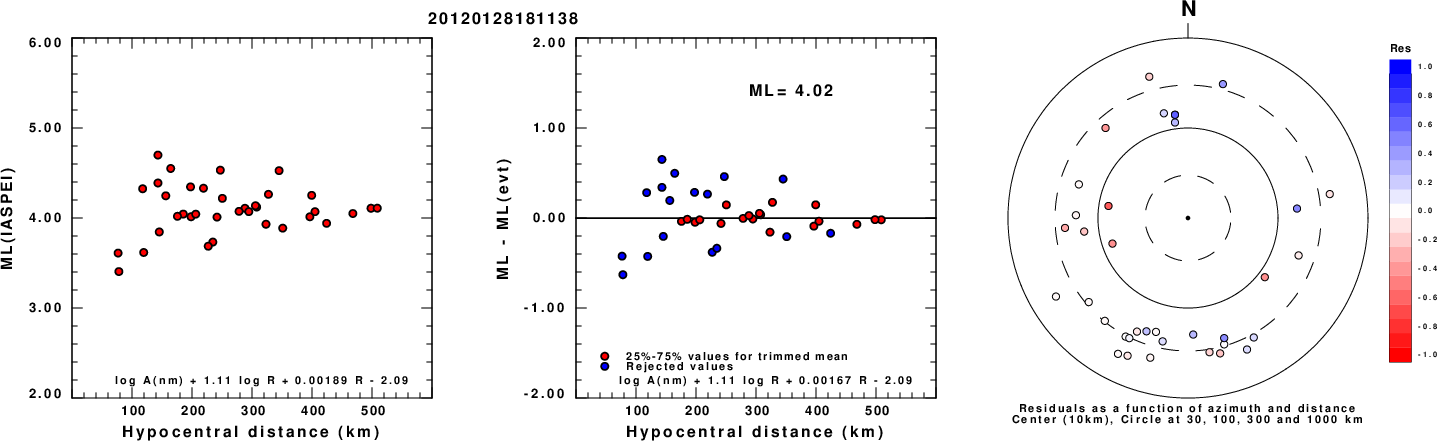

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

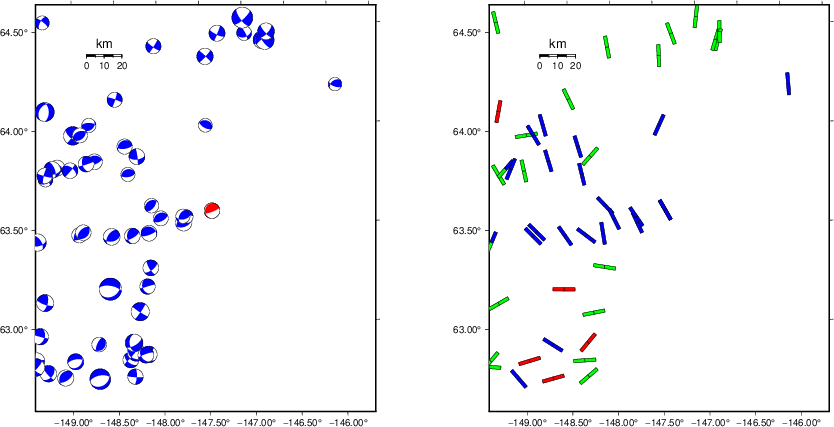

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

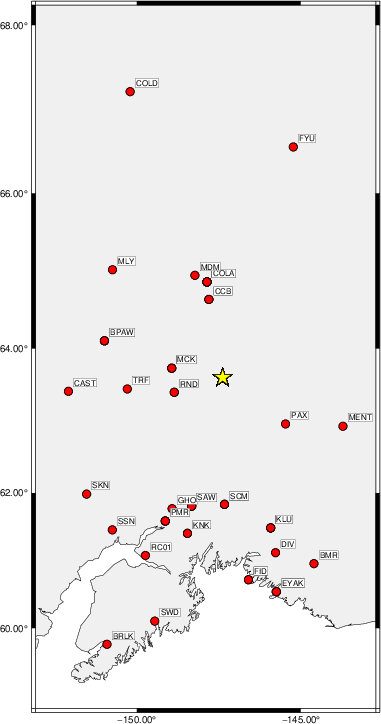

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

hp c 0.02 n 3
lp c 0.06 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    0.5   270    45   -85   3.61 0.3445
WVFGRD96    1.0    85    45   -90   3.66 0.3383
WVFGRD96    2.0   270    45   -85   3.75 0.3829
WVFGRD96    3.0   270    40   -85   3.80 0.3279
WVFGRD96    4.0   305    45   -30   3.79 0.2651
WVFGRD96    5.0   135    10   -30   3.82 0.3195
WVFGRD96    6.0   135    10   -30   3.81 0.3660
WVFGRD96    7.0   140    15   -25   3.81 0.3989
WVFGRD96    8.0   140    10   -25   3.88 0.4210
WVFGRD96    9.0   145    10   -20   3.88 0.4466
WVFGRD96   10.0   155    10   -10   3.88 0.4645
WVFGRD96   11.0   165    10     5   3.88 0.4777
WVFGRD96   12.0   190    10    30   3.88 0.4875
WVFGRD96   13.0   185    15    25   3.88 0.4942
WVFGRD96   14.0   190    15    30   3.89 0.4985
WVFGRD96   15.0   205    15    45   3.89 0.5006
WVFGRD96   16.0   205    15    45   3.90 0.5003
WVFGRD96   17.0   205    15    45   3.90 0.4980
WVFGRD96   18.0   205    15    45   3.91 0.4938
WVFGRD96   19.0   210    15    45   3.91 0.4887
WVFGRD96   20.0   210    15    45   3.92 0.4826
WVFGRD96   21.0   215    15    50   3.93 0.4749
WVFGRD96   22.0   210    20    45   3.94 0.4668
WVFGRD96   23.0   215    20    50   3.94 0.4581
WVFGRD96   24.0    75    70    80   3.96 0.4498
WVFGRD96   25.0    75    70    80   3.96 0.4406
WVFGRD96   26.0    75    70    75   3.97 0.4309
WVFGRD96   27.0    75    70    75   3.97 0.4208
WVFGRD96   28.0    75    65    75   3.98 0.4105
WVFGRD96   29.0    75    65    75   3.98 0.4001

The best solution is

WVFGRD96   15.0   205    15    45   3.89 0.5006

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

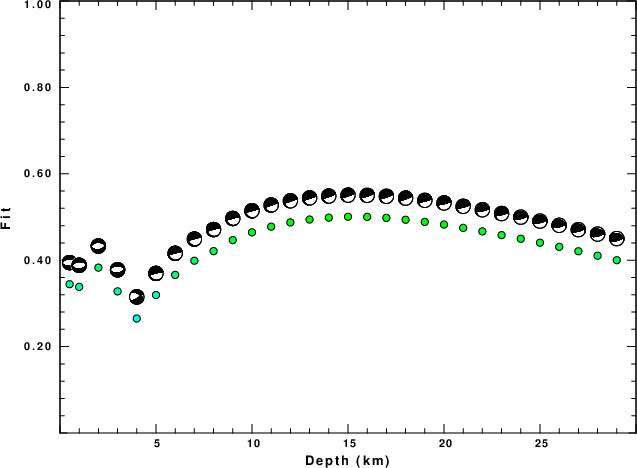

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

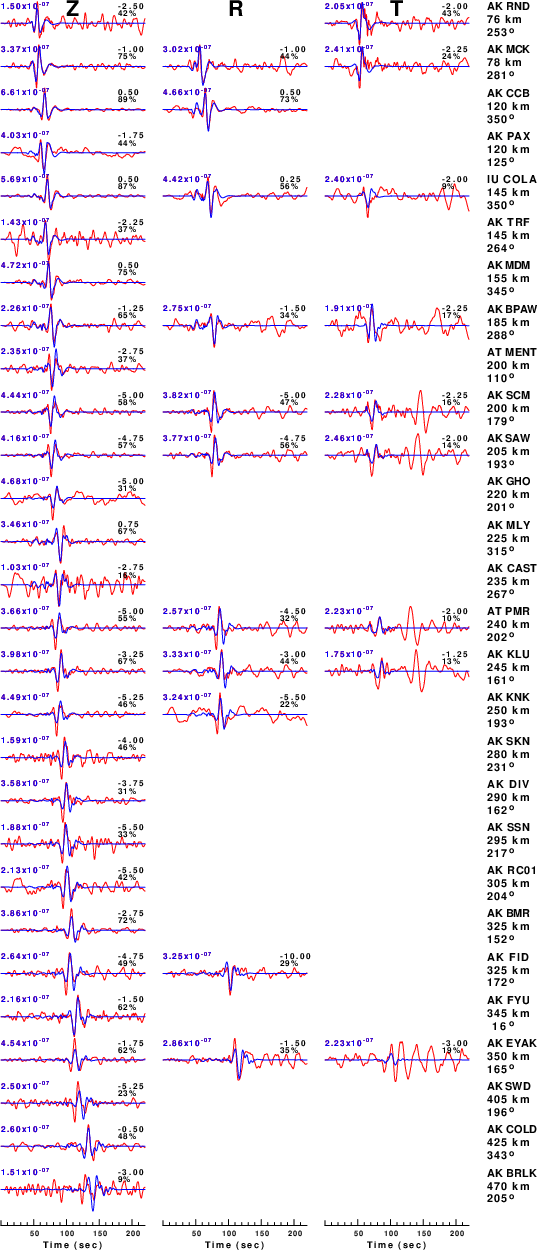

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

hp c 0.02 n 3
lp c 0.06 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

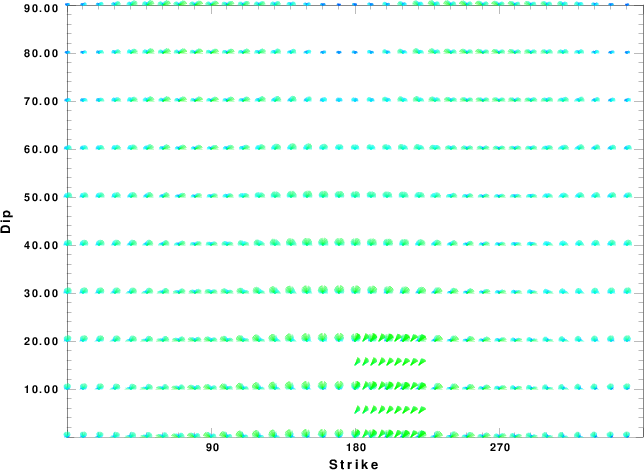

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

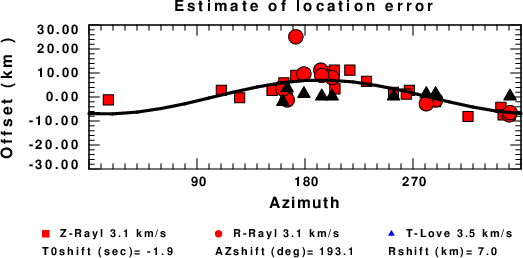

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
