The ANSS event ID is usp000jakf and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/usp000jakf/executive.

2011/11/08 19:05:17 35.526 -96.770 3.0 3.5 Oklahoma

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2011/11/08 19:05:17:0  35.53  -96.77   3.0 3.5 Oklahoma

 Stations used:
   TA.S38A TA.T35A TA.T36A TA.T39A TA.TUL1 TA.U35A TA.U40A
   TA.V35A TA.V36A TA.V37A TA.V40A TA.W35A TA.W40A TA.WHTX
   TA.X35A TA.X36A TA.X37A TA.X38A TA.Y35A TA.Y36A TA.Y37A
   TA.Y40A US.KSU1 US.WMOK

 Filtering commands used:
   hp c 0.02 n 3
   lp c 0.10 n 3
   br c 0.12 0.25 n 4 p 2

 Best Fitting Double Couple
  Mo = 2.02e+21 dyne-cm
  Mw = 3.47
  Z  = 8 km
  Plane   Strike  Dip  Rake
   NP1      135    80    25
   NP2       40    65   169
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   2.02e+21     25       0
    N   0.00e+00     63     155
    P  -2.02e+21     10     266

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     1.66e+21
       Mxy    -1.46e+20
       Mxz     7.91e+20
       Myy    -1.95e+21
       Myz     3.42e+20
       Mzz     2.92e+20




                     ##############
                 ##########   #########
              ############# T ###########-
             -#############   ###########--
           ----##########################----
          ------#########################-----
         --------#######################-------
        -----------####################---------
        ------------###################---------
       ---------------################-----------
       -   -------------############-------------
       - P --------------##########--------------
       -   ----------------#######---------------
        ---------------------###----------------
        ----------------------------------------
         --------------------####--------------
          ----------------##########----------
           -------------##############-------
             --------####################--
              -###########################
                 ######################
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
  2.92e+20   7.91e+20  -3.42e+20
  7.91e+20   1.66e+21   1.46e+20
 -3.42e+20   1.46e+20  -1.95e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20111108190517/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 135
      DIP = 80
     RAKE = 25
       MW = 3.47
       HS = 8.0

The NDK file is 20111108190517.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

mLg Magnitude

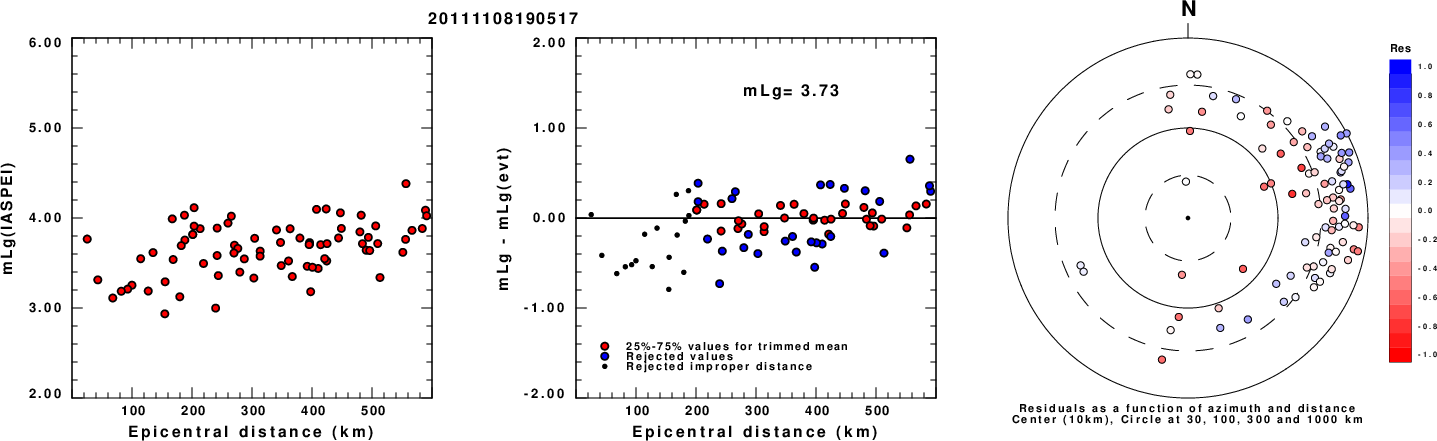

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

ML Magnitude

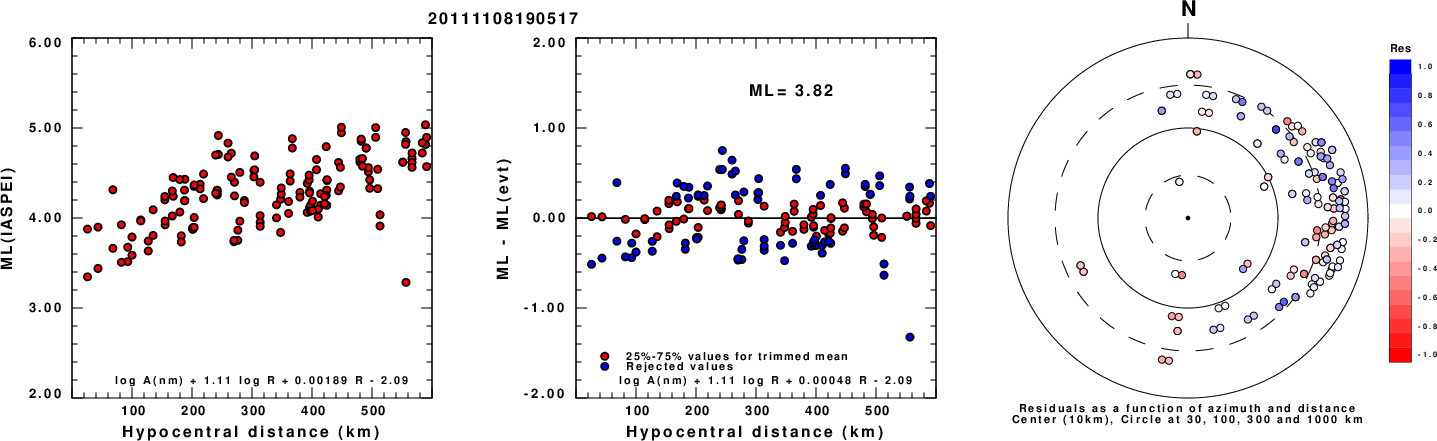

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

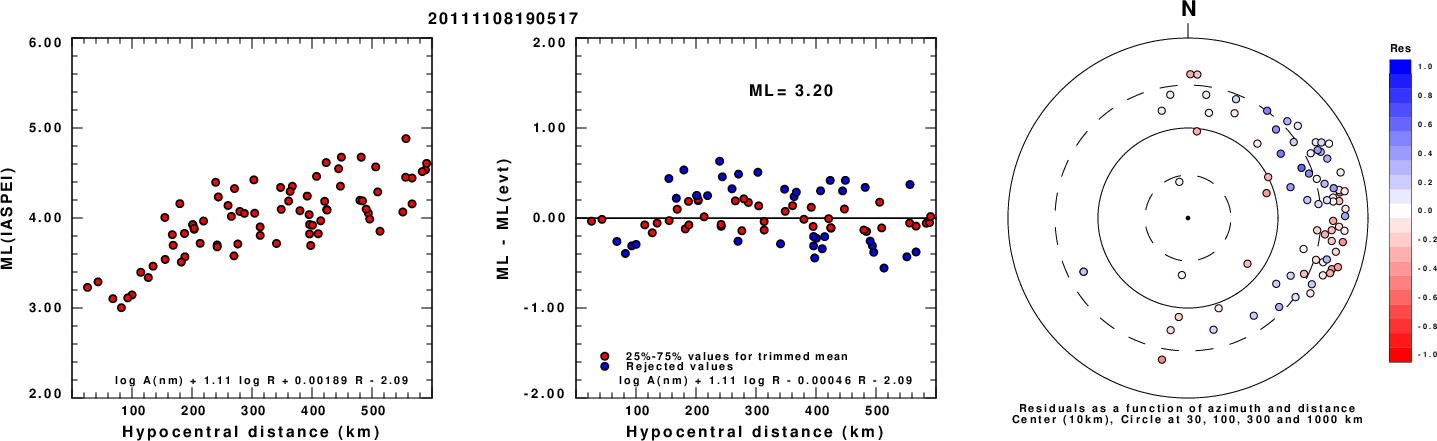

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

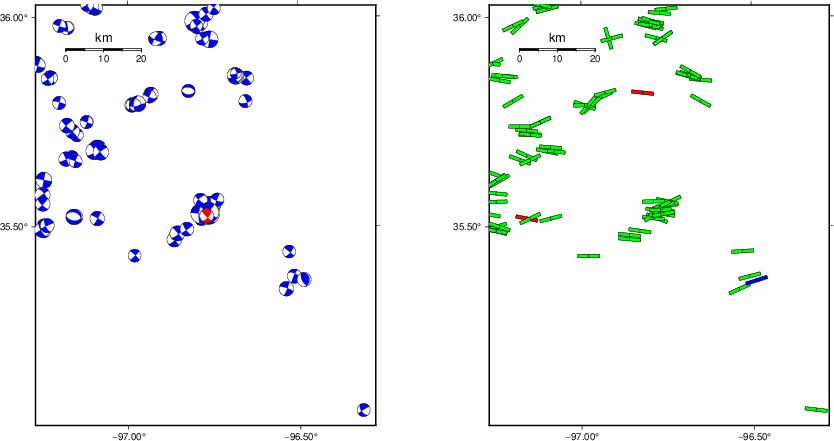

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

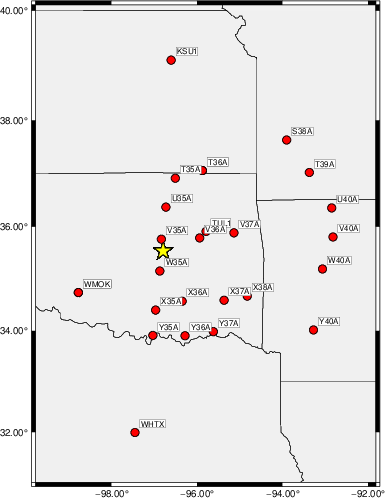

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

hp c 0.02 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    0.5   305    70   -20   3.09 0.2761
WVFGRD96    1.0   130    90     0   3.12 0.3068
WVFGRD96    2.0   130    80   -10   3.27 0.4587
WVFGRD96    3.0   135    90    -5   3.31 0.5119
WVFGRD96    4.0   315    85     5   3.35 0.5331
WVFGRD96    5.0   130    90   -15   3.41 0.5372
WVFGRD96    6.0   315    75    10   3.42 0.5349
WVFGRD96    7.0   135    80    20   3.44 0.5372
WVFGRD96    8.0   135    80    25   3.47 0.5393
WVFGRD96    9.0   135    80    25   3.49 0.5377
WVFGRD96   10.0   135    80    25   3.50 0.5352
WVFGRD96   11.0   140    70    25   3.50 0.5322
WVFGRD96   12.0   140    70    25   3.52 0.5281
WVFGRD96   13.0   140    70    25   3.53 0.5230
WVFGRD96   14.0   140    70    25   3.54 0.5167
WVFGRD96   15.0   140    65    25   3.56 0.5096
WVFGRD96   16.0   140    65    25   3.57 0.5018
WVFGRD96   17.0   135    75    20   3.58 0.4947
WVFGRD96   18.0   135    75    20   3.59 0.4883
WVFGRD96   19.0   135    75    20   3.60 0.4811
WVFGRD96   20.0   135    75    20   3.61 0.4736
WVFGRD96   21.0   135    75    20   3.62 0.4654
WVFGRD96   22.0   135    80    25   3.63 0.4568
WVFGRD96   23.0   135    80    25   3.64 0.4480
WVFGRD96   24.0   135    80    25   3.65 0.4384
WVFGRD96   25.0   135    80    25   3.66 0.4284
WVFGRD96   26.0   135    85    30   3.66 0.4187
WVFGRD96   27.0   135    85    30   3.67 0.4081
WVFGRD96   28.0   135    85    30   3.67 0.3974
WVFGRD96   29.0   135    85    35   3.68 0.3868

The best solution is

WVFGRD96    8.0   135    80    25   3.47 0.5393

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

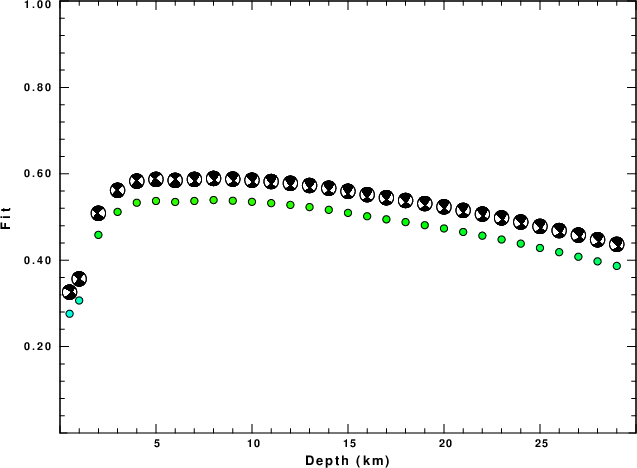

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

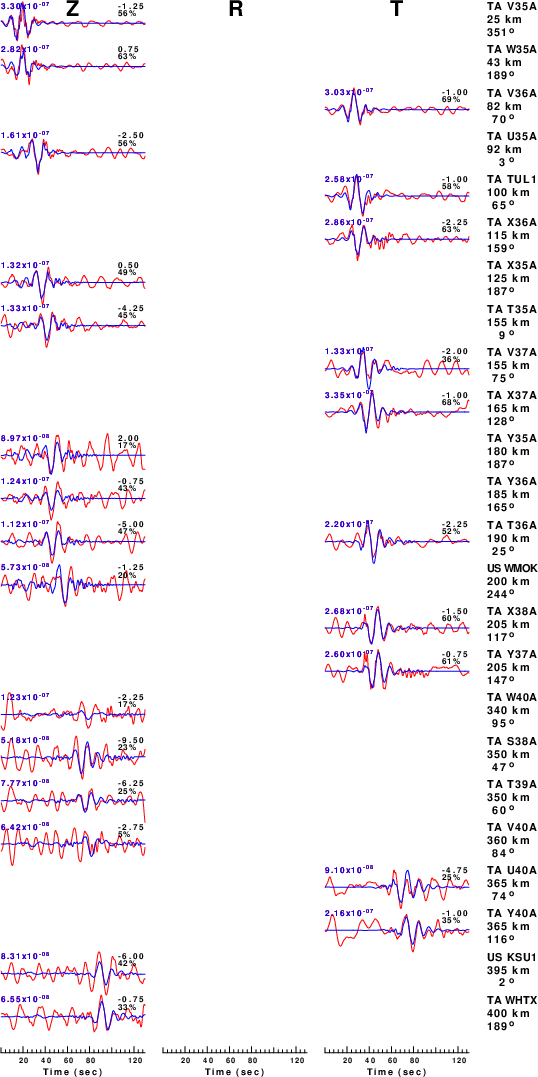

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

hp c 0.02 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

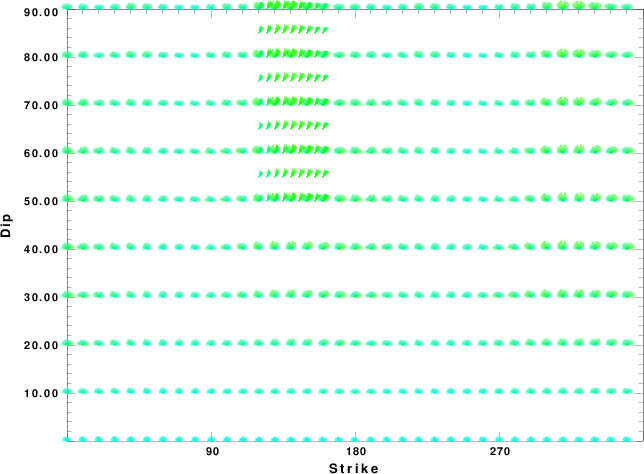

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

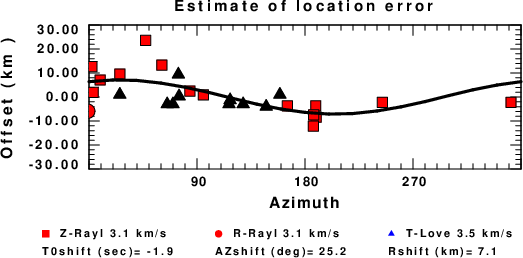

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
