Location

Location ANSS

The ANSS event ID is nn00345424 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/nn00345424/executive.

2011/08/17 21:04:39 38.444 -118.726 3.7 4 Nevada

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2011/08/17 21:04:39:0  38.44 -118.73   3.7 4.0 Nevada

 Stations used:
   AR.W13A BK.CMB BK.HATC BK.HELL BK.HUMO BK.JCC BK.MOD BK.ORV
   BK.SAO BK.WDC CI.PASC II.PFO LB.BMN LB.DAC NN.KVN NN.PAH
   NN.PNT NN.RUB NN.SHP NN.WAK NN.YER US.DUG US.TPNV

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.06 n 3

 Best Fitting Double Couple
  Mo = 4.03e+21 dyne-cm
  Mw = 3.67
  Z  = 5 km
  Plane   Strike  Dip  Rake
   NP1      245    90     5
   NP2      155    85   180
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   4.03e+21      4     110
    N   0.00e+00     85     245
    P  -4.03e+21      4      20

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -3.07e+21
       Mxy    -2.58e+21
       Mxz    -3.18e+20
       Myy     3.07e+21
       Myz     1.48e+20
       Mzz    -3.07e+13




                     ------------ P
                 ###-------------   ---
              ######----------------------
             ########----------------------
           ##########------------------------
          ############------------------------
         ##############-----------------------#
        ################------------------######
        #################-------------##########
       ##################---------###############
       ###################----###################
       ###################-######################
       ###############------#####################
        ##########-----------################
        ######----------------############### T
         #---------------------##############
          ----------------------##############
           ----------------------############
             ---------------------#########
              ---------------------#######
                 -------------------###
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
 -3.07e+13  -3.18e+20  -1.48e+20
 -3.18e+20  -3.07e+21   2.58e+21
 -1.48e+20   2.58e+21   3.07e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20110817210439/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 245
      DIP = 90
     RAKE = 5
       MW = 3.67
       HS = 5.0

The NDK file is 20110817210439.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
SLU
UNR
 USGS/SLU Moment Tensor Solution
 ENS  2011/08/17 21:04:39:0  38.44 -118.73   3.7 4.0 Nevada

 Stations used:
   AR.W13A BK.CMB BK.HATC BK.HELL BK.HUMO BK.JCC BK.MOD BK.ORV
   BK.SAO BK.WDC CI.PASC II.PFO LB.BMN LB.DAC NN.KVN NN.PAH
   NN.PNT NN.RUB NN.SHP NN.WAK NN.YER US.DUG US.TPNV

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.06 n 3

 Best Fitting Double Couple
  Mo = 4.03e+21 dyne-cm
  Mw = 3.67
  Z  = 5 km
  Plane   Strike  Dip  Rake
   NP1      245    90     5
   NP2      155    85   180
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   4.03e+21      4     110
    N   0.00e+00     85     245
    P  -4.03e+21      4      20

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -3.07e+21
       Mxy    -2.58e+21
       Mxz    -3.18e+20
       Myy     3.07e+21
       Myz     1.48e+20
       Mzz    -3.07e+13




                     ------------ P
                 ###-------------   ---
              ######----------------------
             ########----------------------
           ##########------------------------
          ############------------------------
         ##############-----------------------#
        ################------------------######
        #################-------------##########
       ##################---------###############
       ###################----###################
       ###################-######################
       ###############------#####################
        ##########-----------################
        ######----------------############### T
         #---------------------##############
          ----------------------##############
           ----------------------############
             ---------------------#########
              ---------------------#######
                 -------------------###
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
 -3.07e+13  -3.18e+20  -1.48e+20
 -3.18e+20  -3.07e+21   2.58e+21
 -1.48e+20   2.58e+21   3.07e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20110817210439/index.html


REVIEWED BY NSL STAFF

Event ID:345424
Origin ID:825668
Algorithm: Ichinose (2003) Long Period, Regional-Distance Waves
Seismic Moment Tensor Solution

2011/08/17 (229) 21:04:39.00 38.4453 -118.7206 825699
	Depth =   4.0 (km)
	Mw    =  3.70
	Mo    =  4.34x10^21 (dyne x cm)

	Percent Double Couple =  94 %
	Percent CLVD          =   6 %
	no ISO calculated
	Epsilon=-0.03
	 Percent Variance Reduction =  61.91 %
	 Total Fit                  =  8.45
	Major Double Couple
		            strike dip   rake
		Nodal Plane 1: 335  78 -174
		Nodal Plane 2: 244  84  -12

	DEVIATORIC MOMENT TENSOR

	Moment Tensor Elements: Spherical Coordinates
		Mrr= -0.32 Mtt= -3.09 Mff=  3.41
		Mrt=  0.96 Mrf=  0.00 Mtf=  2.70 EXP=21


	Moment Tensor Elements: Cartesian Coordinates
		-3.09 -2.70  0.96
		-2.70  3.41 -0.00
		 0.96 -0.00 -0.32

	Eigenvalues:
		T-axis eigenvalue=  4.41
		N-axis eigenvalue= -0.14
		P-axis eigenvalue= -4.27

	Eigenvalues and eigenvectors of the Major Double Couple:
		T-axis ev= 4.41 trend=290 plunge=4
		N-axis ev= 0.00 trend=37 plunge=76
		P-axis ev=-4.41 trend=199 plunge=13

	Maximum Azmuithal Gap=148 Distance to Nearest Station= 62.9 (km)

	Number of Stations (D=Displacement/V=Velocity) Used=7 (defining only)

	 WAK.NN.D YER.NN.D KVN.NN.D MLAC.CI.D
	 PNT.NN.D RUB.NN.D PAH.NN.D


              -----------------
          #####--------------------
        #########--------------------
      ############---------------------
     ###############--------------------
    #################--------------------
  -###################-------------------##
T #####################------------########
  ######################------##############
 ########################-##################
 ############################################
 ######################--####################
 ##################-------###################
 ###############----------###################
 ############--------------#################
 ########-------------------################
  ####----------------------###############
   #-------------------------##############
   ---------------------------############
     -------------------------###########
      ------------------------#########
        -----------------------######
          ---   ---------------####
              P ---------------



All Stations defining and nondefining:
Station.Net 	Def 	Distance 	Azi    	Bazi  	lo-f 	hi-f vmodel
            	    	(km)     	(deg)  	(deg) 	(Hz) 	(Hz)
WAK.NN (D) 	Y 	    62.9  	276  	 95  	0.020 	0.080 WAK.NN.wus.glib
YER.NN (D) 	Y 	    75.4  	324  	143  	0.020 	0.080 YER.NN.wus.glib
KVN.NN (D) 	Y 	    86.1  	 38  	219  	0.020 	0.080 KVN.NN.wus.glib
MLAC.CI (D) 	Y 	    91.2  	187  	  7  	0.020 	0.080 MLAC.CI.wus.glib
PNT.NN (D) 	Y 	   104.6  	314  	133  	0.020 	0.080 PNT.NN.wus.glib
RUB.NN (D) 	Y 	   140.9  	299  	118  	0.020 	0.080 RUB.NN.wus.glib
PAH.NN (D) 	Y 	   151.9  	338  	157  	0.020 	0.080 PAH.NN.wus.glib

 (V)-velocity (D)-Displacement

Author: www-data
Date: 2011/08/17 21:36:42

mtinv Version 2.1_DEVEL OCT2008




Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

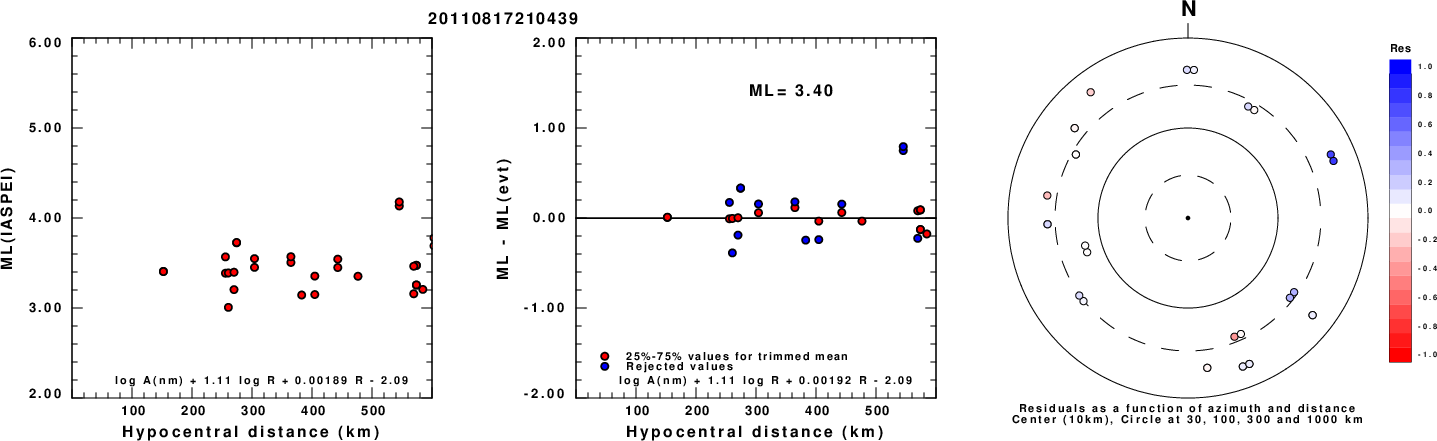

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

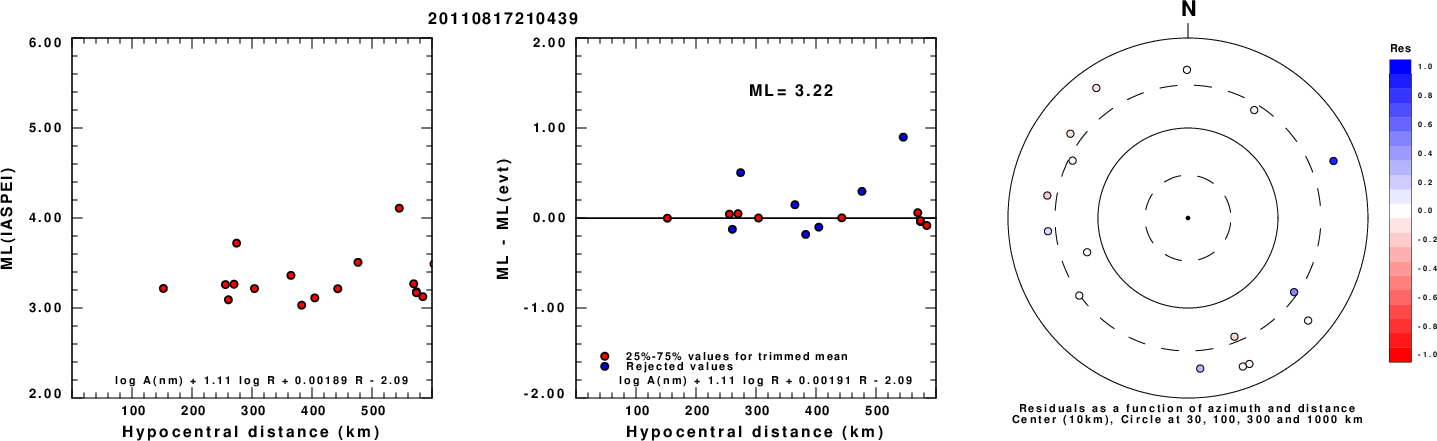

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

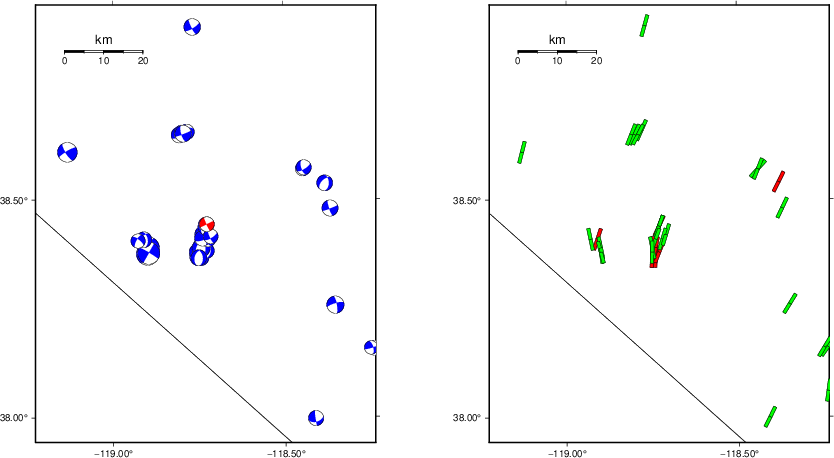

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

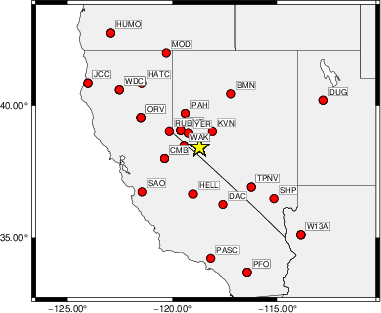

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.06 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    0.5   245    80    10   3.43 0.4858
WVFGRD96    1.0   245    75     5   3.47 0.5312
WVFGRD96    2.0    65    90   -15   3.56 0.6507
WVFGRD96    3.0    65    90   -10   3.61 0.7174
WVFGRD96    4.0    65    90    -5   3.64 0.7484
WVFGRD96    5.0   245    90     5   3.67 0.7559
WVFGRD96    6.0   245    90     5   3.69 0.7489
WVFGRD96    7.0    65    90    -5   3.71 0.7353
WVFGRD96    8.0    65    80    15   3.74 0.7181
WVFGRD96    9.0    70    70    20   3.75 0.7050
WVFGRD96   10.0    70    70    15   3.76 0.6971
WVFGRD96   11.0    70    65    15   3.78 0.6916
WVFGRD96   12.0    70    70    15   3.78 0.6849
WVFGRD96   13.0    70    70    15   3.79 0.6778
WVFGRD96   14.0    70    70    15   3.80 0.6698
WVFGRD96   15.0    70    65    15   3.81 0.6613
WVFGRD96   16.0    70    65    15   3.82 0.6524
WVFGRD96   17.0    70    70    15   3.82 0.6431
WVFGRD96   18.0    70    65    15   3.83 0.6341
WVFGRD96   19.0    70    65    15   3.84 0.6246
WVFGRD96   20.0    70    65    15   3.84 0.6161
WVFGRD96   21.0    70    65    15   3.85 0.6085
WVFGRD96   22.0    70    65    15   3.86 0.5991
WVFGRD96   23.0    70    65    15   3.87 0.5901
WVFGRD96   24.0    70    65    15   3.87 0.5806
WVFGRD96   25.0    70    65    15   3.88 0.5729
WVFGRD96   26.0    70    65    15   3.89 0.5662
WVFGRD96   27.0    70    65    15   3.90 0.5598
WVFGRD96   28.0    70    65    15   3.90 0.5530
WVFGRD96   29.0    70    65    15   3.91 0.5460

The best solution is

WVFGRD96    5.0   245    90     5   3.67 0.7559

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

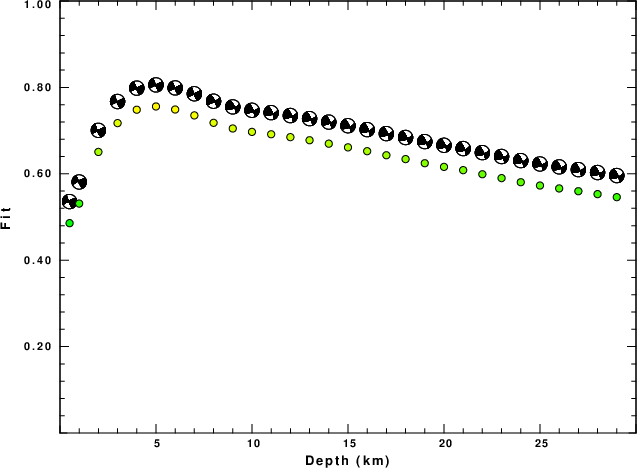

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

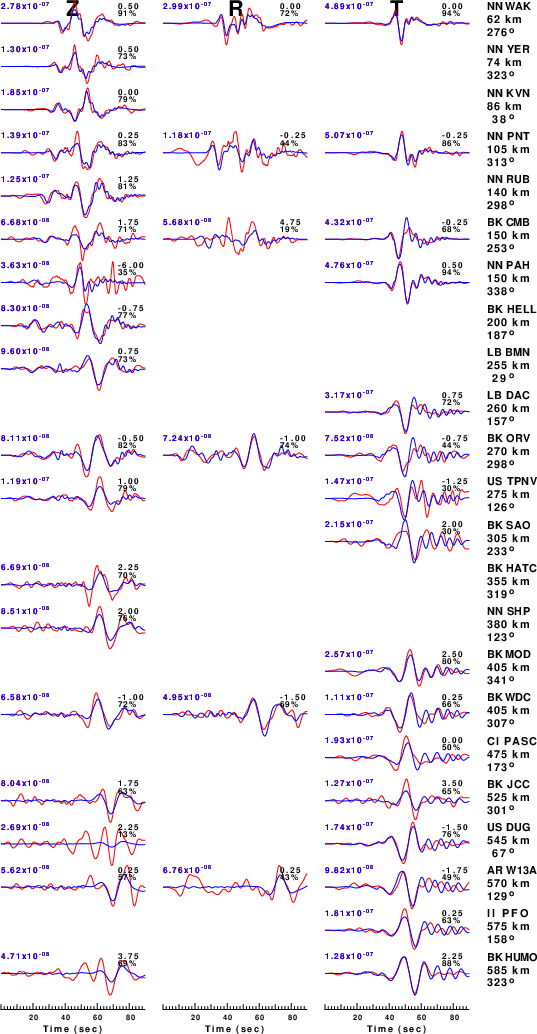

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.06 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

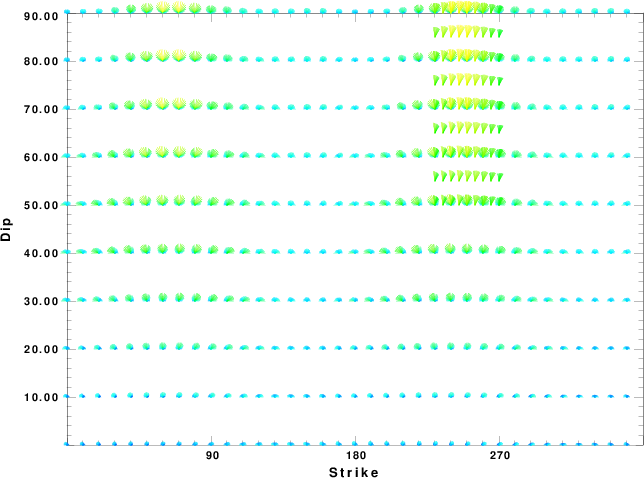

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

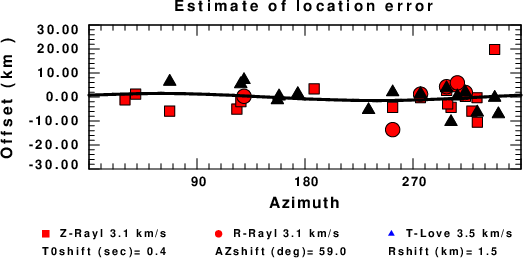

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Sat Apr 27 03:22:26 PM CDT 2024
