The ANSS event ID is ak011a43re2a and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak011a43re2a/executive.

2011/08/08 16:00:48 58.258 -151.469 46.1 4.3 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2011/08/08 16:00:48:0  58.26 -151.47  46.1 4.3 Alaska

 Stations used:
   AK.BMR AK.BRLK AK.CAST AK.CNP AK.DIV AK.EYAK AK.FID AK.GHO
   AK.HOM AK.KNK AK.KTH AK.PPLA AK.RC01 AK.RND AK.SAW AK.SCM
   AK.SSN AK.SWD AK.TRF AT.OHAK AT.PMR AT.SVW2 II.KDAK

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.06 n 3

 Best Fitting Double Couple
  Mo = 5.01e+22 dyne-cm
  Mw = 4.40
  Z  = 40 km
  Plane   Strike  Dip  Rake
   NP1       15    57   -123
   NP2      245    45   -50
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   5.01e+22      7     128
    N   0.00e+00     27      34
    P  -5.01e+22     62     231

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     1.41e+22
       Mxy    -2.93e+22
       Mxz     9.63e+21
       Myy     2.43e+22
       Myz     2.06e+22
       Mzz    -3.84e+22




                     #############-
                 ##################----
              ######################------
             #######################-------
           #################---------###-----
          #############--------------########-
         ###########-----------------##########
        #########--------------------###########
        #######----------------------###########
       #######-----------------------############
       #####-------------------------############
       ####-------------------------#############
       ###-----------   ------------#############
        ##----------- P -----------#############
        #------------   -----------#############
         -------------------------#############
          -----------------------#########   #
           ---------------------########## T
             -----------------############
              ---------------#############
                 ----------############
                     ---###########



 Global CMT Convention Moment Tensor:
      R          T          P
 -3.84e+22   9.63e+21  -2.06e+22
  9.63e+21   1.41e+22   2.93e+22
 -2.06e+22   2.93e+22   2.43e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20110808160048/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 245
      DIP = 45
     RAKE = -50
       MW = 4.40
       HS = 40.0

The NDK file is 20110808160048.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

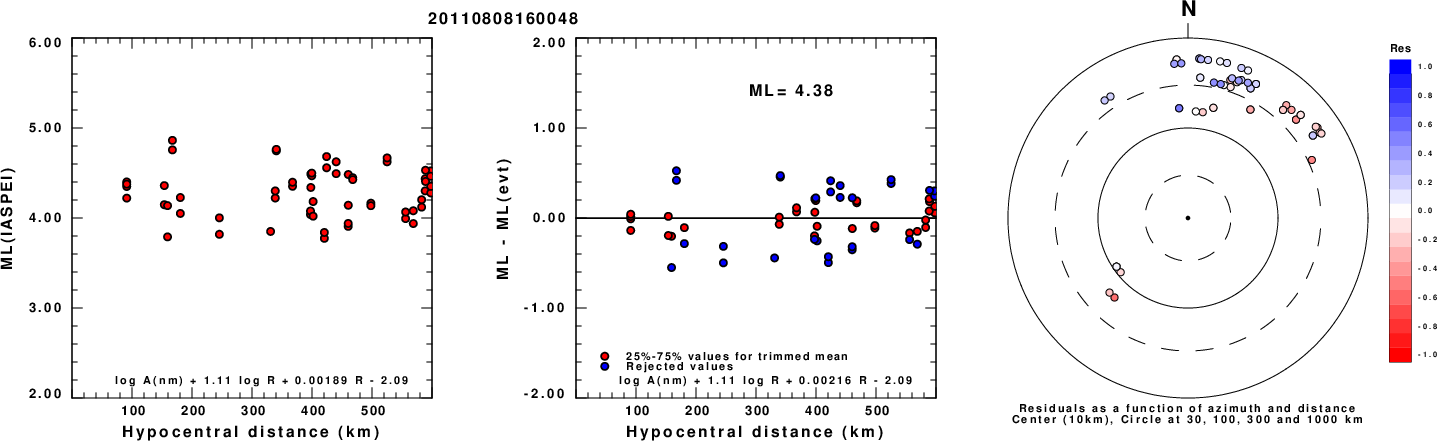

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

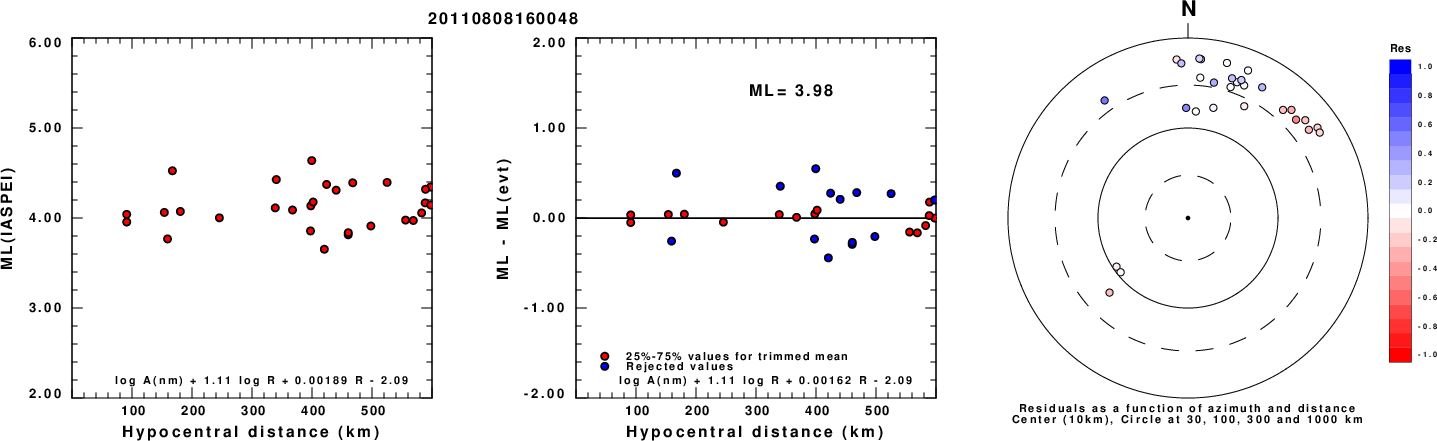

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

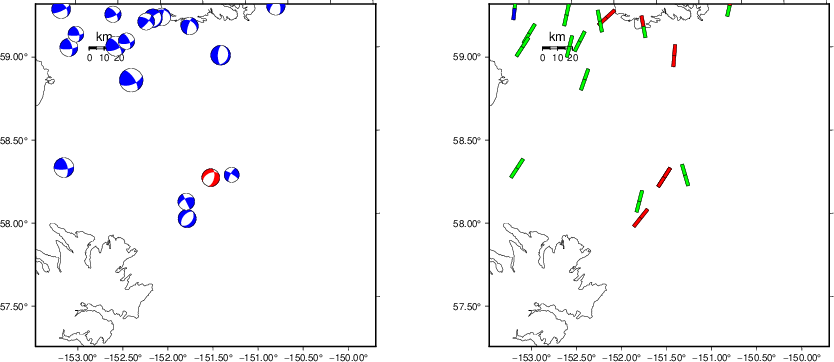

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

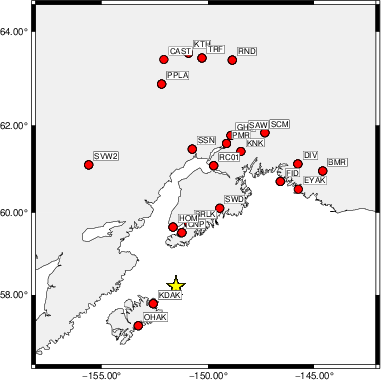

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.06 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96   10.0    75    80   -35   3.91 0.4244
WVFGRD96   12.0   245    60   -40   3.96 0.4656
WVFGRD96   14.0   245    55   -40   3.99 0.5145
WVFGRD96   16.0   245    55   -40   4.02 0.5594
WVFGRD96   18.0   245    55   -40   4.05 0.5978
WVFGRD96   20.0   245    55   -40   4.07 0.6300
WVFGRD96   22.0   245    55   -45   4.10 0.6578
WVFGRD96   24.0   245    55   -45   4.13 0.6833
WVFGRD96   26.0   245    55   -45   4.15 0.7048
WVFGRD96   28.0   245    50   -45   4.17 0.7226
WVFGRD96   30.0   245    50   -45   4.19 0.7372
WVFGRD96   32.0   245    50   -45   4.21 0.7468
WVFGRD96   34.0   250    50   -40   4.23 0.7517
WVFGRD96   36.0   250    50   -40   4.25 0.7511
WVFGRD96   38.0   250    50   -40   4.26 0.7432
WVFGRD96   40.0   245    45   -50   4.40 0.7591
WVFGRD96   42.0   245    40   -50   4.43 0.7584
WVFGRD96   44.0   245    40   -50   4.45 0.7510
WVFGRD96   46.0   245    40   -50   4.46 0.7382
WVFGRD96   48.0   245    35   -50   4.48 0.7223
WVFGRD96   50.0   250    35   -45   4.49 0.7045
WVFGRD96   52.0   250    35   -45   4.50 0.6838
WVFGRD96   54.0   250    35   -45   4.51 0.6594
WVFGRD96   56.0   255    35   -40   4.51 0.6361
WVFGRD96   58.0   255    35   -40   4.52 0.6110
WVFGRD96   60.0   255    30   -40   4.53 0.5863
WVFGRD96   62.0   260    30   -35   4.53 0.5634
WVFGRD96   64.0   260    30   -35   4.53 0.5400
WVFGRD96   66.0   265    30   -30   4.52 0.5173
WVFGRD96   68.0   265    30   -30   4.52 0.4954
WVFGRD96   70.0   250    55   -30   4.47 0.4843
WVFGRD96   72.0   255    55   -25   4.46 0.4740
WVFGRD96   74.0   255    60   -25   4.46 0.4635
WVFGRD96   76.0   255    60   -25   4.46 0.4531
WVFGRD96   78.0   255    65   -25   4.47 0.4432
WVFGRD96   80.0   255    70   -25   4.47 0.4339
WVFGRD96   82.0   255    85   -25   4.48 0.4286
WVFGRD96   84.0   255    85   -25   4.48 0.4245
WVFGRD96   86.0   265    45    20   4.38 0.4160
WVFGRD96   88.0   265    45    20   4.38 0.4138
WVFGRD96   90.0   265    45    25   4.37 0.4126
WVFGRD96   92.0   265    45    25   4.38 0.4116
WVFGRD96   94.0   265    45    25   4.38 0.4109
WVFGRD96   96.0   265    45    25   4.38 0.4097
WVFGRD96   98.0   270    45    30   4.38 0.4107
WVFGRD96  100.0   230    40   -60   4.48 0.4113
WVFGRD96  102.0   230    40   -60   4.48 0.4135
WVFGRD96  104.0   230    40   -60   4.48 0.4150
WVFGRD96  106.0   230    40   -60   4.48 0.4159
WVFGRD96  108.0   235    40   -55   4.49 0.4166
WVFGRD96  110.0   235    40   -55   4.49 0.4178
WVFGRD96  112.0   235    40   -55   4.49 0.4183
WVFGRD96  114.0   225    35   -75   4.47 0.4199
WVFGRD96  116.0   225    35   -75   4.48 0.4218
WVFGRD96  118.0   225    35   -75   4.48 0.4237
WVFGRD96  120.0   225    35   -75   4.48 0.4254
WVFGRD96  122.0   225    35   -75   4.48 0.4274
WVFGRD96  124.0   225    35   -80   4.48 0.4291
WVFGRD96  126.0   225    35   -80   4.48 0.4304
WVFGRD96  128.0   225    35   -80   4.48 0.4319

The best solution is

WVFGRD96   40.0   245    45   -50   4.40 0.7591

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

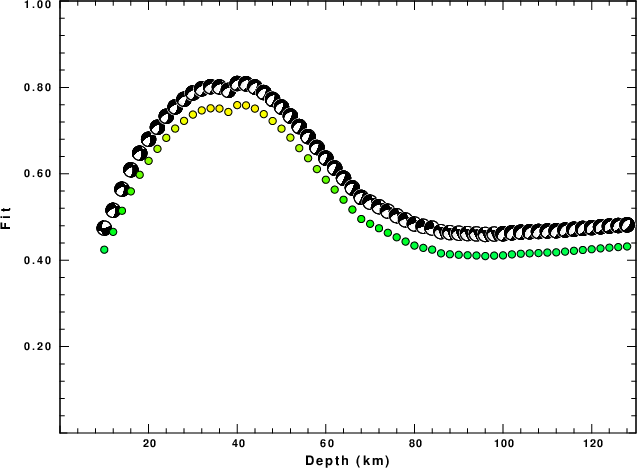

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

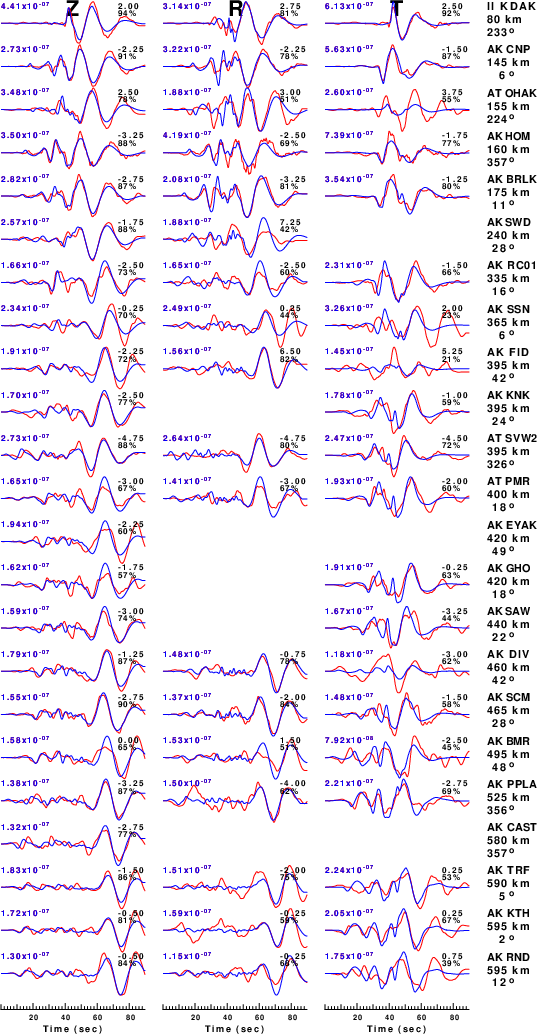

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.06 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

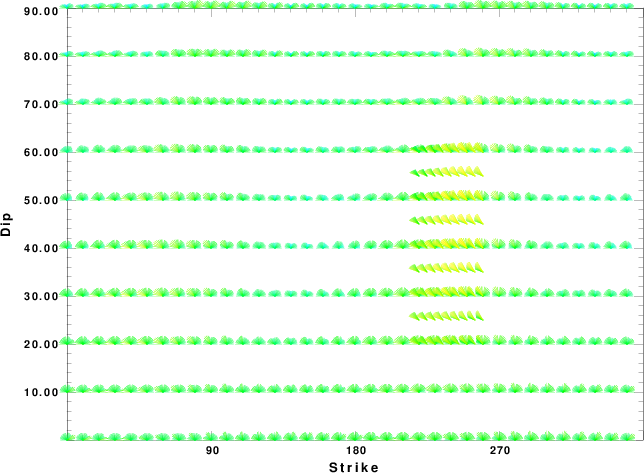

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

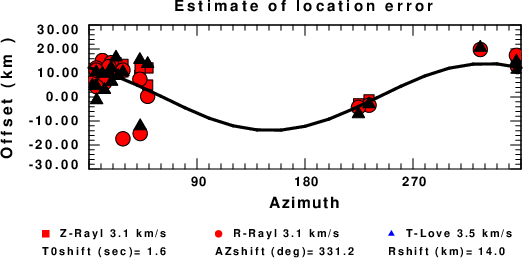

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
