Location

Location ANSS

The ANSS event ID is nn00332883 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/nn00332883/executive.

2011/04/13 22:16:09 38.380 -118.754 6.8 4.1 Nevada

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2011/04/13 22:16:09:0  38.38 -118.75   6.8 4.1 Nevada

 Stations used:
   BK.BDM BK.CMB BK.HAST BK.HATC BK.MHC BK.ORV BK.PACP BK.SUTB
   CI.ISA CI.MLAC CI.TIN LB.DAC NC.AFD NC.KMR NC.MDPB UU.PSUT
   UU.SZCU UW.TREE

 Filtering commands used:
   hp c 0.02 n 3
   lp c 0.06 n 3
   br c 0.12 0.25 n 4 p 2

 Best Fitting Double Couple
  Mo = 1.55e+22 dyne-cm
  Mw = 4.06
  Z  = 4 km
  Plane   Strike  Dip  Rake
   NP1      144    72   -154
   NP2       45    65   -20
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.55e+22      5     273
    N   0.00e+00     58     176
    P  -1.55e+22     31       6

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -1.12e+22
       Mxy    -2.03e+21
       Mxz    -6.76e+21
       Myy     1.52e+22
       Myz    -1.94e+21
       Mzz    -4.06e+21




                     --------------
                 ----------------------
              ##------------   -----------
             ###------------ P ------------
           ######-----------   -----------###
          #######-------------------------####
         #########-----------------------######
        ###########---------------------########
        ############--------------------########
          ###########-----------------###########
        T ############---------------############
          #############-------------#############
       #################----------###############
        ##################------################
        ###################---##################
         ###################-##################
          ################-----###############
           ###########-----------############
             #####-----------------########
              ------------------------####
                 ----------------------
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
 -4.06e+21  -6.76e+21   1.94e+21
 -6.76e+21  -1.12e+22   2.03e+21
  1.94e+21   2.03e+21   1.52e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20110413221609/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 45
      DIP = 65
     RAKE = -20
       MW = 4.06
       HS = 4.0

The NDK file is 20110413221609.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.

SLU
UNR
 USGS/SLU Moment Tensor Solution
 ENS  2011/04/13 22:16:09:0  38.38 -118.75   6.8 4.1 Nevada

 Stations used:
   BK.BDM BK.CMB BK.HAST BK.HATC BK.MHC BK.ORV BK.PACP BK.SUTB
   CI.ISA CI.MLAC CI.TIN LB.DAC NC.AFD NC.KMR NC.MDPB UU.PSUT
   UU.SZCU UW.TREE

 Filtering commands used:
   hp c 0.02 n 3
   lp c 0.06 n 3
   br c 0.12 0.25 n 4 p 2

 Best Fitting Double Couple
  Mo = 1.55e+22 dyne-cm
  Mw = 4.06
  Z  = 4 km
  Plane   Strike  Dip  Rake
   NP1      144    72   -154
   NP2       45    65   -20
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.55e+22      5     273
    N   0.00e+00     58     176
    P  -1.55e+22     31       6

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -1.12e+22
       Mxy    -2.03e+21
       Mxz    -6.76e+21
       Myy     1.52e+22
       Myz    -1.94e+21
       Mzz    -4.06e+21




                     --------------
                 ----------------------
              ##------------   -----------
             ###------------ P ------------
           ######-----------   -----------###
          #######-------------------------####
         #########-----------------------######
        ###########---------------------########
        ############--------------------########
          ###########-----------------###########
        T ############---------------############
          #############-------------#############
       #################----------###############
        ##################------################
        ###################---##################
         ###################-##################
          ################-----###############
           ###########-----------############
             #####-----------------########
              ------------------------####
                 ----------------------
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
 -4.06e+21  -6.76e+21   1.94e+21
 -6.76e+21  -1.12e+22   2.03e+21
  1.94e+21   2.03e+21   1.52e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20110413221609/index.html

REVIEWED BY NSL STAFF

Event ID:332883
Origin ID:788369
Algorithm: Ichinose (2003) Long Period, Regional-Distance Waves
Seismic Moment Tensor Solution

2011/04/13 (103) 22:16:10.00 38.3857 -118.7420 788369
	Depth =   8.0 (km)
	Mw    =  4.08
	Mo    =  1.63x10^22 (dyne x cm)

	Percent Double Couple =  99 %
	Percent CLVD          =   1 %
	no ISO calculated
	Epsilon=-0.00
	 Percent Variance Reduction =  50.35 %
	 Total Fit                  =  28.12
	Major Double Couple
		            strike dip   rake
		Nodal Plane 1: 231  71  -10
		Nodal Plane 2: 324  80 -161

	DEVIATORIC MOMENT TENSOR

	Moment Tensor Elements: Spherical Coordinates
		Mrr= -0.18 Mtt= -1.38 Mff=  1.56
		Mrt=  0.50 Mrf= -0.25 Mtf=  0.40 EXP=22


	Moment Tensor Elements: Cartesian Coordinates
		-1.38 -0.40  0.50
		-0.40  1.56  0.25
		 0.50  0.25 -0.18

	Eigenvalues:
		T-axis eigenvalue=  1.63
		N-axis eigenvalue= -0.01
		P-axis eigenvalue= -1.62

	Eigenvalues and eigenvectors of the Major Double Couple:
		T-axis ev= 1.63 trend=97 plunge=6
		N-axis ev= 0.00 trend=350 plunge=69
		P-axis ev=-1.63 trend=189 plunge=20

	Maximum Azmuithal Gap=217 Distance to Nearest Station=149.2 (km)

	Number of Stations (D=Displacement/V=Velocity) Used=4 (defining only)

	 CMB.BK.D DAC.LB.D ORV.BK.D MHC.BK.D


              -----------------
          -------------------------
        ####-------------------------
      ########-------------------------
     ###########------------------#######
    ##############------------############
  -################--------################
  ###################---###################
 ###########################################
 ###########################################
 ###################---######################
 ################-------#####################
 ##############----------###############   ##
 #############-------------############# T ##
 ###########----------------############   #
 ##########------------------###############
  #######---------------------#############
   #####-----------------------############
   ####-------------------------##########
     ##--------------------------########
      ----------------------------#####
        --------------------------###
          -------   --------------
              --- P -----------



All Stations defining and nondefining:
Station.Net 	Def 	Distance 	Azi    	Bazi  	lo-f 	hi-f vmodel
            	    	(km)     	(deg)  	(deg) 	(Hz) 	(Hz)
CMB.BK (D) 	Y 	   149.2  	255  	 74  	0.020 	0.080 CMB.BK.wus.glib
DAC.LB (D) 	Y 	   255.1  	156  	337  	0.020 	0.080 DAC.LB.wus.glib
ORV.BK (D) 	Y 	   271.1  	299  	118  	0.020 	0.080 ORV.BK.wus.glib
MHC.BK (D) 	Y 	   279.5  	246  	 65  	0.020 	0.080 MHC.BK.wus.glib

 (V)-velocity (D)-Displacement

Author: www-data
Date: 2011/04/13 23:12:37

mtinv Version 2.1_DEVEL OCT2008

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

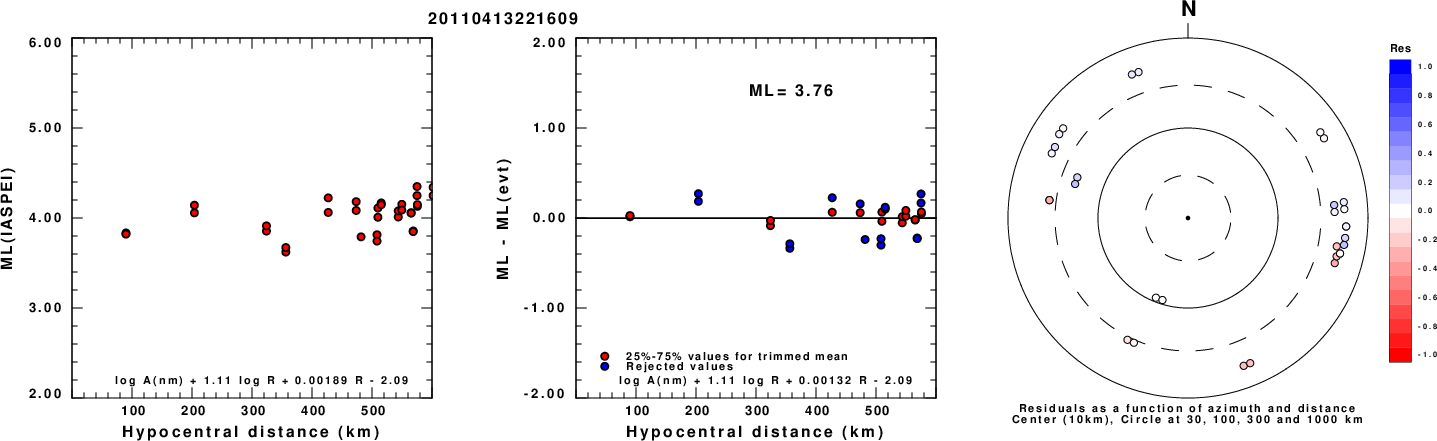

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

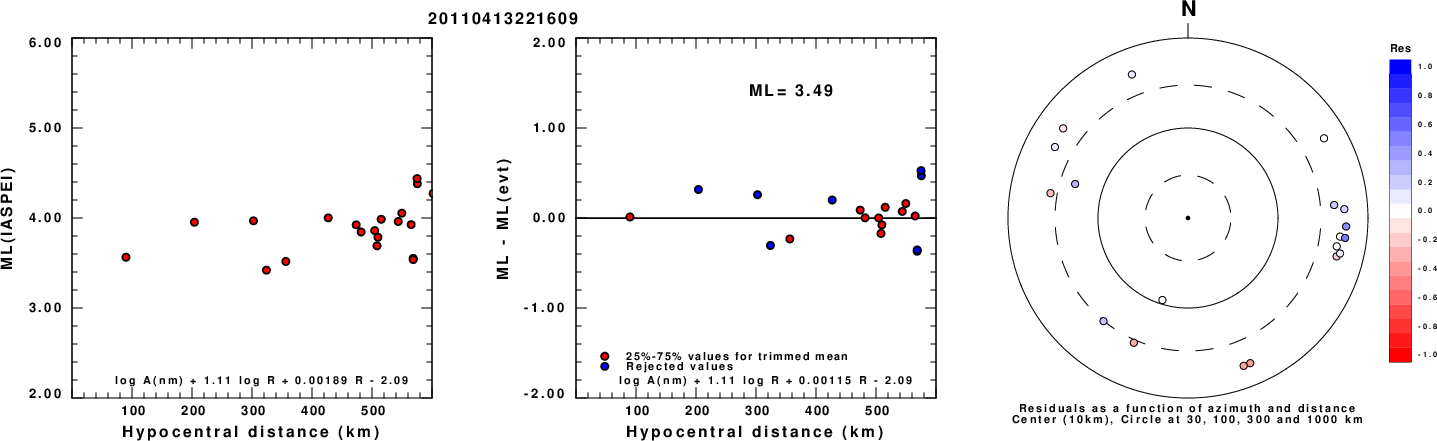

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

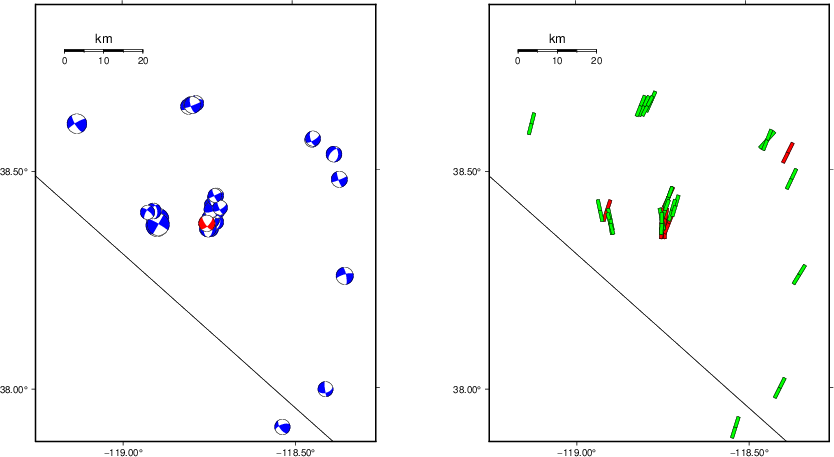

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

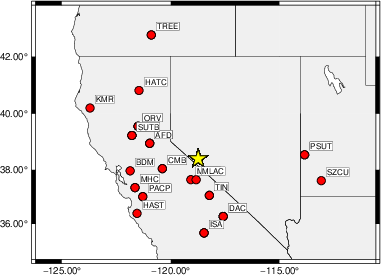

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

hp c 0.02 n 3
lp c 0.06 n 3
br c 0.12 0.25 n 4 p 2
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    0.5    45    70   -20   3.91 0.4730
WVFGRD96    1.0    50    80   -10   3.90 0.4918
WVFGRD96    2.0    45    70   -25   4.01 0.5531
WVFGRD96    3.0    45    70   -25   4.04 0.5645
WVFGRD96    4.0    45    65   -20   4.06 0.5651
WVFGRD96    5.0    50    60    -5   4.07 0.5605
WVFGRD96    6.0    55    55    10   4.09 0.5556
WVFGRD96    7.0    55    60    10   4.09 0.5522
WVFGRD96    8.0    55    55    10   4.13 0.5494
WVFGRD96    9.0    55    55    10   4.13 0.5432
WVFGRD96   10.0   235    80    40   4.15 0.5360
WVFGRD96   11.0   235    80    35   4.15 0.5320
WVFGRD96   12.0   230    80   -45   4.14 0.5248
WVFGRD96   13.0   230    85   -40   4.15 0.5247
WVFGRD96   14.0   230    85   -40   4.16 0.5251
WVFGRD96   15.0   230    85   -40   4.16 0.5243
WVFGRD96   16.0    60    80    40   4.16 0.5259
WVFGRD96   17.0    60    80    40   4.17 0.5270
WVFGRD96   18.0    60    75    40   4.18 0.5267
WVFGRD96   19.0    60    75    40   4.19 0.5259
WVFGRD96   20.0   240    50    20   4.19 0.5237
WVFGRD96   21.0   240    50    20   4.21 0.5216
WVFGRD96   22.0   240    50    20   4.21 0.5192
WVFGRD96   23.0   240    50    20   4.22 0.5158
WVFGRD96   24.0   245    50    30   4.22 0.5116
WVFGRD96   25.0   240    55    25   4.24 0.5064
WVFGRD96   26.0   240    55    25   4.24 0.5009
WVFGRD96   27.0   240    55    25   4.25 0.4946
WVFGRD96   28.0   240    55    25   4.26 0.4877
WVFGRD96   29.0   240    55    25   4.26 0.4799

The best solution is

WVFGRD96    4.0    45    65   -20   4.06 0.5651

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

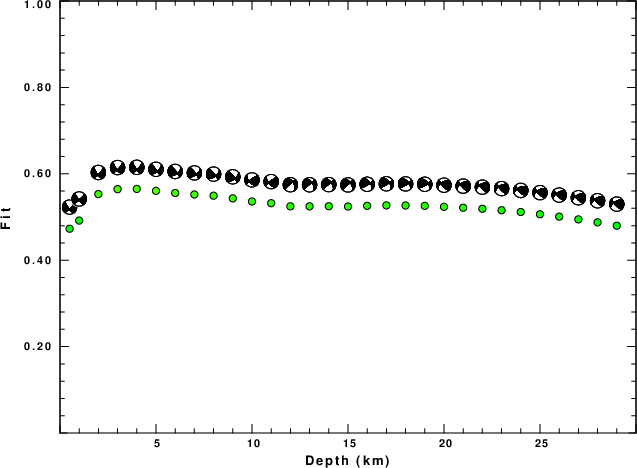

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

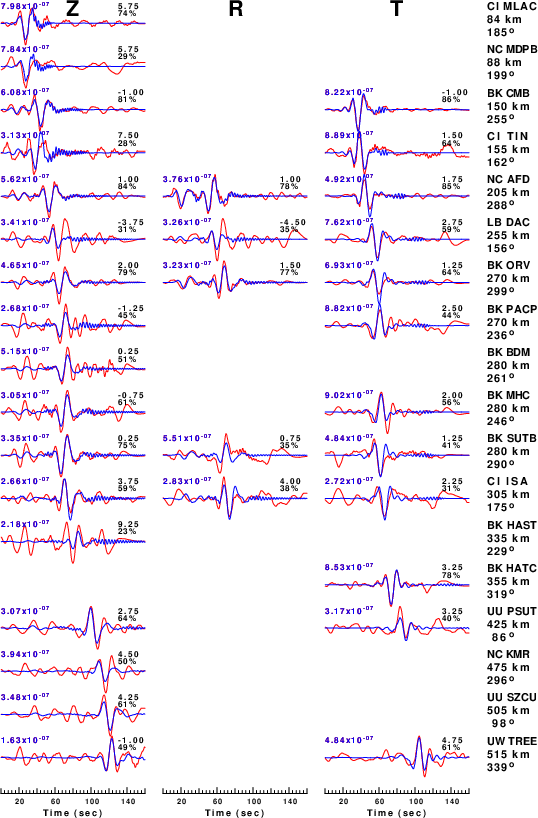

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

hp c 0.02 n 3
lp c 0.06 n 3
br c 0.12 0.25 n 4 p 2
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

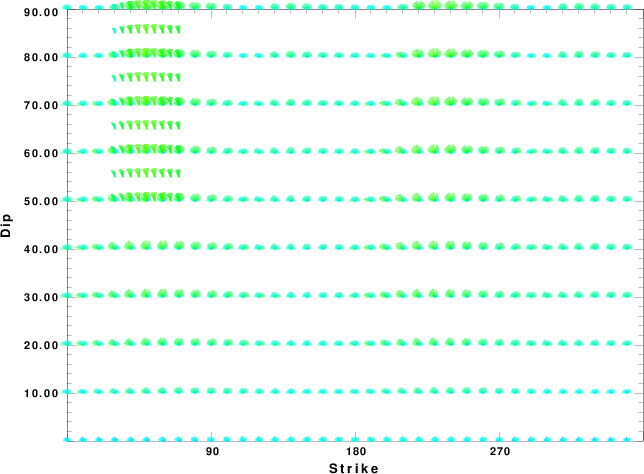

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

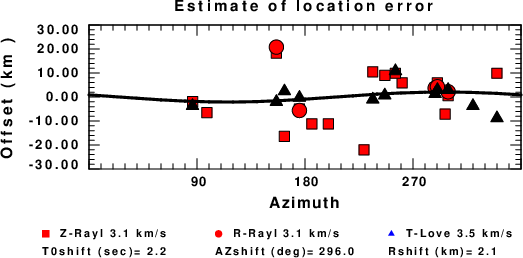

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Sat Apr 27 12:52:13 PM CDT 2024
