The ANSS event ID is nn00423257 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/nn00423257/executive.

2011/04/13 22:10:08 38.369 -118.751 6.0 4.4 Nevada

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2011/04/13 22:10:08:0  38.37 -118.75   6.0 4.4 Nevada

 Stations used:
   BK.BRIB BK.BRK BK.CMB BK.GASB BK.HAST BK.HELL BK.HUMO
   BK.JCC BK.JRSC BK.MHC BK.MOD BK.ORV BK.SAO BK.SUTB BK.VAK
   BK.WDC BK.WENL BK.YBH CI.BEL CI.GSC CI.HEC CI.MLAC II.PFO
   LB.DAC NC.AFD NC.KHMB NC.MDPB US.ELK UU.BGU UU.CCUT UU.KNB
   UU.LCMT UU.PKCU UU.PSUT UU.SZCU UU.TCRU UW.TREE

 Filtering commands used:
   hp c 0.02 n 3
   lp c 0.05 n 3

 Best Fitting Double Couple
  Mo = 3.55e+22 dyne-cm
  Mw = 4.30
  Z  = 3 km
  Plane   Strike  Dip  Rake
   NP1      358    45   -95
   NP2      185    45   -85
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   3.55e+22      0      91
    N   0.00e+00      4       1
    P  -3.55e+22     86     183

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -1.11e+20
       Mxy    -9.15e+20
       Mxz     2.18e+21
       Myy     3.55e+22
       Myz     1.91e+20
       Mzz    -3.53e+22




                     ######---#####
                 ########-------#######
              #########-----------########
             ########--------------########
           #########----------------#########
          #########------------------#########
         #########--------------------#########
        ##########--------------------##########
        #########----------------------#########
       ##########----------------------##########
       ##########----------------------########
       ##########---------   ----------######## T
       ##########--------- P ----------########
        #########---------   ----------#########
        #########----------------------#########
         #########--------------------#########
          ########-------------------#########
           ########------------------########
             #######----------------#######
              #######-------------########
                 #####-----------######
                     ###-------####



 Global CMT Convention Moment Tensor:
      R          T          P
 -3.53e+22   2.18e+21  -1.91e+20
  2.18e+21  -1.11e+20   9.15e+20
 -1.91e+20   9.15e+20   3.55e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20110413221008/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 185
      DIP = 45
     RAKE = -85
       MW = 4.30
       HS = 3.0

The NDK file is 20110413221008.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
SLU
UNR
 USGS/SLU Moment Tensor Solution
 ENS  2011/04/13 22:10:08:0  38.37 -118.75   6.0 4.4 Nevada

 Stations used:
   BK.BRIB BK.BRK BK.CMB BK.GASB BK.HAST BK.HELL BK.HUMO
   BK.JCC BK.JRSC BK.MHC BK.MOD BK.ORV BK.SAO BK.SUTB BK.VAK
   BK.WDC BK.WENL BK.YBH CI.BEL CI.GSC CI.HEC CI.MLAC II.PFO
   LB.DAC NC.AFD NC.KHMB NC.MDPB US.ELK UU.BGU UU.CCUT UU.KNB
   UU.LCMT UU.PKCU UU.PSUT UU.SZCU UU.TCRU UW.TREE

 Filtering commands used:
   hp c 0.02 n 3
   lp c 0.05 n 3

 Best Fitting Double Couple
  Mo = 3.55e+22 dyne-cm
  Mw = 4.30
  Z  = 3 km
  Plane   Strike  Dip  Rake
   NP1      358    45   -95
   NP2      185    45   -85
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   3.55e+22      0      91
    N   0.00e+00      4       1
    P  -3.55e+22     86     183

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -1.11e+20
       Mxy    -9.15e+20
       Mxz     2.18e+21
       Myy     3.55e+22
       Myz     1.91e+20
       Mzz    -3.53e+22




                     ######---#####
                 ########-------#######
              #########-----------########
             ########--------------########
           #########----------------#########
          #########------------------#########
         #########--------------------#########
        ##########--------------------##########
        #########----------------------#########
       ##########----------------------##########
       ##########----------------------########
       ##########---------   ----------######## T
       ##########--------- P ----------########
        #########---------   ----------#########
        #########----------------------#########
         #########--------------------#########
          ########-------------------#########
           ########------------------########
             #######----------------#######
              #######-------------########
                 #####-----------######
                     ###-------####



 Global CMT Convention Moment Tensor:
      R          T          P
 -3.53e+22   2.18e+21  -1.91e+20
  2.18e+21  -1.11e+20   9.15e+20
 -1.91e+20   9.15e+20   3.55e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20110413221008/index.html

REVIEWED BY NSL STAFF

Event ID:332872
Origin ID:788353
Algorithm: Ichinose (2003) Long Period, Regional-Distance Waves
Seismic Moment Tensor Solution

2011/04/13 (103) 22:10:06.00 38.3715 -118.7476 788353
	Depth =  18.0 (km)
	Mw    =  4.34
	Mo    =  4.06x10^22 (dyne x cm)

	Percent Double Couple =  98 %
	Percent CLVD          =   2 %
	no ISO calculated
	Epsilon=0.01
	 Percent Variance Reduction =  45.58 %
	 Total Fit                  =  14.78
	Major Double Couple
		            strike dip   rake
		Nodal Plane 1:  66  23   29
		Nodal Plane 2: 309  79  110

	DEVIATORIC MOMENT TENSOR

	Moment Tensor Elements: Spherical Coordinates
		Mrr=  1.39 Mtt= -2.19 Mff=  0.80
		Mrt= -2.60 Mrf=  2.42 Mtf=  0.43 EXP=22


	Moment Tensor Elements: Cartesian Coordinates
		-2.19 -0.43 -2.60
		-0.43  0.80 -2.42
		-2.60 -2.42  1.39

	Eigenvalues:
		T-axis eigenvalue=  4.04
		N-axis eigenvalue=  0.04
		P-axis eigenvalue= -4.08

	Eigenvalues and eigenvectors of the Major Double Couple:
		T-axis ev= 4.04 trend=242 plunge=52
		N-axis ev= 0.00 trend=125 plunge=20
		P-axis ev=-4.04 trend=23 plunge=31

	Maximum Azmuithal Gap=216 Distance to Nearest Station=148.3 (km)

	Number of Stations (D=Displacement/V=Velocity) Used=5 (defining only)

	 CMB.BK.D DAC.LB.D ORV.BK.D MHC.BK.D
	 SAO.BK.D


              -----------------
          ----------------   ------
        ------------------ P --------
      --------------------   ----------
     ####-------------------------------
    ########-----------------------------
  -############----------------------------
  ################------------------------#
 ####################---------------------##
 ######################-------------------##
 ########################-----------------###
 ##########################---------------###
 ############################------------####
 ##############################----------####
 #######   ######################-------####
 ####### T ########################----#####
  ######   #########################--#####
   ########################################
   -######################################
     -#############################---###
      ---#######################-------
        -----###############---------
          ------------------------
              -----------------



All Stations defining and nondefining:
Station.Net 	Def 	Distance 	Azi    	Bazi  	lo-f 	hi-f vmodel
            	    	(km)     	(deg)  	(deg) 	(Hz) 	(Hz)
CMB.BK (D) 	Y 	   148.3  	256  	 75  	0.020 	0.080 CMB.BK.wus.glib
DAC.LB (D) 	Y 	   253.9  	156  	337  	0.020 	0.080 DAC.LB.wus.glib
ORV.BK (D) 	Y 	   271.4  	300  	118  	0.020 	0.080 ORV.BK.wus.glib
MHC.BK (D) 	Y 	   278.4  	247  	 65  	0.020 	0.080 MHC.BK.wus.glib
SAO.BK (D) 	Y 	   297.8  	234  	 52  	0.020 	0.080 SAO.BK.wus.glib

 (V)-velocity (D)-Displacement

Author: www-data
Date: 2011/04/13 23:00:20

mtinv Version 2.1_DEVEL OCT2008





Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

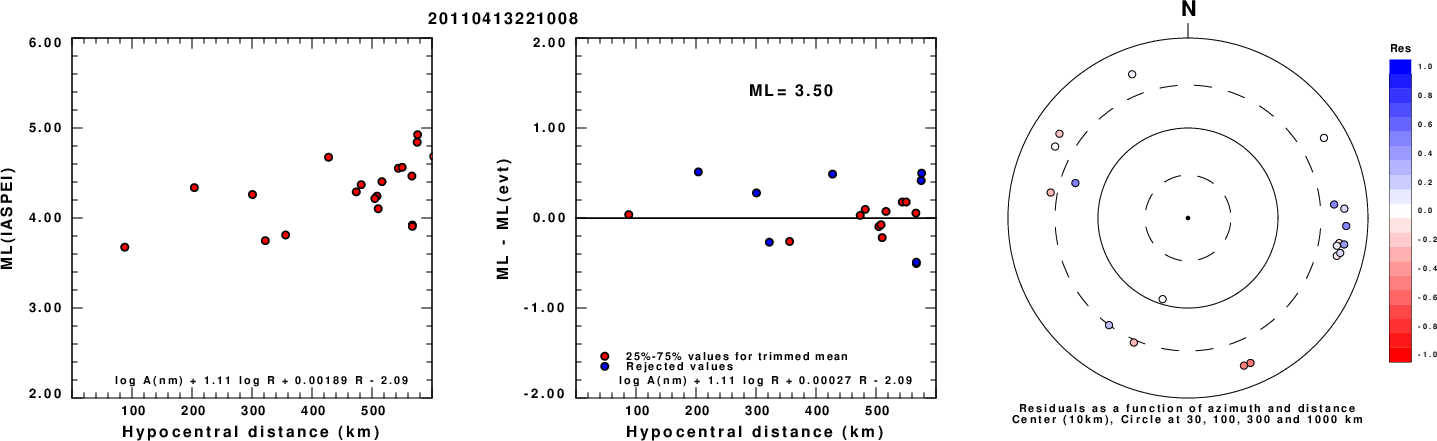

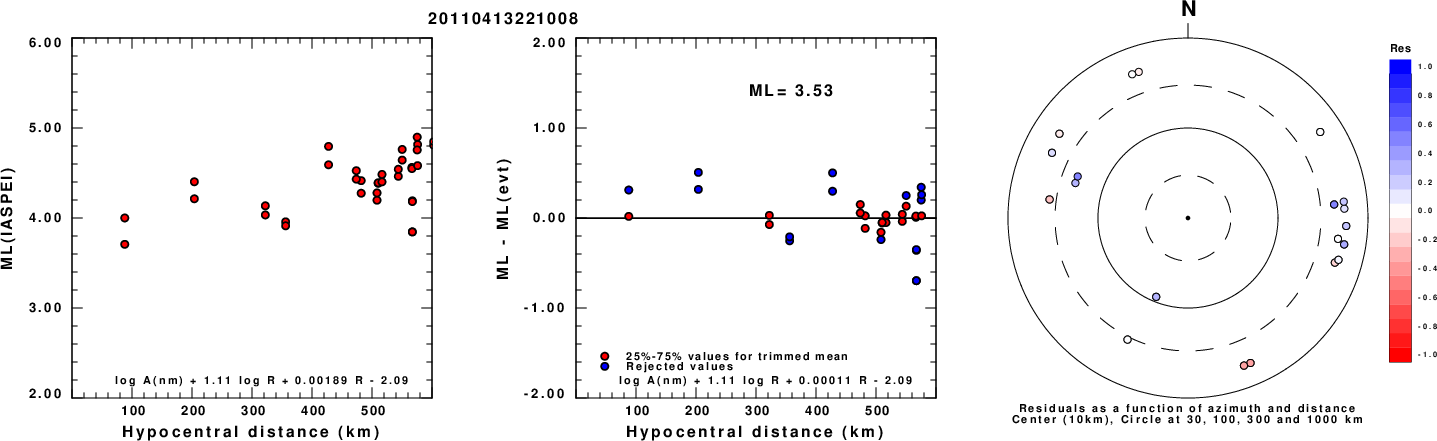

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.


Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

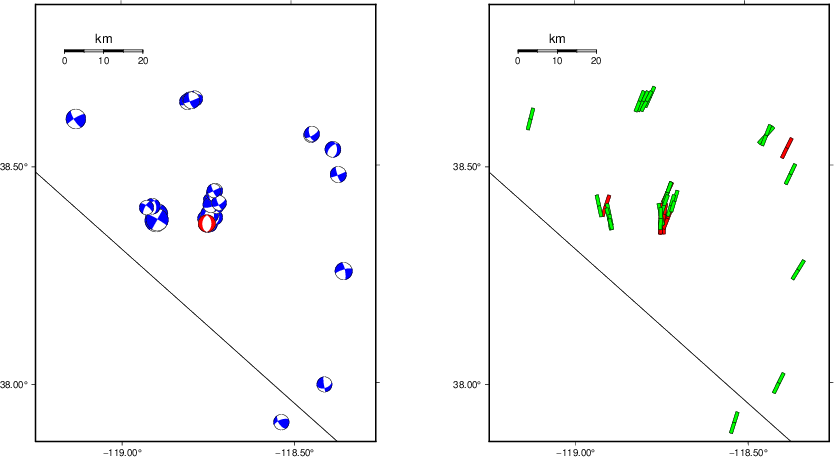

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

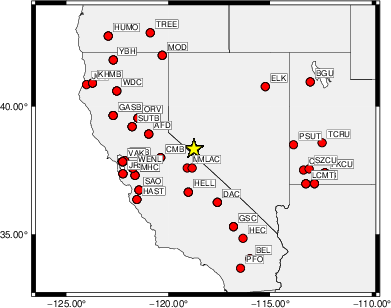

Location of broadband stations used for waveform inversion

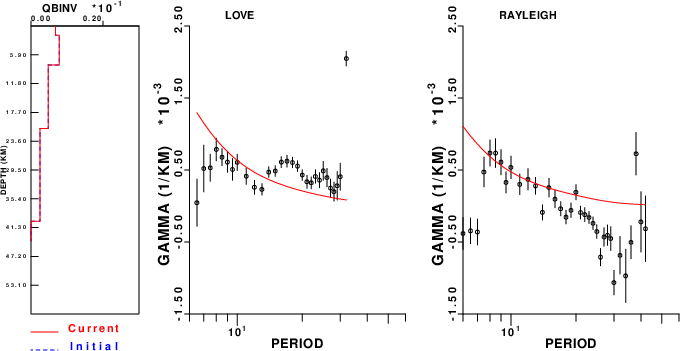

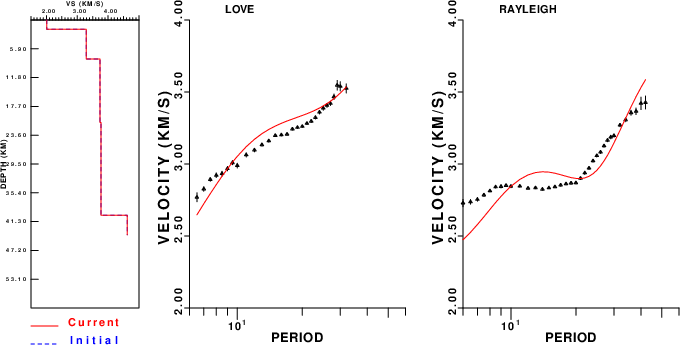

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

hp c 0.02 n 3
lp c 0.05 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    0.5   180    45   -95   4.12 0.4415
WVFGRD96    1.0   180    45   -95   4.16 0.4608
WVFGRD96    2.0   185    45   -85   4.24 0.5279
WVFGRD96    3.0   185    45   -85   4.30 0.5349
WVFGRD96    4.0   195    50   -70   4.32 0.4799
WVFGRD96    5.0   210    70   -55   4.31 0.4219
WVFGRD96    6.0   210    75   -55   4.31 0.4103
WVFGRD96    7.0    50    70    25   4.28 0.4162
WVFGRD96    8.0   205    75   -65   4.38 0.4407
WVFGRD96    9.0   205    75   -65   4.38 0.4481
WVFGRD96   10.0   205    75   -65   4.37 0.4560
WVFGRD96   11.0   205    75   -65   4.37 0.4633
WVFGRD96   12.0   205    75   -65   4.37 0.4689
WVFGRD96   13.0   205    75   -65   4.37 0.4739
WVFGRD96   14.0   205    75   -65   4.37 0.4769
WVFGRD96   15.0   210    80   -60   4.37 0.4795
WVFGRD96   16.0   210    80   -60   4.38 0.4808
WVFGRD96   17.0    50    70    40   4.40 0.4837
WVFGRD96   18.0    50    70    40   4.41 0.4868
WVFGRD96   19.0    50    70    40   4.41 0.4883
WVFGRD96   20.0    50    70    40   4.42 0.4883
WVFGRD96   21.0    55    65    40   4.42 0.4830
WVFGRD96   22.0    55    65    40   4.43 0.4806
WVFGRD96   23.0    55    65    40   4.43 0.4771
WVFGRD96   24.0    55    65    35   4.44 0.4727
WVFGRD96   25.0    55    65    35   4.45 0.4678
WVFGRD96   26.0   185    65    60   4.41 0.4615
WVFGRD96   27.0   185    65    60   4.41 0.4573
WVFGRD96   28.0   180    65    60   4.41 0.4527
WVFGRD96   29.0   175    60    65   4.41 0.4481

The best solution is

WVFGRD96    3.0   185    45   -85   4.30 0.5349

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

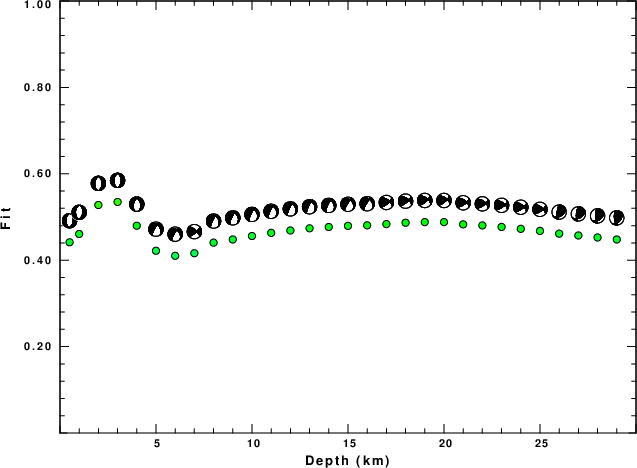

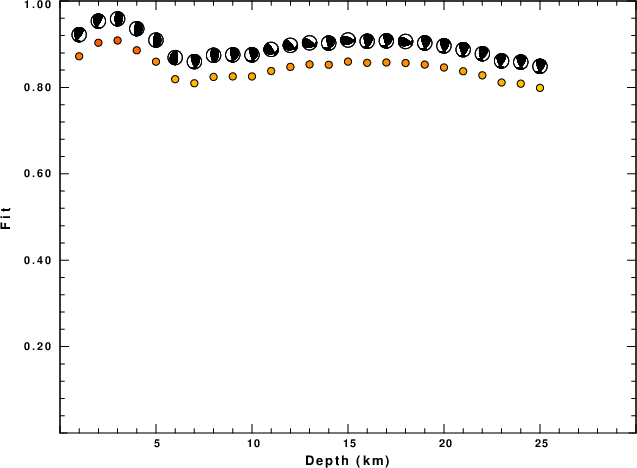

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

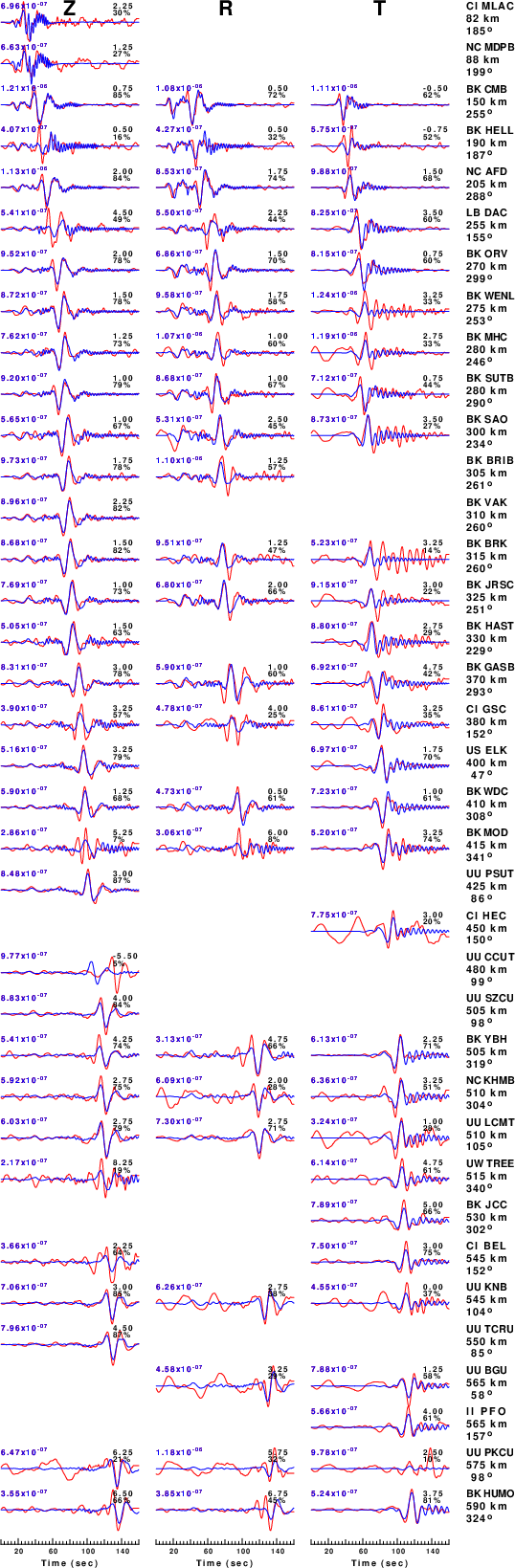

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

hp c 0.02 n 3
lp c 0.05 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

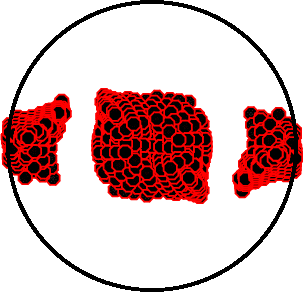

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

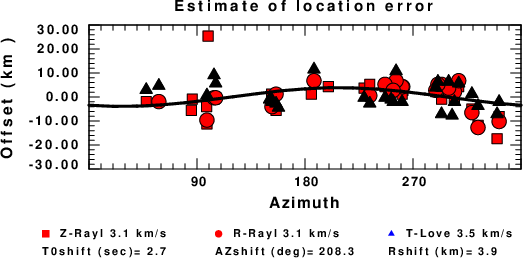

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Surface-Wave Focal Mechanism

The following figure shows the stations used in the grid search for the best focal mechanism to fit the surface-wave spectral amplitudes of the Love and Rayleigh waves.

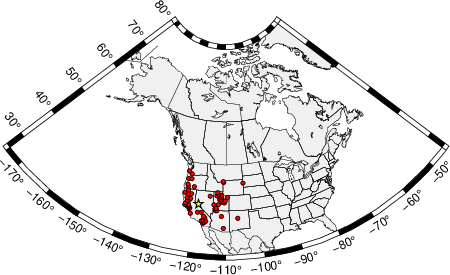

Location of broadband stations used to obtain focal mechanism from surface-wave spectral amplitudes

The surface-wave determined focal mechanism is shown here.


  NODAL PLANES


  STK=     179.99
  DIP=      60.00
 RAKE=     -94.99

             OR

  STK=       9.90
  DIP=      30.38
 RAKE=     -81.43


DEPTH = 3.0 km

Mw = 4.44
Best Fit 0.9087 - P-T axis plot gives solutions with FIT greater than FIT90

Surface-wave analysis

Surface wave analysis was performed using codes from Computer Programs in Seismology, specifically the multiple filter analysis program do_mft and the surface-wave radiation pattern search program srfgrd96.

Data preparation

Digital data were collected, instrument response removed and traces converted to Z, R an T components. Multiple filter analysis was applied to the Z and T traces to obtain the Rayleigh- and Love-wave spectral amplitudes, respectively. These were input to the search program which examined all depths between 1 and 25 km and all possible mechanisms.
Best mechanism fit as a function of depth. The preferred depth is given above. Lower hemisphere projection

Pressure-tension axis trends. Since the surface-wave spectra search does not distinguish between P and T axes and since there is a 180 ambiguity in strike, all possible P and T axes are plotted. First motion data and waveforms will be used to select the preferred mechanism. The purpose of this plot is to provide an idea of the possible range of solutions. The P and T-axes for all mechanisms with goodness of fit greater than 0.9 FITMAX (above) are plotted here.

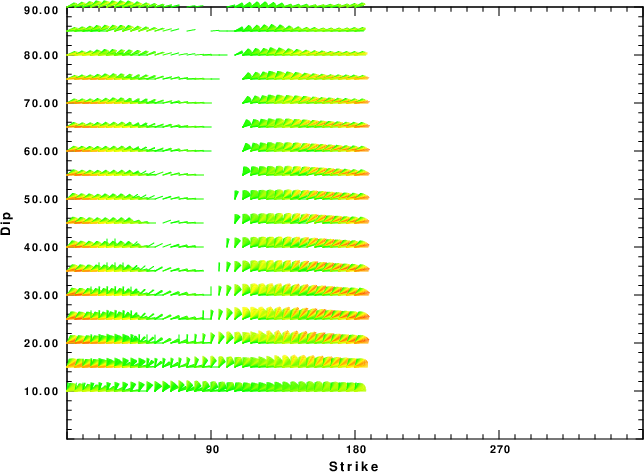

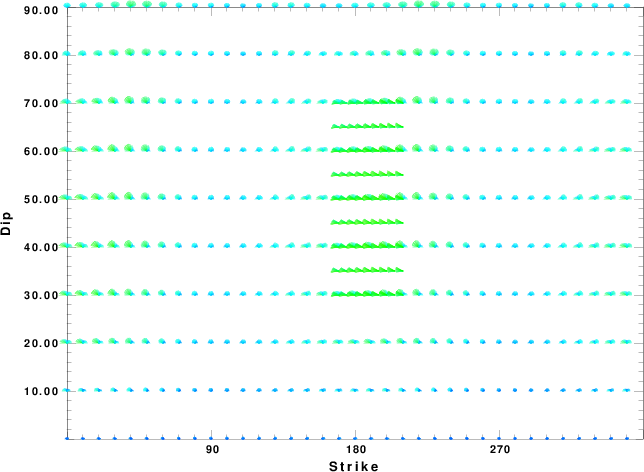

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the Love and Rayleigh wave radiation patterns. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. Because of the symmetry of the spectral amplitude rediation patterns, only strikes from 0-180 degrees are sampled.

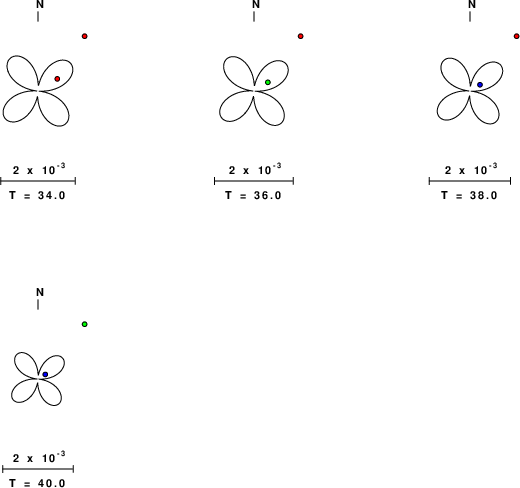

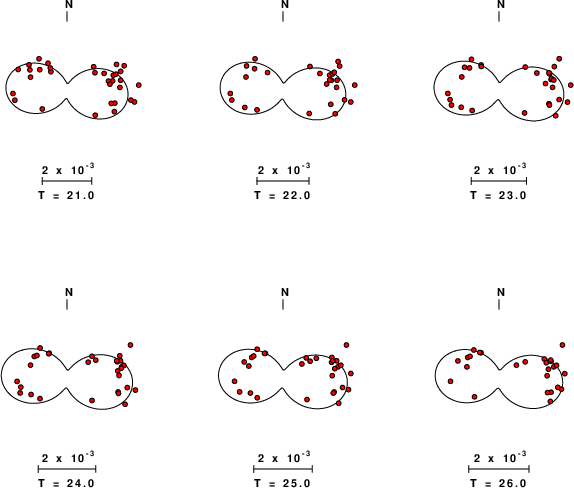

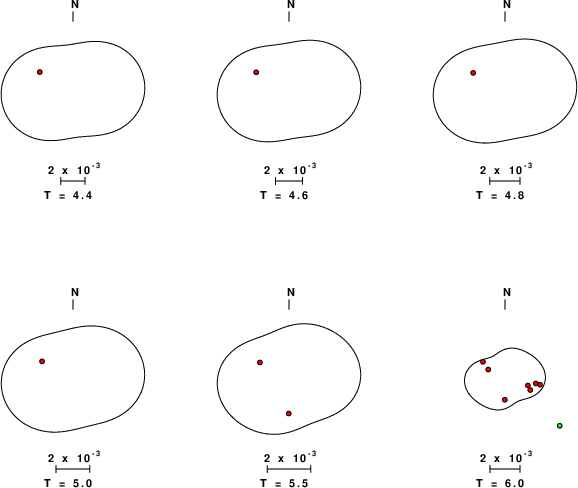

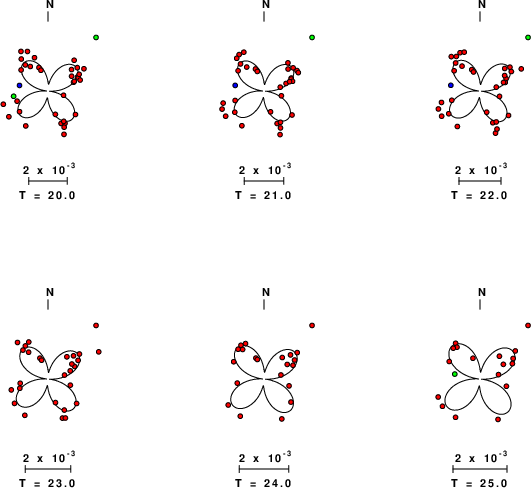

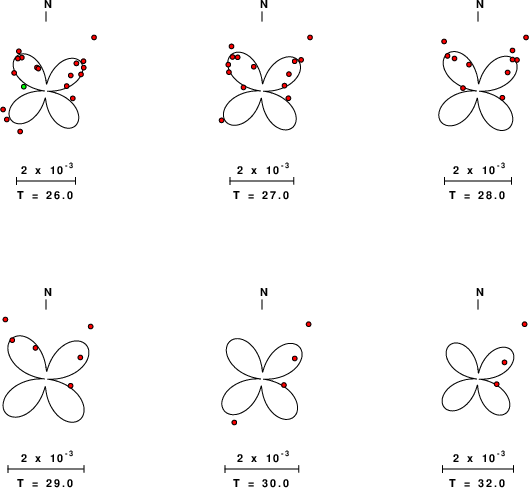

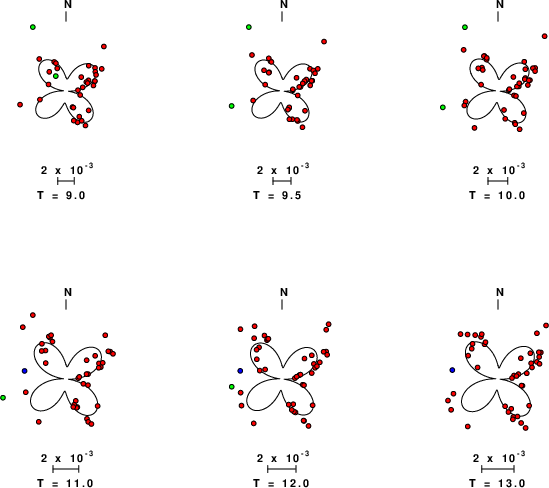

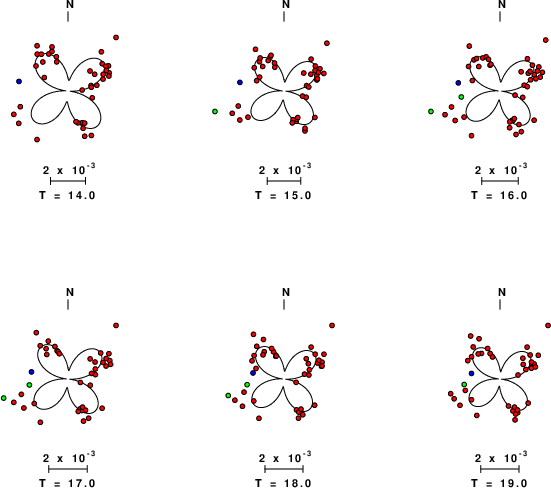

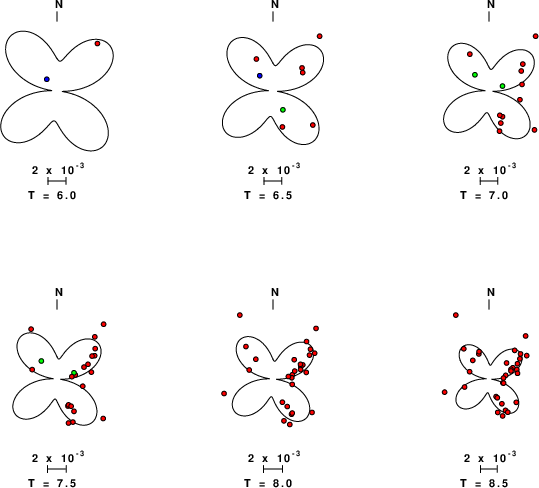

Love-wave radiation patterns

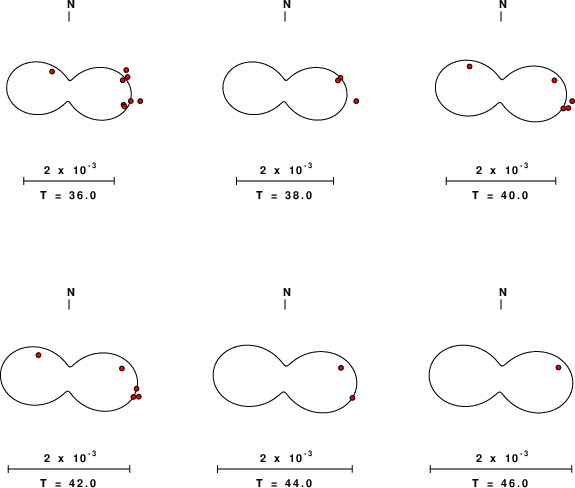

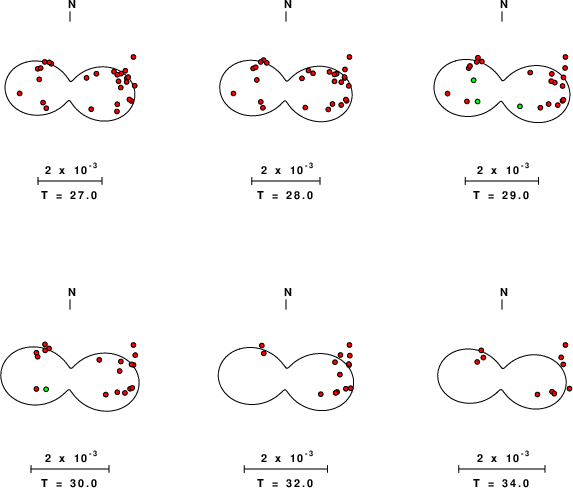

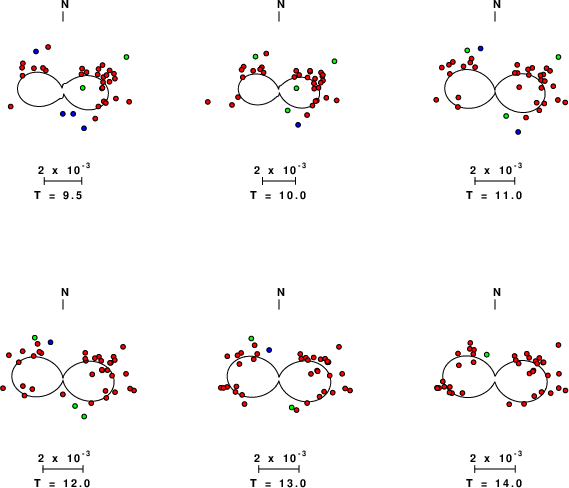

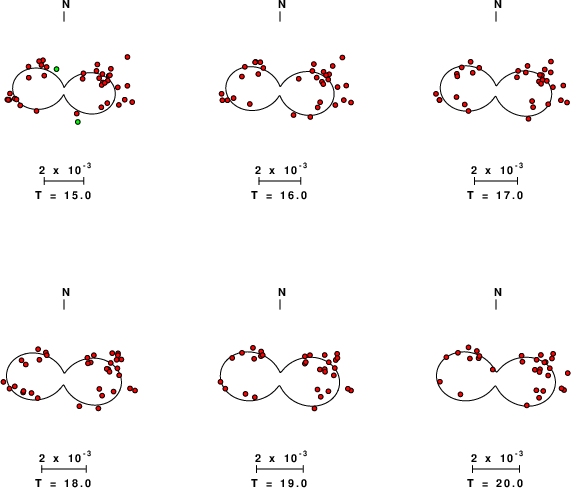

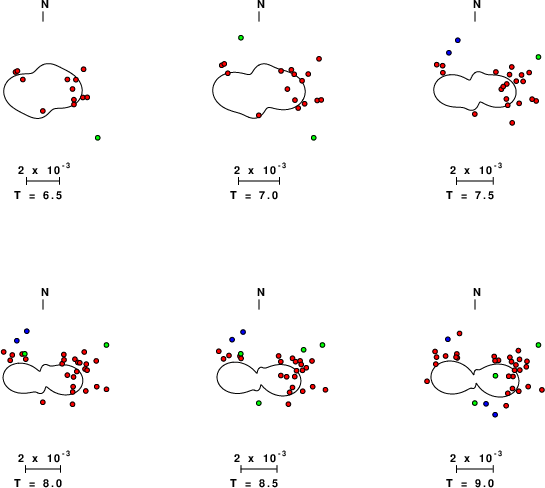

Rayleigh-wave radiation patterns
