Location

Location ANSS

The ANSS event ID is usp000hz2e and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/usp000hz2e/executive.

2011/04/01 12:56:28 43.013 -110.267 5.0 3.9 Wyoming

Focal Mechanism

USGS/SLU Moment Tensor Solution ENS 2011/04/01 12:56:28:0 43.01 -110.27 5.0 3.9 Wyoming Stations used: IW.DLMT IW.FLWY IW.LOHW IW.MOOW IW.REDW IW.SNOW US.AHID US.BW06 US.HLID US.HWUT UU.BGU UU.HVU UU.SPU WY.YNR Filtering commands used: hp c 0.02 n 3 lp c 0.10 n 3 br c 0.12 0.25 n 4 p 2 Best Fitting Double Couple Mo = 8.61e+21 dyne-cm Mw = 3.89 Z = 16 km Plane Strike Dip Rake NP1 354 72 -99 NP2 200 20 -65 Principal Axes: Axis Value Plunge Azimuth T 8.61e+21 26 90 N 0.00e+00 8 356 P -8.61e+21 62 250 Moment Tensor: (dyne-cm) Component Value Mxx -2.13e+20 Mxy -6.59e+20 Mxz 1.17e+21 Myy 5.23e+21 Myz 6.79e+21 Mzz -5.02e+21 ######-####### ######-----########### ######---------############# ####------------############## #####--------------############### ####-----------------############### ####------------------################ ####--------------------################ ####--------------------################ ####---------------------################# ####----------------------######### #### ####--------- ----------######### T #### ####--------- P ----------######### #### ###--------- ----------############### ###----------------------############### ###---------------------############## ###--------------------############# ###-------------------############ ##-----------------########### ##----------------########## #--------------####### ----------#### Global CMT Convention Moment Tensor: R T P -5.02e+21 1.17e+21 -6.79e+21 1.17e+21 -2.13e+20 6.59e+20 -6.79e+21 6.59e+20 5.23e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20110401125628/index.html

Preferred Solution

      STK = 200
      DIP = 20
     RAKE = -65
       MW = 3.89
       HS = 16.0

The NDK file is 20110401125628.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and M_L by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for M_L is adjusted to remove a linear distance trend in residuals to give a regionally defined M_L. The defined M_L uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

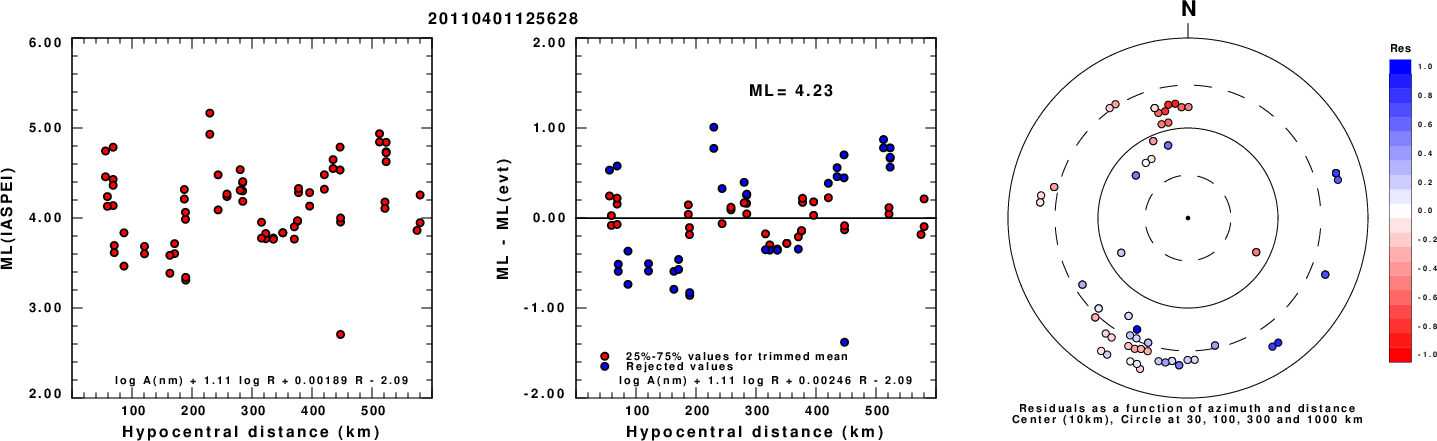

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

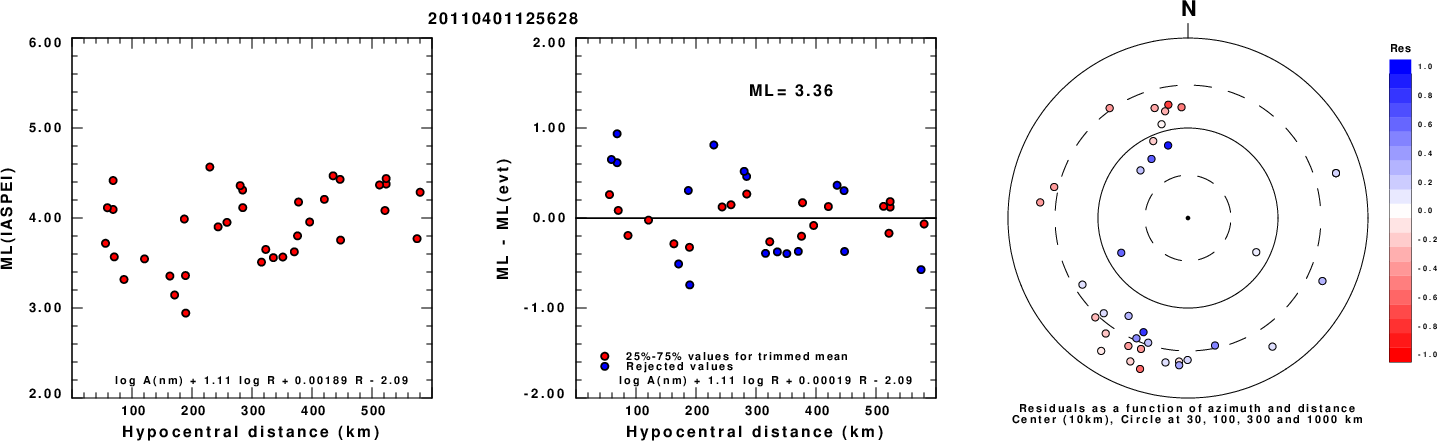

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

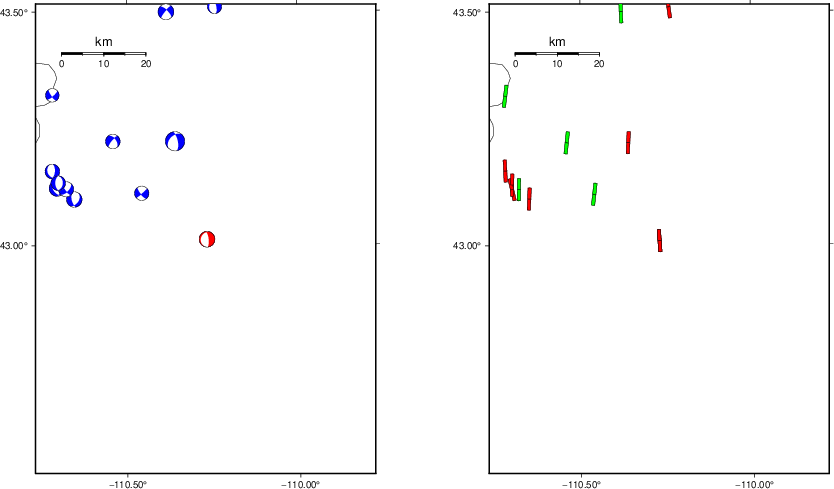

Context

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

hp c 0.02 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    0.5    10    45   -90   3.44 0.2915
WVFGRD96    1.0    95    90     0   3.39 0.2169
WVFGRD96    2.0   185    45   -90   3.62 0.3595
WVFGRD96    3.0    95    90    -5   3.60 0.2936
WVFGRD96    4.0   275    35     0   3.70 0.3072
WVFGRD96    5.0   280    20    10   3.77 0.4143
WVFGRD96    6.0   250     5   -20   3.79 0.4976
WVFGRD96    7.0     0    80   -90   3.79 0.5455
WVFGRD96    8.0   185    10   -85   3.86 0.5697
WVFGRD96    9.0   190    15   -80   3.86 0.5917
WVFGRD96   10.0   195    15   -75   3.86 0.6074
WVFGRD96   11.0   200    20   -70   3.86 0.6195
WVFGRD96   12.0   200    20   -65   3.87 0.6279
WVFGRD96   13.0   200    20   -65   3.88 0.6337
WVFGRD96   14.0   200    20   -65   3.88 0.6377
WVFGRD96   15.0   200    20   -65   3.89 0.6399
WVFGRD96   16.0   200    20   -65   3.89 0.6406
WVFGRD96   17.0   200    20   -65   3.90 0.6401
WVFGRD96   18.0   200    20   -65   3.91 0.6385
WVFGRD96   19.0   195    20   -70   3.92 0.6364
WVFGRD96   20.0   195    20   -70   3.93 0.6331
WVFGRD96   21.0   195    20   -70   3.94 0.6291
WVFGRD96   22.0   195    20   -70   3.95 0.6229
WVFGRD96   23.0   195    20   -70   3.96 0.6157
WVFGRD96   24.0   195    20   -70   3.97 0.6078
WVFGRD96   25.0   185    20   -80   3.98 0.5981
WVFGRD96   26.0    -5    75   -95   3.99 0.5872
WVFGRD96   27.0    -5    75   -95   4.00 0.5758
WVFGRD96   28.0    -5    75   -90   4.01 0.5630
WVFGRD96   29.0    -5    75   -90   4.02 0.5486

The best solution is

WVFGRD96   16.0   200    20   -65   3.89 0.6406

The mechanism corresponding to the best fit is

Figure 1. Waveform inversion focal mechanism

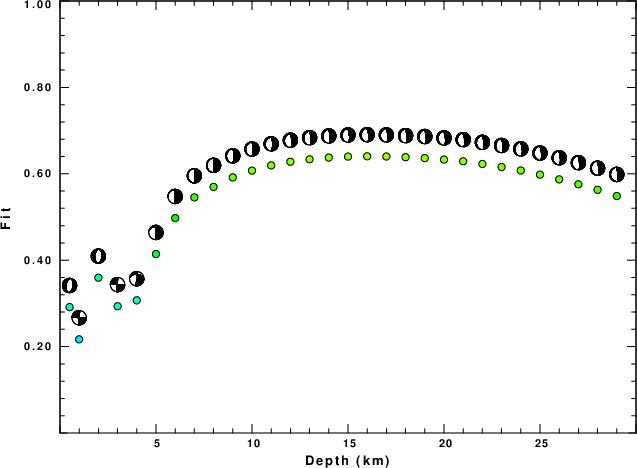

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

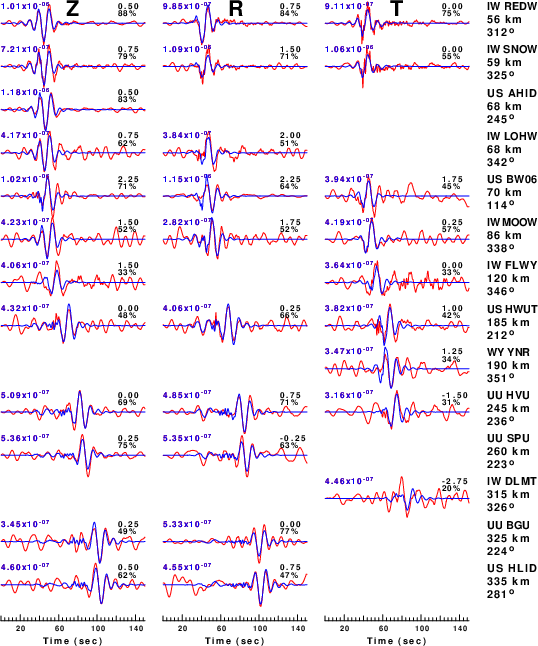

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

hp c 0.02 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

• The origin time and epicentral distance are incorrect
• The velocity model used for the inversion is incorrect
• The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

 Time_shift = A + B cos Azimuth + C Sin Azimuth

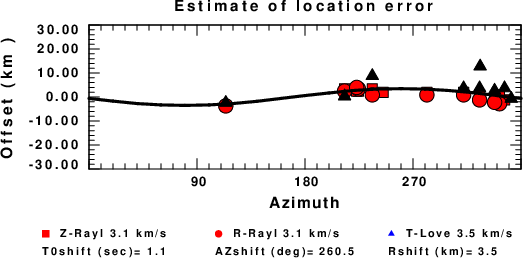

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
