Location
SLU Location
To check the ANSS location or to compare the observed P-wave first motions to the moment tensor solution, P- and S-wave first arrival times were manually read together with the P-wave first motions. The subsequent output of the program elocate is given in the file elocate.txt. The first motion plot is shown below.
Location ANSS
The ANSS event ID is ak011djt676 and the event page is at
https://earthquake.usgs.gov/earthquakes/eventpage/ak011djt676/executive.
2011/01/08 19:33:40 59.359 -135.147 3.7 4 Alaska
Focal Mechanism
USGS/SLU Moment Tensor Solution
ENS 2011/01/08 19:33:40:0 59.36 -135.15 3.7 4.0 Alaska
Stations used:
AK.BAL AK.BMR AK.DCPH AK.EYAK AK.PIN AK.PNL AK.RAG AT.SKAG
AT.YKU2 CN.BVCY CN.DAWY CN.DLBC CN.HYT CN.PLBC CN.WHY
CN.YUK5 US.WRAK
Filtering commands used:
hp c 0.02 n 3
lp c 0.06 n 3
br c 0.12 0.25 n 4 p 2
Best Fitting Double Couple
Mo = 6.10e+21 dyne-cm
Mw = 3.79
Z = 2 km
Plane Strike Dip Rake
NP1 180 45 90
NP2 360 45 90
Principal Axes:
Axis Value Plunge Azimuth
T 6.10e+21 90 145
N 0.00e+00 -0 0
P -6.10e+21 -0 270
Moment Tensor: (dyne-cm)
Component Value
Mxx 0.00e+00
Mxy -1.88e+14
Mxz 1.88e+14
Myy -6.10e+21
Myz -2.66e+14
Mzz 6.10e+21
-----####-----
-------########-------
--------############--------
--------##############--------
---------################---------
---------##################---------
---------####################---------
----------####################----------
---------######################---------
----------######################----------
--------########## #########----------
P --------########## T #########----------
--------########## #########----------
---------######################---------
----------####################----------
---------####################---------
---------##################---------
---------################---------
--------##############--------
--------############--------
-------########-------
-----####-----
Global CMT Convention Moment Tensor:
R T P
6.10e+21 1.88e+14 2.66e+14
1.88e+14 0.00e+00 1.88e+14
2.66e+14 1.88e+14 -6.10e+21
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20110108193340/index.html
|
Preferred Solution
The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is
STK = 0
DIP = 45
RAKE = 90
MW = 3.79
HS = 2.0
The NDK file is 20110108193340.ndk
The waveform inversion is preferred.
Moment Tensor Comparison
The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
| SLU |
SLUFM |
USGS/SLU Moment Tensor Solution
ENS 2011/01/08 19:33:40:0 59.36 -135.15 3.7 4.0 Alaska
Stations used:
AK.BAL AK.BMR AK.DCPH AK.EYAK AK.PIN AK.PNL AK.RAG AT.SKAG
AT.YKU2 CN.BVCY CN.DAWY CN.DLBC CN.HYT CN.PLBC CN.WHY
CN.YUK5 US.WRAK
Filtering commands used:
hp c 0.02 n 3
lp c 0.06 n 3
br c 0.12 0.25 n 4 p 2
Best Fitting Double Couple
Mo = 6.10e+21 dyne-cm
Mw = 3.79
Z = 2 km
Plane Strike Dip Rake
NP1 180 45 90
NP2 360 45 90
Principal Axes:
Axis Value Plunge Azimuth
T 6.10e+21 90 145
N 0.00e+00 -0 0
P -6.10e+21 -0 270
Moment Tensor: (dyne-cm)
Component Value
Mxx 0.00e+00
Mxy -1.88e+14
Mxz 1.88e+14
Myy -6.10e+21
Myz -2.66e+14
Mzz 6.10e+21
-----####-----
-------########-------
--------############--------
--------##############--------
---------################---------
---------##################---------
---------####################---------
----------####################----------
---------######################---------
----------######################----------
--------########## #########----------
P --------########## T #########----------
--------########## #########----------
---------######################---------
----------####################----------
---------####################---------
---------##################---------
---------################---------
--------##############--------
--------############--------
-------########-------
-----####-----
Global CMT Convention Moment Tensor:
R T P
6.10e+21 1.88e+14 2.66e+14
1.88e+14 0.00e+00 1.88e+14
2.66e+14 1.88e+14 -6.10e+21
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20110108193340/index.html
|

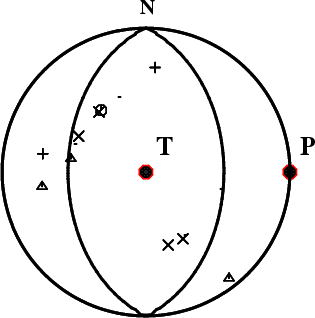

First motions and takeoff angles from an elocate run.
|
Magnitudes
Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula
for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.
ML Magnitude

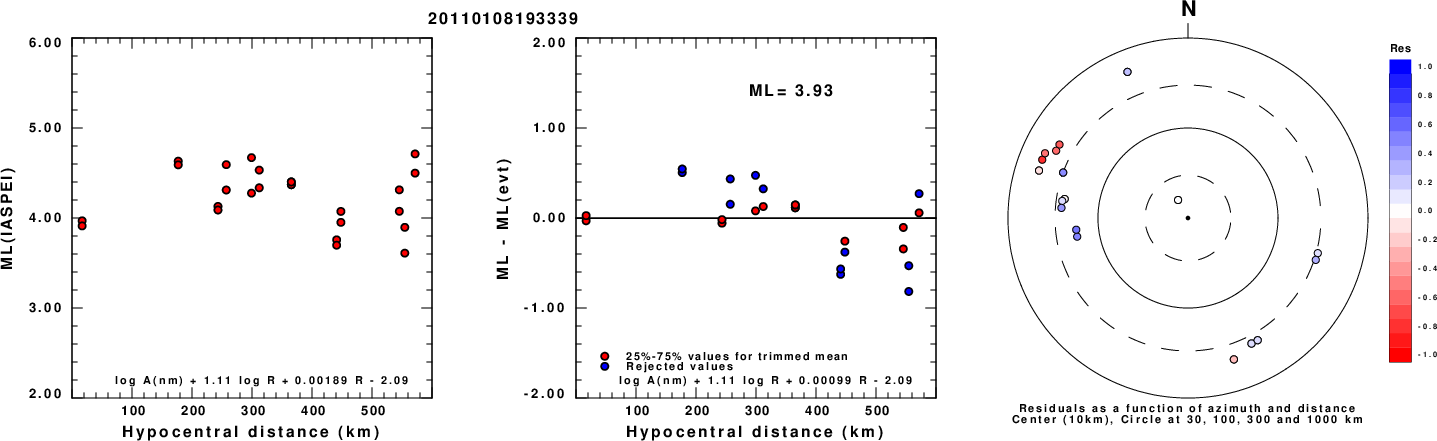

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.

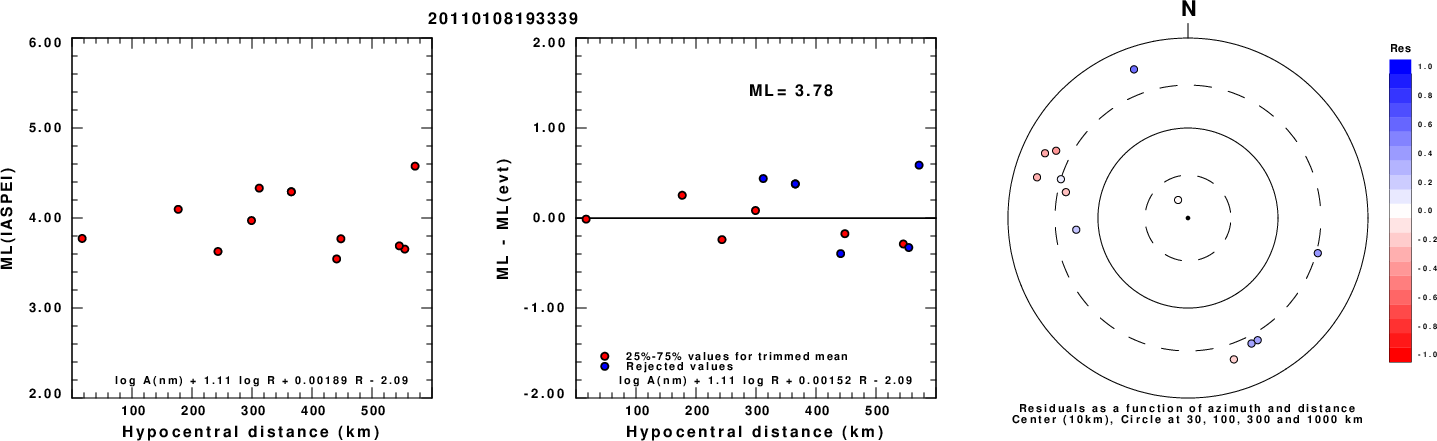

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
Context

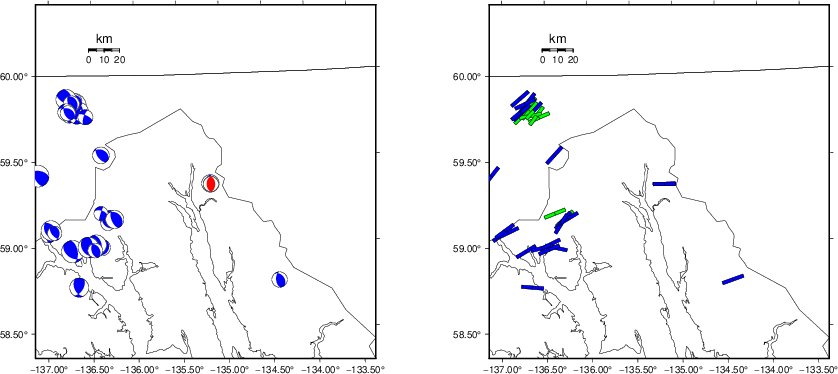

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.
Waveform Inversion using wvfgrd96

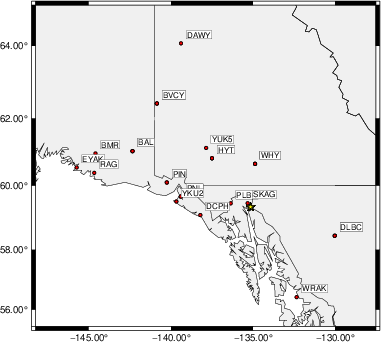

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the
stations used for (red) the waveform inversion are shown in the next figure.
|
|
Location of broadband stations used for waveform inversion
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
hp c 0.02 n 3
lp c 0.06 n 3
br c 0.12 0.25 n 4 p 2
The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 0.5 0 45 90 3.69 0.6476
WVFGRD96 1.0 160 60 45 3.71 0.5628
WVFGRD96 2.0 0 45 90 3.79 0.6500
WVFGRD96 3.0 175 40 80 3.84 0.5841
WVFGRD96 4.0 160 30 55 3.90 0.5265
WVFGRD96 5.0 170 80 85 3.94 0.5333
WVFGRD96 6.0 170 80 85 3.92 0.5721
WVFGRD96 7.0 170 80 85 3.89 0.5912
WVFGRD96 8.0 170 80 85 3.96 0.6058
WVFGRD96 9.0 170 80 80 3.94 0.6172
WVFGRD96 10.0 170 80 80 3.92 0.6243
WVFGRD96 11.0 165 85 80 3.92 0.6264
WVFGRD96 12.0 165 85 80 3.91 0.6288
WVFGRD96 13.0 345 90 -75 3.91 0.6253
WVFGRD96 14.0 345 90 -75 3.91 0.6270
WVFGRD96 15.0 165 90 75 3.91 0.6269
WVFGRD96 16.0 165 90 80 3.91 0.6259
WVFGRD96 17.0 165 90 80 3.91 0.6241
WVFGRD96 18.0 165 90 80 3.91 0.6211
WVFGRD96 19.0 350 85 -85 3.91 0.6221
WVFGRD96 20.0 350 80 -90 3.92 0.6203
WVFGRD96 21.0 180 10 -85 3.93 0.6183
WVFGRD96 22.0 195 15 -70 3.95 0.6173
WVFGRD96 23.0 200 15 -65 3.95 0.6160
WVFGRD96 24.0 200 15 -65 3.96 0.6136
WVFGRD96 25.0 200 15 -65 3.97 0.6102
WVFGRD96 26.0 200 15 -70 3.97 0.6058
WVFGRD96 27.0 200 15 -70 3.98 0.6003
WVFGRD96 28.0 205 15 -65 3.98 0.5937
WVFGRD96 29.0 200 15 -70 3.99 0.5858
WVFGRD96 30.0 210 15 -60 4.00 0.5766
WVFGRD96 31.0 210 15 -60 4.00 0.5665
WVFGRD96 32.0 210 15 -60 4.01 0.5555
WVFGRD96 33.0 215 15 -55 4.02 0.5435
WVFGRD96 34.0 220 15 -50 4.02 0.5312
WVFGRD96 35.0 225 15 -45 4.02 0.5186
WVFGRD96 36.0 225 15 -45 4.03 0.5066
WVFGRD96 37.0 230 15 -40 4.03 0.4954
WVFGRD96 38.0 205 10 -65 4.02 0.4850
WVFGRD96 39.0 210 10 -60 4.02 0.4778
WVFGRD96 40.0 210 5 -55 4.17 0.4690
WVFGRD96 41.0 215 5 -50 4.18 0.4597
WVFGRD96 42.0 210 5 -55 4.18 0.4504
WVFGRD96 43.0 220 5 -45 4.18 0.4408
WVFGRD96 44.0 220 5 -45 4.19 0.4310
WVFGRD96 45.0 220 5 -45 4.19 0.4211
WVFGRD96 46.0 230 5 -35 4.20 0.4112
WVFGRD96 47.0 40 30 -40 4.17 0.4046
WVFGRD96 48.0 40 30 -40 4.18 0.4003
WVFGRD96 49.0 45 35 -40 4.18 0.3963
The best solution is
WVFGRD96 2.0 0 45 90 3.79 0.6500
The mechanism corresponding to the best fit is
|
|
Figure 1. Waveform inversion focal mechanism
|

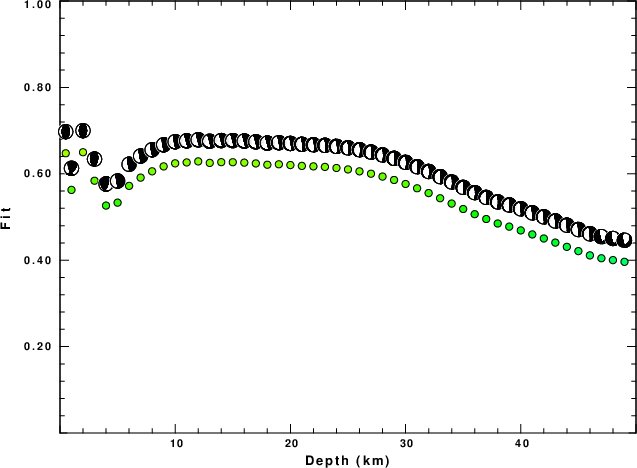

The best fit as a function of depth is given in the following figure:
|
|
Figure 2. Depth sensitivity for waveform mechanism
|

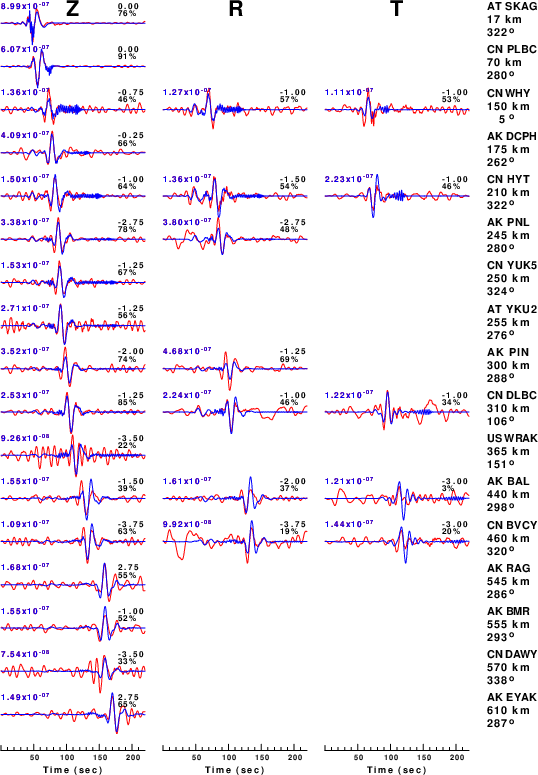

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted.
Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off.
A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
hp c 0.02 n 3
lp c 0.06 n 3
br c 0.12 0.25 n 4 p 2
|
|
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.
|
|
|

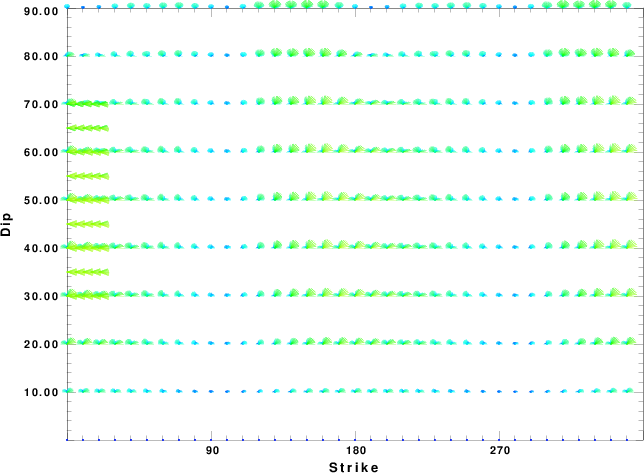

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms.
Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.
|
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
- The origin time and epicentral distance are incorrect
- The velocity model used for the inversion is incorrect
- The velocity model used to define the P-arrival time is not the
same as the velocity model used for the waveform inversion
(assuming that the initial trace alignment is based on the
P arrival time)
Assuming only a mislocation, the time shifts are fit to a functional form:
Time_shift = A + B cos Azimuth + C Sin Azimuth

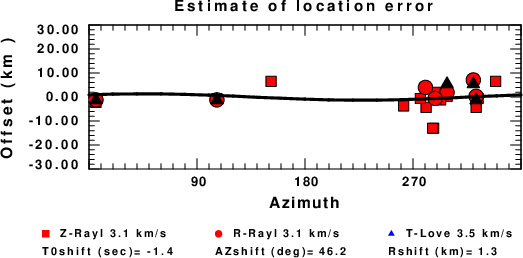

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
Velocity Model
The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows
(The format is in the model96 format of Computer Programs in Seismology).
MODEL.01
Model after 8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS
1.9000 3.4065 2.0089 2.2150 0.302E-02 0.679E-02 0.00 0.00 1.00 1.00
6.1000 5.5445 3.2953 2.6089 0.349E-02 0.784E-02 0.00 0.00 1.00 1.00
13.0000 6.2708 3.7396 2.7812 0.212E-02 0.476E-02 0.00 0.00 1.00 1.00
19.0000 6.4075 3.7680 2.8223 0.111E-02 0.249E-02 0.00 0.00 1.00 1.00
0.0000 7.9000 4.6200 3.2760 0.164E-10 0.370E-10 0.00 0.00 1.00 1.00
