Location

Location ANSS

The ANSS event ID is usp000hq2d and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/usp000hq2d/executive.

2010/11/24 22:48:30 35.612 -97.246 5.0 3.9 Oklahoma

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2010/11/24 22:48:30:0  35.61  -97.25   5.0 3.9 Oklahoma

 Stations used:
   AG.HHAR AG.WHAR NM.MGMO NM.UALR TA.133A TA.134A TA.135A
   TA.336A TA.ABTX TA.P31A TA.P32A TA.P33A TA.P36A TA.Q31A
   TA.Q32A TA.Q33A TA.Q35A TA.Q36A TA.Q37A TA.R29A TA.R30A
   TA.R31A TA.R32A TA.R33A TA.R34A TA.R36A TA.R37A TA.S28A
   TA.S30A TA.S31A TA.S32A TA.S33A TA.S34A TA.S35A TA.S36A
   TA.S37A TA.T29A TA.T30A TA.T31A TA.T32A TA.T33A TA.T34A
   TA.T35A TA.T36A TA.T37A TA.TUL1 TA.U29A TA.U30A TA.U31A
   TA.U32A TA.U33A TA.U34A TA.U35A TA.U36A TA.U37A TA.U38A
   TA.V30A TA.V31A TA.V32A TA.V33A TA.V34A TA.V35A TA.V36A
   TA.V37A TA.V38A TA.W30A TA.W31A TA.W33A TA.W34A TA.W35A
   TA.W36A TA.W38A TA.X30A TA.X31A TA.X32A TA.X34A TA.X35A
   TA.X36A TA.X38A TA.Y31A TA.Y32A TA.Y33A TA.Y34A TA.Y35A
   TA.Y36A TA.Y38A TA.Y39A TA.Z31A TA.Z32A TA.Z33A TA.Z34A
   TA.Z35A TA.Z37A TA.Z39A US.AMTX US.CBKS US.KSU1 US.MIAR
   US.WMOK

 Filtering commands used:
   hp c 0.02 n 3
   lp c 0.10 n 3
   br c 0.12 0.25 n 4 p 2

 Best Fitting Double Couple
  Mo = 9.89e+21 dyne-cm
  Mw = 3.93
  Z  = 3 km
  Plane   Strike  Dip  Rake
   NP1      190    90   180
   NP2      280    90    -0
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   9.89e+21     -0     325
    N   0.00e+00     90     190
    P  -9.89e+21     -0      55

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     3.38e+21
       Mxy    -9.29e+21
       Mxz    -7.50e+13
       Myy    -3.38e+21
       Myz     4.26e+14
       Mzz    -0.00e+00




                     ##########----
                 T ############--------
              ##   ############-----------
             #################-------------
           ###################------------- P
          ####################-------------
         ####################------------------
        #####################-------------------
        #####################-------------------
       -----################---------------------
       ----------------#####---------------------
       ---------------------#####----------------
       ---------------------################-----
        -------------------#####################
        -------------------#####################
         ------------------####################
          ----------------####################
           ---------------###################
             -------------#################
              -----------#################
                 --------##############
                     ----##########



 Global CMT Convention Moment Tensor:
      R          T          P
 -0.00e+00  -7.50e+13  -4.26e+14
 -7.50e+13   3.38e+21   9.29e+21
 -4.26e+14   9.29e+21  -3.38e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20101124224830/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 100
      DIP = 90
     RAKE = 0
       MW = 3.93
       HS = 3.0

The NDK file is 20101124224830.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

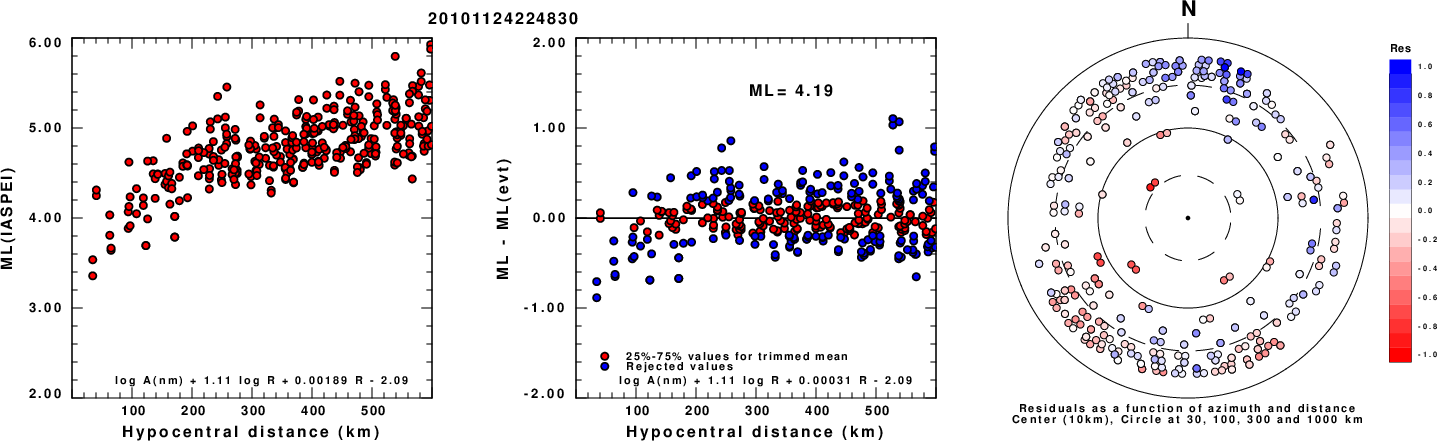

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

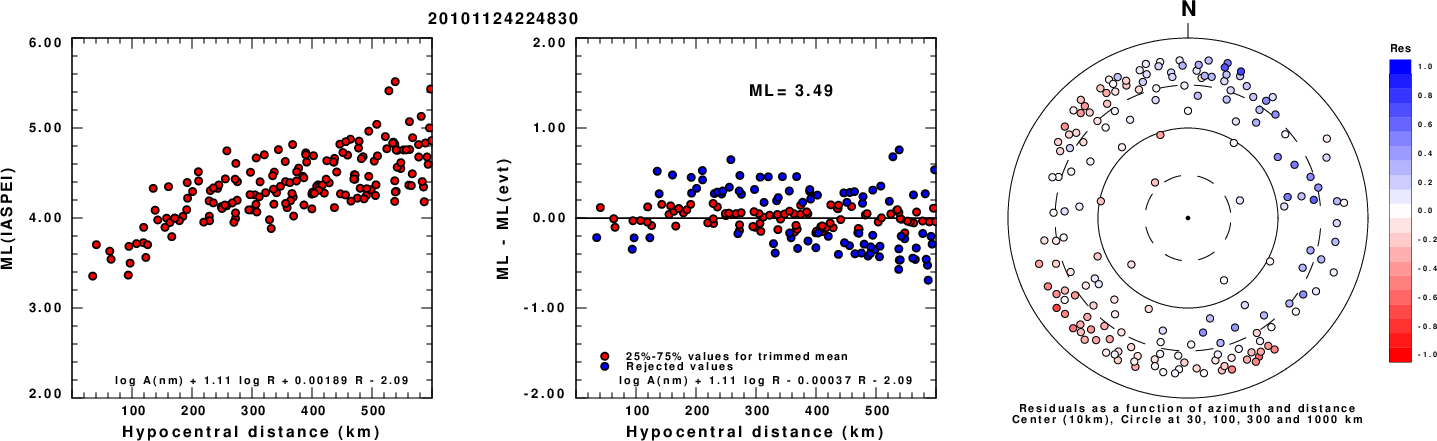

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

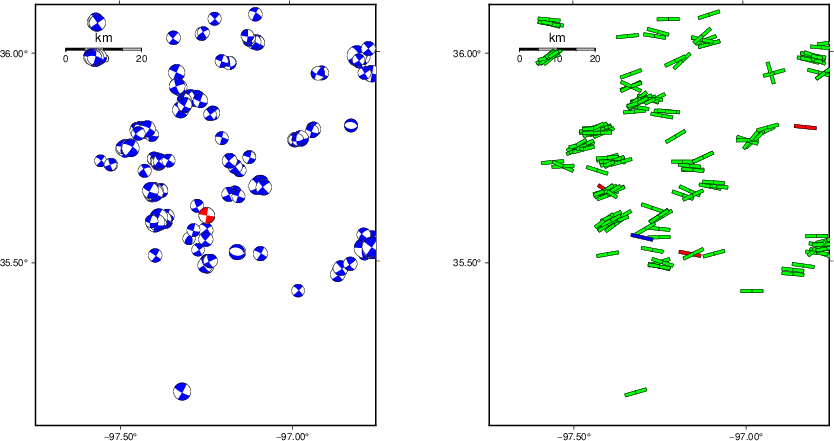

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

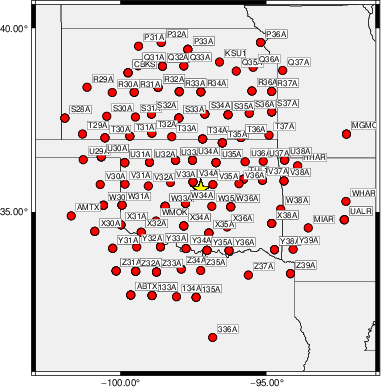

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

hp c 0.02 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    0.5   280    80    -5   3.83 0.4760
WVFGRD96    1.0   280    80    -5   3.86 0.5038
WVFGRD96    2.0   100    90     0   3.90 0.5359
WVFGRD96    3.0   100    90     0   3.93 0.5410
WVFGRD96    4.0   100    80    10   3.95 0.5331
WVFGRD96    5.0   100    85    20   3.97 0.5270
WVFGRD96    6.0   100    85    20   3.98 0.5229
WVFGRD96    7.0   100    85    20   3.98 0.5199
WVFGRD96    8.0   100    85    20   3.99 0.5188
WVFGRD96    9.0   100    70     5   4.00 0.5210
WVFGRD96   10.0   100    70    10   4.01 0.5226
WVFGRD96   11.0   100    70    10   4.02 0.5240
WVFGRD96   12.0   100    70    10   4.03 0.5237
WVFGRD96   13.0   100    75    10   4.03 0.5231
WVFGRD96   14.0   100    80    15   4.04 0.5219
WVFGRD96   15.0   100    80    15   4.05 0.5206
WVFGRD96   16.0   100    80    15   4.05 0.5182
WVFGRD96   17.0   100    80    15   4.06 0.5151
WVFGRD96   18.0   100    80    15   4.07 0.5116
WVFGRD96   19.0   100    85    15   4.08 0.5072
WVFGRD96   20.0   100    85    15   4.09 0.5020
WVFGRD96   21.0   100    85    15   4.10 0.4979
WVFGRD96   22.0   280    90   -15   4.10 0.4935
WVFGRD96   23.0   280    90   -15   4.11 0.4889
WVFGRD96   24.0   280    90   -15   4.12 0.4833
WVFGRD96   25.0   100    90    15   4.12 0.4772
WVFGRD96   26.0   100    90    15   4.13 0.4701
WVFGRD96   27.0   100    90    15   4.14 0.4623
WVFGRD96   28.0    10    75     5   4.14 0.4532
WVFGRD96   29.0    10    75     5   4.15 0.4490

The best solution is

WVFGRD96    3.0   100    90     0   3.93 0.5410

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

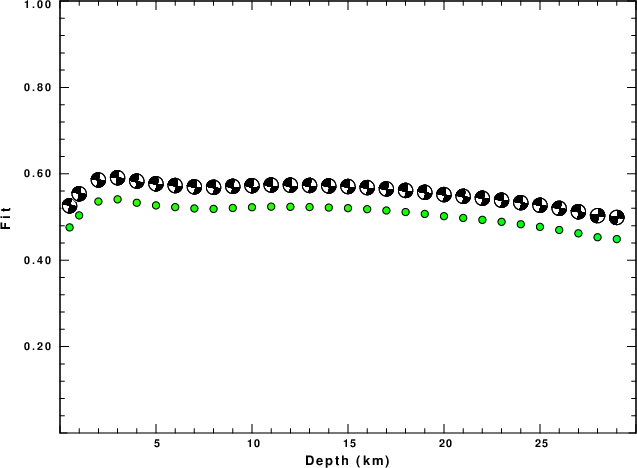

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

hp c 0.02 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2

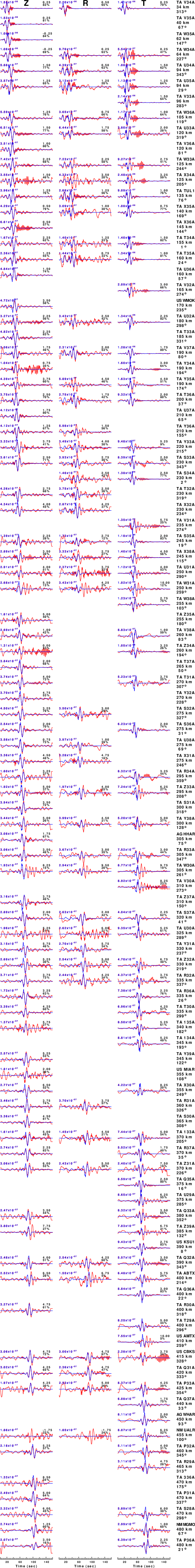

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

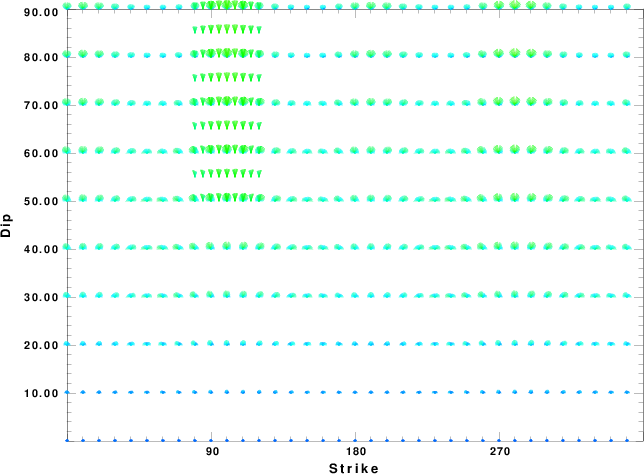

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

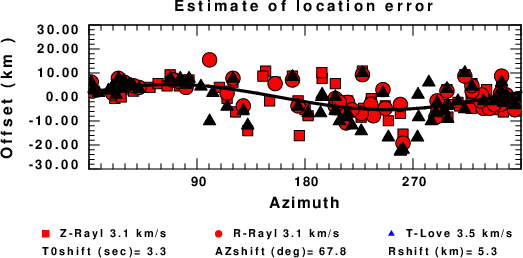

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The CUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
CUS Model with Q from simple gamma values
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
  H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC)   QP   QS  ETAP  ETAS  FREFP  FREFS
  1.0000  5.0000  2.8900  2.5000 0.172E-02 0.387E-02 0.00  0.00  1.00  1.00
  9.0000  6.1000  3.5200  2.7300 0.160E-02 0.363E-02 0.00  0.00  1.00  1.00
 10.0000  6.4000  3.7000  2.8200 0.149E-02 0.336E-02 0.00  0.00  1.00  1.00
 20.0000  6.7000  3.8700  2.9020 0.000E-04 0.000E-04 0.00  0.00  1.00  1.00
  0.0000  8.1500  4.7000  3.3640 0.194E-02 0.431E-02 0.00  0.00  1.00  1.00
Last Changed Sat Apr 27 02:56:43 PM CDT 2024
