The ANSS event ID is ak010elzmuh5 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak010elzmuh5/executive.

2010/11/14 04:59:49 63.196 -150.583 131.3 4.6 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2010/11/14 04:59:49:0  63.20 -150.58 131.3 4.6 Alaska

 Stations used:
   AK.BPAW AK.BWN AK.CAST AK.DHY AK.KTH AK.MCK AK.MDM AK.PAX
   AK.PPLA AK.RND AK.SAW AK.SCM AK.SSN AK.TRF AK.WRH AT.PMR
   IU.COLA

 Filtering commands used:
   hp c 0.02 n 3
   lp c 0.0625 n 3

 Best Fitting Double Couple
  Mo = 1.07e+23 dyne-cm
  Mw = 4.62
  Z  = 134 km
  Plane   Strike  Dip  Rake
   NP1        9    77   128
   NP2      115    40    20
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.07e+23     44     317
    N   0.00e+00     37     180
    P  -1.07e+23     23      71

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     1.99e+22
       Mxy    -5.54e+22
       Mxz     2.68e+22
       Myy    -5.60e+22
       Myz    -7.26e+22
       Mzz     3.61e+22




                     ###########---
                 ###############-------
              ##################----------
             ###################-----------
           #####################-------------
          #########   ##########--------------
         ########## T ##########---------------
        -##########   ##########----------   ---
        --######################---------- P ---
       ---######################----------   ----
       ----####################------------------
       -----###################------------------
       ------##################------------------
        ------################------------------
        --------##############------------------
         ---------############-----------------
          -----------########----------------#
           --------------###--------------###
             ---------------###############
              -------------###############
                 ---------#############
                     ----##########



 Global CMT Convention Moment Tensor:
      R          T          P
  3.61e+22   2.68e+22   7.26e+22
  2.68e+22   1.99e+22   5.54e+22
  7.26e+22   5.54e+22  -5.60e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20101114045949/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 115
      DIP = 40
     RAKE = 20
       MW = 4.62
       HS = 134.0

The NDK file is 20101114045949.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

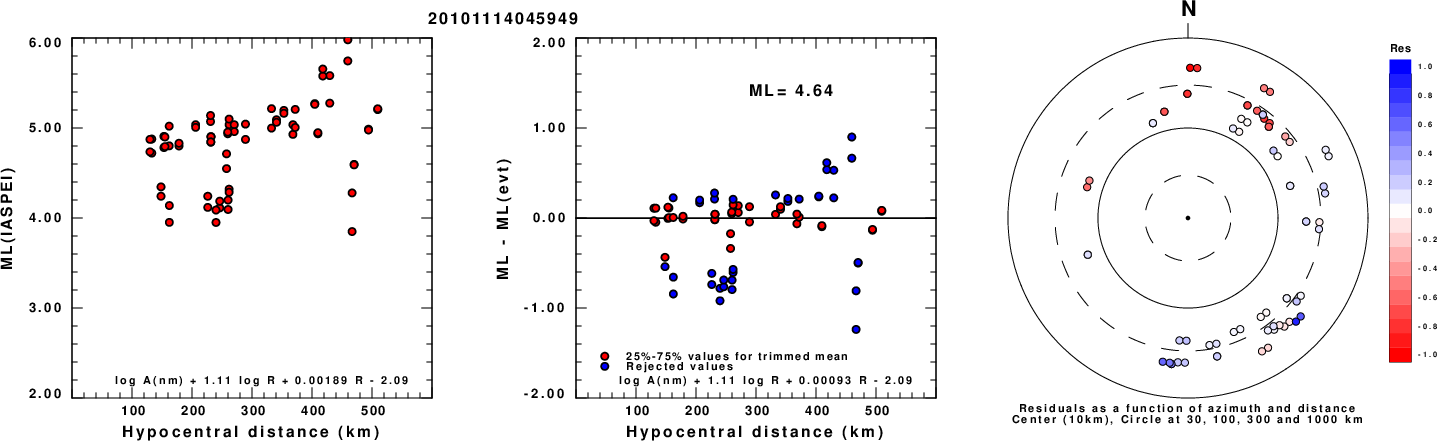

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

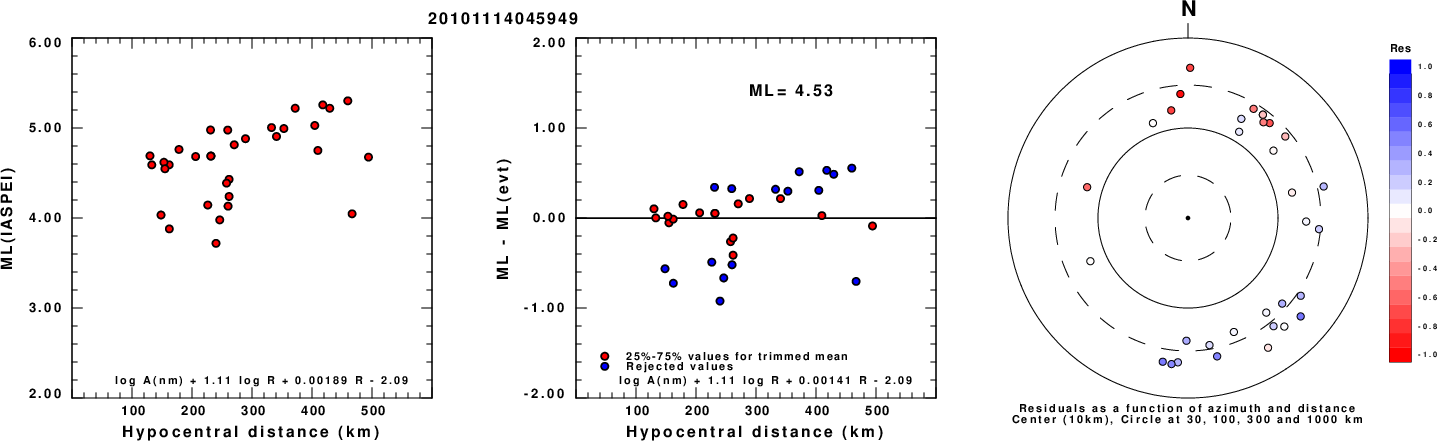

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

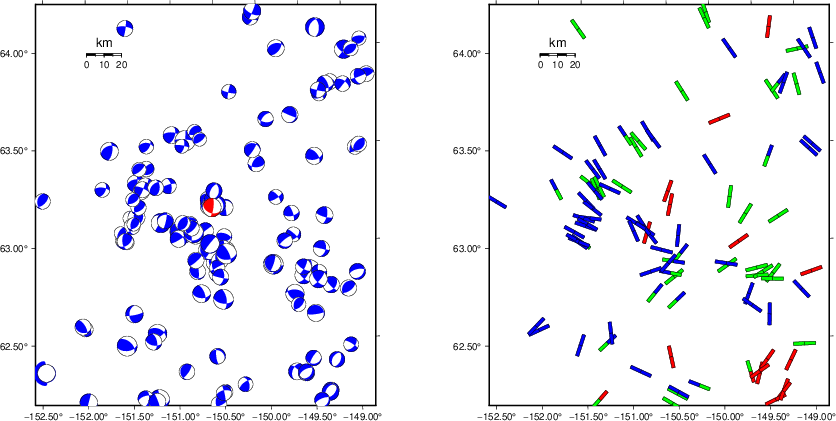

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

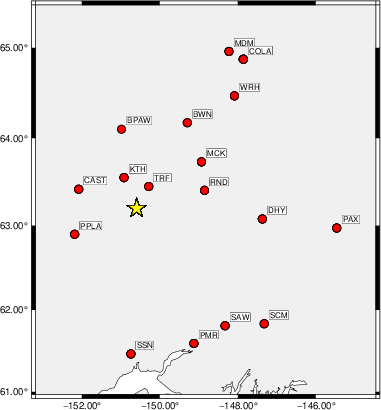

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

hp c 0.02 n 3
lp c 0.0625 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96  110.0   120    40    25   4.58 0.5120
WVFGRD96  111.0   120    40    25   4.58 0.5148
WVFGRD96  112.0   120    40    25   4.58 0.5174
WVFGRD96  113.0   120    40    25   4.58 0.5199
WVFGRD96  114.0   120    40    25   4.58 0.5219
WVFGRD96  115.0   120    40    25   4.58 0.5238
WVFGRD96  116.0   120    40    25   4.59 0.5263
WVFGRD96  117.0   120    40    25   4.59 0.5278
WVFGRD96  118.0   120    40    25   4.59 0.5295
WVFGRD96  119.0   120    40    25   4.59 0.5315
WVFGRD96  120.0   120    40    25   4.59 0.5321
WVFGRD96  121.0   120    40    25   4.59 0.5339
WVFGRD96  122.0   120    40    25   4.59 0.5354
WVFGRD96  123.0   115    40    20   4.61 0.5363
WVFGRD96  124.0   115    40    20   4.61 0.5375
WVFGRD96  125.0   115    40    20   4.61 0.5387
WVFGRD96  126.0   115    40    20   4.61 0.5390
WVFGRD96  127.0   115    40    20   4.61 0.5403
WVFGRD96  128.0   115    40    20   4.61 0.5412
WVFGRD96  129.0   115    40    20   4.61 0.5411
WVFGRD96  130.0   115    40    20   4.61 0.5415
WVFGRD96  131.0   115    40    20   4.62 0.5422
WVFGRD96  132.0   115    40    20   4.62 0.5421
WVFGRD96  133.0   115    40    20   4.62 0.5422
WVFGRD96  134.0   115    40    20   4.62 0.5426
WVFGRD96  135.0   115    40    20   4.62 0.5422
WVFGRD96  136.0   115    40    20   4.62 0.5416
WVFGRD96  137.0   115    40    20   4.62 0.5418
WVFGRD96  138.0   115    40    20   4.62 0.5417
WVFGRD96  139.0   115    40    20   4.62 0.5408

The best solution is

WVFGRD96  134.0   115    40    20   4.62 0.5426

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

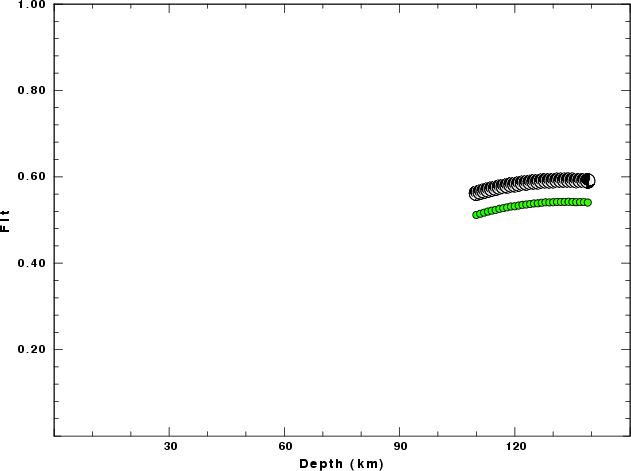

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

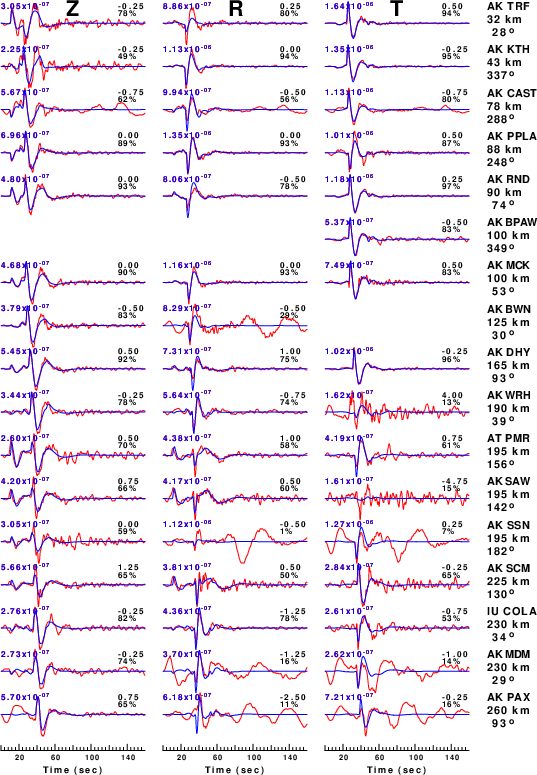

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

hp c 0.02 n 3
lp c 0.0625 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

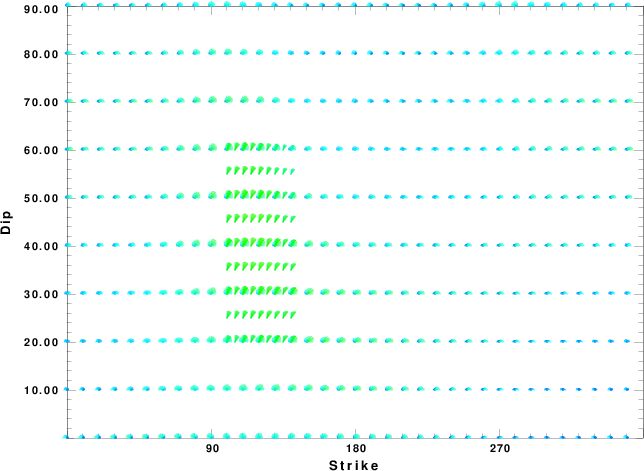

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

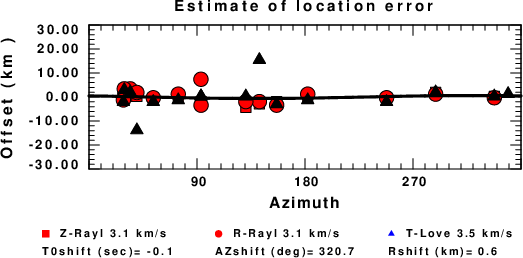

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
