Location

Location ANSS

The ANSS event ID is nm607646 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/nm607646/executive.

2010/10/15 10:20:19 35.294 -92.340 7.0 3.8 Arkansas

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2010/10/15 10:20:19:0  35.29  -92.34   7.0 3.8 Arkansas

 Stations used:
   AG.FCAR AG.LCAR AG.WLAR IU.CCM IU.WVT NM.MGMO NM.MPH
   NM.OLIL NM.SIUC NM.SLM NM.UALR NM.USIN NM.UTMT TA.139A
   TA.O36A TA.P35A TA.P36A TA.Q34A TA.Q36A TA.Q37A TA.R35A
   TA.R36A TA.S35A TA.S36A TA.T34A TA.T35A TA.T36A TA.T37A
   TA.TUL1 TA.V34A TA.V35A TA.W34A TA.W35A TA.W36A TA.W37A
   TA.W38A TA.X37A TA.X38A TA.Y37A TA.Y38A TA.Y39A TA.Z37A
   TA.Z38A TA.Z39A US.KSU1 US.MIAR US.OXF

 Filtering commands used:
   hp c 0.02 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 7.00e+21 dyne-cm
  Mw = 3.83
  Z  = 5 km
  Plane   Strike  Dip  Rake
   NP1      211    85   -170
   NP2      120    80    -5
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   7.00e+21      4     345
    N   0.00e+00     79     237
    P  -7.00e+21     11      76

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     6.10e+21
       Mxy    -3.34e+21
       Mxz     1.09e+20
       Myy    -5.89e+21
       Myz    -1.34e+21
       Mzz    -2.09e+20




                      T ###########
                 ####   ##############-
              #######################-----
             #######################-------
           #######################-----------
          #######################-------------
         ---####################---------------
        ------#################--------------
        --------#############---------------- P
       ------------#########-----------------   -
       ---------------#####----------------------
       ------------------#-----------------------
       ------------------###---------------------
        ----------------#######-----------------
        ---------------############-------------
         -------------#################--------
          -----------########################-
           ---------#########################
             ------########################
              ----########################
                 ######################
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
 -2.09e+20   1.09e+20   1.34e+21
  1.09e+20   6.10e+21   3.34e+21
  1.34e+21   3.34e+21  -5.89e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20101015102019/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 120
      DIP = 80
     RAKE = -5
       MW = 3.83
       HS = 5.0

The NDK file is 20101015102019.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
SLU

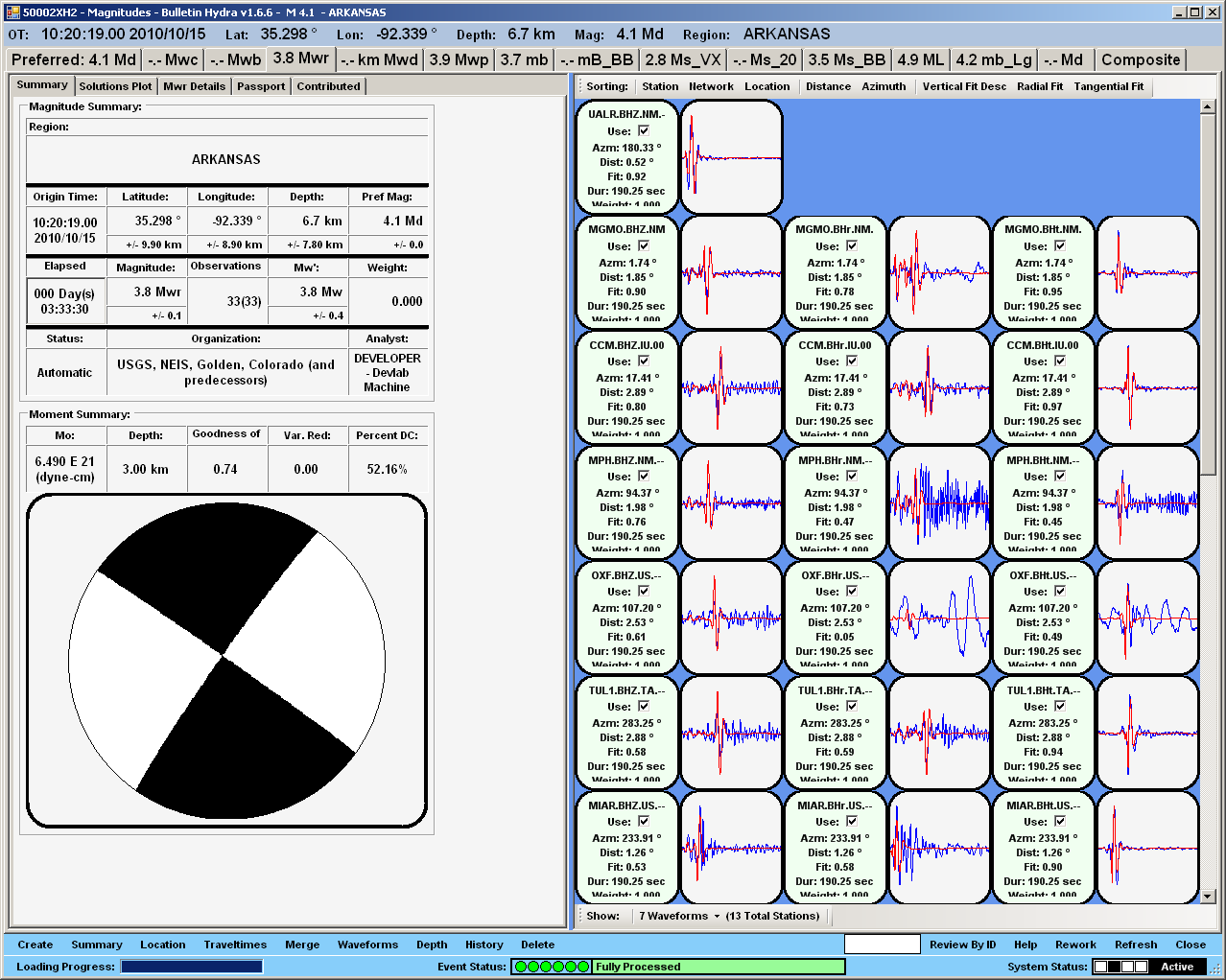

USGSMT
 USGS/SLU Moment Tensor Solution
 ENS  2010/10/15 10:20:19:0  35.29  -92.34   7.0 3.8 Arkansas

 Stations used:
   AG.FCAR AG.LCAR AG.WLAR IU.CCM IU.WVT NM.MGMO NM.MPH
   NM.OLIL NM.SIUC NM.SLM NM.UALR NM.USIN NM.UTMT TA.139A
   TA.O36A TA.P35A TA.P36A TA.Q34A TA.Q36A TA.Q37A TA.R35A
   TA.R36A TA.S35A TA.S36A TA.T34A TA.T35A TA.T36A TA.T37A
   TA.TUL1 TA.V34A TA.V35A TA.W34A TA.W35A TA.W36A TA.W37A
   TA.W38A TA.X37A TA.X38A TA.Y37A TA.Y38A TA.Y39A TA.Z37A
   TA.Z38A TA.Z39A US.KSU1 US.MIAR US.OXF

 Filtering commands used:
   hp c 0.02 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 7.00e+21 dyne-cm
  Mw = 3.83
  Z  = 5 km
  Plane   Strike  Dip  Rake
   NP1      211    85   -170
   NP2      120    80    -5
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   7.00e+21      4     345
    N   0.00e+00     79     237
    P  -7.00e+21     11      76

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     6.10e+21
       Mxy    -3.34e+21
       Mxz     1.09e+20
       Myy    -5.89e+21
       Myz    -1.34e+21
       Mzz    -2.09e+20




                      T ###########
                 ####   ##############-
              #######################-----
             #######################-------
           #######################-----------
          #######################-------------
         ---####################---------------
        ------#################--------------
        --------#############---------------- P
       ------------#########-----------------   -
       ---------------#####----------------------
       ------------------#-----------------------
       ------------------###---------------------
        ----------------#######-----------------
        ---------------############-------------
         -------------#################--------
          -----------########################-
           ---------#########################
             ------########################
              ----########################
                 ######################
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
 -2.09e+20   1.09e+20   1.34e+21
  1.09e+20   6.10e+21   3.34e+21
  1.34e+21   3.34e+21  -5.89e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20101015102019/index.html




Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

mLg Magnitude

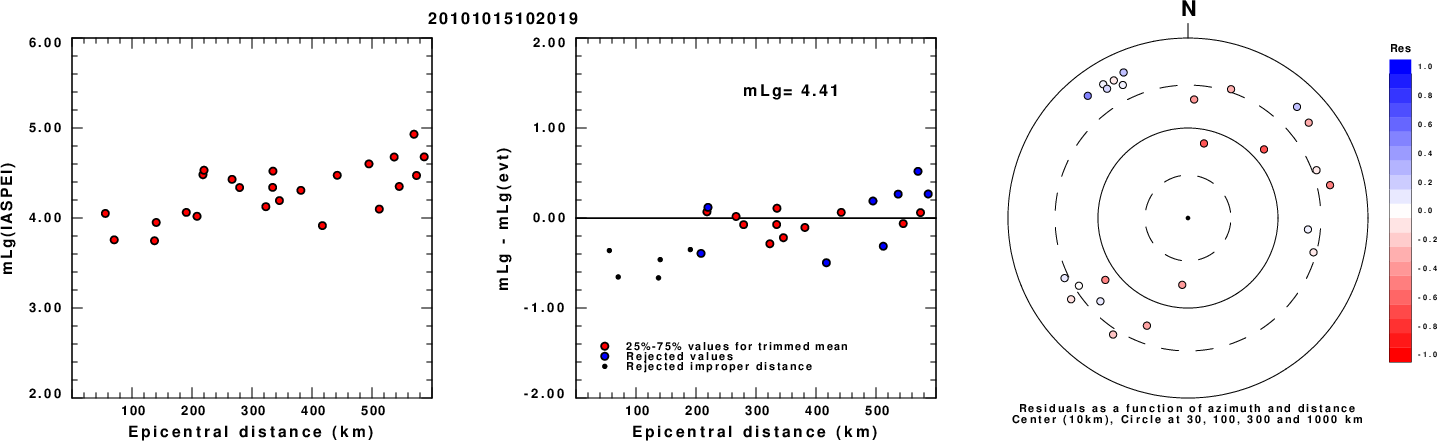

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

ML Magnitude

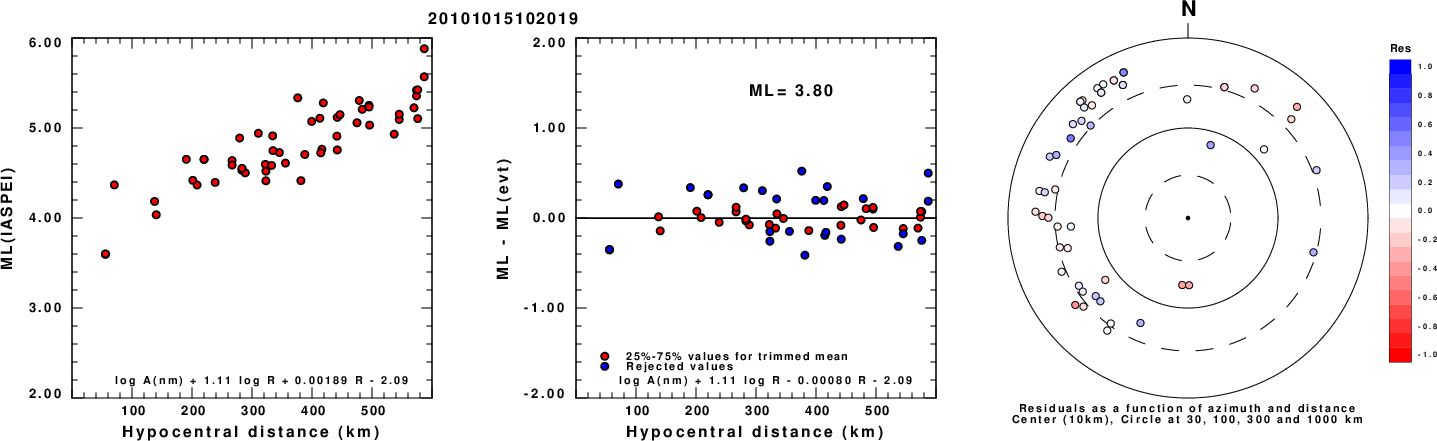

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

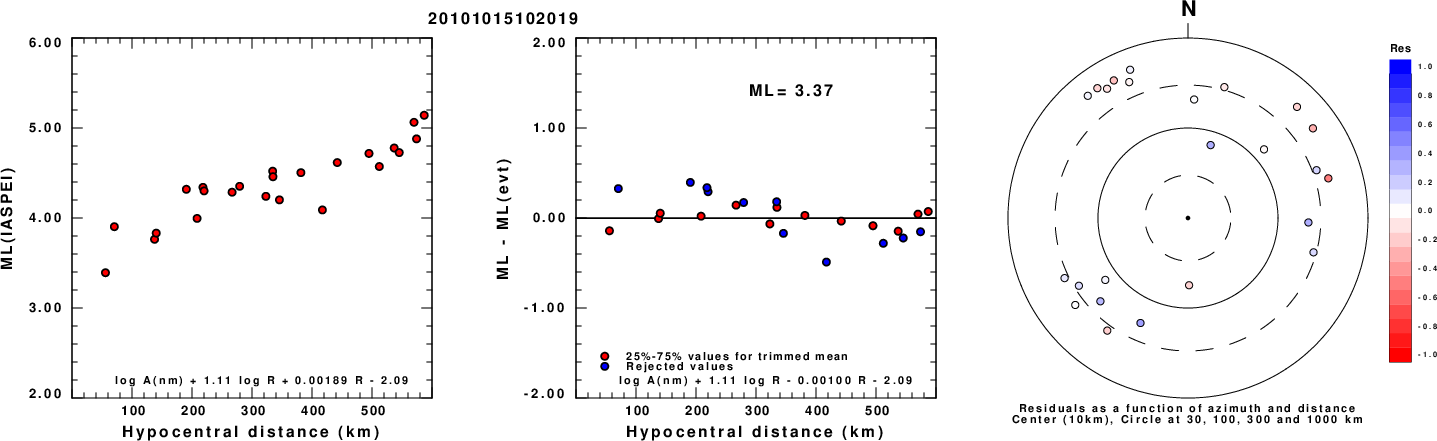

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

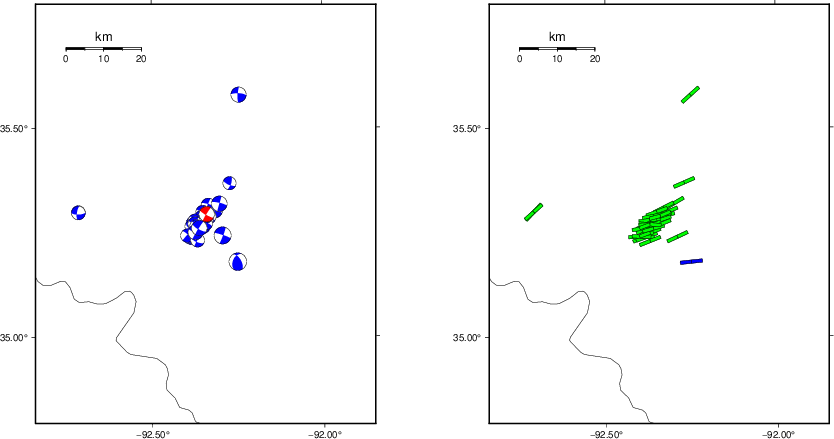

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

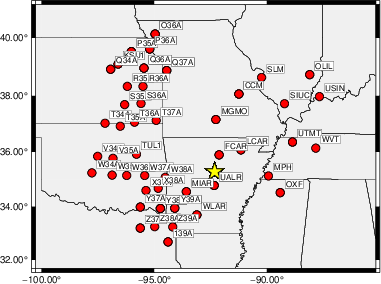

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

hp c 0.02 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    0.5   120    85     0   3.69 0.3380
WVFGRD96    1.0   300    85   -10   3.72 0.3634
WVFGRD96    2.0   120    70   -10   3.78 0.4168
WVFGRD96    3.0   120    70   -10   3.81 0.4409
WVFGRD96    4.0   120    70   -10   3.83 0.4486
WVFGRD96    5.0   120    80    -5   3.83 0.4591
WVFGRD96    6.0   120    80    -5   3.84 0.4535
WVFGRD96    7.0   120    85    -5   3.84 0.4518
WVFGRD96    8.0   120    85    -5   3.85 0.4436
WVFGRD96    9.0   120    90    -5   3.86 0.4402
WVFGRD96   10.0   300    90     5   3.88 0.4376
WVFGRD96   11.0   305    75    10   3.89 0.4351
WVFGRD96   12.0   305    75    10   3.90 0.4326
WVFGRD96   13.0   305    75    10   3.91 0.4288
WVFGRD96   14.0   305    75    10   3.92 0.4243
WVFGRD96   15.0   305    75    10   3.93 0.4186
WVFGRD96   16.0   305    75    10   3.94 0.4120
WVFGRD96   17.0   305    75    10   3.94 0.4043
WVFGRD96   18.0   305    75    10   3.95 0.3960
WVFGRD96   19.0   305    75    10   3.96 0.3879
WVFGRD96   20.0   305    70    10   3.97 0.3796
WVFGRD96   21.0   305    70    10   3.98 0.3705
WVFGRD96   22.0   305    70    10   3.98 0.3610
WVFGRD96   23.0   305    70    10   3.99 0.3522
WVFGRD96   24.0   305    70    10   3.99 0.3426
WVFGRD96   25.0   305    70    10   3.99 0.3340
WVFGRD96   26.0   305    70    10   4.00 0.3265
WVFGRD96   27.0   305    70    10   4.00 0.3187
WVFGRD96   28.0   305    70    10   4.00 0.3114
WVFGRD96   29.0   305    60     5   4.02 0.3069

The best solution is

WVFGRD96    5.0   120    80    -5   3.83 0.4591

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

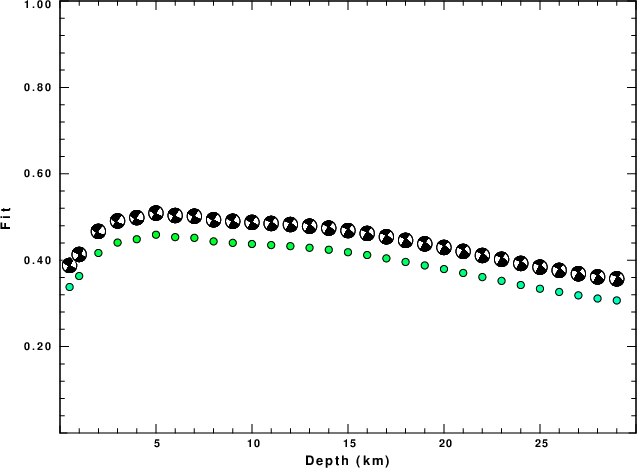

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

hp c 0.02 n 3
lp c 0.10 n 3

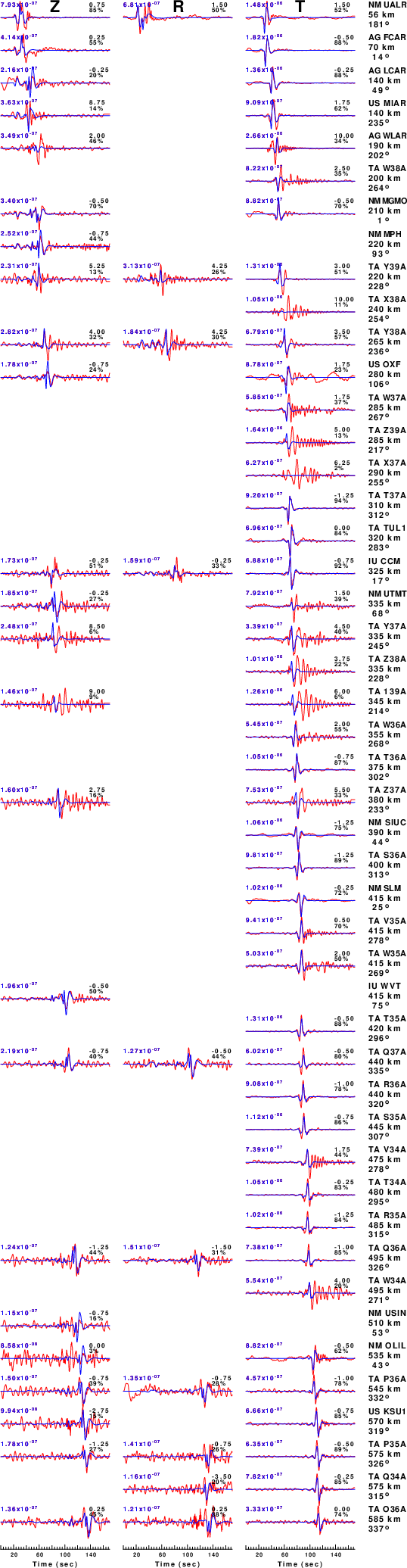

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

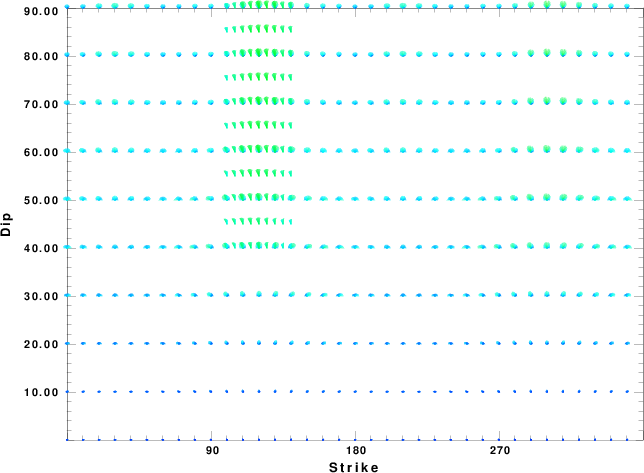

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

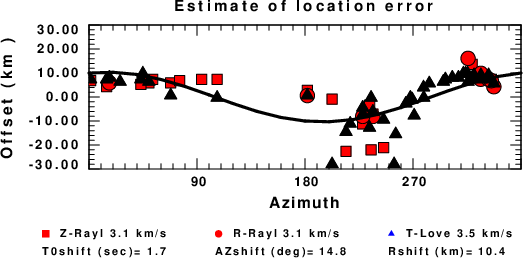

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The CUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
CUS Model with Q from simple gamma values
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
  H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC)   QP   QS  ETAP  ETAS  FREFP  FREFS
  1.0000  5.0000  2.8900  2.5000 0.172E-02 0.387E-02 0.00  0.00  1.00  1.00
  9.0000  6.1000  3.5200  2.7300 0.160E-02 0.363E-02 0.00  0.00  1.00  1.00
 10.0000  6.4000  3.7000  2.8200 0.149E-02 0.336E-02 0.00  0.00  1.00  1.00
 20.0000  6.7000  3.8700  2.9020 0.000E-04 0.000E-04 0.00  0.00  1.00  1.00
  0.0000  8.1500  4.7000  3.3640 0.194E-02 0.431E-02 0.00  0.00  1.00  1.00
