Location

SLU Location

To check the ANSS location or to compare the observed P-wave first motions to the moment tensor solution, P- and S-wave first arrival times were manually read together with the P-wave first motions. The subsequent output of the program elocate is given in the file elocate.txt. The first motion plot is shown below.

Location ANSS

The ANSS event ID is usp000hn24 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/usp000hn24/executive.

2010/10/13 14:06:29 35.192 -97.320 13.0 4.4 Oklahoma

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2010/10/13 14:06:29:0  35.19  -97.32  13.0 4.4 Oklahoma

 Stations used:
   AG.WLAR NM.MGMO NM.UALR TA.129A TA.131A TA.133A TA.134A
   TA.135A TA.137A TA.139A TA.230A TA.231A TA.232A TA.233A
   TA.234A TA.236A TA.332A TA.333A TA.334A TA.335A TA.434A
   TA.435B TA.436A TA.P33A TA.P34A TA.P35A TA.Q30A TA.Q31A
   TA.Q32A TA.Q33A TA.Q34A TA.Q35A TA.Q36A TA.Q37A TA.R29A
   TA.R30A TA.R31A TA.R33A TA.R35A TA.R36A TA.S28A TA.S29A
   TA.S30A TA.S31A TA.S32A TA.S34A TA.S35A TA.S36A TA.T29A
   TA.T30A TA.T31A TA.T32A TA.T33A TA.T34A TA.T35A TA.T36A
   TA.T37A TA.TUL1 TA.U29A TA.U30A TA.U31A TA.U32A TA.U33A
   TA.U34A TA.V29A TA.V32A TA.V33A TA.V34A TA.V35A TA.W31A
   TA.W32A TA.W33A TA.W34A TA.W35A TA.W36A TA.W37A TA.W38A
   TA.WHTX TA.X32A TA.X33A TA.X34A TA.X35A TA.X36A TA.X37A
   TA.X38A TA.Y33A TA.Y34A TA.Y35A TA.Y36A TA.Y37A TA.Y38A
   TA.Y39A TA.Z29A TA.Z31A TA.Z32A TA.Z33A TA.Z34A TA.Z36A
   TA.Z39A US.CBKS US.KSU1 US.MIAR US.WMOK

 Filtering commands used:
   hp c 0.02 n 3
   lp c 0.06 n 3

 Best Fitting Double Couple
  Mo = 3.94e+22 dyne-cm
  Mw = 4.33
  Z  = 14 km
  Plane   Strike  Dip  Rake
   NP1       29    85   170
   NP2      120    80     5
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   3.94e+22     11     344
    N   0.00e+00     79     183
    P  -3.94e+22      4      75

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     3.26e+22
       Mxy    -1.98e+22
       Mxz     6.20e+21
       Myy    -3.37e+22
       Myz    -4.28e+21
       Mzz     1.17e+21




                        ###########
                 #### T ##############-
              #######   #############-----
             #######################-------
           #########################---------
          #########################-----------
         ---######################-------------
        ------###################-------------
        --------################-------------- P
       ------------############---------------
       ---------------########-------------------
       ------------------####--------------------
       ------------------------------------------
        -------------------####-----------------
        ------------------#########-------------
         ----------------##############--------
          -------------######################-
           -----------#######################
             --------######################
              ------######################
                 -#####################
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
  1.17e+21   6.20e+21   4.28e+21
  6.20e+21   3.26e+22   1.98e+22
  4.28e+21   1.98e+22  -3.37e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20101013140629/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 120
      DIP = 80
     RAKE = 5
       MW = 4.33
       HS = 14.0

The NDK file is 20101013140629.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
SLU
GCMT
SLUFM
 USGS/SLU Moment Tensor Solution
 ENS  2010/10/13 14:06:29:0  35.19  -97.32  13.0 4.4 Oklahoma

 Stations used:
   AG.WLAR NM.MGMO NM.UALR TA.129A TA.131A TA.133A TA.134A
   TA.135A TA.137A TA.139A TA.230A TA.231A TA.232A TA.233A
   TA.234A TA.236A TA.332A TA.333A TA.334A TA.335A TA.434A
   TA.435B TA.436A TA.P33A TA.P34A TA.P35A TA.Q30A TA.Q31A
   TA.Q32A TA.Q33A TA.Q34A TA.Q35A TA.Q36A TA.Q37A TA.R29A
   TA.R30A TA.R31A TA.R33A TA.R35A TA.R36A TA.S28A TA.S29A
   TA.S30A TA.S31A TA.S32A TA.S34A TA.S35A TA.S36A TA.T29A
   TA.T30A TA.T31A TA.T32A TA.T33A TA.T34A TA.T35A TA.T36A
   TA.T37A TA.TUL1 TA.U29A TA.U30A TA.U31A TA.U32A TA.U33A
   TA.U34A TA.V29A TA.V32A TA.V33A TA.V34A TA.V35A TA.W31A
   TA.W32A TA.W33A TA.W34A TA.W35A TA.W36A TA.W37A TA.W38A
   TA.WHTX TA.X32A TA.X33A TA.X34A TA.X35A TA.X36A TA.X37A
   TA.X38A TA.Y33A TA.Y34A TA.Y35A TA.Y36A TA.Y37A TA.Y38A
   TA.Y39A TA.Z29A TA.Z31A TA.Z32A TA.Z33A TA.Z34A TA.Z36A
   TA.Z39A US.CBKS US.KSU1 US.MIAR US.WMOK

 Filtering commands used:
   hp c 0.02 n 3
   lp c 0.06 n 3

 Best Fitting Double Couple
  Mo = 3.94e+22 dyne-cm
  Mw = 4.33
  Z  = 14 km
  Plane   Strike  Dip  Rake
   NP1       29    85   170
   NP2      120    80     5
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   3.94e+22     11     344
    N   0.00e+00     79     183
    P  -3.94e+22      4      75

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     3.26e+22
       Mxy    -1.98e+22
       Mxz     6.20e+21
       Myy    -3.37e+22
       Myz    -4.28e+21
       Mzz     1.17e+21




                        ###########
                 #### T ##############-
              #######   #############-----
             #######################-------
           #########################---------
          #########################-----------
         ---######################-------------
        ------###################-------------
        --------################-------------- P
       ------------############---------------
       ---------------########-------------------
       ------------------####--------------------
       ------------------------------------------
        -------------------####-----------------
        ------------------#########-------------
         ----------------##############--------
          -------------######################-
           -----------#######################
             --------######################
              ------######################
                 -#####################
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
  1.17e+21   6.20e+21   4.28e+21
  6.20e+21   3.26e+22   1.98e+22
  4.28e+21   1.98e+22  -3.37e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20101013140629/index.html

October 13, 2010, OKLAHOMA, MW=4.4

Meredith Nettles
Goran Ekstrom

CENTROID-MOMENT-TENSOR  SOLUTION
GCMT EVENT:     S201010131406A
DATA: TA US IU II CU G
SURFACE WAVES: 285S, 377C, T= 40
TIMESTAMP:      Q-20101014143127
CENTROID LOCATION:
ORIGIN TIME:      14:06:31.7 0.2
LAT:35.21N 0.01;LON: 97.28W 0.02
DEP: 12.0  FIX;TRIANG HDUR:  1.0
MOMENT TENSOR: SCALE 10**22 D-CM
RR=-0.032 0.139; TT= 3.830 0.108
PP=-3.800 0.144; RT= 0.847 0.313
RP=-0.261 0.365; TP= 2.310 0.119
PRINCIPAL AXES:
1.(T) VAL=  4.596;PLG= 9;AZM=345
2.(N)      -0.100;    79;    130
3.(P)      -4.497;     6;    254
BEST DBLE.COUPLE:M0= 4.55*10**22
NP1: STRIKE= 29;DIP=79;SLIP= 178
NP2: STRIKE=120;DIP=88;SLIP=  11

               ########
        #### T ##########--
      ######   ##########----
    ####################-------
   #####################--------
  ----#################----------
  -------#############-----------
 -----------#########-------------
 --------------######-------------
 -----------------##--------------
    --------------####------------
  P -------------########--------
    ------------############-----
   ------------#################
    ----------#################
      ------#################
        --#################
            ###########

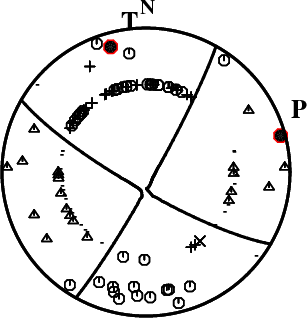

First motions and takeoff angles from an elocate run.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

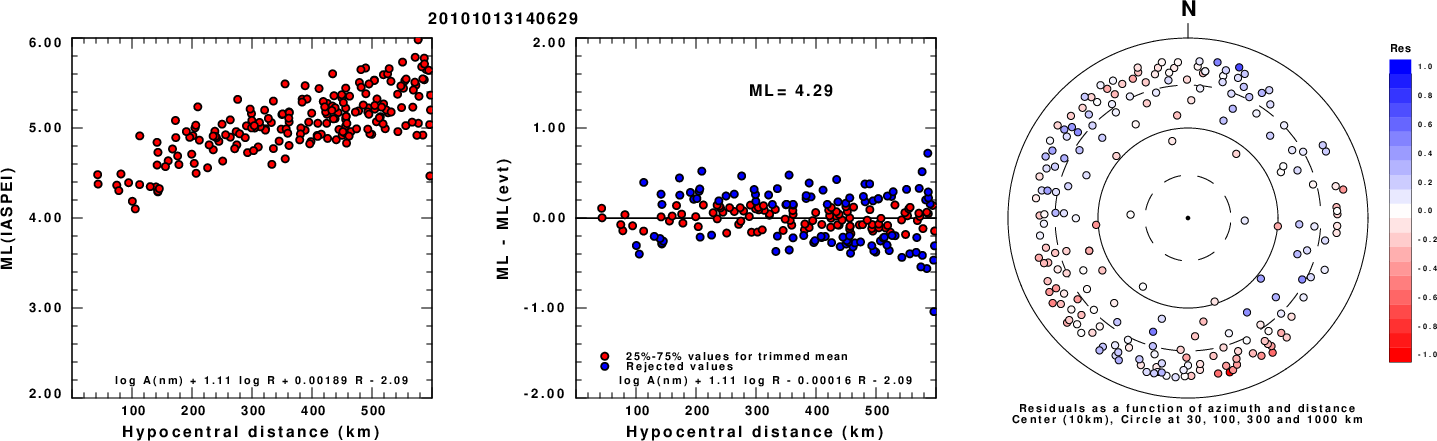

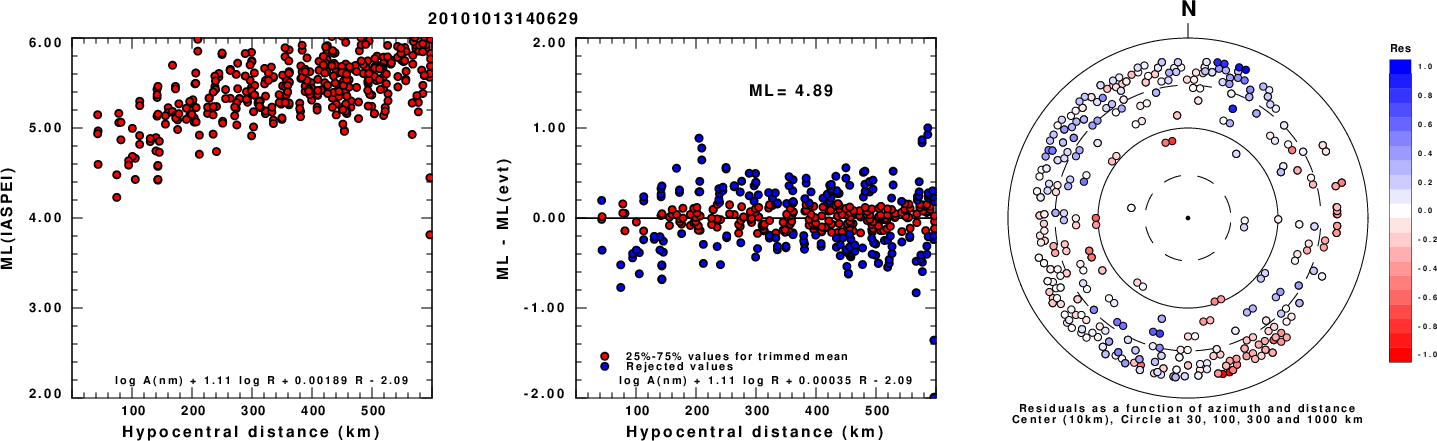

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.


Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

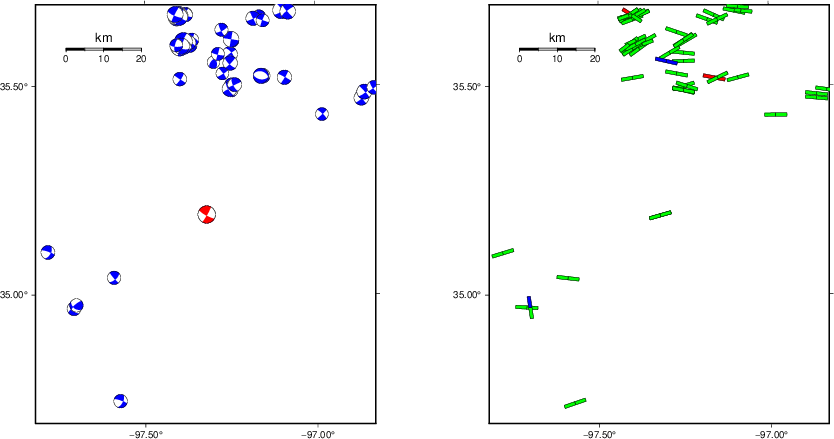

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

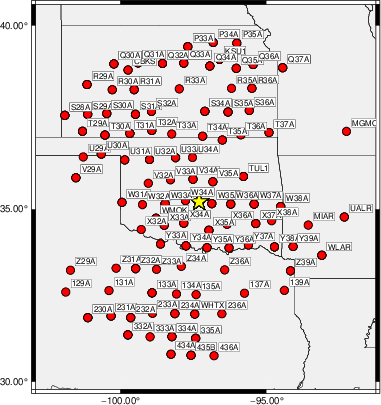

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

hp c 0.02 n 3
lp c 0.06 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    0.5   120    65     0   4.17 0.4012
WVFGRD96    1.0   120    65     0   4.19 0.4196
WVFGRD96    2.0   120    70     0   4.21 0.4487
WVFGRD96    3.0   120    70     0   4.23 0.4688
WVFGRD96    4.0   120    70     0   4.25 0.4843
WVFGRD96    5.0   120    70     5   4.26 0.4973
WVFGRD96    6.0   120    75    10   4.27 0.5092
WVFGRD96    7.0   120    75    10   4.28 0.5198
WVFGRD96    8.0   120    75    10   4.29 0.5285
WVFGRD96    9.0   120    75     5   4.30 0.5356
WVFGRD96   10.0   120    75    10   4.31 0.5422
WVFGRD96   11.0   120    75     5   4.31 0.5461
WVFGRD96   12.0   120    75     5   4.32 0.5487
WVFGRD96   13.0   120    75     5   4.33 0.5498
WVFGRD96   14.0   120    80     5   4.33 0.5506
WVFGRD96   15.0   120    80     5   4.34 0.5501
WVFGRD96   16.0   120    80     5   4.35 0.5489
WVFGRD96   17.0   120    80     5   4.36 0.5472
WVFGRD96   18.0   120    80     5   4.36 0.5447
WVFGRD96   19.0   120    80     5   4.37 0.5419
WVFGRD96   20.0   120    80     5   4.38 0.5387
WVFGRD96   21.0   120    80     5   4.39 0.5339
WVFGRD96   22.0   120    80     5   4.39 0.5288
WVFGRD96   23.0   120    80     5   4.40 0.5230
WVFGRD96   24.0   120    80     5   4.40 0.5167
WVFGRD96   25.0   120    80     5   4.41 0.5102
WVFGRD96   26.0   120    80     5   4.41 0.5032
WVFGRD96   27.0   120    80     5   4.42 0.4959
WVFGRD96   28.0   120    80     5   4.42 0.4885
WVFGRD96   29.0   120    80     5   4.43 0.4810

The best solution is

WVFGRD96   14.0   120    80     5   4.33 0.5506

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

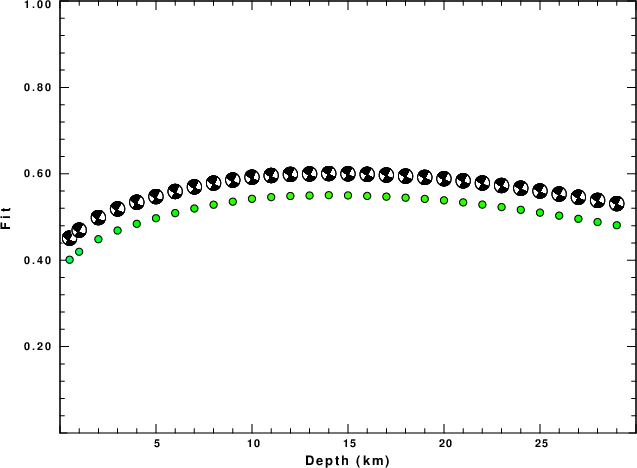

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

hp c 0.02 n 3
lp c 0.06 n 3

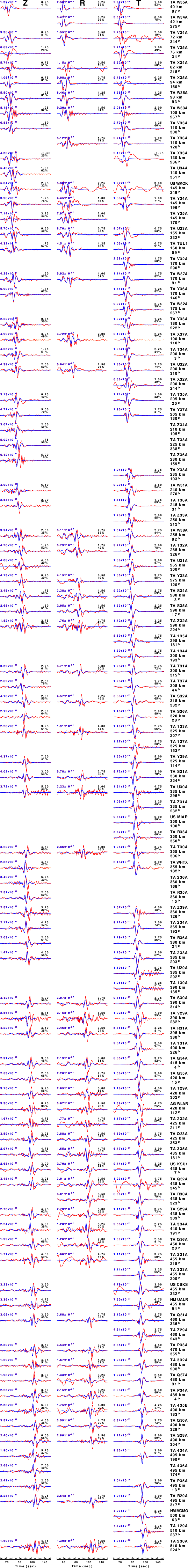

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

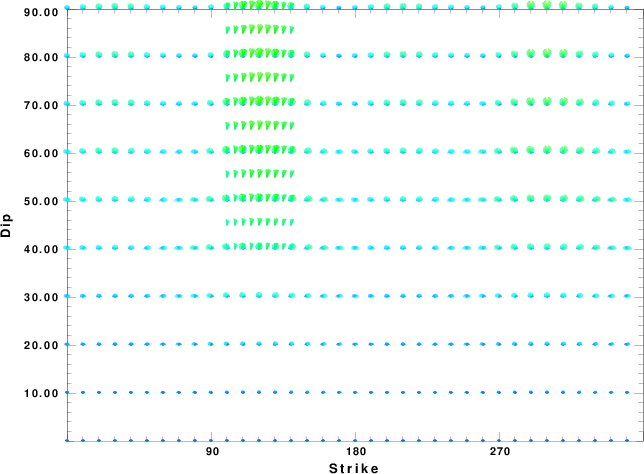

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

The time shifts for this inversion lead to the next figure:

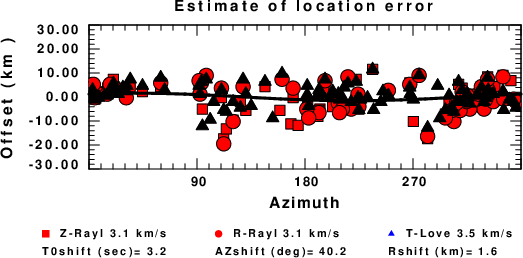

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Surface-Wave Focal Mechanism

The following figure shows the stations used in the grid search for the best focal mechanism to fit the surface-wave spectral amplitudes of the Love and Rayleigh waves.
Location of broadband stations used to obtain focal mechanism from surface-wave spectral amplitudes

The surface-wave determined focal mechanism is shown here.


  NODAL PLANES


  STK=      27.38
  DIP=      80.34
 RAKE=     164.78

             OR

  STK=     119.99
  DIP=      75.00
 RAKE=      10.00


DEPTH = 11.0 km

Mw = 4.37
Best Fit 0.8852 - P-T axis plot gives solutions with FIT greater than FIT90

Surface-wave analysis

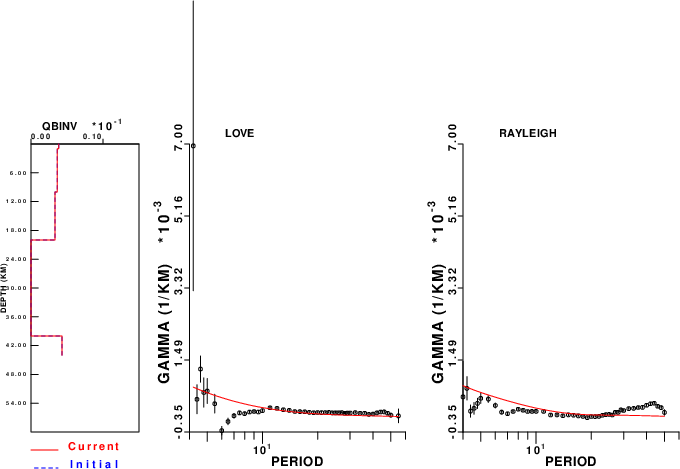

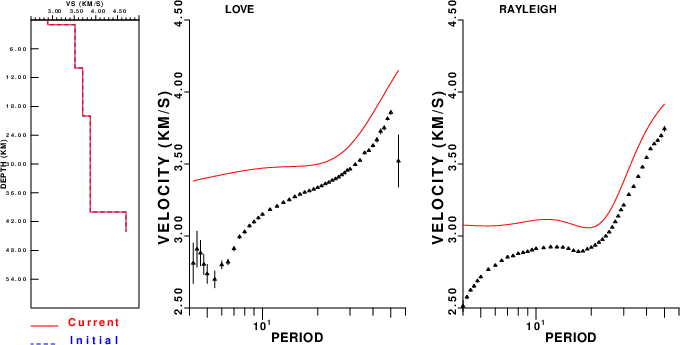

Surface wave analysis was performed using codes from Computer Programs in Seismology, specifically the multiple filter analysis program do_mft and the surface-wave radiation pattern search program srfgrd96.

Data preparation

Digital data were collected, instrument response removed and traces converted to Z, R an T components. Multiple filter analysis was applied to the Z and T traces to obtain the Rayleigh- and Love-wave spectral amplitudes, respectively. These were input to the search program which examined all depths between 1 and 25 km and all possible mechanisms.

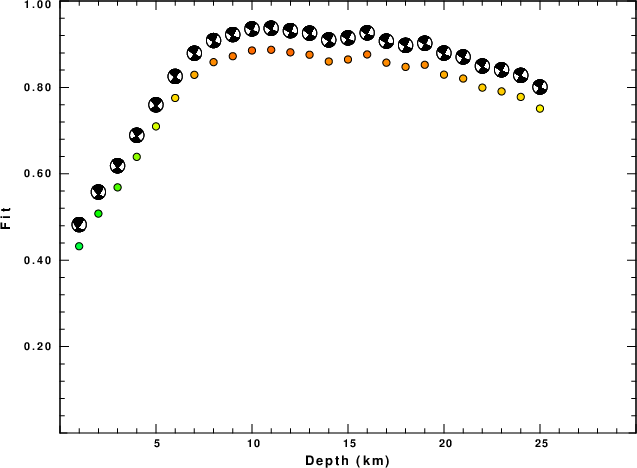

Best mechanism fit as a function of depth. The preferred depth is given above. Lower hemisphere projection

Pressure-tension axis trends. Since the surface-wave spectra search does not distinguish between P and T axes and since there is a 180 ambiguity in strike, all possible P and T axes are plotted. First motion data and waveforms will be used to select the preferred mechanism. The purpose of this plot is to provide an idea of the possible range of solutions. The P and T-axes for all mechanisms with goodness of fit greater than 0.9 FITMAX (above) are plotted here.

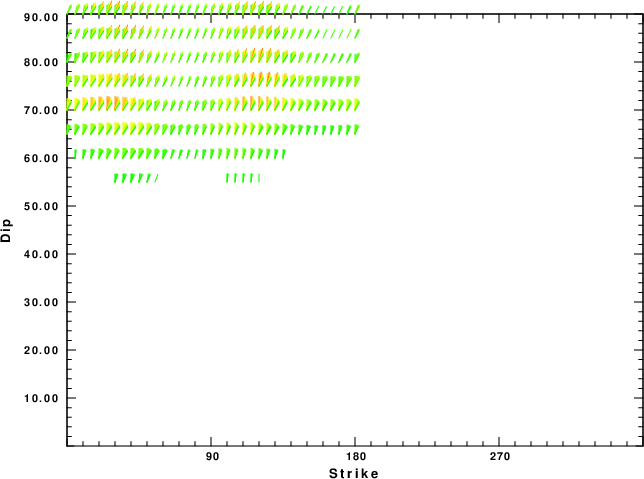

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the Love and Rayleigh wave radiation patterns. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. Because of the symmetry of the spectral amplitude rediation patterns, only strikes from 0-180 degrees are sampled.

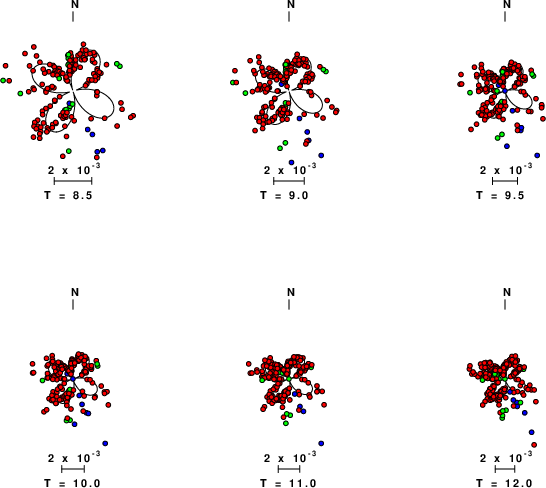

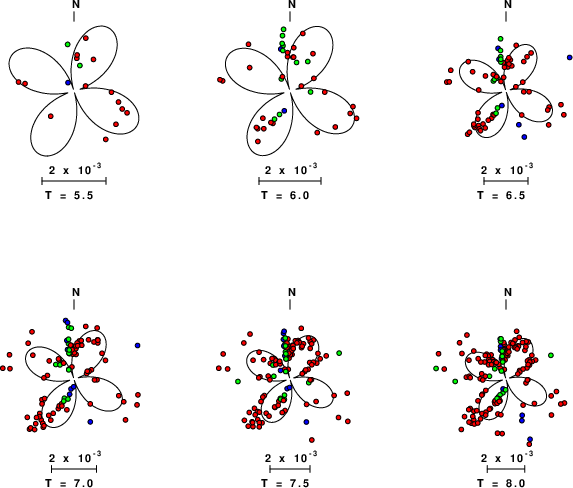

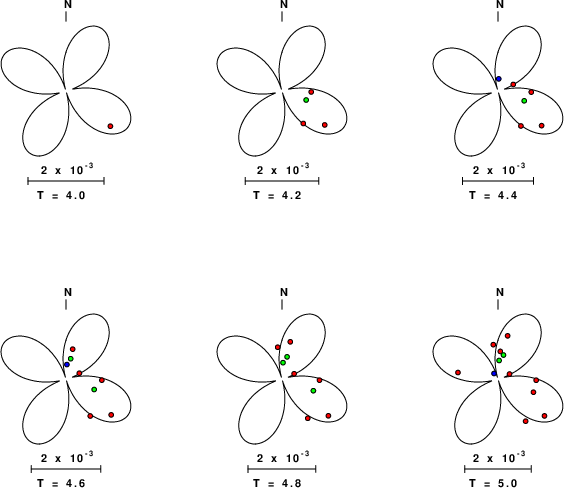

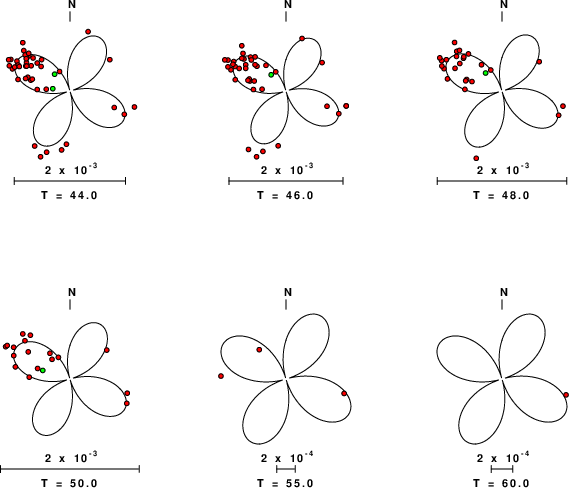

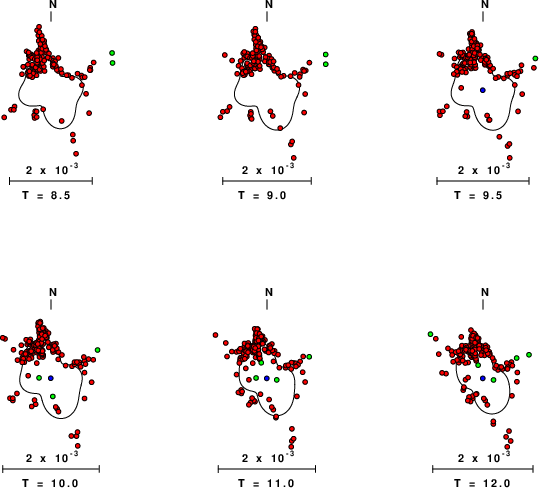

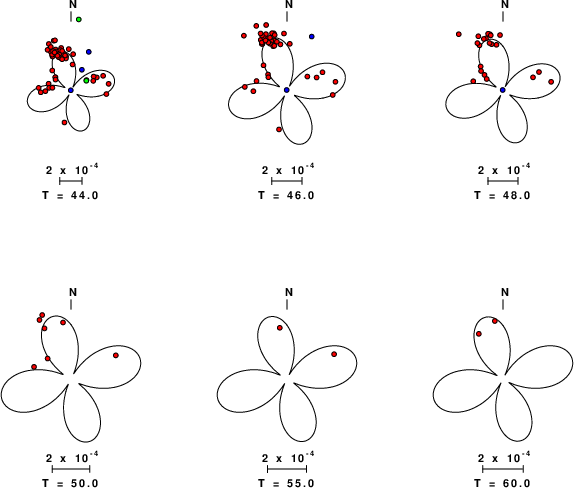

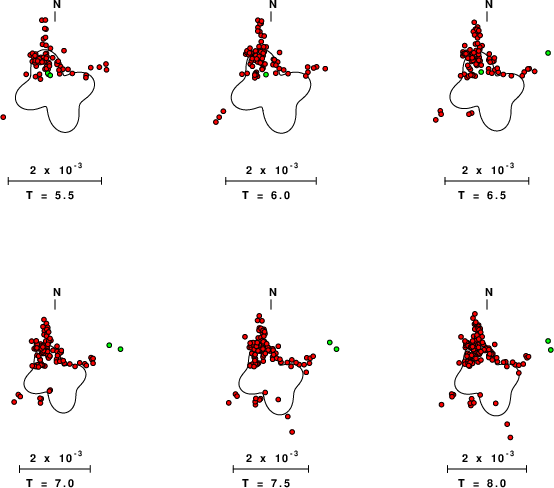

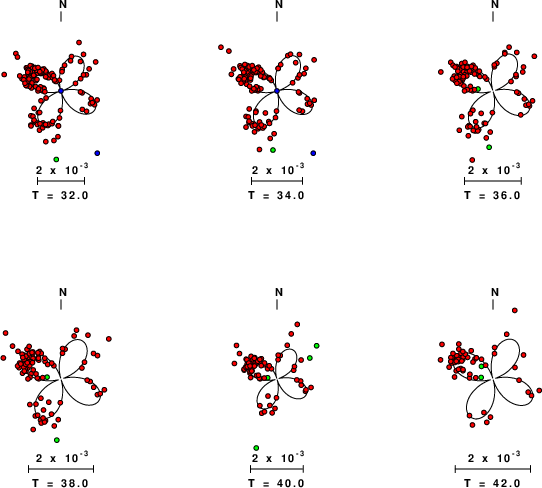

Love-wave radiation patterns

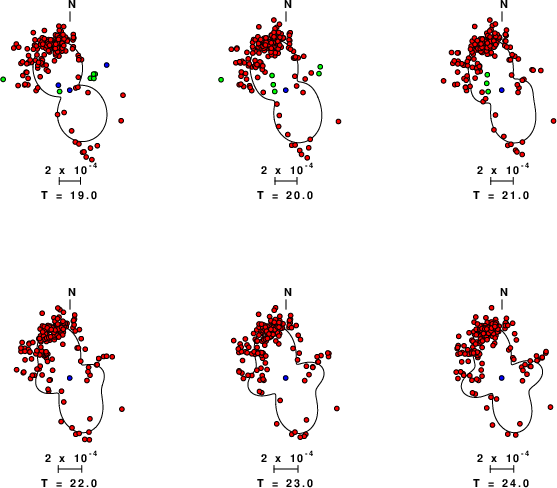

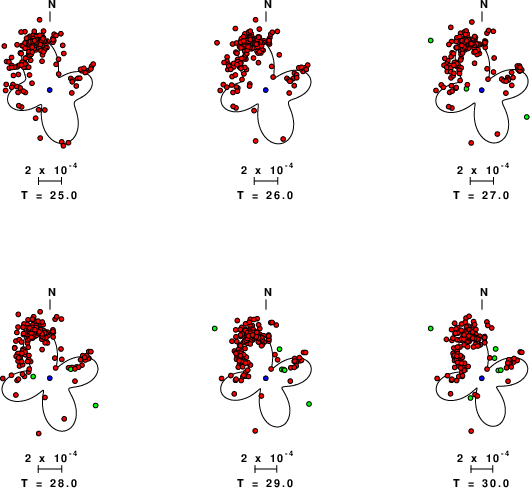

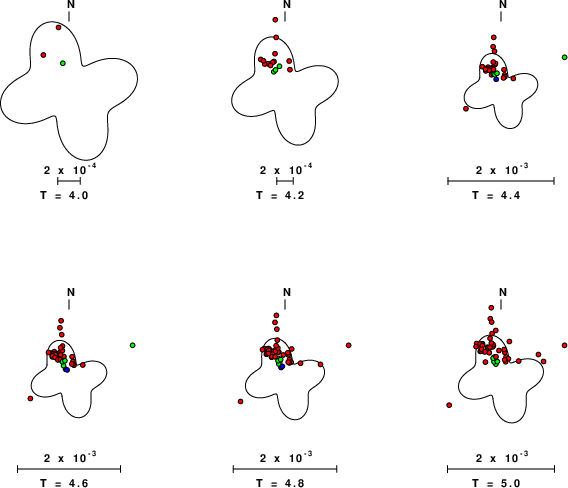

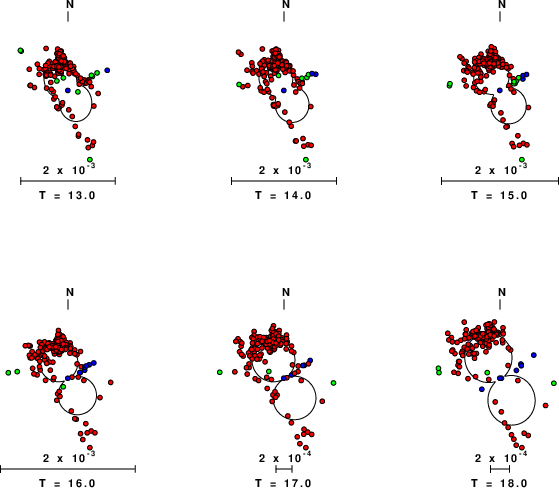

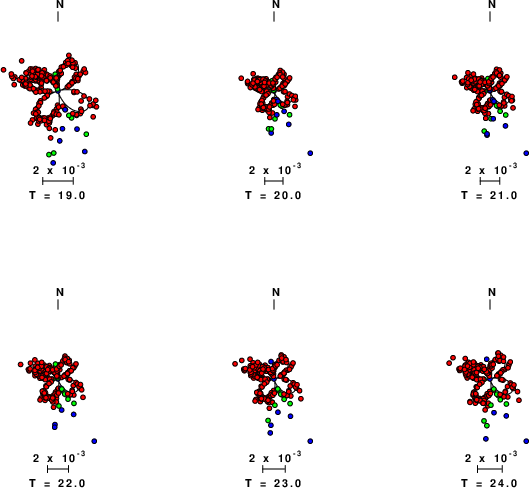

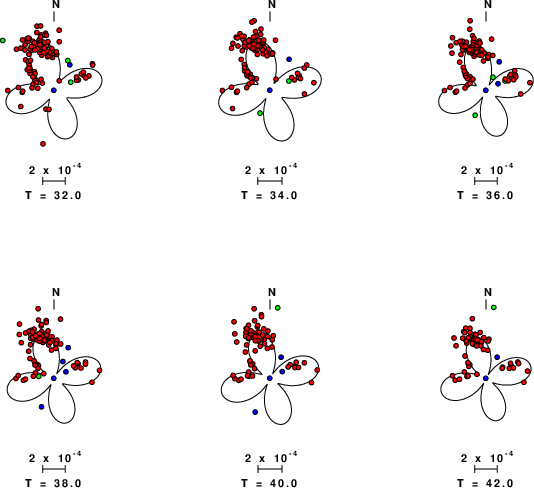

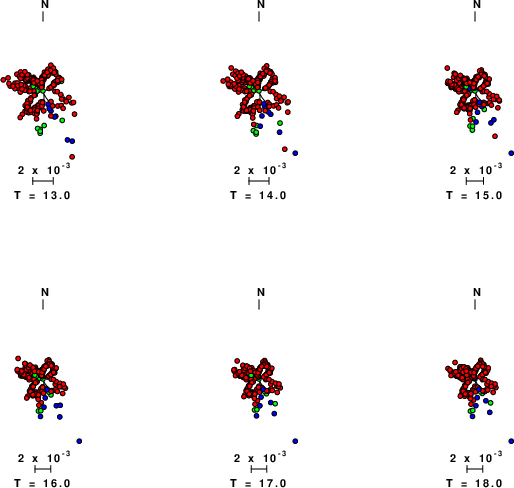

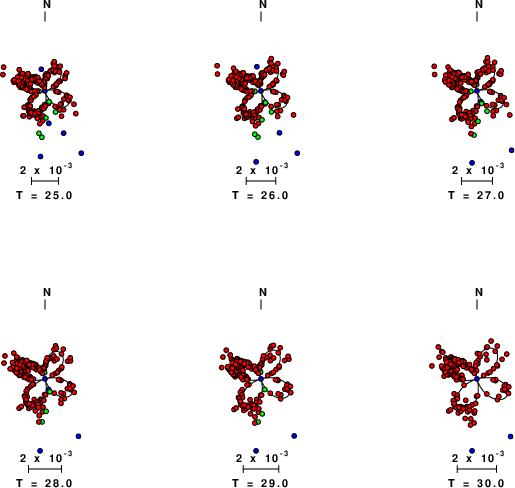

Rayleigh-wave radiation patterns
