Location

Location ANSS

The ANSS event ID is nn00430553 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/nn00430553/executive.

2010/09/30 10:17:01 37.150 -117.383 8.7 3.7 Nevada

Focal Mechanism

USGS/SLU Moment Tensor Solution ENS 2010/09/30 10:17:01:0 37.15 -117.38 8.7 3.7 Nevada Stations used: CI.FUR CI.GLA CI.GSC CI.LDF CI.TIN LB.DAC TA.R11A US.DUG US.TPNV UU.CCUT UU.NLU UU.SZCU Filtering commands used: hp c 0.02 n 3 lp c 0.10 n 3 br c 0.12 0.25 n 4 p 2 Best Fitting Double Couple Mo = 6.31e+21 dyne-cm Mw = 3.80 Z = 10 km Plane Strike Dip Rake NP1 240 75 -25 NP2 337 66 -164 Principal Axes: Axis Value Plunge Azimuth T 6.31e+21 6 290 N 0.00e+00 61 31 P -6.31e+21 28 197 Moment Tensor: (dyne-cm) Component Value Mxx -3.78e+21 Mxy -3.34e+21 Mxz 2.74e+21 Myy 5.12e+21 Myz 1.27e+20 Mzz -1.33e+21 -------------- #####----------------- ###########----------------- ##############---------------- #################----------------- ###################---------------## ####################------########## T ##################################### #################-----############### ##################--------################ ###############------------############### #############---------------############## ##########-------------------############# #######---------------------############ #####-----------------------############ ##--------------------------########## ---------------------------######### ----------- ------------######## --------- P ------------###### -------- ------------##### --------------------## -------------- Global CMT Convention Moment Tensor: R T P -1.33e+21 2.74e+21 -1.27e+20 2.74e+21 -3.78e+21 3.34e+21 -1.27e+20 3.34e+21 5.12e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20100930101701/index.html

Preferred Solution

      STK = 240
      DIP = 75
     RAKE = -25
       MW = 3.80
       HS = 10.0

The NDK file is 20100930101701.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.

SLU	UNR
USGS/SLU Moment Tensor Solution ENS 2010/09/30 10:17:01:0 37.15 -117.38 8.7 3.7 Nevada Stations used: CI.FUR CI.GLA CI.GSC CI.LDF CI.TIN LB.DAC TA.R11A US.DUG US.TPNV UU.CCUT UU.NLU UU.SZCU Filtering commands used: hp c 0.02 n 3 lp c 0.10 n 3 br c 0.12 0.25 n 4 p 2 Best Fitting Double Couple Mo = 6.31e+21 dyne-cm Mw = 3.80 Z = 10 km Plane Strike Dip Rake NP1 240 75 -25 NP2 337 66 -164 Principal Axes: Axis Value Plunge Azimuth T 6.31e+21 6 290 N 0.00e+00 61 31 P -6.31e+21 28 197 Moment Tensor: (dyne-cm) Component Value Mxx -3.78e+21 Mxy -3.34e+21 Mxz 2.74e+21 Myy 5.12e+21 Myz 1.27e+20 Mzz -1.33e+21 -------------- #####----------------- ###########----------------- ##############---------------- #################----------------- ###################---------------## ####################------########## T ##################################### #################-----############### ##################--------################ ###############------------############### #############---------------############## ##########-------------------############# #######---------------------############ #####-----------------------############ ##--------------------------########## ---------------------------######### ----------- ------------######## --------- P ------------###### -------- ------------##### --------------------## -------------- Global CMT Convention Moment Tensor: R T P -1.33e+21 2.74e+21 -1.27e+20 2.74e+21 -3.78e+21 3.34e+21 -1.27e+20 3.34e+21 5.12e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20100930101701/index.html	REVIEWED BY NSL STAFF Event ID:317403 Origin ID:755087 Seismic Moment Tensor Solution 2010/09/30 (273) 10:17:00.00 37.1636 -117.3788 755087 Depth = 14.0 (km) Mw = 3.77 Mo = 5.70x10^21 (dyne x cm) Percent Double Couple = 99 % Percent CLVD = 1 % no ISO calculated Epsilon=-0.00 Percent Variance Reduction = 52.70 % Total Fit = 32.74 Major Double Couple strike dip rake Nodal Plane 1: 68 80 7 Nodal Plane 2: 337 83 170 DEVIATORIC MOMENT TENSOR Moment Tensor Elements: Spherical Coordinates Mrr= 0.23 Mtt= -4.05 Mff= 3.82 Mrt= 0.28 Mrf= 1.15 Mtf= 3.95 EXP=21 Moment Tensor Elements: Cartesian Coordinates -4.05 -3.95 0.28 -3.95 3.82 -1.15 0.28 -1.15 0.23 Eigenvalues: T-axis eigenvalue= 5.71 N-axis eigenvalue= -0.02 P-axis eigenvalue= -5.69 Eigenvalues and eigenvectors of the Major Double Couple: T-axis ev= 5.71 trend=292 plunge=12 N-axis ev= 0.00 trend=121 plunge=78 P-axis ev=-5.71 trend=23 plunge=2 Maximum Azmuithal Gap=248 Distance to Nearest Station= 76.5 (km) Number of Stations (D=Displacement/V=Velocity) Used=3 (defining only) TIN.CI.D FUR.CI.D DAC.LB.D ------------- P - ######----------- ----- #########-------------------- ############--------------------- ##############--------------------- ################--------------------- ##################---------------------- T ###################--------------------# ####################----------------##### #######################------------######## #######################--------############# ########################----################ ############################################ ############################################ ####################-----################## ##############-----------################## ######-------------------################ -------------------------############### -------------------------############## ------------------------############ -----------------------########## ----------------------####### --------------------##### ----------------- All Stations defining and nondefining: Station.Net Def Distance Azi Bazi lo-f hi-f vmodel (km) (deg) (deg) (Hz) (Hz) TIN.CI (D) Y 76.5 261 80 0.020 0.080 TIN.CI.wus.glib FUR.CI (D) Y 89.8 149 329 0.020 0.080 FUR.CI.wus.glib DAC.LB (D) Y 100.0 191 11 0.020 0.080 DAC.LB.wus.glib (V)-velocity (D)-Displacement Author: www-data Date: 2010/10/03 21:42:59 mtinv Version 2.1_DEVEL OCT2008

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and M_L by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for M_L is adjusted to remove a linear distance trend in residuals to give a regionally defined M_L. The defined M_L uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

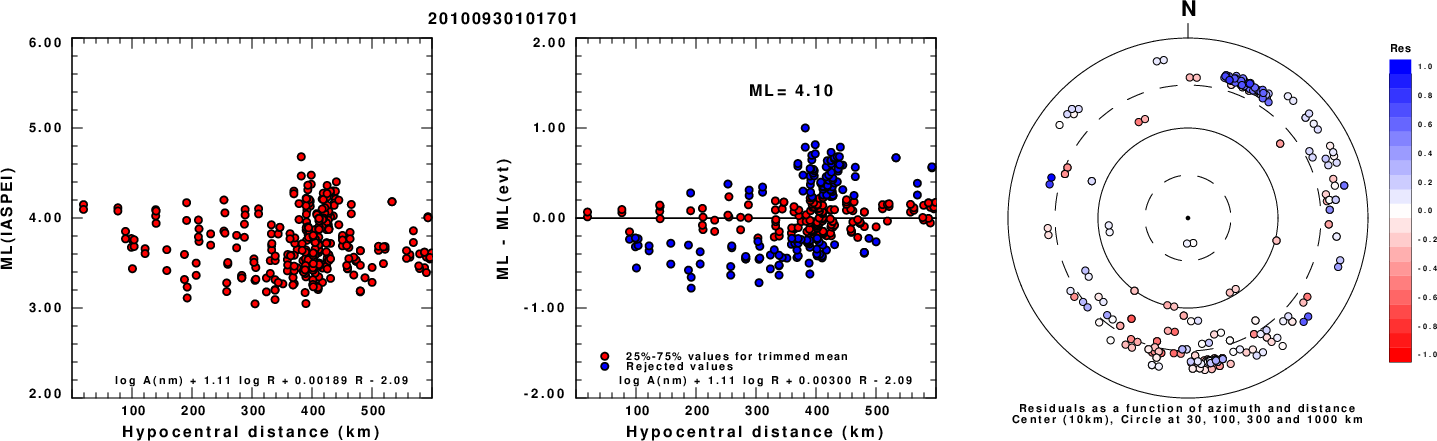

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

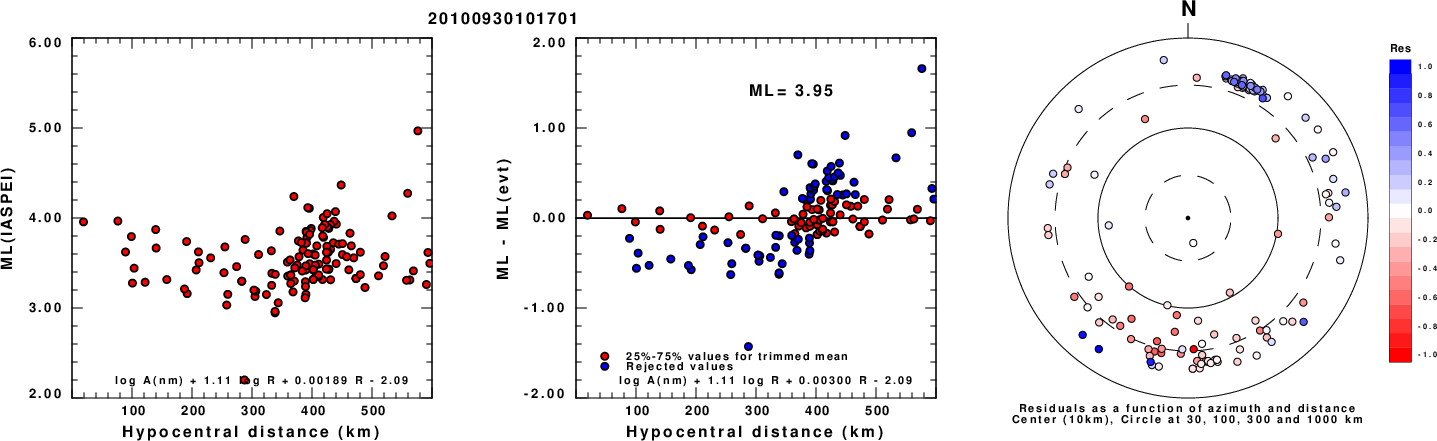

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

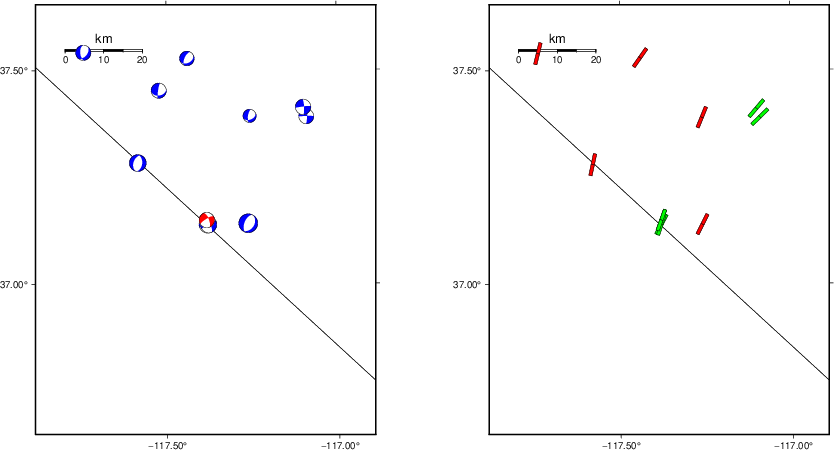

Context

Waveform Inversion using wvfgrd96

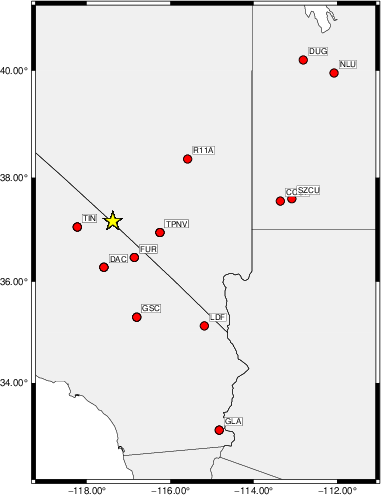

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

hp c 0.02 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    0.5   245    80     5   3.27 0.1813
WVFGRD96    1.0    65    90     0   3.32 0.2122
WVFGRD96    2.0    65    90     0   3.52 0.3656
WVFGRD96    3.0   245    85     0   3.58 0.4168
WVFGRD96    4.0   250    75    25   3.65 0.4530
WVFGRD96    5.0    70    75    30   3.69 0.4893
WVFGRD96    6.0   240    75   -30   3.72 0.5224
WVFGRD96    7.0   240    75   -25   3.74 0.5424
WVFGRD96    8.0   240    75   -30   3.77 0.5606
WVFGRD96    9.0   240    75   -25   3.78 0.5708
WVFGRD96   10.0   240    75   -25   3.80 0.5736
WVFGRD96   11.0   245    80   -20   3.80 0.5715
WVFGRD96   12.0   245    85   -15   3.81 0.5704
WVFGRD96   13.0    65    90    15   3.82 0.5691
WVFGRD96   14.0    65    90    15   3.83 0.5674
WVFGRD96   15.0    65    90    15   3.83 0.5649
WVFGRD96   16.0    65    90    15   3.84 0.5616
WVFGRD96   17.0    65    90    15   3.85 0.5576
WVFGRD96   18.0    65    90    15   3.86 0.5530
WVFGRD96   19.0    65    90    15   3.87 0.5481
WVFGRD96   20.0    65    90    15   3.88 0.5429
WVFGRD96   21.0    65    90    15   3.89 0.5373
WVFGRD96   22.0    65    85    15   3.90 0.5319
WVFGRD96   23.0    65    85    15   3.90 0.5264
WVFGRD96   24.0    65    85    15   3.91 0.5204
WVFGRD96   25.0    65    85    15   3.92 0.5149
WVFGRD96   26.0    65    85    15   3.92 0.5094
WVFGRD96   27.0    65    85    15   3.93 0.5041
WVFGRD96   28.0    65    85    15   3.94 0.4989
WVFGRD96   29.0    65    85    10   3.94 0.4941

The best solution is

WVFGRD96   10.0   240    75   -25   3.80 0.5736

The mechanism corresponding to the best fit is

Figure 1. Waveform inversion focal mechanism

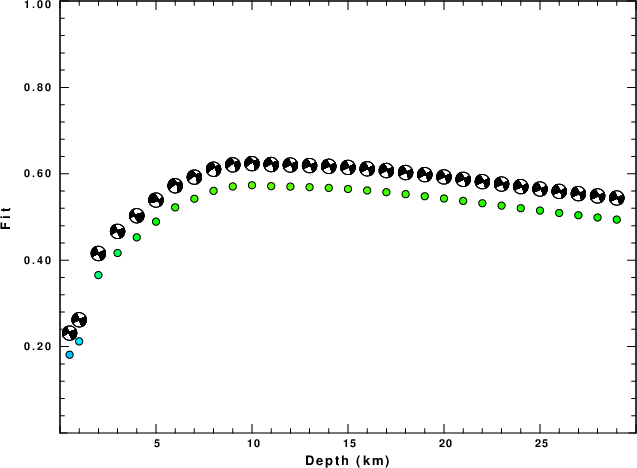

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

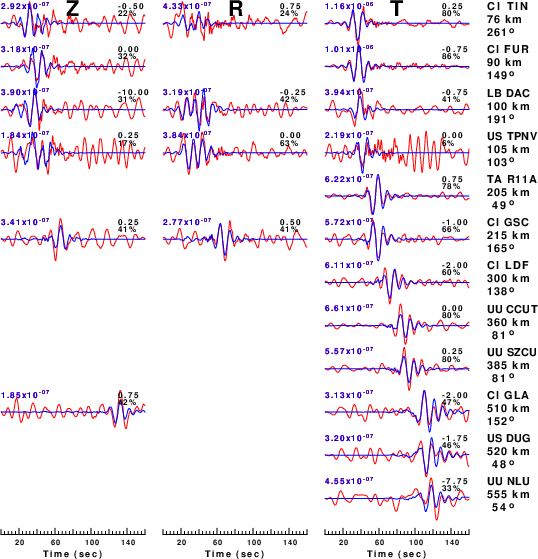

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

hp c 0.02 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

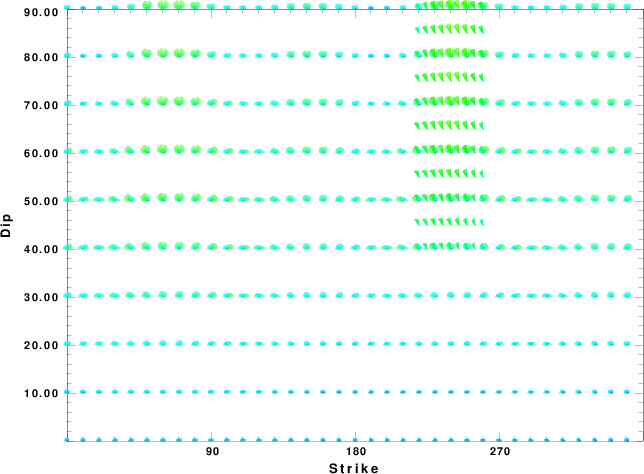

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

• The origin time and epicentral distance are incorrect
• The velocity model used for the inversion is incorrect
• The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

 Time_shift = A + B cos Azimuth + C Sin Azimuth

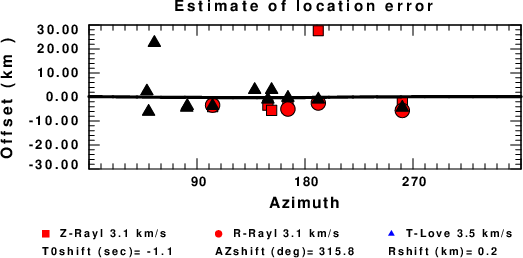

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
