The ANSS event ID is ak010bebh8wh and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak010bebh8wh/executive.

2010/09/05 10:41:26 63.347 -145.094 3.7 4.2 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2010/09/05 10:41:26:0  63.35 -145.09   3.7 4.2 Alaska

 Stations used:
   AK.BAL AK.BMR AK.BPAW AK.BWN AK.CAST AK.CCB AK.CHUM AK.COLD
   AK.CRQ AK.CTG AK.DHY AK.DOT AK.EYAK AK.FID AK.FYU AK.HARP
   AK.HDA AK.KLU AK.MCK AK.MLY AK.PAX AK.PIN AK.PPLA AK.RAG
   AK.RC01 AK.RIDG AK.SAW AK.SCM AK.SKN AK.SSN AK.SWD AK.TGL
   AK.TRF AK.WRH AT.PMR IM.IL31 IU.COLA US.EGAK XF.BOOM
   XF.DOST XF.GOAT XF.GRAP XF.KAVU XF.LUPN XZ.BAGL XZ.BARK
   XZ.BARN XZ.GRNC XZ.ISLE XZ.KIAG XZ.LOGN XZ.MCAR XZ.MESA
   XZ.PTPK XZ.SUCK XZ.TABL XZ.VRDI YO.TIDE

 Filtering commands used:
   cut o DIST/3.3 -30 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 1.72e+22 dyne-cm
  Mw = 4.09
  Z  = 13 km
  Plane   Strike  Dip  Rake
   NP1      132    51   124
   NP2      265    50    55
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.72e+22     64     108
    N   0.00e+00     26     289
    P  -1.72e+22      1     199

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -1.51e+22
       Mxy    -6.23e+21
       Mxz    -1.88e+21
       Myy     1.21e+21
       Myz     6.52e+21
       Mzz     1.39e+22




                     --------------
                 ----------------------
              ----------------------------
             ------------------------------
           #---------------------------------
          ##----------------------------------
         ####------#####################-------
        #####--#############################----
        ######################################--
       ####---##################################-
       ##------##################################
       #--------#################   #############
       ----------################ T #############
        -----------##############   ############
        -------------###########################
         --------------########################
          ---------------#####################
           -----------------#################
             --------------------##########
              ----------------------------
                 ---   ----------------
                     P ------------



 Global CMT Convention Moment Tensor:
      R          T          P
  1.39e+22  -1.88e+21  -6.52e+21
 -1.88e+21  -1.51e+22   6.23e+21
 -6.52e+21   6.23e+21   1.21e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20100905104126/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 265
      DIP = 50
     RAKE = 55
       MW = 4.09
       HS = 13.0

The NDK file is 20100905104126.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

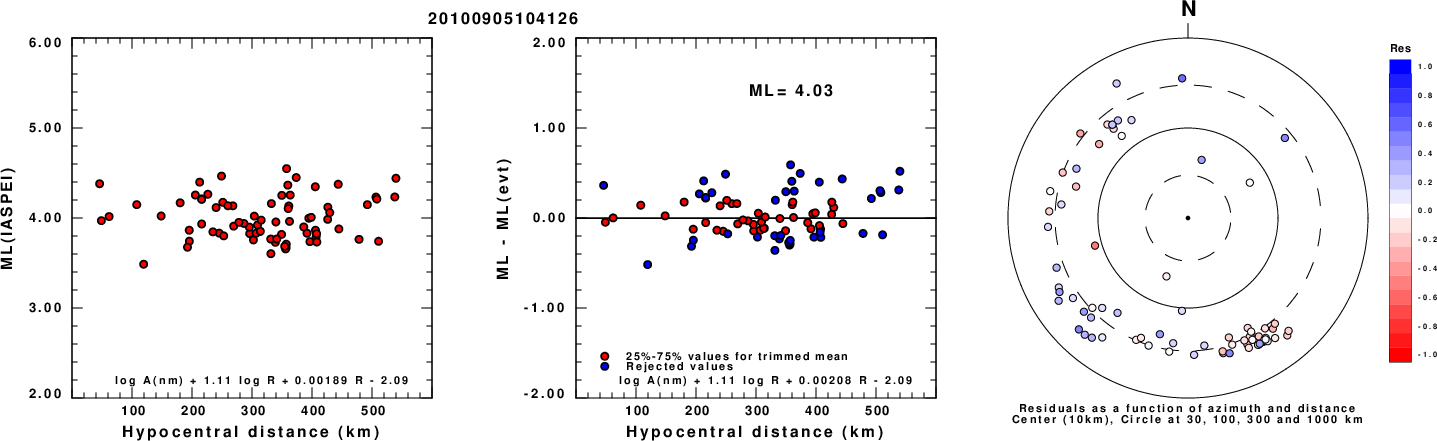

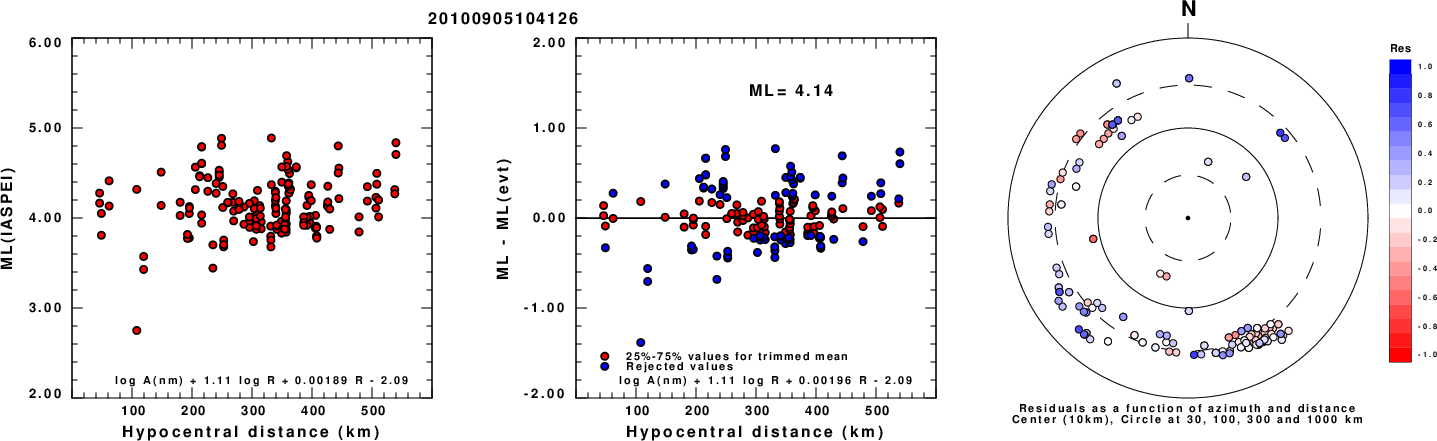

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.


Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

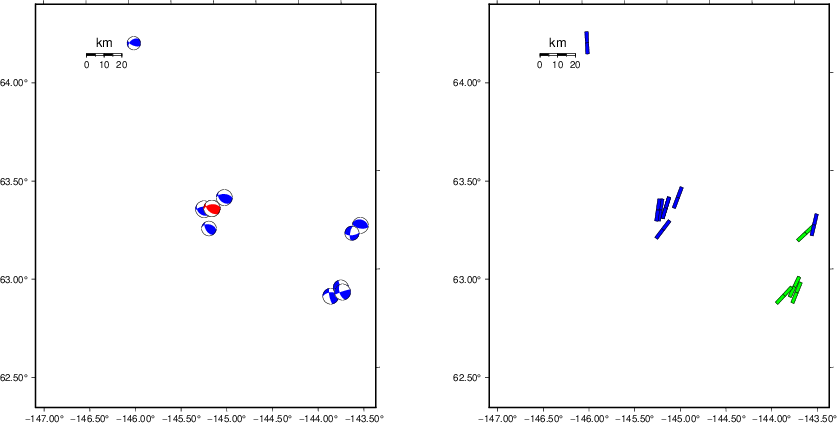

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

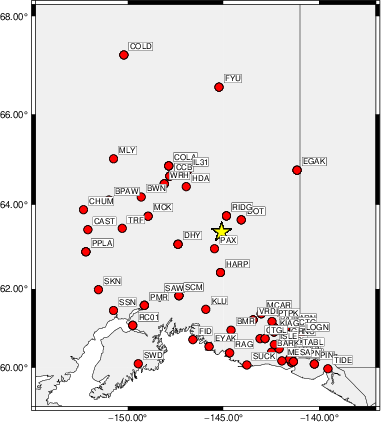

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0    10    40   -90   3.94 0.4404
WVFGRD96    2.0   215    60   -75   4.01 0.4104
WVFGRD96    3.0   235    55   -55   4.00 0.4029
WVFGRD96    4.0   240    60   -50   3.98 0.4083
WVFGRD96    5.0   240    75    60   3.96 0.4417
WVFGRD96    6.0   250    65    60   3.98 0.4902
WVFGRD96    7.0   255    55    60   4.01 0.5419
WVFGRD96    8.0   255    55    55   4.02 0.5855
WVFGRD96    9.0   270    50    60   4.04 0.6174
WVFGRD96   10.0   270    50    60   4.07 0.6317
WVFGRD96   11.0   270    50    60   4.08 0.6506
WVFGRD96   12.0   270    50    60   4.08 0.6603
WVFGRD96   13.0   265    50    55   4.09 0.6633
WVFGRD96   14.0   265    50    55   4.09 0.6609
WVFGRD96   15.0   260    55    50   4.10 0.6533
WVFGRD96   16.0   260    55    50   4.11 0.6430
WVFGRD96   17.0   260    55    50   4.11 0.6306
WVFGRD96   18.0   260    55    50   4.12 0.6151
WVFGRD96   19.0   255    55    50   4.13 0.6012
WVFGRD96   20.0   250    55    50   4.15 0.5842
WVFGRD96   21.0   250    55    50   4.16 0.5705
WVFGRD96   22.0   245    55    50   4.17 0.5551
WVFGRD96   23.0   245    55    45   4.17 0.5387
WVFGRD96   24.0   245    55    45   4.17 0.5224
WVFGRD96   25.0   245    55    45   4.18 0.5039
WVFGRD96   26.0   245    55    45   4.18 0.4845
WVFGRD96   27.0   245    50    45   4.18 0.4654
WVFGRD96   28.0   245    50    45   4.19 0.4463
WVFGRD96   29.0   240    55    40   4.19 0.4273

The best solution is

WVFGRD96   13.0   265    50    55   4.09 0.6633

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

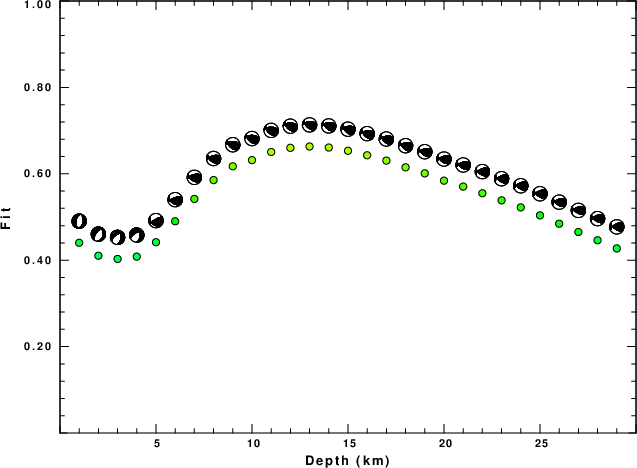

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3

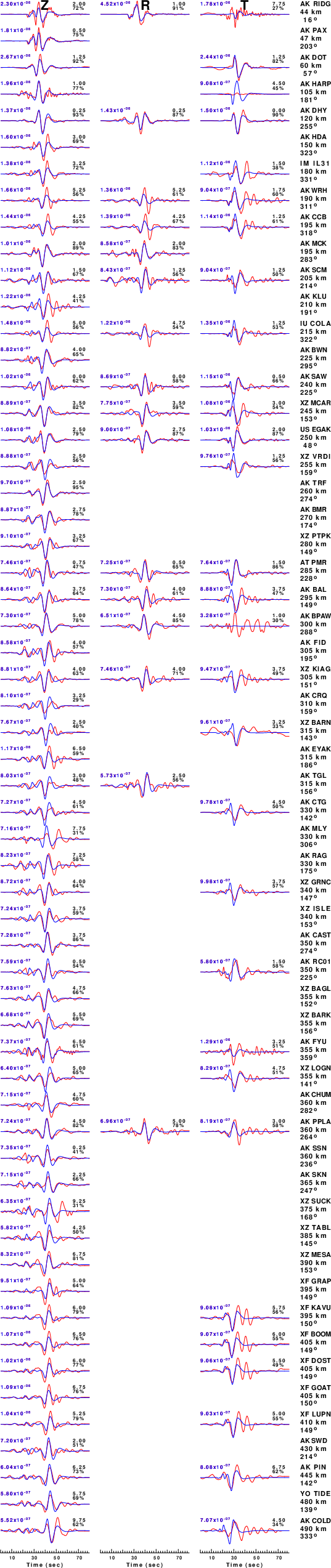

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

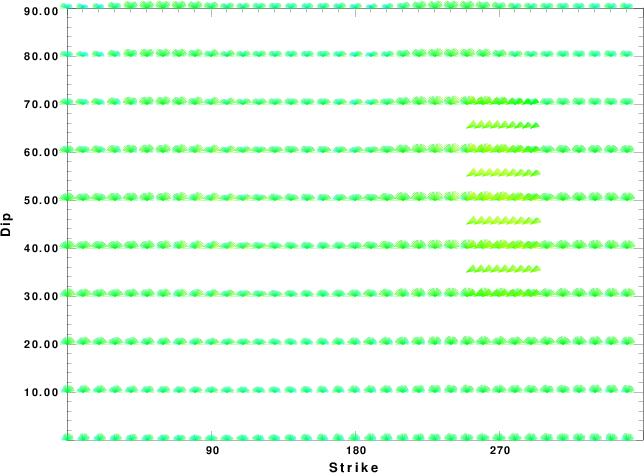

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

The time shifts for this inversion lead to the next figure:

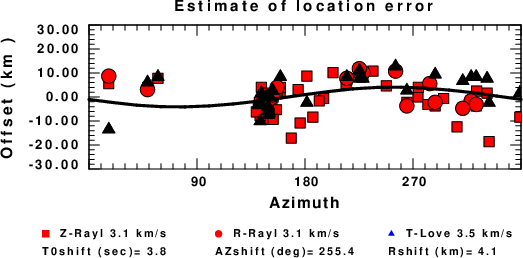

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The CUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
CUS Model with Q from simple gamma values
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
  H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC)   QP   QS  ETAP  ETAS  FREFP  FREFS
  1.0000  5.0000  2.8900  2.5000 0.172E-02 0.387E-02 0.00  0.00  1.00  1.00
  9.0000  6.1000  3.5200  2.7300 0.160E-02 0.363E-02 0.00  0.00  1.00  1.00
 10.0000  6.4000  3.7000  2.8200 0.149E-02 0.336E-02 0.00  0.00  1.00  1.00
 20.0000  6.7000  3.8700  2.9020 0.000E-04 0.000E-04 0.00  0.00  1.00  1.00
  0.0000  8.1500  4.7000  3.3640 0.194E-02 0.431E-02 0.00  0.00  1.00  1.00
