The ANSS event ID is ak010835axjw and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak010835axjw/executive.

2010/06/25 04:56:53 61.895 -147.726 33.8 4.6 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2010/06/25 04:56:53:0  61.90 -147.73  33.8 4.6 Alaska

 Stations used:
   AK.BMR AK.BPAW AK.BRLK AK.BWN AK.CCB AK.CRQ AK.DIV AK.EYAK
   AK.FYU AK.HARP AK.HDA AK.MCK AK.RAG AK.RC01 AK.RIDG AK.RND
   AK.SCM AK.SKN AK.SSN AK.SWD AK.TGL AK.TRF AK.WRH AT.PMR
   IM.IL31 IU.COLA US.EGAK XF.DOST XF.GRAP XF.KAVU XF.LUPN
   XF.STEW XF.TARD XF.TRIP XZ.BAGL XZ.BARK XZ.BARN XZ.BERG
   XZ.BGLC XZ.ISLE XZ.KHIT XZ.KULT XZ.MESA XZ.PTPK XZ.RKAV
   XZ.VRDI

 Filtering commands used:
   cut o DIST/3.3 -30 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.06 n 3

 Best Fitting Double Couple
  Mo = 3.94e+22 dyne-cm
  Mw = 4.33
  Z  = 35 km
  Plane   Strike  Dip  Rake
   NP1      245    80   -70
   NP2        0    22   -153
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   3.94e+22     32     318
    N   0.00e+00     20      61
    P  -3.94e+22     51     178

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     2.35e+20
       Mxy    -1.34e+22
       Mxz     3.25e+22
       Myy     1.24e+22
       Myz    -1.26e+22
       Mzz    -1.26e+22




                     ###########---
                 ##################----
              ########################----
             ##########################----
           ######   #####################----
          ####### T ######################----
         ########   #######################-###
        #############################------#####
        ########################------------####
       #####################----------------#####
       #################--------------------#####
       ##############-----------------------#####
       ##########---------------------------#####
        ######------------------------------####
        ####-------------------------------#####
         #-----------------   -------------####
          ----------------- P ------------####
           ----------------   -----------####
             --------------------------####
              ------------------------####
                 ------------------####
                     -----------###



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.26e+22   3.25e+22   1.26e+22
  3.25e+22   2.35e+20   1.34e+22
  1.26e+22   1.34e+22   1.24e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20100625045653/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 245
      DIP = 80
     RAKE = -70
       MW = 4.33
       HS = 35.0

The NDK file is 20100625045653.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

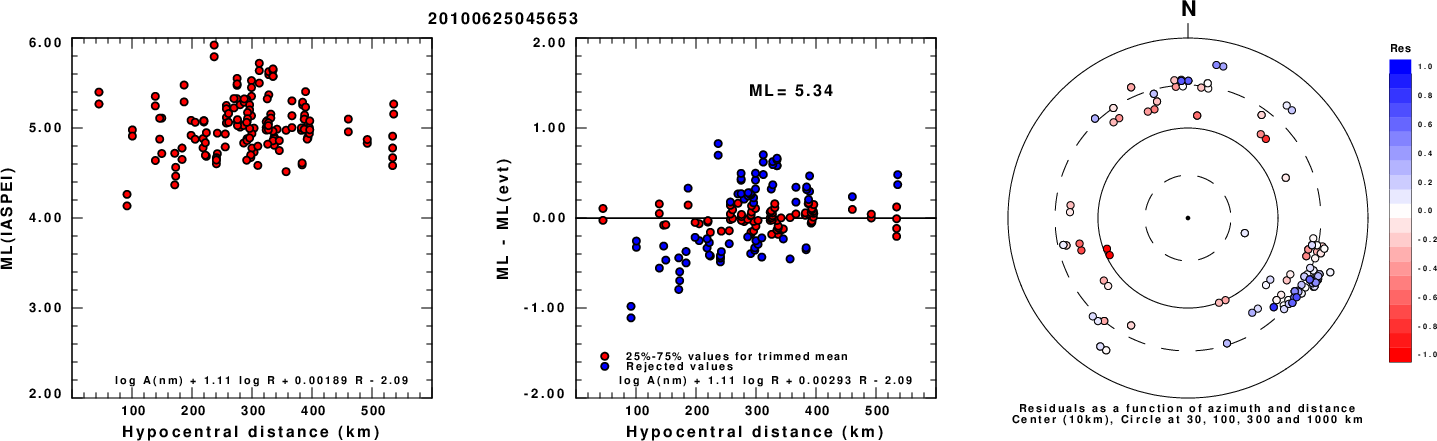

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

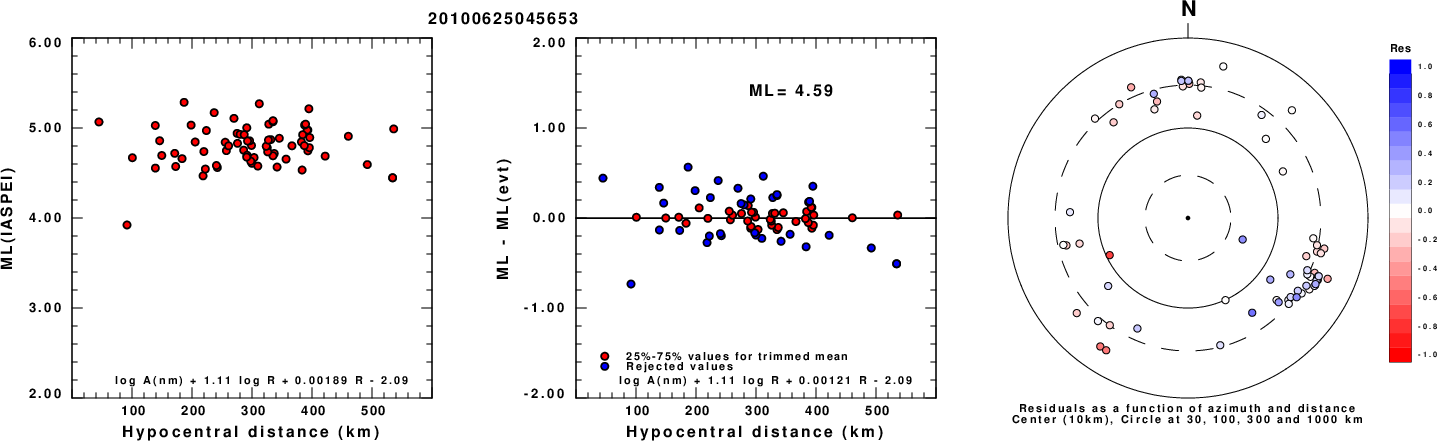

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

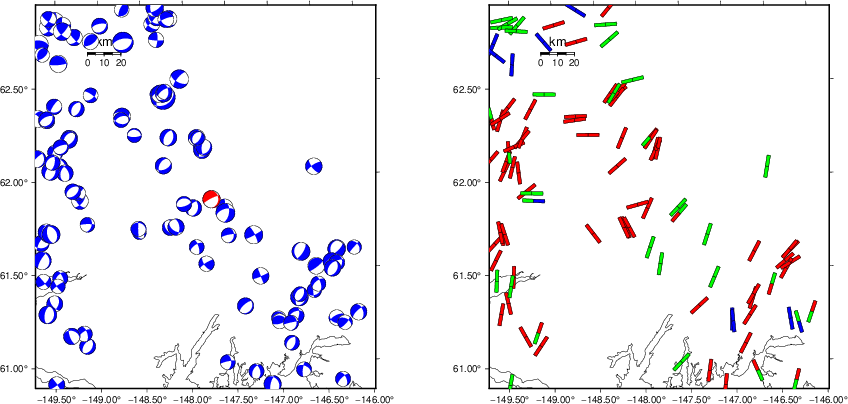

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

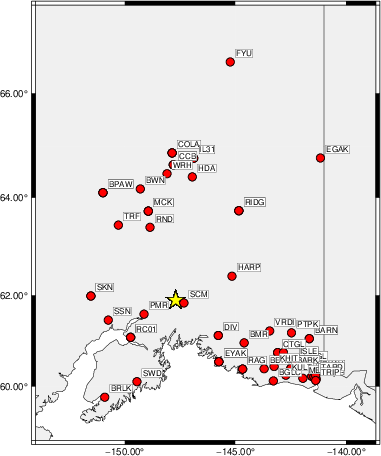

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.06 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0    50    40    85   3.87 0.3284
WVFGRD96    2.0    55    45    90   3.96 0.4013
WVFGRD96    3.0    45    45    85   4.03 0.4103
WVFGRD96    4.0    45    45    85   4.06 0.3502
WVFGRD96    5.0    50    50   -85   4.04 0.2631
WVFGRD96    6.0   190    20    40   3.97 0.2416
WVFGRD96    7.0    60    85    75   3.96 0.2721
WVFGRD96    8.0    60    85    75   4.05 0.2999
WVFGRD96    9.0    60    85    75   4.05 0.3377
WVFGRD96   10.0   240    90   -70   4.06 0.3730
WVFGRD96   11.0    60    90    70   4.07 0.4056
WVFGRD96   12.0    60    90    70   4.08 0.4350
WVFGRD96   13.0   240    85   -70   4.09 0.4622
WVFGRD96   14.0   240    85   -70   4.10 0.4874
WVFGRD96   15.0   245    85   -70   4.12 0.5104
WVFGRD96   16.0   245    85   -70   4.13 0.5319
WVFGRD96   17.0   245    80   -70   4.15 0.5521
WVFGRD96   18.0   245    80   -70   4.16 0.5709
WVFGRD96   19.0   245    80   -70   4.17 0.5878
WVFGRD96   20.0   245    80   -70   4.18 0.6035
WVFGRD96   21.0   245    80   -70   4.20 0.6179
WVFGRD96   22.0   245    80   -70   4.21 0.6317
WVFGRD96   23.0   245    80   -70   4.22 0.6444
WVFGRD96   24.0   245    80   -70   4.23 0.6561
WVFGRD96   25.0   245    80   -70   4.24 0.6667
WVFGRD96   26.0   245    80   -70   4.25 0.6765
WVFGRD96   27.0   245    80   -70   4.26 0.6855
WVFGRD96   28.0   245    80   -70   4.27 0.6934
WVFGRD96   29.0   245    80   -70   4.28 0.7003
WVFGRD96   30.0   245    80   -70   4.29 0.7061
WVFGRD96   31.0   245    80   -70   4.30 0.7111
WVFGRD96   32.0   245    80   -70   4.31 0.7152
WVFGRD96   33.0   245    80   -70   4.32 0.7181
WVFGRD96   34.0   245    80   -70   4.33 0.7197
WVFGRD96   35.0   245    80   -70   4.33 0.7202
WVFGRD96   36.0   245    80   -65   4.35 0.7195
WVFGRD96   37.0   245    80   -65   4.35 0.7178
WVFGRD96   38.0   245    80   -65   4.36 0.7153
WVFGRD96   39.0   245    80   -65   4.36 0.7123
WVFGRD96   40.0   245    80   -75   4.50 0.7087
WVFGRD96   41.0   245    80   -75   4.51 0.7035
WVFGRD96   42.0   245    80   -75   4.52 0.6971
WVFGRD96   43.0   245    80   -75   4.52 0.6907
WVFGRD96   44.0   245    80   -75   4.53 0.6834
WVFGRD96   45.0   245    80   -75   4.54 0.6756
WVFGRD96   46.0   245    80   -75   4.54 0.6671
WVFGRD96   47.0   245    80   -70   4.55 0.6588
WVFGRD96   48.0   245    80   -70   4.56 0.6498
WVFGRD96   49.0   245    80   -70   4.56 0.6400
WVFGRD96   50.0   245    80   -70   4.57 0.6300
WVFGRD96   51.0   245    80   -70   4.58 0.6190
WVFGRD96   52.0   245    80   -70   4.58 0.6078
WVFGRD96   53.0   245    80   -70   4.59 0.5959
WVFGRD96   54.0   245    85   -70   4.58 0.5851
WVFGRD96   55.0   245    85   -70   4.59 0.5738
WVFGRD96   56.0   245    85   -70   4.59 0.5621
WVFGRD96   57.0   245    85   -70   4.60 0.5503
WVFGRD96   58.0   245    85   -70   4.60 0.5381
WVFGRD96   59.0   245    85   -70   4.60 0.5255

The best solution is

WVFGRD96   35.0   245    80   -70   4.33 0.7202

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

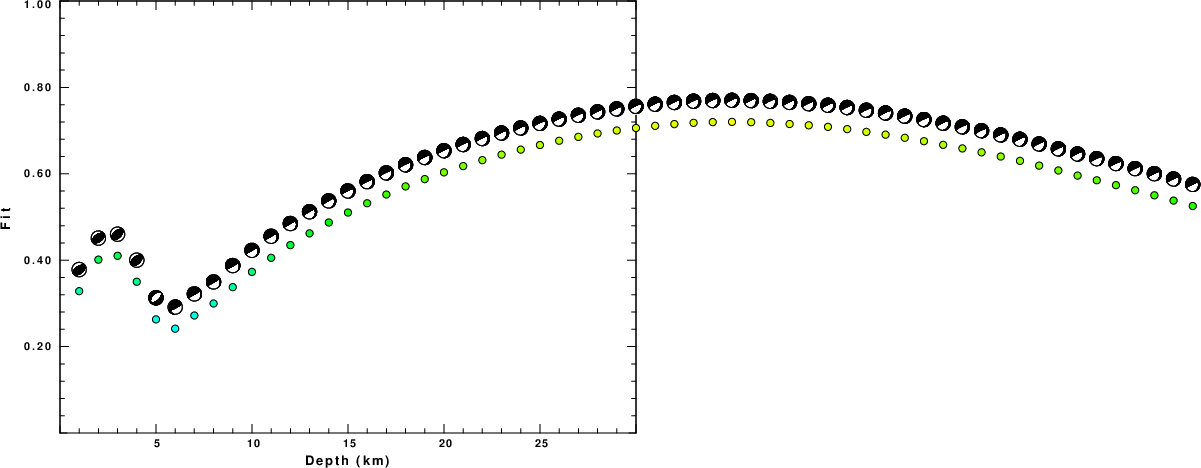

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

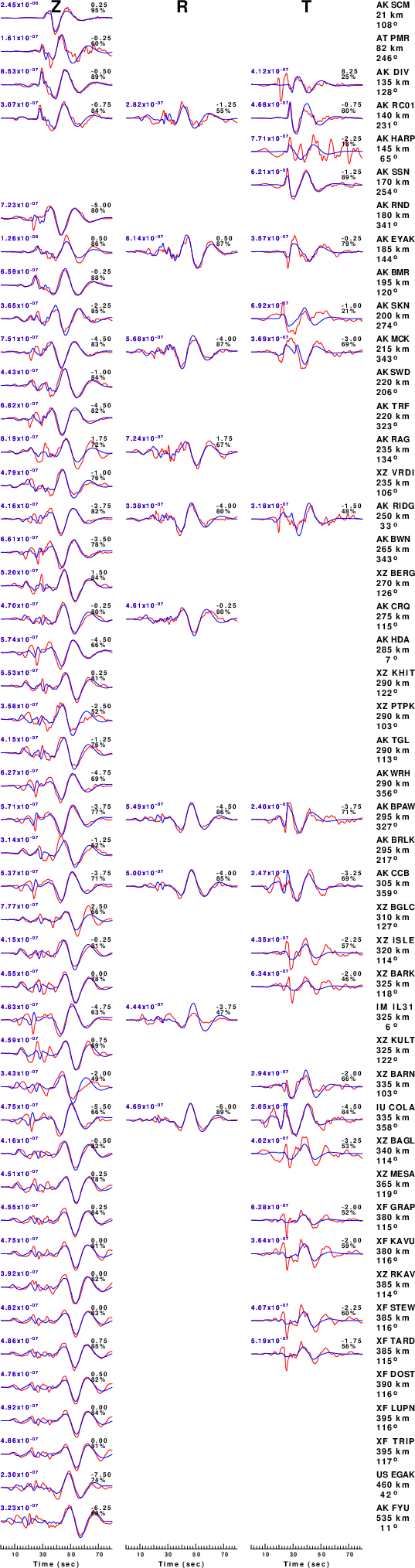

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.06 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

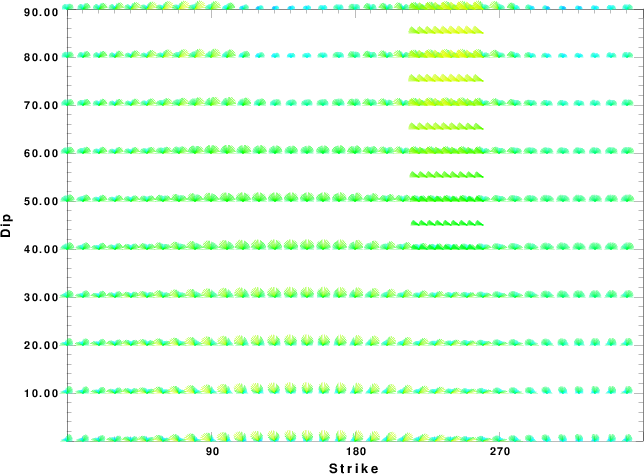

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

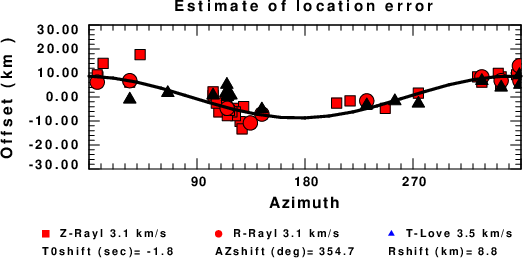

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
