The ANSS event ID is ak0104gorpek and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0104gorpek/executive.

2010/04/07 16:19:15 61.580 -149.652 35.3 4.6 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2010/04/07 16:19:15:0  61.58 -149.65  35.3 4.6 Alaska

 Stations used:
   AK.BRLK AK.BWN AK.CHUM AK.CNP AK.DDM AK.DIV AK.EYAK AK.HOM
   AK.KLU AK.KTH AK.PAX AK.PPLA AK.RC01 AK.RND AK.SCM AK.SCRK
   AK.SSN AK.TRF AT.PMR AT.SVW2 AV.AUL AV.SPBG XZ.NICH XZ.VRDI

 Filtering commands used:
   cut o DIST/3.3 -30 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.06 n 3

 Best Fitting Double Couple
  Mo = 7.33e+22 dyne-cm
  Mw = 4.51
  Z  = 44 km
  Plane   Strike  Dip  Rake
   NP1      210    75   -75
   NP2      344    21   -134
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   7.33e+22     28     288
    N   0.00e+00     14      26
    P  -7.33e+22     57     140

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -7.02e+21
       Mxy    -6.17e+21
       Mxz     3.49e+22
       Myy     4.24e+22
       Myz    -5.06e+22
       Mzz    -3.54e+22




                     ########------
                 #################----#
              #####################-######
             ####################------####
           #####################--------#####
          ####################-----------#####
         ####################--------------####
        ####   #############---------------#####
        #### T ###########------------------####
       #####   ##########-------------------#####
       #################---------------------####
       ################----------------------####
       ###############-----------------------####
        #############-----------   ----------###
        #############----------- P ---------####
         ###########------------   ---------###
          #########------------------------###
           ########-----------------------###
             #####-----------------------##
              ####---------------------###
                 #-------------------##
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
 -3.54e+22   3.49e+22   5.06e+22
  3.49e+22  -7.02e+21   6.17e+21
  5.06e+22   6.17e+21   4.24e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20100407161915/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 210
      DIP = 75
     RAKE = -75
       MW = 4.51
       HS = 44.0

The NDK file is 20100407161915.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

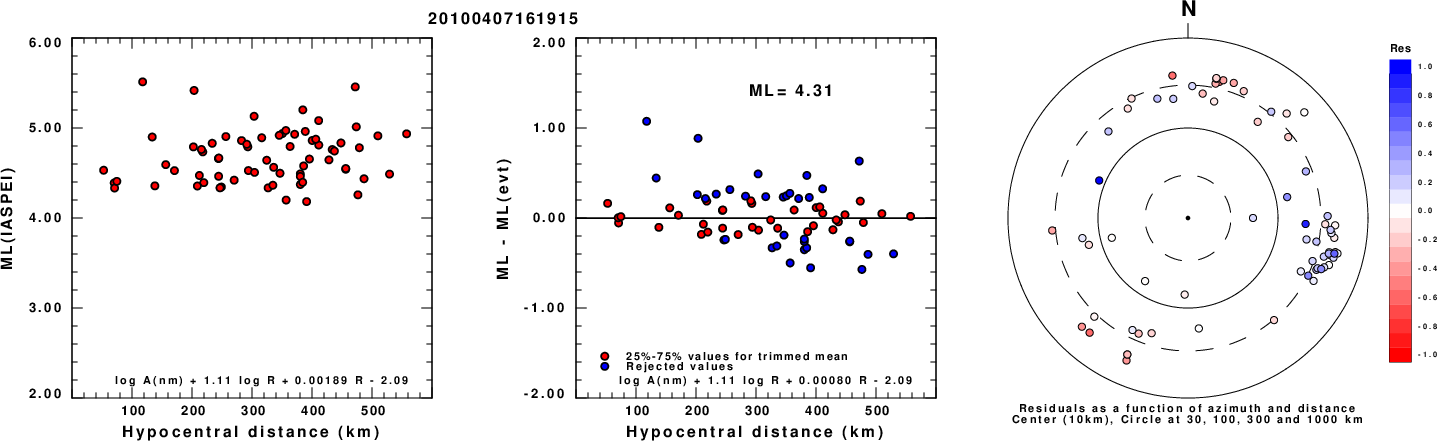

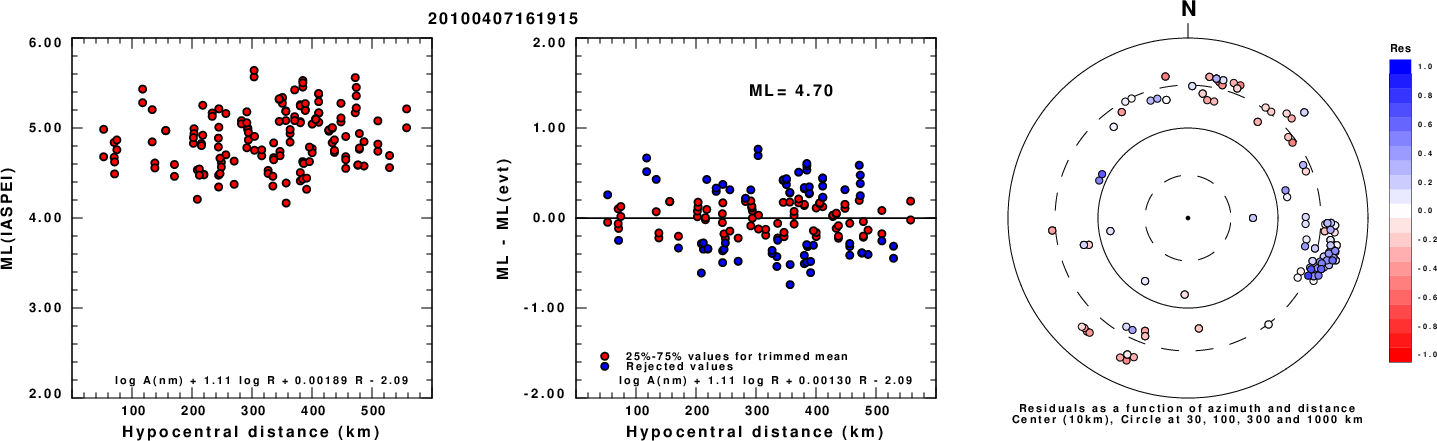

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.


Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

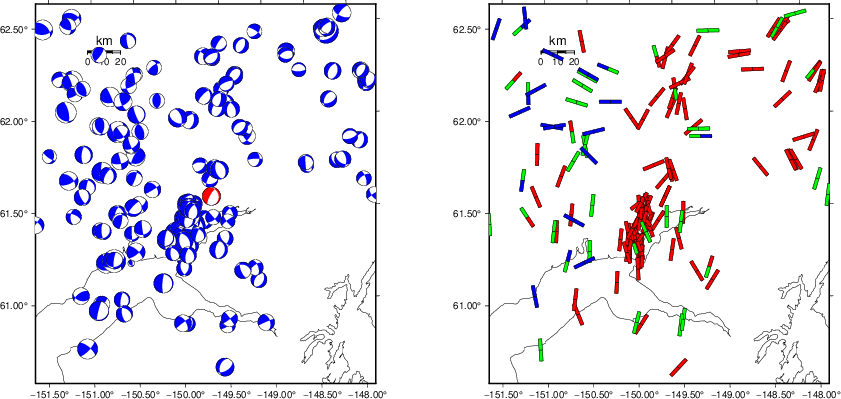

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

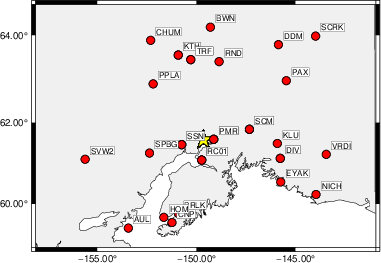

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.06 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   155    45    85   3.77 0.2137
WVFGRD96    2.0   155    40    90   3.87 0.2635
WVFGRD96    3.0   150    35    80   3.93 0.2480
WVFGRD96    4.0   135    35    50   3.94 0.2286
WVFGRD96    5.0   125    40    30   3.93 0.2265
WVFGRD96    6.0   105    30    -5   3.94 0.2399
WVFGRD96    7.0   105    30    -5   3.95 0.2632
WVFGRD96    8.0   105    25    -5   4.03 0.2797
WVFGRD96    9.0   105    25    -5   4.03 0.3016
WVFGRD96   10.0   105    30    -5   4.04 0.3210
WVFGRD96   11.0   105    30    -5   4.05 0.3382
WVFGRD96   12.0   105    30    -5   4.06 0.3531
WVFGRD96   13.0   105    30    -5   4.06 0.3662
WVFGRD96   14.0   105    30    -5   4.07 0.3776
WVFGRD96   15.0   105    30    -5   4.08 0.3878
WVFGRD96   16.0   105    30    -5   4.09 0.3971
WVFGRD96   17.0   105    30    -5   4.09 0.4055
WVFGRD96   18.0   105    30    -5   4.10 0.4126
WVFGRD96   19.0   100    30   -15   4.12 0.4197
WVFGRD96   20.0    95    30   -20   4.13 0.4270
WVFGRD96   21.0    95    30   -20   4.14 0.4332
WVFGRD96   22.0    70    25   -50   4.17 0.4424
WVFGRD96   23.0    55    25   -65   4.19 0.4537
WVFGRD96   24.0    50    25   -70   4.21 0.4656
WVFGRD96   25.0    50    25   -70   4.22 0.4771
WVFGRD96   26.0    40    20   -80   4.23 0.4884
WVFGRD96   27.0    40    20   -80   4.25 0.4996
WVFGRD96   28.0    35    20   -85   4.26 0.5095
WVFGRD96   29.0    35    20   -85   4.27 0.5171
WVFGRD96   30.0    25    20   -90   4.28 0.5246
WVFGRD96   31.0    20    20   -95   4.29 0.5301
WVFGRD96   32.0   210    70   -80   4.31 0.5342
WVFGRD96   33.0   210    70   -80   4.31 0.5407
WVFGRD96   34.0   205    70   -90   4.31 0.5453
WVFGRD96   35.0   205    70   -85   4.32 0.5533
WVFGRD96   36.0   205    70   -85   4.32 0.5598
WVFGRD96   37.0   205    70   -85   4.33 0.5650
WVFGRD96   38.0   205    70   -80   4.34 0.5690
WVFGRD96   39.0   205    70   -80   4.34 0.5725
WVFGRD96   40.0     5    20  -110   4.47 0.5704
WVFGRD96   41.0     5    20  -110   4.48 0.5732
WVFGRD96   42.0   210    75   -80   4.49 0.5784
WVFGRD96   43.0   210    75   -80   4.50 0.5793
WVFGRD96   44.0   210    75   -75   4.51 0.5798
WVFGRD96   45.0   210    75   -75   4.51 0.5785
WVFGRD96   46.0   210    75   -75   4.52 0.5773
WVFGRD96   47.0   210    75   -75   4.52 0.5747
WVFGRD96   48.0   210    75   -75   4.53 0.5720
WVFGRD96   49.0   210    80   -75   4.53 0.5694
WVFGRD96   50.0   210    80   -75   4.53 0.5664
WVFGRD96   51.0   210    80   -70   4.54 0.5632
WVFGRD96   52.0   210    80   -70   4.55 0.5597
WVFGRD96   53.0   210    80   -70   4.55 0.5560
WVFGRD96   54.0   210    80   -70   4.55 0.5511
WVFGRD96   55.0   210    80   -70   4.56 0.5461
WVFGRD96   56.0   210    80   -70   4.56 0.5404
WVFGRD96   57.0   210    80   -70   4.56 0.5337
WVFGRD96   58.0   210    80   -70   4.56 0.5276
WVFGRD96   59.0   210    80   -70   4.57 0.5206

The best solution is

WVFGRD96   44.0   210    75   -75   4.51 0.5798

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

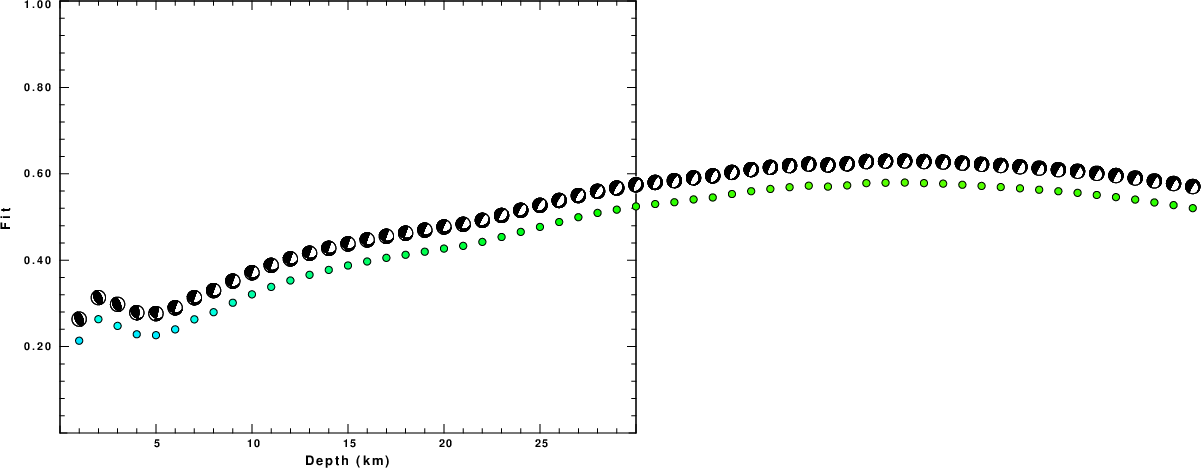

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

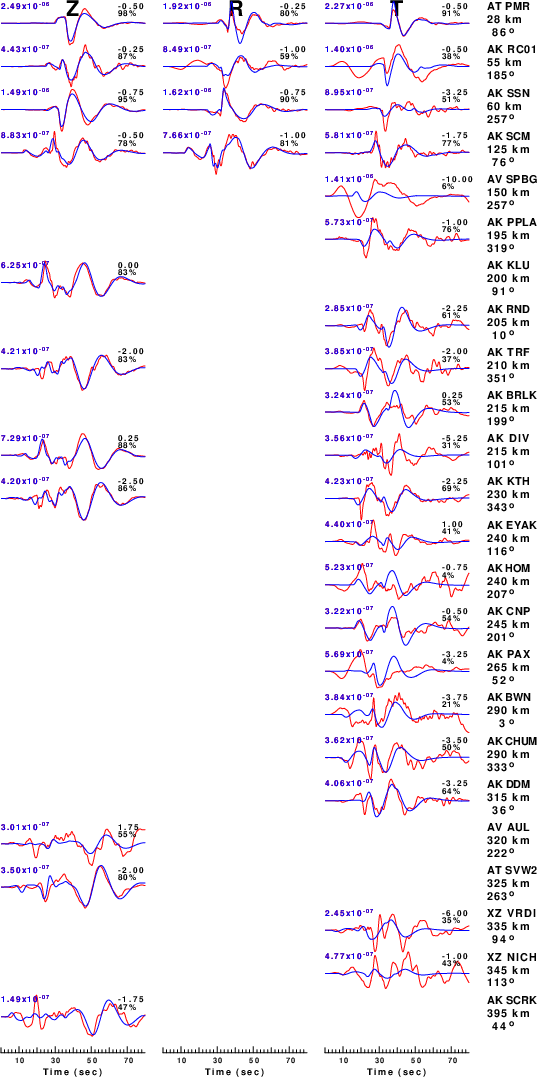

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.06 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

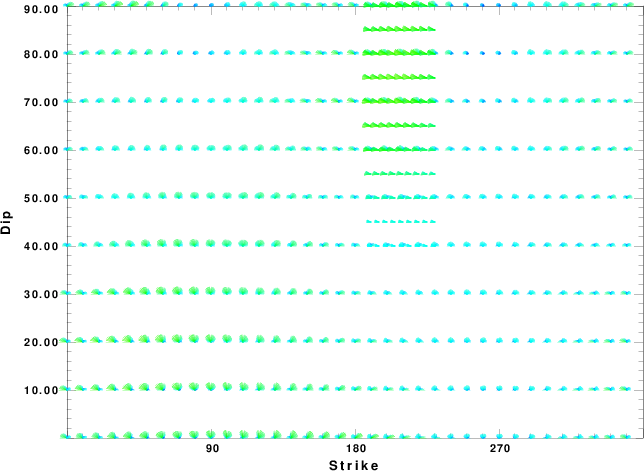

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

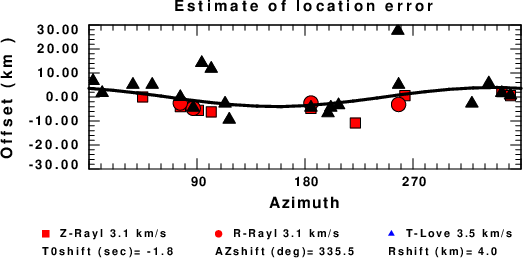

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Sat Apr 27 11:45:10 AM CDT 2024
