Location

Location ANSS

The ANSS event ID is usp000h81j and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/usp000h81j/executive.

2010/02/27 22:22:27 35.553 -96.752 5.0 4.1 Oklahoma

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2010/02/27 22:22:27:0  35.55  -96.75   5.0 4.1 Oklahoma

 Stations used:
   NM.MGMO TA.133A TA.134A TA.135A TA.137A TA.234A TA.237A
   TA.333A TA.334A TA.335A TA.336A TA.P31A TA.P32A TA.P33A
   TA.Q31A TA.Q32A TA.Q33A TA.R30A TA.R31A TA.R32A TA.R33A
   TA.S30A TA.S31A TA.S32A TA.S33A TA.T32A TA.T33A TA.TUL1
   TA.U31A TA.U32A TA.U33A TA.U34A TA.V33A TA.V34A TA.W33A
   TA.W34A TA.WHTX TA.X34A TA.Y31A TA.Y34A TA.Z31A TA.Z33A
   TA.Z34A TA.Z35A US.KSU1 US.MIAR X9.CLEF1 X9.NLKCG X9.OBC01

 Filtering commands used:
   cut o DIST/3.3 -20 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.08 n 3

 Best Fitting Double Couple
  Mo = 1.97e+22 dyne-cm
  Mw = 4.13
  Z  = 8 km
  Plane   Strike  Dip  Rake
   NP1      219    85   165
   NP2      310    75     5
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.97e+22     14     173
    N   0.00e+00     74      21
    P  -1.97e+22      7     265

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     1.82e+22
       Mxy    -3.72e+21
       Mxz    -4.41e+21
       Myy    -1.90e+22
       Myz     2.94e+21
       Mzz     8.60e+20




                     ##############
                 ######################
              ##########################--
             ##########################----
           -----#####################--------
          ----------###############-----------
         --------------##########--------------
        ------------------######----------------
        --------------------##------------------
       ----------------------##------------------
          -----------------######----------------
        P ----------------#########--------------
          --------------#############------------
        ---------------###############----------
        -------------###################--------
         -----------#####################------
          ---------#######################----
           -------#########################--
             ---###########################
              -##############   ##########
                 ############ T #######
                     ########   ###



 Global CMT Convention Moment Tensor:
      R          T          P
  8.60e+20  -4.41e+21  -2.94e+21
 -4.41e+21   1.82e+22   3.72e+21
 -2.94e+21   3.72e+21  -1.90e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20100227222227/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 310
      DIP = 75
     RAKE = 5
       MW = 4.13
       HS = 8.0

The NDK file is 20100227222227.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

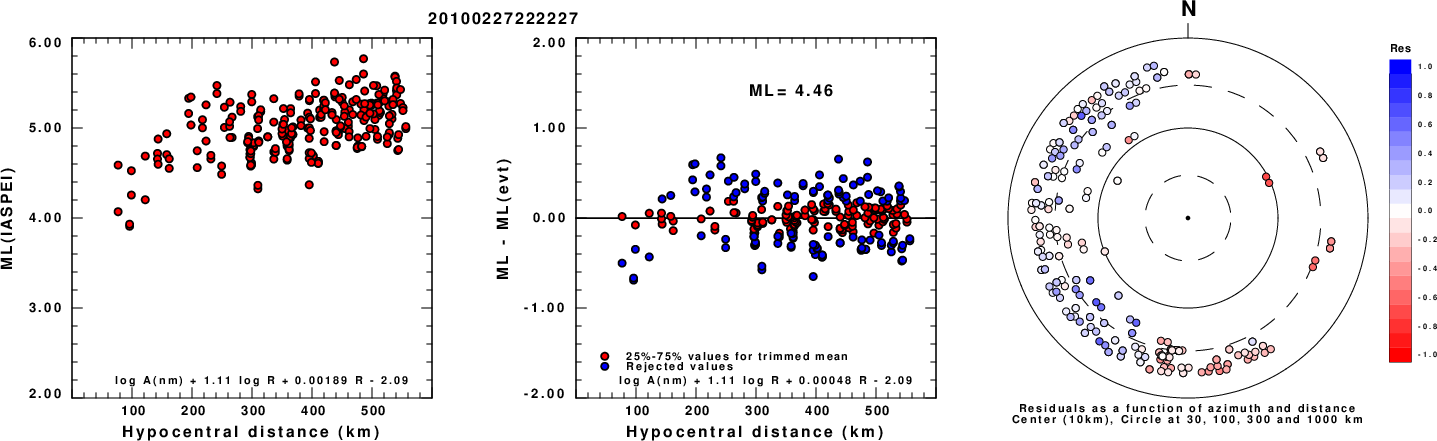

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

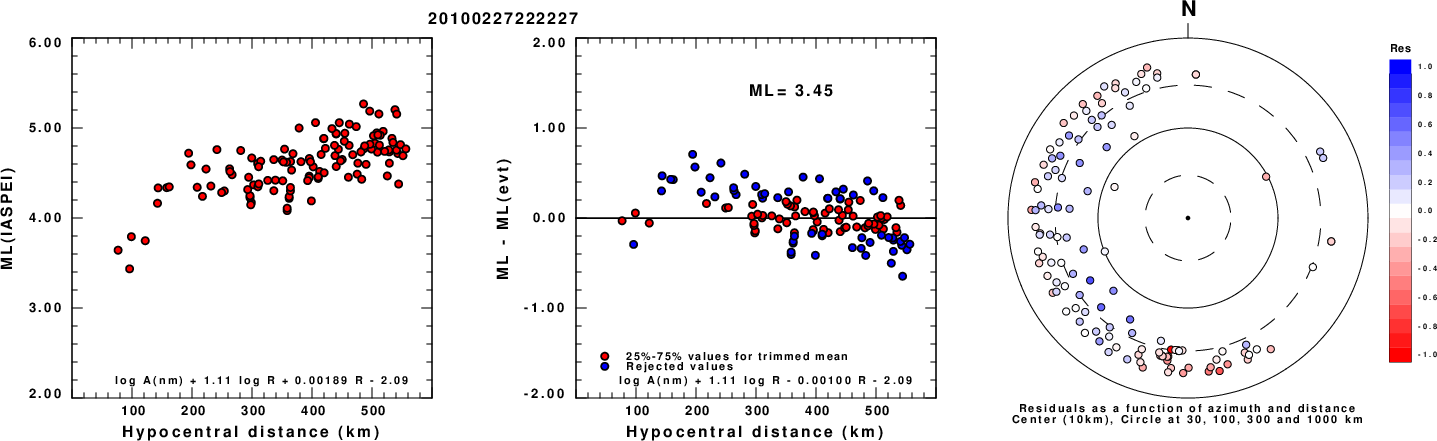

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

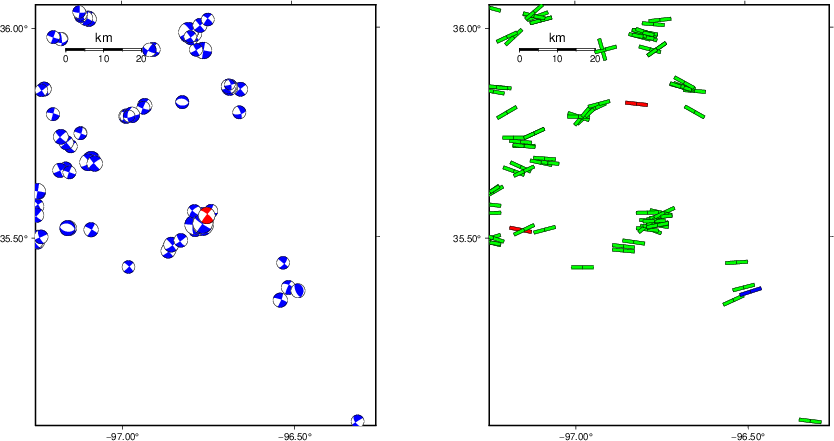

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

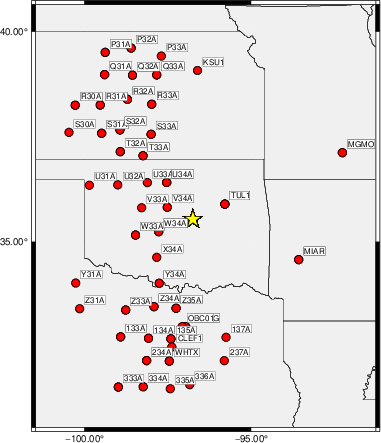

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -20 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   130    90    -5   3.80 0.3442
WVFGRD96    2.0   130    85     0   3.92 0.4362
WVFGRD96    3.0   130    90     0   3.97 0.4732
WVFGRD96    4.0   130    90     0   4.00 0.4901
WVFGRD96    5.0   310    90     0   4.03 0.4960
WVFGRD96    6.0   310    75     5   4.07 0.4989
WVFGRD96    7.0   310    75     5   4.09 0.5011
WVFGRD96    8.0   310    75     5   4.13 0.5015
WVFGRD96    9.0   310    90    20   4.15 0.4967
WVFGRD96   10.0   310    90    20   4.16 0.4918
WVFGRD96   11.0   130    80   -15   4.17 0.4869
WVFGRD96   12.0   130    80   -15   4.19 0.4797
WVFGRD96   13.0   130    80   -15   4.20 0.4719
WVFGRD96   14.0   130    80   -15   4.21 0.4625
WVFGRD96   15.0   130    80   -15   4.22 0.4522
WVFGRD96   16.0   130    80   -15   4.23 0.4411
WVFGRD96   17.0   130    85   -15   4.24 0.4293
WVFGRD96   18.0   130    85   -15   4.25 0.4172
WVFGRD96   19.0   130    85   -15   4.26 0.4042
WVFGRD96   20.0   130    85   -15   4.26 0.3909
WVFGRD96   21.0   130    85   -15   4.27 0.3778
WVFGRD96   22.0   130    85   -15   4.27 0.3644
WVFGRD96   23.0   130    85   -15   4.28 0.3514
WVFGRD96   24.0   315    80    15   4.28 0.3406
WVFGRD96   25.0   315    75    15   4.28 0.3285
WVFGRD96   26.0   315    75    15   4.28 0.3168
WVFGRD96   27.0   220    85   -20   4.29 0.3025
WVFGRD96   28.0   220    85   -20   4.30 0.3061
WVFGRD96   29.0   220    85   -15   4.30 0.3095

The best solution is

WVFGRD96    8.0   310    75     5   4.13 0.5015

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

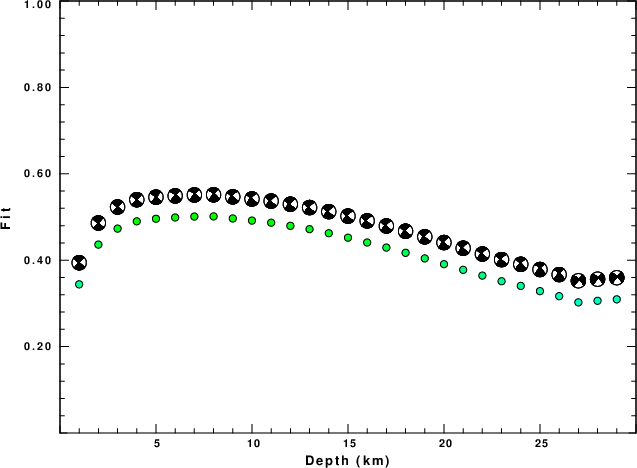

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -20 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3

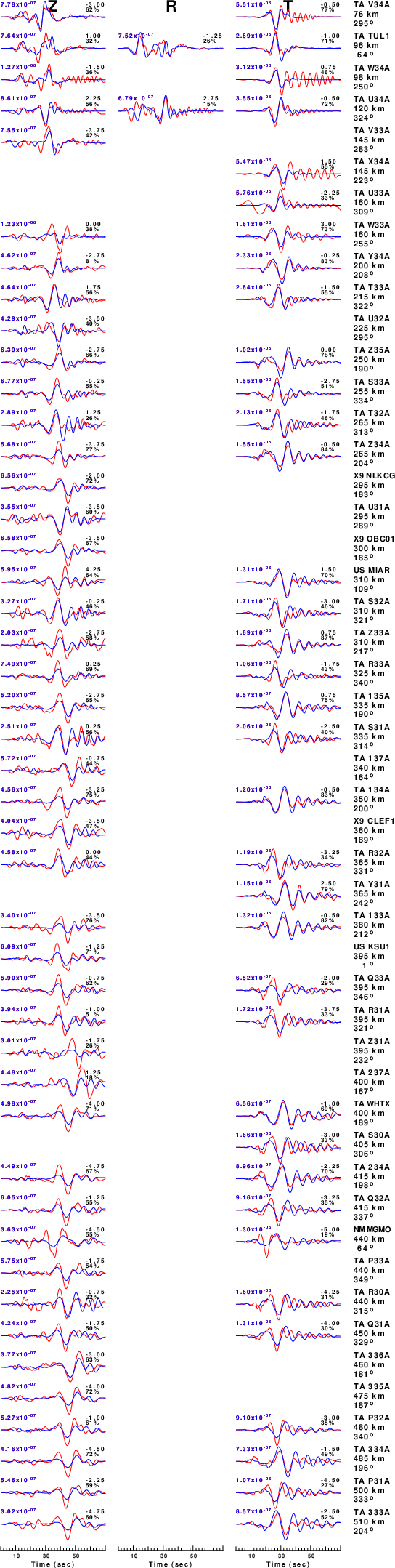

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

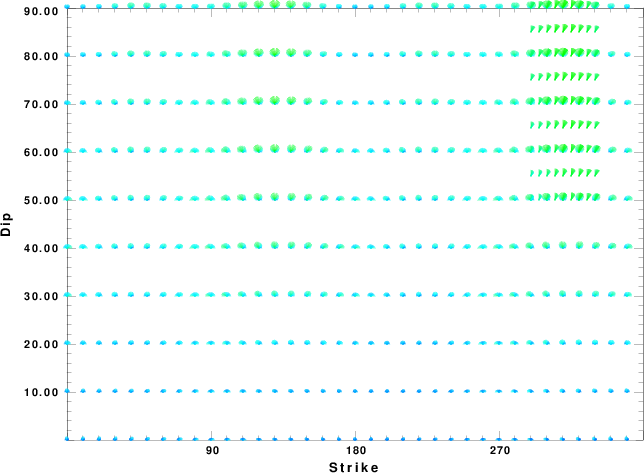

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

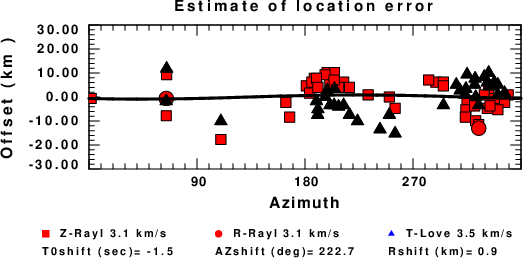

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
