Location

Location ANSS

The ANSS event ID is usp000h65r and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/usp000h65r/executive.

2010/01/15 15:27:02 35.555 -97.249 8.0 3.7 Oklahoma

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2010/01/15 15:27:02:0  35.56  -97.25   8.0 3.7 Oklahoma

 Stations used:
   TA.S33A TA.T31A TA.T32A TA.T33A TA.TUL1 TA.U33A TA.U34A
   TA.V34A TA.W34A TA.X34A

 Filtering commands used:
   cut o DIST/3.3 -30 o DIST/3.3 +40
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.07 n 3

 Best Fitting Double Couple
  Mo = 3.51e+21 dyne-cm
  Mw = 3.63
  Z  = 6 km
  Plane   Strike  Dip  Rake
   NP1       44    85   165
   NP2      135    75     5
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   3.51e+21     14     358
    N   0.00e+00     74     206
    P  -3.51e+21      7      90

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     3.30e+21
       Mxy    -7.64e+19
       Mxz     8.27e+20
       Myy    -3.45e+21
       Myz    -4.52e+20
       Mzz     1.53e+20




                     #####   ######
                 ######### T ##########
              ############   #############
             -############################-
           ---##########################-----
          -----########################-------
         -------#####################----------
        ----------##################------------
        -----------###############--------------
       -------------############-----------------
       ---------------#########---------------
       -----------------#####----------------- P
       ------------------##-------------------
        -----------------##---------------------
        ---------------######-------------------
         ------------###########---------------
          ---------###############------------
           ------####################--------
             --#########################---
              ############################
                 ######################
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
  1.53e+20   8.27e+20   4.52e+20
  8.27e+20   3.30e+21   7.64e+19
  4.52e+20   7.64e+19  -3.45e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20100115152702/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 135
      DIP = 75
     RAKE = 5
       MW = 3.63
       HS = 6.0

The NDK file is 20100115152702.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

mLg Magnitude

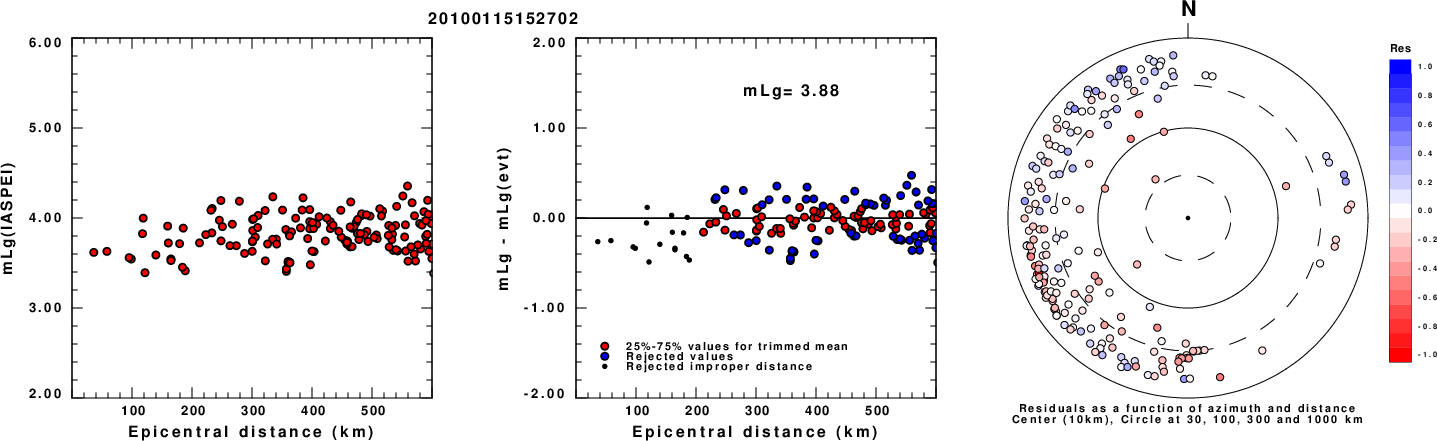

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

ML Magnitude

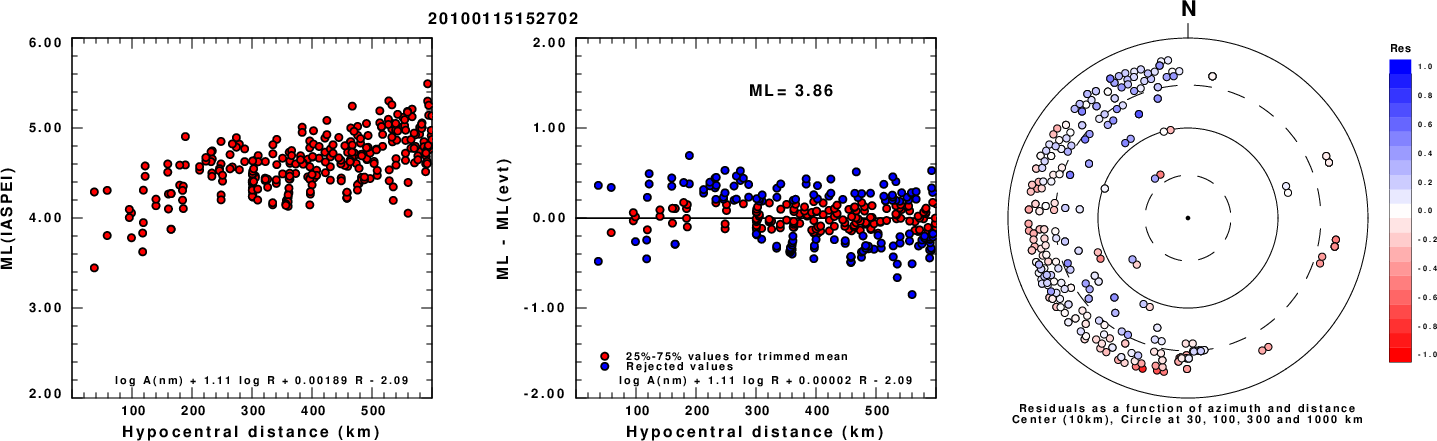

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

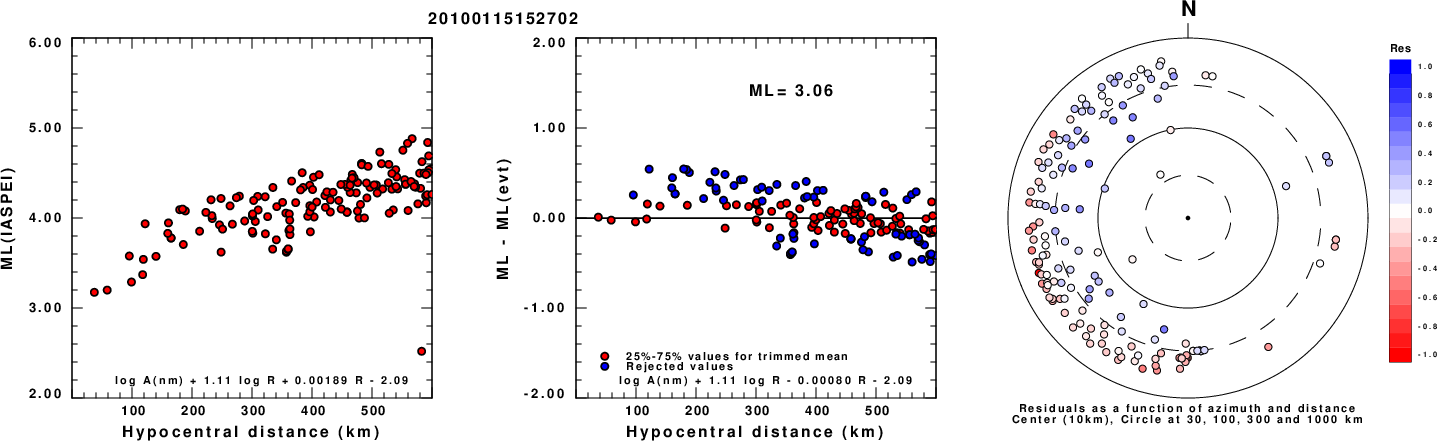

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

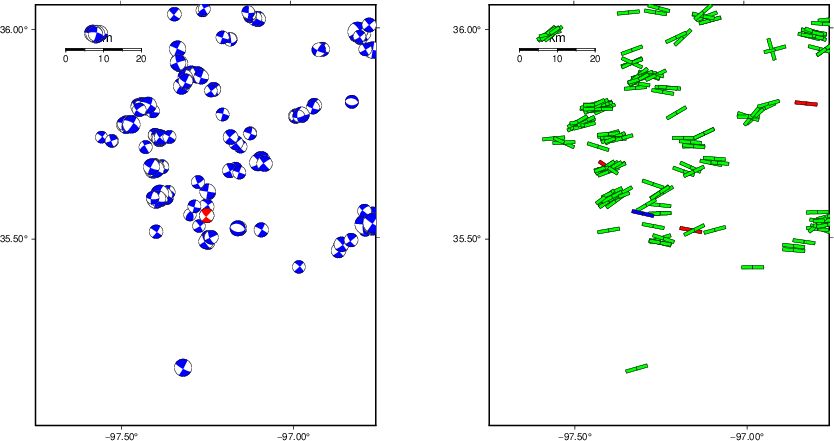

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

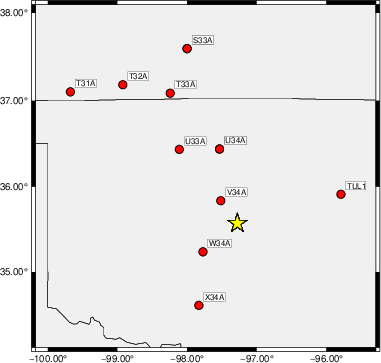

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   135    85     0   3.36 0.4189
WVFGRD96    2.0   135    90     5   3.48 0.5493
WVFGRD96    3.0   135    90    10   3.53 0.5879
WVFGRD96    4.0   135    75     0   3.57 0.6087
WVFGRD96    5.0   135    75     0   3.60 0.6188
WVFGRD96    6.0   135    75     5   3.63 0.6215
WVFGRD96    7.0   135    70     5   3.66 0.6195
WVFGRD96    8.0   140    70    20   3.69 0.6113
WVFGRD96    9.0   135    65     0   3.71 0.5991
WVFGRD96   10.0   135    70     5   3.72 0.5847
WVFGRD96   11.0   135    65     5   3.74 0.5694
WVFGRD96   12.0   140    65    20   3.76 0.5538
WVFGRD96   13.0   140    70    25   3.77 0.5389
WVFGRD96   14.0   140    75    30   3.78 0.5237
WVFGRD96   15.0   140    75    30   3.79 0.5083
WVFGRD96   16.0   140    75    30   3.80 0.4933
WVFGRD96   17.0   315    70     0   3.78 0.4812
WVFGRD96   18.0   315    70     0   3.79 0.4699
WVFGRD96   19.0   315    70     0   3.79 0.4596
WVFGRD96   20.0   315    70    -5   3.80 0.4498
WVFGRD96   21.0   315    70    -5   3.80 0.4409
WVFGRD96   22.0   315    70    -5   3.81 0.4334
WVFGRD96   23.0   315    70    -5   3.82 0.4263
WVFGRD96   24.0   315    70    -5   3.82 0.4211
WVFGRD96   25.0   315    70   -10   3.83 0.4166
WVFGRD96   26.0   315    70    -5   3.84 0.4124
WVFGRD96   27.0   225    85    25   3.84 0.4106
WVFGRD96   28.0   225    80    25   3.86 0.4168
WVFGRD96   29.0   225    80    25   3.86 0.4211

The best solution is

WVFGRD96    6.0   135    75     5   3.63 0.6215

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

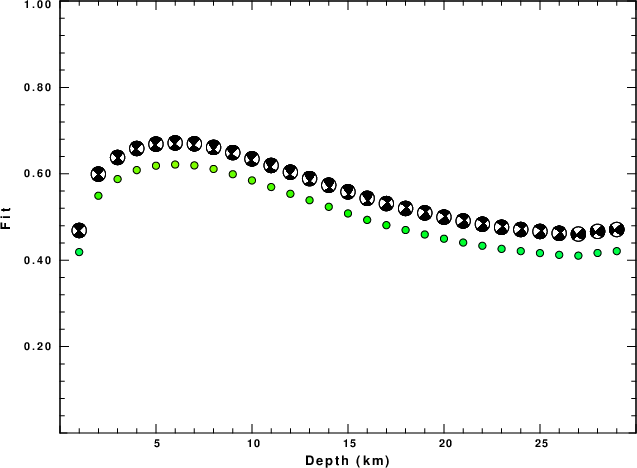

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3

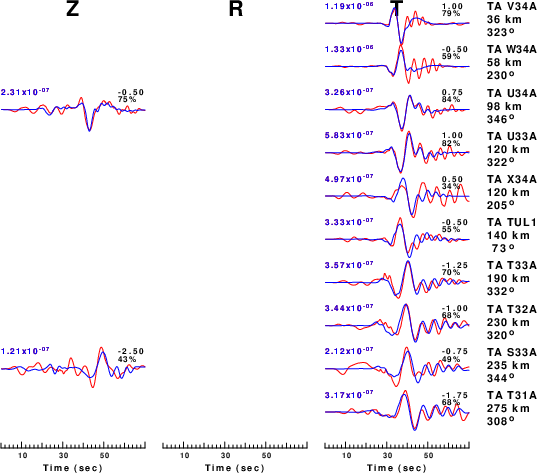

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

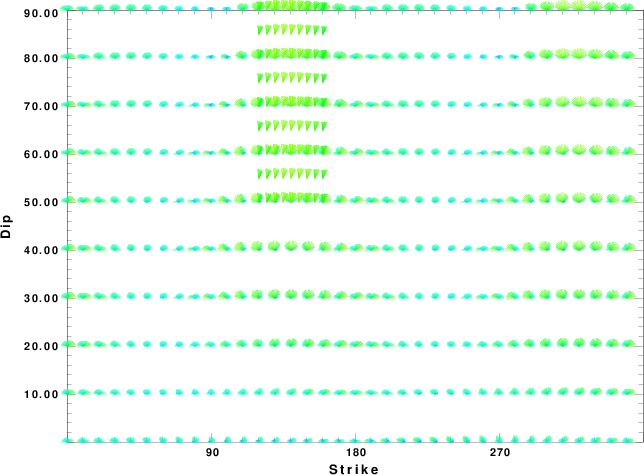

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

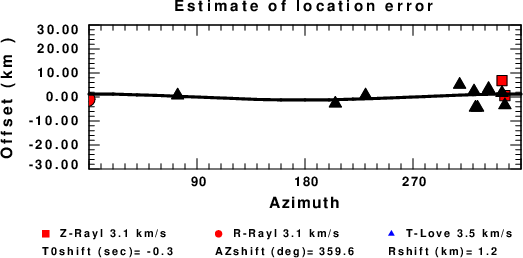

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
