The ANSS event ID is ak009d57glqz and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak009d57glqz/executive.
2009/10/13 13:03:32 63.344 -145.155 5.9 3.6 Alaska

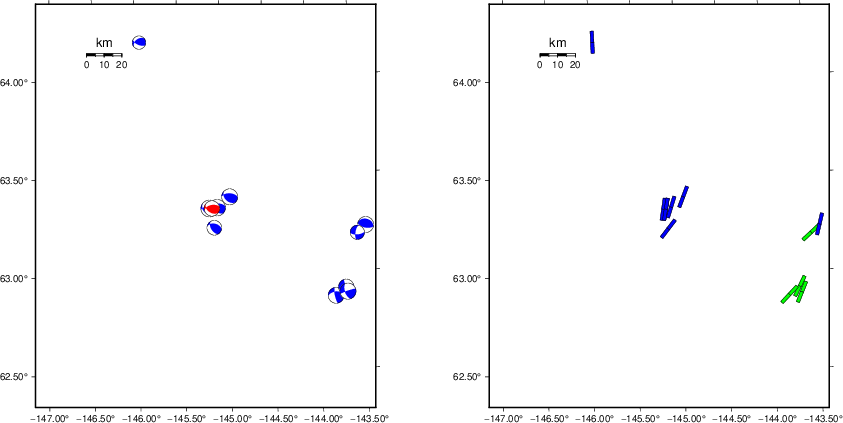

USGS/SLU Moment Tensor Solution ENS 2009/10/13 13:03:32:0 63.34 -145.15 5.9 3.6 Alaska Stations used: AK.BMR AK.BPAW AK.CCB AK.COLD AK.DDM AK.DOT AK.EYAK AK.HDA AK.KLU AK.MCK AK.MDM AK.MLY AK.PAX AK.PPLA AK.RND AK.SCM AK.SCRK AK.TRF AK.WRH AT.PMR IU.COLA US.EGAK Filtering commands used: hp c 0.02 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 7.24e+21 dyne-cm Mw = 3.84 Z = 13 km Plane Strike Dip Rake NP1 260 55 60 NP2 125 45 126 Principal Axes: Axis Value Plunge Azimuth T 7.24e+21 65 113 N 0.00e+00 24 278 P -7.24e+21 6 11 Moment Tensor: (dyne-cm) Component Value Mxx -6.73e+21 Mxy -1.78e+21 Mxz -1.75e+21 Myy 8.37e+20 Myz 2.42e+21 Mzz 5.90e+21 --------- P -- ------------- ------ ---------------------------- ------------------------------ ---------------------------------- #----------------------------------- ##--------------###############------- ###--------#########################---- ###----################################- #####-#################################### ####--#################################### ##-----################### ############# #-------################## T ############# --------################# ############ ----------############################## -----------########################### -------------####################### ---------------################### --------------------######---- ---------------------------- ---------------------- -------------- Global CMT Convention Moment Tensor: R T P 5.90e+21 -1.75e+21 -2.42e+21 -1.75e+21 -6.73e+21 1.78e+21 -2.42e+21 1.78e+21 8.37e+20 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20091013130332/index.html |
STK = 260 DIP = 55 RAKE = 60 MW = 3.84 HS = 13.0
The NDK file is 20091013130332.ndk The waveform inversion is preferred.
Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

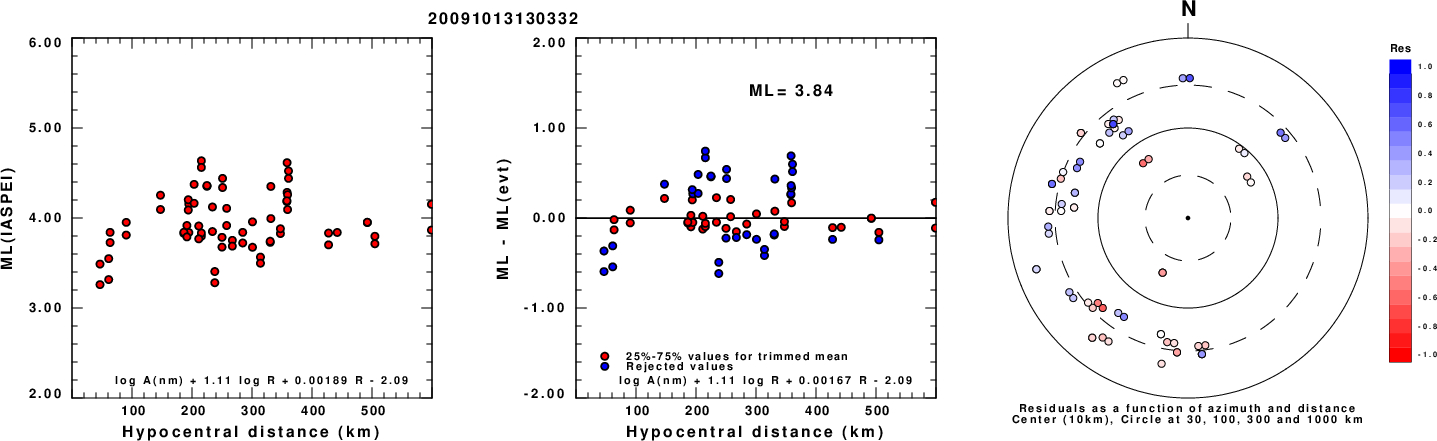

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.

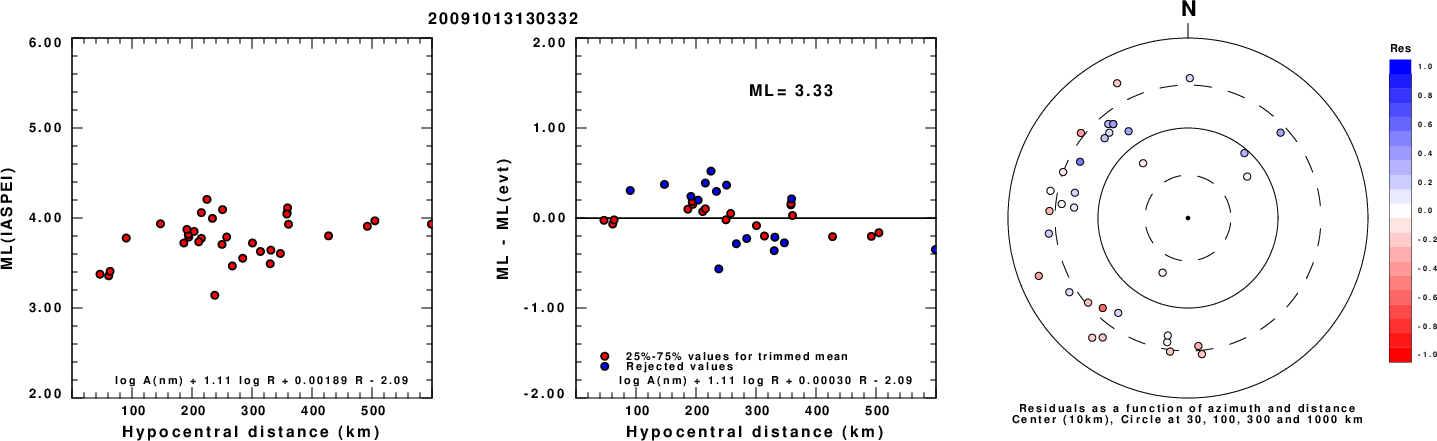

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
![]() |

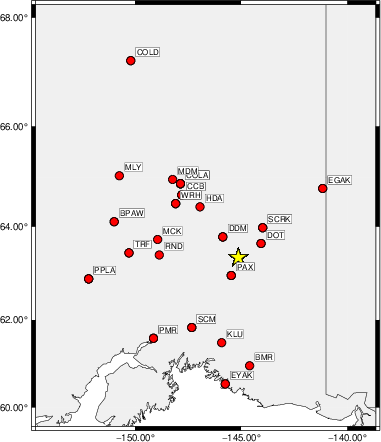

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
![]() |
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
hp c 0.02 n 3 lp c 0.10 n 3The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT WVFGRD96 0.5 0 40 -90 3.66 0.3603 WVFGRD96 1.0 5 40 -85 3.70 0.3623 WVFGRD96 2.0 35 35 -55 3.77 0.3374 WVFGRD96 3.0 55 40 -45 3.79 0.3322 WVFGRD96 4.0 45 70 -55 3.73 0.3453 WVFGRD96 5.0 45 70 -50 3.72 0.3628 WVFGRD96 6.0 255 60 50 3.75 0.3789 WVFGRD96 7.0 260 55 65 3.77 0.4159 WVFGRD96 8.0 260 55 65 3.78 0.4451 WVFGRD96 9.0 260 55 60 3.79 0.4658 WVFGRD96 10.0 260 55 65 3.82 0.4787 WVFGRD96 11.0 260 55 65 3.82 0.4901 WVFGRD96 12.0 260 55 60 3.83 0.4962 WVFGRD96 13.0 260 55 60 3.84 0.4975 WVFGRD96 14.0 260 55 60 3.84 0.4951 WVFGRD96 15.0 255 60 55 3.84 0.4901 WVFGRD96 16.0 255 60 55 3.85 0.4838 WVFGRD96 17.0 255 60 50 3.86 0.4760 WVFGRD96 18.0 255 60 50 3.87 0.4670 WVFGRD96 19.0 255 60 50 3.87 0.4567 WVFGRD96 20.0 255 55 50 3.89 0.4482 WVFGRD96 21.0 255 60 45 3.90 0.4404 WVFGRD96 22.0 255 60 45 3.91 0.4317 WVFGRD96 23.0 255 60 45 3.91 0.4222 WVFGRD96 24.0 255 60 45 3.92 0.4121 WVFGRD96 25.0 255 60 45 3.92 0.4019 WVFGRD96 26.0 255 60 45 3.92 0.3903 WVFGRD96 27.0 250 65 40 3.92 0.3784 WVFGRD96 28.0 255 65 40 3.93 0.3692 WVFGRD96 29.0 255 65 40 3.94 0.3598
The best solution is
WVFGRD96 13.0 260 55 60 3.84 0.4975
The mechanism corresponding to the best fit is
![]() |
|

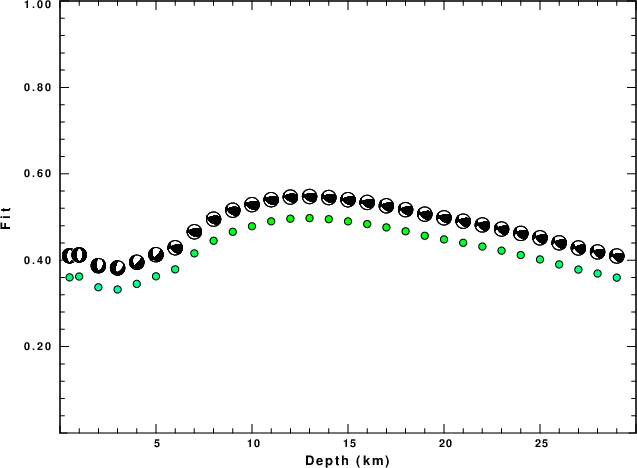

The best fit as a function of depth is given in the following figure:
![]() |
|

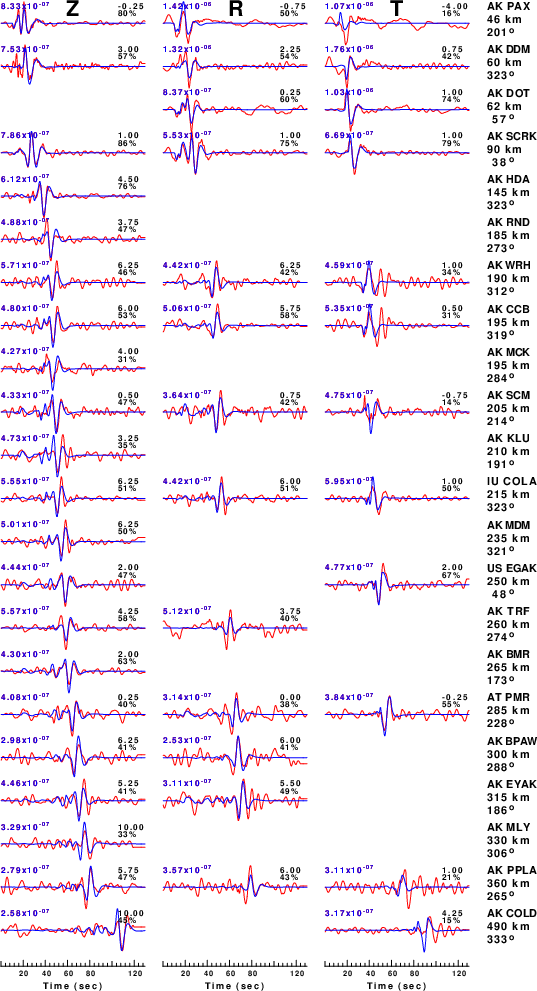

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
hp c 0.02 n 3 lp c 0.10 n 3
![]() |
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample. |
![]() |

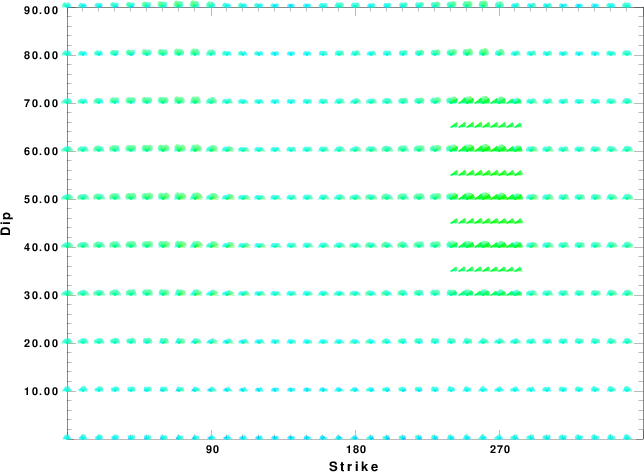

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

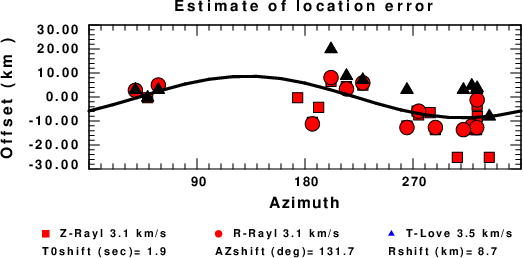

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The CUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
MODEL.01 CUS Model with Q from simple gamma values ISOTROPIC KGS FLAT EARTH 1-D CONSTANT VELOCITY LINE08 LINE09 LINE10 LINE11 H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS 1.0000 5.0000 2.8900 2.5000 0.172E-02 0.387E-02 0.00 0.00 1.00 1.00 9.0000 6.1000 3.5200 2.7300 0.160E-02 0.363E-02 0.00 0.00 1.00 1.00 10.0000 6.4000 3.7000 2.8200 0.149E-02 0.336E-02 0.00 0.00 1.00 1.00 20.0000 6.7000 3.8700 2.9020 0.000E-04 0.000E-04 0.00 0.00 1.00 1.00 0.0000 8.1500 4.7000 3.3640 0.194E-02 0.431E-02 0.00 0.00 1.00 1.00
