Location

SLU Location

To check the ANSS location or to compare the observed P-wave first motions to the moment tensor solution, P- and S-wave first arrival times were manually read together with the P-wave first motions. The subsequent output of the program elocate is given in the file elocate.txt. The first motion plot is shown below.

Location ANSS

The ANSS event ID is usp000h0jg and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/usp000h0jg/executive.

2009/08/18 02:50:16 40.690 -107.573 5.0 3.7 Colorado

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2009/08/18 02:50:16:0  40.69 -107.57   5.0 3.7 Colorado

 Stations used:
   IW.SMCO TA.L19A TA.L21A TA.L22A TA.L23A TA.M19A TA.M20A
   TA.M21A TA.M22A TA.M23A TA.M24A TA.N20A TA.N22A TA.N23A
   TA.N24A TA.N25A TA.O19A TA.O20A TA.O22A TA.O23A TA.O24A
   TA.O25A TA.P19A TA.P20A TA.P21A TA.P22A TA.P23A TA.P24A
   TA.P25A TA.Q21A TA.Q22A TA.Q23A TA.R21A TA.R22A TA.R23A
   US.ISCO

 Filtering commands used:
   hp c 0.02 n 3
   lp c 0.06 n 3

 Best Fitting Double Couple
  Mo = 4.32e+21 dyne-cm
  Mw = 3.69
  Z  = 18 km
  Plane   Strike  Dip  Rake
   NP1      247    74   -143
   NP2      145    55   -20
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   4.32e+21     12      12
    N   0.00e+00     50     267
    P  -4.32e+21     37     111

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     3.58e+21
       Mxy     1.79e+21
       Mxz     1.62e+21
       Myy    -2.19e+21
       Myz    -1.75e+21
       Mzz    -1.39e+21




                     #########   ##
                 ############# T ######
              --##############   #########
             --############################
           ----##############################
          -----###############################
         ------################################
        --------##################--------------
        --------############--------------------
       ----------#######-------------------------
       ----------###-----------------------------
       ----------#-------------------------------
       --------####--------------------   -------
        ----########------------------- P ------
        --############-----------------   ------
         ##############------------------------
          ###############---------------------
           ################------------------
             #################-------------
              ####################--------
                 ######################
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.39e+21   1.62e+21   1.75e+21
  1.62e+21   3.58e+21  -1.79e+21
  1.75e+21  -1.79e+21  -2.19e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20090818025016/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 145
      DIP = 55
     RAKE = -20
       MW = 3.69
       HS = 18.0

The NDK file is 20090818025016.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
SLU
SLUFM
 USGS/SLU Moment Tensor Solution
 ENS  2009/08/18 02:50:16:0  40.69 -107.57   5.0 3.7 Colorado

 Stations used:
   IW.SMCO TA.L19A TA.L21A TA.L22A TA.L23A TA.M19A TA.M20A
   TA.M21A TA.M22A TA.M23A TA.M24A TA.N20A TA.N22A TA.N23A
   TA.N24A TA.N25A TA.O19A TA.O20A TA.O22A TA.O23A TA.O24A
   TA.O25A TA.P19A TA.P20A TA.P21A TA.P22A TA.P23A TA.P24A
   TA.P25A TA.Q21A TA.Q22A TA.Q23A TA.R21A TA.R22A TA.R23A
   US.ISCO

 Filtering commands used:
   hp c 0.02 n 3
   lp c 0.06 n 3

 Best Fitting Double Couple
  Mo = 4.32e+21 dyne-cm
  Mw = 3.69
  Z  = 18 km
  Plane   Strike  Dip  Rake
   NP1      247    74   -143
   NP2      145    55   -20
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   4.32e+21     12      12
    N   0.00e+00     50     267
    P  -4.32e+21     37     111

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     3.58e+21
       Mxy     1.79e+21
       Mxz     1.62e+21
       Myy    -2.19e+21
       Myz    -1.75e+21
       Mzz    -1.39e+21




                     #########   ##
                 ############# T ######
              --##############   #########
             --############################
           ----##############################
          -----###############################
         ------################################
        --------##################--------------
        --------############--------------------
       ----------#######-------------------------
       ----------###-----------------------------
       ----------#-------------------------------
       --------####--------------------   -------
        ----########------------------- P ------
        --############-----------------   ------
         ##############------------------------
          ###############---------------------
           ################------------------
             #################-------------
              ####################--------
                 ######################
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.39e+21   1.62e+21   1.75e+21
  1.62e+21   3.58e+21  -1.79e+21
  1.75e+21  -1.79e+21  -2.19e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20090818025016/index.html

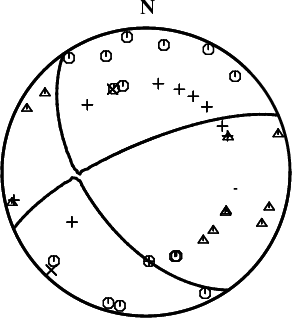

First motion plot using elocate take-off angles and azimuths

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

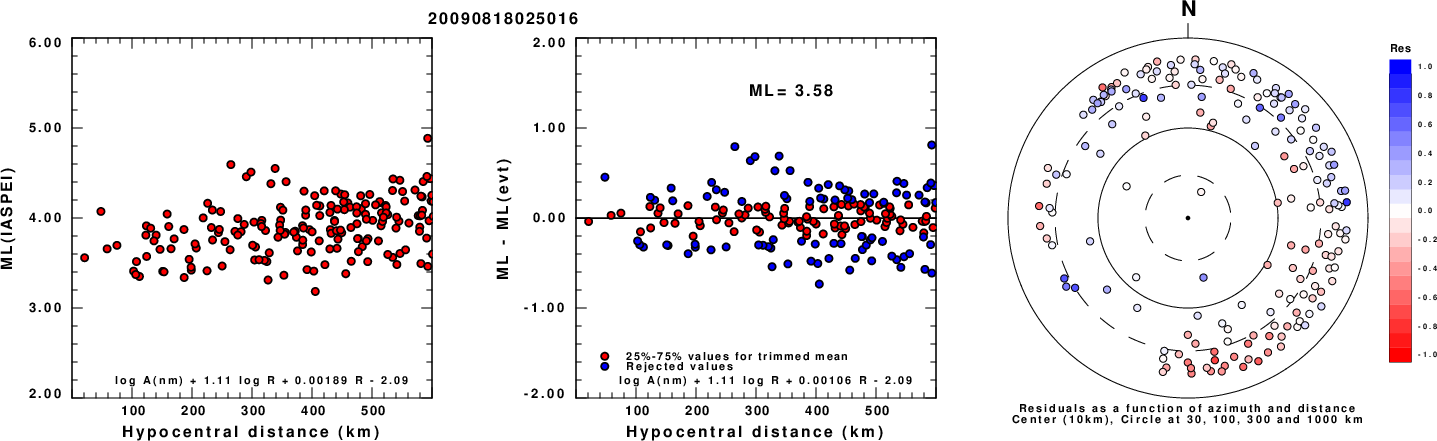

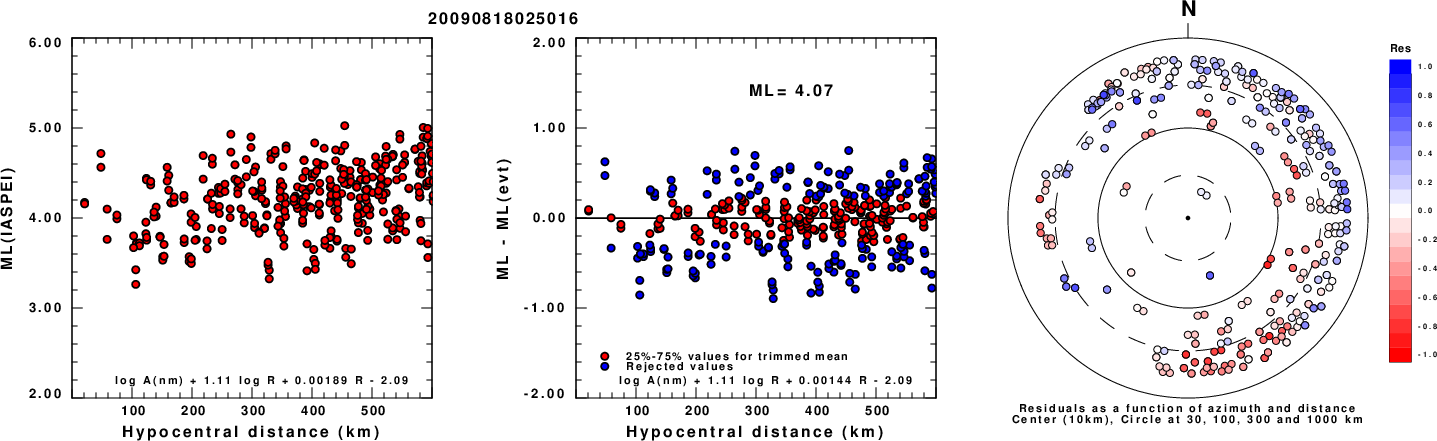

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.


Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

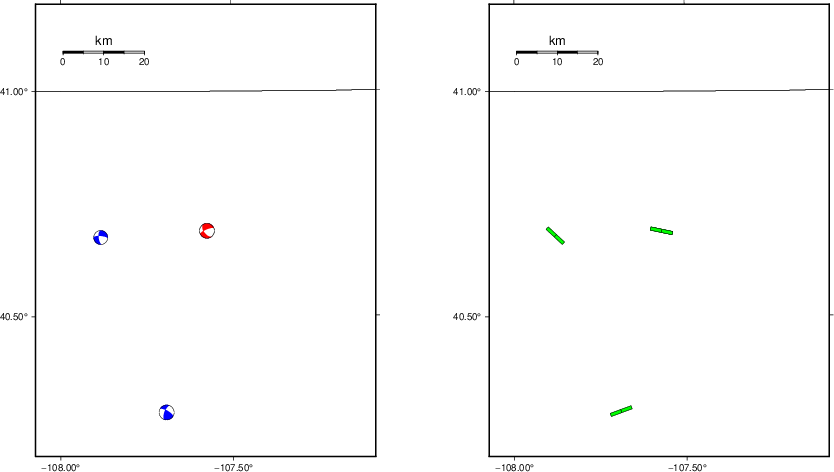

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

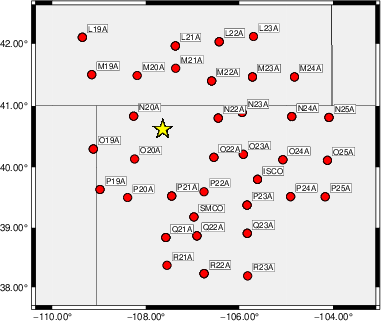

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

hp c 0.02 n 3
lp c 0.06 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    0.5    25    45   -90   3.27 0.2292
WVFGRD96    1.0    20    45   -90   3.31 0.2160
WVFGRD96    2.0    20    45   -90   3.40 0.2528
WVFGRD96    3.0   155    60    25   3.41 0.2514
WVFGRD96    4.0   150    50    10   3.46 0.2605
WVFGRD96    5.0   140    35   -15   3.51 0.2882
WVFGRD96    6.0   140    40   -15   3.52 0.3233
WVFGRD96    7.0   135    40   -25   3.54 0.3555
WVFGRD96    8.0   135    35   -25   3.60 0.3783
WVFGRD96    9.0   135    40   -30   3.62 0.4073
WVFGRD96   10.0   135    45   -35   3.63 0.4330
WVFGRD96   11.0   135    45   -35   3.64 0.4534
WVFGRD96   12.0   140    50   -30   3.64 0.4700
WVFGRD96   13.0   140    50   -30   3.65 0.4821
WVFGRD96   14.0   140    50   -25   3.66 0.4911
WVFGRD96   15.0   140    55   -25   3.67 0.4969
WVFGRD96   16.0   140    55   -25   3.68 0.5013
WVFGRD96   17.0   145    55   -20   3.68 0.5035
WVFGRD96   18.0   145    55   -20   3.69 0.5039
WVFGRD96   19.0   145    55   -20   3.69 0.5024
WVFGRD96   20.0   145    60   -20   3.70 0.4998
WVFGRD96   21.0   145    55   -20   3.71 0.4951
WVFGRD96   22.0   145    55   -15   3.72 0.4902
WVFGRD96   23.0   145    55   -15   3.72 0.4843
WVFGRD96   24.0   145    60   -15   3.73 0.4773
WVFGRD96   25.0   145    60   -15   3.74 0.4699
WVFGRD96   26.0   145    55   -10   3.74 0.4619
WVFGRD96   27.0   145    60   -15   3.75 0.4538
WVFGRD96   28.0   145    60   -15   3.76 0.4452
WVFGRD96   29.0   150    55    10   3.76 0.4357

The best solution is

WVFGRD96   18.0   145    55   -20   3.69 0.5039

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

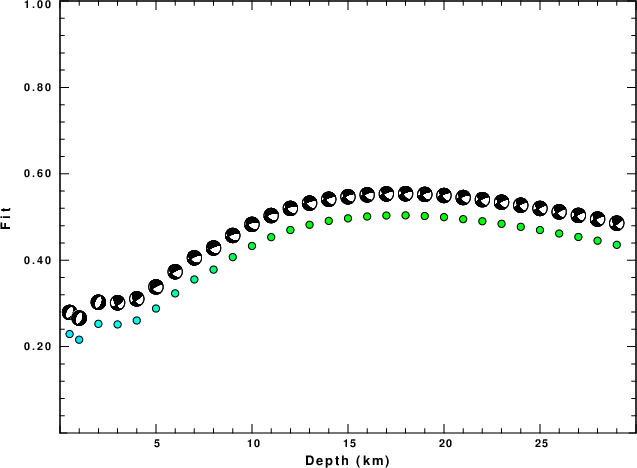

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

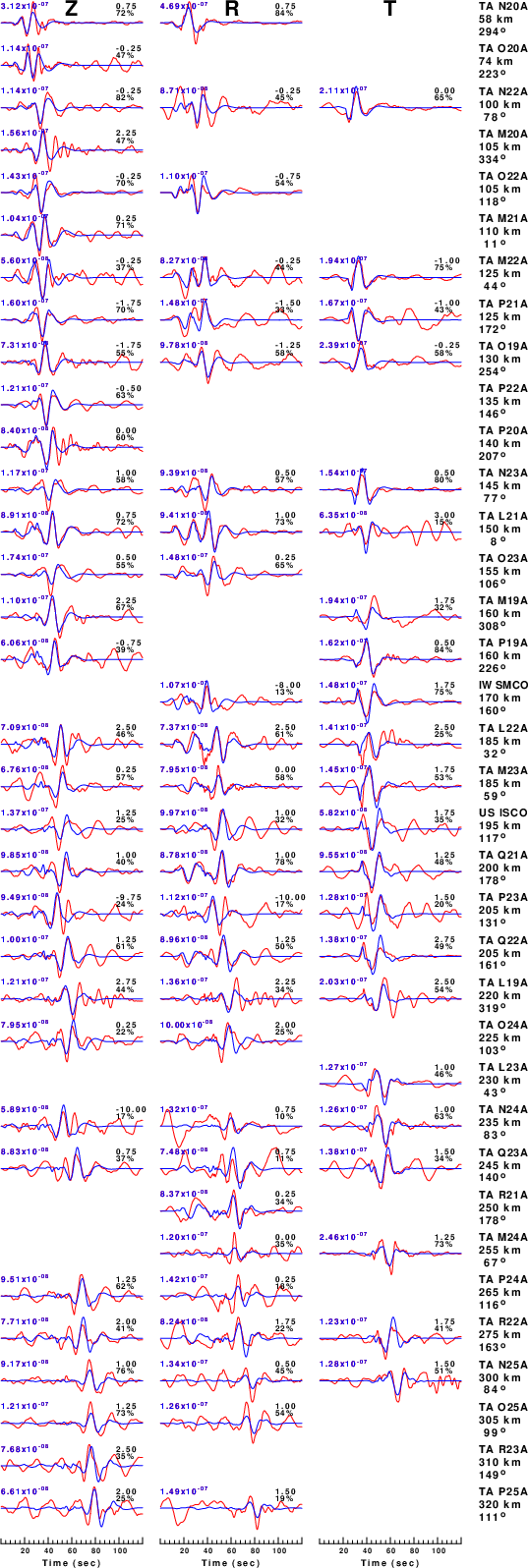

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

hp c 0.02 n 3
lp c 0.06 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

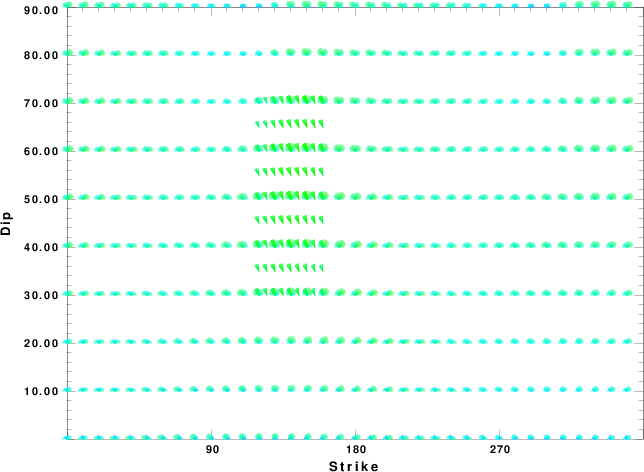

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

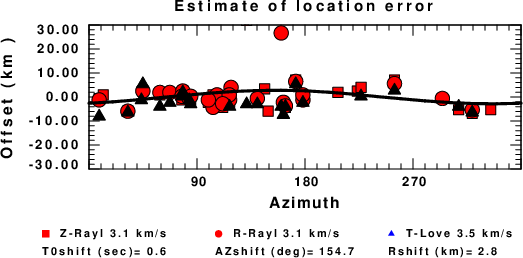

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Sun Apr 28 01:08:50 PM CDT 2024
