The ANSS event ID is usp000gzgy and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/usp000gzgy/executive.

2009/07/21 14:20:55 49.725 -65.706 13.8 3.5 Quebec, Canada

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2009/07/21 14:20:55:0  49.72  -65.71  13.8 3.5 Quebec, Canada

 Stations used:
   CN.A11 CN.A16 CN.A21 CN.A54 CN.A64 CN.DRLN CN.GGN CN.ICQ
   CN.LMN CN.LMQ CN.SCHQ IU.HRV

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 2.57e+21 dyne-cm
  Mw = 3.54
  Z  = 16 km
  Plane   Strike  Dip  Rake
   NP1      360    60    75
   NP2      208    33   114
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   2.57e+21     71     236
    N   0.00e+00     13       8
    P  -2.57e+21     14     101

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -2.01e+14
       Mxy     5.76e+20
       Mxz    -3.33e+20
       Myy    -2.15e+21
       Myz    -1.24e+21
       Mzz     2.15e+21




                     --------######
                 -----------###--------
              ----------########----------
             ---------###########----------
           ---------##############-----------
          --------################------------
         --------##################------------
        --------###################-------------
        -------####################-------------
       -------######################-------------
       -------######################-------------
       ------#########   ###########--------   --
       ------######### T ###########-------- P --
        -----#########   ##########---------   -
        -----######################-------------
         ----######################------------
          ----####################------------
           ---####################-----------
             --##################----------
              --################----------
                 -#############--------
                     ########------



 Global CMT Convention Moment Tensor:
      R          T          P
  2.15e+21  -3.33e+20   1.24e+21
 -3.33e+20  -2.01e+14  -5.76e+20
  1.24e+21  -5.76e+20  -2.15e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20090721142055/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 360
      DIP = 60
     RAKE = 75
       MW = 3.54
       HS = 16.0

The NDK file is 20090721142055.ndk The waveform inversion is preferred.

Context

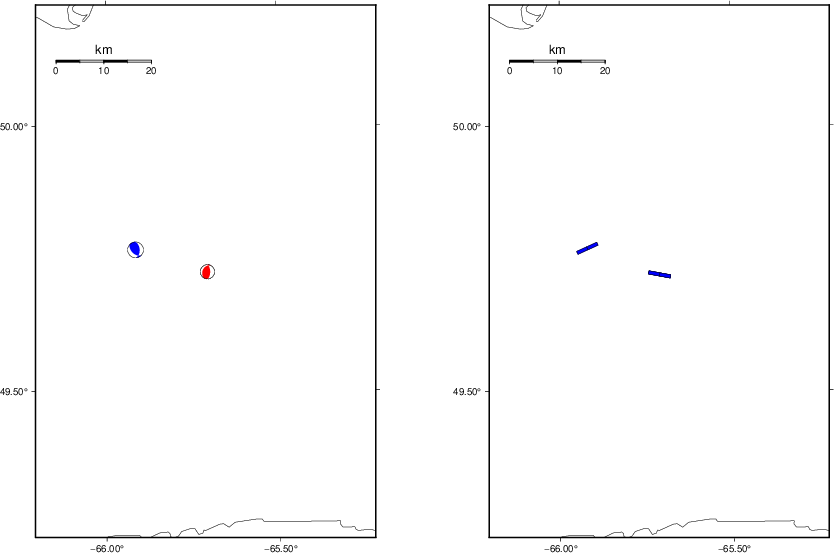

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

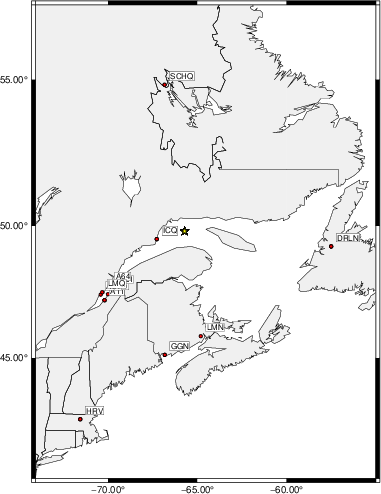

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    0.5   135    55   -85   3.32 0.4987
WVFGRD96    1.0   140    50   -85   3.35 0.5109
WVFGRD96    2.0   185    60   -45   3.44 0.4698
WVFGRD96    3.0    25    75    30   3.48 0.4236
WVFGRD96    4.0    30    60    35   3.49 0.4406
WVFGRD96    5.0    30    55    35   3.50 0.4733
WVFGRD96    6.0    30    60    45   3.50 0.5054
WVFGRD96    7.0    30    65    60   3.49 0.5372
WVFGRD96    8.0    10    70    70   3.43 0.5709
WVFGRD96    9.0    10    65    75   3.46 0.6045
WVFGRD96   10.0     0    65    75   3.48 0.6312
WVFGRD96   11.0     5    60    80   3.51 0.6584
WVFGRD96   12.0     5    60    80   3.52 0.6810
WVFGRD96   13.0     5    60    80   3.53 0.6966
WVFGRD96   14.0   355    60    75   3.53 0.7062
WVFGRD96   15.0   355    60    75   3.53 0.7108
WVFGRD96   16.0   360    60    75   3.54 0.7111
WVFGRD96   17.0   360    60    75   3.55 0.7078
WVFGRD96   18.0   360    65    75   3.55 0.7016
WVFGRD96   19.0     0    65    75   3.56 0.6925
WVFGRD96   20.0    -5    65    75   3.59 0.6805
WVFGRD96   21.0    -5    65    75   3.60 0.6657
WVFGRD96   22.0    -5    65    75   3.61 0.6487
WVFGRD96   23.0    -5    65    75   3.61 0.6295
WVFGRD96   24.0     5    65    80   3.63 0.6085
WVFGRD96   25.0     5    65    80   3.64 0.5858
WVFGRD96   26.0     5    65    80   3.64 0.5615
WVFGRD96   27.0     5    65    80   3.65 0.5357
WVFGRD96   28.0    10    65    85   3.66 0.5097
WVFGRD96   29.0    10    65    85   3.66 0.4833

The best solution is

WVFGRD96   16.0   360    60    75   3.54 0.7111

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

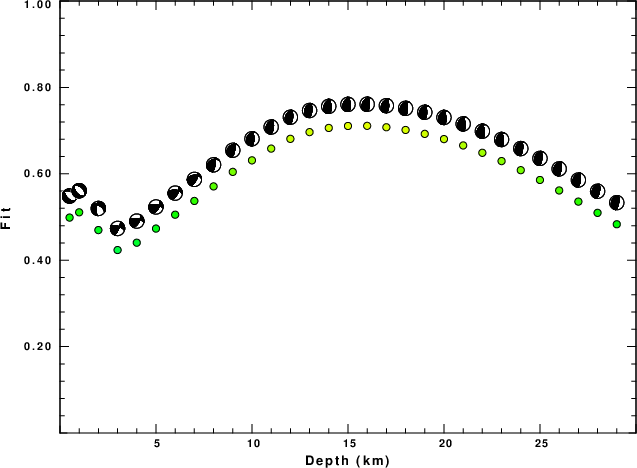

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

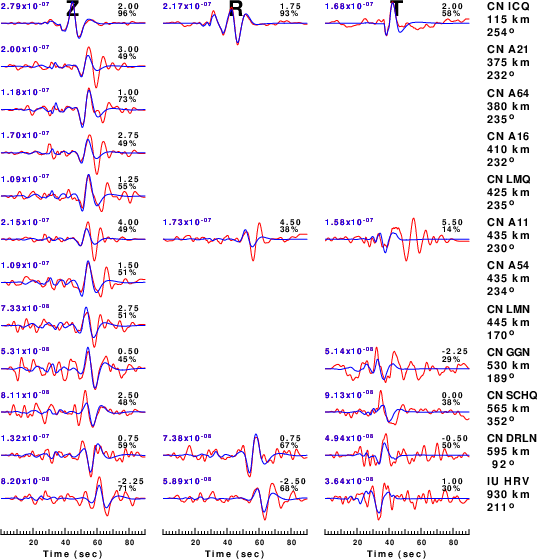

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

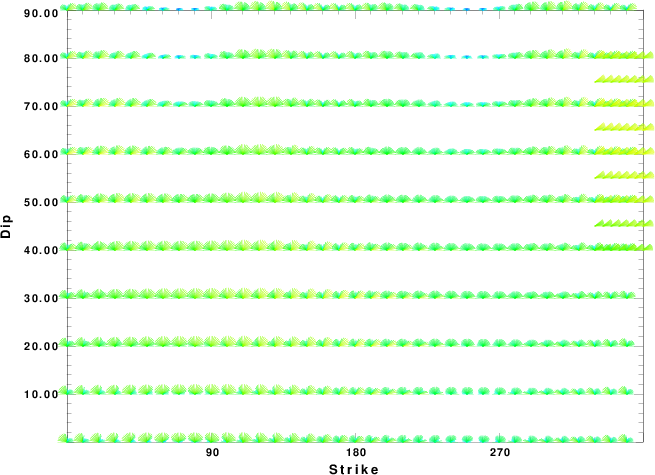

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

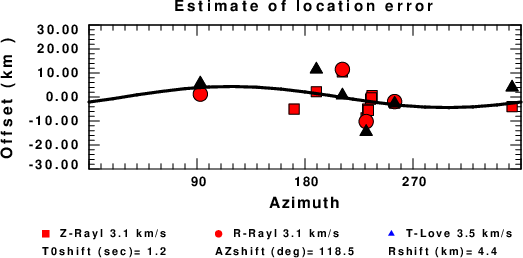

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The CUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
CUS Model with Q from simple gamma values
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
  H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC)   QP   QS  ETAP  ETAS  FREFP  FREFS
  1.0000  5.0000  2.8900  2.5000 0.172E-02 0.387E-02 0.00  0.00  1.00  1.00
  9.0000  6.1000  3.5200  2.7300 0.160E-02 0.363E-02 0.00  0.00  1.00  1.00
 10.0000  6.4000  3.7000  2.8200 0.149E-02 0.336E-02 0.00  0.00  1.00  1.00
 20.0000  6.7000  3.8700  2.9020 0.000E-04 0.000E-04 0.00  0.00  1.00  1.00
  0.0000  8.1500  4.7000  3.3640 0.194E-02 0.431E-02 0.00  0.00  1.00  1.00
