The ANSS event ID is ak0094gr40v3 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0094gr40v3/executive.

2009/04/07 20:12:55 61.454 -149.743 33.0 4.6 Alaska

Focal Mechanism

USGS/SLU Moment Tensor Solution ENS 2009/04/07 20:12:55:0 61.45 -149.74 33.0 4.6 Alaska Stations used: AK.BMR AK.DIV AK.EYAK AK.PAX AK.SAW AK.SWD AK.TRF AT.PMR Filtering commands used: hp c 0.02 n 3 lp c 0.05 n 3 Best Fitting Double Couple Mo = 8.41e+22 dyne-cm Mw = 4.55 Z = 49 km Plane Strike Dip Rake NP1 216 55 -87 NP2 30 35 -95 Principal Axes: Axis Value Plunge Azimuth T 8.41e+22 10 304 N 0.00e+00 3 34 P -8.41e+22 80 140 Moment Tensor: (dyne-cm) Component Value Mxx 2.33e+22 Mxy -3.62e+22 Mxz 1.95e+22 Myy 5.54e+22 Myz -2.18e+22 Mzz -7.88e+22 ############## ###################### ####################------## #################-----------## ##############--------------### # T ###########-----------------#### ## #########--------------------#### ##############---------------------##### ############-----------------------##### ############------------------------###### ###########-------------------------###### ##########------------ ----------####### ##########------------ P ----------####### ########------------- ---------####### #######-------------------------######## ######------------------------######## #####----------------------######### ####---------------------######### ##-------------------######### #----------------########### ---------############# ############## Global CMT Convention Moment Tensor: R T P -7.88e+22 1.95e+22 2.18e+22 1.95e+22 2.33e+22 3.62e+22 2.18e+22 3.62e+22 5.54e+22 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20090407201255/index.html

Preferred Solution

      STK = 30
      DIP = 35
     RAKE = -95
       MW = 4.55
       HS = 49.0

The NDK file is 20090407201255.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.

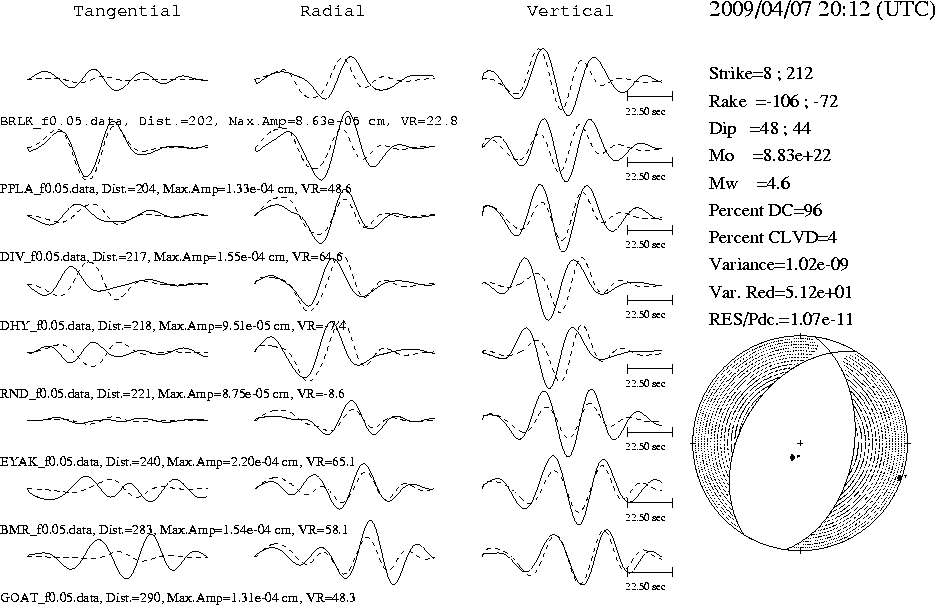

SLU	AEIC
USGS/SLU Moment Tensor Solution ENS 2009/04/07 20:12:55:0 61.45 -149.74 33.0 4.6 Alaska Stations used: AK.BMR AK.DIV AK.EYAK AK.PAX AK.SAW AK.SWD AK.TRF AT.PMR Filtering commands used: hp c 0.02 n 3 lp c 0.05 n 3 Best Fitting Double Couple Mo = 8.41e+22 dyne-cm Mw = 4.55 Z = 49 km Plane Strike Dip Rake NP1 216 55 -87 NP2 30 35 -95 Principal Axes: Axis Value Plunge Azimuth T 8.41e+22 10 304 N 0.00e+00 3 34 P -8.41e+22 80 140 Moment Tensor: (dyne-cm) Component Value Mxx 2.33e+22 Mxy -3.62e+22 Mxz 1.95e+22 Myy 5.54e+22 Myz -2.18e+22 Mzz -7.88e+22 ############## ###################### ####################------## #################-----------## ##############--------------### # T ###########-----------------#### ## #########--------------------#### ##############---------------------##### ############-----------------------##### ############------------------------###### ###########-------------------------###### ##########------------ ----------####### ##########------------ P ----------####### ########------------- ---------####### #######-------------------------######## ######------------------------######## #####----------------------######### ####---------------------######### ##-------------------######### #----------------########### ---------############# ############## Global CMT Convention Moment Tensor: R T P -7.88e+22 1.95e+22 2.18e+22 1.95e+22 2.33e+22 3.62e+22 2.18e+22 3.62e+22 5.54e+22 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20090407201255/index.html		Date: 2009/04/07 Time: 20:12 (UTC) Region: Cook Inlet Region of Alaska Mw=4.6 Location: Lat. 61.4686; Lon. -149.7585; Depth 45 km (Best-fitting depth from moment tensor inversion) Solution quality: good; Number of stations = 8 Best Double Couple: strike dip rake Plane 1: 7.8 48.2 -106.5 Plane 2: 211.7 44.3 -72.4 Moment Tensor Parameters: Mo = 8.83406e+22 dyn-cm Mxx = 0.51; Mxy = -3.01; Mxz = 1.47 Myy = 7.83; Myz = 1.15; Mzz = -8.34 Principal Axes: value azimuth plunge T: 8.93 109.35 1.98 N: -0.18 18.92 12.19 P: -8.74 208.44 77.64

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and M_L by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for M_L is adjusted to remove a linear distance trend in residuals to give a regionally defined M_L. The defined M_L uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

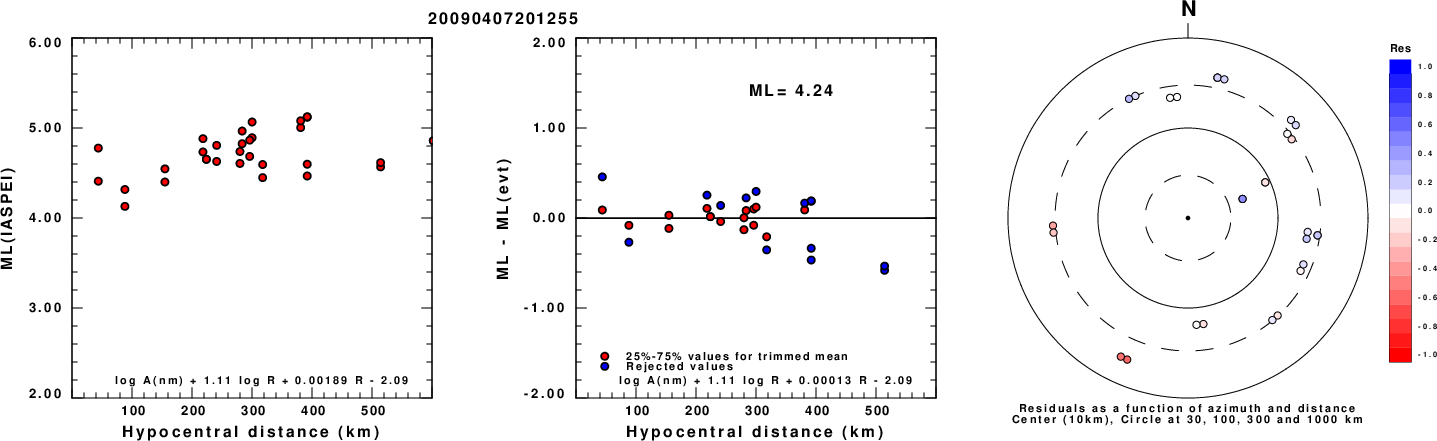

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

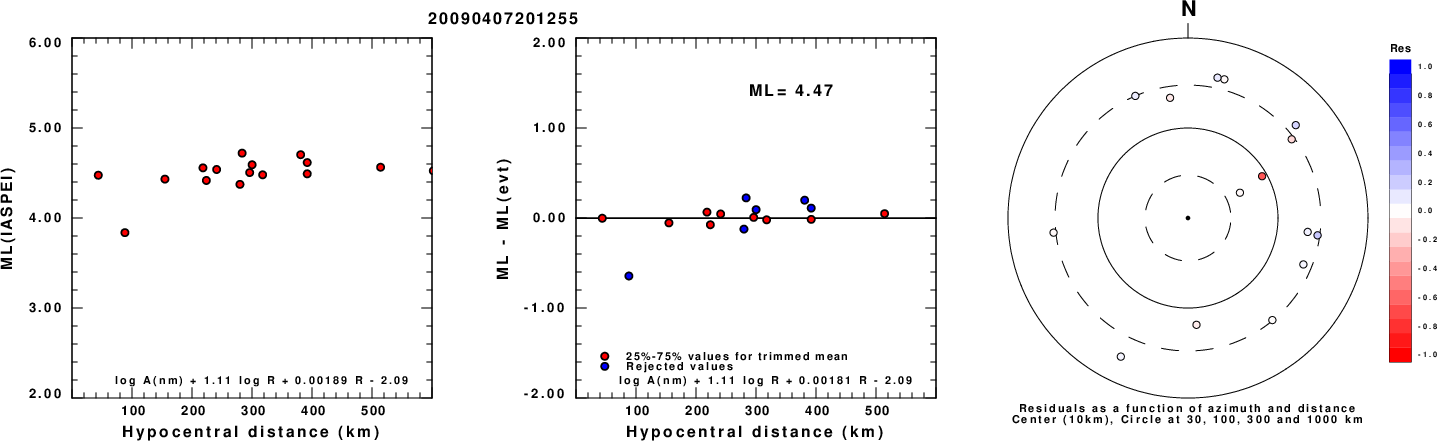

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

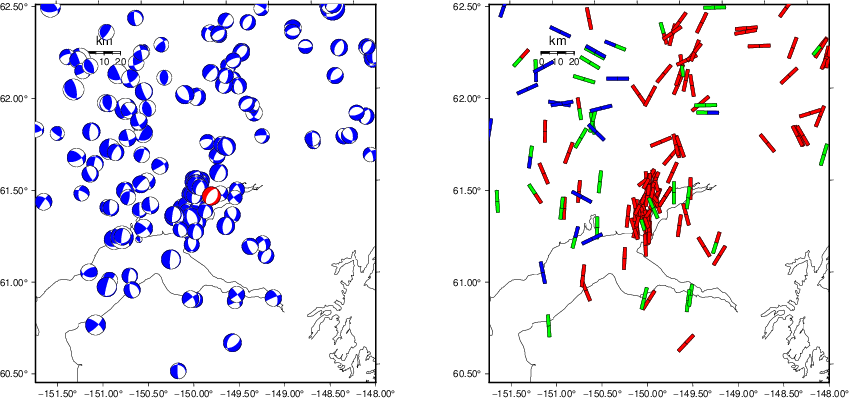

Context

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

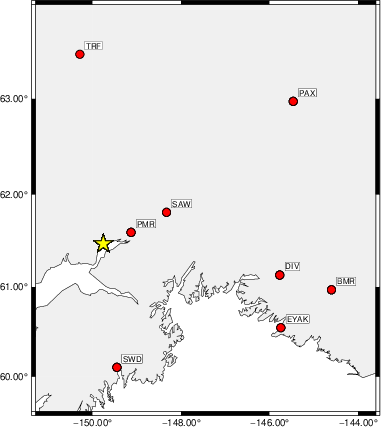

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

hp c 0.02 n 3
lp c 0.05 n 3

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96   30.0   235    55   -65   4.27 0.6456
WVFGRD96   31.0   235    55   -70   4.28 0.6538
WVFGRD96   32.0   230    55   -70   4.29 0.6635
WVFGRD96   33.0   230    55   -70   4.30 0.6723
WVFGRD96   34.0   230    55   -70   4.31 0.6799
WVFGRD96   35.0   230    55   -75   4.32 0.6874
WVFGRD96   36.0   230    55   -75   4.33 0.6936
WVFGRD96   37.0   225    55   -75   4.35 0.7003
WVFGRD96   38.0   225    55   -75   4.36 0.7064
WVFGRD96   39.0   225    55   -75   4.37 0.7112
WVFGRD96   40.0   220    50   -80   4.47 0.7049
WVFGRD96   41.0   215    50   -85   4.49 0.7136
WVFGRD96   42.0   215    50   -85   4.50 0.7223
WVFGRD96   43.0   215    50   -85   4.50 0.7283
WVFGRD96   44.0    30    40   -95   4.51 0.7329
WVFGRD96   45.0   215    50   -85   4.52 0.7362
WVFGRD96   46.0    25    40   -95   4.52 0.7388
WVFGRD96   47.0    35    35   -95   4.54 0.7414
WVFGRD96   48.0    35    35   -95   4.55 0.7424
WVFGRD96   49.0    30    35   -95   4.55 0.7440
WVFGRD96   50.0   215    55   -85   4.55 0.7432
WVFGRD96   51.0   215    55   -90   4.57 0.7432
WVFGRD96   52.0   215    55   -90   4.57 0.7418
WVFGRD96   53.0   215    55   -90   4.57 0.7390
WVFGRD96   54.0    35    35   -90   4.58 0.7359
WVFGRD96   55.0    35    35   -90   4.58 0.7308
WVFGRD96   56.0    40    35   -85   4.59 0.7258
WVFGRD96   57.0   215    55   -90   4.59 0.7193
WVFGRD96   58.0    40    35   -85   4.60 0.7130
WVFGRD96   59.0   215    55   -95   4.60 0.7044

The best solution is

WVFGRD96   49.0    30    35   -95   4.55 0.7440

The mechanism corresponding to the best fit is

Figure 1. Waveform inversion focal mechanism

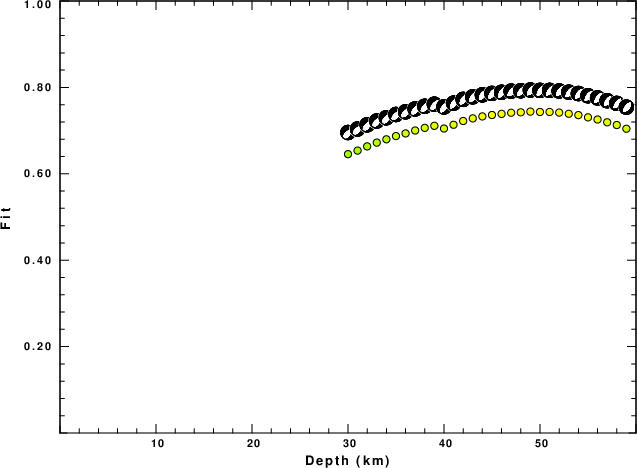

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

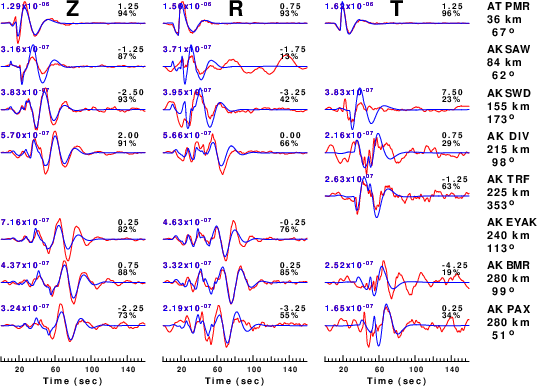

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

hp c 0.02 n 3
lp c 0.05 n 3

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

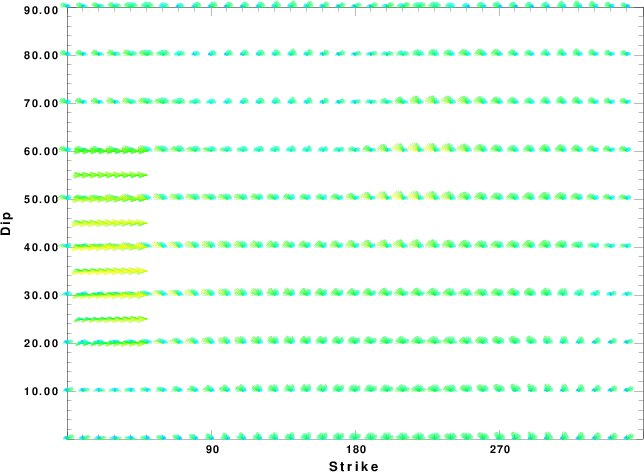

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

• The origin time and epicentral distance are incorrect
• The velocity model used for the inversion is incorrect
• The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

 Time_shift = A + B cos Azimuth + C Sin Azimuth

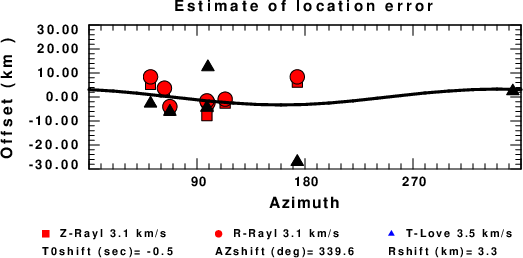

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
