The ANSS event ID is nn00263178 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/nn00263178/executive.

2008/10/18 02:27:38 36.175 -114.522 0.0 3.4 Nevada

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2008/10/18 02:27:38:0  36.17 -114.52   0.0 3.4 Nevada

 Stations used:
   BK.CMB CI.BAR CI.GLA CI.GSC CI.ISA CI.LDF II.PFO TA.Q14A
   TA.R11A TA.R13A TA.R16A TA.S16A TA.U13A TA.U14A TA.U15A
   TA.U16A TA.V14A TA.V15A TA.V17A TA.W13A TA.W14A TA.W15A
   TA.W16A TA.W17A TA.W18A TA.X14A TA.X15A TA.X16A TA.Y12C
   TA.Y13A TA.Y15A TA.Y16A TA.Z13A TA.Z15A TA.Z16A US.DUG
   UU.BGU UU.SRU

 Filtering commands used:
   hp c 0.02 n 3
   lp c 0.06 n 3
   br c 0.12 0.25 n 4 p 2
   br c 0.12 0.25 n 4 p 2

 Best Fitting Double Couple
  Mo = 1.64e+21 dyne-cm
  Mw = 3.41
  Z  = 7 km
  Plane   Strike  Dip  Rake
   NP1      205    81   150
   NP2      300    60    10
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.64e+21     27     158
    N   0.00e+00     59      11
    P  -1.64e+21     14     256

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     1.03e+21
       Mxy    -8.06e+20
       Mxz    -5.27e+20
       Myy    -1.27e+21
       Myz     6.28e+20
       Mzz     2.47e+20




                     ##############
                 ###################---
              ####################--------
             ####################----------
           #####################-------------
          -------------########---------------
         -------------------##-----------------
        ---------------------###----------------
        --------------------#######-------------
       --------------------##########------------
       -------------------#############----------
       ------------------################--------
       --   ------------###################------
        - P ------------####################----
        -   -----------######################---
         -------------#######################--
          -----------#########################
           ----------###########   ##########
             -------############ T ########
              ------############   #######
                 --####################
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
  2.47e+20  -5.27e+20  -6.28e+20
 -5.27e+20   1.03e+21   8.06e+20
 -6.28e+20   8.06e+20  -1.27e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20081018022738/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 300
      DIP = 60
     RAKE = 10
       MW = 3.41
       HS = 7.0

The NDK file is 20081018022738.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

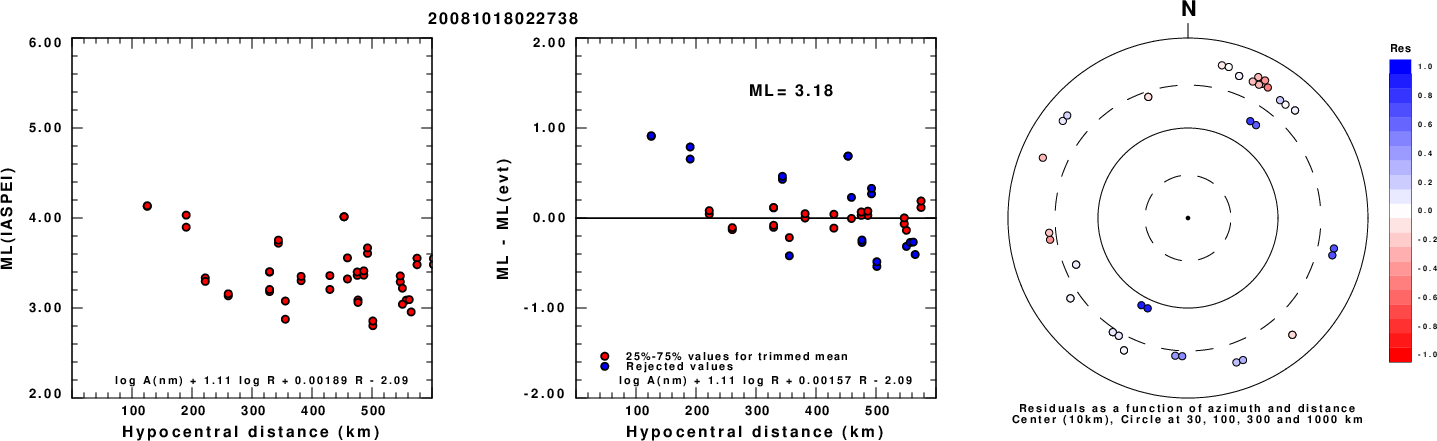

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

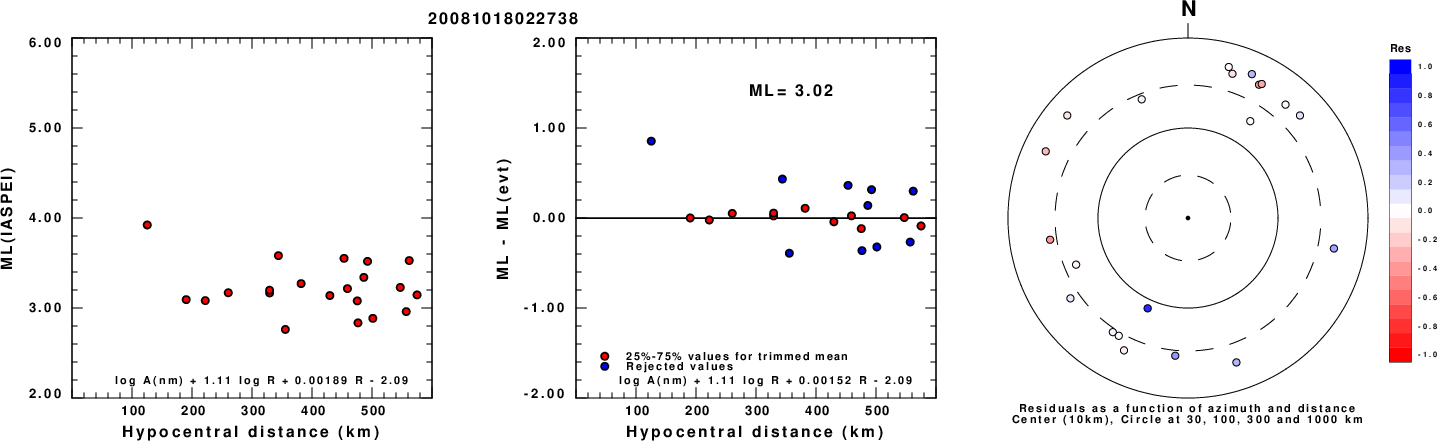

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

hp c 0.02 n 3
lp c 0.06 n 3
br c 0.12 0.25 n 4 p 2
br c 0.12 0.25 n 4 p 2
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    0.5   295    75   -20   3.22 0.4412
WVFGRD96    1.0   295    75   -15   3.23 0.4639
WVFGRD96    2.0   295    75   -20   3.30 0.5279
WVFGRD96    3.0   295    70   -15   3.33 0.5445
WVFGRD96    4.0   295    70   -15   3.35 0.5508
WVFGRD96    5.0   300    60    10   3.39 0.5529
WVFGRD96    6.0   300    60    10   3.40 0.5553
WVFGRD96    7.0   300    60    10   3.41 0.5554
WVFGRD96    8.0   300    55    10   3.44 0.5548
WVFGRD96    9.0   300    60    10   3.44 0.5512
WVFGRD96   10.0   300    60    10   3.45 0.5473
WVFGRD96   11.0   300    60    10   3.46 0.5426
WVFGRD96   12.0   300    60    10   3.47 0.5371
WVFGRD96   13.0   295    65   -10   3.47 0.5316
WVFGRD96   14.0   300    75    25   3.48 0.5261
WVFGRD96   15.0   300    75    25   3.48 0.5260
WVFGRD96   16.0   300    75    20   3.49 0.5249
WVFGRD96   17.0   300    75    20   3.50 0.5241
WVFGRD96   18.0   300    75    20   3.51 0.5222
WVFGRD96   19.0   300    75    20   3.52 0.5193
WVFGRD96   20.0   300    75    20   3.52 0.5156
WVFGRD96   21.0   300    75    20   3.53 0.5118
WVFGRD96   22.0   300    75    20   3.54 0.5074
WVFGRD96   23.0   300    75    20   3.55 0.5022
WVFGRD96   24.0   300    75    15   3.55 0.4965
WVFGRD96   25.0   300    75    15   3.56 0.4907
WVFGRD96   26.0   295    90    20   3.57 0.4848
WVFGRD96   27.0   295    90    20   3.57 0.4789
WVFGRD96   28.0   295    90    20   3.58 0.4729
WVFGRD96   29.0   295    90    20   3.59 0.4668
WVFGRD96   30.0   295    90    20   3.60 0.4606
WVFGRD96   31.0   295    90    20   3.60 0.4540
WVFGRD96   32.0   295    90    20   3.61 0.4474
WVFGRD96   33.0   295    90    20   3.62 0.4405
WVFGRD96   34.0   295    90    15   3.63 0.4334
WVFGRD96   35.0   295    90    15   3.64 0.4265
WVFGRD96   36.0   295    90    15   3.65 0.4192
WVFGRD96   37.0   295    90    15   3.67 0.4118
WVFGRD96   38.0   295    90    15   3.68 0.4036
WVFGRD96   39.0   300    80    15   3.69 0.3953
WVFGRD96   40.0   300    75    20   3.72 0.3853
WVFGRD96   41.0   300    75    20   3.73 0.3789
WVFGRD96   42.0   300    75    20   3.74 0.3724
WVFGRD96   43.0   300    75    20   3.74 0.3665
WVFGRD96   44.0   300    75    20   3.75 0.3607
WVFGRD96   45.0   300    75    20   3.76 0.3549
WVFGRD96   46.0   300    75    20   3.76 0.3491
WVFGRD96   47.0   300    75    15   3.77 0.3433
WVFGRD96   48.0   300    75    15   3.77 0.3377
WVFGRD96   49.0   300    75    15   3.78 0.3322
WVFGRD96   50.0   300    75    15   3.78 0.3268

The best solution is

WVFGRD96    7.0   300    60    10   3.41 0.5554

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

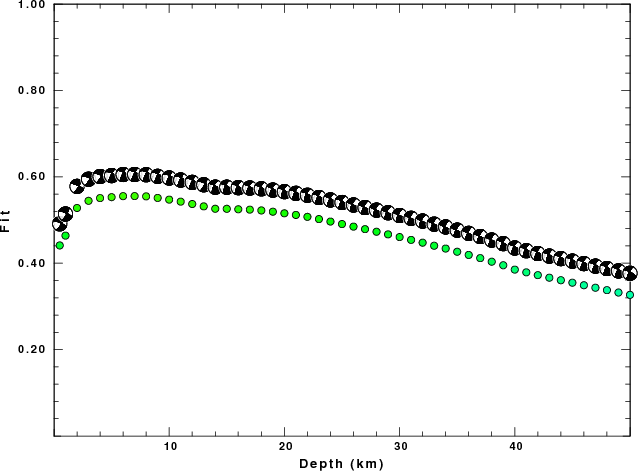

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

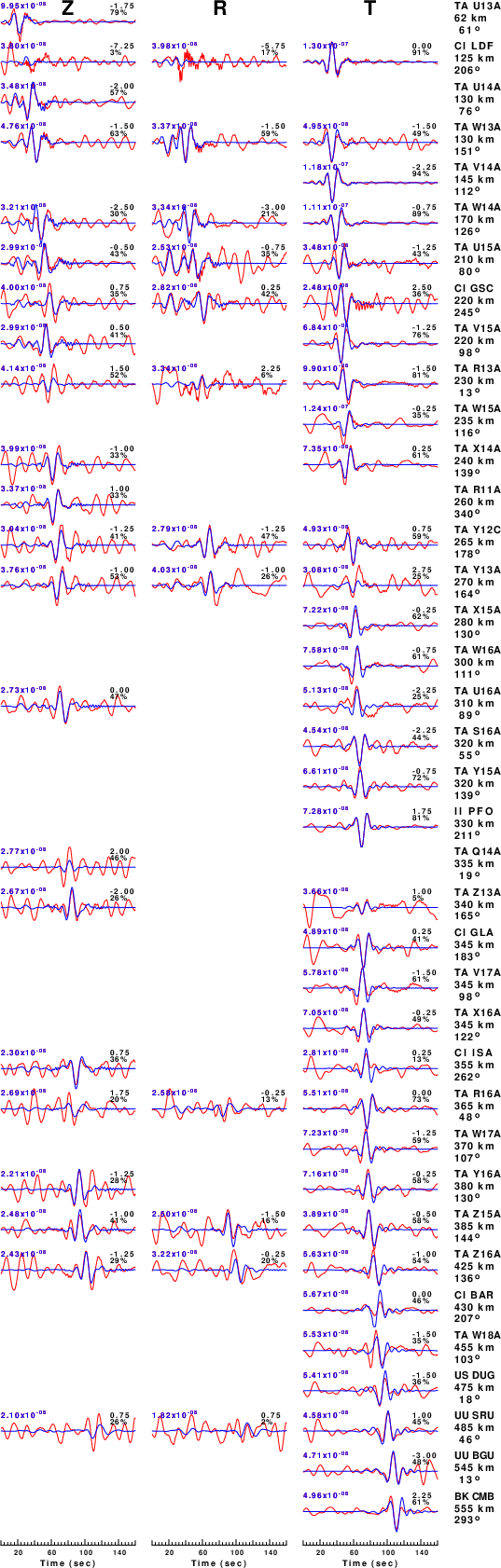

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

hp c 0.02 n 3
lp c 0.06 n 3
br c 0.12 0.25 n 4 p 2
br c 0.12 0.25 n 4 p 2
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

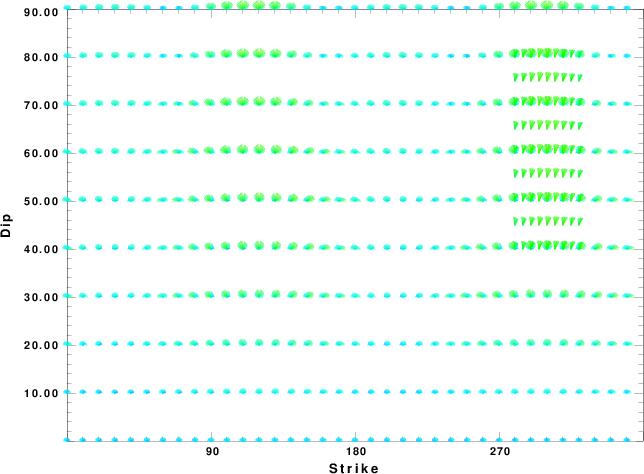

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

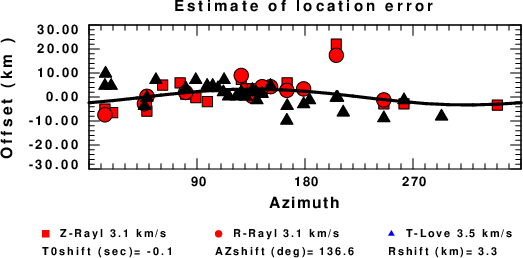

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
