Location

Location ANSS

The ANSS event ID is ak008cbfae65 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak008cbfae65/executive.

2008/09/24 12:19:52 63.413 -150.060 6.5 3.5 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2008/09/24 12:19:52:0  63.41 -150.06   6.5 3.5 Alaska

 Stations used:
   AK.BPAW AK.COLD AK.MCK AK.PAX AK.PPLA AT.PMR AT.SVW2
   IU.COLA US.EGAK

 Filtering commands used:
   hp c 0.02 n 3
   lp c 0.05 n 3

 Best Fitting Double Couple
  Mo = 1.97e+22 dyne-cm
  Mw = 4.13
  Z  = 9 km
  Plane   Strike  Dip  Rake
   NP1      210    55    45
   NP2       90    55   135
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.97e+22     55      60
    N   0.00e+00     35     240
    P  -1.97e+22      0     330

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -1.32e+22
       Mxy     1.14e+22
       Mxz     4.54e+21
       Myy     6.47e+19
       Myz     8.13e+21
       Mzz     1.31e+22




                     --------------
                 P -----------------###
              --   ------------###########
             ----------------##############
           ---------------###################
          ---------------#####################
         --------------########################
        --------------############   ###########
        ------------############## T ###########
       ------------###############   ############
       ------------##############################
       #----------##############################-
       ###-------#############################---
        ####-----###########################----
        ################################--------
         #######------############-------------
          ######------------------------------
           #####-----------------------------
             ###---------------------------
              ###-------------------------
                 ----------------------
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
  1.31e+22   4.54e+21  -8.13e+21
  4.54e+21  -1.32e+22  -1.14e+22
 -8.13e+21  -1.14e+22   6.47e+19


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20080924121952/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 210
      DIP = 55
     RAKE = 45
       MW = 4.13
       HS = 9.0

The NDK file is 20080924121952.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
SLU
AEIC
 USGS/SLU Moment Tensor Solution
 ENS  2008/09/24 12:19:52:0  63.41 -150.06   6.5 3.5 Alaska

 Stations used:
   AK.BPAW AK.COLD AK.MCK AK.PAX AK.PPLA AT.PMR AT.SVW2
   IU.COLA US.EGAK

 Filtering commands used:
   hp c 0.02 n 3
   lp c 0.05 n 3

 Best Fitting Double Couple
  Mo = 1.97e+22 dyne-cm
  Mw = 4.13
  Z  = 9 km
  Plane   Strike  Dip  Rake
   NP1      210    55    45
   NP2       90    55   135
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.97e+22     55      60
    N   0.00e+00     35     240
    P  -1.97e+22      0     330

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -1.32e+22
       Mxy     1.14e+22
       Mxz     4.54e+21
       Myy     6.47e+19
       Myz     8.13e+21
       Mzz     1.31e+22




                     --------------
                 P -----------------###
              --   ------------###########
             ----------------##############
           ---------------###################
          ---------------#####################
         --------------########################
        --------------############   ###########
        ------------############## T ###########
       ------------###############   ############
       ------------##############################
       #----------##############################-
       ###-------#############################---
        ####-----###########################----
        ################################--------
         #######------############-------------
          ######------------------------------
           #####-----------------------------
             ###---------------------------
              ###-------------------------
                 ----------------------
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
  1.31e+22   4.54e+21  -8.13e+21
  4.54e+21  -1.32e+22  -1.14e+22
 -8.13e+21  -1.14e+22   6.47e+19


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20080924121952/index.html


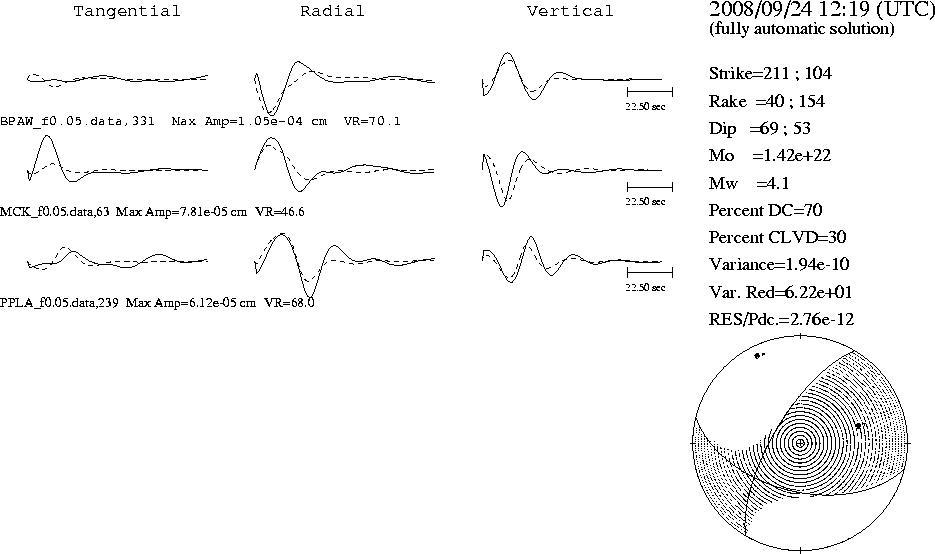

Moment tensor inversion summary for event 2008/09/24 12:19 This is a fully automatic solution. It has not yet been reviewed by a seismologist.2008/09/24 12:19 Date 2008/09/24 Region: Central Region of Alaska Mw=4.1 Centroid Location: Time 12:19; Lat. 63.46N; Lon. 209.83W; Depth 10 km Best Double Couple: Plane 1: strike = 211; dip = 69; rake = 40 Plane 2: strike = 104; dip = 53; rake = 154 Moment Tensor: Mo = 1.42074e+22 dyn-cm Mxx = -109.997; Mxy = 83.630; Mxz = -12.066 Myy = 43.179; Myz = 64.976; Mzz = 66.818 Principal Axes: T: value = 80.000; azimuth = 334; plunge = 10 N: value = 84.000; azimuth = 73; plunge = 43 P: value = 78.000; azimuth = 233; plunge = 46



Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

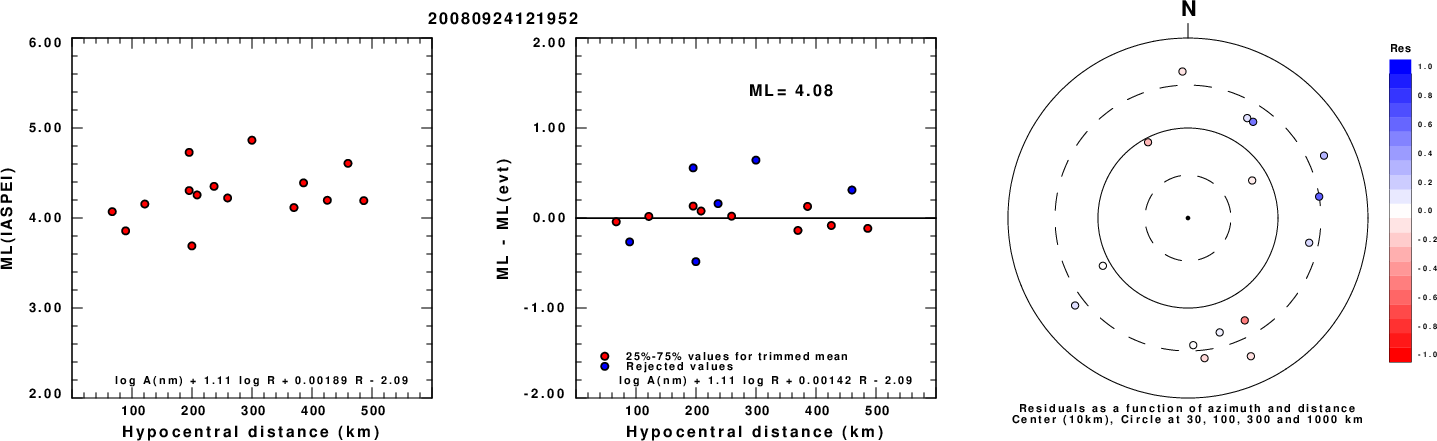

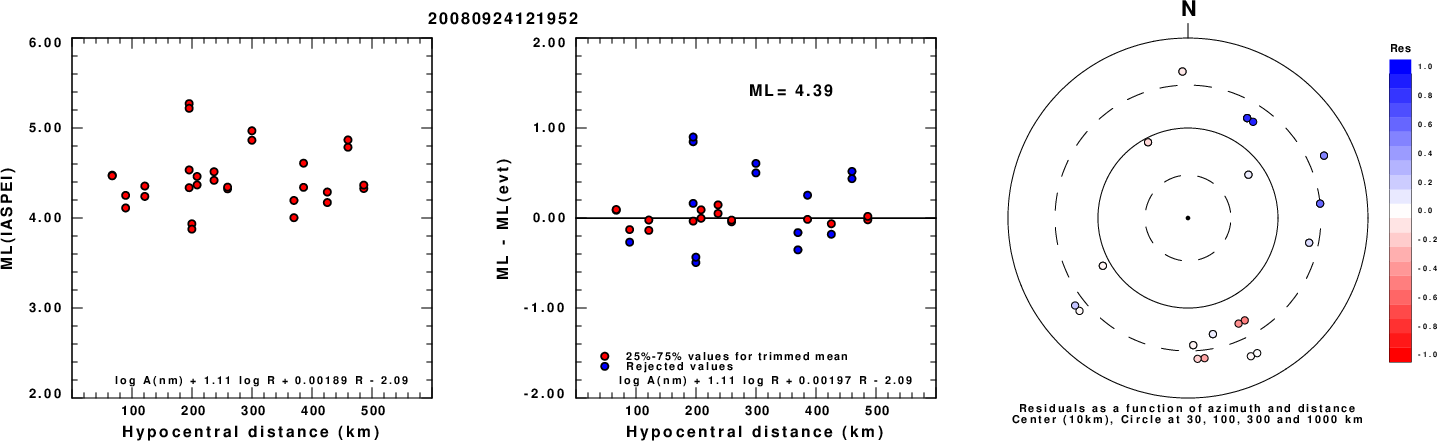

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.


Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

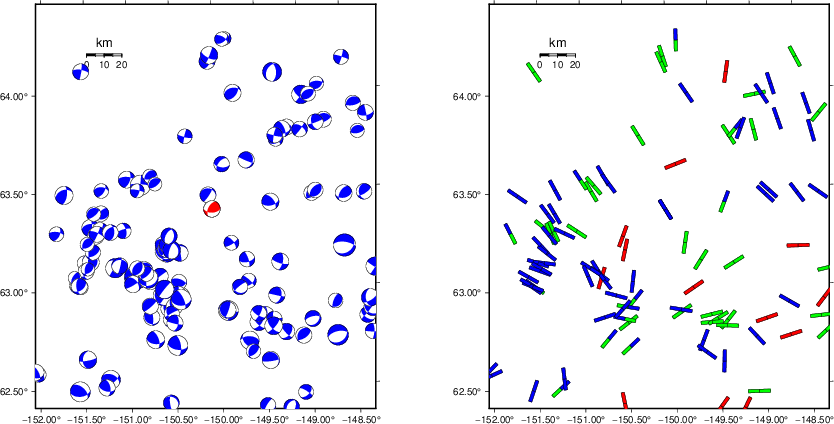

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

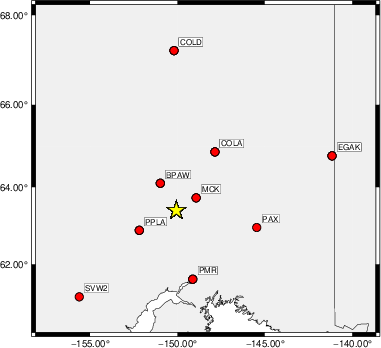

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

hp c 0.02 n 3
lp c 0.05 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    0.5   185    35   -15   4.02 0.4421
WVFGRD96    1.0   185    30   -15   4.07 0.4476
WVFGRD96    2.0   190    35   -15   4.07 0.4494
WVFGRD96    3.0   195    35   -10   4.08 0.4550
WVFGRD96    4.0   200    40     5   4.07 0.4714
WVFGRD96    5.0   205    50    25   4.08 0.5027
WVFGRD96    6.0   205    55    35   4.10 0.5451
WVFGRD96    7.0   205    55    35   4.11 0.5766
WVFGRD96    8.0   210    55    40   4.12 0.5908
WVFGRD96    9.0   210    55    45   4.13 0.5953
WVFGRD96   10.0   210    55    40   4.14 0.5938
WVFGRD96   11.0   210    55    35   4.13 0.5839
WVFGRD96   12.0   205    60    35   4.13 0.5710
WVFGRD96   13.0   205    60    35   4.12 0.5559
WVFGRD96   14.0   205    60    35   4.12 0.5384
WVFGRD96   15.0   205    60    30   4.11 0.5192
WVFGRD96   16.0   205    60    30   4.11 0.5017
WVFGRD96   17.0   205    60    30   4.11 0.4844
WVFGRD96   18.0   200    70    40   4.11 0.4736
WVFGRD96   19.0   200    70    40   4.11 0.4659
WVFGRD96   20.0   200    70    40   4.13 0.4552
WVFGRD96   21.0   200    70    40   4.13 0.4462
WVFGRD96   22.0   200    70    40   4.14 0.4363
WVFGRD96   23.0   200    75    40   4.14 0.4264
WVFGRD96   24.0   200    75    40   4.14 0.4169
WVFGRD96   25.0   200    75    40   4.14 0.4071
WVFGRD96   26.0   195    80    40   4.14 0.3971
WVFGRD96   27.0   195    80    40   4.14 0.3881
WVFGRD96   28.0   195    80    40   4.15 0.3788
WVFGRD96   29.0   195    80    35   4.15 0.3702
WVFGRD96   30.0   195    80    35   4.15 0.3616
WVFGRD96   31.0   195    85    35   4.16 0.3536
WVFGRD96   32.0   195    85    35   4.16 0.3459
WVFGRD96   33.0   195    85    35   4.17 0.3379
WVFGRD96   34.0   195    85    35   4.17 0.3300
WVFGRD96   35.0   195    85    30   4.18 0.3223
WVFGRD96   36.0   195    85    30   4.18 0.3151
WVFGRD96   37.0    10    90   -30   4.19 0.3047
WVFGRD96   38.0   195    80    40   4.17 0.3016
WVFGRD96   39.0   195    80    40   4.17 0.2960
WVFGRD96   40.0   195    80    45   4.26 0.2890
WVFGRD96   41.0    95    60   -20   4.26 0.2889
WVFGRD96   42.0    95    60   -20   4.27 0.2876
WVFGRD96   43.0    95    60   -15   4.27 0.2863
WVFGRD96   44.0    95    60   -15   4.28 0.2847
WVFGRD96   45.0    95    60   -15   4.28 0.2834
WVFGRD96   46.0    95    65   -15   4.28 0.2819
WVFGRD96   47.0    95    65   -15   4.29 0.2811
WVFGRD96   48.0    95    65   -15   4.29 0.2803
WVFGRD96   49.0    95    65   -15   4.30 0.2786
WVFGRD96   50.0    95    65   -15   4.30 0.2783

The best solution is

WVFGRD96    9.0   210    55    45   4.13 0.5953

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

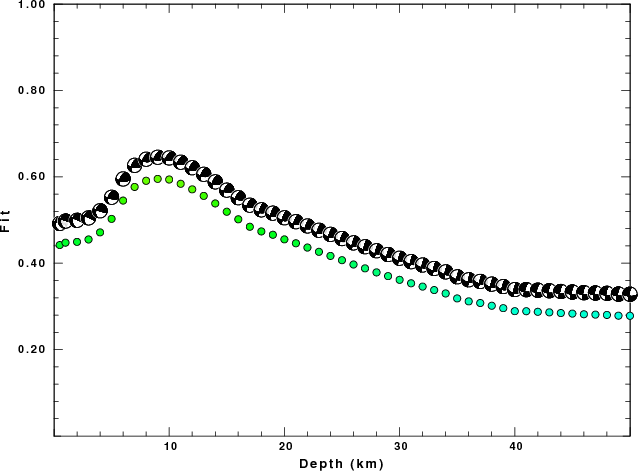

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

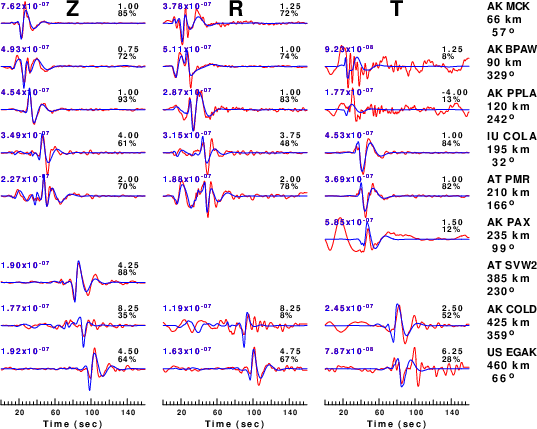

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

hp c 0.02 n 3
lp c 0.05 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

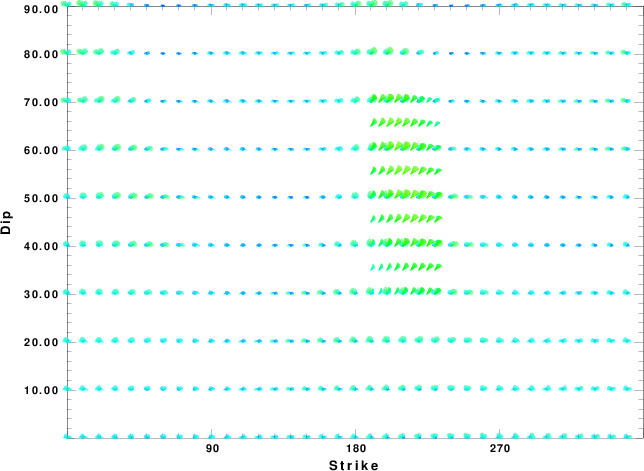

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

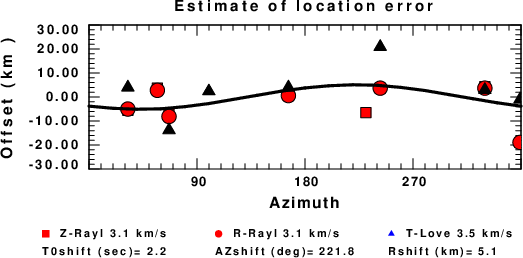

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The CUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
CUS Model with Q from simple gamma values
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
  H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC)   QP   QS  ETAP  ETAS  FREFP  FREFS
  1.0000  5.0000  2.8900  2.5000 0.172E-02 0.387E-02 0.00  0.00  1.00  1.00
  9.0000  6.1000  3.5200  2.7300 0.160E-02 0.363E-02 0.00  0.00  1.00  1.00
 10.0000  6.4000  3.7000  2.8200 0.149E-02 0.336E-02 0.00  0.00  1.00  1.00
 20.0000  6.7000  3.8700  2.9020 0.000E-04 0.000E-04 0.00  0.00  1.00  1.00
  0.0000  8.1500  4.7000  3.3640 0.194E-02 0.431E-02 0.00  0.00  1.00  1.00
