Location

Location ANSS

The ANSS event ID is uu50364795 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/uu50364795/executive.

2008/08/30 22:06:15 41.681 -111.150 0.3 3.31 Utah

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2008/08/30 22:06:15:0  41.68 -111.15   0.3 3.3 Utah

 Stations used:
   IW.DCID1 IW.REDW TA.K17A TA.K18A TA.K19A TA.L15A TA.L16A
   TA.L17A TA.L18A TA.M15A TA.M16A TA.M17A TA.M18A TA.M19A
   TA.N15A TA.N16A TA.N17A TA.O16A US.AHID US.HWUT UU.BGU
   UU.SPU

 Filtering commands used:
   hp c 0.02 n 3
   lp c 0.10 n 3
   br c 0.13 0.2 n 4 p 2

 Best Fitting Double Couple
  Mo = 1.08e+21 dyne-cm
  Mw = 3.29
  Z  = 10 km
  Plane   Strike  Dip  Rake
   NP1       10    60   -125
   NP2      245    45   -45
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.08e+21      8     125
    N   0.00e+00     30      30
    P  -1.08e+21     59     229

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     2.14e+20
       Mxy    -6.42e+20
       Mxz     2.29e+20
       Myy     5.52e+20
       Myz     4.91e+20
       Mzz    -7.66e+20




                     ###########---
                 #################-----
              ####################--------
             ######################--------
           #################-------#####-----
          #############-------------#########-
         ###########----------------###########
        #########-------------------############
        #######---------------------############
       #######----------------------#############
       #####------------------------#############
       ####-------------------------#############
       ###-----------   -----------##############
        ##----------- P -----------#############
        #------------   ----------##############
         -------------------------#########   #
          -----------------------########## T
           ---------------------###########
             ------------------############
              ---------------#############
                 -----------###########
                     -----#########



 Global CMT Convention Moment Tensor:
      R          T          P
 -7.66e+20   2.29e+20  -4.91e+20
  2.29e+20   2.14e+20   6.42e+20
 -4.91e+20   6.42e+20   5.52e+20


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20080830220615/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 245
      DIP = 45
     RAKE = -45
       MW = 3.29
       HS = 10.0

The NDK file is 20080830220615.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

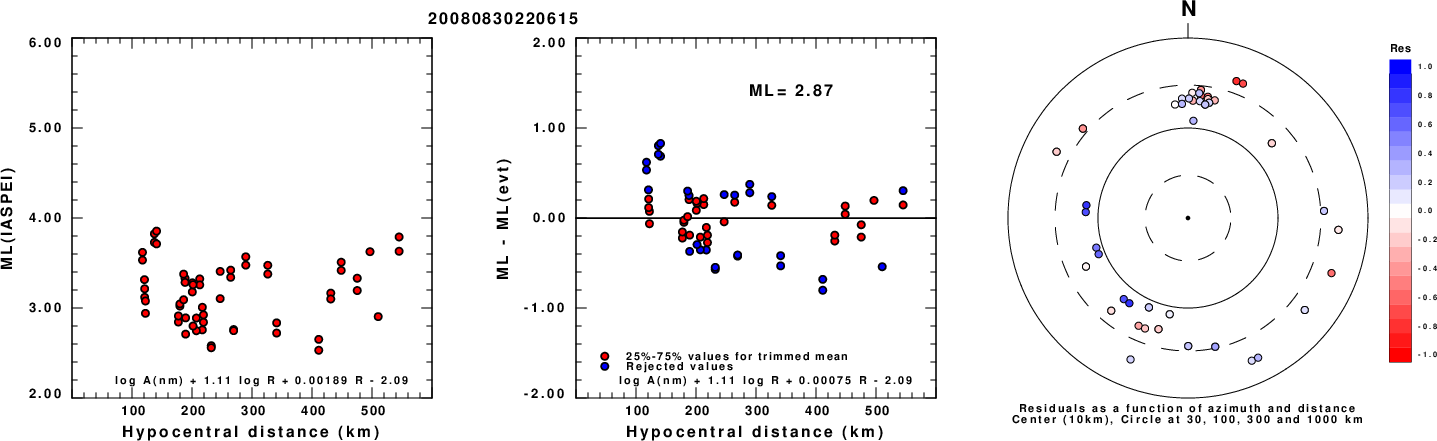

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

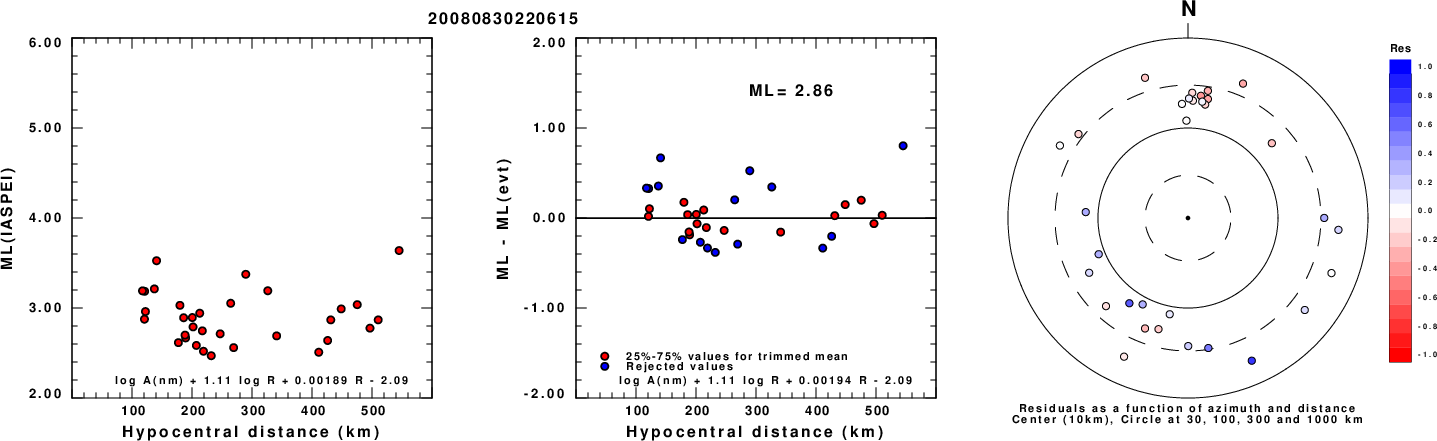

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

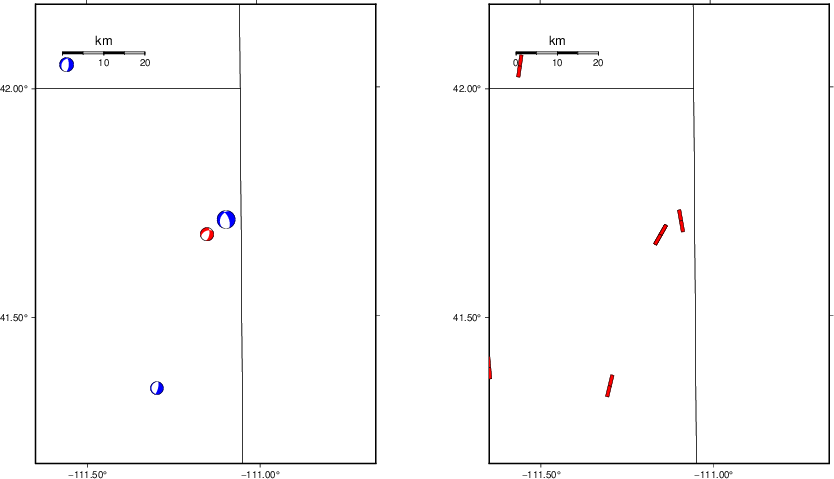

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

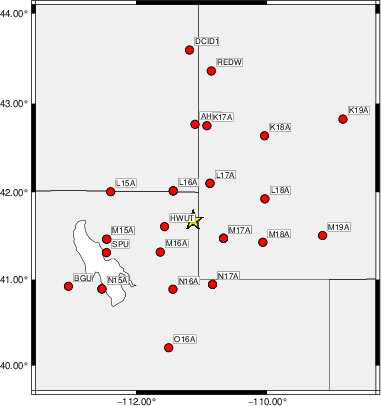

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

hp c 0.02 n 3
lp c 0.10 n 3
br c 0.13 0.2 n 4 p 2
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    0.5    40    50   -90   2.87 0.1599
WVFGRD96    1.0   270    75    15   2.77 0.1482
WVFGRD96    2.0    20    45   -90   3.03 0.2297
WVFGRD96    3.0    90    60    20   3.03 0.2534
WVFGRD96    4.0   255    45   -25   3.11 0.2798
WVFGRD96    5.0   255    45   -25   3.15 0.3167
WVFGRD96    6.0   255    45   -25   3.18 0.3464
WVFGRD96    7.0   250    45   -35   3.21 0.3648
WVFGRD96    8.0   245    40   -45   3.28 0.3779
WVFGRD96    9.0   245    40   -45   3.29 0.3805
WVFGRD96   10.0   245    45   -45   3.29 0.3812
WVFGRD96   11.0   250    50   -35   3.28 0.3797
WVFGRD96   12.0   250    50   -35   3.29 0.3774
WVFGRD96   13.0   250    50   -35   3.30 0.3735
WVFGRD96   14.0   255    55   -30   3.30 0.3687
WVFGRD96   15.0   255    55   -30   3.31 0.3634
WVFGRD96   16.0   255    55   -30   3.32 0.3574
WVFGRD96   17.0   255    55   -30   3.32 0.3510
WVFGRD96   18.0   255    60   -30   3.32 0.3451
WVFGRD96   19.0   255    60   -30   3.33 0.3388
WVFGRD96   20.0   255    60   -30   3.34 0.3323
WVFGRD96   21.0   255    60   -30   3.35 0.3263
WVFGRD96   22.0   255    60   -35   3.36 0.3199
WVFGRD96   23.0   255    60   -35   3.36 0.3132
WVFGRD96   24.0   255    65   -35   3.36 0.3060
WVFGRD96   25.0   255    65   -35   3.36 0.2988
WVFGRD96   26.0   255    65   -35   3.37 0.2913
WVFGRD96   27.0    75    55    20   3.37 0.2840
WVFGRD96   28.0    75    55    20   3.38 0.2783
WVFGRD96   29.0    70    60    10   3.37 0.2737
WVFGRD96   30.0    70    60    10   3.37 0.2690
WVFGRD96   31.0    70    60     5   3.38 0.2640
WVFGRD96   32.0    70    60    10   3.39 0.2595
WVFGRD96   33.0    70    60    10   3.39 0.2553
WVFGRD96   34.0    70    60    10   3.40 0.2517
WVFGRD96   35.0    70    60    10   3.40 0.2490
WVFGRD96   36.0    70    60    15   3.41 0.2463
WVFGRD96   37.0    70    60    15   3.42 0.2449
WVFGRD96   38.0    70    60    20   3.44 0.2460
WVFGRD96   39.0    70    65    30   3.46 0.2484
WVFGRD96   40.0    85    50    50   3.55 0.2522
WVFGRD96   41.0    80    55    45   3.55 0.2556
WVFGRD96   42.0    80    55    45   3.56 0.2581
WVFGRD96   43.0    80    55    45   3.57 0.2598
WVFGRD96   44.0    80    55    45   3.58 0.2607
WVFGRD96   45.0    80    55    45   3.59 0.2619
WVFGRD96   46.0    80    55    45   3.60 0.2621
WVFGRD96   47.0    80    55    45   3.60 0.2622
WVFGRD96   48.0    80    55    50   3.62 0.2614
WVFGRD96   49.0   185    45    65   3.64 0.2604
WVFGRD96   50.0   185    45    65   3.65 0.2610

The best solution is

WVFGRD96   10.0   245    45   -45   3.29 0.3812

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

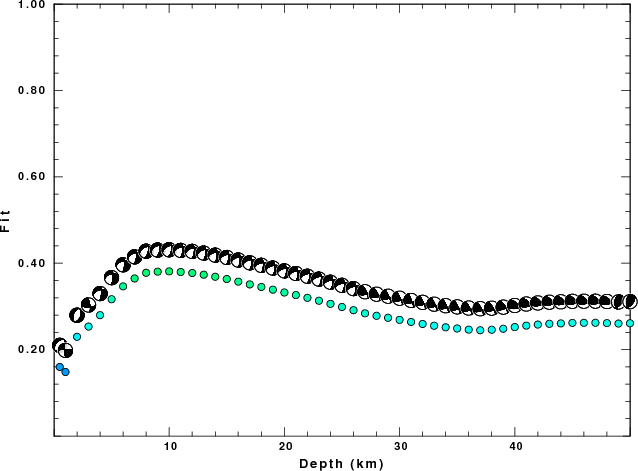

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

hp c 0.02 n 3
lp c 0.10 n 3
br c 0.13 0.2 n 4 p 2

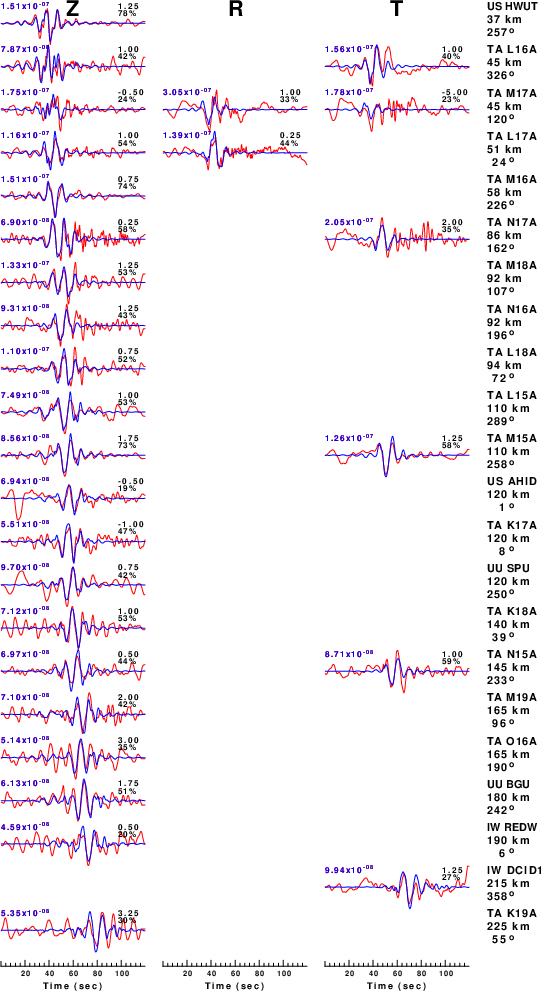

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

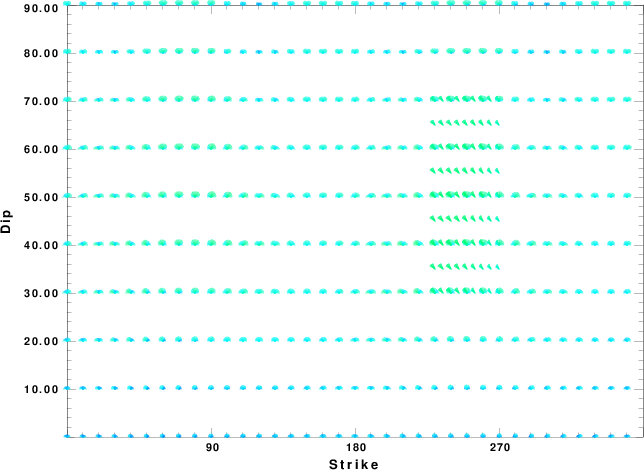

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

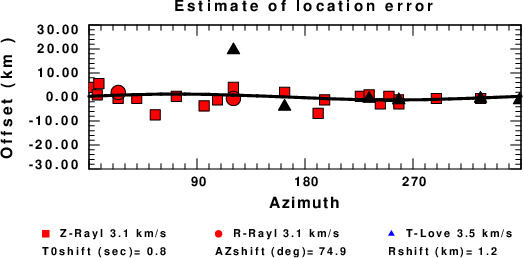

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Sun Apr 28 01:02:24 PM CDT 2024
