Location
Location ANSS
The ANSS event ID is ak0088eotr41 and the event page is at
https://earthquake.usgs.gov/earthquakes/eventpage/ak0088eotr41/executive.
2008/07/01 02:48:42 58.687 -137.509 4.7 4.2 Alaska
Focal Mechanism
USGS/SLU Moment Tensor Solution
ENS 2008/07/01 02:48:42:0 58.69 -137.51 4.7 4.2 Alaska
Stations used:
AK.BMR AK.PNL AT.CRAG AT.SIT AT.SKAG CN.DAWY CN.DLBC CN.WHY
Filtering commands used:
hp c 0.02 n 3
lp c 0.05 n 3
Best Fitting Double Couple
Mo = 2.88e+22 dyne-cm
Mw = 4.24
Z = 16 km
Plane Strike Dip Rake
NP1 118 70 105
NP2 260 25 55
Principal Axes:
Axis Value Plunge Azimuth
T 2.88e+22 62 51
N 0.00e+00 14 292
P -2.88e+22 23 196
Moment Tensor: (dyne-cm)
Component Value
Mxx -1.99e+22
Mxy -3.47e+21
Mxz 1.76e+22
Myy 1.85e+21
Myz 1.21e+22
Mzz 1.81e+22
--------------
----------------------
-------------#####----------
-------##################-----
------#########################---
----##############################--
#--##################################-
###-#################### ############-
##---################### T #############
##------################# ##############
#---------################################
#------------#############################
#--------------###########################
------------------######################
----------------------##################
--------------------------############
------------------------------------
----------------------------------
--------- ------------------
-------- P -----------------
----- --------------
--------------
Global CMT Convention Moment Tensor:
R T P
1.81e+22 1.76e+22 -1.21e+22
1.76e+22 -1.99e+22 3.47e+21
-1.21e+22 3.47e+21 1.85e+21
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20080701024842/index.html
|
Preferred Solution
The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is
STK = 260
DIP = 25
RAKE = 55
MW = 4.24
HS = 16.0
The NDK file is 20080701024842.ndk
The waveform inversion is preferred.
Moment Tensor Comparison
The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
| SLU |
AEIC |
USGS/SLU Moment Tensor Solution
ENS 2008/07/01 02:48:42:0 58.69 -137.51 4.7 4.2 Alaska
Stations used:
AK.BMR AK.PNL AT.CRAG AT.SIT AT.SKAG CN.DAWY CN.DLBC CN.WHY
Filtering commands used:
hp c 0.02 n 3
lp c 0.05 n 3
Best Fitting Double Couple
Mo = 2.88e+22 dyne-cm
Mw = 4.24
Z = 16 km
Plane Strike Dip Rake
NP1 118 70 105
NP2 260 25 55
Principal Axes:
Axis Value Plunge Azimuth
T 2.88e+22 62 51
N 0.00e+00 14 292
P -2.88e+22 23 196
Moment Tensor: (dyne-cm)
Component Value
Mxx -1.99e+22
Mxy -3.47e+21
Mxz 1.76e+22
Myy 1.85e+21
Myz 1.21e+22
Mzz 1.81e+22
--------------
----------------------
-------------#####----------
-------##################-----
------#########################---
----##############################--
#--##################################-
###-#################### ############-
##---################### T #############
##------################# ##############
#---------################################
#------------#############################
#--------------###########################
------------------######################
----------------------##################
--------------------------############
------------------------------------
----------------------------------
--------- ------------------
-------- P -----------------
----- --------------
--------------
Global CMT Convention Moment Tensor:
R T P
1.81e+22 1.76e+22 -1.21e+22
1.76e+22 -1.99e+22 3.47e+21
-1.21e+22 3.47e+21 1.85e+21
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20080701024842/index.html
|
Moment tensor inversion summary for event 2008/07/01 02:48
Date: 2008/07/01
Time: 02:48 (UTC)
Region: Southeastern Alaska
Mw=4.2
Location:
Lat. 58.6920; Lon. -137.4664; Depth 15 km
(Best-fitting depth from moment tensor inversion)
Solution quality: good;
Number of stations = 3
Best Double Couple:
strike dip rake
Plane 1: 79.5 54.3 68.0
Plane 2: 294.2 41.2 117.5
Moment Tensor Parameters:
Mo = 2.52774e+22 dyn-cm
Mxx = -2.59; Mxy = -0.34; Mxz = 0.62
Myy = 0.49; Myz = -0.53; Mzz = 2.10
Principal Axes:
value azimuth plunge
T: 2.36 295.37 70.96
N: 0.34 92.80 17.67
P: -2.70 185.00 6.85
|
Magnitudes
Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula
for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.
ML Magnitude

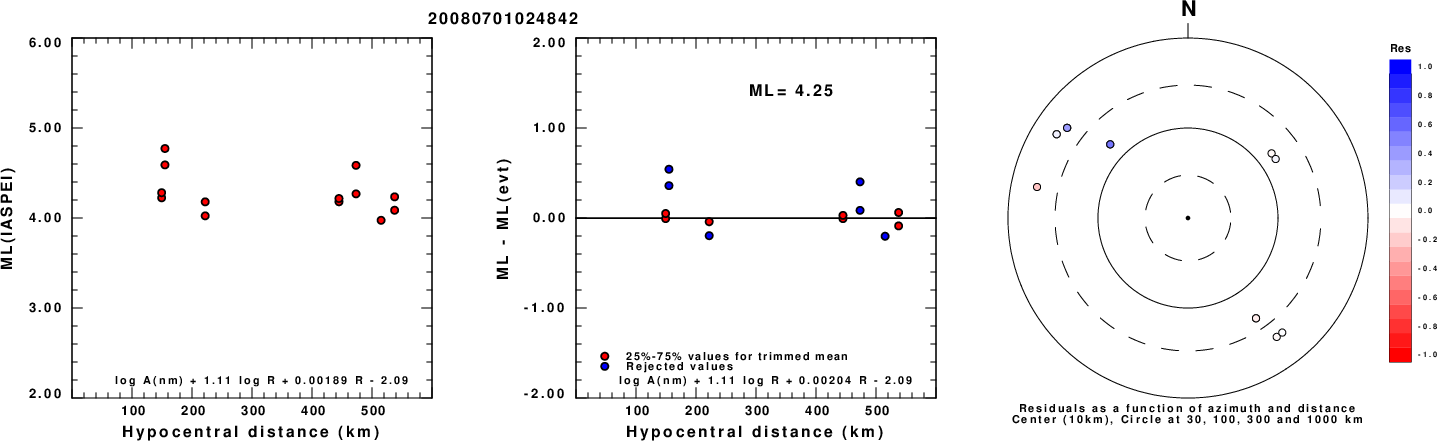

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.

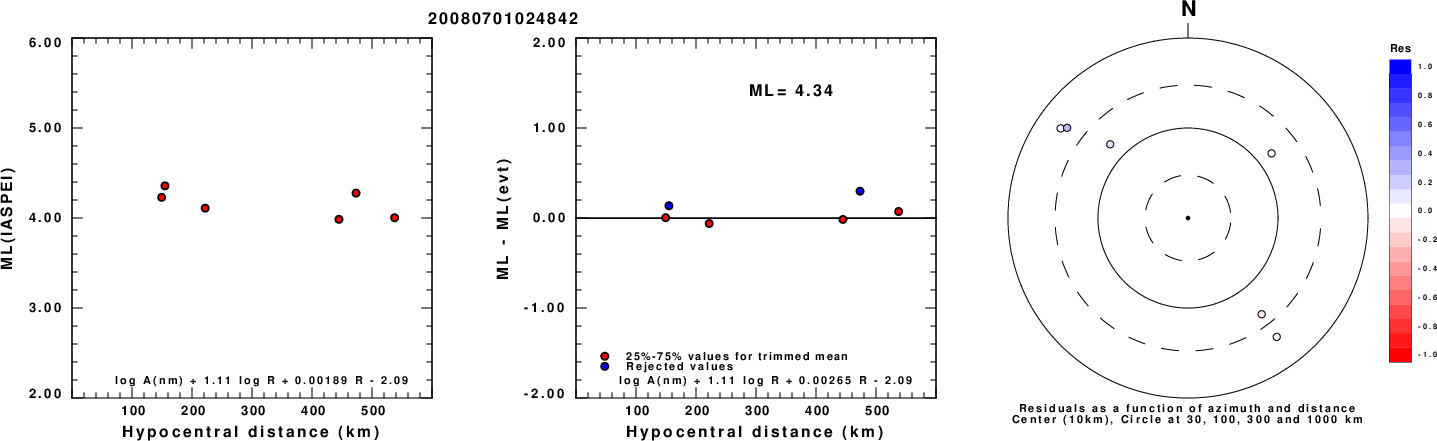

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
Context

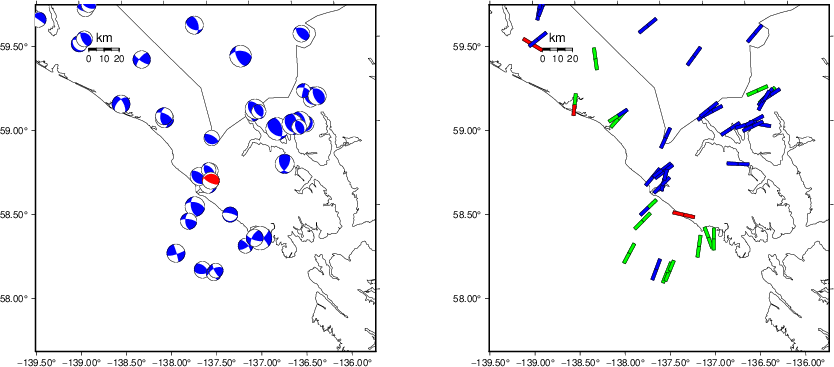

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.
Waveform Inversion using wvfgrd96
The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the

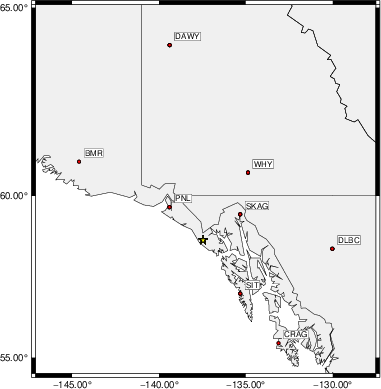

stations used for (red) the waveform inversion are shown in the next figure.
|
|
Location of broadband stations used for waveform inversion
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
hp c 0.02 n 3
lp c 0.05 n 3
The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 0.5 95 50 70 4.08 0.5073
WVFGRD96 1.0 100 45 75 4.10 0.5120
WVFGRD96 2.0 110 35 85 4.16 0.4956
WVFGRD96 3.0 255 15 45 4.28 0.4791
WVFGRD96 4.0 250 25 0 4.23 0.5008
WVFGRD96 5.0 250 25 5 4.22 0.5225
WVFGRD96 6.0 255 15 50 4.23 0.5469
WVFGRD96 7.0 260 20 55 4.22 0.5698
WVFGRD96 8.0 265 20 60 4.22 0.5925
WVFGRD96 9.0 270 20 65 4.22 0.6123
WVFGRD96 10.0 270 20 65 4.25 0.6275
WVFGRD96 11.0 270 20 65 4.24 0.6401
WVFGRD96 12.0 270 20 65 4.24 0.6495
WVFGRD96 13.0 265 20 60 4.24 0.6573
WVFGRD96 14.0 265 25 60 4.24 0.6629
WVFGRD96 15.0 260 25 55 4.24 0.6661
WVFGRD96 16.0 260 25 55 4.24 0.6684
WVFGRD96 17.0 260 25 55 4.24 0.6681
WVFGRD96 18.0 255 25 50 4.24 0.6670
WVFGRD96 19.0 255 25 50 4.24 0.6642
WVFGRD96 20.0 250 25 45 4.27 0.6632
WVFGRD96 21.0 245 25 40 4.27 0.6578
WVFGRD96 22.0 240 25 35 4.27 0.6516
WVFGRD96 23.0 235 25 30 4.28 0.6452
WVFGRD96 24.0 235 25 30 4.28 0.6381
WVFGRD96 25.0 235 25 30 4.28 0.6302
WVFGRD96 26.0 225 25 20 4.29 0.6214
WVFGRD96 27.0 225 25 20 4.30 0.6126
WVFGRD96 28.0 225 25 20 4.30 0.6032
WVFGRD96 29.0 225 25 20 4.30 0.5935
The best solution is
WVFGRD96 16.0 260 25 55 4.24 0.6684
The mechanism corresponding to the best fit is
|
|
Figure 1. Waveform inversion focal mechanism
|

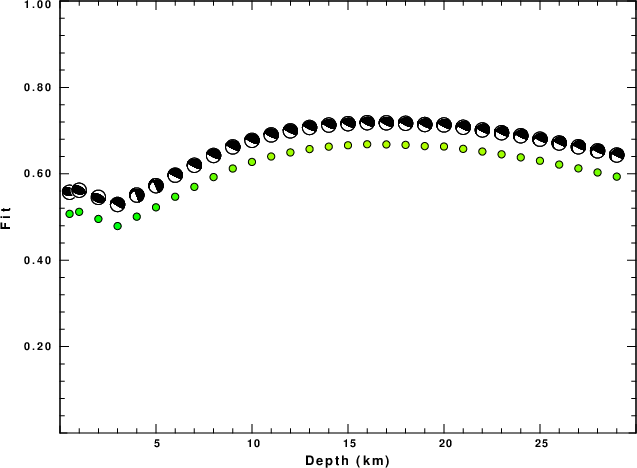

The best fit as a function of depth is given in the following figure:
|
|
Figure 2. Depth sensitivity for waveform mechanism
|

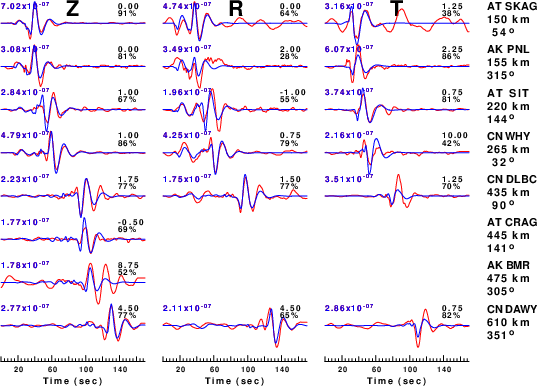

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted.
Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off.
A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
hp c 0.02 n 3
lp c 0.05 n 3
|
|
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.
|
|
|

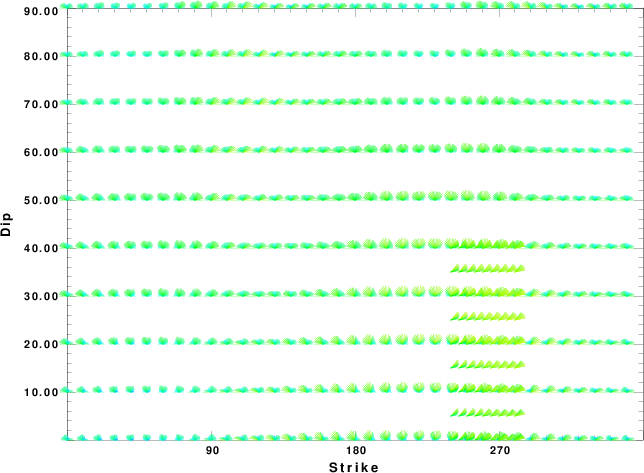

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms.
Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.
|
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
- The origin time and epicentral distance are incorrect
- The velocity model used for the inversion is incorrect
- The velocity model used to define the P-arrival time is not the
same as the velocity model used for the waveform inversion
(assuming that the initial trace alignment is based on the
P arrival time)
Assuming only a mislocation, the time shifts are fit to a functional form:
Time_shift = A + B cos Azimuth + C Sin Azimuth

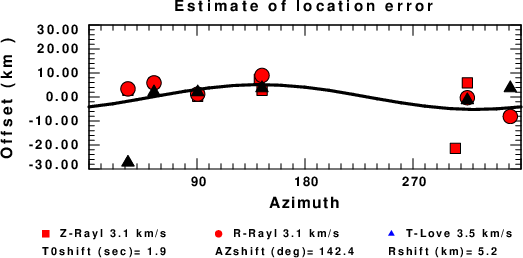

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
Surface-Wave Focal Mechanism
The following figure shows the stations used in the grid search for the best focal mechanism to fit the surface-wave spectral amplitudes of the Love and Rayleigh waves.
|
|

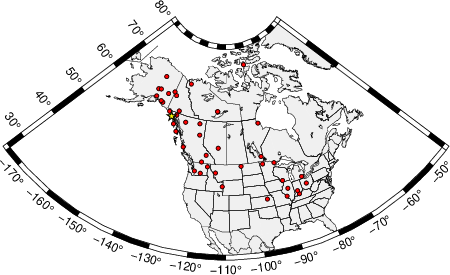

Location of broadband stations used to obtain focal mechanism from surface-wave spectral amplitudes
|
The surface-wave determined focal mechanism is shown here.
NODAL PLANES
STK= 109.99
DIP= 65.00
RAKE= 50.00
OR
STK= 353.26
DIP= 46.04
RAKE= 144.04
DEPTH = 20.0 km
Mw = 4.35
Best Fit 0.8057 - P-T axis plot gives solutions with FIT greater than FIT90

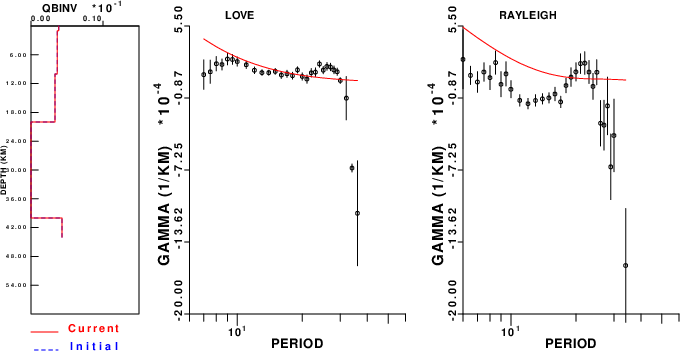

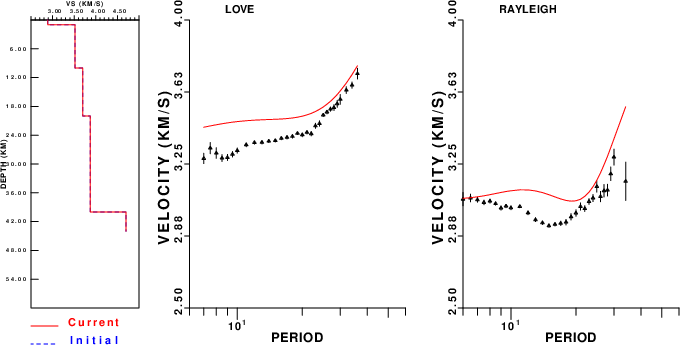

Surface-wave analysis
Surface wave analysis was performed using codes from
Computer Programs in Seismology, specifically the
multiple filter analysis program do_mft and the surface-wave
radiation pattern search program srfgrd96.
Data preparation
Digital data were collected, instrument response removed and traces converted
to Z, R an T components. Multiple filter analysis was applied to the Z and T traces to obtain the Rayleigh- and Love-wave spectral amplitudes, respectively.
These were input to the search program which examined all depths between 1 and 25 km
and all possible mechanisms.
|
|

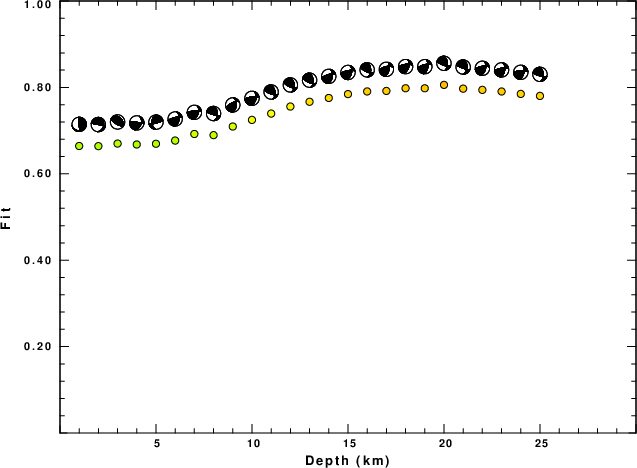

Best mechanism fit as a function of depth. The preferred depth is given above. Lower hemisphere projection
|
|
|
Pressure-tension axis trends. Since the surface-wave spectra search does not distinguish between P and T axes and since there is a 180 ambiguity in strike, all possible P and T axes are plotted. First motion data and waveforms will be used to select the preferred mechanism. The purpose of this plot is to provide an idea of the
possible range of solutions. The P and T-axes for all mechanisms with goodness of fit greater than 0.9 FITMAX (above) are plotted here.
|
|
|

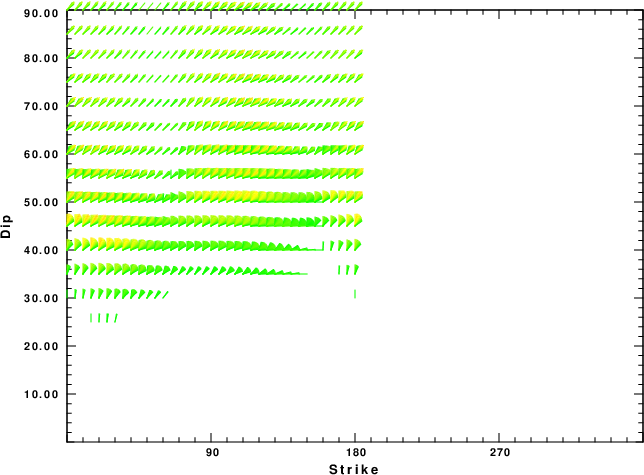

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the Love and Rayleigh wave radiation patterns.
Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. Because of the symmetry of the spectral amplitude rediation patterns, only strikes from 0-180 degrees are sampled.
|

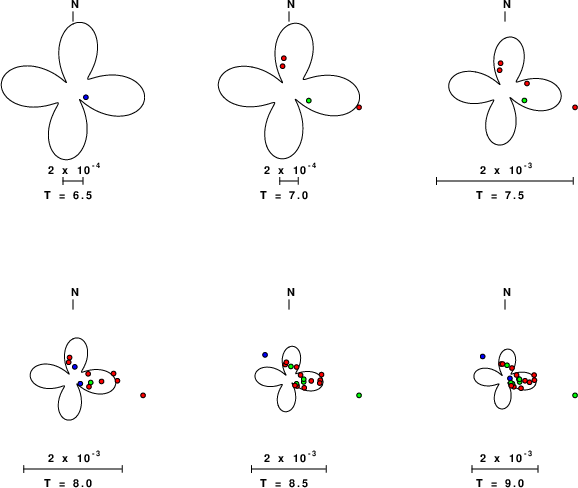

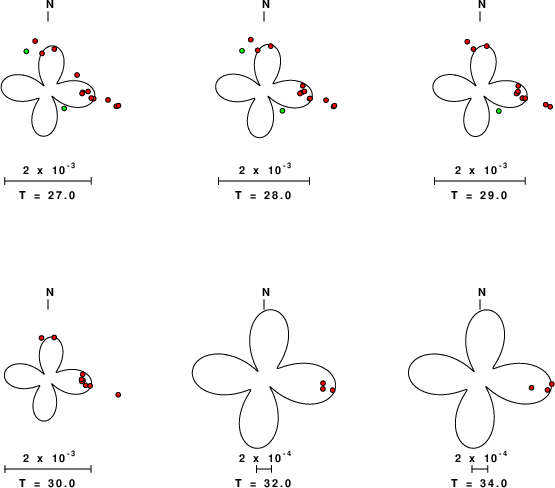

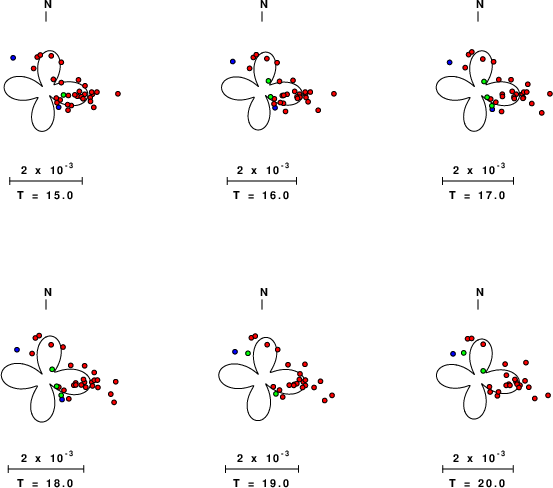

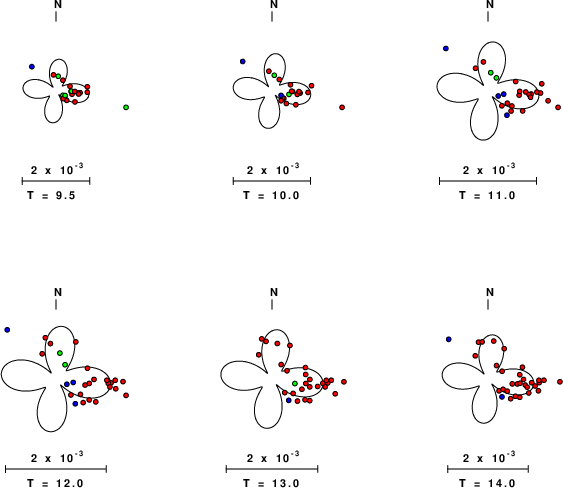

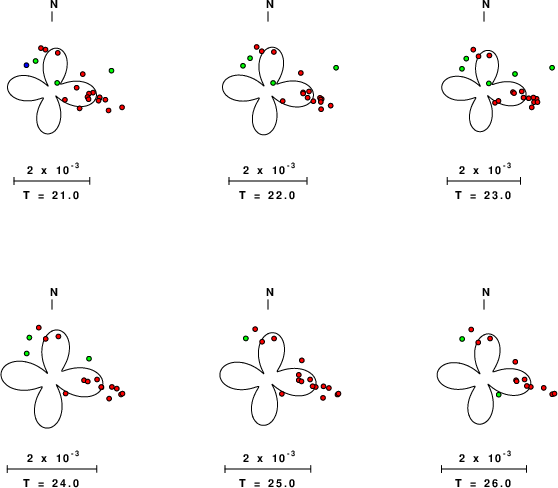

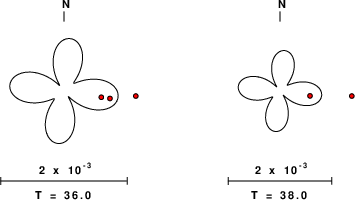

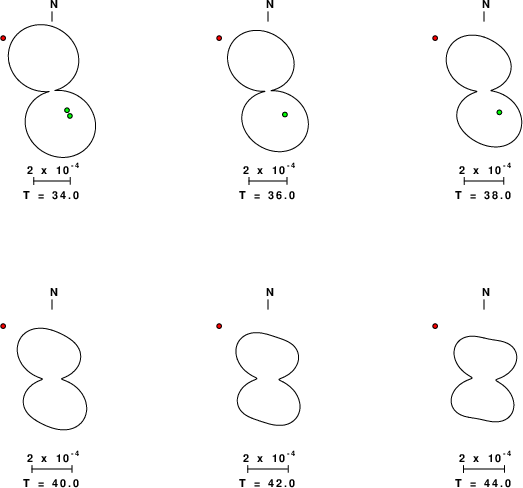

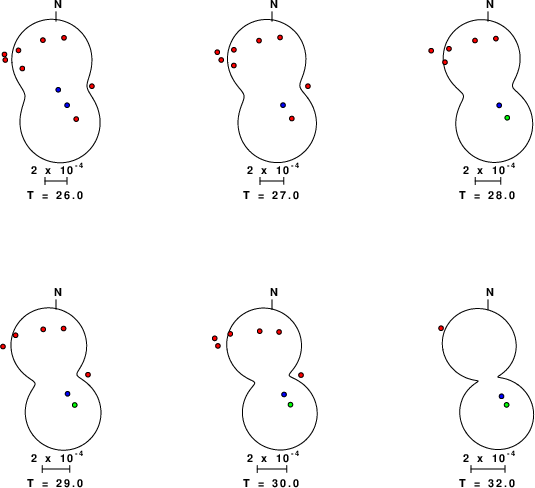

Love-wave radiation patterns

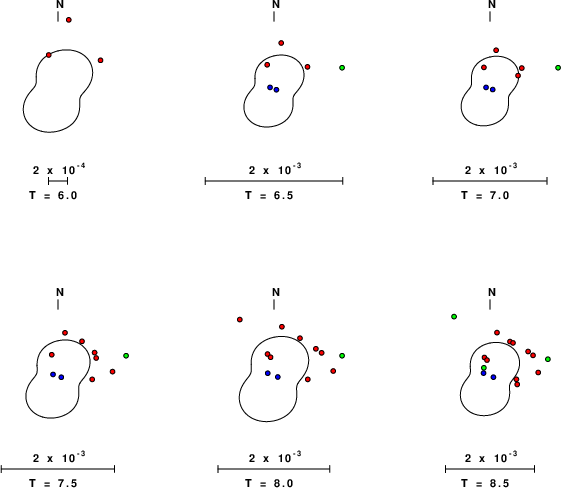

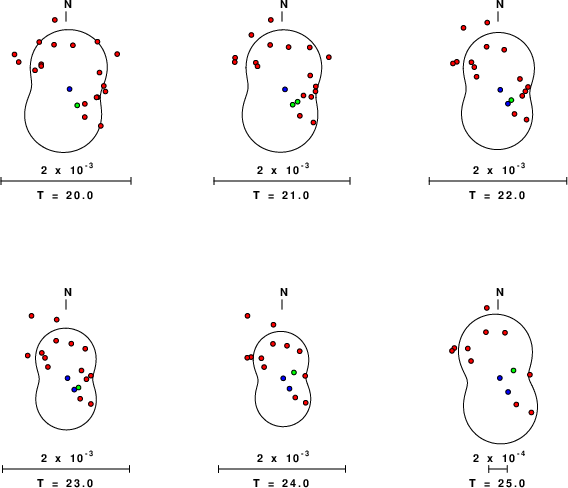

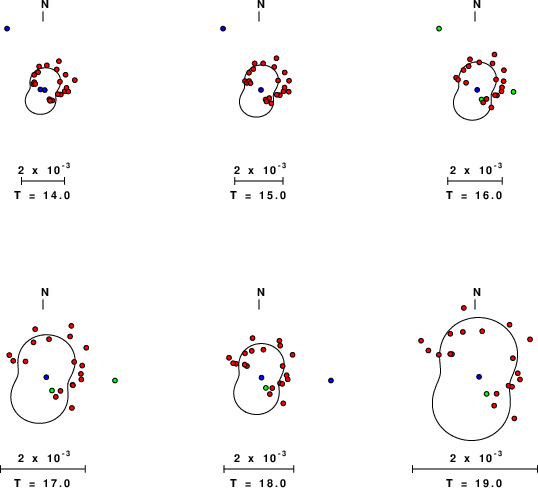

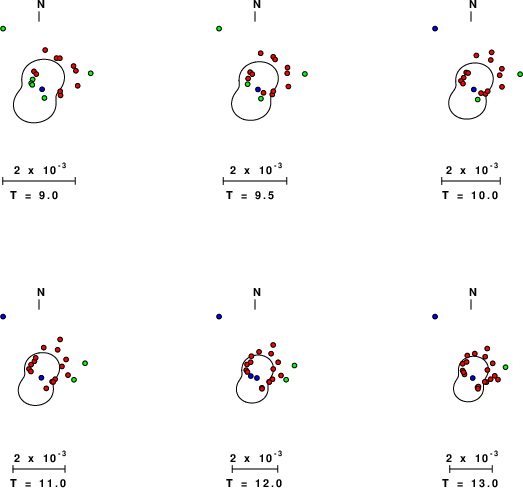

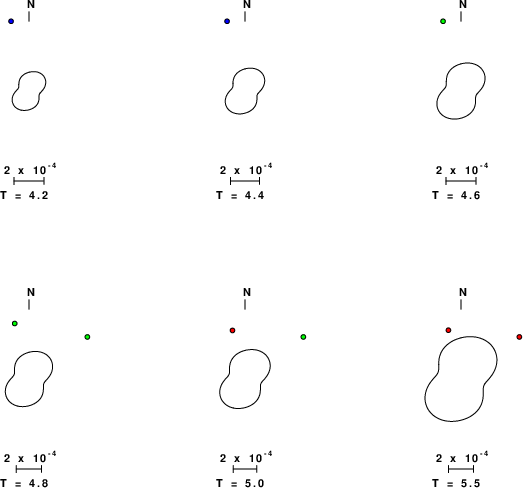

Rayleigh-wave radiation patterns
