Location

Location ANSS

The ANSS event ID is usp000g8hv and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/usp000g8hv/executive.

2008/06/04 14:02:42 36.510 -106.355 5.0 3.7 New Mexico

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2008/06/04 14:02:42:0  36.51 -106.36   5.0 3.7 New Mexico

 Stations used:
   IU.ANMO IW.SMCO TA.118A TA.126A TA.127A TA.227A TA.N21A
   TA.N22A TA.O18A TA.O19A TA.O20A TA.O21A TA.P16A TA.P17A
   TA.P18A TA.P19A TA.P20A TA.Q16A TA.Q20A TA.Q21A TA.Q22A
   TA.R17A TA.R18A TA.R19A TA.R20A TA.R21A TA.S17A TA.S18A
   TA.S19A TA.S21A TA.T22A TA.U17A TA.U20A TA.U24A TA.U26A
   TA.V15A TA.V17A TA.V18A TA.V20A TA.V21A TA.V22A TA.V25A
   TA.V26A TA.W16A TA.W17A TA.W18A TA.W19A TA.W21A TA.W24A
   TA.W25A TA.W26A TA.X15A TA.X16A TA.X18A TA.X19A TA.X20A
   TA.X21A TA.X23A TA.X24A TA.X25A TA.X26A TA.Y16A TA.Y17A
   TA.Y18A TA.Y19A TA.Y20A TA.Y25A TA.Y26A TA.Y27A TA.Z16A
   TA.Z17A TA.Z18A TA.Z19A TA.Z20A TA.Z25A TA.Z26A TA.Z27A
   US.AMTX US.ISCO US.MVCO US.SDCO US.WUAZ UU.SRU

 Filtering commands used:
   hp c 0.02 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 3.76e+21 dyne-cm
  Mw = 3.65
  Z  = 15 km
  Plane   Strike  Dip  Rake
   NP1      330    81   -150
   NP2      235    60   -10
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   3.76e+21     14      99
    N   0.00e+00     59     344
    P  -3.76e+21     27     197

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -2.63e+21
       Mxy    -1.36e+21
       Mxz     1.33e+21
       Myy     3.20e+21
       Myz     1.33e+21
       Mzz    -5.65e+20




                     --------------
                 #---------------------
              ######----------------------
             ########----------------------
           ############--------------########
          ##############-------###############
         ################--####################
        ################---#####################
        ##############------####################
       ############----------####################
       ###########------------###################
       #########---------------#############   ##
       ########-----------------############ T ##
        #####--------------------###########   #
        #####---------------------##############
         ###-----------------------############
          #-------------------------##########
           -----------   -----------#########
             --------- P ------------######
              --------   -------------####
                 ---------------------#
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
 -5.65e+20   1.33e+21  -1.33e+21
  1.33e+21  -2.63e+21   1.36e+21
 -1.33e+21   1.36e+21   3.20e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20080604140242/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 235
      DIP = 60
     RAKE = -10
       MW = 3.65
       HS = 15.0

The NDK file is 20080604140242.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

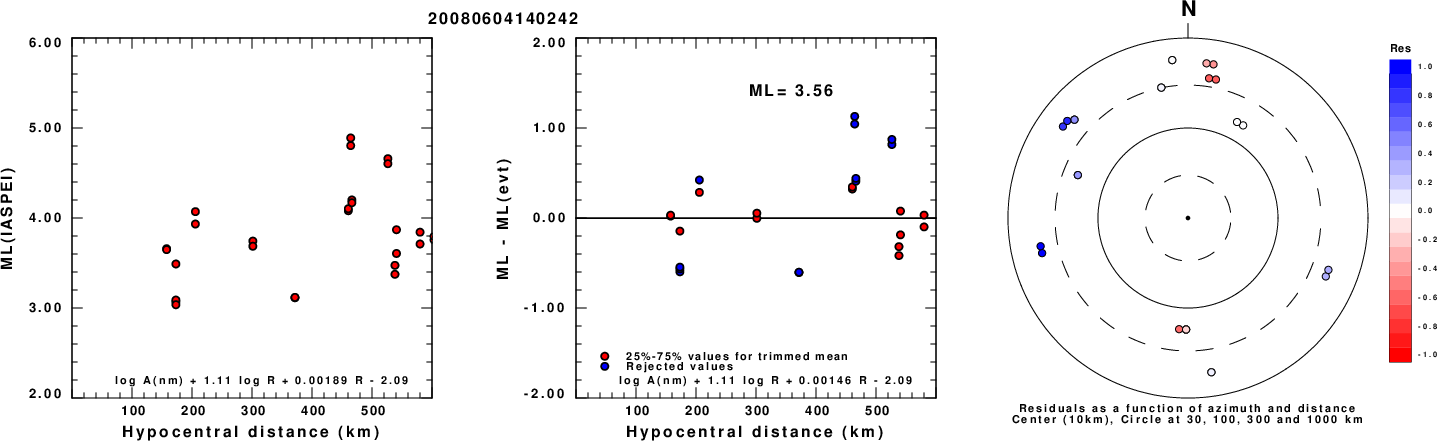

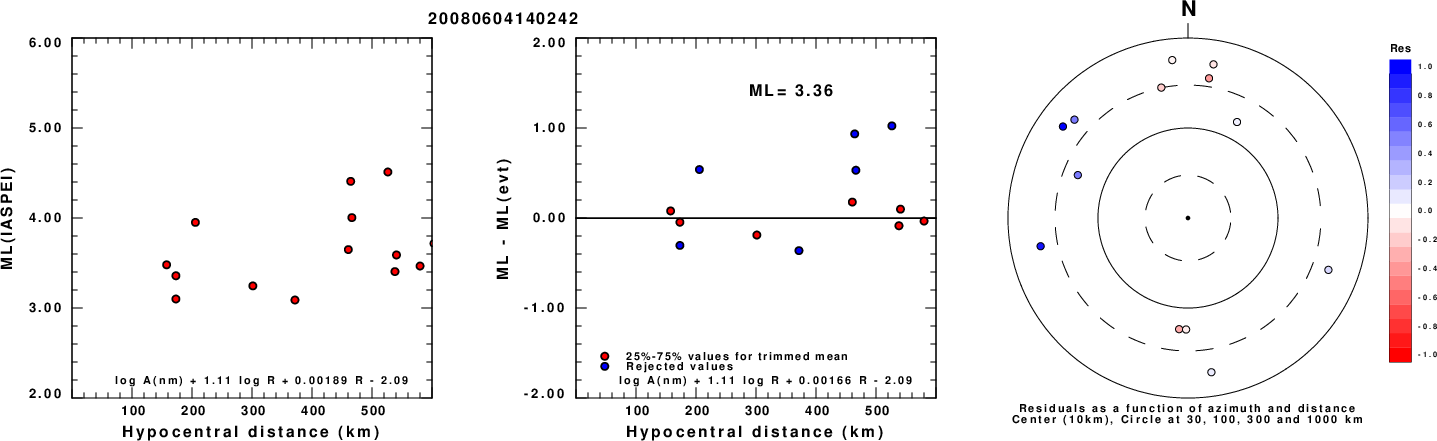

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.


Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

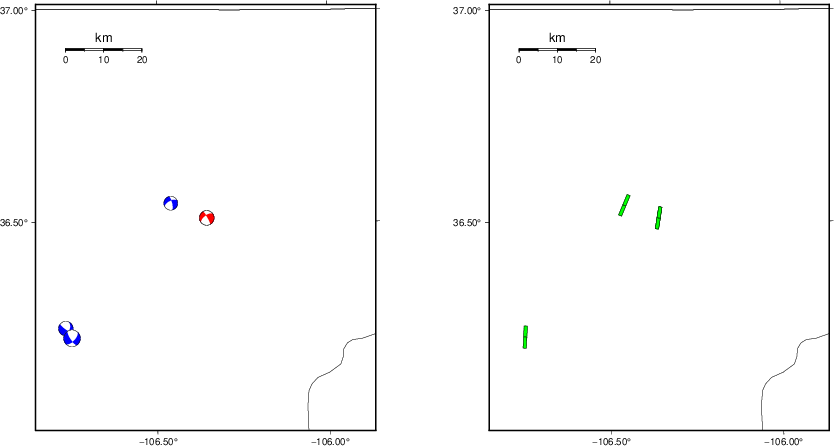

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

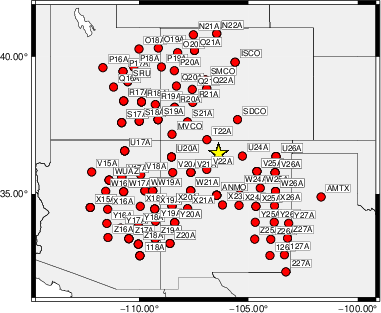

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

hp c 0.02 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    0.5   245    70    20   3.41 0.3312
WVFGRD96    1.0   245    65    20   3.44 0.3445
WVFGRD96    2.0   245    60    25   3.49 0.3580
WVFGRD96    3.0   240    55    10   3.49 0.3652
WVFGRD96    4.0   240    55    10   3.50 0.3769
WVFGRD96    5.0   240    55    10   3.51 0.3917
WVFGRD96    6.0   240    55    10   3.52 0.4078
WVFGRD96    7.0   240    55    10   3.54 0.4238
WVFGRD96    8.0   240    55    10   3.55 0.4380
WVFGRD96    9.0   235    60     0   3.56 0.4520
WVFGRD96   10.0   235    55    -5   3.58 0.4658
WVFGRD96   11.0   235    55    -5   3.60 0.4762
WVFGRD96   12.0   235    55    -5   3.61 0.4843
WVFGRD96   13.0   235    60   -10   3.62 0.4907
WVFGRD96   14.0   235    60   -10   3.64 0.4949
WVFGRD96   15.0   235    60   -10   3.65 0.4965
WVFGRD96   16.0   235    60   -10   3.66 0.4960
WVFGRD96   17.0   235    55   -10   3.67 0.4935
WVFGRD96   18.0   235    55   -10   3.67 0.4896
WVFGRD96   19.0   235    55   -10   3.68 0.4839
WVFGRD96   20.0   235    55   -10   3.70 0.4773
WVFGRD96   21.0   235    55   -10   3.71 0.4690
WVFGRD96   22.0   235    55   -15   3.72 0.4601
WVFGRD96   23.0   235    55   -15   3.73 0.4504
WVFGRD96   24.0   235    55   -15   3.73 0.4397
WVFGRD96   25.0   235    55   -15   3.74 0.4287
WVFGRD96   26.0   235    55   -15   3.74 0.4174
WVFGRD96   27.0   235    55   -15   3.75 0.4056
WVFGRD96   28.0   230    55   -20   3.75 0.3940
WVFGRD96   29.0   230    55   -20   3.75 0.3829

The best solution is

WVFGRD96   15.0   235    60   -10   3.65 0.4965

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

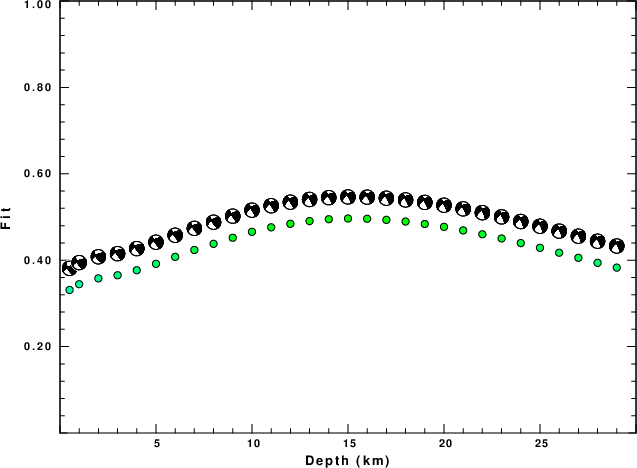

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

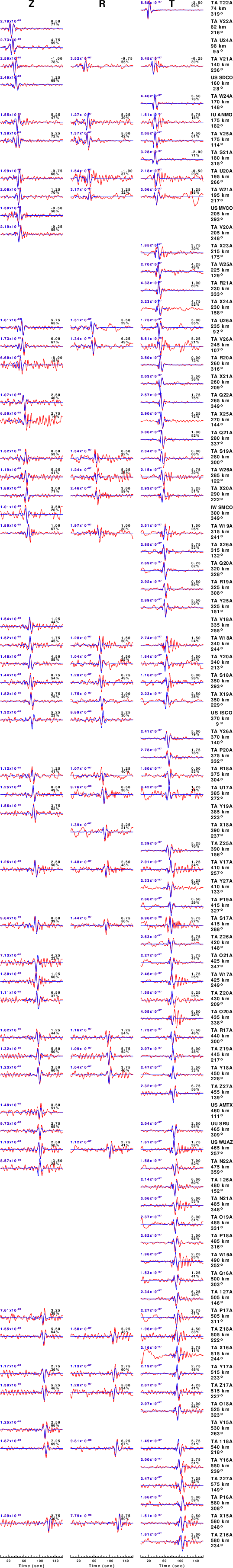

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

hp c 0.02 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

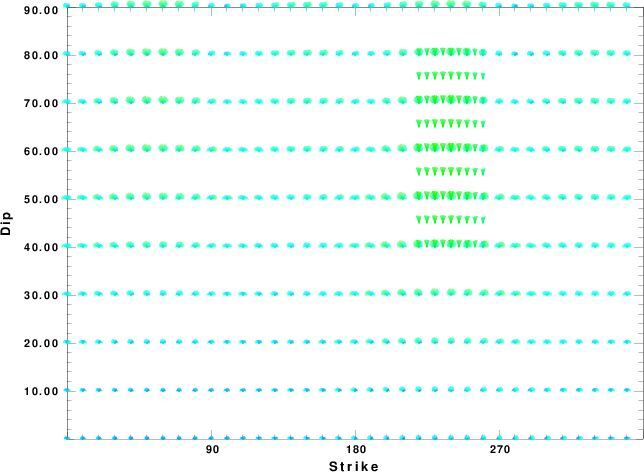

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

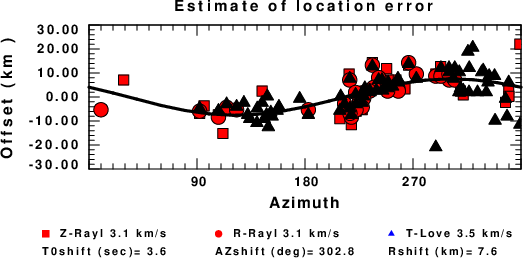

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Surface-Wave Focal Mechanism

The following figure shows the stations used in the grid search for the best focal mechanism to fit the surface-wave spectral amplitudes of the Love and Rayleigh waves.

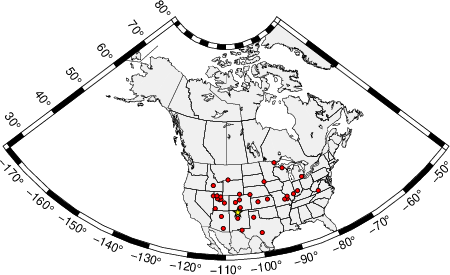

Location of broadband stations used to obtain focal mechanism from surface-wave spectral amplitudes

The surface-wave determined focal mechanism is shown here.


  NODAL PLANES


  STK=     334.98
  DIP=      79.99
 RAKE=    -155.00

             OR

  STK=     240.35
  DIP=      65.41
 RAKE=     -11.02


DEPTH = 18.0 km

Mw = 3.78
Best Fit 0.8859 - P-T axis plot gives solutions with FIT greater than FIT90

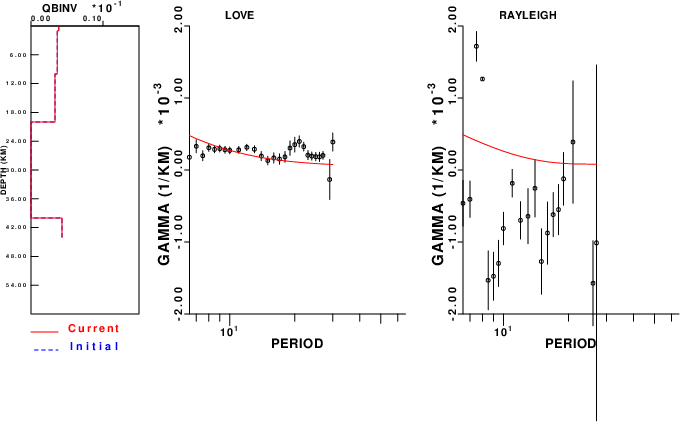

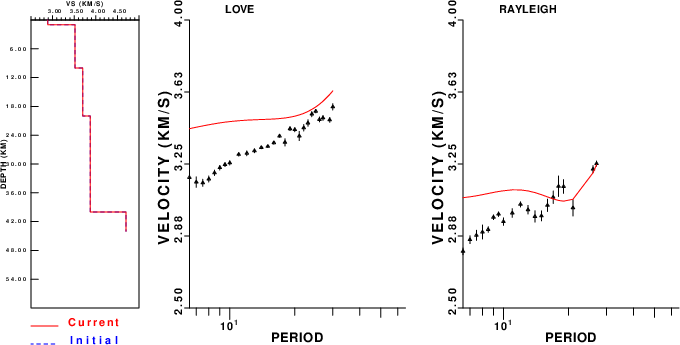

Surface-wave analysis

Surface wave analysis was performed using codes from Computer Programs in Seismology, specifically the multiple filter analysis program do_mft and the surface-wave radiation pattern search program srfgrd96.

Data preparation

Digital data were collected, instrument response removed and traces converted to Z, R an T components. Multiple filter analysis was applied to the Z and T traces to obtain the Rayleigh- and Love-wave spectral amplitudes, respectively. These were input to the search program which examined all depths between 1 and 25 km and all possible mechanisms.

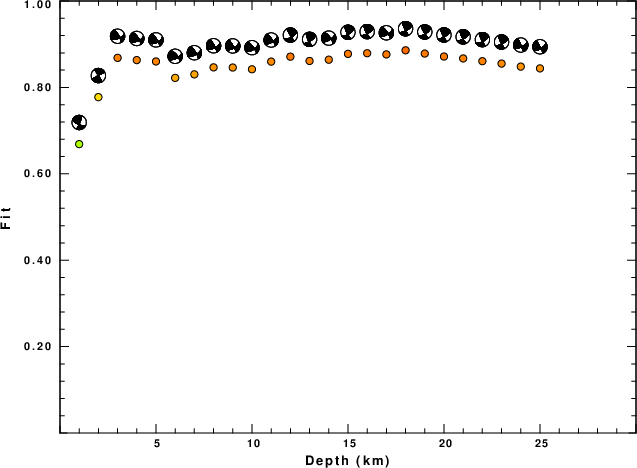

Best mechanism fit as a function of depth. The preferred depth is given above. Lower hemisphere projection

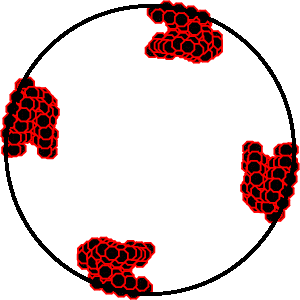

Pressure-tension axis trends. Since the surface-wave spectra search does not distinguish between P and T axes and since there is a 180 ambiguity in strike, all possible P and T axes are plotted. First motion data and waveforms will be used to select the preferred mechanism. The purpose of this plot is to provide an idea of the possible range of solutions. The P and T-axes for all mechanisms with goodness of fit greater than 0.9 FITMAX (above) are plotted here.

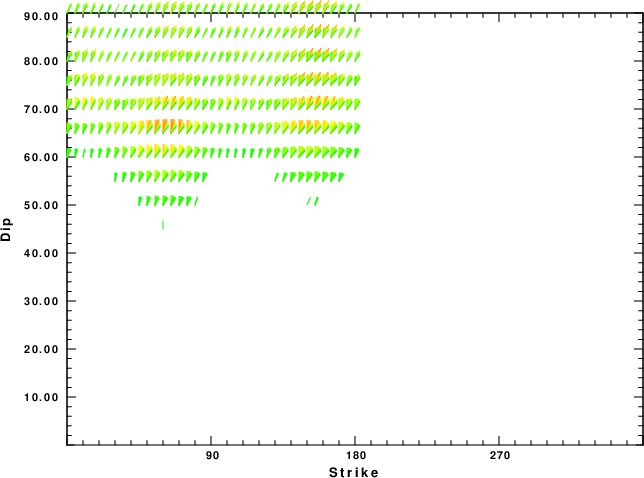

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the Love and Rayleigh wave radiation patterns. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. Because of the symmetry of the spectral amplitude rediation patterns, only strikes from 0-180 degrees are sampled.

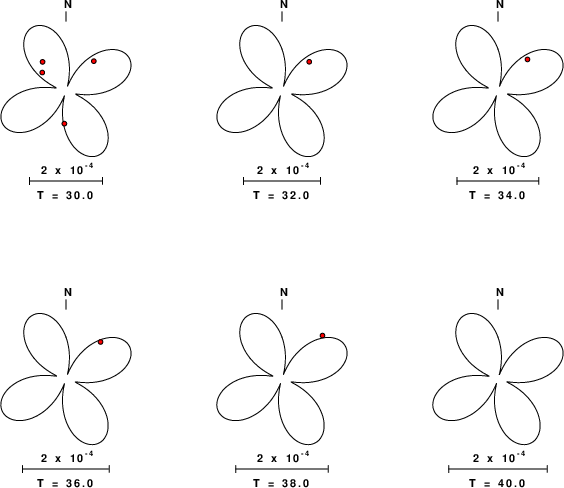

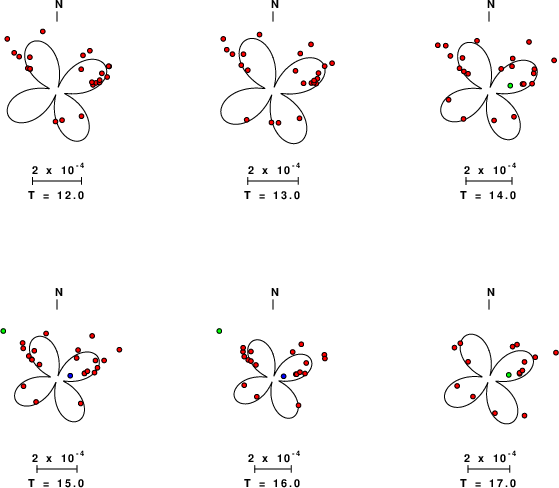

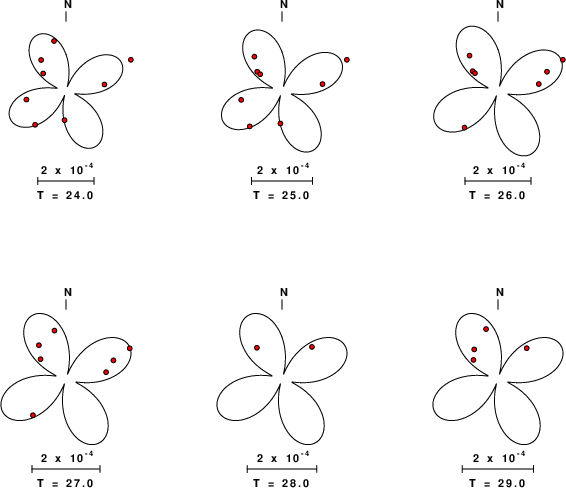

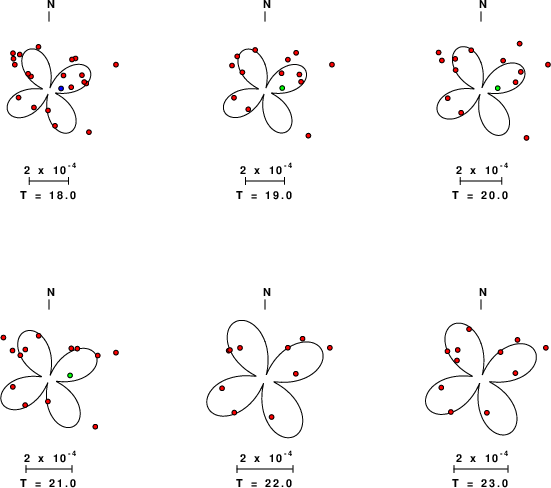

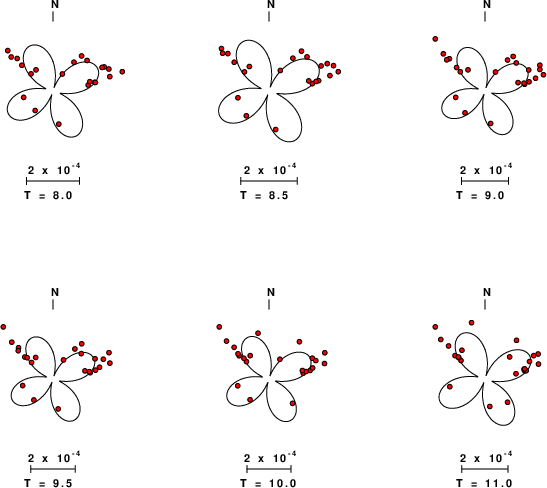

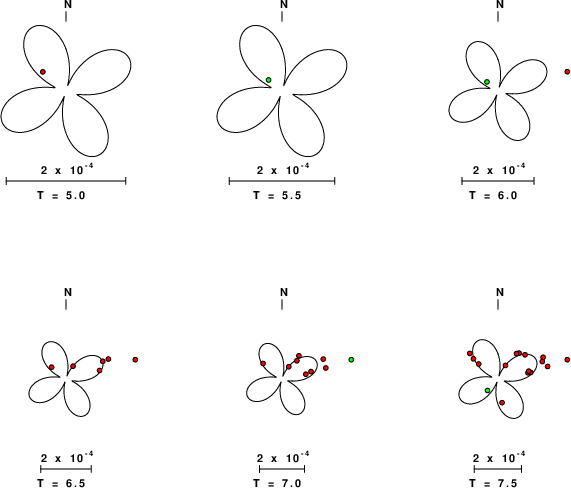

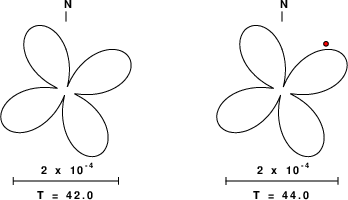

Love-wave radiation patterns

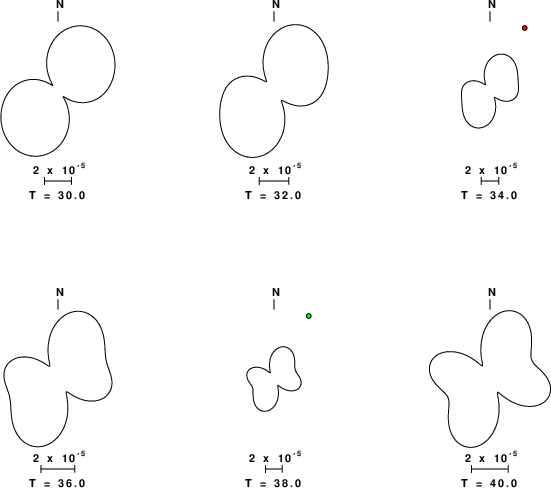

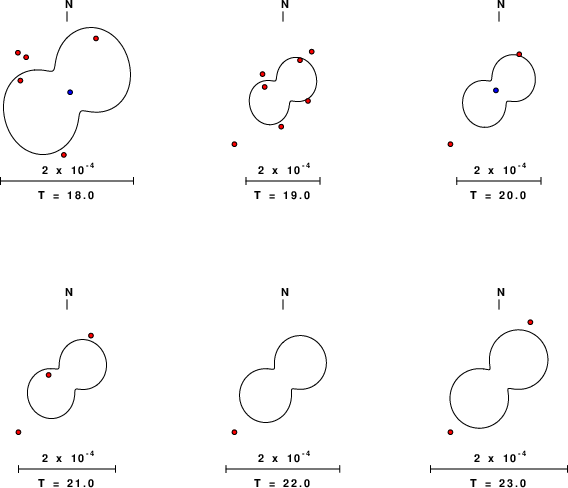

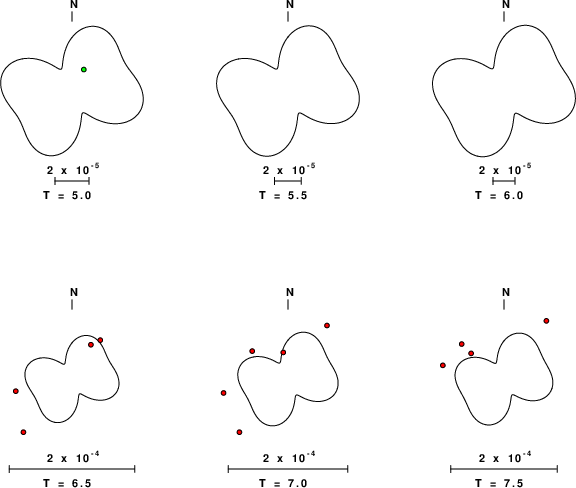

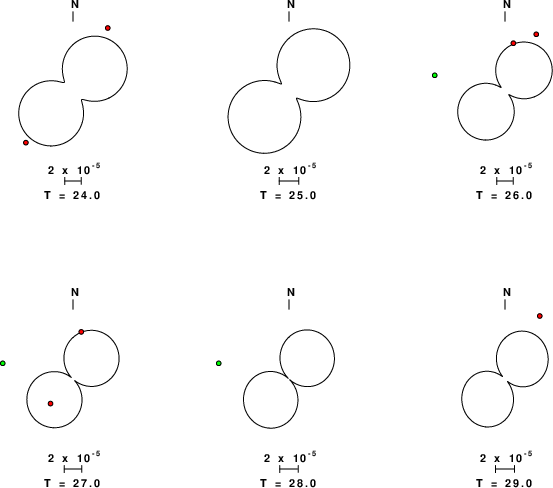

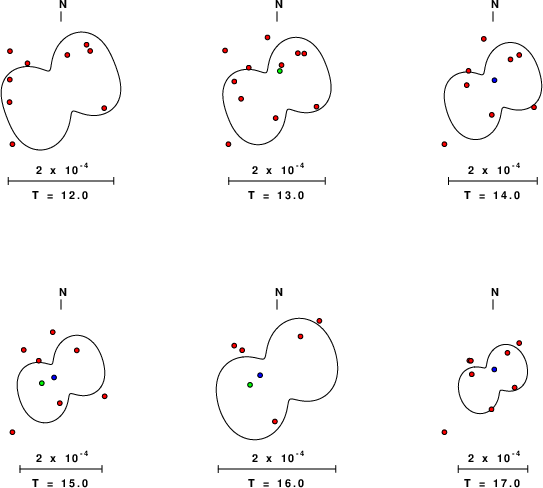

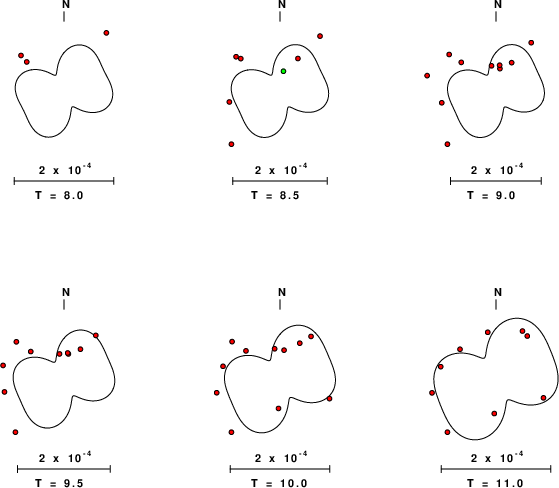

Rayleigh-wave radiation patterns
