The ANSS event ID is nm606669 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/nm606669/executive.

2008/04/18 15:14:16 38.459 -87.869 15.5 4.7 Illinois

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2008/04/18 15:14:16:0  38.46  -87.87  15.5 4.7 Illinois

 Stations used:
   IU.CCM IU.WCI IU.WVT NM.BLO NM.FVM NM.MPH NM.OLIL NM.PBMO
   NM.PLAL NM.SIUC NM.SLM NM.USIN NM.UTMT US.ACSO US.HDIL
   US.OXF US.TZTN

 Filtering commands used:
   hp c 0.02 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 1.04e+23 dyne-cm
  Mw = 4.61
  Z  = 14 km
  Plane   Strike  Dip  Rake
   NP1      315    90    10
   NP2      225    80   180
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.04e+23      7     180
    N   0.00e+00     80     315
    P  -1.04e+23      7      90

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     1.02e+23
       Mxy    -2.88e+16
       Mxz    -1.27e+22
       Myy    -1.02e+23
       Myz    -1.27e+22
       Mzz    -1.57e+15




                     ##############
                 ######################
              ############################
             -###########################--
           -----######################-------
          --------##################----------
         -----------#############--------------
        --------------#########-----------------
        ---------------######-------------------
       ------------------##-------------------
       ------------------##------------------- P
       -----------------#####-----------------
       ---------------#########------------------
        ------------#############---------------
        -----------###############--------------
         --------###################-----------
          ------######################--------
           ----#########################-----
             -############################-
              ############################
                 #########   ##########
                     ##### T ######



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.57e+15  -1.27e+22   1.27e+22
 -1.27e+22   1.02e+23   2.88e+16
  1.27e+22   2.88e+16  -1.02e+23


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20080418151416/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 315
      DIP = 90
     RAKE = 10
       MW = 4.61
       HS = 14.0

The NDK file is 20080418151416.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
SLU
USGSMT
GCMT
 USGS/SLU Moment Tensor Solution
 ENS  2008/04/18 15:14:16:0  38.46  -87.87  15.5 4.7 Illinois

 Stations used:
   IU.CCM IU.WCI IU.WVT NM.BLO NM.FVM NM.MPH NM.OLIL NM.PBMO
   NM.PLAL NM.SIUC NM.SLM NM.USIN NM.UTMT US.ACSO US.HDIL
   US.OXF US.TZTN

 Filtering commands used:
   hp c 0.02 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 1.04e+23 dyne-cm
  Mw = 4.61
  Z  = 14 km
  Plane   Strike  Dip  Rake
   NP1      315    90    10
   NP2      225    80   180
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.04e+23      7     180
    N   0.00e+00     80     315
    P  -1.04e+23      7      90

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     1.02e+23
       Mxy    -2.88e+16
       Mxz    -1.27e+22
       Myy    -1.02e+23
       Myz    -1.27e+22
       Mzz    -1.57e+15




                     ##############
                 ######################
              ############################
             -###########################--
           -----######################-------
          --------##################----------
         -----------#############--------------
        --------------#########-----------------
        ---------------######-------------------
       ------------------##-------------------
       ------------------##------------------- P
       -----------------#####-----------------
       ---------------#########------------------
        ------------#############---------------
        -----------###############--------------
         --------###################-----------
          ------######################--------
           ----#########################-----
             -############################-
              ############################
                 #########   ##########
                     ##### T ######



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.57e+15  -1.27e+22   1.27e+22
 -1.27e+22   1.02e+23   2.88e+16
  1.27e+22   2.88e+16  -1.02e+23


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20080418151416/index.html

GS/SLU Regional Moment Tensor Solution

 08/04/18 15:14:16
 ILLINOIS
 Epicenter:  38.539  -87.865
 MW 4.6

 USGS/SLU REGIONAL MOMENT TENSOR
 Depth  15         No. of sta: 12
 Moment Tensor;   Scale 10**15 Nm
   Mrr= 0.00       Mtt= 9.74
   Mpp=-9.74       Mrt=-1.21
   Mrp= 1.21       Mtp= 0.00
  Principal axes:
   T  Val=  9.89  Plg= 7  Azm=180
   N        0.00      80      314
   P       -9.89       7       89

 Best Double Couple:Mo=9.9*10**15
  NP1:Strike=315 Dip=90 Slip=  10
  NP2:       225     80       180

               #######
          #################
        #####################
      -######################--
    -----#################-------
   --------#############----------
   ----------#########------------
  -------------#####---------------
  ---------------#---------------
  --------------##--------------- P
  ------------######-------------
  -----------#########-------------
   --------#############----------
   -------################--------
    ----####################-----
      -#######################-
        #########   #########
          ####### T #######
               ##   ##




April 18, 2008, ILLINOIS, MW=4.7

Meredith Nettles
Goran Ekstrom

CENTROID-MOMENT-TENSOR  SOLUTION
GCMT EVENT:     S200804181514A
DATA: II IU CU GE IC
SURFACE WAVES:  45S,  64C, T= 50
TIMESTAMP:      Q-20080419235153
CENTROID LOCATION:
ORIGIN TIME:      15:14:19.4 0.5
LAT:38.44N 0.03;LON: 87.88W 0.04
DEP: 12.0  FIX;TRIANG HDUR:  0.6
MOMENT TENSOR: SCALE 10**23 D-CM
RR=-0.103 0.098; TT= 1.310 0.074
PP=-1.200 0.075; RT=-0.306 0.246
RP=-0.100 0.225; TP=-0.002 0.069
PRINCIPAL AXES:
1.(T) VAL=  1.374;PLG=12;AZM=180
2.(N)      -0.157;    77;     25
3.(P)      -1.209;     5;    271
BEST DBLE.COUPLE:M0= 1.29*10**23
NP1: STRIKE=316;DIP=78;SLIP=   5
NP2: STRIKE=225;DIP=86;SLIP= 168

            ###########
        ###################
      #######################
    -----##################----
   ---------#############-------
  ------------#########----------
  --------------#####------------
   ---------------#---------------
 P --------------###--------------
   ------------#######------------
 -------------#########-----------
  ----------#############--------
  --------################-------
   ------##################-----
    ---#####################---
      #######################
        ########   ########
            #### T ####



Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

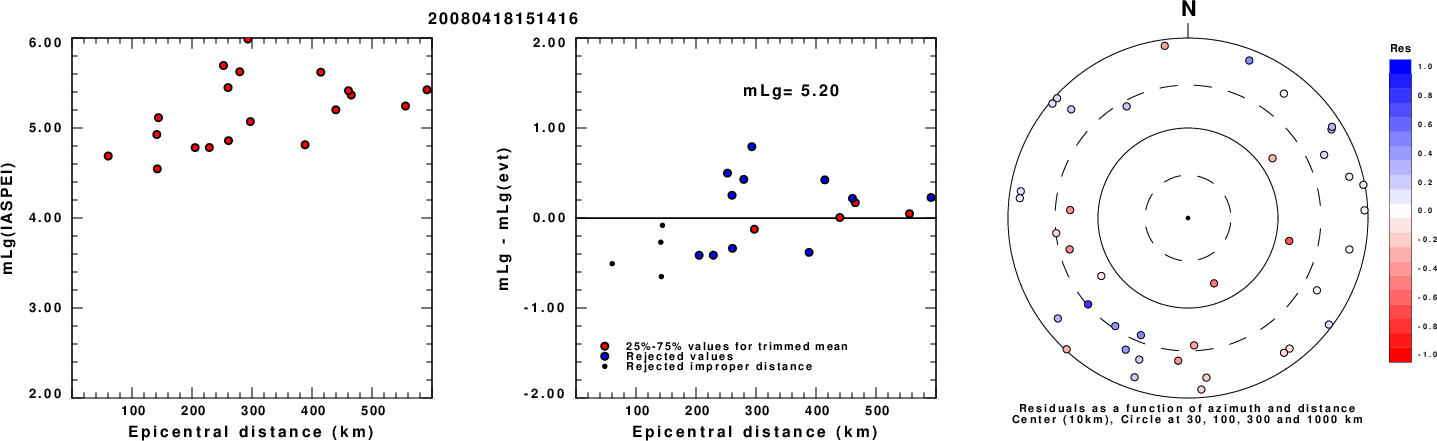

mLg Magnitude


Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

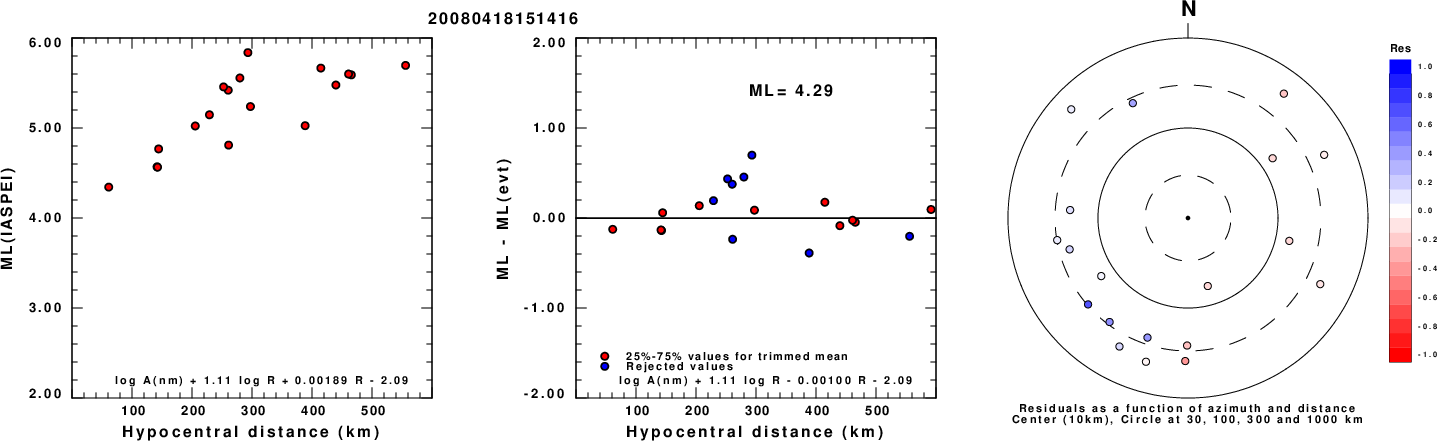

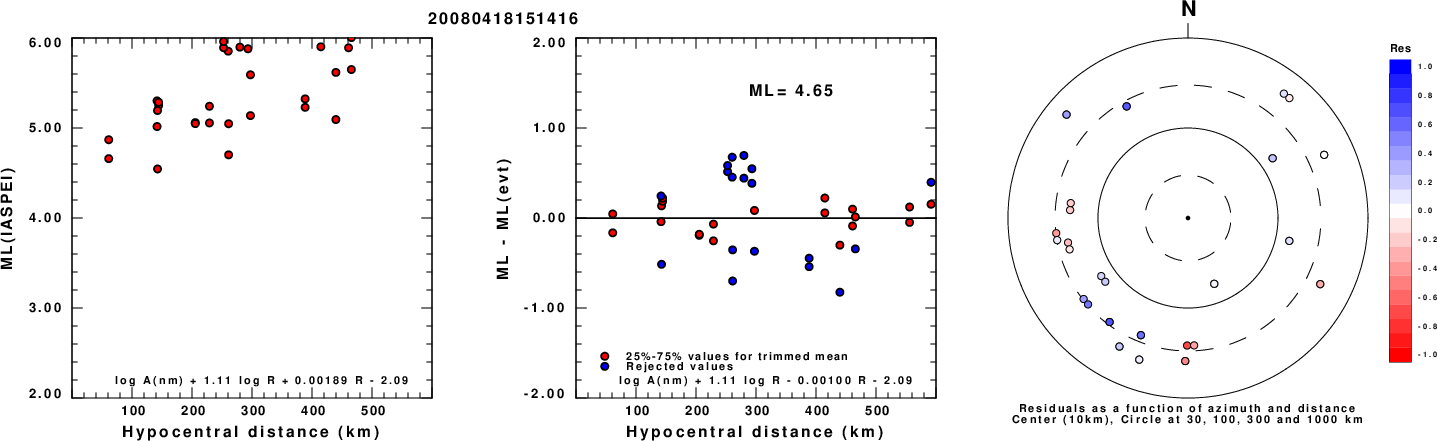

ML Magnitude


Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.


Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

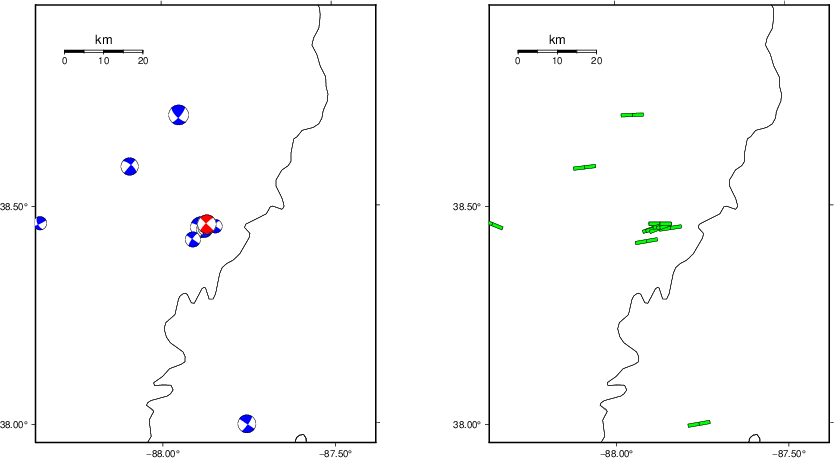

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

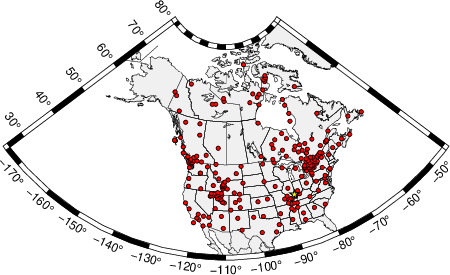

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

hp c 0.02 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    0.5   320    85    15   4.37 0.5075
WVFGRD96    1.0   320    85    20   4.40 0.5399
WVFGRD96    2.0   315    90     5   4.44 0.5868
WVFGRD96    3.0   315    85    10   4.47 0.6065
WVFGRD96    4.0   315    85    15   4.50 0.6233
WVFGRD96    5.0   315    85    15   4.51 0.6420
WVFGRD96    6.0   135    90   -15   4.52 0.6601
WVFGRD96    7.0   135    90   -15   4.53 0.6771
WVFGRD96    8.0   135    90   -10   4.55 0.6931
WVFGRD96    9.0   135    90   -10   4.56 0.7053
WVFGRD96   10.0   135    90   -10   4.58 0.7172
WVFGRD96   11.0   315    90    10   4.59 0.7262
WVFGRD96   12.0   315    90    10   4.60 0.7311
WVFGRD96   13.0   135    90   -10   4.61 0.7322
WVFGRD96   14.0   315    90    10   4.61 0.7334
WVFGRD96   15.0   135    90   -10   4.62 0.7313
WVFGRD96   16.0   135    90   -10   4.63 0.7248
WVFGRD96   17.0   135    90   -10   4.64 0.7189
WVFGRD96   18.0   135    90   -10   4.64 0.7117
WVFGRD96   19.0   135    90   -10   4.65 0.7003
WVFGRD96   20.0   135    90   -10   4.66 0.6921
WVFGRD96   21.0   135    90   -10   4.67 0.6789
WVFGRD96   22.0   315    90    10   4.67 0.6689
WVFGRD96   23.0   135    90   -10   4.68 0.6566
WVFGRD96   24.0   315    90    10   4.68 0.6453
WVFGRD96   25.0   135    90   -15   4.69 0.6338
WVFGRD96   26.0   135    90   -15   4.69 0.6257
WVFGRD96   27.0   135    90   -15   4.70 0.6150
WVFGRD96   28.0   135    90   -15   4.70 0.6093
WVFGRD96   29.0   135    85   -15   4.70 0.6018

The best solution is

WVFGRD96   14.0   315    90    10   4.61 0.7334

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

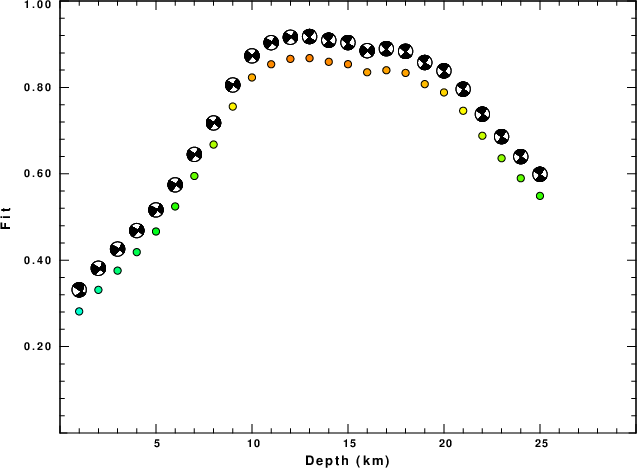

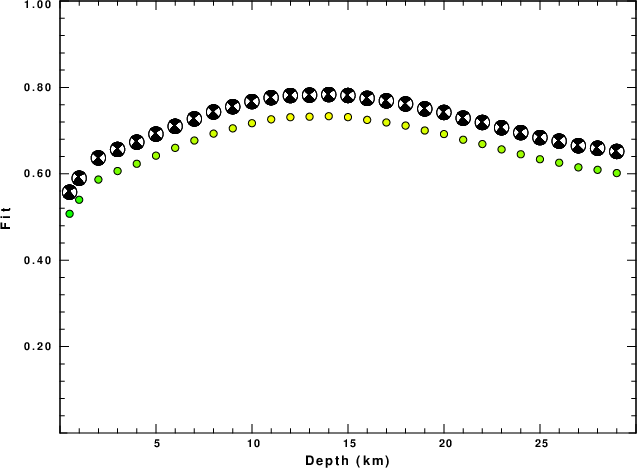

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

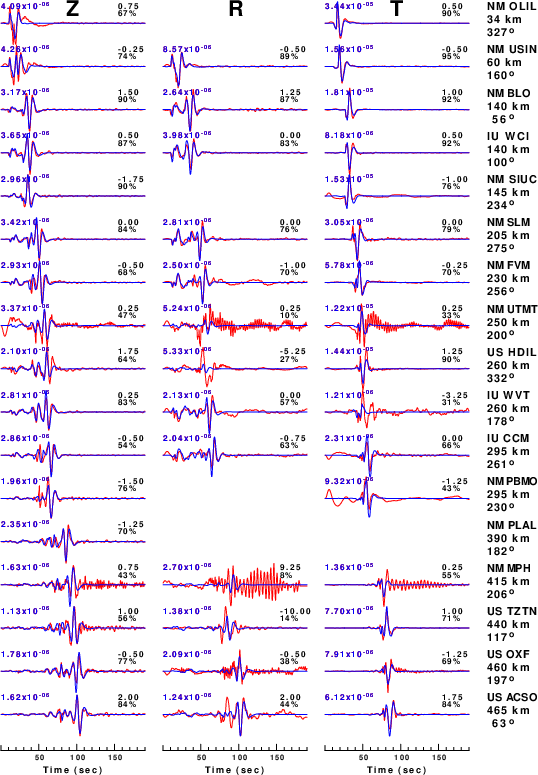

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

hp c 0.02 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

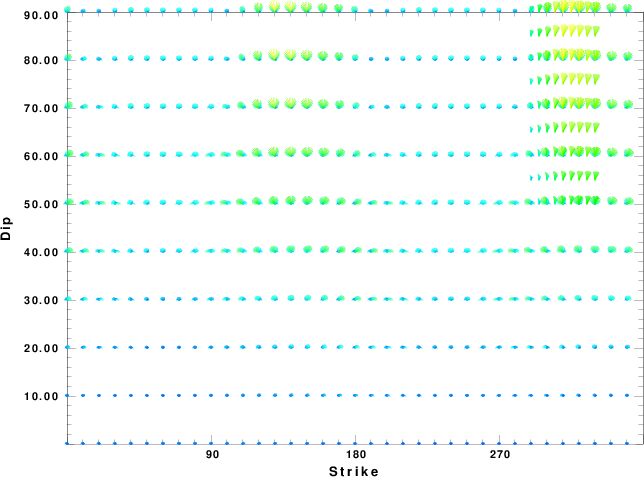

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

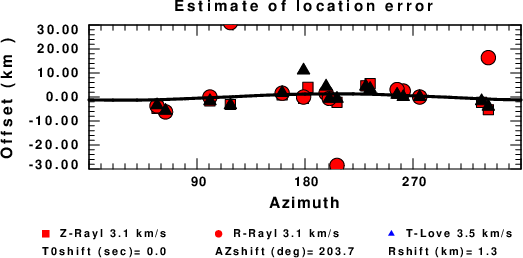

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

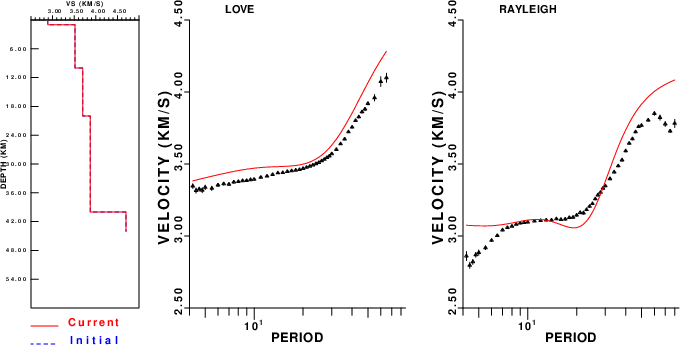

Surface-Wave Focal Mechanism

The following figure shows the stations used in the grid search for the best focal mechanism to fit the surface-wave spectral amplitudes of the Love and Rayleigh waves.
Location of broadband stations used to obtain focal mechanism from surface-wave spectral amplitudes

The surface-wave determined focal mechanism is shown here.


  NODAL PLANES


  STK=      39.12
  DIP=      85.08
 RAKE=     169.96

             OR

  STK=     129.99
  DIP=      80.00
 RAKE=       5.00


DEPTH = 13.0 km

Mw = 4.67
Best Fit 0.8678 - P-T axis plot gives solutions with FIT greater than FIT90

Surface-wave analysis

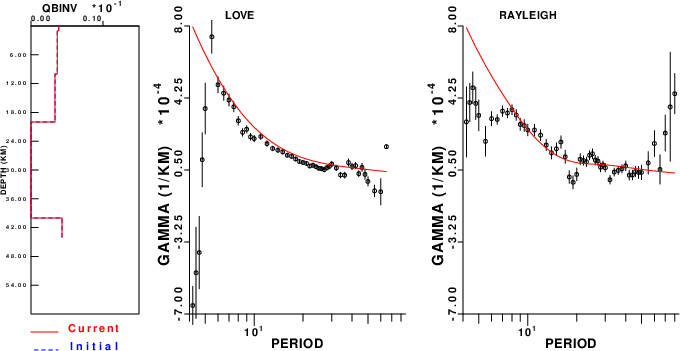

Surface wave analysis was performed using codes from Computer Programs in Seismology, specifically the multiple filter analysis program do_mft and the surface-wave radiation pattern search program srfgrd96.

Data preparation

Digital data were collected, instrument response removed and traces converted to Z, R an T components. Multiple filter analysis was applied to the Z and T traces to obtain the Rayleigh- and Love-wave spectral amplitudes, respectively. These were input to the search program which examined all depths between 1 and 25 km and all possible mechanisms.
Best mechanism fit as a function of depth. The preferred depth is given above. Lower hemisphere projection

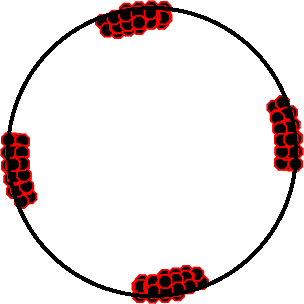

Pressure-tension axis trends. Since the surface-wave spectra search does not distinguish between P and T axes and since there is a 180 ambiguity in strike, all possible P and T axes are plotted. First motion data and waveforms will be used to select the preferred mechanism. The purpose of this plot is to provide an idea of the possible range of solutions. The P and T-axes for all mechanisms with goodness of fit greater than 0.9 FITMAX (above) are plotted here.

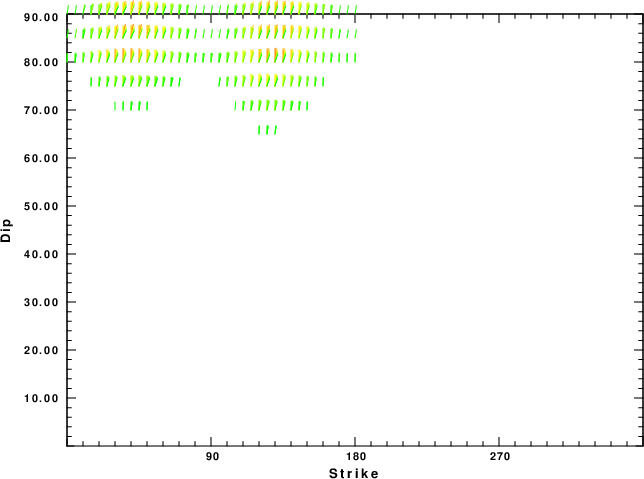

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the Love and Rayleigh wave radiation patterns. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. Because of the symmetry of the spectral amplitude rediation patterns, only strikes from 0-180 degrees are sampled.

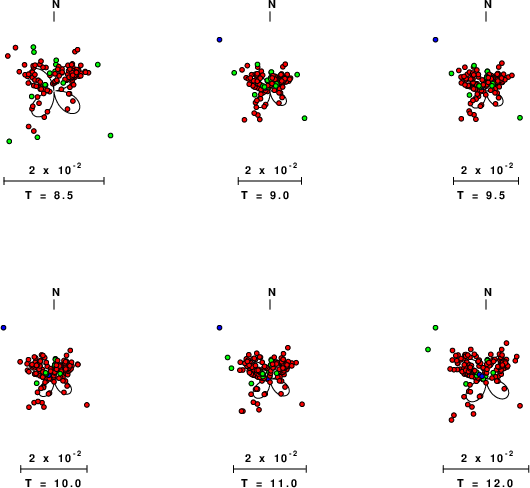

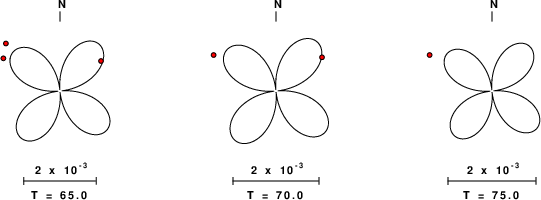

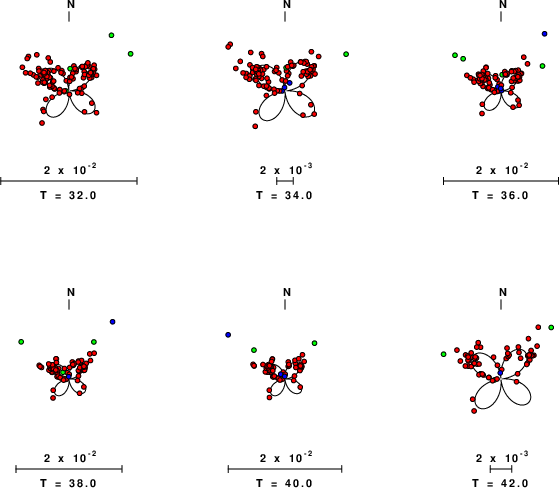

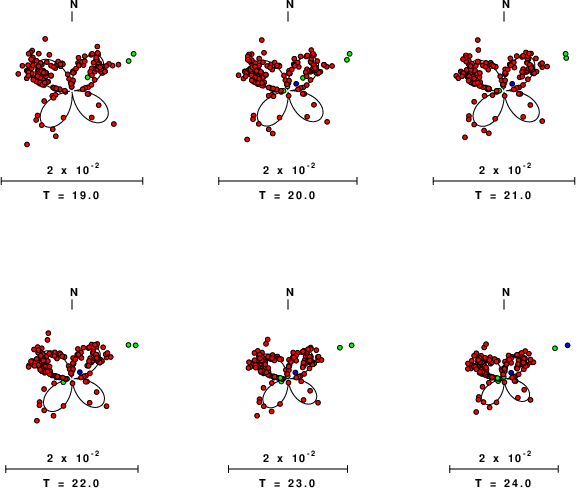

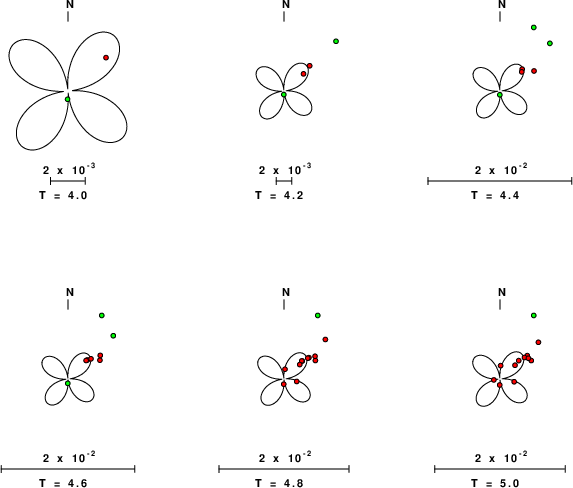

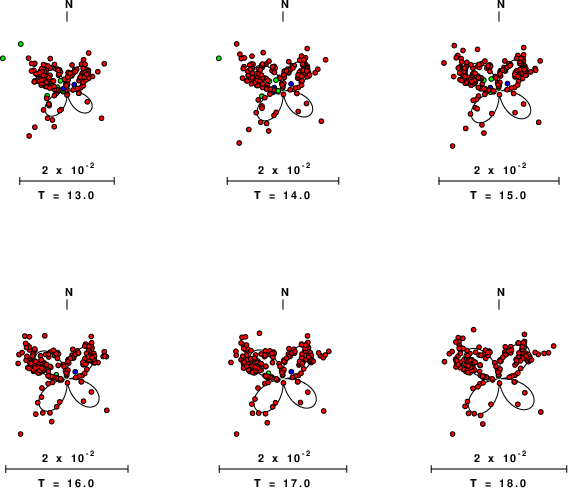

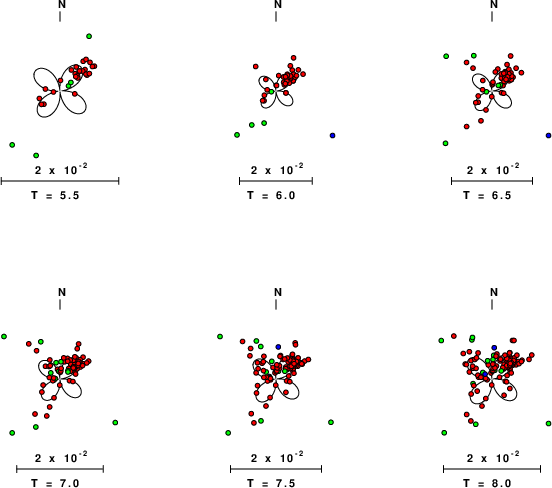

Love-wave radiation patterns

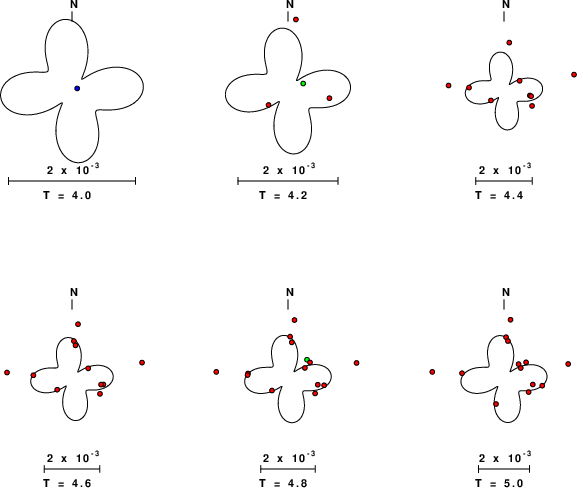

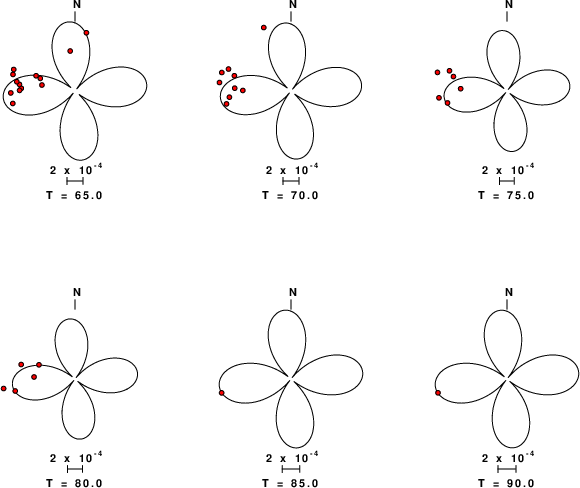

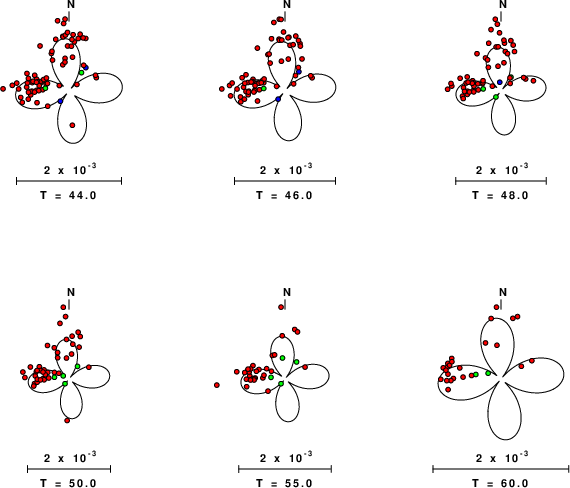

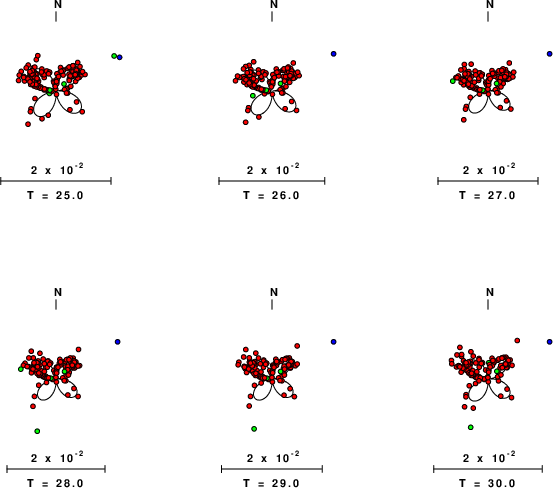

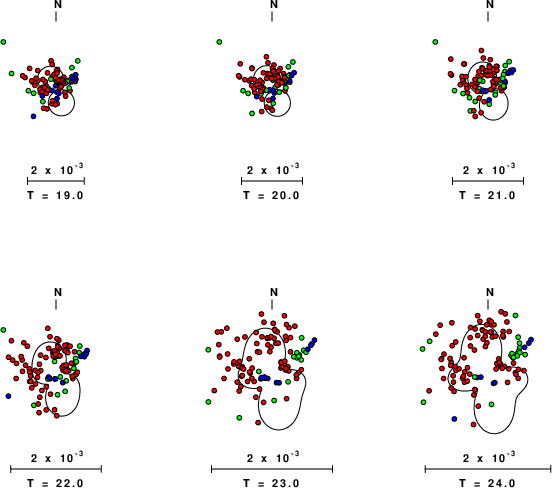

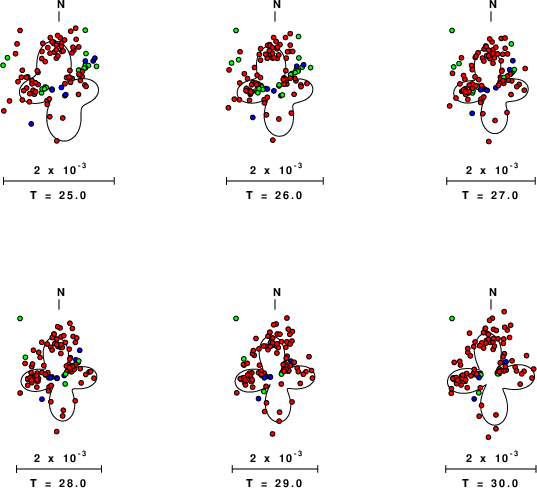

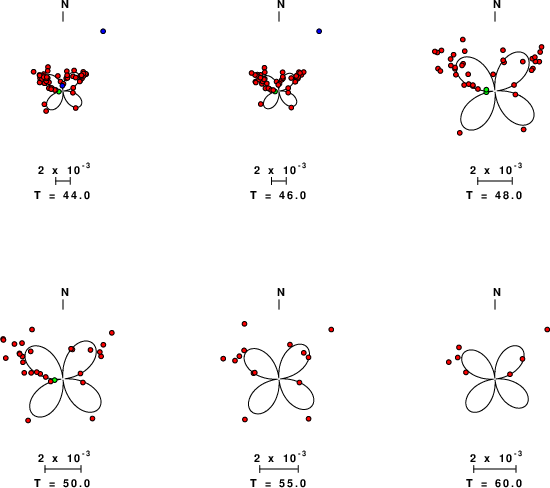

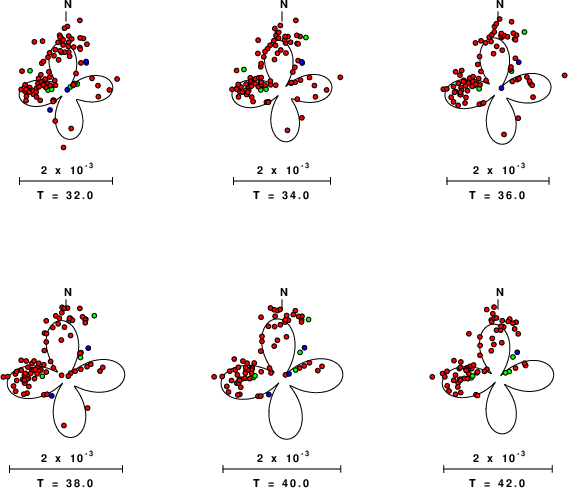

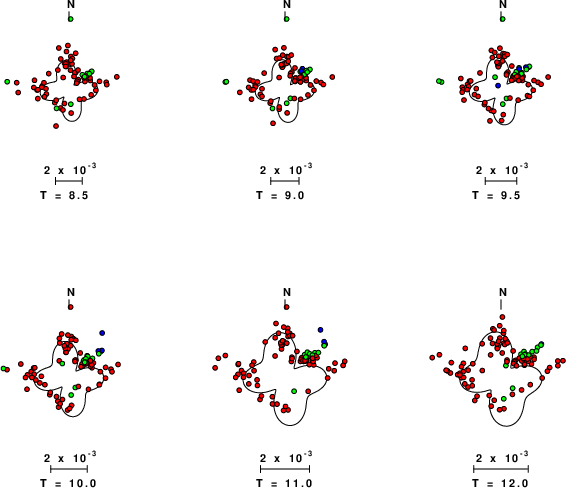

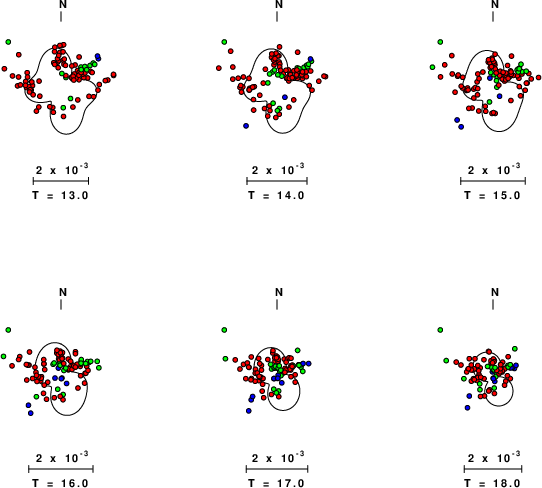

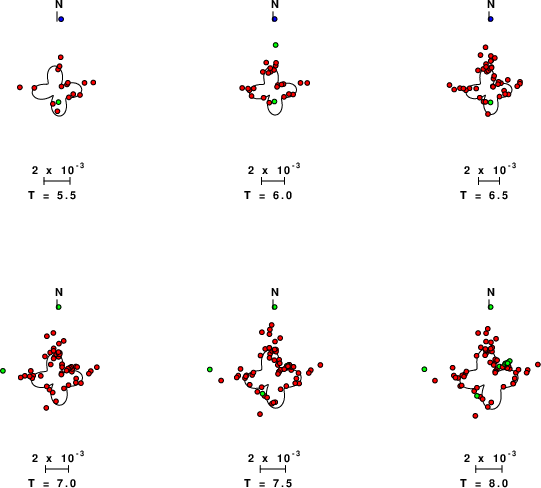

Rayleigh-wave radiation patterns
