Location

Location ANSS

The ANSS event ID is ak00856o20f and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak00856o20f/executive.

2008/01/03 13:53:10 66.322 -142.392 10.0 4 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2008/01/03 13:53:10:0  66.32 -142.39  10.0 4.0 Alaska

 Stations used:
   AK.BPAW AK.COLD AK.KTH AK.MCK AK.TRF CN.WHY IU.COLA US.EGAK

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3
   br c 0.12 0.25 n 4 p 2

 Best Fitting Double Couple
  Mo = 5.50e+21 dyne-cm
  Mw = 3.76
  Z  = 8 km
  Plane   Strike  Dip  Rake
   NP1      225    85    20
   NP2      133    70   175
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   5.50e+21     18      91
    N   0.00e+00     69     238
    P  -5.50e+21     10     357

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -5.31e+21
       Mxy     1.63e+20
       Mxz    -9.91e+20
       Myy     4.98e+21
       Myz     1.63e+21
       Mzz     3.26e+20




                     ----- P ------
                 ---------   ----------
              ----------------------------
             -----------------------------#
           ##--------------------------######
          ####-----------------------#########
         ######--------------------############
        ########-----------------###############
        #########--------------#################
       ############----------####################
       #############-------#################   ##
       ###############---################### T ##
       ################-####################   ##
        ##############----######################
        ############--------####################
         #########------------#################
          #######----------------#############
           ####---------------------#########
             #---------------------------##
              ----------------------------
                 ----------------------
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
  3.26e+20  -9.91e+20  -1.63e+21
 -9.91e+20  -5.31e+21  -1.63e+20
 -1.63e+21  -1.63e+20   4.98e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20080103135310/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 225
      DIP = 85
     RAKE = 20
       MW = 3.76
       HS = 8.0

The NDK file is 20080103135310.ndk The waveform inversion is preferred.

Context

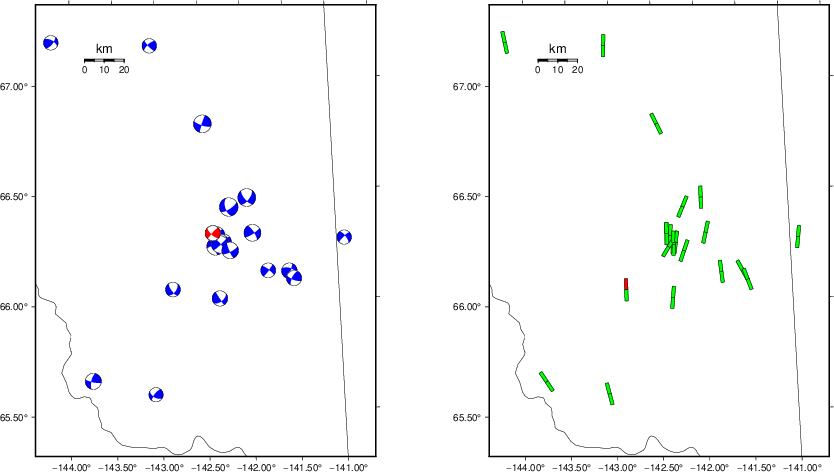

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

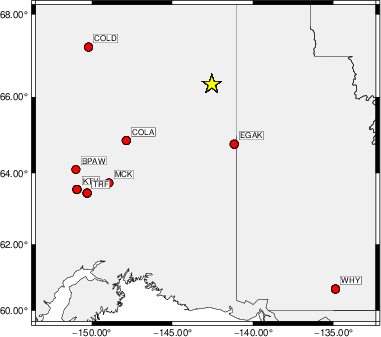

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0    45    80   -15   3.51 0.5485
WVFGRD96    2.0    45    75   -15   3.60 0.6714
WVFGRD96    3.0    45    80    -5   3.62 0.7136
WVFGRD96    4.0   225    90     5   3.65 0.7352
WVFGRD96    5.0   225    85    10   3.68 0.7486
WVFGRD96    6.0   225    85    15   3.71 0.7599
WVFGRD96    7.0   225    85    15   3.73 0.7686
WVFGRD96    8.0   225    85    20   3.76 0.7745
WVFGRD96    9.0   225    85    15   3.77 0.7735
WVFGRD96   10.0    45    75   -10   3.78 0.7710
WVFGRD96   11.0    45    75   -10   3.79 0.7669
WVFGRD96   12.0   230    75   -10   3.78 0.7622
WVFGRD96   13.0   230    80   -10   3.80 0.7591
WVFGRD96   14.0   230    80   -10   3.81 0.7542
WVFGRD96   15.0   230    80   -10   3.83 0.7464
WVFGRD96   16.0   230    80   -10   3.84 0.7354
WVFGRD96   17.0   230    80   -10   3.85 0.7219
WVFGRD96   18.0   230    80   -10   3.86 0.7057
WVFGRD96   19.0    55    80    15   3.86 0.6924
WVFGRD96   20.0    55    80    15   3.87 0.6761
WVFGRD96   21.0    55    75    15   3.89 0.6587
WVFGRD96   22.0    55    75    15   3.90 0.6405
WVFGRD96   23.0    55    75    15   3.90 0.6222
WVFGRD96   24.0    55    75    15   3.91 0.6040
WVFGRD96   25.0    60    70    15   3.92 0.5864
WVFGRD96   26.0    60    70    15   3.92 0.5686
WVFGRD96   27.0    60    70    15   3.93 0.5519
WVFGRD96   28.0    60    65    15   3.94 0.5371
WVFGRD96   29.0    60    65    15   3.95 0.5215

The best solution is

WVFGRD96    8.0   225    85    20   3.76 0.7745

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

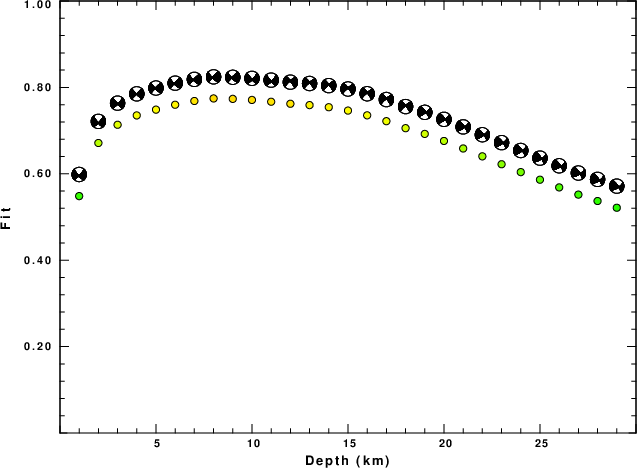

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

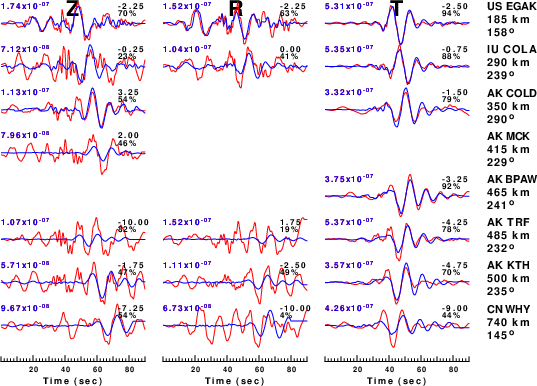

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

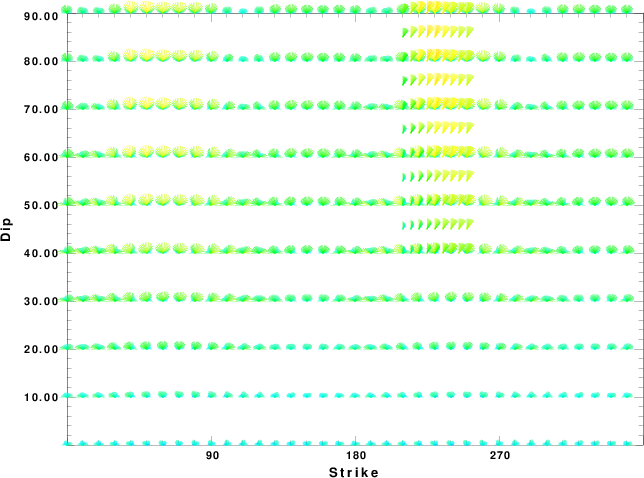

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

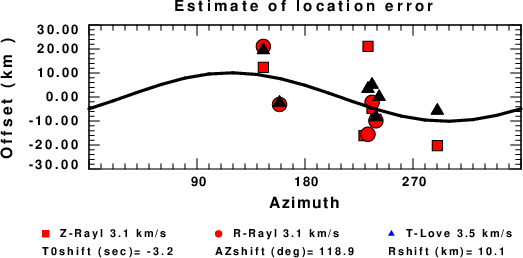

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The CUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
CUS Model with Q from simple gamma values
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
  H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC)   QP   QS  ETAP  ETAS  FREFP  FREFS
  1.0000  5.0000  2.8900  2.5000 0.172E-02 0.387E-02 0.00  0.00  1.00  1.00
  9.0000  6.1000  3.5200  2.7300 0.160E-02 0.363E-02 0.00  0.00  1.00  1.00
 10.0000  6.4000  3.7000  2.8200 0.149E-02 0.336E-02 0.00  0.00  1.00  1.00
 20.0000  6.7000  3.8700  2.9020 0.000E-04 0.000E-04 0.00  0.00  1.00  1.00
  0.0000  8.1500  4.7000  3.3640 0.194E-02 0.431E-02 0.00  0.00  1.00  1.00
