The ANSS event ID is usp000fbhu and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/usp000fbhu/executive.

2007/05/08 15:46:49 45.394 -112.130 13.5 4.4 Montana

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2007/05/08 15:46:49:0  45.39 -112.13  13.5 4.4 Montana

 Stations used:
   CN.WALA IW.LOHW IW.TPAW TA.B13A TA.C13A TA.C14A TA.D11A
   TA.D12A TA.D13A TA.D14A TA.D15A TA.E11A TA.E13A TA.E14A
   TA.E15A TA.F11A TA.F12A TA.F13A TA.F14A TA.F15A TA.G10A
   TA.G11A TA.G13A TA.G14A TA.G15A TA.H10A TA.H11A TA.H12A
   TA.H13A TA.I10A TA.I11A TA.I13A TA.J11A TA.J12A TA.J13A
   TA.K12A TA.K13A TA.K14A TA.L13A US.BMO US.BOZ US.BW06
   US.EGMT US.HLID US.LAO US.MSO US.NEW US.RLMT

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.07 n 3

 Best Fitting Double Couple
  Mo = 3.55e+22 dyne-cm
  Mw = 4.30
  Z  = 13 km
  Plane   Strike  Dip  Rake
   NP1       20    85   -35
   NP2      113    55   -174
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   3.55e+22     20      72
    N   0.00e+00     55     193
    P  -3.55e+22     28     331

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -1.82e+22
       Mxy     2.10e+22
       Mxz    -9.24e+21
       Myy     2.17e+22
       Myz     1.80e+22
       Mzz    -3.53e+21




                     --------------
                 ------------------####
              -----   ------------########
             ------ P ------------#########
           --------   -----------############
          -----------------------#############
         -----------------------###############
        #-----------------------###########   ##
        ##---------------------############ T ##
       ####-------------------#############   ###
       ######-----------------###################
       #######---------------####################
       #########------------#####################
        ##########----------####################
        #############------#####################
         ################-#####################
          ###############------###########----
           ##############--------------------
             ###########-------------------
              #########-------------------
                 #####-----------------
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
 -3.53e+21  -9.24e+21  -1.80e+22
 -9.24e+21  -1.82e+22  -2.10e+22
 -1.80e+22  -2.10e+22   2.17e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20070508154649/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 20
      DIP = 85
     RAKE = -35
       MW = 4.30
       HS = 13.0

The NDK file is 20070508154649.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

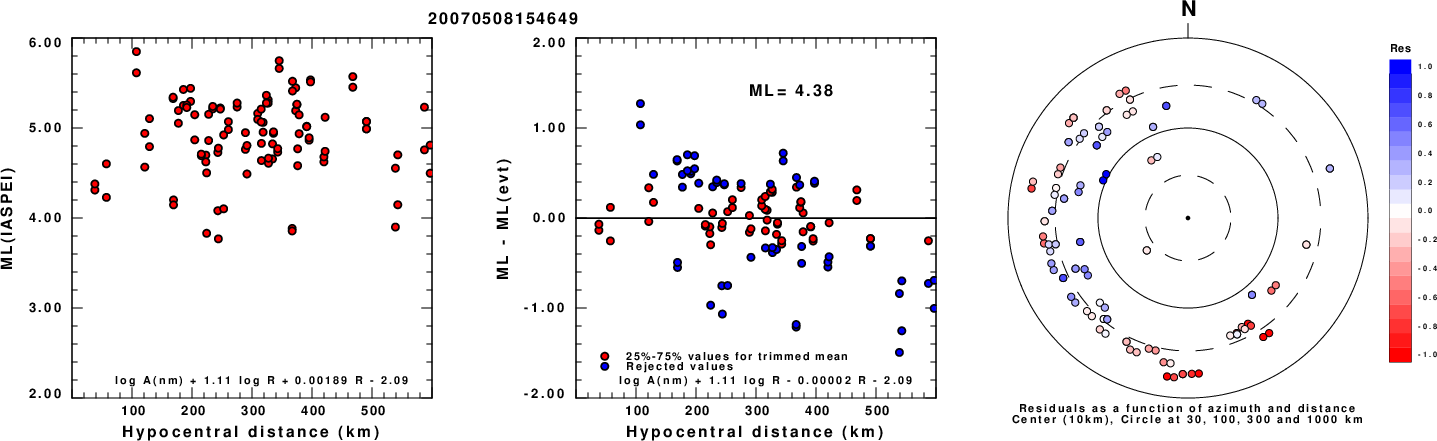

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

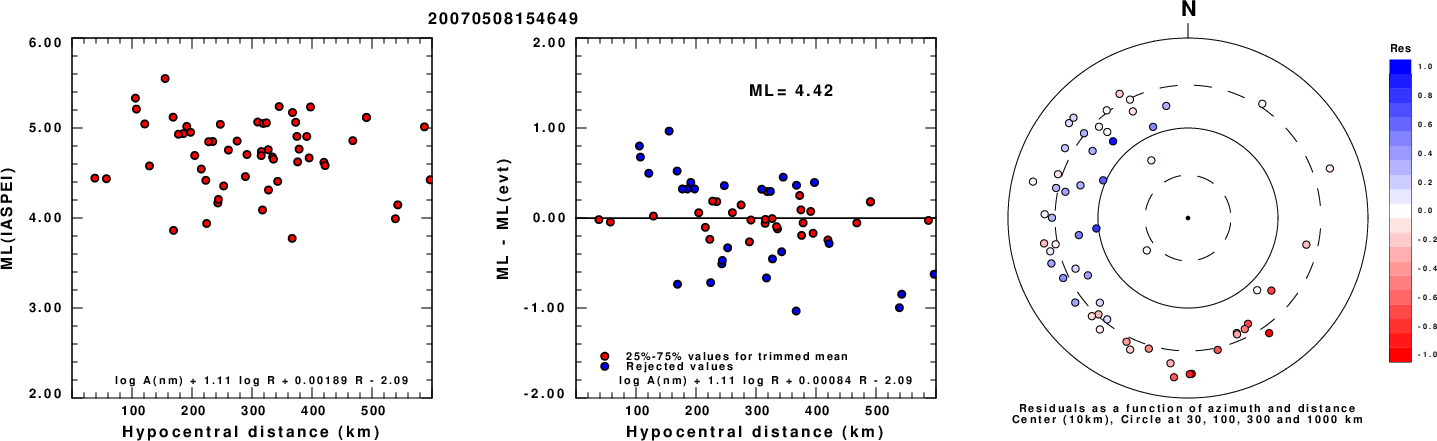

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

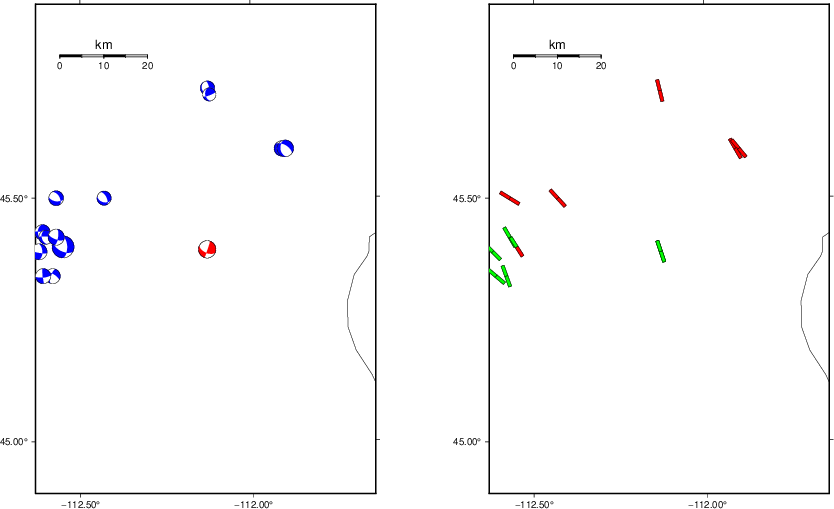

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

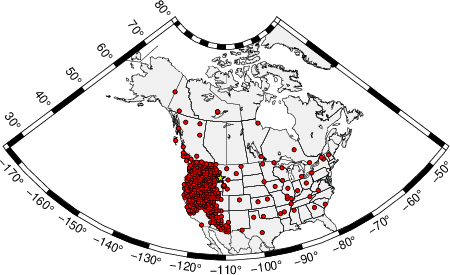

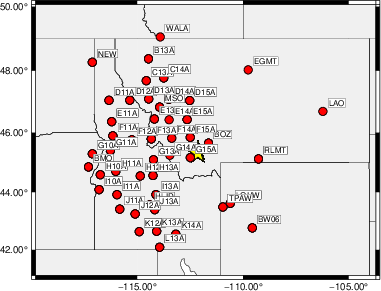

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   355    50   -75   3.97 0.3163
WVFGRD96    2.0    10    65   -55   4.09 0.3828
WVFGRD96    3.0     5    70   -65   4.17 0.4155
WVFGRD96    4.0     5    65   -60   4.18 0.4480
WVFGRD96    5.0     5    65   -60   4.19 0.4711
WVFGRD96    6.0     5    70   -60   4.20 0.4894
WVFGRD96    7.0   355    60   -75   4.22 0.5126
WVFGRD96    8.0   350    60   -80   4.30 0.5687
WVFGRD96    9.0   355    60   -75   4.30 0.5802
WVFGRD96   10.0     0    60   -65   4.30 0.5823
WVFGRD96   11.0    20    85   -35   4.28 0.5836
WVFGRD96   12.0   200    90    30   4.30 0.5873
WVFGRD96   13.0    20    85   -35   4.30 0.5896
WVFGRD96   14.0    20    85   -30   4.31 0.5882
WVFGRD96   15.0   200    90    30   4.32 0.5839
WVFGRD96   16.0   200    90    30   4.33 0.5783
WVFGRD96   17.0   200    90    30   4.33 0.5708
WVFGRD96   18.0    20    85   -30   4.34 0.5646
WVFGRD96   19.0    20    85   -30   4.35 0.5552
WVFGRD96   20.0    20    85   -30   4.35 0.5447
WVFGRD96   21.0    20    85   -30   4.36 0.5348
WVFGRD96   22.0    20    85   -30   4.37 0.5240
WVFGRD96   23.0    20    85   -30   4.37 0.5126
WVFGRD96   24.0    20    85   -30   4.38 0.5013
WVFGRD96   25.0    20    85   -30   4.38 0.4892
WVFGRD96   26.0    20    85   -25   4.39 0.4778
WVFGRD96   27.0    20    85   -25   4.40 0.4658
WVFGRD96   28.0    20    85   -25   4.40 0.4535
WVFGRD96   29.0    20    85   -25   4.41 0.4407

The best solution is

WVFGRD96   13.0    20    85   -35   4.30 0.5896

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

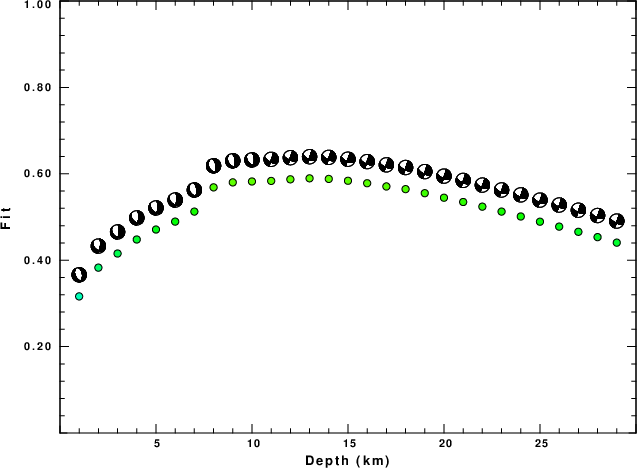

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

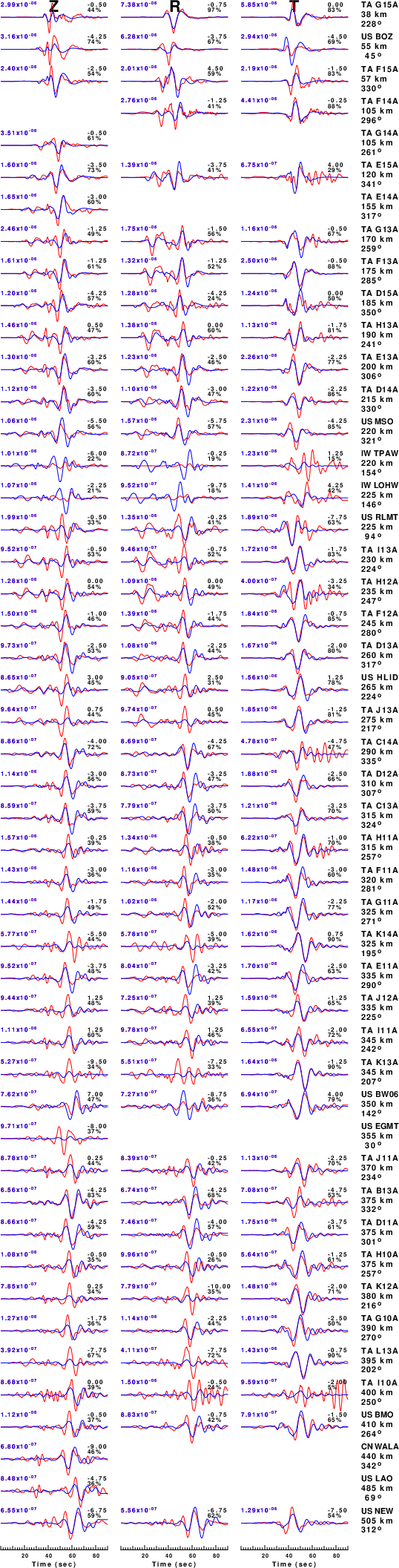

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

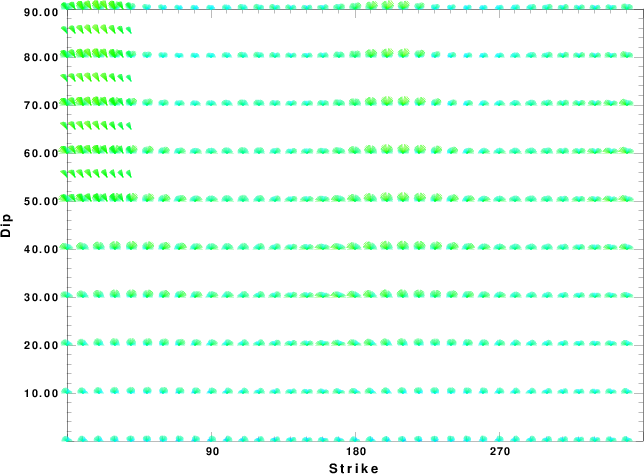

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

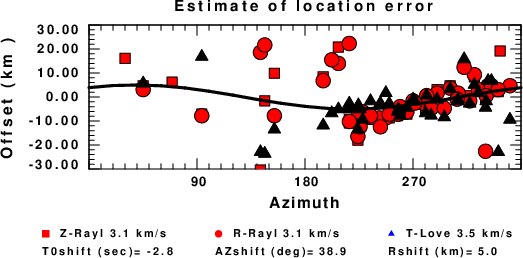

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Surface-Wave Focal Mechanism

The following figure shows the stations used in the grid search for the best focal mechanism to fit the surface-wave spectral amplitudes of the Love and Rayleigh waves.
Location of broadband stations used to obtain focal mechanism from surface-wave spectral amplitudes

The surface-wave determined focal mechanism is shown here.


  NODAL PLANES


  STK=     359.71
  DIP=      54.60
 RAKE=     -60.17

             OR

  STK=     134.99
  DIP=      45.00
 RAKE=    -124.99


DEPTH = 8.0 km

Mw = 4.40
Best Fit 0.8673 - P-T axis plot gives solutions with FIT greater than FIT90

Surface-wave analysis

Surface wave analysis was performed using codes from Computer Programs in Seismology, specifically the multiple filter analysis program do_mft and the surface-wave radiation pattern search program srfgrd96.

Data preparation

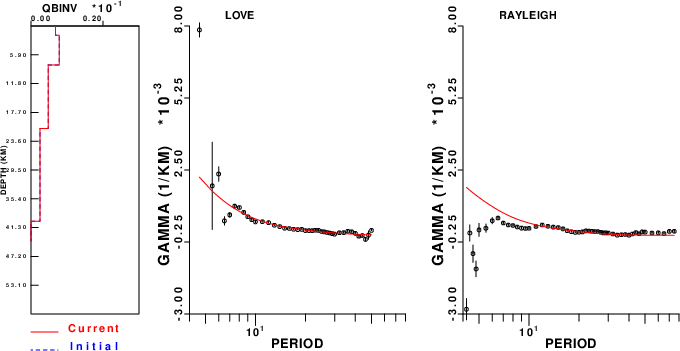

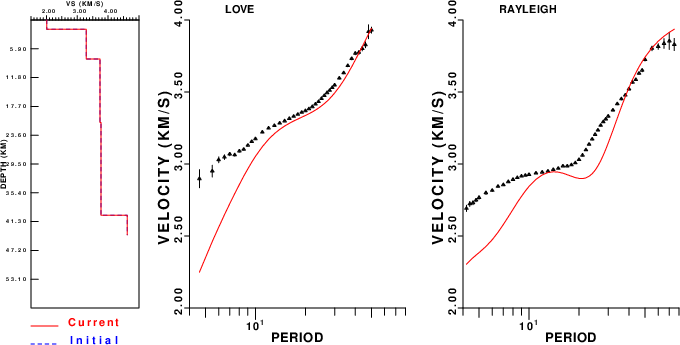

Digital data were collected, instrument response removed and traces converted to Z, R an T components. Multiple filter analysis was applied to the Z and T traces to obtain the Rayleigh- and Love-wave spectral amplitudes, respectively. These were input to the search program which examined all depths between 1 and 25 km and all possible mechanisms.

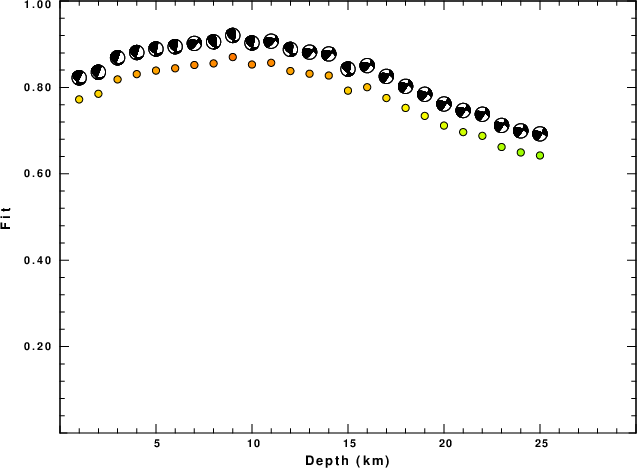

Best mechanism fit as a function of depth. The preferred depth is given above. Lower hemisphere projection

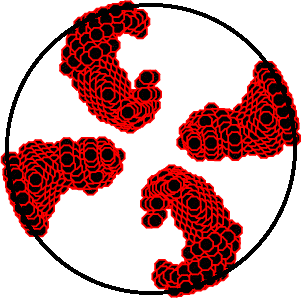

Pressure-tension axis trends. Since the surface-wave spectra search does not distinguish between P and T axes and since there is a 180 ambiguity in strike, all possible P and T axes are plotted. First motion data and waveforms will be used to select the preferred mechanism. The purpose of this plot is to provide an idea of the possible range of solutions. The P and T-axes for all mechanisms with goodness of fit greater than 0.9 FITMAX (above) are plotted here.

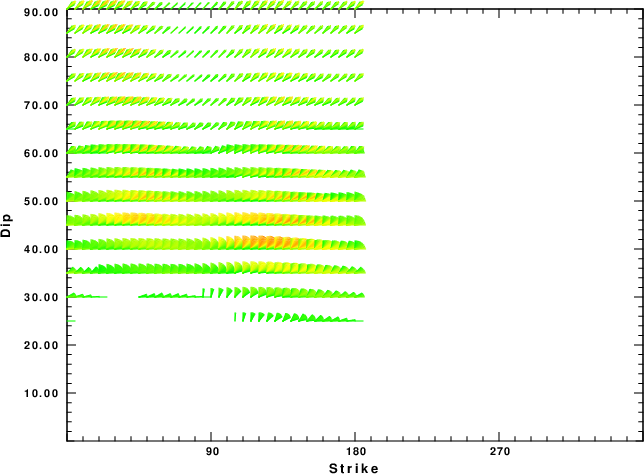

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the Love and Rayleigh wave radiation patterns. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. Because of the symmetry of the spectral amplitude rediation patterns, only strikes from 0-180 degrees are sampled.

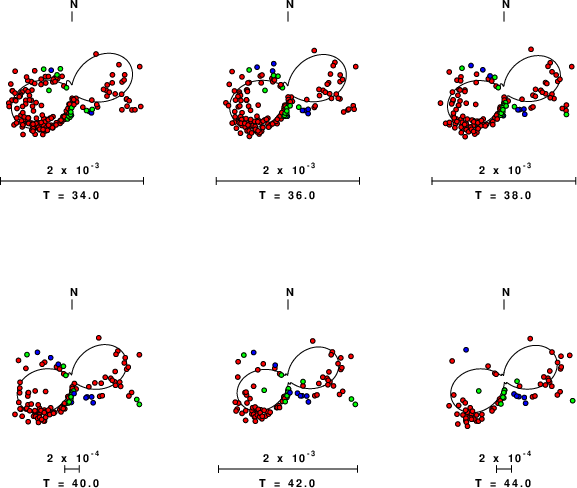

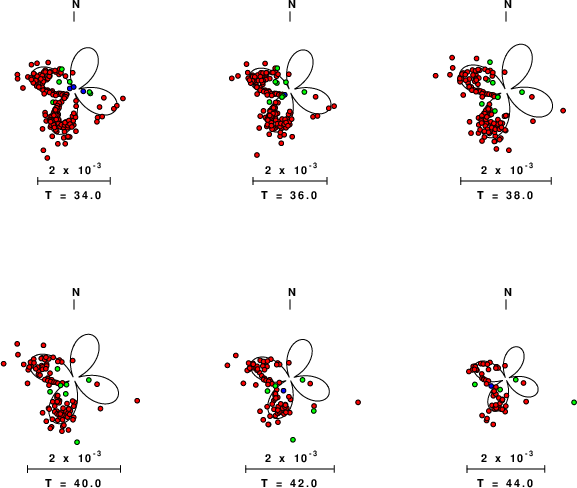

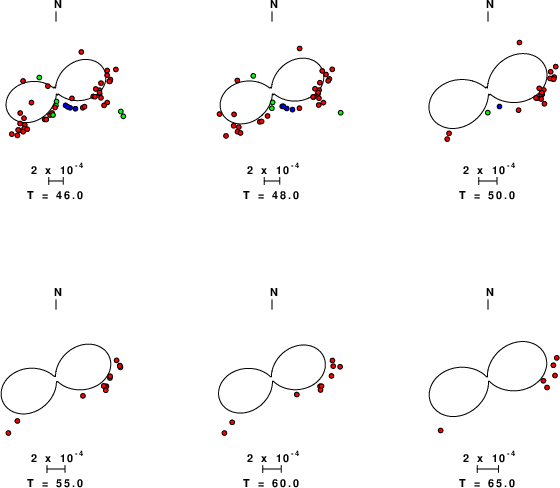

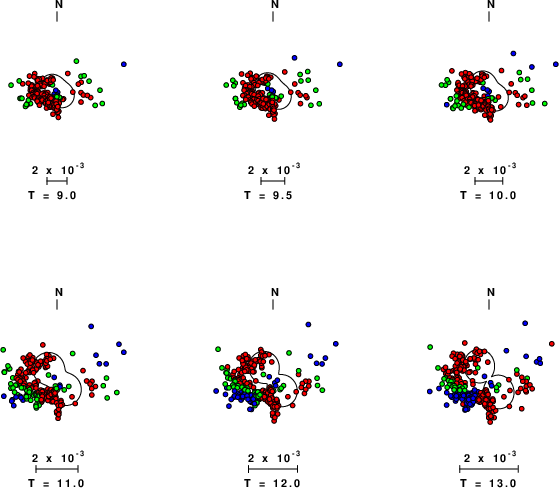

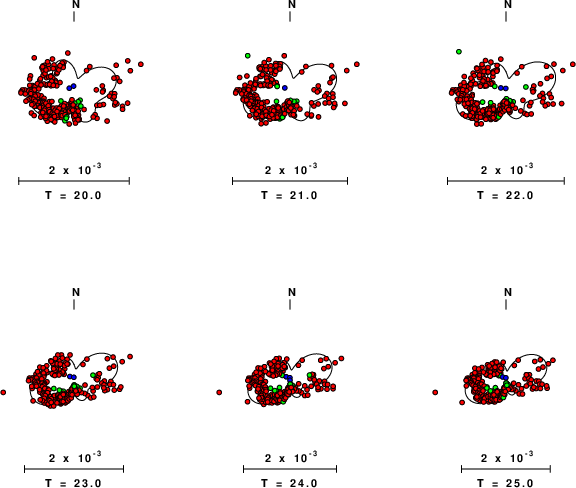

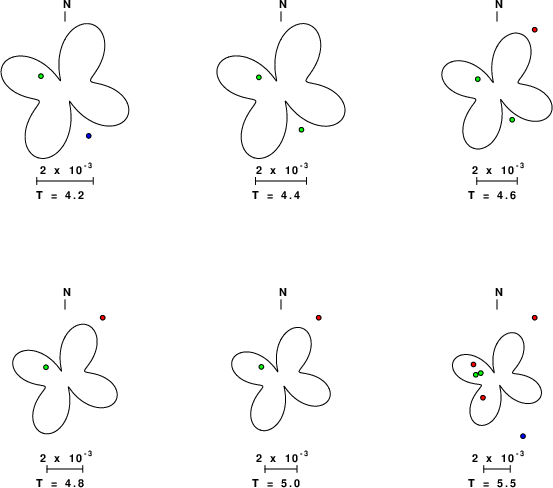

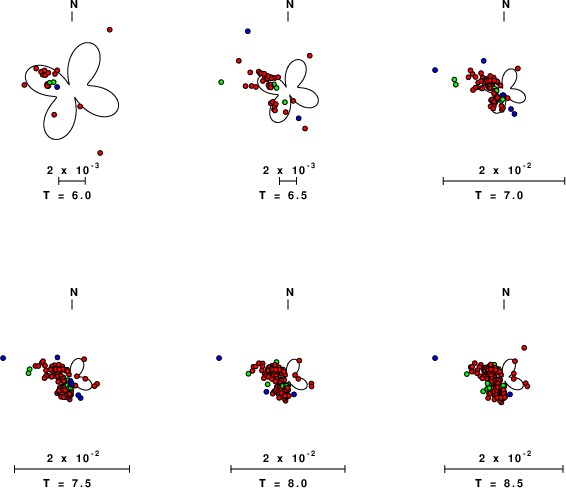

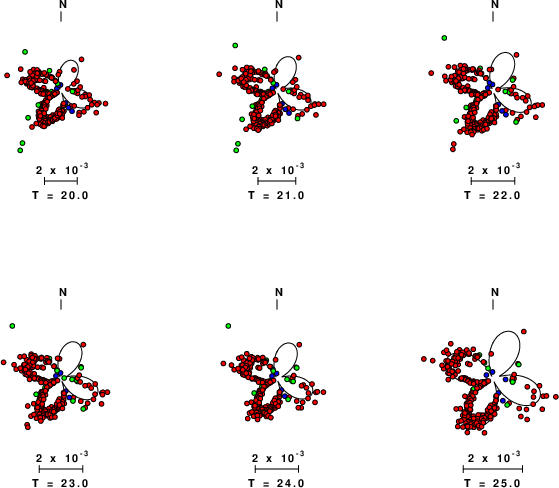

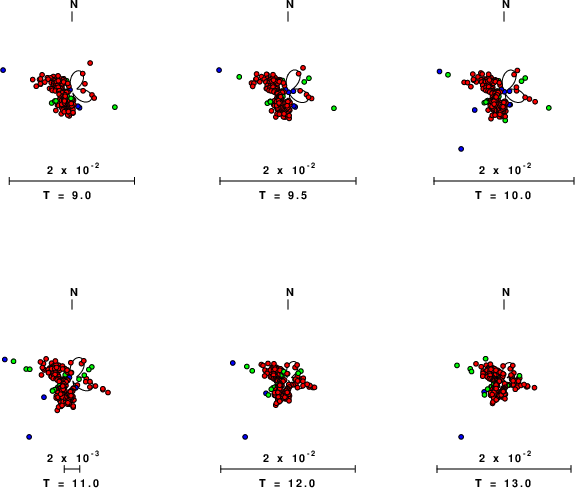

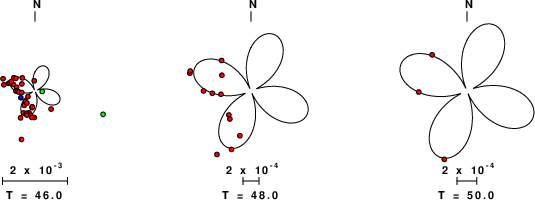

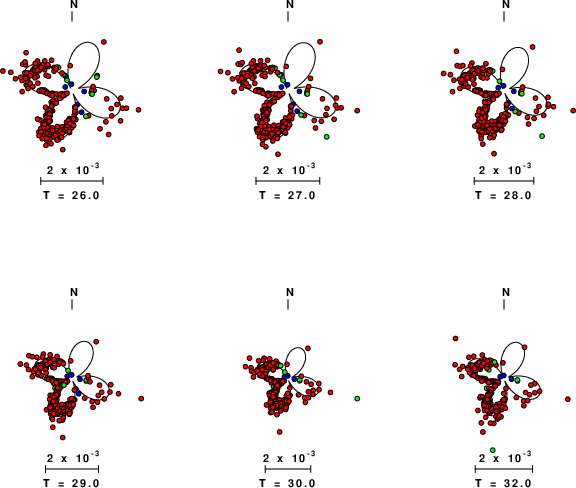

Love-wave radiation patterns

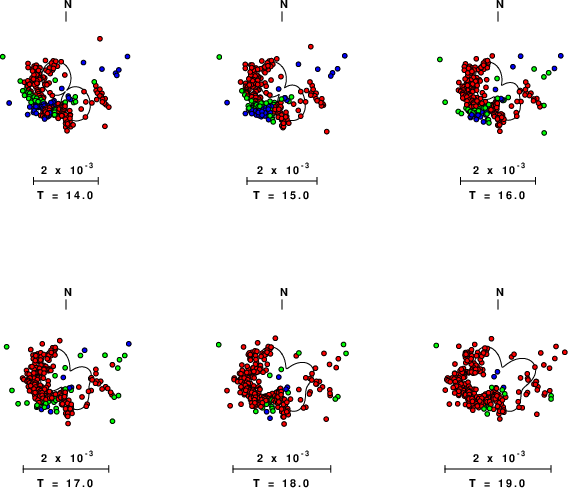

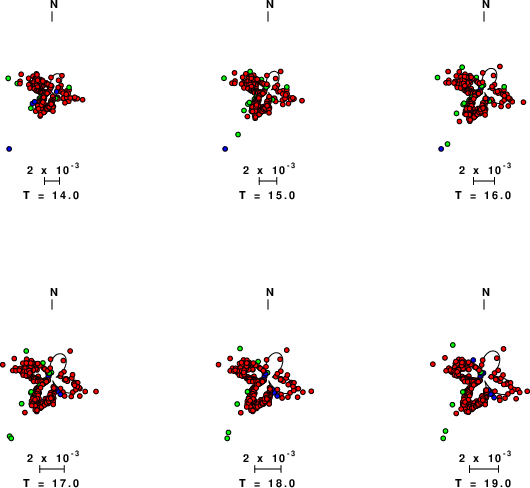

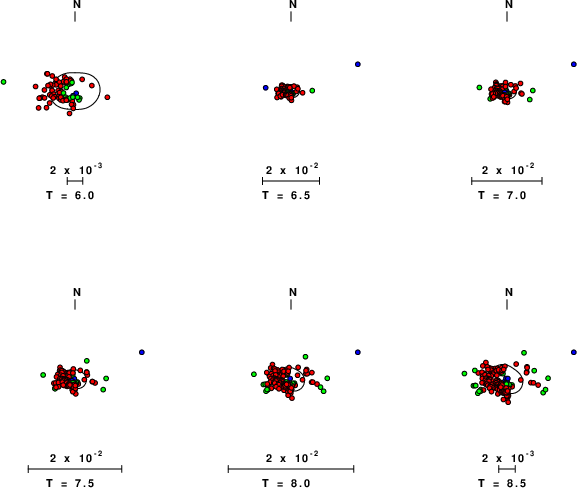

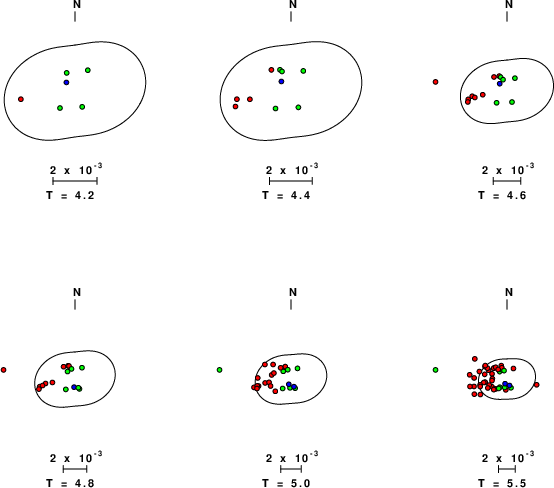

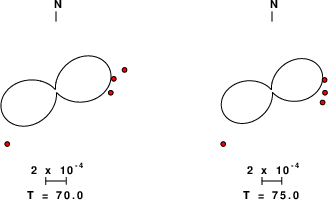

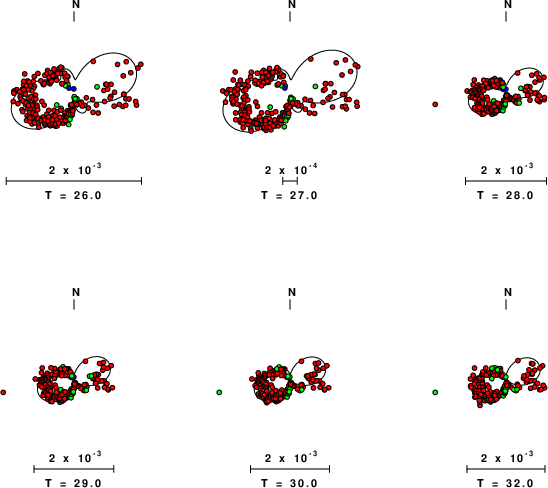

Rayleigh-wave radiation patterns
