Location

Location ANSS

The ANSS event ID is ld2006022500 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ld2006022500/executive.

2006/02/25 01:39:22 45.627 -75.200 10.6 3.96 Quebec, Canada

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2006/02/25 01:39:22:0  45.63  -75.20  10.6 4.0 Quebec, Canada

 Stations used:
   CN.ALFO CN.GAC CN.MNT CN.OTT

 Filtering commands used:
   cut o DIST/3.3 -10 o DIST/3.3 +10
   rtr
   taper w 0.1
   hp c 0.12 n 3
   lp c 0.50 n 3

 Best Fitting Double Couple
  Mo = 3.51e+21 dyne-cm
  Mw = 3.63
  Z  = 18 km
  Plane   Strike  Dip  Rake
   NP1      332    45    95
   NP2      145    45    85
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   3.51e+21     86     327
    N   0.00e+00      4     149
    P  -3.51e+21      0      59

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -9.46e+20
       Mxy    -1.57e+21
       Mxz     1.77e+20
       Myy    -2.55e+21
       Myz    -1.24e+20
       Mzz     3.49e+21




                     --------------
                 #######---------------
              -#############--------------
             --################------------
           ---###################-----------
          ----#####################--------- P
         -----######################--------
        ------#######################-----------
        ------########################----------
       --------###########   ##########----------
       --------########### T ###########---------
       ---------##########   ###########---------
       ----------########################--------
        ----------#######################-------
        -----------######################-------
         -----------#####################------
          ------------###################-----
           -------------#################----
             --------------#############---
              ----------------#########---
                 ---------------------#
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
  3.49e+21   1.77e+20   1.24e+20
  1.77e+20  -9.46e+20   1.57e+21
  1.24e+20   1.57e+21  -2.55e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20060225013922/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 145
      DIP = 45
     RAKE = 85
       MW = 3.63
       HS = 18.0

The NDK file is 20060225013922.ndk The waveform inversion is preferred.

Context

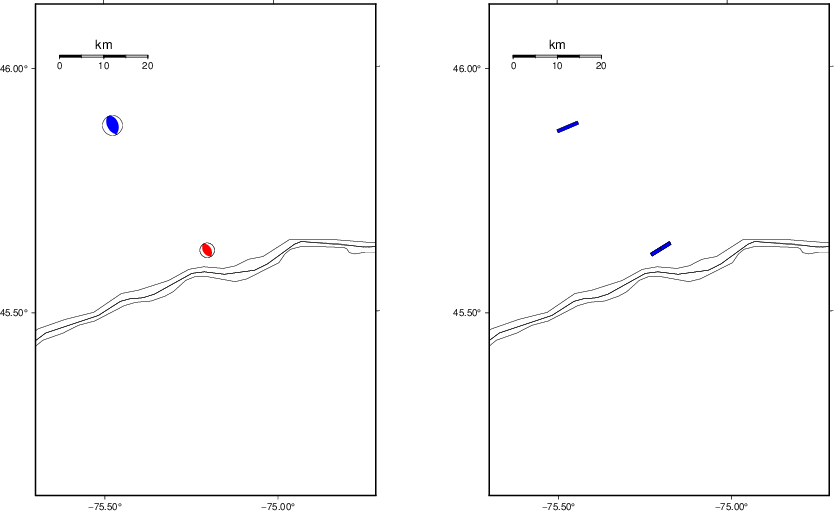

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -10 o DIST/3.3 +10
rtr
taper w 0.1
hp c 0.12 n 3
lp c 0.50 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   230    65    45   3.30 0.4607
WVFGRD96    2.0   220    70    40   3.25 0.4490
WVFGRD96    3.0   235    60    75   3.31 0.4162
WVFGRD96    4.0   240    55    85   3.37 0.3818
WVFGRD96    5.0   225    35  -100   3.39 0.3695
WVFGRD96    6.0   250    35   -65   3.41 0.3557
WVFGRD96    7.0   260    35   -45   3.42 0.3573
WVFGRD96    8.0    85    35   -55   3.47 0.3885
WVFGRD96    9.0    65    35   -80   3.50 0.3750
WVFGRD96   10.0    65    30   -80   3.54 0.3928
WVFGRD96   11.0   150    55    90   3.56 0.4270
WVFGRD96   12.0   150    45    80   3.57 0.4406
WVFGRD96   13.0   150    50    80   3.59 0.4841
WVFGRD96   14.0   145    50    75   3.60 0.5114
WVFGRD96   15.0   145    50    85   3.61 0.5162
WVFGRD96   16.0   145    50    80   3.62 0.5429
WVFGRD96   17.0   330    40    90   3.62 0.5117
WVFGRD96   18.0   145    45    85   3.63 0.5455
WVFGRD96   19.0   145    45    80   3.61 0.5056
WVFGRD96   20.0   140    45    85   3.63 0.4929
WVFGRD96   21.0   145    45    90   3.64 0.4881
WVFGRD96   22.0   135    40    60   3.63 0.4729
WVFGRD96   23.0   155    35    15   3.73 0.4700
WVFGRD96   24.0   150    30    10   3.75 0.4501
WVFGRD96   25.0   155    30    15   3.74 0.4852
WVFGRD96   26.0   155    30    15   3.74 0.4920
WVFGRD96   27.0   150    30    10   3.75 0.4855
WVFGRD96   28.0   150    35    10   3.75 0.4706
WVFGRD96   29.0   150    40    10   3.74 0.4442

The best solution is

WVFGRD96   18.0   145    45    85   3.63 0.5455

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

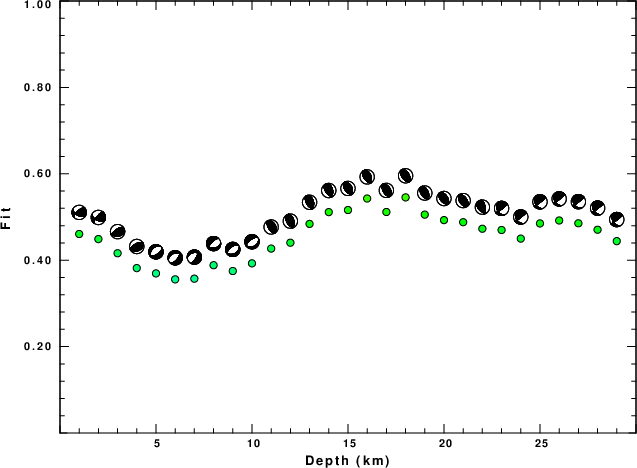

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

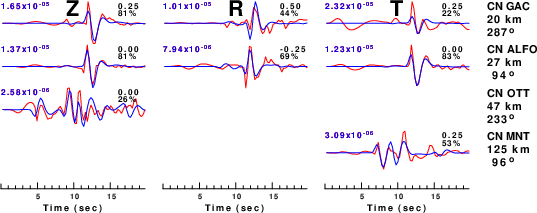

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -10 o DIST/3.3 +10
rtr
taper w 0.1
hp c 0.12 n 3
lp c 0.50 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

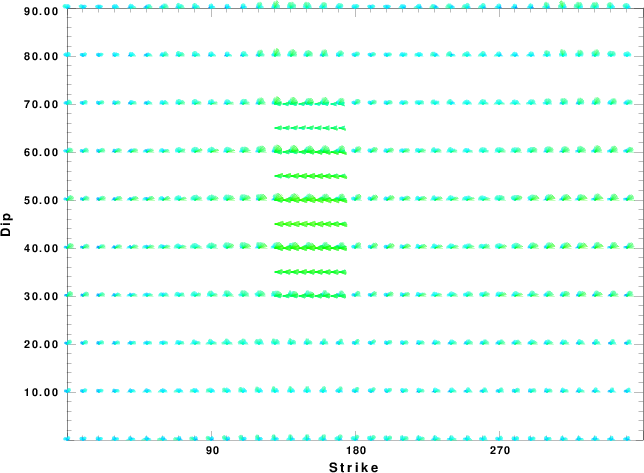

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

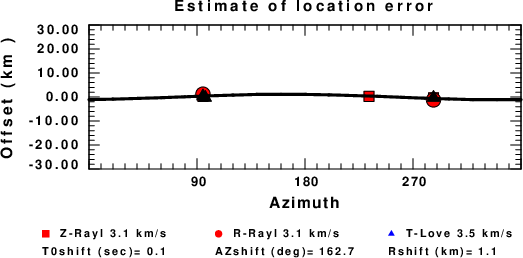

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The CUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
CUS Model with Q from simple gamma values
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
  H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC)   QP   QS  ETAP  ETAS  FREFP  FREFS
  1.0000  5.0000  2.8900  2.5000 0.172E-02 0.387E-02 0.00  0.00  1.00  1.00
  9.0000  6.1000  3.5200  2.7300 0.160E-02 0.363E-02 0.00  0.00  1.00  1.00
 10.0000  6.4000  3.7000  2.8200 0.149E-02 0.336E-02 0.00  0.00  1.00  1.00
 20.0000  6.7000  3.8700  2.9020 0.000E-04 0.000E-04 0.00  0.00  1.00  1.00
  0.0000  8.1500  4.7000  3.3640 0.194E-02 0.431E-02 0.00  0.00  1.00  1.00
