The ANSS event ID is usp000c7ec and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/usp000c7ec/executive.
2003/09/13 15:22:41 36.831 -104.907 5.0 3.8 New Mexico
USGS/SLU Moment Tensor Solution ENS 2003/09/13 15:22:41:0 36.83 -104.91 5.0 3.8 New Mexico Stations used: _.ISCO IU.ANMO US.CBKS US.SDCO US.WMOK US.WUAZ UU.SRU XL.KNTH XL.ZIZZ Filtering commands used: cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 br c 0.12 0.25 n 4 p 2 Best Fitting Double Couple Mo = 6.53e+21 dyne-cm Mw = 3.81 Z = 10 km Plane Strike Dip Rake NP1 310 90 35 NP2 220 55 180 Principal Axes: Axis Value Plunge Azimuth T 6.53e+21 24 181 N 0.00e+00 55 310 P -6.53e+21 24 79 Moment Tensor: (dyne-cm) Component Value Mxx 5.27e+21 Mxy -9.29e+20 Mxz -2.87e+21 Myy -5.27e+21 Myz -2.41e+21 Mzz -3.28e+14 ############## ###################### #######################----- ###################----------- ---##############----------------- ------##########-------------------- ---------######----------------------- ------------##-------------------------- ------------##-------------------- --- ------------######----------------- P ---- -----------#########--------------- ---- ----------############-------------------- ---------###############------------------ -------###################-------------- -------#####################------------ -----########################--------- ----##########################------ ---############################--- -############ ############## -########### T ############# ######### ########## ############## Global CMT Convention Moment Tensor: R T P -3.28e+14 -2.87e+21 2.41e+21 -2.87e+21 5.27e+21 9.29e+20 2.41e+21 9.29e+20 -5.27e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20030913152241/index.html |
STK = 310 DIP = 90 RAKE = 35 MW = 3.81 HS = 10.0
The NDK file is 20030913152241.ndk The waveform inversion is preferred.
![]() |

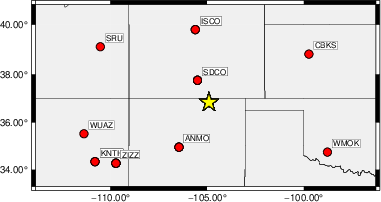

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
![]() |
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 br c 0.12 0.25 n 4 p 2The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT WVFGRD96 1.0 305 70 20 3.47 0.3347 WVFGRD96 2.0 315 60 30 3.64 0.5191 WVFGRD96 3.0 310 70 20 3.65 0.5772 WVFGRD96 4.0 310 85 25 3.67 0.6238 WVFGRD96 5.0 125 85 -30 3.72 0.6574 WVFGRD96 6.0 120 60 -40 3.75 0.6735 WVFGRD96 7.0 120 65 -35 3.77 0.6922 WVFGRD96 8.0 130 90 -40 3.79 0.6915 WVFGRD96 9.0 130 90 -40 3.81 0.6995 WVFGRD96 10.0 310 90 35 3.81 0.7036 WVFGRD96 11.0 310 90 35 3.82 0.7028 WVFGRD96 12.0 130 90 -25 3.82 0.7018 WVFGRD96 13.0 310 90 25 3.83 0.7016 WVFGRD96 14.0 130 85 -25 3.84 0.7002 WVFGRD96 15.0 315 85 25 3.84 0.6972 WVFGRD96 16.0 130 85 -25 3.86 0.6974 WVFGRD96 17.0 135 90 -25 3.86 0.6984 WVFGRD96 18.0 315 90 25 3.87 0.6981 WVFGRD96 19.0 135 90 -25 3.88 0.6981 WVFGRD96 20.0 135 85 -25 3.89 0.6985 WVFGRD96 21.0 135 85 -25 3.90 0.6989 WVFGRD96 22.0 135 85 -25 3.91 0.6988 WVFGRD96 23.0 135 85 -20 3.91 0.7006 WVFGRD96 24.0 135 80 -25 3.93 0.7015 WVFGRD96 25.0 135 80 -25 3.94 0.7009 WVFGRD96 26.0 135 80 -25 3.94 0.6980 WVFGRD96 27.0 135 80 -25 3.95 0.6927 WVFGRD96 28.0 135 80 -25 3.96 0.6874 WVFGRD96 29.0 135 80 -25 3.97 0.6800
The best solution is
WVFGRD96 10.0 310 90 35 3.81 0.7036
The mechanism corresponding to the best fit is
![]() |
|

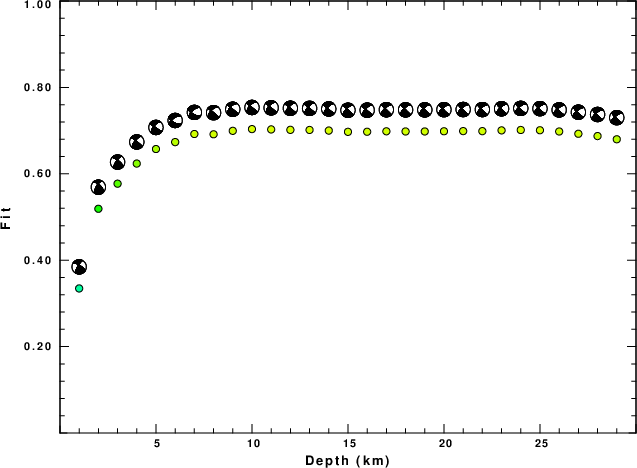

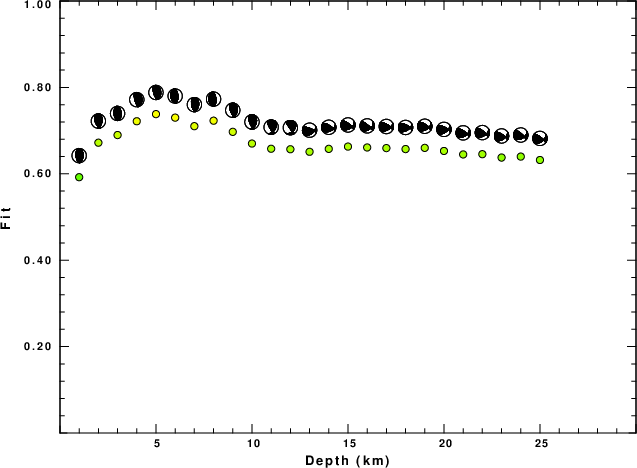

The best fit as a function of depth is given in the following figure:
![]() |
|
The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 br c 0.12 0.25 n 4 p 2
![]() |

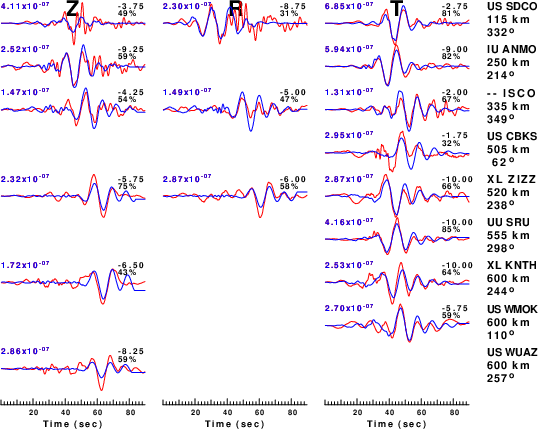

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample. |
![]() |

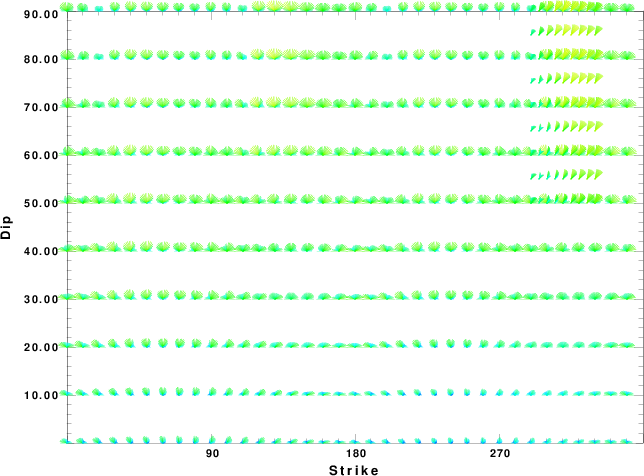

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

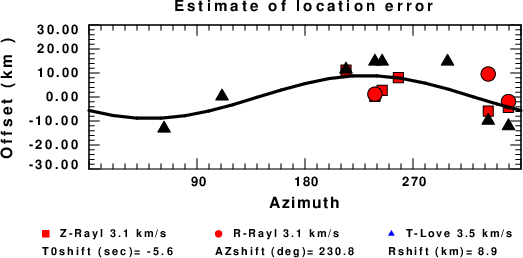

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

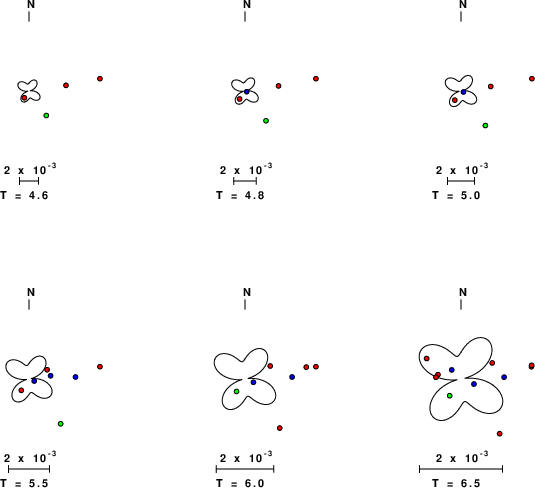

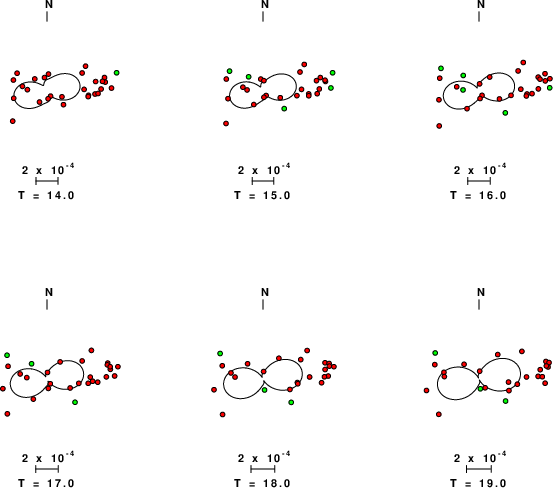

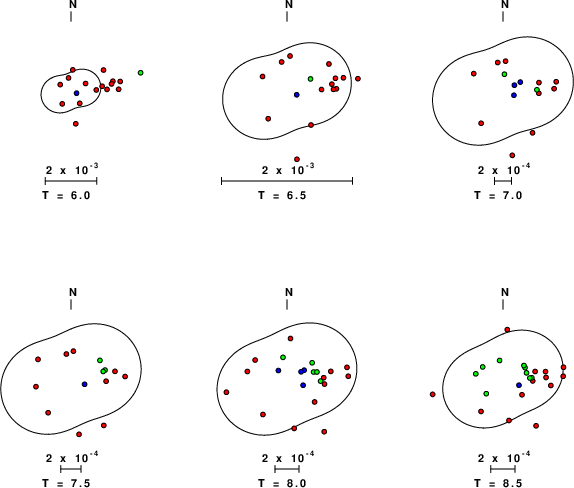

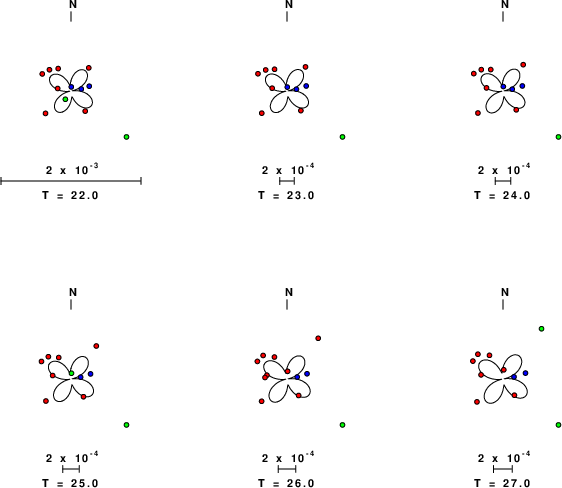

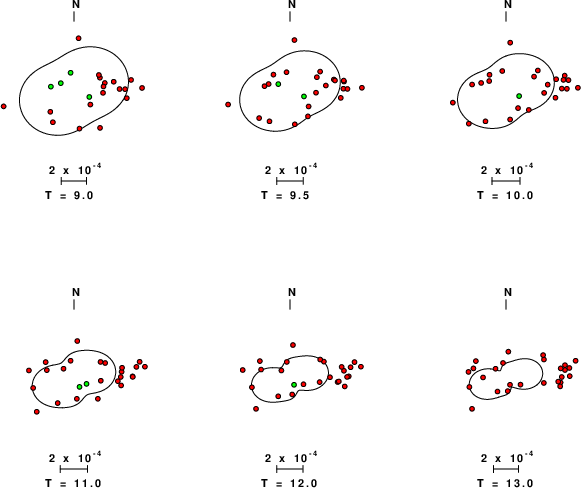

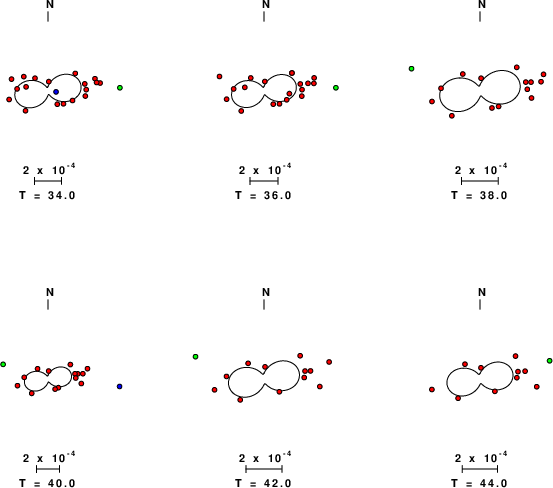

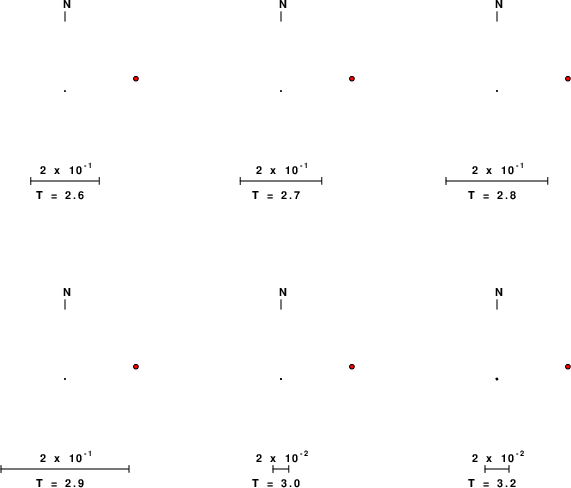

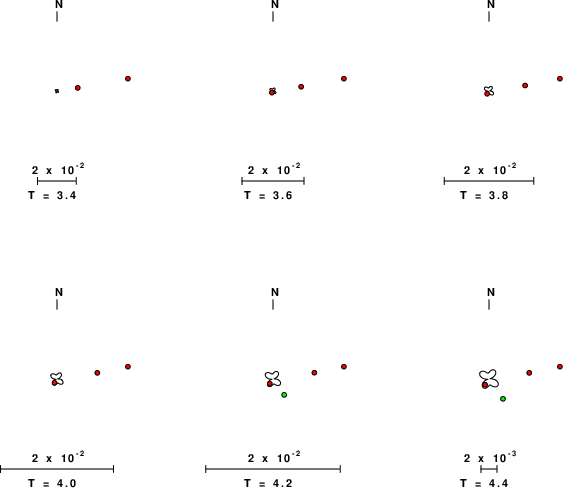

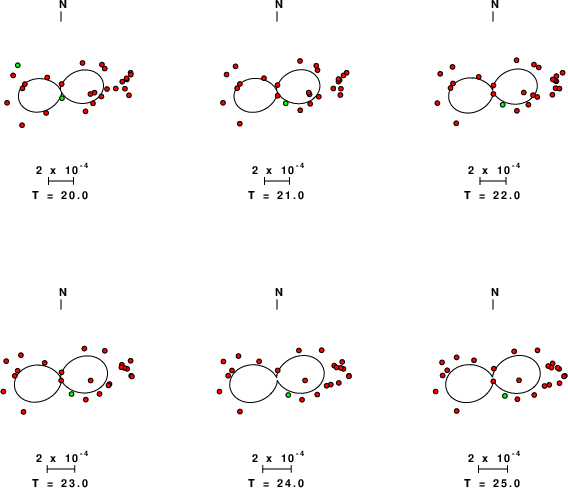

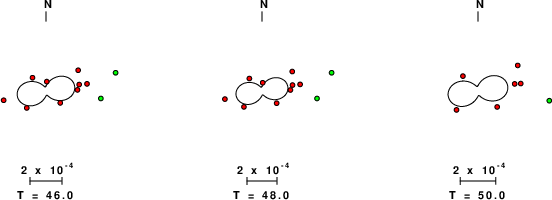

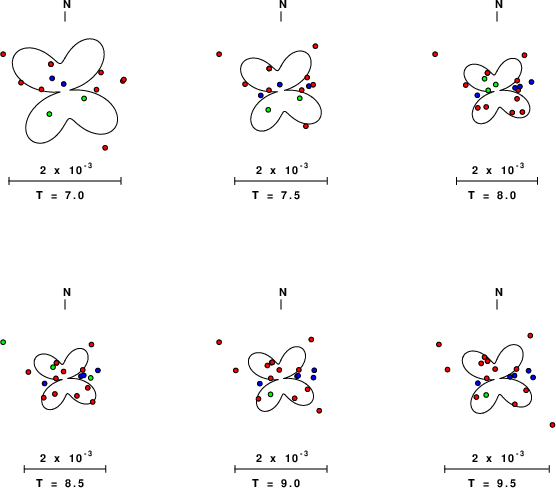

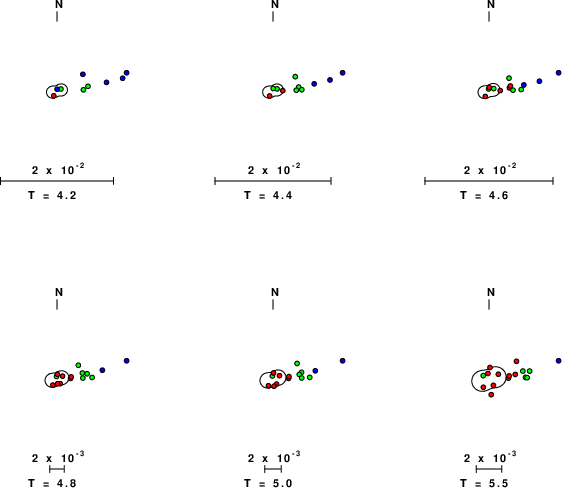

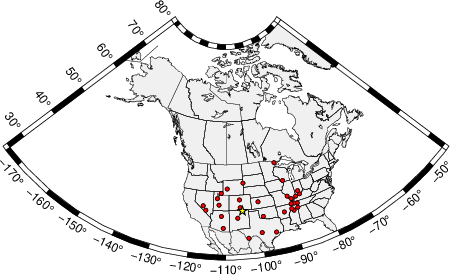

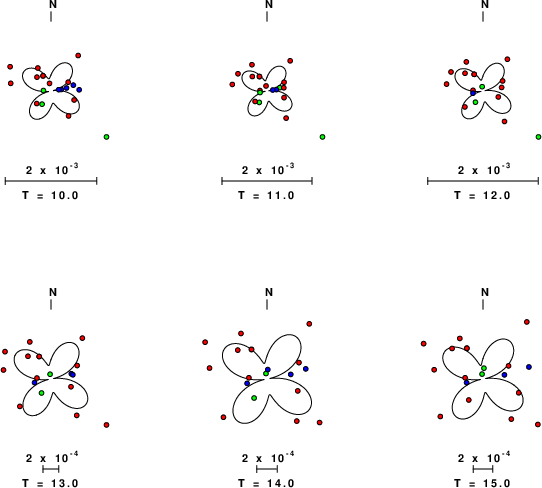

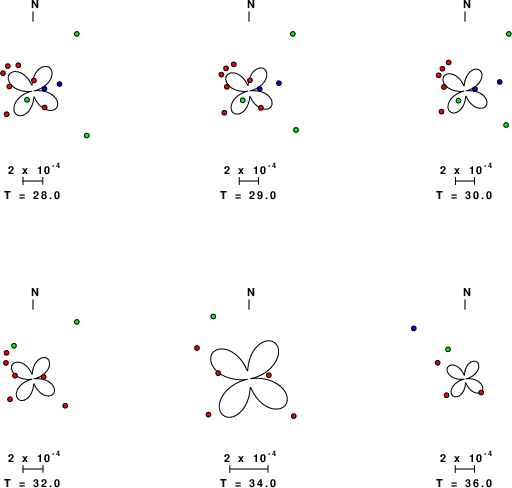

The following figure shows the stations used in the grid search for the best focal mechanism to fit the surface-wave spectral amplitudes of the Love and Rayleigh waves.
![]() |
|
The surface-wave determined focal mechanism is shown here.
NODAL PLANES STK= 164.99 DIP= 60.00 RAKE= -94.99 OR STK= 354.90 DIP= 30.38 RAKE= -81.43 DEPTH = 05.0 km Mw = 3.98 Best Fit 0.7383 - P-T axis plot gives solutions with FIT greater than FIT90
![]() |

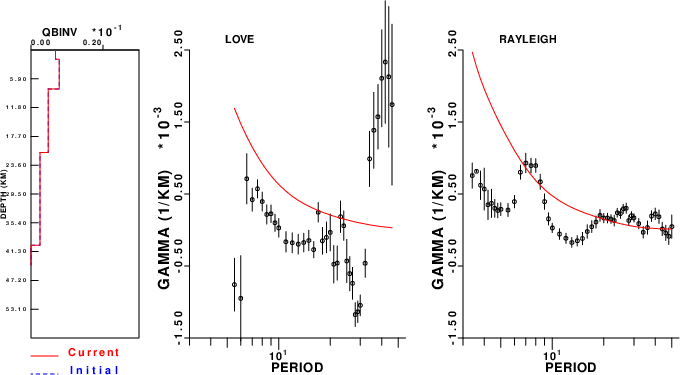

Surface wave analysis was performed using codes from Computer Programs in Seismology, specifically the multiple filter analysis program do_mft and the surface-wave radiation pattern search program srfgrd96.
Digital data were collected, instrument response removed and traces converted
to Z, R an T components. Multiple filter analysis was applied to the Z and T traces to obtain the Rayleigh- and Love-wave spectral amplitudes, respectively.
These were input to the search program which examined all depths between 1 and 25 km
and all possible mechanisms.
![]() |
|
![]() |

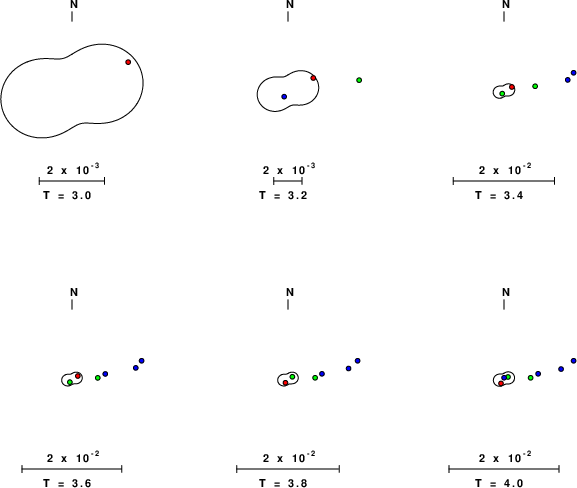

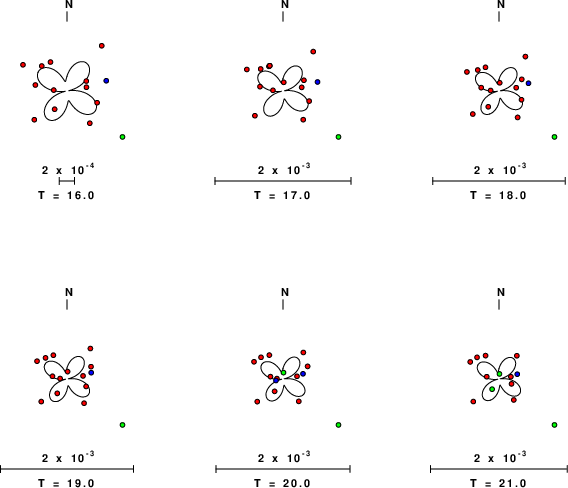

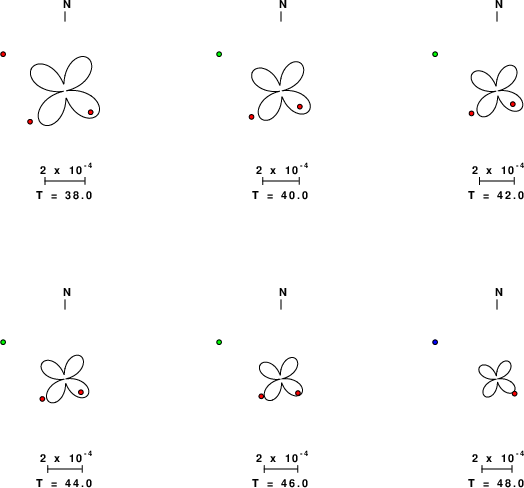

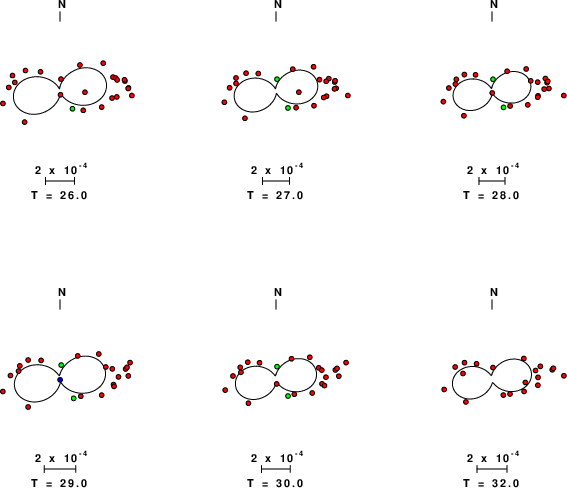

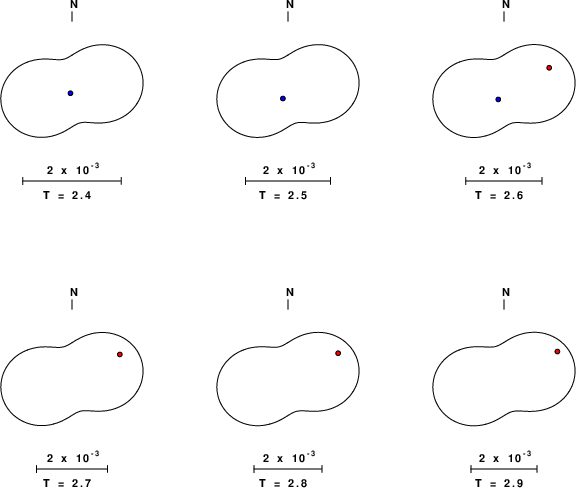

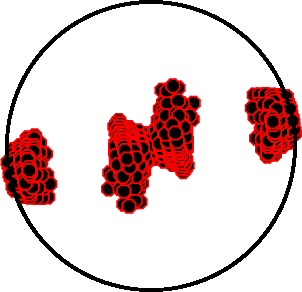

Pressure-tension axis trends. Since the surface-wave spectra search does not distinguish between P and T axes and since there is a 180 ambiguity in strike, all possible P and T axes are plotted. First motion data and waveforms will be used to select the preferred mechanism. The purpose of this plot is to provide an idea of the possible range of solutions. The P and T-axes for all mechanisms with goodness of fit greater than 0.9 FITMAX (above) are plotted here. |
![]() |

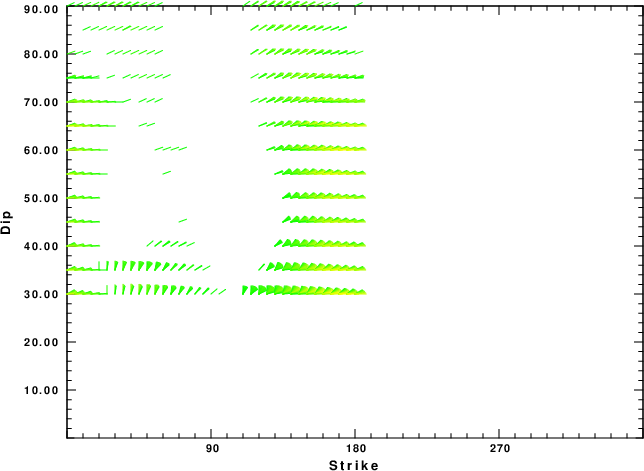

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the Love and Rayleigh wave radiation patterns. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. Because of the symmetry of the spectral amplitude rediation patterns, only strikes from 0-180 degrees are sampled. |
![]() |
![]() |

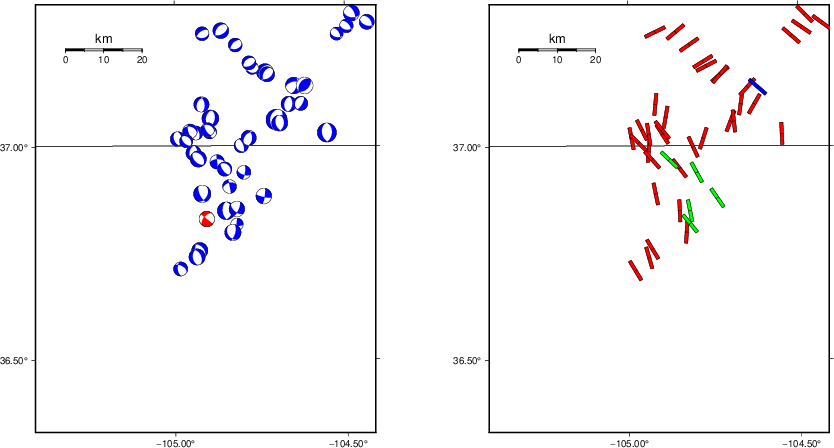

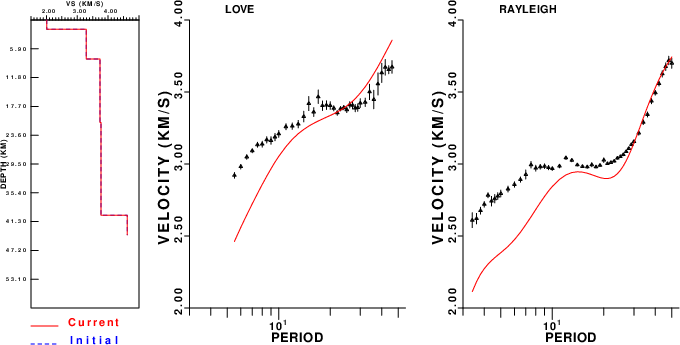

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
