The ANSS event ID is usp000bg0f and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/usp000bg0f/executive.
2002/11/03 20:41:56 42.768 -98.896 5.0 4.3 Nebraska
USGS/SLU Moment Tensor Solution
ENS 2002/11/03 20:41:56:0 42.77 -98.90 5.0 4.3 Nebraska
Stations used:
US.CBKS US.ISCO US.RSSD
Filtering commands used:
cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 9.23e+21 dyne-cm
Mw = 3.91
Z = 9 km
Plane Strike Dip Rake
NP1 236 76 -122
NP2 125 35 -25
Principal Axes:
Axis Value Plunge Azimuth
T 9.23e+21 24 350
N 0.00e+00 31 245
P -9.23e+21 49 111
Moment Tensor: (dyne-cm)
Component Value
Mxx 6.97e+21
Mxy 8.12e+19
Mxz 5.02e+21
Myy -3.30e+21
Myz -4.85e+21
Mzz -3.66e+21
##############
####### ############
########## T ###############
########### ################
##################################
-#############################------
-#########################------------
--######################----------------
--###################-------------------
----###############-----------------------
----############--------------------------
-----#########----------------------------
------######----------------- ----------
------###------------------- P ---------
---------------------------- ---------
----####------------------------------
--#######---------------------------
###########-----------------------
############-----------------#
############################
######################
##############
Global CMT Convention Moment Tensor:
R T P
-3.66e+21 5.02e+21 4.85e+21
5.02e+21 6.97e+21 -8.12e+19
4.85e+21 -8.12e+19 -3.30e+21
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20021103204156/index.html
|
STK = 125
DIP = 35
RAKE = -25
MW = 3.91
HS = 9.0
The NDK file is 20021103204156.ndk The waveform inversion is preferred.
|

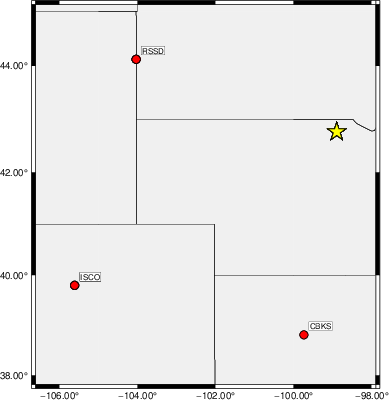

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 1.0 45 35 85 3.88 0.5204
WVFGRD96 2.0 30 30 70 3.98 0.4820
WVFGRD96 3.0 215 15 75 3.95 0.4426
WVFGRD96 4.0 140 25 5 3.90 0.4747
WVFGRD96 5.0 140 30 5 3.89 0.5003
WVFGRD96 6.0 135 30 -5 3.89 0.5198
WVFGRD96 7.0 130 30 -15 3.90 0.5343
WVFGRD96 8.0 130 35 -15 3.90 0.5430
WVFGRD96 9.0 125 35 -25 3.91 0.5484
WVFGRD96 10.0 125 35 -25 3.94 0.5456
WVFGRD96 11.0 120 35 -35 3.96 0.5425
WVFGRD96 12.0 45 45 -80 4.00 0.5436
WVFGRD96 13.0 50 50 -75 4.00 0.5464
WVFGRD96 14.0 50 50 -75 4.00 0.5443
WVFGRD96 15.0 50 50 -75 4.00 0.5384
WVFGRD96 16.0 50 50 -70 4.01 0.5296
WVFGRD96 17.0 50 50 -70 4.01 0.5186
WVFGRD96 18.0 50 50 -75 4.02 0.5052
WVFGRD96 19.0 50 50 -70 4.03 0.4896
WVFGRD96 20.0 45 50 -75 4.05 0.4739
WVFGRD96 21.0 45 50 -75 4.06 0.4586
WVFGRD96 22.0 45 50 -75 4.06 0.4419
WVFGRD96 23.0 50 55 -70 4.06 0.4246
WVFGRD96 24.0 50 55 -70 4.07 0.4067
WVFGRD96 25.0 45 55 -75 4.07 0.3885
WVFGRD96 26.0 45 55 -75 4.07 0.3703
WVFGRD96 27.0 200 40 -110 4.08 0.3523
WVFGRD96 28.0 5 50 -85 4.07 0.3346
WVFGRD96 29.0 5 50 -85 4.07 0.3175
The best solution is
WVFGRD96 9.0 125 35 -25 3.91 0.5484
The mechanism corresponding to the best fit is
|
|
|

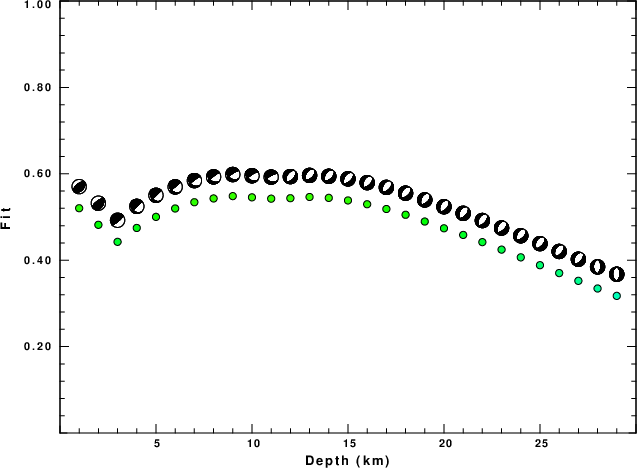

The best fit as a function of depth is given in the following figure:
|
|
|

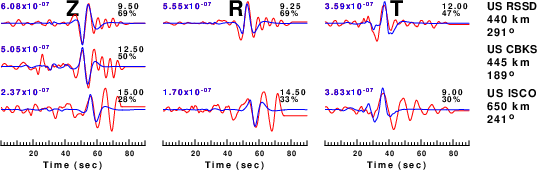

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3
|
| Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample. |
|

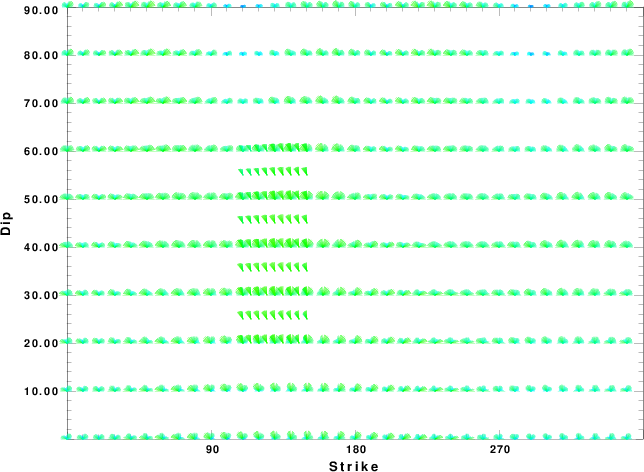

| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

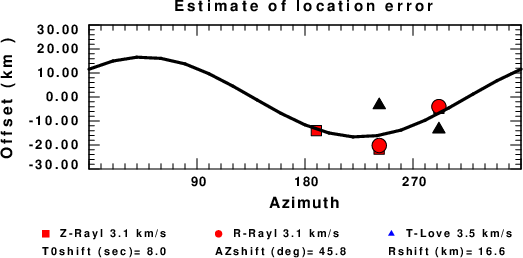

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

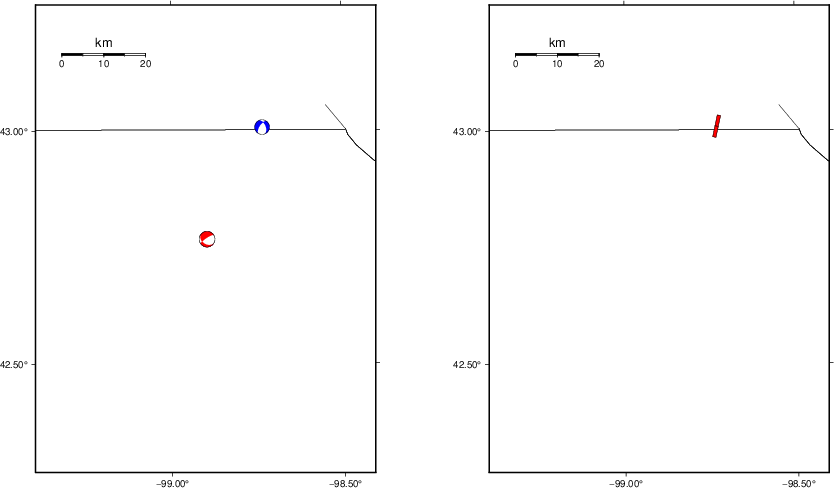

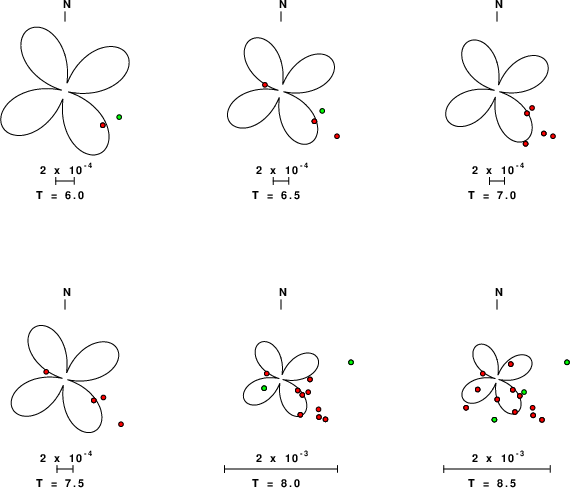

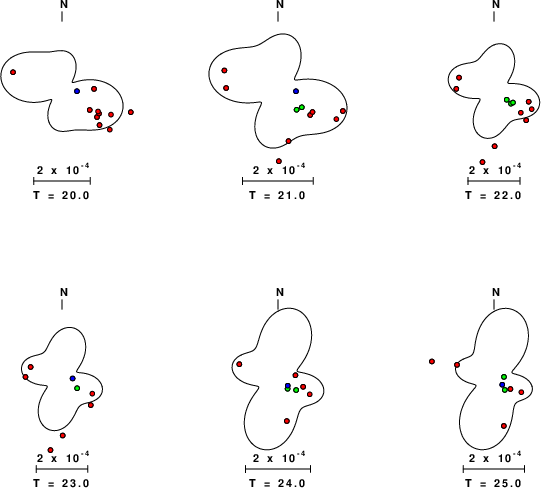

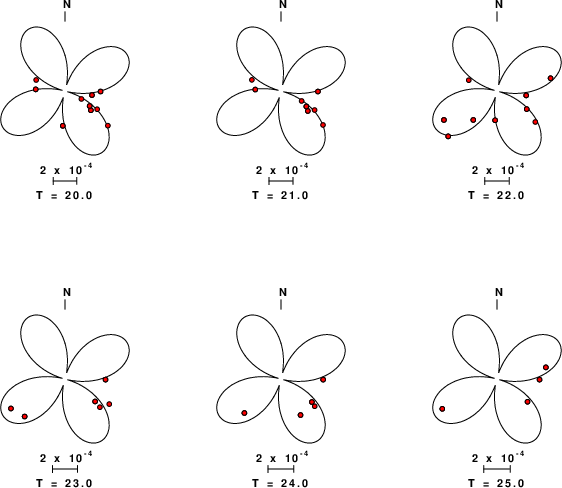

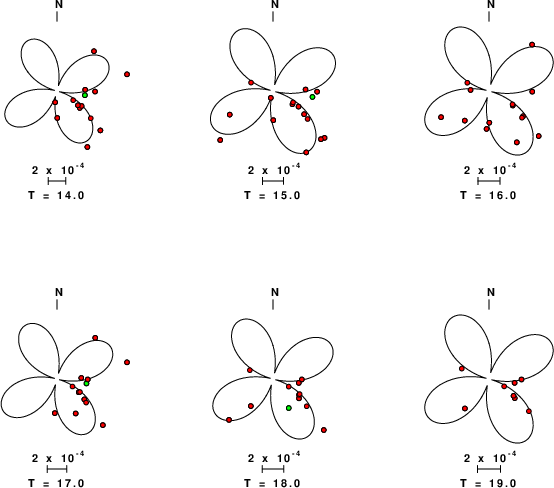

The following figure shows the stations used in the grid search for the best focal mechanism to fit the surface-wave spectral amplitudes of the Love and Rayleigh waves.
|
|
|

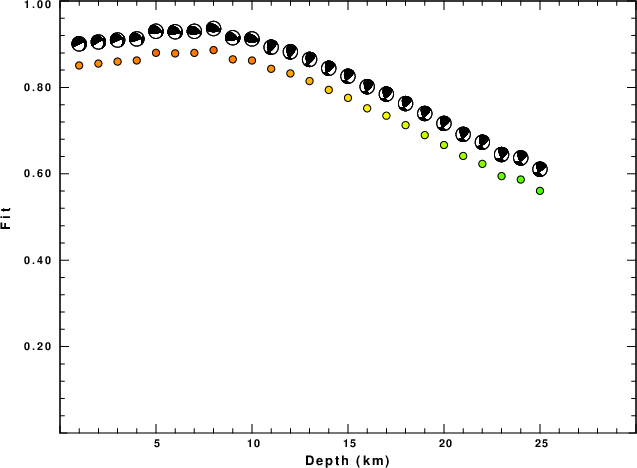

The surface-wave determined focal mechanism is shown here.
NODAL PLANES
STK= 89.99
DIP= 50.00
RAKE= 69.99
OR
STK= 299.51
DIP= 43.96
RAKE= 112.18
DEPTH = 8.0 km
Mw = 4.15
Best Fit 0.8634 - P-T axis plot gives solutions with FIT greater than FIT90
 |
Surface wave analysis was performed using codes from Computer Programs in Seismology, specifically the multiple filter analysis program do_mft and the surface-wave radiation pattern search program srfgrd96.
Digital data were collected, instrument response removed and traces converted
to Z, R an T components. Multiple filter analysis was applied to the Z and T traces to obtain the Rayleigh- and Love-wave spectral amplitudes, respectively.
These were input to the search program which examined all depths between 1 and 25 km
and all possible mechanisms.
|
|
|
|

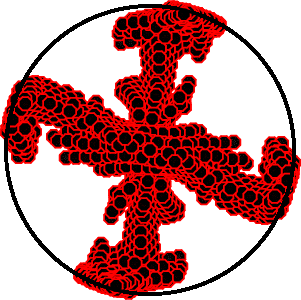

| Pressure-tension axis trends. Since the surface-wave spectra search does not distinguish between P and T axes and since there is a 180 ambiguity in strike, all possible P and T axes are plotted. First motion data and waveforms will be used to select the preferred mechanism. The purpose of this plot is to provide an idea of the possible range of solutions. The P and T-axes for all mechanisms with goodness of fit greater than 0.9 FITMAX (above) are plotted here. |
|

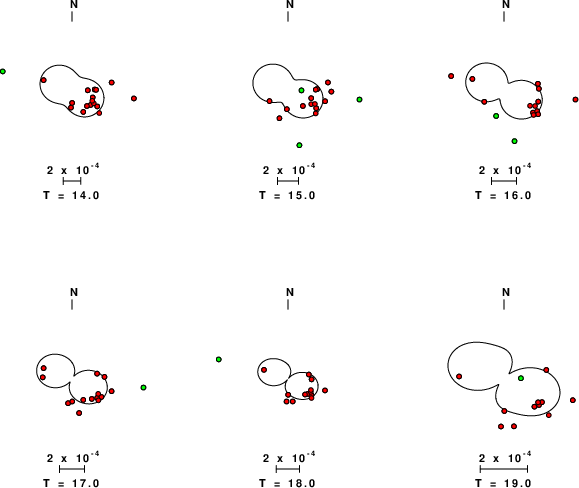

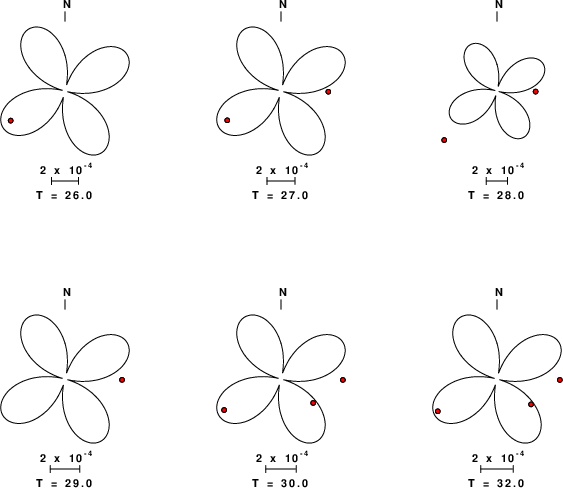

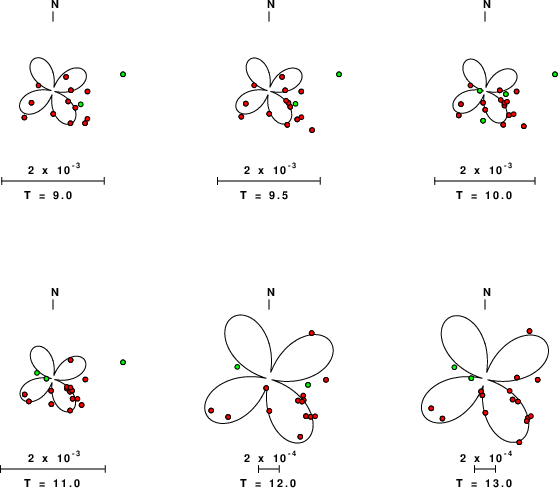

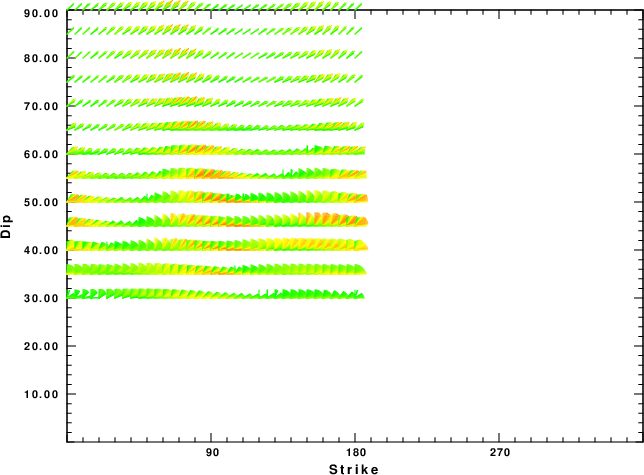

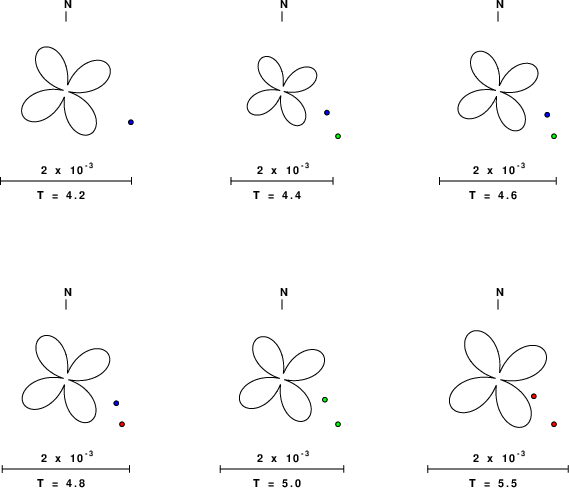

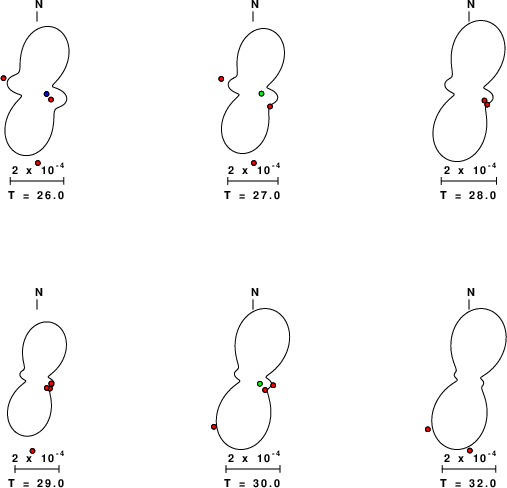

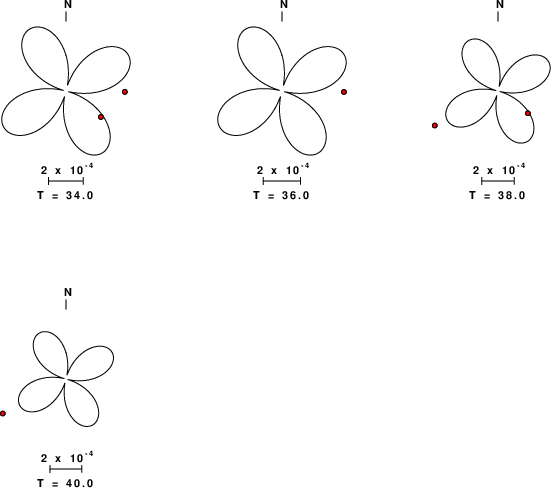

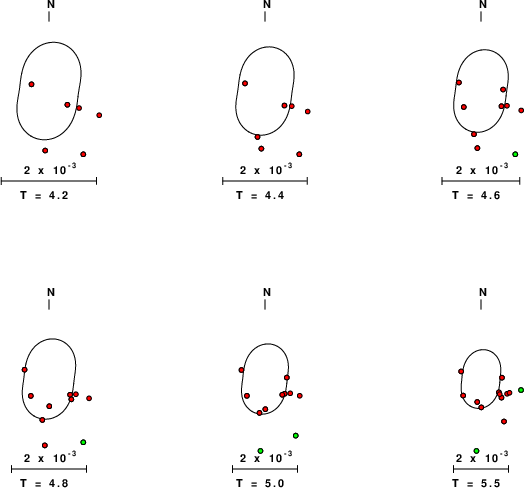

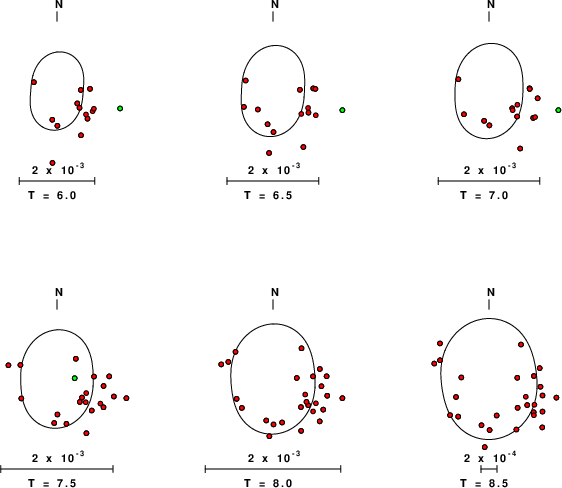

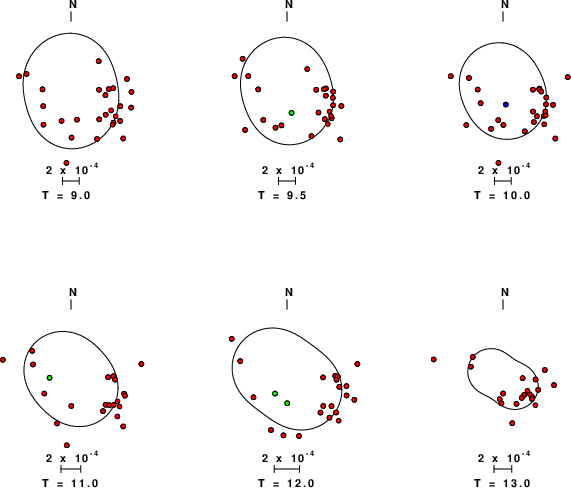

| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the Love and Rayleigh wave radiation patterns. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. Because of the symmetry of the spectral amplitude rediation patterns, only strikes from 0-180 degrees are sampled. |
|
|

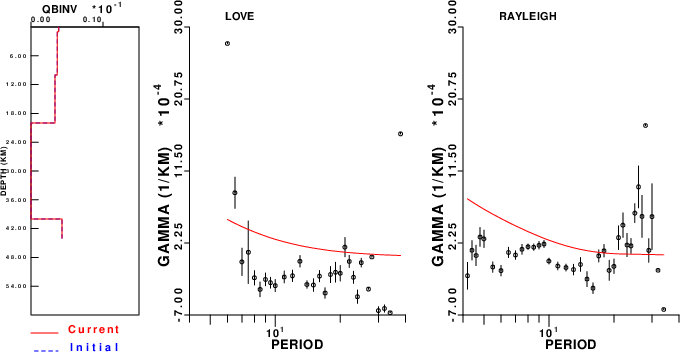

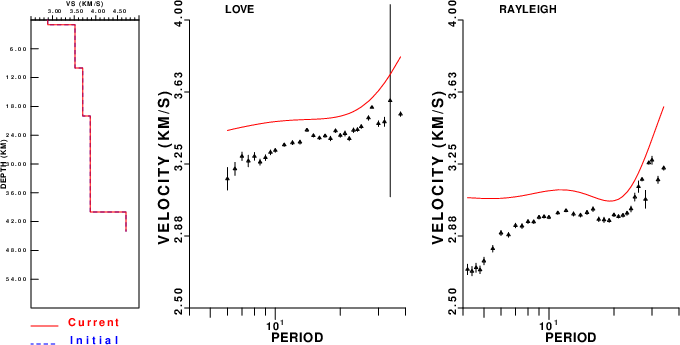

The CUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
MODEL.01 CUS Model with Q from simple gamma values ISOTROPIC KGS FLAT EARTH 1-D CONSTANT VELOCITY LINE08 LINE09 LINE10 LINE11 H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS 1.0000 5.0000 2.8900 2.5000 0.172E-02 0.387E-02 0.00 0.00 1.00 1.00 9.0000 6.1000 3.5200 2.7300 0.160E-02 0.363E-02 0.00 0.00 1.00 1.00 10.0000 6.4000 3.7000 2.8200 0.149E-02 0.336E-02 0.00 0.00 1.00 1.00 20.0000 6.7000 3.8700 2.9020 0.000E-04 0.000E-04 0.00 0.00 1.00 1.00 0.0000 8.1500 4.7000 3.3640 0.194E-02 0.431E-02 0.00 0.00 1.00 1.00
