Location

Location ANSS

The ANSS event ID is usp0009th2 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/usp0009th2/executive.

2000/05/26 21:58:46 42.196 -107.570 5.0 4 Wyoming

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2000/05/26 21:58:46:0  42.20 -107.57   5.0 4.0 Wyoming

 Stations used:
   _.AHID _.BW06 _.DUG _.HWUT _.ISCO

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.07 n 3
   br c 0.12 0.25 n 4 p 2

 Best Fitting Double Couple
  Mo = 8.04e+21 dyne-cm
  Mw = 3.87
  Z  = 15 km
  Plane   Strike  Dip  Rake
   NP1      127    77   149
   NP2      225    60    15
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   8.04e+21     31      82
    N   0.00e+00     57     287
    P  -8.04e+21     11     179

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -7.62e+21
       Mxy     9.01e+20
       Mxz     2.01e+21
       Myy     5.82e+21
       Myz     3.48e+21
       Mzz     1.80e+21




                     --------------
                 ----------------------
              ----------------------------
             -----------------------#######
           #--------------------#############
          ###---------------##################
         #####------------#####################
        ########--------########################
        ##########----##########################
       ##################################   #####
       ############---################### T #####
       ###########------#################   #####
       #########----------#######################
        #######--------------###################
        #######----------------#################
         #####--------------------#############
          ####------------------------########
           ##-----------------------------###
             ------------------------------
              ----------------------------
                 ----------   ---------
                     ------ P -----



 Global CMT Convention Moment Tensor:
      R          T          P
  1.80e+21   2.01e+21  -3.48e+21
  2.01e+21  -7.62e+21  -9.01e+20
 -3.48e+21  -9.01e+20   5.82e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20000526215846/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 225
      DIP = 60
     RAKE = 15
       MW = 3.87
       HS = 15.0

The NDK file is 20000526215846.ndk The waveform inversion is preferred.

Context

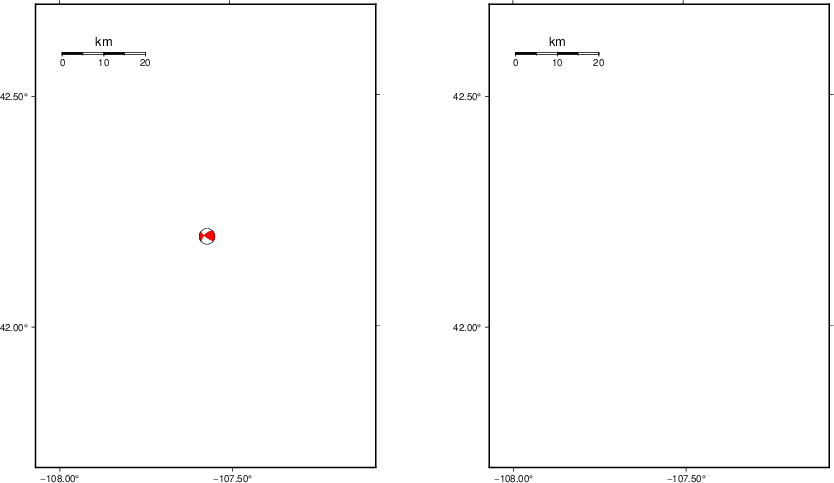

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

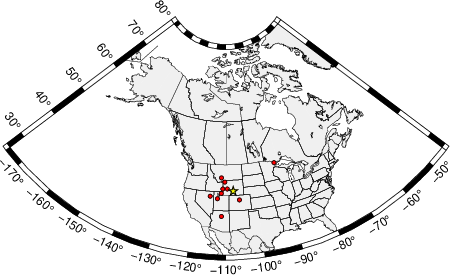

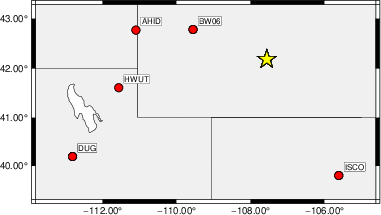

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3
br c 0.12 0.25 n 4 p 2
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   225    85     5   3.56 0.5947
WVFGRD96    2.0    45    90     0   3.63 0.6815
WVFGRD96    3.0    40    65   -15   3.68 0.7099
WVFGRD96    4.0    35    65   -30   3.72 0.7254
WVFGRD96    5.0    35    60   -35   3.77 0.7321
WVFGRD96    6.0    40    65   -25   3.77 0.7259
WVFGRD96    7.0    40    70   -20   3.76 0.7178
WVFGRD96    8.0   230    60    20   3.80 0.7242
WVFGRD96    9.0   230    55    20   3.81 0.7271
WVFGRD96   10.0   225    60    15   3.81 0.7300
WVFGRD96   11.0   225    65    20   3.81 0.7357
WVFGRD96   12.0   225    60    15   3.83 0.7404
WVFGRD96   13.0   225    60    15   3.84 0.7447
WVFGRD96   14.0   225    60    15   3.86 0.7470
WVFGRD96   15.0   225    60    15   3.87 0.7477
WVFGRD96   16.0   225    60    15   3.88 0.7463
WVFGRD96   17.0   220    60    15   3.89 0.7445
WVFGRD96   18.0   220    60    15   3.90 0.7418
WVFGRD96   19.0   220    60    15   3.91 0.7369
WVFGRD96   20.0   220    60    15   3.92 0.7297
WVFGRD96   21.0   220    55    15   3.94 0.7205
WVFGRD96   22.0   220    55    15   3.96 0.7105
WVFGRD96   23.0   220    55    15   3.97 0.6981
WVFGRD96   24.0   220    50    10   3.98 0.6850
WVFGRD96   25.0   225    45    15   4.00 0.6705
WVFGRD96   26.0   225    40    15   4.01 0.6568
WVFGRD96   27.0   225    40    15   4.02 0.6427
WVFGRD96   28.0   225    35    15   4.04 0.6278
WVFGRD96   29.0   225    35    15   4.05 0.6139

The best solution is

WVFGRD96   15.0   225    60    15   3.87 0.7477

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

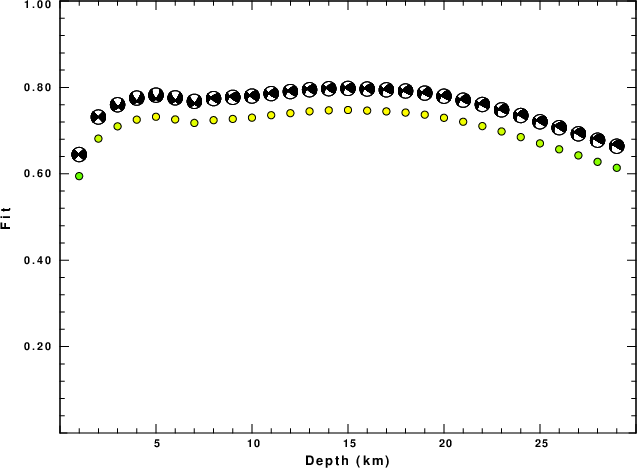

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3
br c 0.12 0.25 n 4 p 2

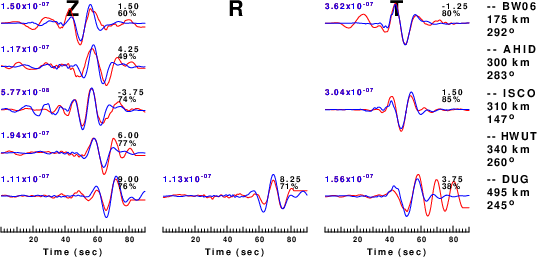

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

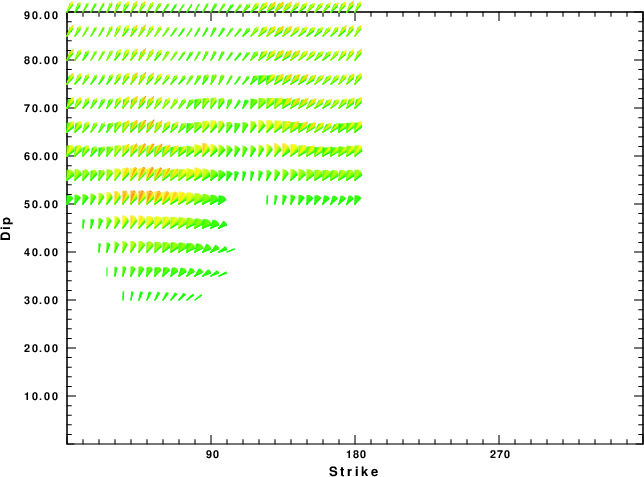

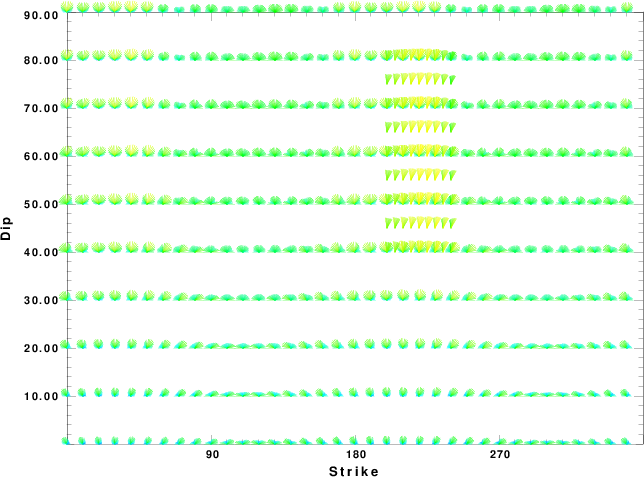

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

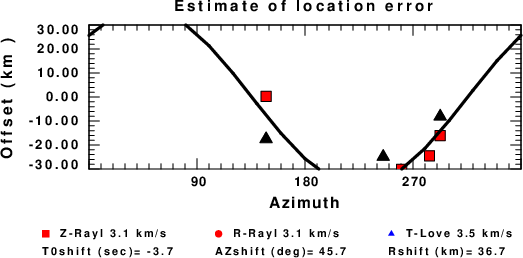

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Surface-Wave Focal Mechanism

The following figure shows the stations used in the grid search for the best focal mechanism to fit the surface-wave spectral amplitudes of the Love and Rayleigh waves.
Location of broadband stations used to obtain focal mechanism from surface-wave spectral amplitudes

The surface-wave determined focal mechanism is shown here.


  NODAL PLANES


  STK=     125.01
  DIP=      69.74
 RAKE=     142.32

             OR

  STK=     229.98
  DIP=      55.01
 RAKE=      25.00


DEPTH = 10.0 km

Mw = 3.89
Best Fit 0.8798 - P-T axis plot gives solutions with FIT greater than FIT90

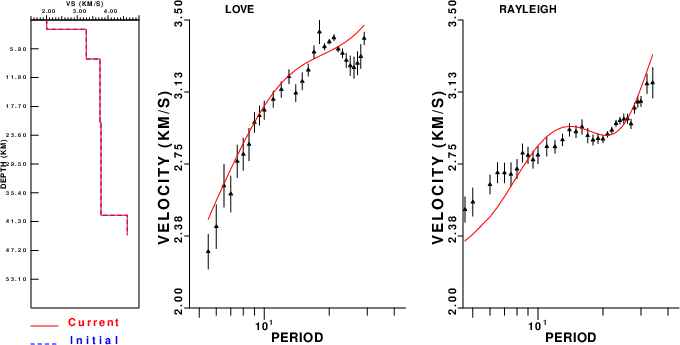

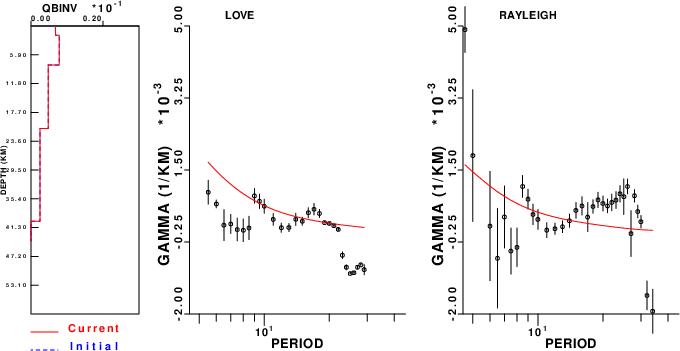

Surface-wave analysis

Surface wave analysis was performed using codes from Computer Programs in Seismology, specifically the multiple filter analysis program do_mft and the surface-wave radiation pattern search program srfgrd96.

Data preparation

Digital data were collected, instrument response removed and traces converted to Z, R an T components. Multiple filter analysis was applied to the Z and T traces to obtain the Rayleigh- and Love-wave spectral amplitudes, respectively. These were input to the search program which examined all depths between 1 and 25 km and all possible mechanisms.

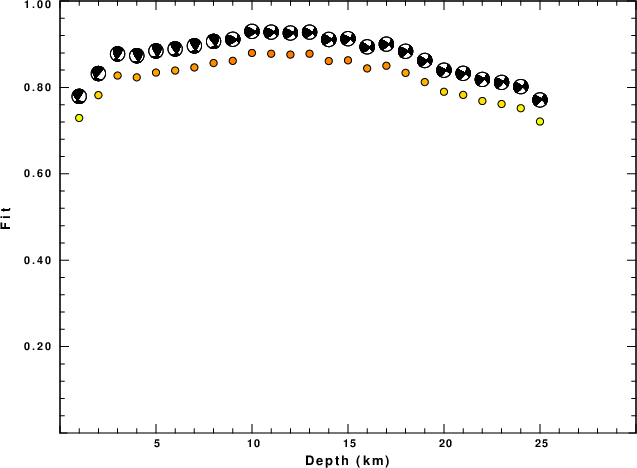

Best mechanism fit as a function of depth. The preferred depth is given above. Lower hemisphere projection

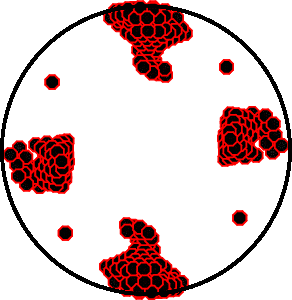

Pressure-tension axis trends. Since the surface-wave spectra search does not distinguish between P and T axes and since there is a 180 ambiguity in strike, all possible P and T axes are plotted. First motion data and waveforms will be used to select the preferred mechanism. The purpose of this plot is to provide an idea of the possible range of solutions. The P and T-axes for all mechanisms with goodness of fit greater than 0.9 FITMAX (above) are plotted here.


Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the Love and Rayleigh wave radiation patterns. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. Because of the symmetry of the spectral amplitude rediation patterns, only strikes from 0-180 degrees are sampled.

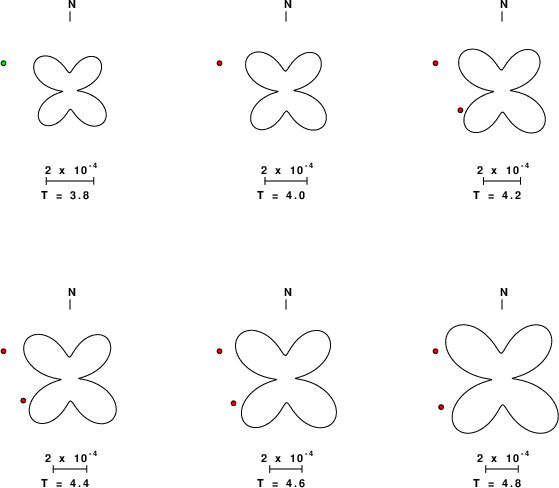

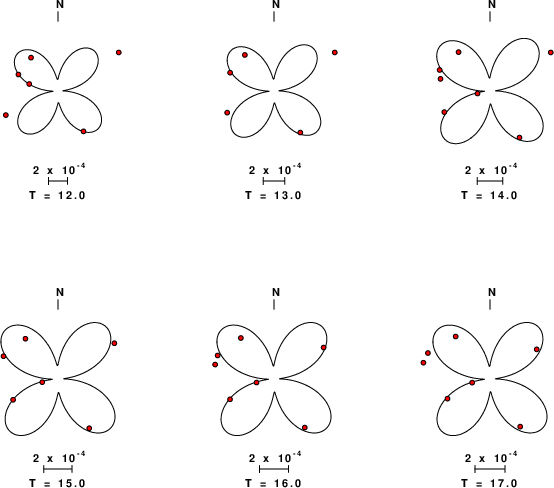

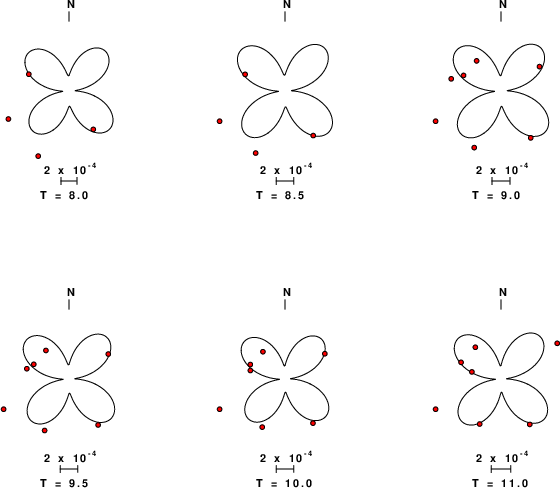

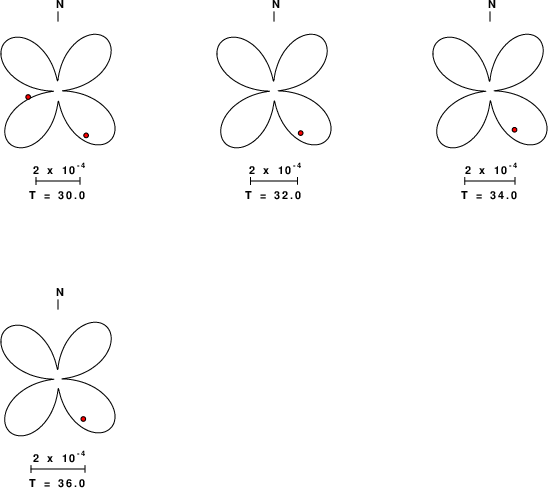

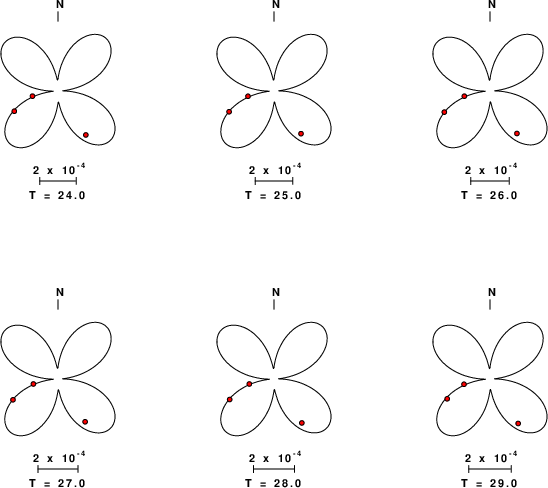

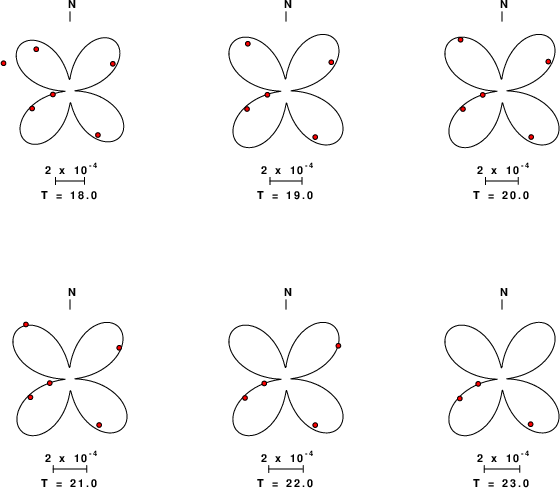

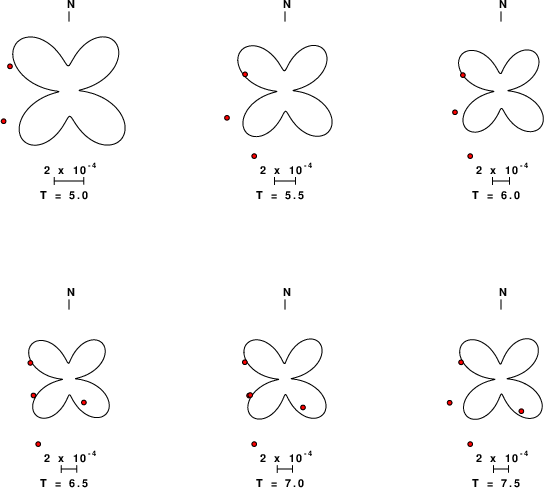

Love-wave radiation patterns

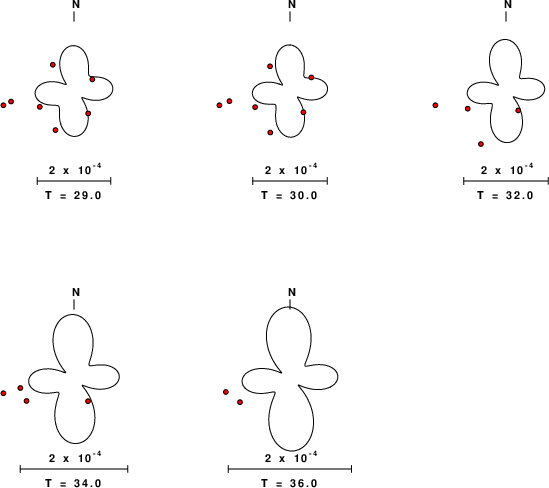

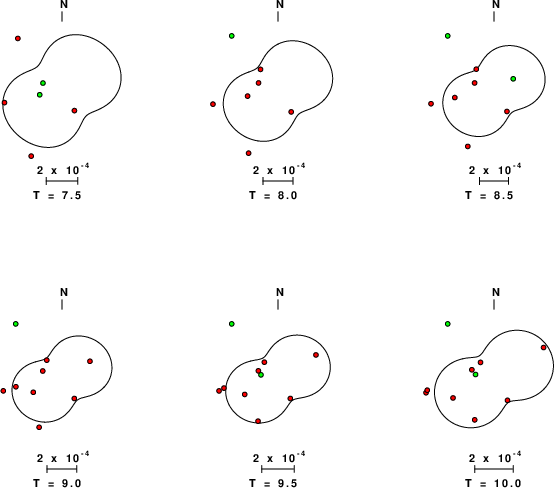

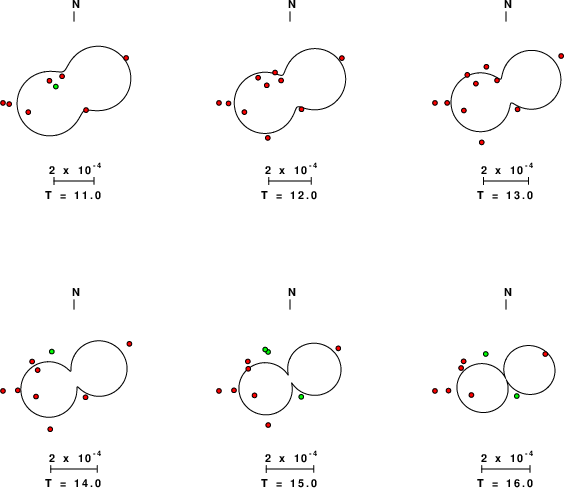

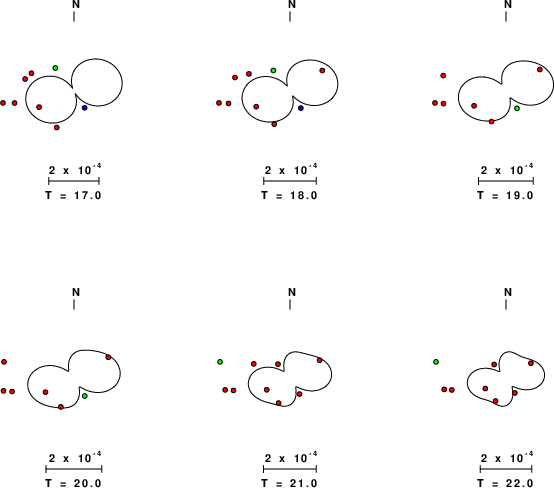

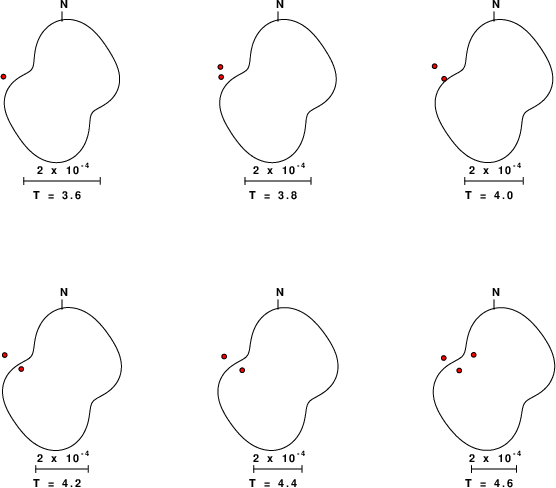

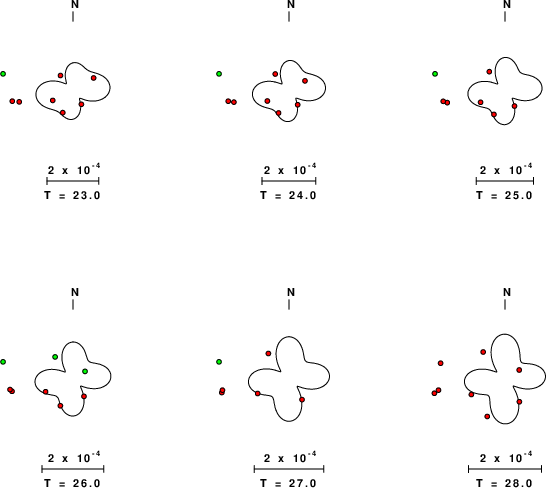

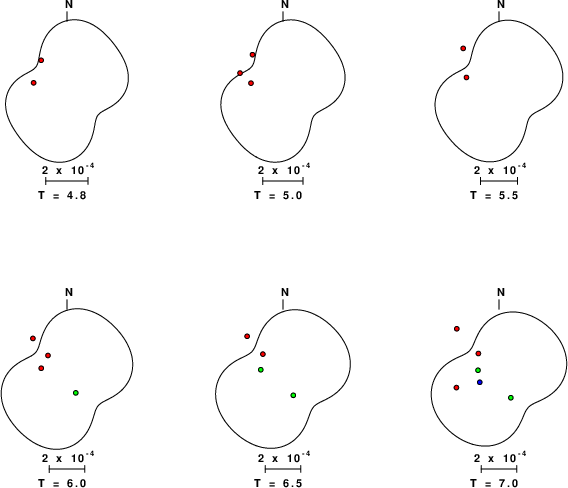

Rayleigh-wave radiation patterns
