Location

Location ANSS

The ANSS event ID is usp0008vh3 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/usp0008vh3/executive.

1998/09/25 19:52:52 41.495 -80.388 5 4.47 Pennsylvania

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  1998/09/25 19:52:52:0  41.495  -80.388   5.0 4.5 Pennsylvania

 Stations used:

 Filtering commands used:

 Best Fitting Double Couple
  Mo = 6.38e+22 dyne-cm
  Mw = 4.47
  Z  = 2 km
  Plane   Strike  Dip  Rake
   NP1       13    71   159
   NP2      110    70    20
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   6.38e+22     28     331
    N   0.00e+00     62     153
    P  -6.38e+22      1      62

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     2.38e+22
       Mxy    -4.77e+22
       Mxz     2.27e+22
       Myy    -3.79e+22
       Myz    -1.36e+22
       Mzz     1.40e+22




                     ############--
                 ################------
              #####   ############--------
             ###### T ############---------
           ########   ############----------
          ########################---------- P
         #########################----------
        -#########################--------------
        ---#######################--------------
       ------####################----------------
       --------##################----------------
       -----------###############----------------
       --------------###########-----------------
        ------------------######----------------
        -----------------------#----------------
         ----------------------################
          --------------------################
           ------------------################
             ---------------###############
              -------------###############
                 ---------#############
                     ---###########



 Global CMT Convention Moment Tensor:
      R          T          P
  1.40e+22   2.27e+22   1.36e+22
  2.27e+22   2.38e+22   4.77e+22
  1.36e+22   4.77e+22  -3.79e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/19980925195252/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 110
      DIP = 70
     RAKE = 20
       MW = 4.47
       HS = 2

The NDK file is 19980925195252.ndk

Context

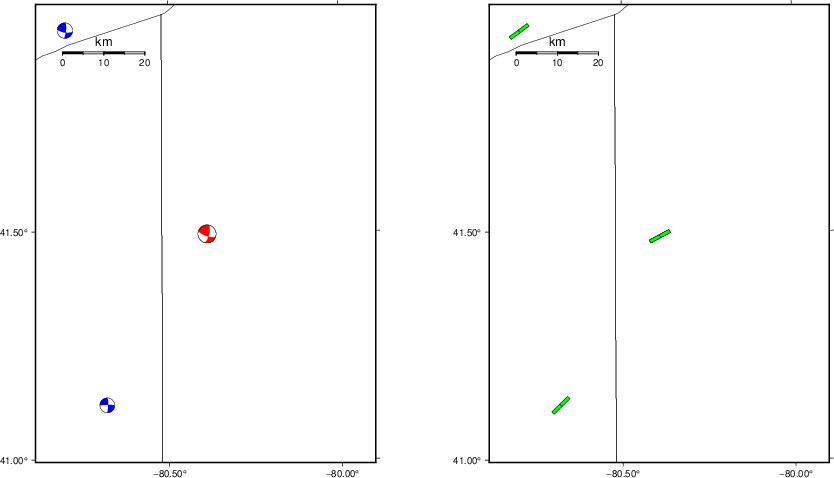

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Reference

Older earthquake were studied using analog seismograms, which were digitized and analyzed. The original data are not longer available. However focal mechanism solutions based on the waveforms are given in published literature. At the same time, a given earthquake may have been analyzed independently, and the reference is given here.

For this earthquake the source reference is the following:

Maceira, M., C. J. Ammon and R. B. Herrmann (2000). Faulting parameters of the September 25, 1998 Pymatuning, Pennsylvania earthquake, Seism. Res. Letters 71, 742-752.

Velocity Model

The CUS model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
CUS Model with Q from simple gamma values
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
  H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC)   QP   QS  ETAP  ETAS  FREFP  FREFS
  1.0000  5.0000  2.8900  2.5000 0.172E-02 0.387E-02 0.00  0.00  1.00  1.00
  9.0000  6.1000  3.5200  2.7300 0.160E-02 0.363E-02 0.00  0.00  1.00  1.00
 10.0000  6.4000  3.7000  2.8200 0.149E-02 0.336E-02 0.00  0.00  1.00  1.00
 20.0000  6.7000  3.8700  2.9020 0.000E-04 0.000E-04 0.00  0.00  1.00  1.00
  0.0000  8.1500  4.7000  3.3640 0.194E-02 0.431E-02 0.00  0.00  1.00  1.00
