The ANSS event ID is nm604055 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/nm604055/executive.

1994/02/05 14:55:37 37.368 -89.188 15.9 3.85 Illinois

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  1994/02/05 14:55:37:0  37.368  -89.188  15.9 3.8 Illinois

 Stations used:

 Filtering commands used:

 Best Fitting Double Couple
  Mo = 7.50e+21 dyne-cm
  Mw = 3.85
  Z  = 16 km
  Plane   Strike  Dip  Rake
   NP1      123    81    20
   NP2       30    70   170
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   7.50e+21     21     348
    N   0.00e+00     68     147
    P  -7.50e+21      7     255

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     5.80e+21
       Mxy    -3.11e+21
       Mxz     2.69e+21
       Myy    -6.64e+21
       Myz     3.99e+20
       Mzz     8.37e+20




                     ##############
                 ######   ############-
              ######### T ############----
             ##########   ############-----
           ###########################-------
          --##########################--------
         -----#######################----------
        -------######################-----------
        ----------##################------------
       -------------###############--------------
       ---------------############---------------
       ------------------########----------------
       -   -----------------####-----------------
         P -------------------------------------
           -------------------####--------------
         --------------------#########---------
          -----------------###############----
           --------------####################
             -----------###################
              -------#####################
                 -#####################
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
  8.37e+20   2.69e+21  -3.99e+20
  2.69e+21   5.80e+21   3.11e+21
 -3.99e+20   3.11e+21  -6.64e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/19940205145537/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 30
      DIP = 70
     RAKE = 170
       MW = 3.85
       HS = 16

The NDK file is 19940205145537.ndk

Context

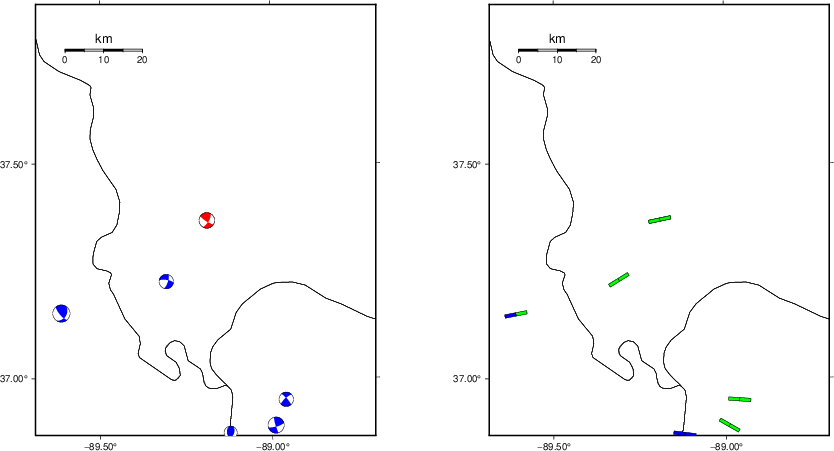

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Reference

Older earthquake were studied using analog seismograms, which were digitized and analyzed. The original data are not longer available. However focal mechanism solutions based on the waveforms are given in published literature. At the same time, a given earthquake may have been analyzed independently, and the reference is given here.

For this earthquake the source reference is the following:

Herrmann, R. B., and C. J. Ammon (1997). Faulting parameters of earthquakes in the New Madrid, Missouri region, Engineering Geology 46, 299-311.

Velocity Model

The CUS model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
CUS Model with Q from simple gamma values
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
  H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC)   QP   QS  ETAP  ETAS  FREFP  FREFS
  1.0000  5.0000  2.8900  2.5000 0.172E-02 0.387E-02 0.00  0.00  1.00  1.00
  9.0000  6.1000  3.5200  2.7300 0.160E-02 0.363E-02 0.00  0.00  1.00  1.00
 10.0000  6.4000  3.7000  2.8200 0.149E-02 0.336E-02 0.00  0.00  1.00  1.00
 20.0000  6.7000  3.8700  2.9020 0.000E-04 0.000E-04 0.00  0.00  1.00  1.00
  0.0000  8.1500  4.7000  3.3640 0.194E-02 0.431E-02 0.00  0.00  1.00  1.00
