Location

Location ANSS

The ANSS event ID is usp00063sg and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/usp00063sg/executive.

1993/11/16 09:31:44 45.182 -73.495 17.1 3.88 Quebec, Canada

Focal Mechanism

USGS/SLU Moment Tensor Solution ENS 1993/11/16 09:31:44:0 45.182 -73.495 17.1 3.9 Quebec, Canada Stations used: Filtering commands used: Best Fitting Double Couple Mo = 8.32e+21 dyne-cm Mw = 3.88 Z = 12 km Plane Strike Dip Rake NP1 316 45 84 NP2 144 45 96 Principal Axes: Axis Value Plunge Azimuth T 8.32e+21 86 142 N 0.00e+00 4 320 P -8.32e+21 0 50 Moment Tensor: (dyne-cm) Component Value Mxx -3.44e+21 Mxy -4.12e+21 Mxz -4.97e+20 Myy -4.83e+21 Myz 3.61e+20 Mzz 8.27e+21 -------------- ---------------------- #--------------------------- --############---------------- ---#################------------ P ----###################---------- -----#####################------------ ------#######################----------- ------#########################--------- -------##########################--------- --------############ ###########-------- ---------########### T ############------- ----------########## ############------- ----------#########################----- -----------########################----- -----------#######################---- ------------#####################--- -------------###################-- --------------################ -----------------########### ---------------------- -------------- Global CMT Convention Moment Tensor: R T P 8.27e+21 -4.97e+20 -3.61e+20 -4.97e+20 -3.44e+21 4.12e+21 -3.61e+20 4.12e+21 -4.83e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/19931116093144/index.html

Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 144
      DIP = 45
     RAKE = 96
       MW = 3.88
       HS = 12

The NDK file is 19931116093144.ndk

Context

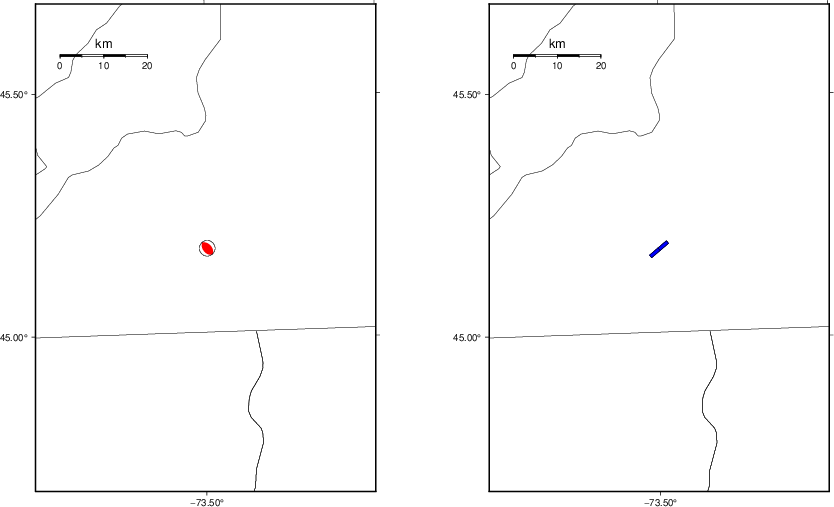

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Reference

Older earthquake were studied using analog seismograms, which were digitized and analyzed. The original data are not longer available. However focal mechanism solutions based on the waveforms are given in published literature. At the same time, a given earthquake may have been analyzed independently, and the reference is given here.

For this earthquake the source reference is the following:

Du, Wen-xuan; Kim, Won-Young; Sykes, Lynn R. (2003). Earthquake Source Parameters and State of Stress for the Northeastern United States and Southeastern Canada from Analysis of Regional Seismograms, Bull. Seism. Soc. Am. 93, 1633 - 1648.

Velocity Model

The DU model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
