Location

2019/06/23 20:43:47 41.86 12.76 11.0 3.6 Colonna (RM)

Arrival Times (from USGS)

Arrival time list

Felt Map

USGS Felt map for this earthquake

USGS Felt reports page for

Focal Mechanism

SLU Moment Tensor Solution ENS 2019/06/23 20:43:47:0 41.86 12.76 11.0 3.6 Colonna (RM) Stations used: IV.ARCI IV.ARVD IV.ATFO IV.ATMI IV.ATTE IV.CAFI IV.CAMP IV.CERA IV.CERT IV.CESX IV.CSNT IV.FAGN IV.FDMO IV.FIAM IV.GIUL IV.GUAR IV.LAV9 IV.LNSS IV.LPEL IV.MA9 IV.MGAB IV.MOMA IV.MTCE IV.OFFI IV.OSSC IV.PARC IV.PESA IV.PIGN IV.POFI IV.PTQR IV.RNI2 IV.SACR IV.SACS IV.SAMA IV.SGG IV.SNTG IV.SSFR IV.TERO IV.TRTR IV.VAGA IV.VITU MN.AQU Filtering commands used: cut o DIST/3.3 -20 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 3.27e+21 dyne-cm Mw = 3.61 Z = 4 km Plane Strike Dip Rake NP1 130 45 -90 NP2 310 45 -90 Principal Axes: Axis Value Plunge Azimuth T 3.27e+21 -0 220 N 0.00e+00 -0 130 P -3.27e+21 90 345 Moment Tensor: (dyne-cm) Component Value Mxx 1.92e+21 Mxy 1.61e+21 Mxz 1.75e+14 Myy 1.35e+21 Myz 1.45e+13 Mzz -3.27e+21 ############## ###################### ############################ -------------################# #------------------############### ##---------------------############# ###------------------------########### ####-------------------------########### ####-------------- ----------######### ######------------- P -----------######### ######------------- -------------####### #######-----------------------------###### #########---------------------------###### #########---------------------------#### ###########-------------------------#### ###########------------------------### #############---------------------## ###############------------------# ##############------------- T ########################## ###################### ############## Global CMT Convention Moment Tensor: R T P -3.27e+21 1.75e+14 -1.45e+13 1.75e+14 1.92e+21 -1.61e+21 -1.45e+13 -1.61e+21 1.35e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20190623204347/index.html

Preferred Solution

      STK = 310
      DIP = 45
     RAKE = -90
       MW = 3.61
       HS = 4.0

The NDK file is 20190623204347.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to others

SLU

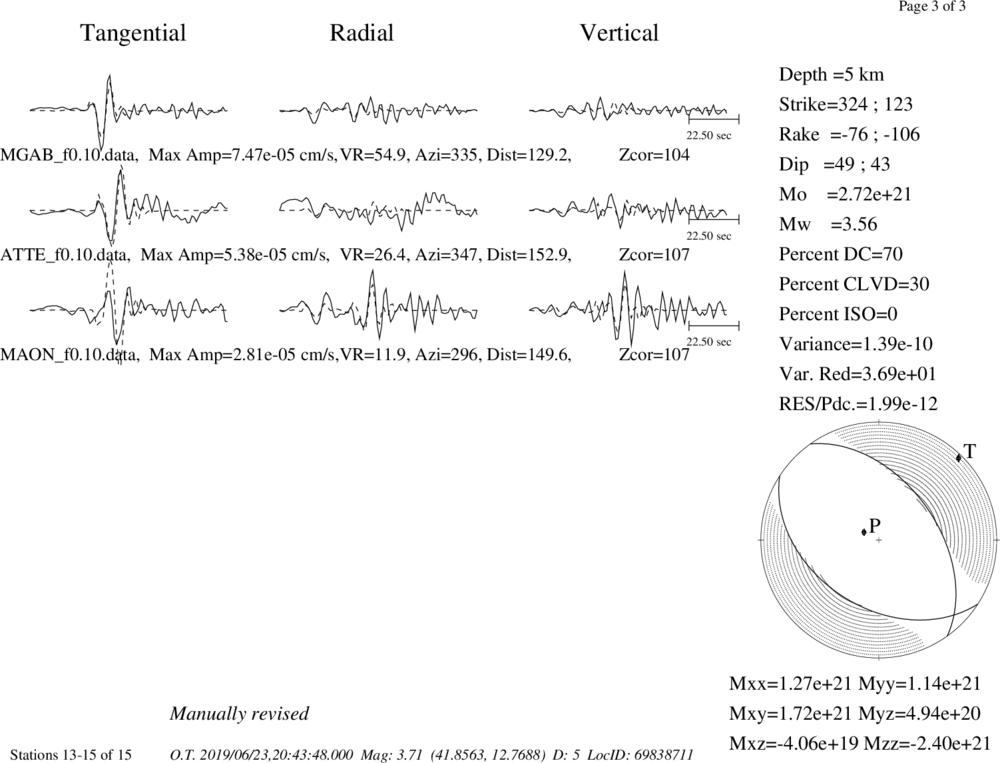

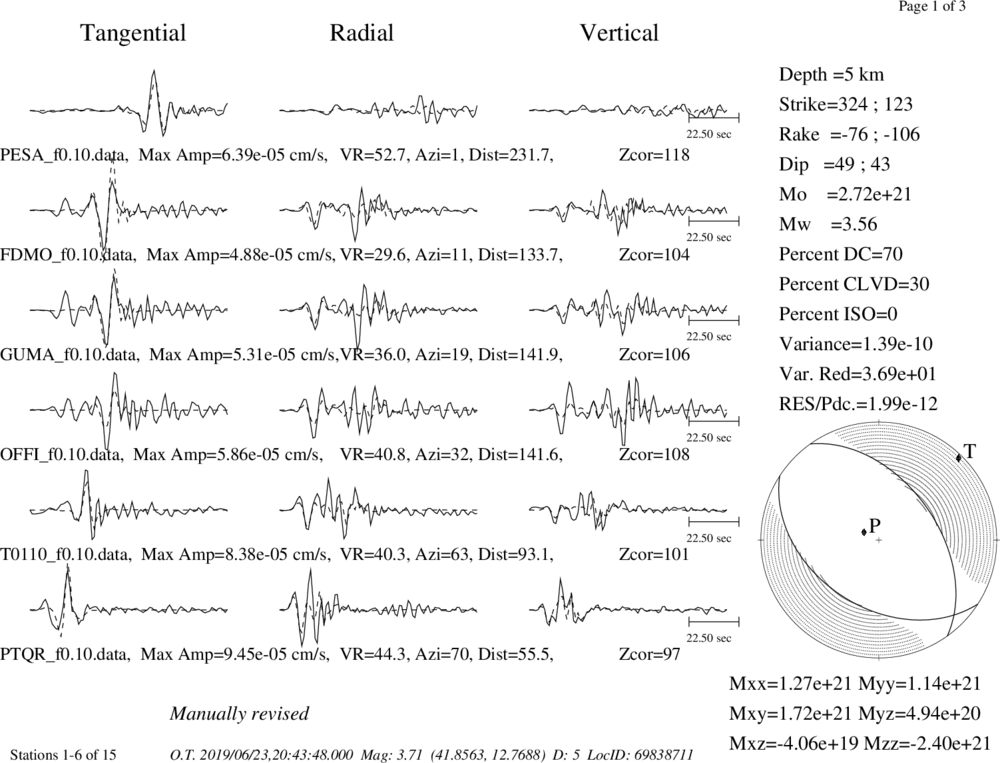

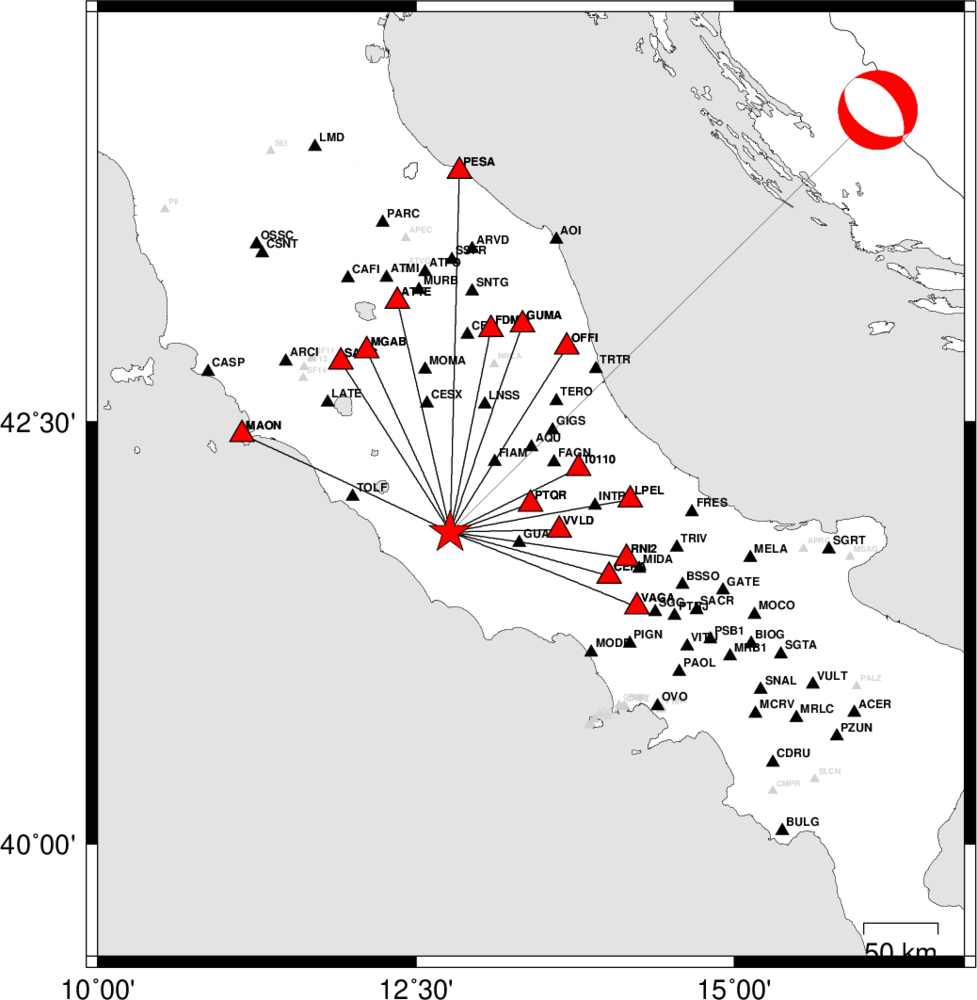

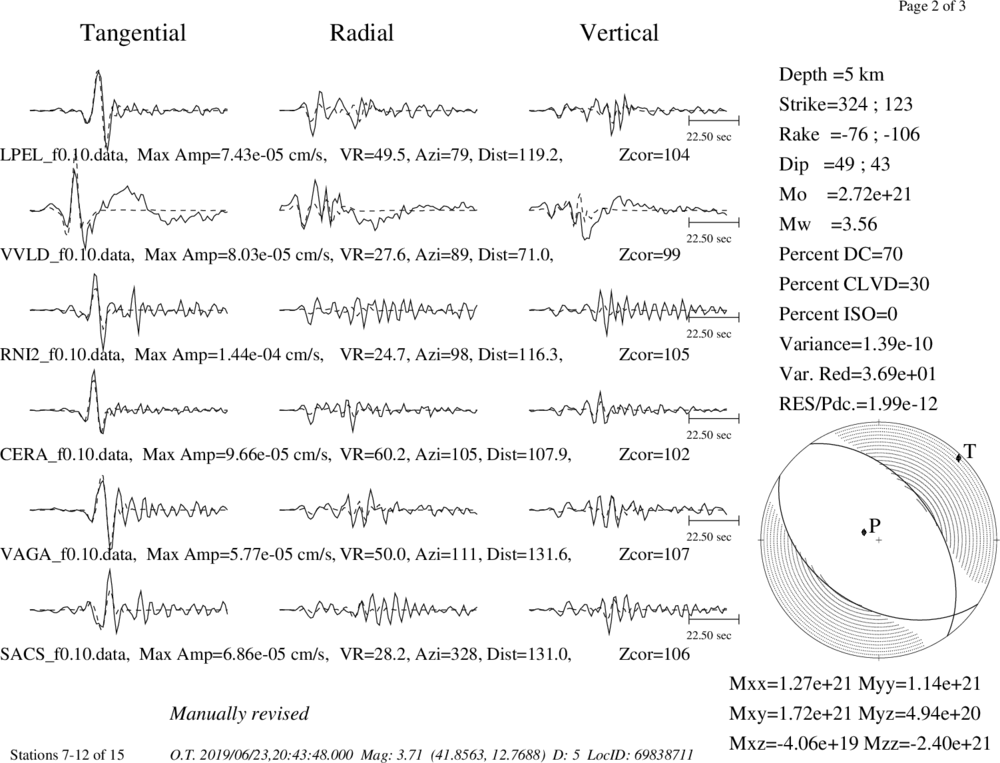

INGVTDMT

SLU Moment Tensor Solution ENS 2019/06/23 20:43:47:0 41.86 12.76 11.0 3.6 Colonna (RM) Stations used: IV.ARCI IV.ARVD IV.ATFO IV.ATMI IV.ATTE IV.CAFI IV.CAMP IV.CERA IV.CERT IV.CESX IV.CSNT IV.FAGN IV.FDMO IV.FIAM IV.GIUL IV.GUAR IV.LAV9 IV.LNSS IV.LPEL IV.MA9 IV.MGAB IV.MOMA IV.MTCE IV.OFFI IV.OSSC IV.PARC IV.PESA IV.PIGN IV.POFI IV.PTQR IV.RNI2 IV.SACR IV.SACS IV.SAMA IV.SGG IV.SNTG IV.SSFR IV.TERO IV.TRTR IV.VAGA IV.VITU MN.AQU Filtering commands used: cut o DIST/3.3 -20 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 3.27e+21 dyne-cm Mw = 3.61 Z = 4 km Plane Strike Dip Rake NP1 130 45 -90 NP2 310 45 -90 Principal Axes: Axis Value Plunge Azimuth T 3.27e+21 -0 220 N 0.00e+00 -0 130 P -3.27e+21 90 345 Moment Tensor: (dyne-cm) Component Value Mxx 1.92e+21 Mxy 1.61e+21 Mxz 1.75e+14 Myy 1.35e+21 Myz 1.45e+13 Mzz -3.27e+21 ############## ###################### ############################ -------------################# #------------------############### ##---------------------############# ###------------------------########### ####-------------------------########### ####-------------- ----------######### ######------------- P -----------######### ######------------- -------------####### #######-----------------------------###### #########---------------------------###### #########---------------------------#### ###########-------------------------#### ###########------------------------### #############---------------------## ###############------------------# ##############------------- T ########################## ###################### ############## Global CMT Convention Moment Tensor: R T P -3.27e+21 1.75e+14 -1.45e+13 1.75e+14 1.92e+21 -1.61e+21 -1.45e+13 -1.61e+21 1.35e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20190623204347/index.html

Magnitudes

ML Magnitude

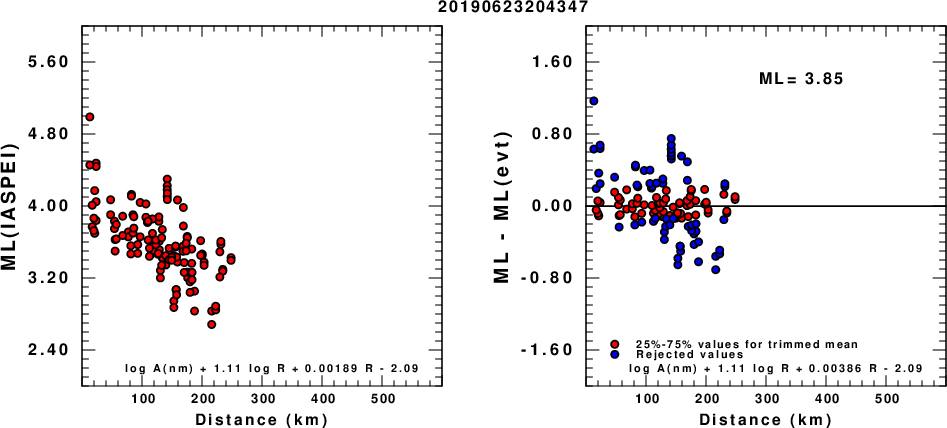

(a) ML computed using the IASPEI formula for Horizontal components; (b) ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.

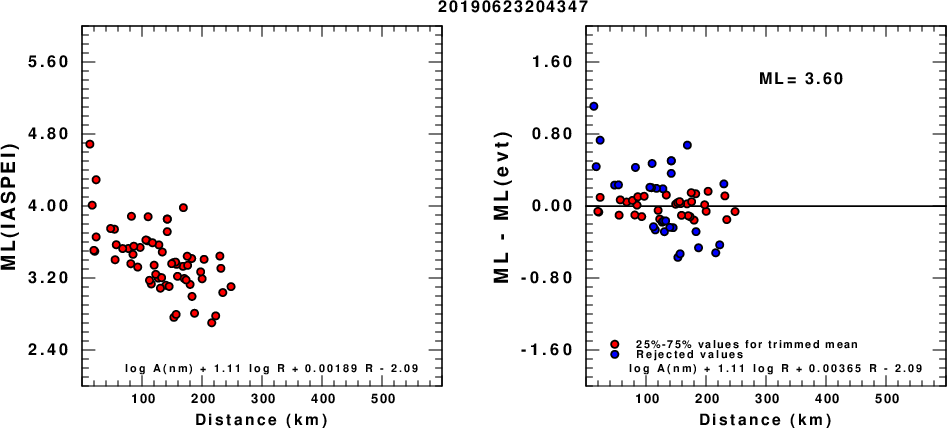

(a) ML computed using the IASPEI formula for Vertical components (research); (b) ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.

Waveform Inversion

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.

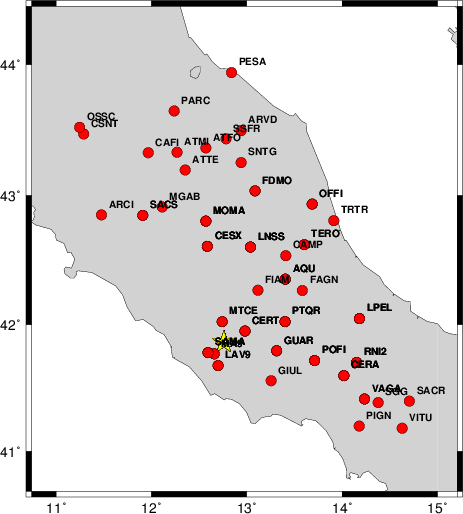

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -20 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   165    30   -30   3.44 0.3505
WVFGRD96    2.0   150    35   -60   3.50 0.4240
WVFGRD96    3.0   130    45   -90   3.57 0.5452
WVFGRD96    4.0   310    45   -90   3.61 0.5777
WVFGRD96    5.0   130    45   -90   3.66 0.5623
WVFGRD96    6.0   315    45   -85   3.65 0.5008
WVFGRD96    7.0   325    50   -70   3.62 0.4424
WVFGRD96    8.0   180    70    15   3.54 0.4071
WVFGRD96    9.0   180    70    15   3.55 0.3959
WVFGRD96   10.0   180    70    15   3.56 0.3851
WVFGRD96   11.0   180    65    25   3.57 0.3740
WVFGRD96   12.0   180    65    25   3.58 0.3639
WVFGRD96   13.0   180    65    25   3.59 0.3525
WVFGRD96   14.0   180    65    25   3.60 0.3414
WVFGRD96   15.0   185    60    25   3.63 0.3261
WVFGRD96   16.0   185    60    25   3.64 0.3133
WVFGRD96   17.0   185    60    25   3.65 0.3000
WVFGRD96   18.0   185    55    25   3.66 0.2873
WVFGRD96   19.0   185    55    25   3.67 0.2746

The best solution is

WVFGRD96    4.0   310    45   -90   3.61 0.5777

The mechanism correspond to the best fit is

Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

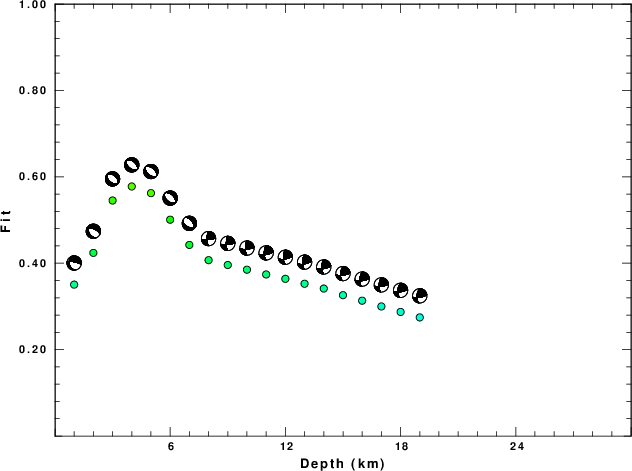

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -20 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3

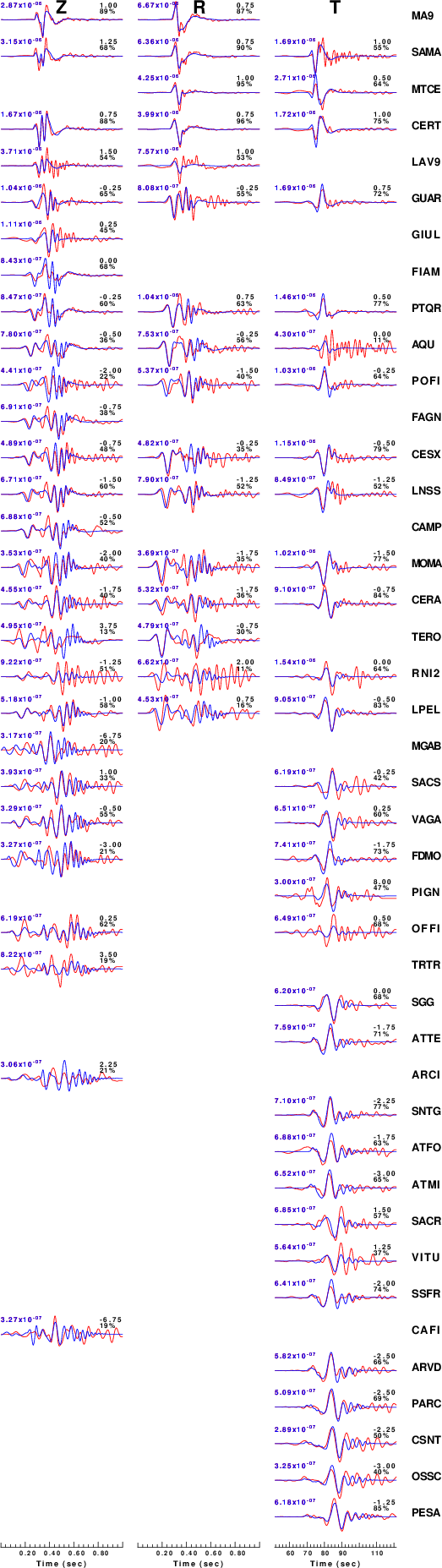

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated.

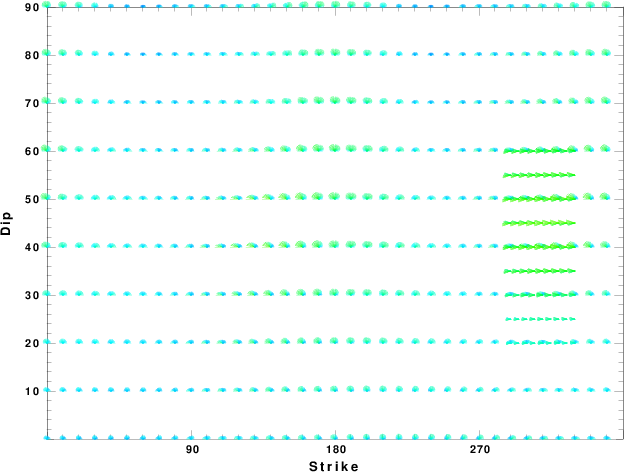

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

• The origin time and epicentral distance are incorrect
• The velocity model used for the inversion is incorrect
• The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

 Time_shift = A + B cos Azimuth + C Sin Azimuth

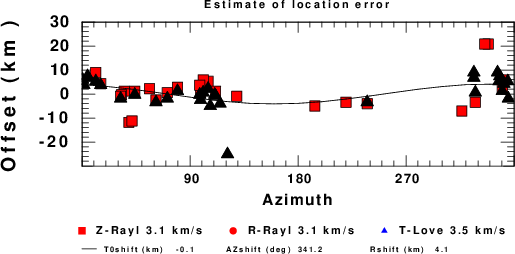

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Discussion

Velocity Model

The nnCIA used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:

MODEL.01
C.It. A. Di Luzio et al Earth Plan Lettrs 280 (2009) 1-12 Fig 5. 7-8 MODEL/SURF3
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.5000     3.7497     2.1436     2.2753  0.500E-02  0.100E-01   0.00       0.00       1.00       1.00
     3.0000     4.9399     2.8210     2.4858  0.500E-02  0.100E-01   0.00       0.00       1.00       1.00
     3.0000     6.0129     3.4336     2.7058  0.500E-02  0.100E-01   0.00       0.00       1.00       1.00
     7.0000     5.5516     3.1475     2.6093  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
    15.0000     5.8805     3.3583     2.6770  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
     6.0000     7.1059     4.0081     3.0002  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
     8.0000     7.1000     3.9864     3.0120  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.4036     3.2760  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00

Quality Control

Here we tabulate the reasons for not using certain digital data sets

The following stations did not have a valid response files:

DATE=Mon Jun 24 09:38:15 CDT 2019
