2016/10/30 14:24:44 42.7627 13.0638 10.4 3.6 Perugia
USGS Felt map for this earthquake
SLU Moment Tensor Solution ENS 2016/10/30 14:24:44:3 42.76 13.06 10.4 3.6 Perugia Stations used: IV.ARCI IV.ARVD IV.ASQU IV.ASSB IV.ATFO IV.ATPC IV.ATTE IV.ATVO IV.CAFI IV.CERA IV.CERT IV.CRE IV.CSNT IV.FIAM IV.GUAR IV.GUMA IV.LAV9 IV.LPEL IV.MA9 IV.MGAB IV.MIDA IV.MODR IV.MTCE IV.MURB IV.OFFI IV.OSSC IV.PIEI IV.PIGN IV.POFI IV.PSB1 IV.RMP IV.SACS IV.SAMA IV.SNTG IV.TERO IV.TOLF MN.AQU Filtering commands used: cut o DIST/3.3 -20 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 1.53e+21 dyne-cm Mw = 3.39 Z = 6 km Plane Strike Dip Rake NP1 360 88 -100 NP2 260 10 -10 Principal Axes: Axis Value Plunge Azimuth T 1.53e+21 42 99 N 0.00e+00 10 0 P -1.53e+21 46 260 Moment Tensor: (dyne-cm) Component Value Mxx -1.36e+18 Mxy -2.62e+20 Mxz 1.18e+19 Myy 9.23e+19 Myz 1.51e+21 Mzz -9.09e+19 #######------- ####-------########--- ###-----------###########--- ##-------------##############- ##---------------################- #-----------------#################- #------------------################### #-------------------###################- #-------------------#################### #--------------------##################### #--------------------##################### --------- ---------########## ######## --------- P ---------########## T ######## -------- ---------########## ####### --------------------#################### -------------------################### ------------------################## -----------------################# ---------------############### --------------############## -----------########### -------####### Global CMT Convention Moment Tensor: R T P -9.09e+19 1.18e+19 -1.51e+21 1.18e+19 -1.36e+18 2.62e+20 -1.51e+21 2.62e+20 9.23e+19 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20161030142444/index.html |
STK = 260 DIP = 10 RAKE = -10 MW = 3.39 HS = 6.0
The NDK file is 20161030142444.ndk The waveform inversion is preferred.
The following compares this source inversion to others
SLU Moment Tensor Solution ENS 2016/10/30 14:24:44:3 42.76 13.06 10.4 3.6 Perugia Stations used: IV.ARCI IV.ARVD IV.ASQU IV.ASSB IV.ATFO IV.ATPC IV.ATTE IV.ATVO IV.CAFI IV.CERA IV.CERT IV.CRE IV.CSNT IV.FIAM IV.GUAR IV.GUMA IV.LAV9 IV.LPEL IV.MA9 IV.MGAB IV.MIDA IV.MODR IV.MTCE IV.MURB IV.OFFI IV.OSSC IV.PIEI IV.PIGN IV.POFI IV.PSB1 IV.RMP IV.SACS IV.SAMA IV.SNTG IV.TERO IV.TOLF MN.AQU Filtering commands used: cut o DIST/3.3 -20 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 1.53e+21 dyne-cm Mw = 3.39 Z = 6 km Plane Strike Dip Rake NP1 360 88 -100 NP2 260 10 -10 Principal Axes: Axis Value Plunge Azimuth T 1.53e+21 42 99 N 0.00e+00 10 0 P -1.53e+21 46 260 Moment Tensor: (dyne-cm) Component Value Mxx -1.36e+18 Mxy -2.62e+20 Mxz 1.18e+19 Myy 9.23e+19 Myz 1.51e+21 Mzz -9.09e+19 #######------- ####-------########--- ###-----------###########--- ##-------------##############- ##---------------################- #-----------------#################- #------------------################### #-------------------###################- #-------------------#################### #--------------------##################### #--------------------##################### --------- ---------########## ######## --------- P ---------########## T ######## -------- ---------########## ####### --------------------#################### -------------------################### ------------------################## -----------------################# ---------------############### --------------############## -----------########### -------####### Global CMT Convention Moment Tensor: R T P -9.09e+19 1.18e+19 -1.51e+21 1.18e+19 -1.36e+18 2.62e+20 -1.51e+21 2.62e+20 9.23e+19 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20161030142444/index.html |

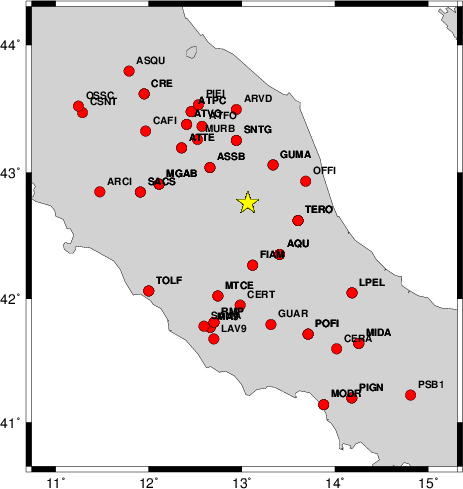

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
![]() |
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -20 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3The results of this grid search from 0.5 to 19 km depth are as follow:
DEPTH STK DIP RAKE MW FIT WVFGRD96 1.0 30 30 -80 3.19 0.4253 WVFGRD96 2.0 240 10 -35 3.33 0.4468 WVFGRD96 3.0 250 10 -25 3.31 0.5686 WVFGRD96 4.0 255 15 -20 3.28 0.6260 WVFGRD96 5.0 250 10 -20 3.40 0.6651 WVFGRD96 6.0 260 10 -10 3.39 0.6818 WVFGRD96 7.0 265 15 -5 3.40 0.6804 WVFGRD96 8.0 260 15 -10 3.35 0.6683 WVFGRD96 9.0 265 15 -5 3.35 0.6531 WVFGRD96 10.0 290 15 20 3.36 0.6341 WVFGRD96 11.0 290 15 20 3.36 0.6125 WVFGRD96 12.0 295 15 25 3.37 0.5895 WVFGRD96 13.0 315 15 50 3.38 0.5669 WVFGRD96 14.0 315 15 50 3.39 0.5467 WVFGRD96 15.0 330 10 60 3.43 0.5245 WVFGRD96 16.0 0 10 90 3.44 0.5002 WVFGRD96 17.0 5 10 95 3.45 0.4782 WVFGRD96 18.0 180 75 90 3.45 0.4567 WVFGRD96 19.0 10 15 100 3.46 0.4357
The best solution is
WVFGRD96 6.0 260 10 -10 3.39 0.6818
The mechanism correspond to the best fit is
![]() |
|

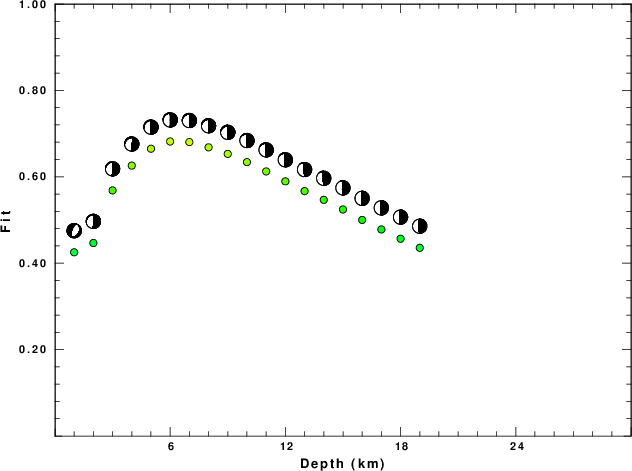

The best fit as a function of depth is given in the following figure:
![]() |
|

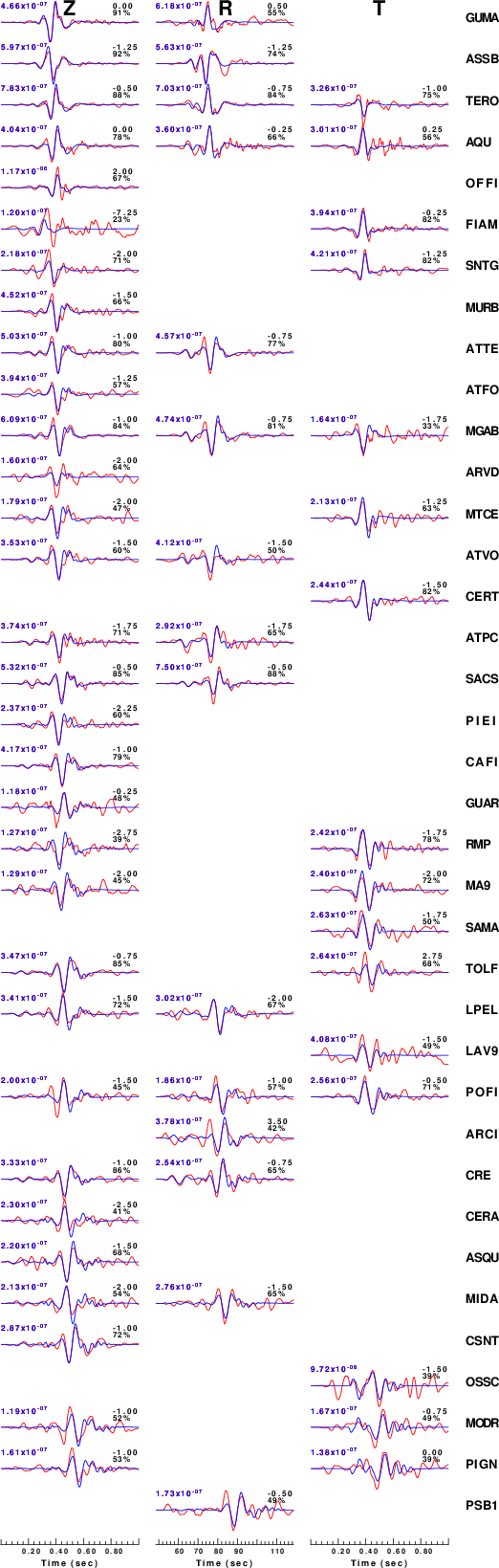

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -20 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3
![]() |
|
![]() |

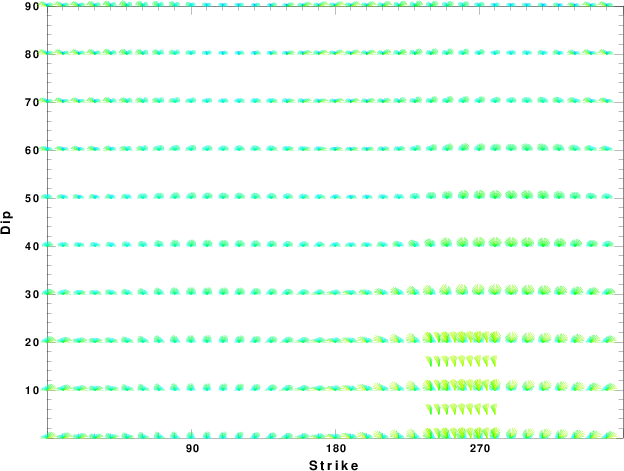

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

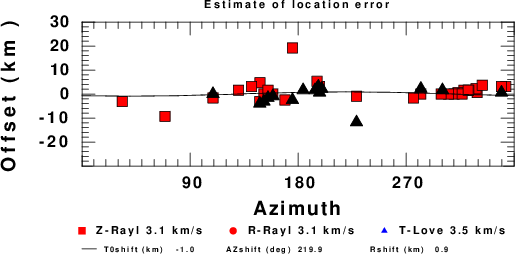

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The nnCIA used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:
MODEL.01 C.It. A. Di Luzio et al Earth Plan Lettrs 280 (2009) 1-12 Fig 5. 7-8 MODEL/SURF3 ISOTROPIC KGS FLAT EARTH 1-D CONSTANT VELOCITY LINE08 LINE09 LINE10 LINE11 H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS 1.5000 3.7497 2.1436 2.2753 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00 3.0000 4.9399 2.8210 2.4858 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00 3.0000 6.0129 3.4336 2.7058 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00 7.0000 5.5516 3.1475 2.6093 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00 15.0000 5.8805 3.3583 2.6770 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00 6.0000 7.1059 4.0081 3.0002 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00 8.0000 7.1000 3.9864 3.0120 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00 0.0000 7.9000 4.4036 3.2760 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
