2016/10/08 12:19:03 42.7502 13.1823 8.7 3.5 Rieti

Arrival Times (from USGS)

Felt Map

Focal Mechanism

SLU Moment Tensor Solution ENS 2016/10/08 12:19:03:2 42.75 13.18 8.7 3.5 Rieti Stations used: IV.ARVD IV.ASQU IV.ATFO IV.ATPC IV.ATVO IV.CAFI IV.CASP IV.CERT IV.CING IV.CRE IV.CSNT IV.FDMO IV.FIAM IV.GUAR IV.GUMA IV.LAV9 IV.LNSS IV.LPEL IV.MA9 IV.MGAB IV.MTCE IV.MURB IV.OSSC IV.PESA IV.PTQR IV.RMP IV.SACS IV.SAMA IV.SNTG IV.SSFR IV.TERO MN.AQU Filtering commands used: cut o DIST/3.3 -20 o DIST/3.3 +40 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 2.95e+21 dyne-cm Mw = 3.58 Z = 3 km Plane Strike Dip Rake NP1 148 45 -95 NP2 335 45 -85 Principal Axes: Axis Value Plunge Azimuth T 2.95e+21 0 241 N 0.00e+00 4 151 P -2.95e+21 86 333 Moment Tensor: (dyne-cm) Component Value Mxx 6.64e+20 Mxy 1.24e+21 Mxz -1.65e+20 Myy 2.28e+21 Myz 7.69e+19 Mzz -2.94e+21 ############## --------############## ##-------------############# ##----------------############ ####------------------############ #####--------------------########### #####----------------------########### ######-----------------------########### #######-----------------------########## ########----------- ----------########## ########----------- P -----------######### #########---------- -----------######### ##########-----------------------######### ##########-----------------------####### ###########----------------------####### ########---------------------###### T ##########------------------###### ############----------------##### #############--------------### ###############----------### ###################--# ############## Global CMT Convention Moment Tensor: R T P -2.94e+21 -1.65e+20 -7.69e+19 -1.65e+20 6.64e+20 -1.24e+21 -7.69e+19 -1.24e+21 2.28e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20161008121903/index.html

Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion and first motion observations is

      STK = 335
      DIP = 45
     RAKE = -85
       MW = 3.58
       HS = 3.0

The NDK file is 20161008121903.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to others

SLU

SLU Moment Tensor Solution ENS 2016/10/08 12:19:03:2 42.75 13.18 8.7 3.5 Rieti Stations used: IV.ARVD IV.ASQU IV.ATFO IV.ATPC IV.ATVO IV.CAFI IV.CASP IV.CERT IV.CING IV.CRE IV.CSNT IV.FDMO IV.FIAM IV.GUAR IV.GUMA IV.LAV9 IV.LNSS IV.LPEL IV.MA9 IV.MGAB IV.MTCE IV.MURB IV.OSSC IV.PESA IV.PTQR IV.RMP IV.SACS IV.SAMA IV.SNTG IV.SSFR IV.TERO MN.AQU Filtering commands used: cut o DIST/3.3 -20 o DIST/3.3 +40 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 2.95e+21 dyne-cm Mw = 3.58 Z = 3 km Plane Strike Dip Rake NP1 148 45 -95 NP2 335 45 -85 Principal Axes: Axis Value Plunge Azimuth T 2.95e+21 0 241 N 0.00e+00 4 151 P -2.95e+21 86 333 Moment Tensor: (dyne-cm) Component Value Mxx 6.64e+20 Mxy 1.24e+21 Mxz -1.65e+20 Myy 2.28e+21 Myz 7.69e+19 Mzz -2.94e+21 ############## --------############## ##-------------############# ##----------------############ ####------------------############ #####--------------------########### #####----------------------########### ######-----------------------########### #######-----------------------########## ########----------- ----------########## ########----------- P -----------######### #########---------- -----------######### ##########-----------------------######### ##########-----------------------####### ###########----------------------####### ########---------------------###### T ##########------------------###### ############----------------##### #############--------------### ###############----------### ###################--# ############## Global CMT Convention Moment Tensor: R T P -2.94e+21 -1.65e+20 -7.69e+19 -1.65e+20 6.64e+20 -1.24e+21 -7.69e+19 -1.24e+21 2.28e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20161008121903/index.html

Waveform Inversion

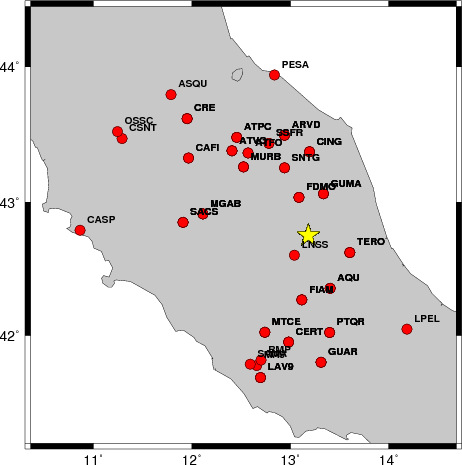

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -20 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3

The results of this grid search from 0.5 to 19 km depth are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0     0    50   -50   3.43 0.4692
WVFGRD96    2.0   340    50   -80   3.54 0.5471
WVFGRD96    3.0   335    45   -85   3.58 0.5903
WVFGRD96    4.0   150    40   -95   3.60 0.5669
WVFGRD96    5.0   335    50   -85   3.67 0.5870
WVFGRD96    6.0    25    60    30   3.55 0.5262
WVFGRD96    7.0    20    70    20   3.54 0.5112
WVFGRD96    8.0    20    70    15   3.54 0.4970
WVFGRD96    9.0    20    70    15   3.55 0.4765
WVFGRD96   10.0    20    70    10   3.56 0.4548
WVFGRD96   11.0    15    70   -10   3.57 0.4332
WVFGRD96   12.0    15    70   -10   3.57 0.4141
WVFGRD96   13.0    15    70   -10   3.58 0.3944
WVFGRD96   14.0    15    70   -10   3.59 0.3747
WVFGRD96   15.0    15    65   -10   3.61 0.3589
WVFGRD96   16.0    15    65   -10   3.61 0.3443
WVFGRD96   17.0    15    65   -10   3.62 0.3334
WVFGRD96   18.0    15    65   -10   3.63 0.3270
WVFGRD96   19.0    15    65   -10   3.64 0.3216
WVFGRD96   20.0    15    65   -10   3.64 0.3173
WVFGRD96   21.0    15    60   -10   3.65 0.3139
WVFGRD96   22.0    15    65   -10   3.66 0.3109
WVFGRD96   23.0    15    65   -10   3.67 0.3091
WVFGRD96   24.0   290    80    15   3.68 0.3085
WVFGRD96   25.0   290    80    15   3.69 0.3144
WVFGRD96   26.0   110    90   -15   3.71 0.3200
WVFGRD96   27.0   110    90   -15   3.73 0.3245
WVFGRD96   28.0   290    75   -20   3.73 0.3274
WVFGRD96   29.0   290    75   -20   3.75 0.3316

The best solution is

WVFGRD96    3.0   335    45   -85   3.58 0.5903

The mechanism correspond to the best fit is

Figure 1. Waveform inversion focal mechanism

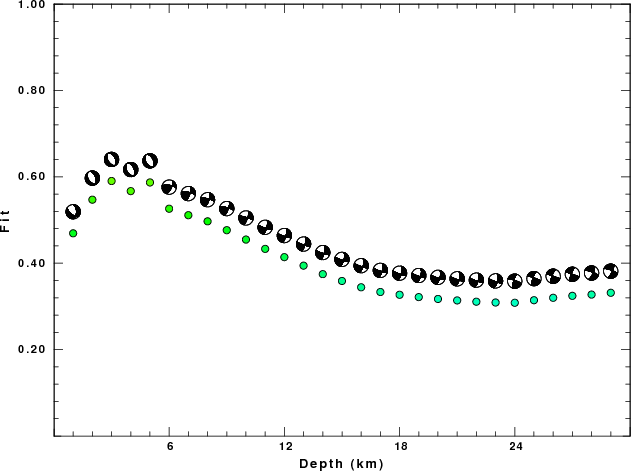

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

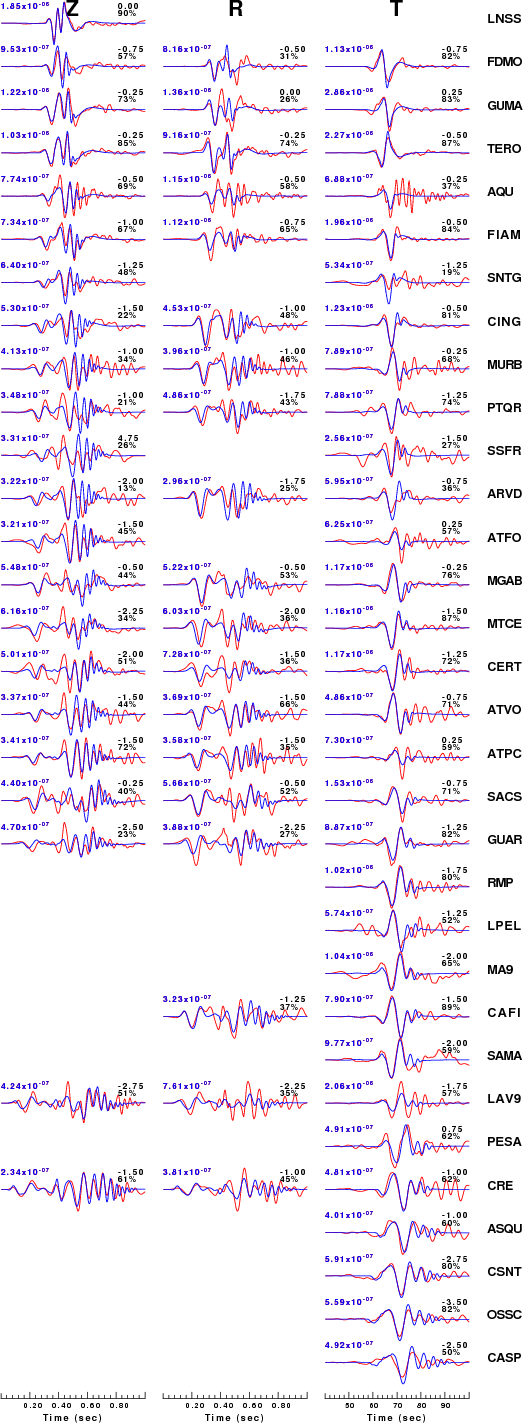

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -20 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated.

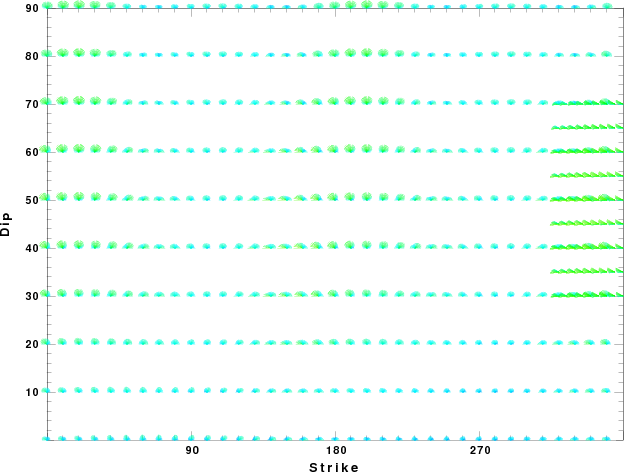

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

The origin time and epicentral distance are incorrect
The velocity model used for the inversion is incorrect
The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

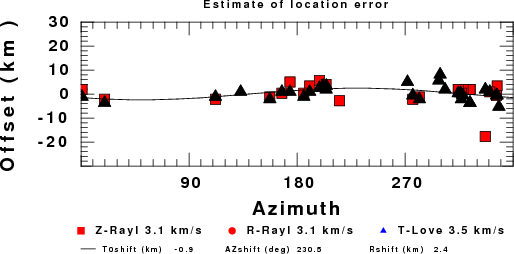

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Discussion

Velocity Model

The nnCIA used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:

MODEL.01
C.It. A. Di Luzio et al Earth Plan Lettrs 280 (2009) 1-12 Fig 5. 7-8 MODEL/SURF3
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.5000     3.7497     2.1436     2.2753  0.500E-02  0.100E-01   0.00       0.00       1.00       1.00
     3.0000     4.9399     2.8210     2.4858  0.500E-02  0.100E-01   0.00       0.00       1.00       1.00
     3.0000     6.0129     3.4336     2.7058  0.500E-02  0.100E-01   0.00       0.00       1.00       1.00
     7.0000     5.5516     3.1475     2.6093  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
    15.0000     5.8805     3.3583     2.6770  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
     6.0000     7.1059     4.0081     3.0002  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
     8.0000     7.1000     3.9864     3.0120  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.4036     3.2760  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
