2016/08/26 04:28:25 42.60 13.29 11 4.8 Rieti
USGS Felt map for this earthquake
SLU Moment Tensor Solution
ENS 2016/08/26 04:28:25:0 42.60 13.29 11.0 4.8 Rieti
Stations used:
IV.AOI IV.ARCI IV.ARVD IV.ASQU IV.ASSB IV.ATFO IV.ATPC
IV.ATTE IV.ATVO IV.CAFI IV.CASP IV.CERA IV.CERT IV.CESX
IV.CING IV.CRE IV.CRMI IV.CSNT IV.FIAM IV.FRES IV.FSSB
IV.GIUL IV.GUAR IV.LATE IV.LAV9 IV.LNSS IV.LPEL IV.MA9
IV.MGAB IV.MODR IV.MTCE IV.MURB IV.NRCA IV.OFFI IV.OSSC
IV.PARC IV.PESA IV.PIGN IV.POFI IV.PTQR IV.RMP IV.RNI2
IV.SACR IV.SACS IV.SAMA IV.SNTG IV.SSFR IV.TERO IV.VAGA
MN.AQU
Filtering commands used:
cut o DIST/3.3 -30 o DIST/3.3 +70
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 1.51e+23 dyne-cm
Mw = 4.72
Z = 5 km
Plane Strike Dip Rake
NP1 127 50 -113
NP2 340 45 -65
Principal Axes:
Axis Value Plunge Azimuth
T 1.51e+23 3 233
N 0.00e+00 17 142
P -1.51e+23 72 331
Moment Tensor: (dyne-cm)
Component Value
Mxx 4.51e+22
Mxy 7.87e+22
Mxz -4.25e+22
Myy 9.21e+22
Myz 1.55e+22
Mzz -1.37e+23
-#############
----------############
----------------############
-------------------###########
-----------------------###########
#------------------------###########
##-------------------------###########
####------------ ----------###########
####------------ P -----------##########
######----------- ------------##########
#######-------------------------##########
########-------------------------#########
##########-----------------------#########
##########----------------------########
############--------------------########
#############------------------#######
############---------------######
T ################----------######
##########################----
########################----
####################--
##############
Global CMT Convention Moment Tensor:
R T P
-1.37e+23 -4.25e+22 -1.55e+22
-4.25e+22 4.51e+22 -7.87e+22
-1.55e+22 -7.87e+22 9.21e+22
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20160826042825/index.html
|
STK = 340
DIP = 45
RAKE = -65
MW = 4.72
HS = 5.0
The NDK file is 20160826042825.ndk The waveform inversion is preferred.

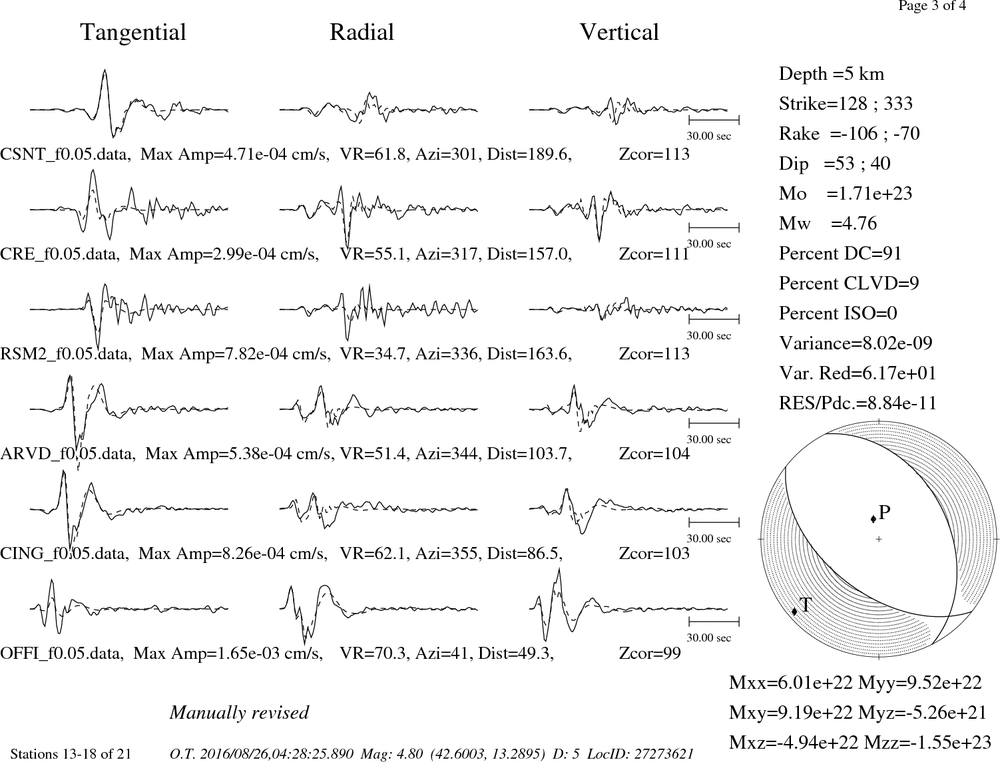

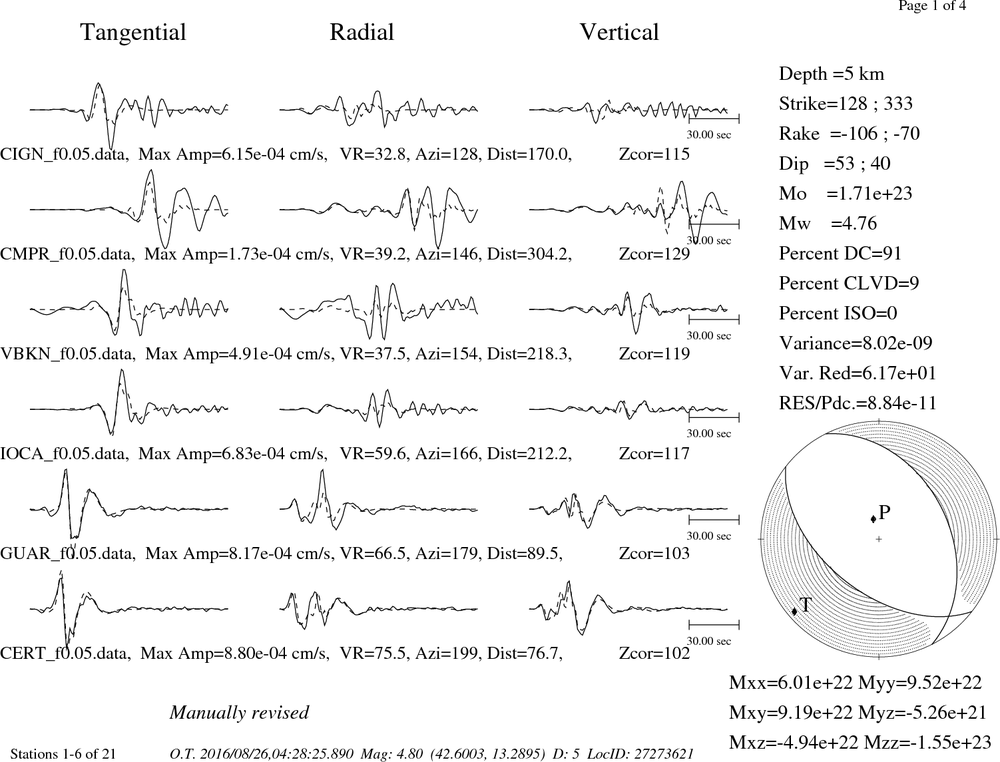

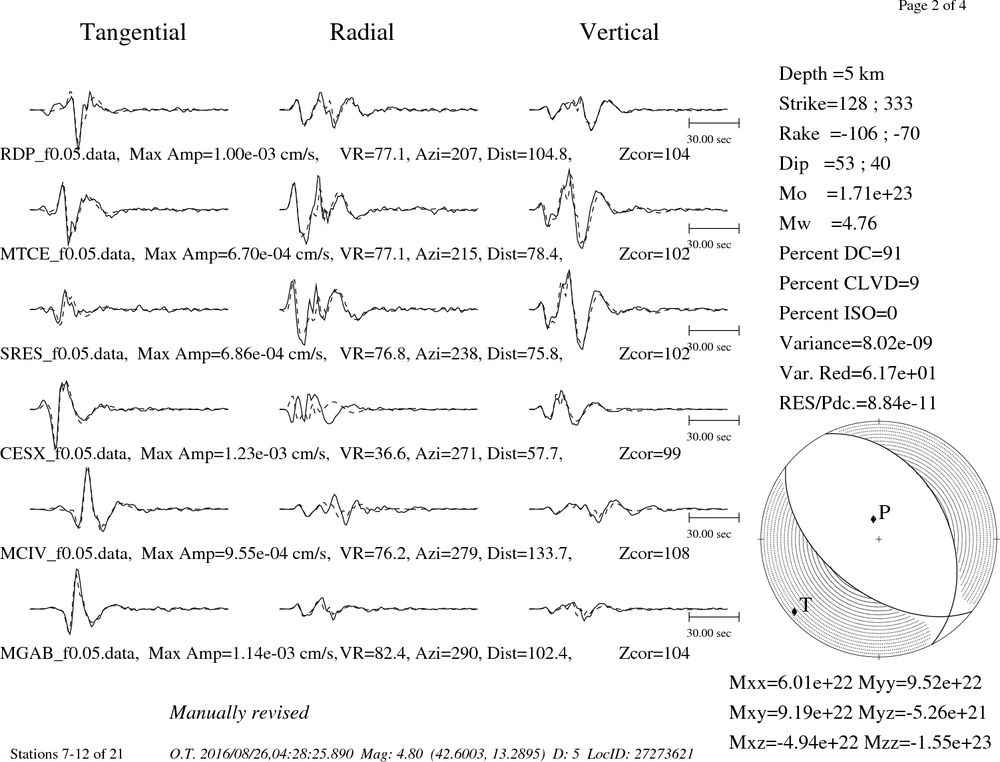

The following compares this source inversion to others
SLU Moment Tensor Solution
ENS 2016/08/26 04:28:25:0 42.60 13.29 11.0 4.8 Rieti
Stations used:
IV.AOI IV.ARCI IV.ARVD IV.ASQU IV.ASSB IV.ATFO IV.ATPC
IV.ATTE IV.ATVO IV.CAFI IV.CASP IV.CERA IV.CERT IV.CESX
IV.CING IV.CRE IV.CRMI IV.CSNT IV.FIAM IV.FRES IV.FSSB
IV.GIUL IV.GUAR IV.LATE IV.LAV9 IV.LNSS IV.LPEL IV.MA9
IV.MGAB IV.MODR IV.MTCE IV.MURB IV.NRCA IV.OFFI IV.OSSC
IV.PARC IV.PESA IV.PIGN IV.POFI IV.PTQR IV.RMP IV.RNI2
IV.SACR IV.SACS IV.SAMA IV.SNTG IV.SSFR IV.TERO IV.VAGA
MN.AQU
Filtering commands used:
cut o DIST/3.3 -30 o DIST/3.3 +70
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 1.51e+23 dyne-cm
Mw = 4.72
Z = 5 km
Plane Strike Dip Rake
NP1 127 50 -113
NP2 340 45 -65
Principal Axes:
Axis Value Plunge Azimuth
T 1.51e+23 3 233
N 0.00e+00 17 142
P -1.51e+23 72 331
Moment Tensor: (dyne-cm)
Component Value
Mxx 4.51e+22
Mxy 7.87e+22
Mxz -4.25e+22
Myy 9.21e+22
Myz 1.55e+22
Mzz -1.37e+23
-#############
----------############
----------------############
-------------------###########
-----------------------###########
#------------------------###########
##-------------------------###########
####------------ ----------###########
####------------ P -----------##########
######----------- ------------##########
#######-------------------------##########
########-------------------------#########
##########-----------------------#########
##########----------------------########
############--------------------########
#############------------------#######
############---------------######
T ################----------######
##########################----
########################----
####################--
##############
Global CMT Convention Moment Tensor:
R T P
-1.37e+23 -4.25e+22 -1.55e+22
-4.25e+22 4.51e+22 -7.87e+22
-1.55e+22 -7.87e+22 9.21e+22
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20160826042825/index.html
|
|

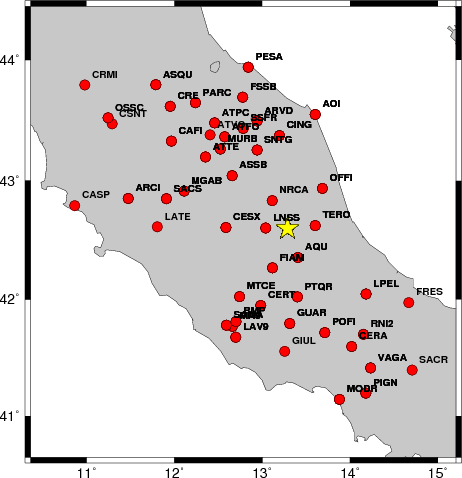

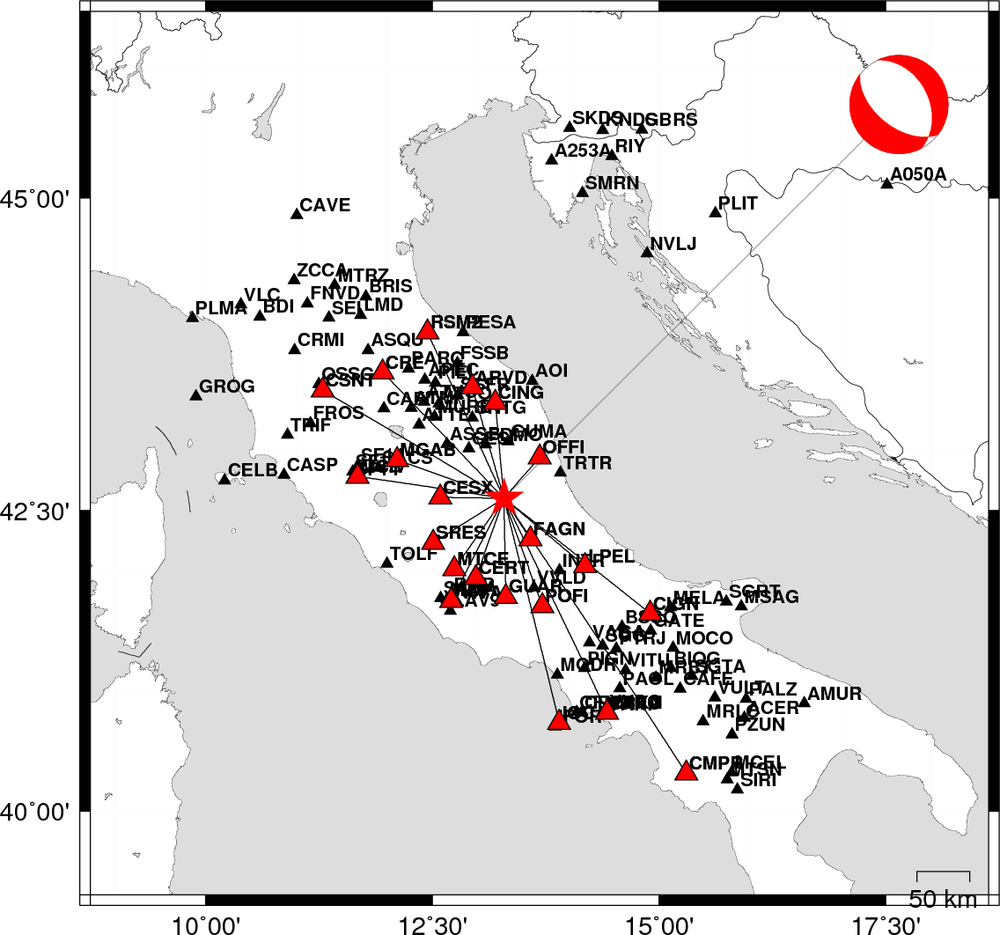

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -30 o DIST/3.3 +70 rtr taper w 0.1 hp c 0.02 n 3 lp c 0.10 n 3The results of this grid search from 0.5 to 19 km depth are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 1.0 355 45 -40 4.50 0.4598
WVFGRD96 2.0 350 45 -50 4.58 0.5312
WVFGRD96 3.0 345 45 -55 4.62 0.5794
WVFGRD96 4.0 340 45 -65 4.65 0.5755
WVFGRD96 5.0 340 45 -65 4.72 0.6060
WVFGRD96 6.0 -5 55 -40 4.66 0.5592
WVFGRD96 7.0 5 65 -20 4.64 0.5337
WVFGRD96 8.0 10 75 20 4.65 0.5207
WVFGRD96 9.0 10 75 20 4.66 0.5087
WVFGRD96 10.0 10 75 20 4.67 0.4944
WVFGRD96 11.0 10 75 20 4.67 0.4770
WVFGRD96 12.0 10 75 20 4.68 0.4586
WVFGRD96 13.0 10 80 20 4.69 0.4404
WVFGRD96 14.0 10 75 -10 4.70 0.4246
WVFGRD96 15.0 5 70 -15 4.72 0.4104
WVFGRD96 16.0 5 70 -15 4.72 0.3954
WVFGRD96 17.0 5 70 -15 4.73 0.3809
WVFGRD96 18.0 5 70 -15 4.74 0.3669
WVFGRD96 19.0 180 70 -35 4.75 0.3537
WVFGRD96 20.0 180 70 -35 4.75 0.3443
WVFGRD96 21.0 180 70 -35 4.76 0.3353
WVFGRD96 22.0 180 70 -35 4.77 0.3285
WVFGRD96 23.0 180 70 -35 4.78 0.3228
WVFGRD96 24.0 180 65 -30 4.79 0.3186
WVFGRD96 25.0 180 65 -30 4.80 0.3161
WVFGRD96 26.0 180 65 -30 4.81 0.3138
WVFGRD96 27.0 180 65 -30 4.82 0.3115
WVFGRD96 28.0 185 75 -20 4.83 0.3090
WVFGRD96 29.0 190 85 10 4.85 0.3079
The best solution is
WVFGRD96 5.0 340 45 -65 4.72 0.6060
The mechanism correspond to the best fit is
|
|
|

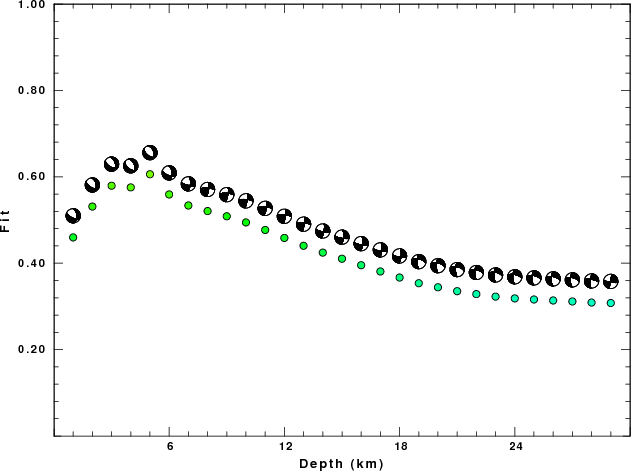

The best fit as a function of depth is given in the following figure:
|
|
|

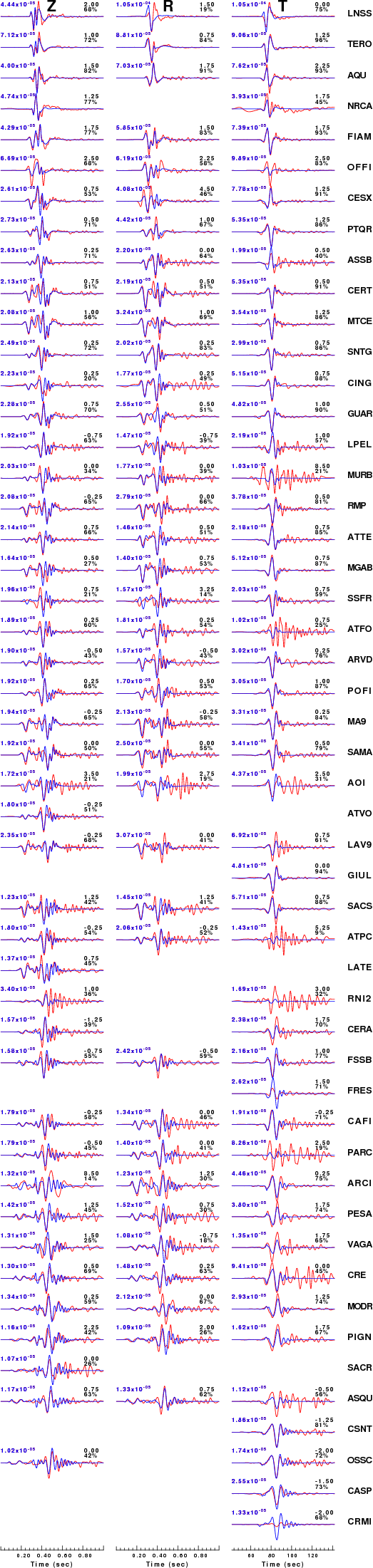

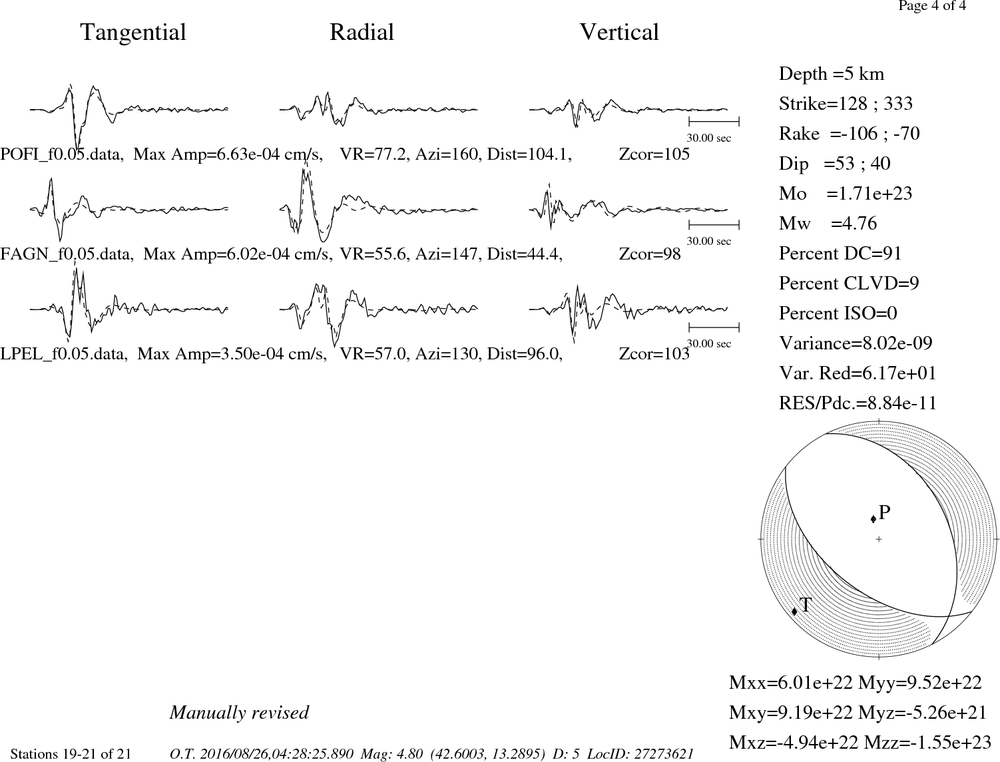

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -30 o DIST/3.3 +70 rtr taper w 0.1 hp c 0.02 n 3 lp c 0.10 n 3
|
|
|
|

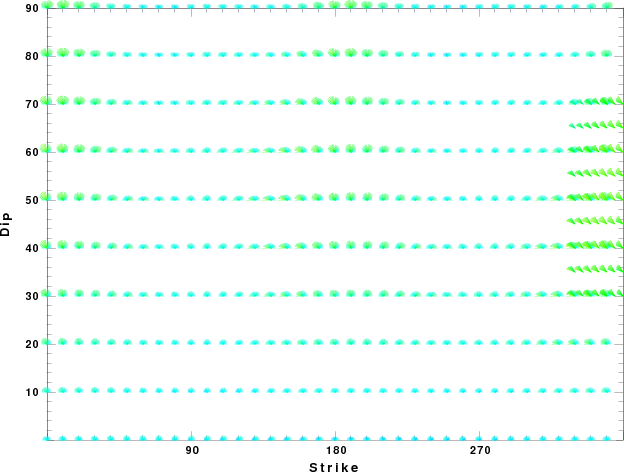

| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

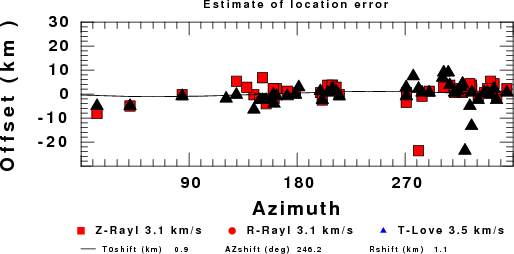

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The nnCIA used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:
MODEL.01
C.It. A. Di Luzio et al Earth Plan Lettrs 280 (2009) 1-12 Fig 5. 7-8 MODEL/SURF3
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS
1.5000 3.7497 2.1436 2.2753 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
3.0000 4.9399 2.8210 2.4858 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
3.0000 6.0129 3.4336 2.7058 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
7.0000 5.5516 3.1475 2.6093 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
15.0000 5.8805 3.3583 2.6770 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
6.0000 7.1059 4.0081 3.0002 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
8.0000 7.1000 3.9864 3.0120 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
0.0000 7.9000 4.4036 3.2760 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
Here we tabulate the reasons for not using certain digital data sets
The following stations did not have a valid response files:
DATE=Fri Aug 26 08:20:46 CDT 2016
