2013/08/14 22:18:55 44.166 10.195 6.5 3.6 Italy
USGS Felt map for this earthquake
SLU Moment Tensor Solution ENS 2013/08/14 22:18:55:0 44.17 10.19 6.5 3.6 Italy Stations used: GU.FINB GU.GORR GU.MAIM GU.PCP GU.POPM IV.ARCI IV.ASQU IV.BDI IV.BOB IV.CAFI IV.CASP IV.CELB IV.CRMI IV.IMI IV.MSSA IV.OSSC IV.PARC IV.PLMA IV.QLNO IV.ZCCA MN.VLC Filtering commands used: cut a -10 a 60 rtr taper w 0.1 hp c 0.02 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 2.32e+21 dyne-cm Mw = 3.51 Z = 5 km Plane Strike Dip Rake NP1 238 57 -130 NP2 115 50 -45 Principal Axes: Axis Value Plunge Azimuth T 2.32e+21 4 355 N 0.00e+00 33 262 P -2.32e+21 57 91 Moment Tensor: (dyne-cm) Component Value Mxx 2.29e+21 Mxy -1.89e+20 Mxz 1.87e+20 Myy -6.73e+20 Myz -1.07e+21 Mzz -1.61e+21 #### T ####### ######## ########### ############################ ############################## ###########################---#### ####################---------------- #################--------------------- --#############------------------------- --##########---------------------------- ----#######------------------------------- -----####------------------- ----------- ------##-------------------- P ----------- ------##-------------------- ----------- ----#####------------------------------- ----#######----------------------------- --###########------------------------- -###############------------------## ################################## ############################## ############################ ###################### ############## Global CMT Convention Moment Tensor: R T P -1.61e+21 1.87e+20 1.07e+21 1.87e+20 2.29e+21 1.89e+20 1.07e+21 1.89e+20 -6.73e+20 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20130814221855/index.html |
STK = 115 DIP = 50 RAKE = -45 MW = 3.51 HS = 5.0
The NDK file is 20130814221855.ndk The waveform inversion is preferred.
The following compares this source inversion to others
SLU Moment Tensor Solution ENS 2013/08/14 22:18:55:0 44.17 10.19 6.5 3.6 Italy Stations used: GU.FINB GU.GORR GU.MAIM GU.PCP GU.POPM IV.ARCI IV.ASQU IV.BDI IV.BOB IV.CAFI IV.CASP IV.CELB IV.CRMI IV.IMI IV.MSSA IV.OSSC IV.PARC IV.PLMA IV.QLNO IV.ZCCA MN.VLC Filtering commands used: cut a -10 a 60 rtr taper w 0.1 hp c 0.02 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 2.32e+21 dyne-cm Mw = 3.51 Z = 5 km Plane Strike Dip Rake NP1 238 57 -130 NP2 115 50 -45 Principal Axes: Axis Value Plunge Azimuth T 2.32e+21 4 355 N 0.00e+00 33 262 P -2.32e+21 57 91 Moment Tensor: (dyne-cm) Component Value Mxx 2.29e+21 Mxy -1.89e+20 Mxz 1.87e+20 Myy -6.73e+20 Myz -1.07e+21 Mzz -1.61e+21 #### T ####### ######## ########### ############################ ############################## ###########################---#### ####################---------------- #################--------------------- --#############------------------------- --##########---------------------------- ----#######------------------------------- -----####------------------- ----------- ------##-------------------- P ----------- ------##-------------------- ----------- ----#####------------------------------- ----#######----------------------------- --###########------------------------- -###############------------------## ################################## ############################## ############################ ###################### ############## Global CMT Convention Moment Tensor: R T P -1.61e+21 1.87e+20 1.07e+21 1.87e+20 2.29e+21 1.89e+20 1.07e+21 1.89e+20 -6.73e+20 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20130814221855/index.html |

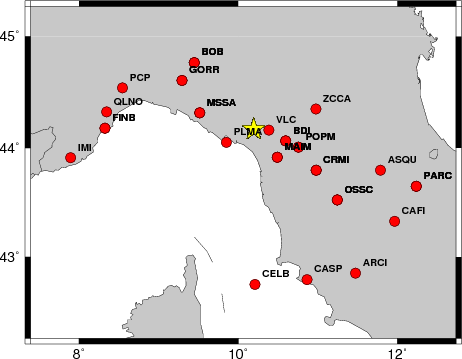

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
![]() |
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut a -10 a 60 rtr taper w 0.1 hp c 0.02 n 3 lp c 0.10 n 3The results of this grid search from 0.5 to 19 km depth are as follow:
DEPTH STK DIP RAKE MW FIT WVFGRD96 1.0 120 35 -15 3.34 0.3783 WVFGRD96 2.0 120 35 -20 3.41 0.4394 WVFGRD96 3.0 115 45 -40 3.42 0.4883 WVFGRD96 4.0 115 50 -45 3.45 0.5150 WVFGRD96 5.0 115 50 -45 3.51 0.5187 WVFGRD96 6.0 115 55 -45 3.52 0.5105 WVFGRD96 7.0 120 60 -45 3.53 0.4904 WVFGRD96 8.0 125 65 -35 3.50 0.4689 WVFGRD96 9.0 125 70 -35 3.51 0.4487 WVFGRD96 10.0 125 70 -35 3.52 0.4294 WVFGRD96 11.0 130 70 -25 3.52 0.4095 WVFGRD96 12.0 130 70 -25 3.52 0.3934 WVFGRD96 13.0 135 65 25 3.51 0.3845 WVFGRD96 14.0 135 65 25 3.52 0.3748 WVFGRD96 15.0 135 65 30 3.54 0.3682 WVFGRD96 16.0 135 65 30 3.55 0.3618 WVFGRD96 17.0 135 65 30 3.55 0.3547 WVFGRD96 18.0 135 65 30 3.56 0.3465 WVFGRD96 19.0 135 65 30 3.57 0.3384 WVFGRD96 20.0 135 65 30 3.57 0.3304 WVFGRD96 21.0 135 65 30 3.57 0.3207 WVFGRD96 22.0 135 70 30 3.58 0.3126 WVFGRD96 23.0 135 70 25 3.59 0.3079 WVFGRD96 24.0 135 70 25 3.59 0.3036 WVFGRD96 25.0 140 65 30 3.61 0.3033 WVFGRD96 26.0 140 65 30 3.61 0.3020 WVFGRD96 27.0 140 65 30 3.63 0.3011 WVFGRD96 28.0 140 70 30 3.64 0.3010 WVFGRD96 29.0 145 65 35 3.66 0.2995
The best solution is
WVFGRD96 5.0 115 50 -45 3.51 0.5187
The mechanism correspond to the best fit is
![]() |
|

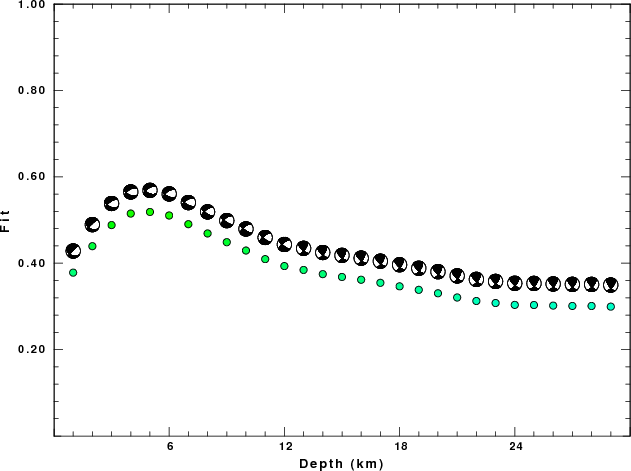

The best fit as a function of depth is given in the following figure:
![]() |
|

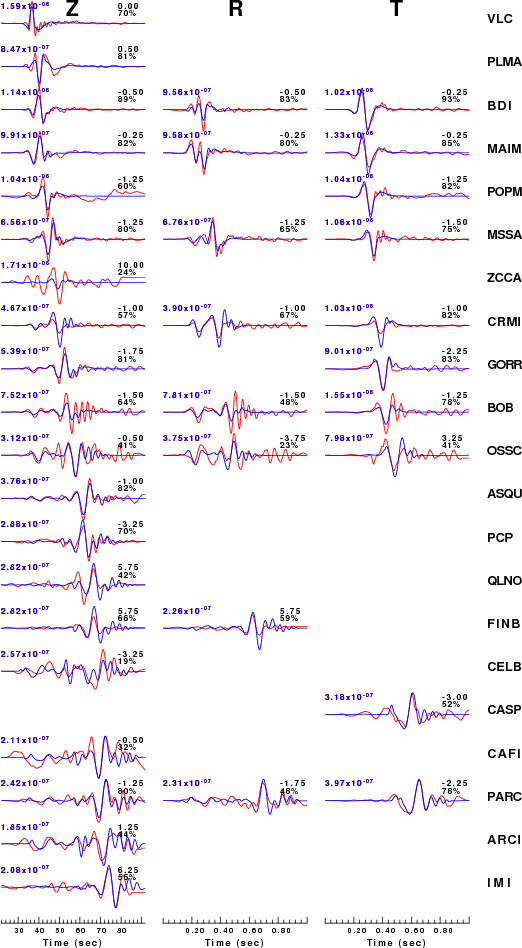

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut a -10 a 60 rtr taper w 0.1 hp c 0.02 n 3 lp c 0.10 n 3
![]() |
|
![]() |

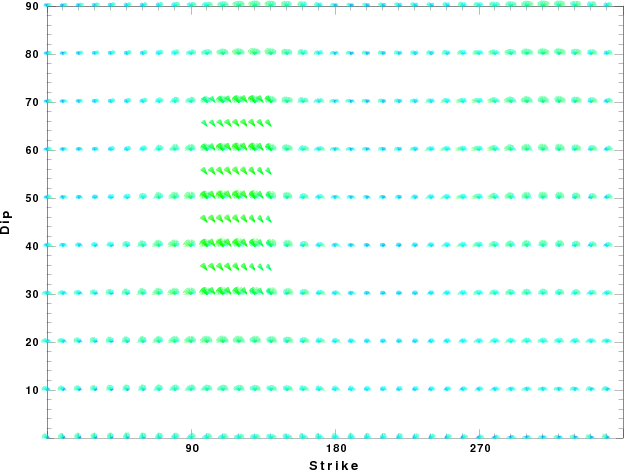

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

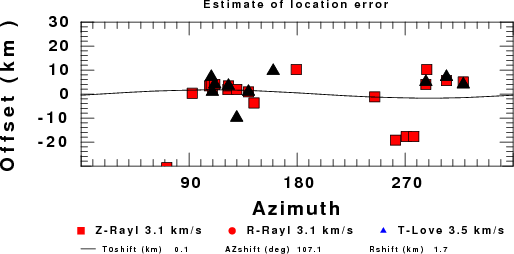

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The nnCIA used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:
MODEL.01 C.It. A. Di Luzio et al Earth Plan Lettrs 280 (2009) 1-12 Fig 5. 7-8 MODEL/SURF3 ISOTROPIC KGS FLAT EARTH 1-D CONSTANT VELOCITY LINE08 LINE09 LINE10 LINE11 H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS 1.5000 3.7497 2.1436 2.2753 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00 3.0000 4.9399 2.8210 2.4858 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00 3.0000 6.0129 3.4336 2.7058 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00 7.0000 5.5516 3.1475 2.6093 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00 15.0000 5.8805 3.3583 2.6770 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00 6.0000 7.1059 4.0081 3.0002 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00 8.0000 7.1000 3.9864 3.0120 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00 0.0000 7.9000 4.4036 3.2760 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
