2013/07/01 16:56:46 44.171 10.185 8.1 3.3 Italy
USGS Felt map for this earthquake
SLU Moment Tensor Solution
ENS 2013/07/01 16:56:46:0 44.17 10.19 8.1 3.3 Italy
Stations used:
GU.FINB GU.GORR GU.MAIM GU.PCP GU.POPM GU.RORO IV.ASQU
IV.BDI IV.CRE IV.CRMI IV.CSNT IV.FNVD IV.GROG IV.MGAB
IV.MSSA IV.PLMA IV.QLNO MN.VLC
Filtering commands used:
hp c 0.02 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 1.29e+21 dyne-cm
Mw = 3.34
Z = 5 km
Plane Strike Dip Rake
NP1 261 64 -146
NP2 155 60 -30
Principal Axes:
Axis Value Plunge Azimuth
T 1.29e+21 3 27
N 0.00e+00 49 294
P -1.29e+21 41 120
Moment Tensor: (dyne-cm)
Component Value
Mxx 8.40e+20
Mxy 8.35e+20
Mxz 3.69e+20
Myy -2.82e+20
Myz -5.28e+20
Mzz -5.58e+20
##############
--################# T
----################## ###
-----#########################
-------###########################
--------############################
---------#############################
----------#########-------------########
----------##--------------------------##
--------####------------------------------
-----#######------------------------------
---##########-----------------------------
-#############----------------------------
##############--------------- --------
###############-------------- P --------
###############------------- -------
###############---------------------
################------------------
################--------------
#################-----------
#################-----
##############
Global CMT Convention Moment Tensor:
R T P
-5.58e+20 3.69e+20 5.28e+20
3.69e+20 8.40e+20 -8.35e+20
5.28e+20 -8.35e+20 -2.82e+20
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20130701165646/index.html
|
STK = 155
DIP = 60
RAKE = -30
MW = 3.34
HS = 5.0
The waveform inversion is preferred.
The following compares this source inversion to others
SLU Moment Tensor Solution
ENS 2013/07/01 16:56:46:0 44.17 10.19 8.1 3.3 Italy
Stations used:
GU.FINB GU.GORR GU.MAIM GU.PCP GU.POPM GU.RORO IV.ASQU
IV.BDI IV.CRE IV.CRMI IV.CSNT IV.FNVD IV.GROG IV.MGAB
IV.MSSA IV.PLMA IV.QLNO MN.VLC
Filtering commands used:
hp c 0.02 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 1.29e+21 dyne-cm
Mw = 3.34
Z = 5 km
Plane Strike Dip Rake
NP1 261 64 -146
NP2 155 60 -30
Principal Axes:
Axis Value Plunge Azimuth
T 1.29e+21 3 27
N 0.00e+00 49 294
P -1.29e+21 41 120
Moment Tensor: (dyne-cm)
Component Value
Mxx 8.40e+20
Mxy 8.35e+20
Mxz 3.69e+20
Myy -2.82e+20
Myz -5.28e+20
Mzz -5.58e+20
##############
--################# T
----################## ###
-----#########################
-------###########################
--------############################
---------#############################
----------#########-------------########
----------##--------------------------##
--------####------------------------------
-----#######------------------------------
---##########-----------------------------
-#############----------------------------
##############--------------- --------
###############-------------- P --------
###############------------- -------
###############---------------------
################------------------
################--------------
#################-----------
#################-----
##############
Global CMT Convention Moment Tensor:
R T P
-5.58e+20 3.69e+20 5.28e+20
3.69e+20 8.40e+20 -8.35e+20
5.28e+20 -8.35e+20 -2.82e+20
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20130701165646/index.html
|
The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
hp c 0.02 n 3 lp c 0.10 n 3The results of this grid search from 0.5 to 19 km depth are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 1.0 340 70 -15 3.11 0.4848
WVFGRD96 2.0 150 60 -40 3.26 0.5432
WVFGRD96 3.0 150 60 -45 3.28 0.5747
WVFGRD96 4.0 155 60 -35 3.28 0.5743
WVFGRD96 5.0 155 60 -30 3.34 0.5793
WVFGRD96 6.0 160 80 -40 3.33 0.5662
WVFGRD96 7.0 155 60 -25 3.36 0.5595
WVFGRD96 8.0 160 70 -25 3.34 0.5477
WVFGRD96 9.0 160 80 -30 3.35 0.5376
WVFGRD96 10.0 160 80 -30 3.36 0.5267
WVFGRD96 11.0 160 75 -25 3.37 0.5143
WVFGRD96 12.0 160 75 -25 3.38 0.5015
WVFGRD96 13.0 160 75 -25 3.39 0.4871
WVFGRD96 14.0 160 80 -25 3.40 0.4725
WVFGRD96 15.0 160 75 -25 3.43 0.4598
WVFGRD96 16.0 160 80 -25 3.43 0.4469
WVFGRD96 17.0 160 80 -25 3.44 0.4363
WVFGRD96 18.0 160 80 -25 3.45 0.4257
WVFGRD96 19.0 160 80 -25 3.46 0.4162
WVFGRD96 20.0 160 80 -20 3.46 0.4079
WVFGRD96 21.0 160 85 -20 3.47 0.4031
WVFGRD96 22.0 160 85 -20 3.48 0.4009
WVFGRD96 23.0 160 85 -20 3.49 0.3991
WVFGRD96 24.0 345 90 20 3.49 0.3984
WVFGRD96 25.0 165 75 0 3.50 0.3995
WVFGRD96 26.0 165 80 0 3.52 0.4025
WVFGRD96 27.0 345 85 15 3.53 0.4040
WVFGRD96 28.0 160 90 -15 3.56 0.4030
WVFGRD96 29.0 165 90 -10 3.57 0.4008
The best solution is
WVFGRD96 5.0 155 60 -30 3.34 0.5793
The mechanism correspond to the best fit is
|
|
|

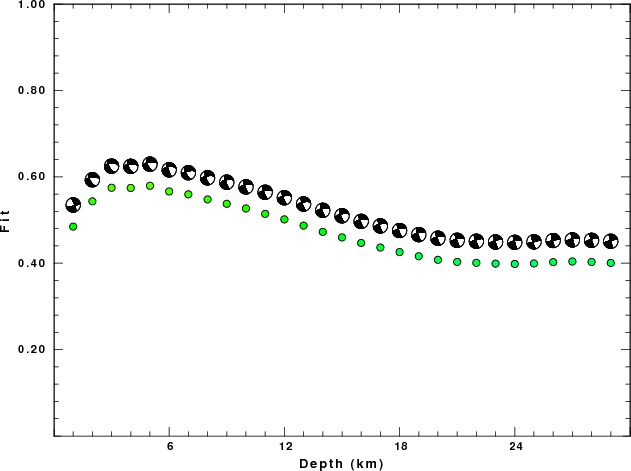

The best fit as a function of depth is given in the following figure:
|
|
|

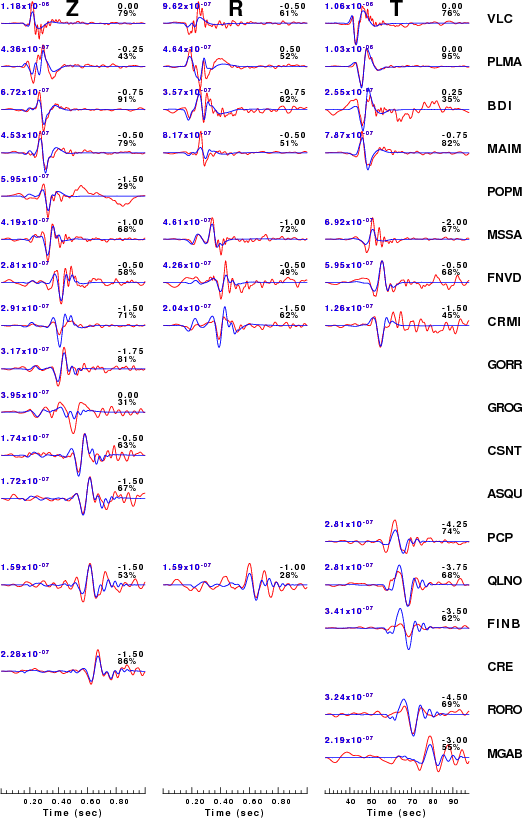

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
hp c 0.02 n 3 lp c 0.10 n 3
|
|
|
|

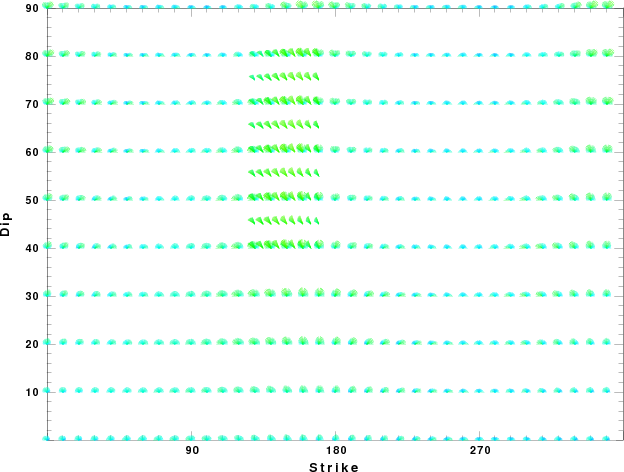

| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

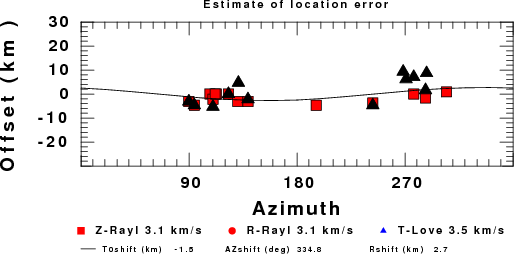

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The nnCIA used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:
MODEL.01
C.It. A. Di Luzio et al Earth Plan Lettrs 280 (2009) 1-12 Fig 5. 7-8 MODEL/SURF3
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS
1.5000 3.7497 2.1436 2.2753 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
3.0000 4.9399 2.8210 2.4858 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
3.0000 6.0129 3.4336 2.7058 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
7.0000 5.5516 3.1475 2.6093 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
15.0000 5.8805 3.3583 2.6770 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
6.0000 7.1059 4.0081 3.0002 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
8.0000 7.1000 3.9864 3.0120 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
0.0000 7.9000 4.4036 3.2760 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
Here we tabulate the reasons for not using certain digital data sets
The following stations did not have a valid response files:
DATE=Tue Jul 2 08:26:24 CDT 2013
