Location
2013/06/21 14:23:22 44.155 10.144 8.0 4.0 Italy
Arrival Times (from USGS)
Arrival time list
Felt Map
USGS Felt map for this earthquake
USGS Felt reports page for
Focal Mechanism
SLU Moment Tensor Solution
ENS 2013/06/21 14:23:22:0 44.15 10.14 8.0 4.0 Italy
Stations used:
FR.SAOF GU.FINB GU.MAIM GU.PCP IV.ARVD IV.ASQU IV.BDI
IV.BOB IV.CELB IV.CRMI IV.CSNT IV.FNVD IV.IMI IV.MSSA
IV.PARC IV.PIEI IV.QLNO IV.ZCCA MN.VLC
Filtering commands used:
cut a -30 a 90
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 1.95e+21 dyne-cm
Mw = 3.46
Z = 5 km
Plane Strike Dip Rake
NP1 218 80 -113
NP2 105 25 -25
Principal Axes:
Axis Value Plunge Azimuth
T 1.95e+21 31 327
N 0.00e+00 23 222
P -1.95e+21 50 102
Moment Tensor: (dyne-cm)
Component Value
Mxx 9.62e+20
Mxy -4.89e+20
Mxz 9.26e+20
Myy -3.31e+20
Myz -1.41e+21
Mzz -6.31e+20
##############
######################
##########################--
###### ###############------
######## T #############----------
######### ###########-------------
#######################---------------
######################------------------
####################--------------------
-###################----------------------
-#################------------------------
--###############------------ ----------
--##############------------- P ----------
--###########--------------- ---------
---#########---------------------------#
----######---------------------------#
-----###--------------------------##
-------------------------------###
---####-------------------####
-###########-------#########
######################
##############
Global CMT Convention Moment Tensor:
R T P
-6.31e+20 9.26e+20 1.41e+21
9.26e+20 9.62e+20 4.89e+20
1.41e+21 4.89e+20 -3.31e+20
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20130621142322/index.html
|
Preferred Solution
The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion and first motion observations is
STK = 105
DIP = 25
RAKE = -25
MW = 3.46
HS = 5.0
The waveform inversion is preferred.
Moment Tensor Comparison
The following compares this source inversion to others
| SLU |

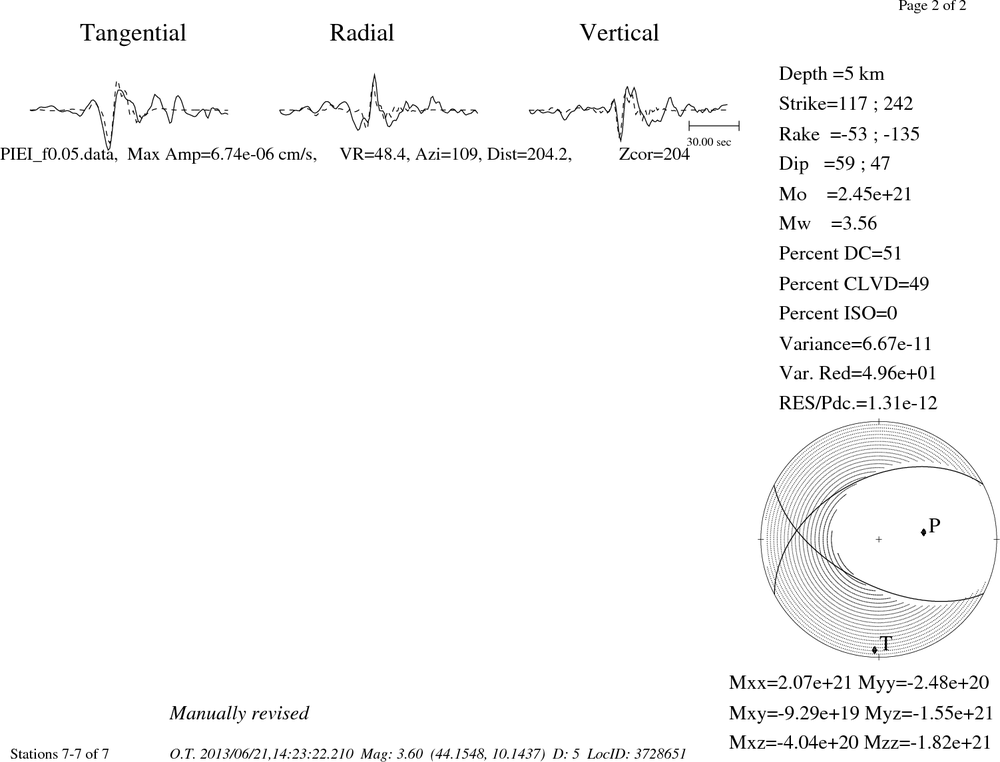

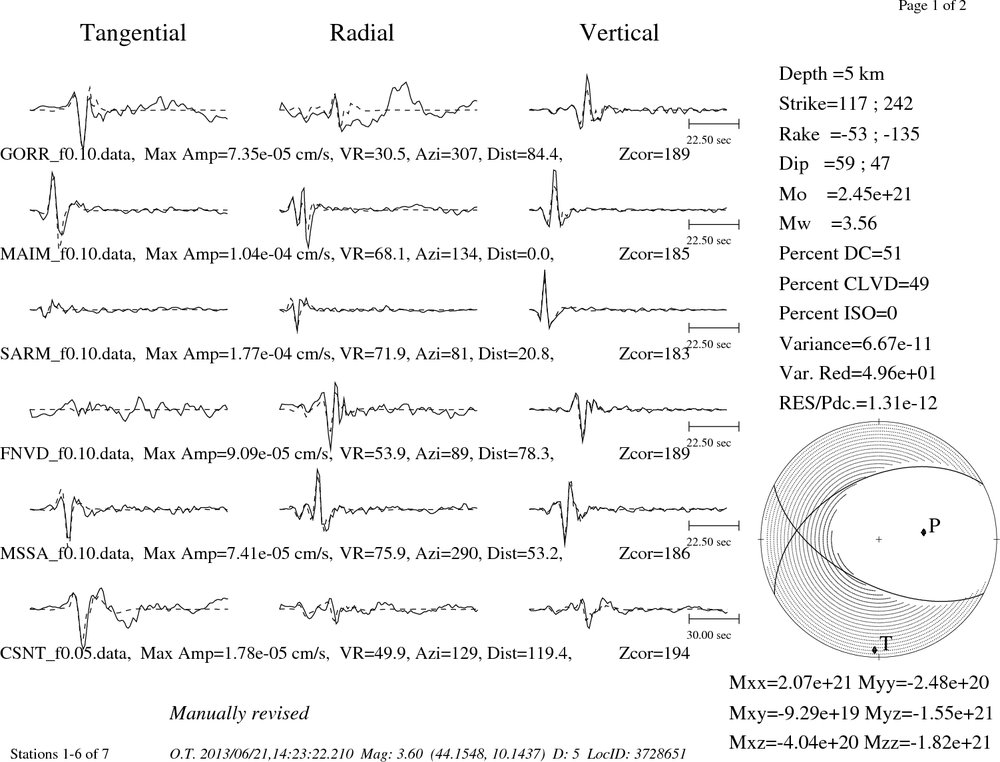

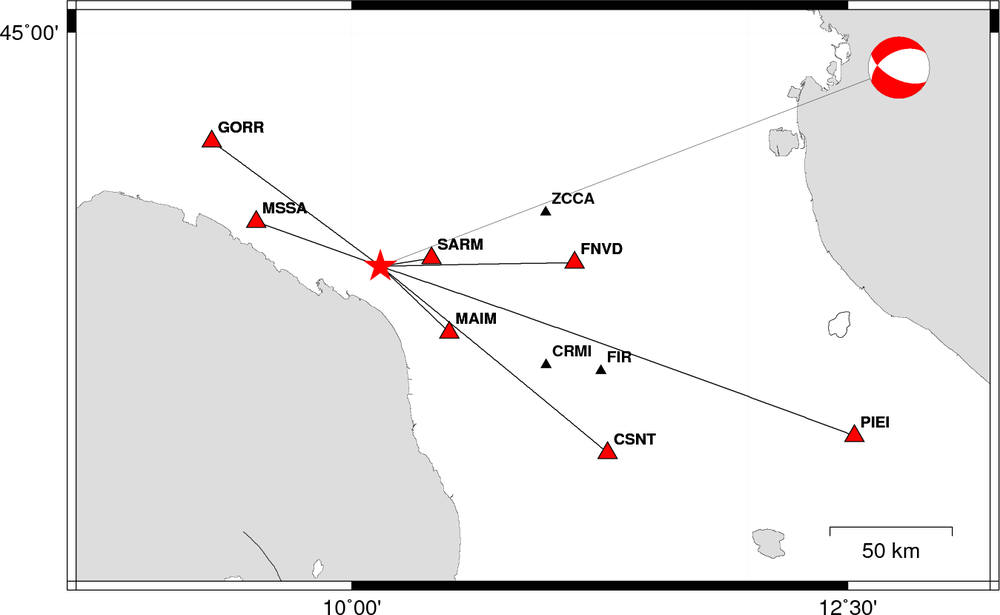

INGVTDMT |
SLU Moment Tensor Solution
ENS 2013/06/21 14:23:22:0 44.15 10.14 8.0 4.0 Italy
Stations used:
FR.SAOF GU.FINB GU.MAIM GU.PCP IV.ARVD IV.ASQU IV.BDI
IV.BOB IV.CELB IV.CRMI IV.CSNT IV.FNVD IV.IMI IV.MSSA
IV.PARC IV.PIEI IV.QLNO IV.ZCCA MN.VLC
Filtering commands used:
cut a -30 a 90
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 1.95e+21 dyne-cm
Mw = 3.46
Z = 5 km
Plane Strike Dip Rake
NP1 218 80 -113
NP2 105 25 -25
Principal Axes:
Axis Value Plunge Azimuth
T 1.95e+21 31 327
N 0.00e+00 23 222
P -1.95e+21 50 102
Moment Tensor: (dyne-cm)
Component Value
Mxx 9.62e+20
Mxy -4.89e+20
Mxz 9.26e+20
Myy -3.31e+20
Myz -1.41e+21
Mzz -6.31e+20
##############
######################
##########################--
###### ###############------
######## T #############----------
######### ###########-------------
#######################---------------
######################------------------
####################--------------------
-###################----------------------
-#################------------------------
--###############------------ ----------
--##############------------- P ----------
--###########--------------- ---------
---#########---------------------------#
----######---------------------------#
-----###--------------------------##
-------------------------------###
---####-------------------####
-###########-------#########
######################
##############
Global CMT Convention Moment Tensor:
R T P
-6.31e+20 9.26e+20 1.41e+21
9.26e+20 9.62e+20 4.89e+20
1.41e+21 4.89e+20 -3.31e+20
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20130621142322/index.html
|
|
Waveform Inversion
The focal mechanism was determined using broadband seismic waveforms. The location of the event and the
and stations used for the waveform inversion are shown in the next figure.
|
|

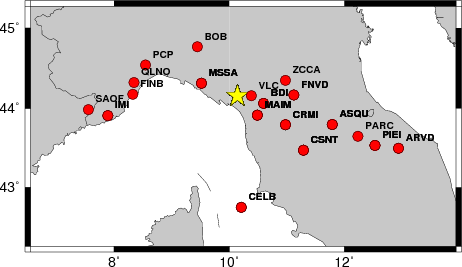

Location of broadband stations used for waveform inversion
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut a -30 a 90
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.10 n 3
The results of this grid search from 0.5 to 19 km depth are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 1.0 105 20 -25 3.37 0.3209
WVFGRD96 2.0 105 15 -20 3.44 0.4115
WVFGRD96 3.0 105 25 -15 3.38 0.4850
WVFGRD96 4.0 105 30 -25 3.37 0.5194
WVFGRD96 5.0 105 25 -25 3.46 0.5292
WVFGRD96 6.0 110 30 -20 3.44 0.5227
WVFGRD96 7.0 115 35 -20 3.45 0.5055
WVFGRD96 8.0 120 40 -10 3.41 0.4865
WVFGRD96 9.0 125 40 0 3.41 0.4673
WVFGRD96 10.0 130 45 10 3.43 0.4493
WVFGRD96 11.0 130 45 10 3.44 0.4311
WVFGRD96 12.0 130 50 10 3.45 0.4124
WVFGRD96 13.0 130 50 15 3.46 0.3954
WVFGRD96 14.0 135 50 15 3.47 0.3786
WVFGRD96 15.0 135 45 15 3.49 0.3622
WVFGRD96 16.0 135 50 15 3.51 0.3479
WVFGRD96 17.0 135 50 15 3.51 0.3357
WVFGRD96 18.0 140 50 20 3.53 0.3231
WVFGRD96 19.0 140 50 20 3.53 0.3110
WVFGRD96 20.0 140 50 20 3.54 0.2988
WVFGRD96 21.0 140 50 20 3.54 0.2872
WVFGRD96 22.0 140 50 20 3.55 0.2759
WVFGRD96 23.0 140 50 25 3.55 0.2658
WVFGRD96 24.0 145 50 25 3.56 0.2592
WVFGRD96 25.0 145 50 25 3.57 0.2558
WVFGRD96 26.0 145 50 30 3.57 0.2584
WVFGRD96 27.0 150 50 35 3.59 0.2613
WVFGRD96 28.0 150 50 50 3.59 0.2628
WVFGRD96 29.0 150 50 55 3.61 0.2611
The best solution is
WVFGRD96 5.0 105 25 -25 3.46 0.5292
The mechanism correspond to the best fit is
|
|
Figure 1. Waveform inversion focal mechanism
|

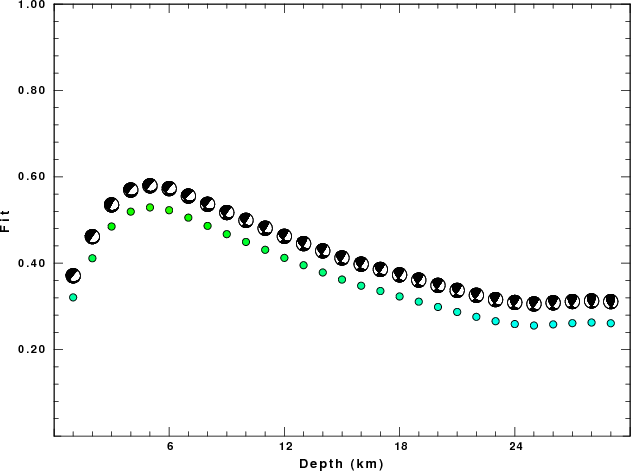

The best fit as a function of depth is given in the following figure:
|
|
Figure 2. Depth sensitivity for waveform mechanism
|

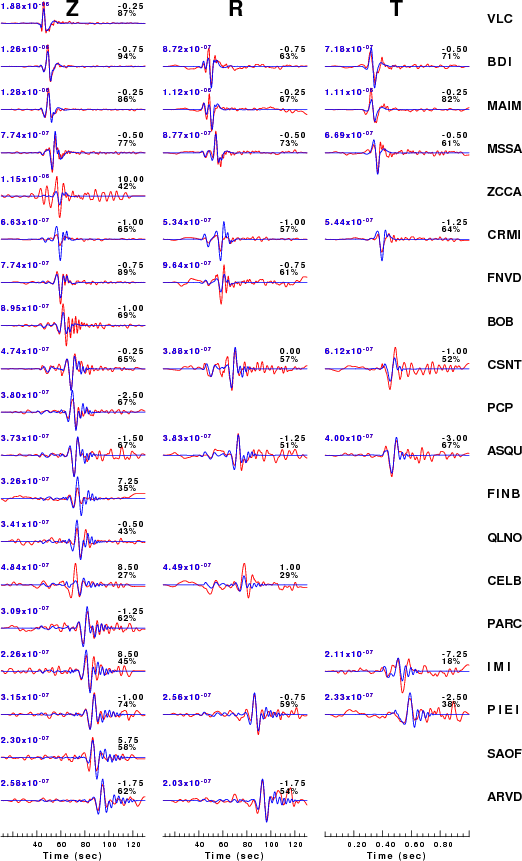

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted.
Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect.
A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut a -30 a 90
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.10 n 3
|
|
Figure 3. Waveform comparison for selected depth
|
|
|

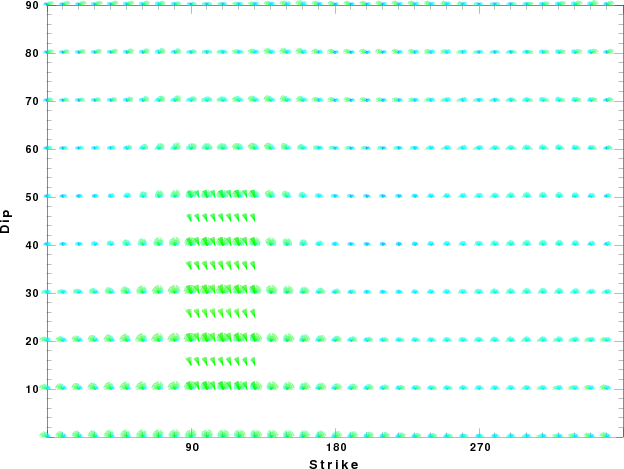

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms.
Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.
|
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
- The origin time and epicentral distance are incorrect
- The velocity model used for the inversion is incorrect
- The velocity model used to define the P-arrival time is not the
same as the velocity model used for the waveform inversion
(assuming that the initial trace alignment is based on the
P arrival time)
Assuming only a mislocation, the time shifts are fit to a functional form:
Time_shift = A + B cos Azimuth + C Sin Azimuth

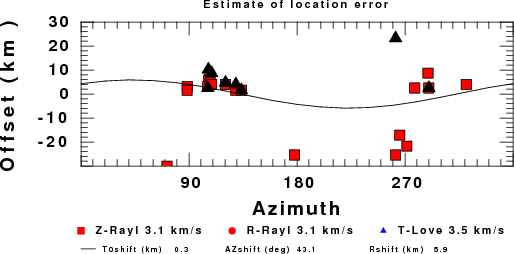

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
Discussion
Velocity Model
The nnCIA used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:
MODEL.01
C.It. A. Di Luzio et al Earth Plan Lettrs 280 (2009) 1-12 Fig 5. 7-8 MODEL/SURF3
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS
1.5000 3.7497 2.1436 2.2753 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
3.0000 4.9399 2.8210 2.4858 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
3.0000 6.0129 3.4336 2.7058 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
7.0000 5.5516 3.1475 2.6093 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
15.0000 5.8805 3.3583 2.6770 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
6.0000 7.1059 4.0081 3.0002 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
8.0000 7.1000 3.9864 3.0120 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
0.0000 7.9000 4.4036 3.2760 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
