2013/03/09 02:54:19 42.465 13.465 16.6 3.4 Italy
USGS Felt map for this earthquake
SLU Moment Tensor Solution ENS 2013/03/09 02:54:19:0 42.47 13.47 16.6 3.4 Italy Stations used: IV.AOI IV.ARVD IV.ASSB IV.CAFI IV.CERA IV.CESI IV.CESX IV.CING IV.FAGN IV.FDMO IV.GUMA IV.INTR IV.LPEL IV.MTCE IV.MURB IV.NRCA IV.OFFI IV.PESA IV.PTQR IV.RNI2 IV.SGG IV.SNTG IV.TERO IV.TRTR IV.VAGA MN.AQU Filtering commands used: hp c 0.02 n 3 lp c 0.10 n 3 br c 0.12 0.25 n 4 p 2 Best Fitting Double Couple Mo = 1.38e+21 dyne-cm Mw = 3.36 Z = 17 km Plane Strike Dip Rake NP1 85 73 -148 NP2 345 60 -20 Principal Axes: Axis Value Plunge Azimuth T 1.38e+21 8 213 N 0.00e+00 54 111 P -1.38e+21 34 308 Moment Tensor: (dyne-cm) Component Value Mxx 5.89e+20 Mxy 1.08e+21 Mxz -5.65e+20 Myy -1.80e+20 Myz 3.96e+20 Mzz -4.09e+20 ---########### ---------############# --------------############## -----------------############# --------------------############## ------ -------------############## ------- P --------------############## -------- ---------------############## ---------------------------############# ----------------------------############## -----------------------------############- -----------------------------########----- ###--------------------------##----------- #############################----------- #############################----------- ############################---------- ###########################--------- #########################--------- ### #################------- ## T ################------- ################---- #############- Global CMT Convention Moment Tensor: R T P -4.09e+20 -5.65e+20 -3.96e+20 -5.65e+20 5.89e+20 -1.08e+21 -3.96e+20 -1.08e+21 -1.80e+20 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20130309025419/index.html |
STK = 345 DIP = 60 RAKE = -20 MW = 3.36 HS = 17.0
The waveform inversion is preferred.
The following compares this source inversion to others
SLU Moment Tensor Solution ENS 2013/03/09 02:54:19:0 42.47 13.47 16.6 3.4 Italy Stations used: IV.AOI IV.ARVD IV.ASSB IV.CAFI IV.CERA IV.CESI IV.CESX IV.CING IV.FAGN IV.FDMO IV.GUMA IV.INTR IV.LPEL IV.MTCE IV.MURB IV.NRCA IV.OFFI IV.PESA IV.PTQR IV.RNI2 IV.SGG IV.SNTG IV.TERO IV.TRTR IV.VAGA MN.AQU Filtering commands used: hp c 0.02 n 3 lp c 0.10 n 3 br c 0.12 0.25 n 4 p 2 Best Fitting Double Couple Mo = 1.38e+21 dyne-cm Mw = 3.36 Z = 17 km Plane Strike Dip Rake NP1 85 73 -148 NP2 345 60 -20 Principal Axes: Axis Value Plunge Azimuth T 1.38e+21 8 213 N 0.00e+00 54 111 P -1.38e+21 34 308 Moment Tensor: (dyne-cm) Component Value Mxx 5.89e+20 Mxy 1.08e+21 Mxz -5.65e+20 Myy -1.80e+20 Myz 3.96e+20 Mzz -4.09e+20 ---########### ---------############# --------------############## -----------------############# --------------------############## ------ -------------############## ------- P --------------############## -------- ---------------############## ---------------------------############# ----------------------------############## -----------------------------############- -----------------------------########----- ###--------------------------##----------- #############################----------- #############################----------- ############################---------- ###########################--------- #########################--------- ### #################------- ## T ################------- ################---- #############- Global CMT Convention Moment Tensor: R T P -4.09e+20 -5.65e+20 -3.96e+20 -5.65e+20 5.89e+20 -1.08e+21 -3.96e+20 -1.08e+21 -1.80e+20 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20130309025419/index.html |

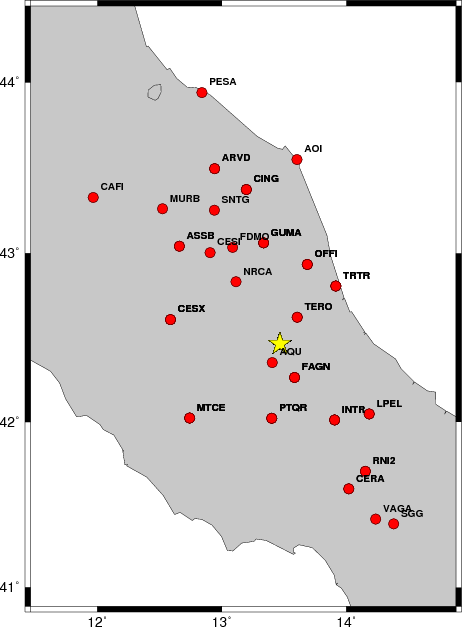

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
![]() |
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
hp c 0.02 n 3 lp c 0.10 n 3 br c 0.12 0.25 n 4 p 2The results of this grid search from 0.5 to 19 km depth are as follow:
DEPTH STK DIP RAKE MW FIT WVFGRD96 1.0 290 50 -65 3.07 0.3296 WVFGRD96 2.0 355 85 -10 3.10 0.3599 WVFGRD96 3.0 350 70 -15 3.15 0.3702 WVFGRD96 4.0 355 55 15 3.18 0.4020 WVFGRD96 5.0 355 45 15 3.25 0.4312 WVFGRD96 6.0 -5 45 15 3.25 0.4561 WVFGRD96 7.0 355 50 15 3.25 0.4747 WVFGRD96 8.0 340 65 -45 3.29 0.4939 WVFGRD96 9.0 340 65 -40 3.29 0.5113 WVFGRD96 10.0 340 65 -35 3.29 0.5230 WVFGRD96 11.0 345 65 -30 3.29 0.5327 WVFGRD96 12.0 345 65 -30 3.30 0.5390 WVFGRD96 13.0 345 65 -25 3.31 0.5435 WVFGRD96 14.0 345 65 -25 3.32 0.5457 WVFGRD96 15.0 345 65 -25 3.35 0.5522 WVFGRD96 16.0 345 65 -25 3.36 0.5541 WVFGRD96 17.0 345 60 -20 3.36 0.5551 WVFGRD96 18.0 345 60 -20 3.37 0.5543 WVFGRD96 19.0 345 60 -20 3.38 0.5522 WVFGRD96 20.0 345 60 -20 3.39 0.5485 WVFGRD96 21.0 345 60 -15 3.40 0.5440 WVFGRD96 22.0 345 60 -15 3.41 0.5380 WVFGRD96 23.0 345 60 -20 3.42 0.5310 WVFGRD96 24.0 345 60 -20 3.43 0.5228 WVFGRD96 25.0 345 60 -15 3.44 0.5135 WVFGRD96 26.0 345 60 -15 3.44 0.5020 WVFGRD96 27.0 350 60 -5 3.45 0.4920 WVFGRD96 28.0 355 65 5 3.47 0.4837 WVFGRD96 29.0 355 65 5 3.49 0.4782
The best solution is
WVFGRD96 17.0 345 60 -20 3.36 0.5551
The mechanism correspond to the best fit is
![]() |
|

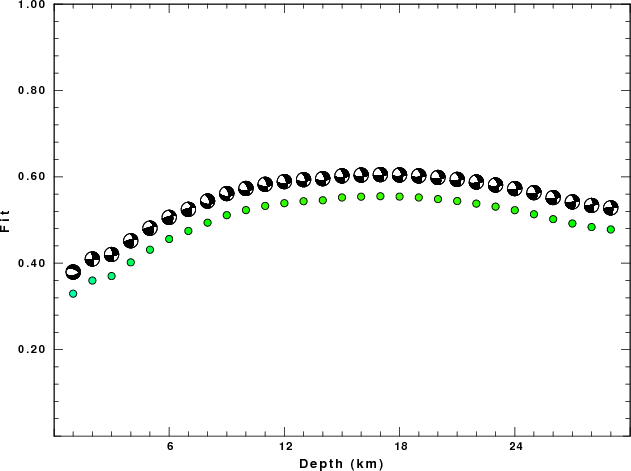

The best fit as a function of depth is given in the following figure:
![]() |
|

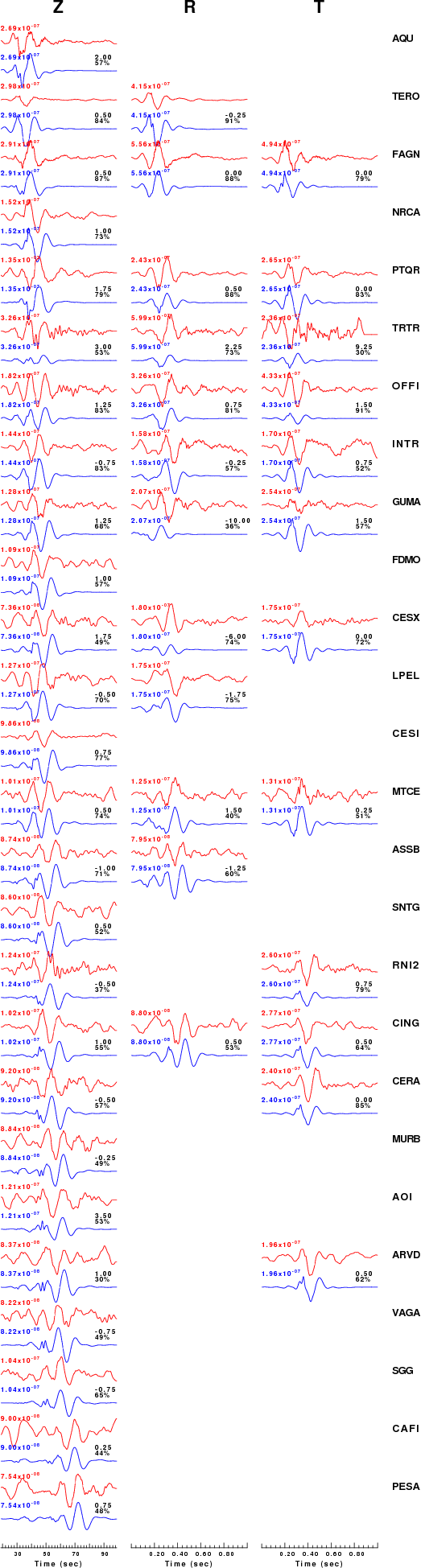

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
hp c 0.02 n 3 lp c 0.10 n 3 br c 0.12 0.25 n 4 p 2
![]() |
|
![]() |

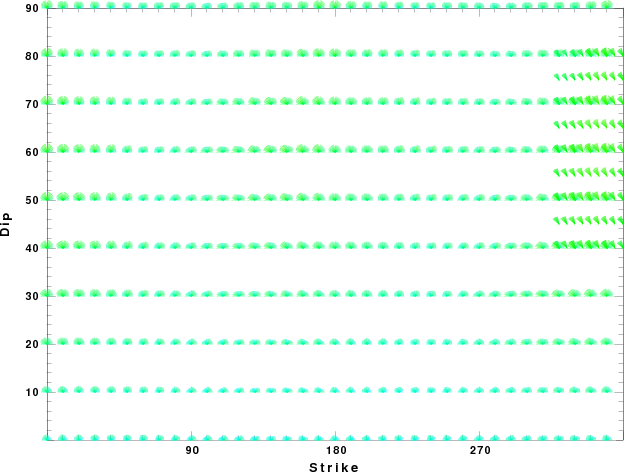

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

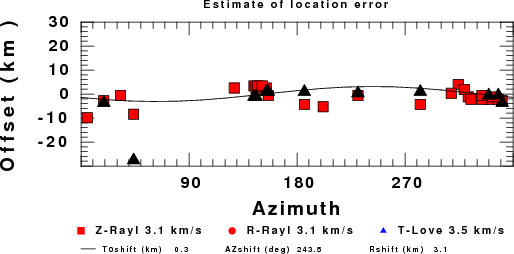

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The nnCIA used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:
MODEL.01 C.It. A. Di Luzio et al Earth Plan Lettrs 280 (2009) 1-12 Fig 5. 7-8 MODEL/SURF3 ISOTROPIC KGS FLAT EARTH 1-D CONSTANT VELOCITY LINE08 LINE09 LINE10 LINE11 H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS 1.5000 3.7497 2.1436 2.2753 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00 3.0000 4.9399 2.8210 2.4858 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00 3.0000 6.0129 3.4336 2.7058 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00 7.0000 5.5516 3.1475 2.6093 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00 15.0000 5.8805 3.3583 2.6770 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00 6.0000 7.1059 4.0081 3.0002 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00 8.0000 7.1000 3.9864 3.0120 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00 0.0000 7.9000 4.4036 3.2760 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
Here we tabulate the reasons for not using certain digital data sets
The following stations did not have a valid response files:
DATE=Sat Mar 9 07:12:43 CST 2013
