Location
2012/12/05 01:18:19 42.911 13.660 26.8 4.0 Italy
Arrival Times (from USGS)
Arrival time list
Felt Map
USGS Felt map for this earthquake
USGS Felt reports page for
Focal Mechanism
SLU Moment Tensor Solution
ENS 2012/12/05 01:18:19:0 42.91 13.66 26.8 4.0 Italy
Stations used:
GU.MAIM IV.AOI IV.ARVD IV.ASQU IV.ATTE IV.CAFI IV.CAMP
IV.CERT IV.CESI IV.CESX IV.CING IV.CRE IV.FDMO IV.FSSB
IV.GIUL IV.GUMA IV.LNSS IV.LPEL IV.MGAB IV.MTCE IV.MURB
IV.NRCA IV.PARC IV.PESA IV.PIEI IV.PTQR IV.RNI2 IV.SACS
IV.SAMA IV.SNTG IV.SSFR IV.TERO IV.TOLF MN.AQU MN.CUC
MN.VLC
Filtering commands used:
hp c 0.02 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 8.61e+21 dyne-cm
Mw = 3.89
Z = 17 km
Plane Strike Dip Rake
NP1 196 47 105
NP2 355 45 75
Principal Axes:
Axis Value Plunge Azimuth
T 8.61e+21 79 180
N 0.00e+00 11 6
P -8.61e+21 1 276
Moment Tensor: (dyne-cm)
Component Value
Mxx 2.10e+20
Mxy 8.30e+20
Mxz -1.57e+21
Myy -8.53e+21
Myz 1.37e+20
Mzz 8.32e+21
--------###---
-----------###--------
-----------########---------
-----------###########--------
-----------##############---------
-----------################---------
-----------##################---------
-----------###################----------
---------#####################---------
P ---------#####################----------
--------######################----------
----------######### ##########----------
----------######### T ##########----------
---------######### ##########---------
---------######################---------
--------#####################---------
-------#####################--------
-------###################--------
-----##################-------
-----################-------
---##############-----
-##########---
Global CMT Convention Moment Tensor:
R T P
8.32e+21 -1.57e+21 -1.37e+20
-1.57e+21 2.10e+20 -8.30e+20
-1.37e+20 -8.30e+20 -8.53e+21
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20121205011819/index.html
|
Preferred Solution
The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion and first motion observations is
STK = 355
DIP = 45
RAKE = 75
MW = 3.89
HS = 17.0
The waveform inversion is preferred.
Moment Tensor Comparison
The following compares this source inversion to others
| SLU |

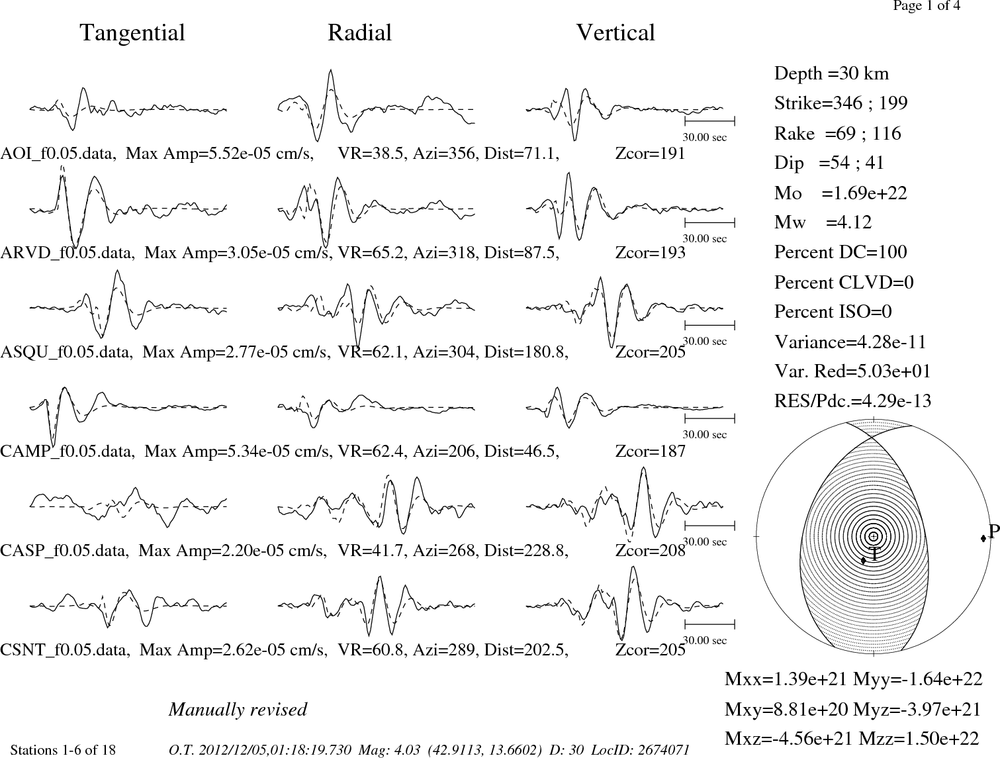

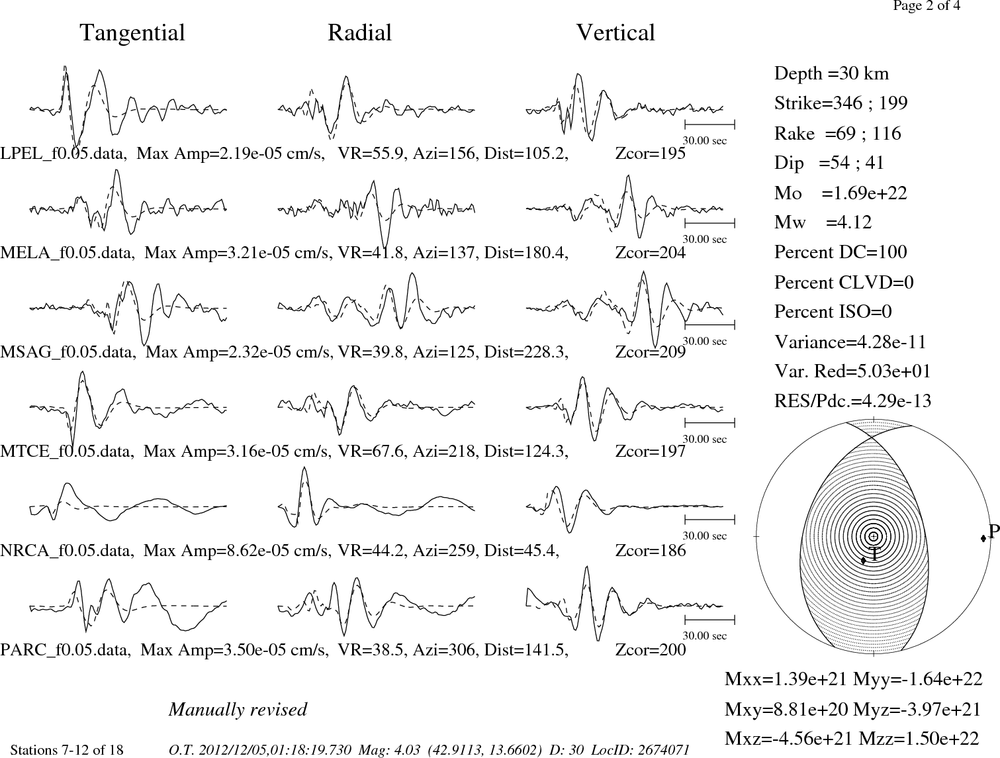

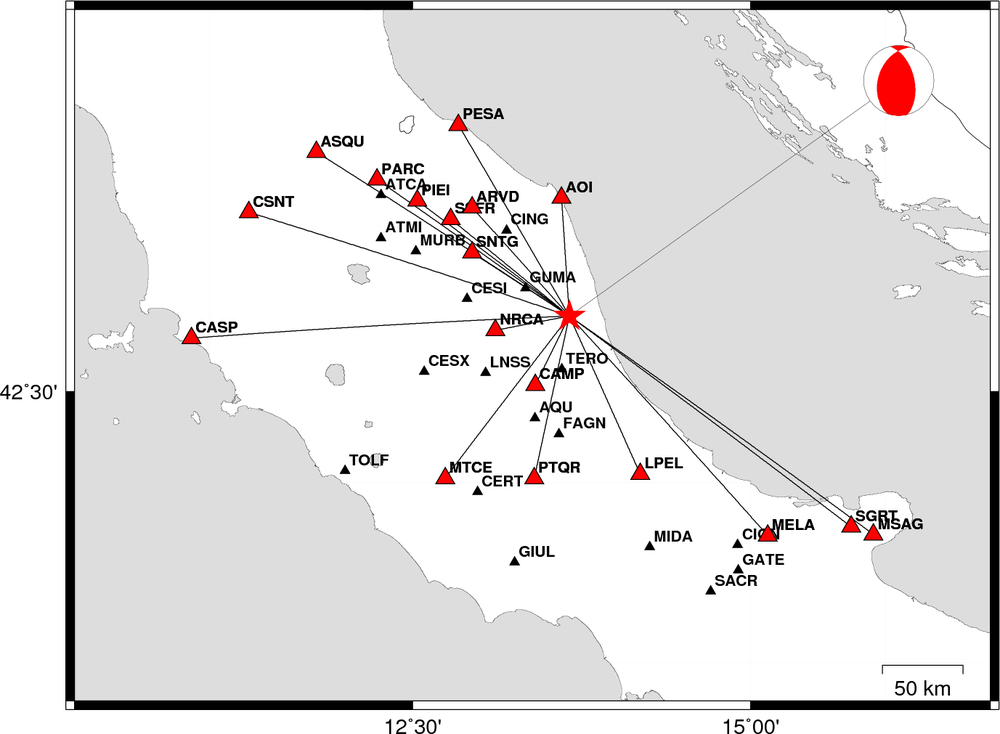

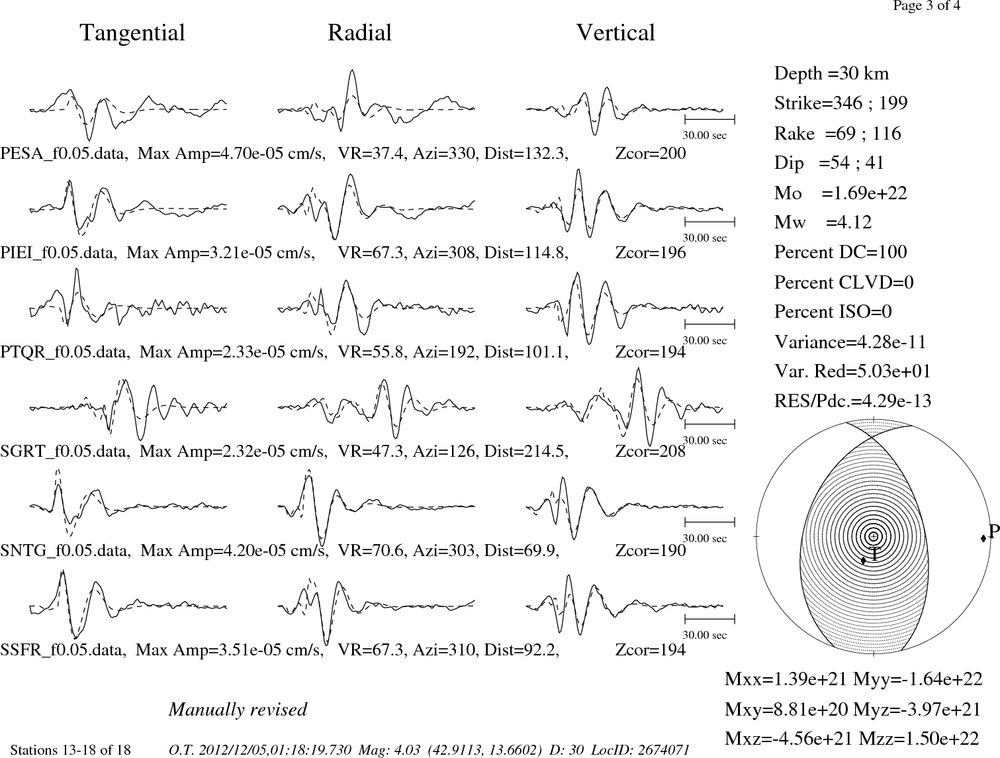

INGVTDMT |
SLU Moment Tensor Solution
ENS 2012/12/05 01:18:19:0 42.91 13.66 26.8 4.0 Italy
Stations used:
GU.MAIM IV.AOI IV.ARVD IV.ASQU IV.ATTE IV.CAFI IV.CAMP
IV.CERT IV.CESI IV.CESX IV.CING IV.CRE IV.FDMO IV.FSSB
IV.GIUL IV.GUMA IV.LNSS IV.LPEL IV.MGAB IV.MTCE IV.MURB
IV.NRCA IV.PARC IV.PESA IV.PIEI IV.PTQR IV.RNI2 IV.SACS
IV.SAMA IV.SNTG IV.SSFR IV.TERO IV.TOLF MN.AQU MN.CUC
MN.VLC
Filtering commands used:
hp c 0.02 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 8.61e+21 dyne-cm
Mw = 3.89
Z = 17 km
Plane Strike Dip Rake
NP1 196 47 105
NP2 355 45 75
Principal Axes:
Axis Value Plunge Azimuth
T 8.61e+21 79 180
N 0.00e+00 11 6
P -8.61e+21 1 276
Moment Tensor: (dyne-cm)
Component Value
Mxx 2.10e+20
Mxy 8.30e+20
Mxz -1.57e+21
Myy -8.53e+21
Myz 1.37e+20
Mzz 8.32e+21
--------###---
-----------###--------
-----------########---------
-----------###########--------
-----------##############---------
-----------################---------
-----------##################---------
-----------###################----------
---------#####################---------
P ---------#####################----------
--------######################----------
----------######### ##########----------
----------######### T ##########----------
---------######### ##########---------
---------######################---------
--------#####################---------
-------#####################--------
-------###################--------
-----##################-------
-----################-------
---##############-----
-##########---
Global CMT Convention Moment Tensor:
R T P
8.32e+21 -1.57e+21 -1.37e+20
-1.57e+21 2.10e+20 -8.30e+20
-1.37e+20 -8.30e+20 -8.53e+21
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20121205011819/index.html
|
|
Waveform Inversion
The focal mechanism was determined using broadband seismic waveforms. The location of the event and the

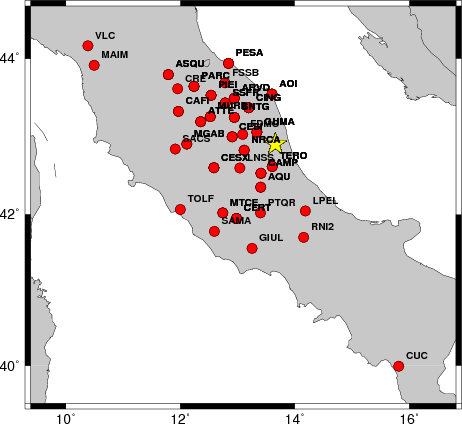

and stations used for the waveform inversion are shown in the next figure.
|
|
Location of broadband stations used for waveform inversion
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
hp c 0.02 n 3
lp c 0.10 n 3
The results of this grid search from 0.5 to 19 km depth are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 1.0 10 45 -90 3.55 0.2986
WVFGRD96 2.0 195 45 -85 3.61 0.2740
WVFGRD96 3.0 80 30 -30 3.58 0.2145
WVFGRD96 4.0 95 30 -20 3.57 0.2408
WVFGRD96 5.0 105 25 -25 3.67 0.2716
WVFGRD96 6.0 110 25 -15 3.67 0.3031
WVFGRD96 7.0 115 25 -10 3.69 0.3333
WVFGRD96 8.0 125 30 15 3.67 0.3610
WVFGRD96 9.0 340 40 55 3.74 0.3948
WVFGRD96 10.0 345 40 60 3.76 0.4299
WVFGRD96 11.0 345 45 60 3.78 0.4597
WVFGRD96 12.0 345 45 60 3.80 0.4831
WVFGRD96 13.0 350 45 65 3.81 0.5011
WVFGRD96 14.0 350 45 70 3.83 0.5157
WVFGRD96 15.0 350 45 70 3.87 0.5258
WVFGRD96 16.0 355 45 75 3.88 0.5336
WVFGRD96 17.0 355 45 75 3.89 0.5362
WVFGRD96 18.0 355 50 75 3.90 0.5352
WVFGRD96 19.0 -5 50 75 3.91 0.5312
WVFGRD96 20.0 0 50 85 3.91 0.5236
WVFGRD96 21.0 0 50 85 3.92 0.5134
WVFGRD96 22.0 190 35 100 3.93 0.5013
WVFGRD96 23.0 0 55 85 3.93 0.4857
WVFGRD96 24.0 0 60 85 3.94 0.4659
WVFGRD96 25.0 0 60 85 3.94 0.4445
WVFGRD96 26.0 0 60 85 3.95 0.4202
WVFGRD96 27.0 175 30 80 3.95 0.3964
WVFGRD96 28.0 180 25 85 3.95 0.3763
WVFGRD96 29.0 175 25 80 3.95 0.3603
The best solution is
WVFGRD96 17.0 355 45 75 3.89 0.5362
The mechanism correspond to the best fit is
|
|
Figure 1. Waveform inversion focal mechanism
|

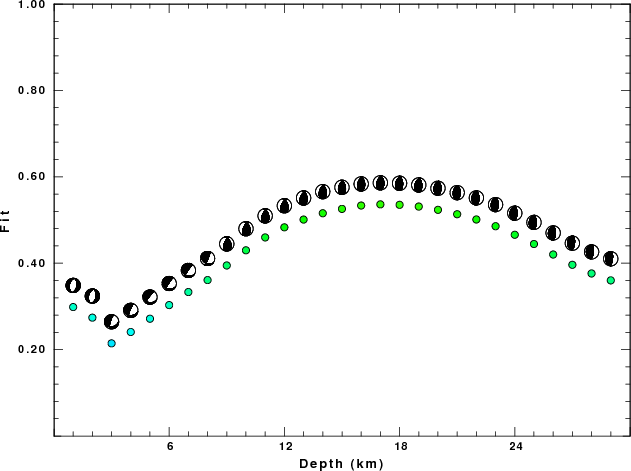

The best fit as a function of depth is given in the following figure:
|
|
Figure 2. Depth sensitivity for waveform mechanism
|

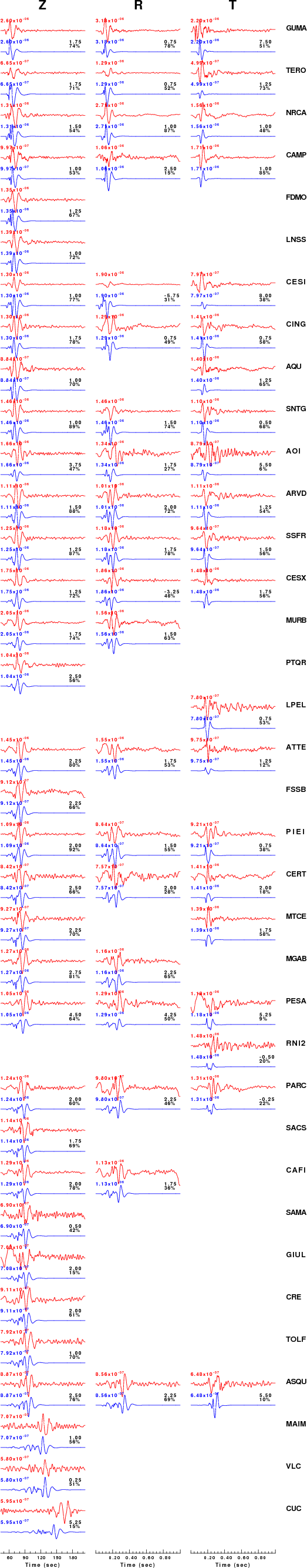

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted.
Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect.
A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
hp c 0.02 n 3
lp c 0.10 n 3
|
|
Figure 3. Waveform comparison for selected depth
|
|
|

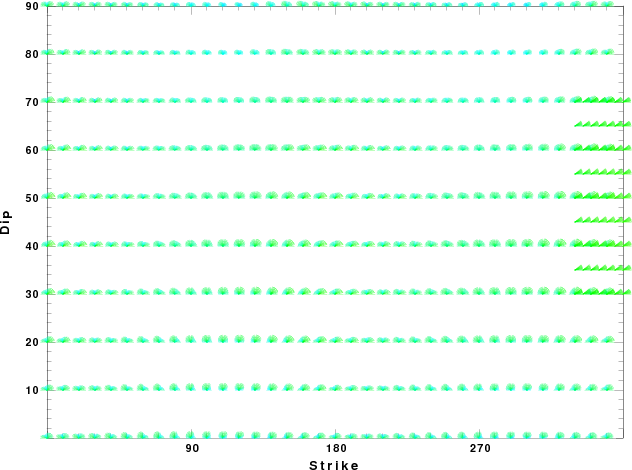

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms.
Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.
|
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
- The origin time and epicentral distance are incorrect
- The velocity model used for the inversion is incorrect
- The velocity model used to define the P-arrival time is not the
same as the velocity model used for the waveform inversion
(assuming that the initial trace alignment is based on the
P arrival time)
Assuming only a mislocation, the time shifts are fit to a functional form:
Time_shift = A + B cos Azimuth + C Sin Azimuth

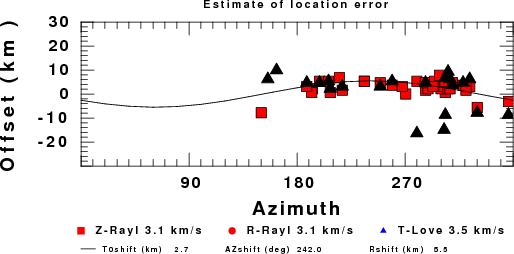

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
Discussion
Velocity Model
The nnCIA used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:
MODEL.01
C.It. A. Di Luzio et al Earth Plan Lettrs 280 (2009) 1-12 Fig 5. 7-8 MODEL/SURF3
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS
1.5000 3.7497 2.1436 2.2753 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
3.0000 4.9399 2.8210 2.4858 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
3.0000 6.0129 3.4336 2.7058 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
7.0000 5.5516 3.1475 2.6093 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
15.0000 5.8805 3.3583 2.6770 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
6.0000 7.1059 4.0081 3.0002 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
8.0000 7.1000 3.9864 3.0120 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
0.0000 7.9000 4.4036 3.2760 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
