2012/10/30 01:52:30 42.397 13.281 13.0 3.6 Italy
USGS Felt map for this earthquake
SLU Moment Tensor Solution ENS 2012/10/30 01:52:30:0 42.40 13.28 13.0 3.6 Italy Stations used: IV.ARCI IV.ARVD IV.CAMP IV.CERT IV.CESX IV.FAGN IV.FDMO IV.GUMA IV.LATE IV.LAV9 IV.LPEL IV.MA9 IV.MAON IV.MGAB IV.MTCE IV.NRCA IV.OFFI IV.PESA IV.PTQR IV.RDP IV.SACS IV.SNTG IV.SSFR IV.TERO IV.TOLF IV.TRTR MN.AQU Filtering commands used: hp c 0.02 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 9.44e+20 dyne-cm Mw = 3.25 Z = 9 km Plane Strike Dip Rake NP1 113 51 -124 NP2 340 50 -55 Principal Axes: Axis Value Plunge Azimuth T 9.44e+20 1 226 N 0.00e+00 26 136 P -9.44e+20 64 317 Moment Tensor: (dyne-cm) Component Value Mxx 3.56e+20 Mxy 5.63e+20 Mxz -2.81e+20 Myy 4.06e+20 Myz 2.45e+20 Mzz -7.62e+20 ############## ---------############# ---------------############# ------------------############ ----------------------############ ------------------------############ --------------------------############ #------------- -----------############ ##------------ P ------------########### ####----------- -------------########### #####--------------------------########### ######--------------------------########## ########------------------------########## #########----------------------######### ###########--------------------######### ##############----------------######## ##################-----------####--- # ########################------ T #######################----- ######################----- ###################--- ############## Global CMT Convention Moment Tensor: R T P -7.62e+20 -2.81e+20 -2.45e+20 -2.81e+20 3.56e+20 -5.63e+20 -2.45e+20 -5.63e+20 4.06e+20 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20121030015230/index.html |
STK = 340 DIP = 50 RAKE = -55 MW = 3.25 HS = 9.0
The waveform inversion is preferred.
The following compares this source inversion to others
SLU Moment Tensor Solution ENS 2012/10/30 01:52:30:0 42.40 13.28 13.0 3.6 Italy Stations used: IV.ARCI IV.ARVD IV.CAMP IV.CERT IV.CESX IV.FAGN IV.FDMO IV.GUMA IV.LATE IV.LAV9 IV.LPEL IV.MA9 IV.MAON IV.MGAB IV.MTCE IV.NRCA IV.OFFI IV.PESA IV.PTQR IV.RDP IV.SACS IV.SNTG IV.SSFR IV.TERO IV.TOLF IV.TRTR MN.AQU Filtering commands used: hp c 0.02 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 9.44e+20 dyne-cm Mw = 3.25 Z = 9 km Plane Strike Dip Rake NP1 113 51 -124 NP2 340 50 -55 Principal Axes: Axis Value Plunge Azimuth T 9.44e+20 1 226 N 0.00e+00 26 136 P -9.44e+20 64 317 Moment Tensor: (dyne-cm) Component Value Mxx 3.56e+20 Mxy 5.63e+20 Mxz -2.81e+20 Myy 4.06e+20 Myz 2.45e+20 Mzz -7.62e+20 ############## ---------############# ---------------############# ------------------############ ----------------------############ ------------------------############ --------------------------############ #------------- -----------############ ##------------ P ------------########### ####----------- -------------########### #####--------------------------########### ######--------------------------########## ########------------------------########## #########----------------------######### ###########--------------------######### ##############----------------######## ##################-----------####--- # ########################------ T #######################----- ######################----- ###################--- ############## Global CMT Convention Moment Tensor: R T P -7.62e+20 -2.81e+20 -2.45e+20 -2.81e+20 3.56e+20 -5.63e+20 -2.45e+20 -5.63e+20 4.06e+20 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20121030015230/index.html |

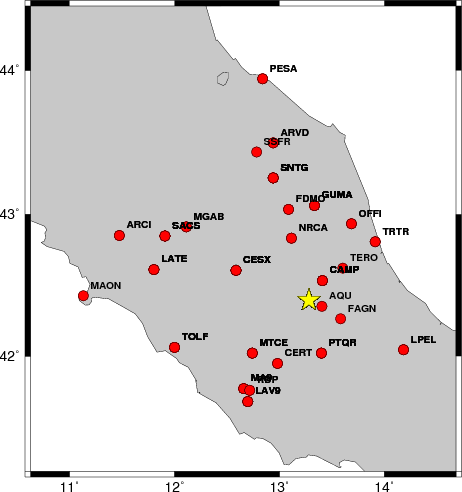

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
![]() |
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
hp c 0.02 n 3 lp c 0.10 n 3The results of this grid search from 0.5 to 19 km depth are as follow:
DEPTH STK DIP RAKE MW FIT WVFGRD96 1.0 140 55 -85 3.03 0.2067 WVFGRD96 2.0 345 40 -35 3.09 0.2216 WVFGRD96 3.0 350 45 -25 3.10 0.2363 WVFGRD96 4.0 -5 35 -15 3.09 0.2595 WVFGRD96 5.0 355 35 -20 3.18 0.2825 WVFGRD96 6.0 330 45 -70 3.27 0.3237 WVFGRD96 7.0 335 50 -65 3.27 0.3714 WVFGRD96 8.0 340 50 -55 3.25 0.3904 WVFGRD96 9.0 340 50 -55 3.25 0.3955 WVFGRD96 10.0 345 50 -50 3.26 0.3930 WVFGRD96 11.0 345 50 -50 3.26 0.3850 WVFGRD96 12.0 350 55 -40 3.28 0.3745 WVFGRD96 13.0 350 55 -40 3.28 0.3600 WVFGRD96 14.0 350 55 -35 3.29 0.3441 WVFGRD96 15.0 350 55 -35 3.32 0.3330 WVFGRD96 16.0 350 55 -30 3.33 0.3184 WVFGRD96 17.0 345 55 -30 3.34 0.3049 WVFGRD96 18.0 345 55 -25 3.34 0.2909 WVFGRD96 19.0 345 55 -30 3.35 0.2777 WVFGRD96 20.0 345 55 -25 3.36 0.2653 WVFGRD96 21.0 345 50 -25 3.36 0.2544 WVFGRD96 22.0 345 50 -25 3.36 0.2446 WVFGRD96 23.0 345 50 -25 3.37 0.2359 WVFGRD96 24.0 345 50 -25 3.38 0.2281 WVFGRD96 25.0 345 55 -25 3.39 0.2228 WVFGRD96 26.0 340 40 -45 3.38 0.2186 WVFGRD96 27.0 340 40 -45 3.39 0.2184 WVFGRD96 28.0 340 40 -45 3.40 0.2158 WVFGRD96 29.0 345 45 -35 3.41 0.2118
The best solution is
WVFGRD96 9.0 340 50 -55 3.25 0.3955
The mechanism correspond to the best fit is
![]() |
|

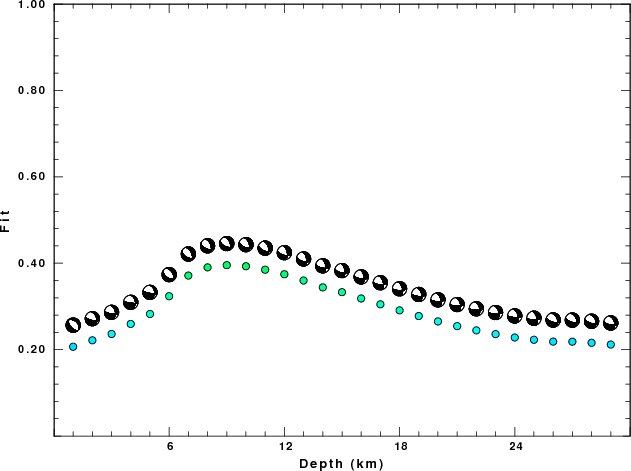

The best fit as a function of depth is given in the following figure:
![]() |
|

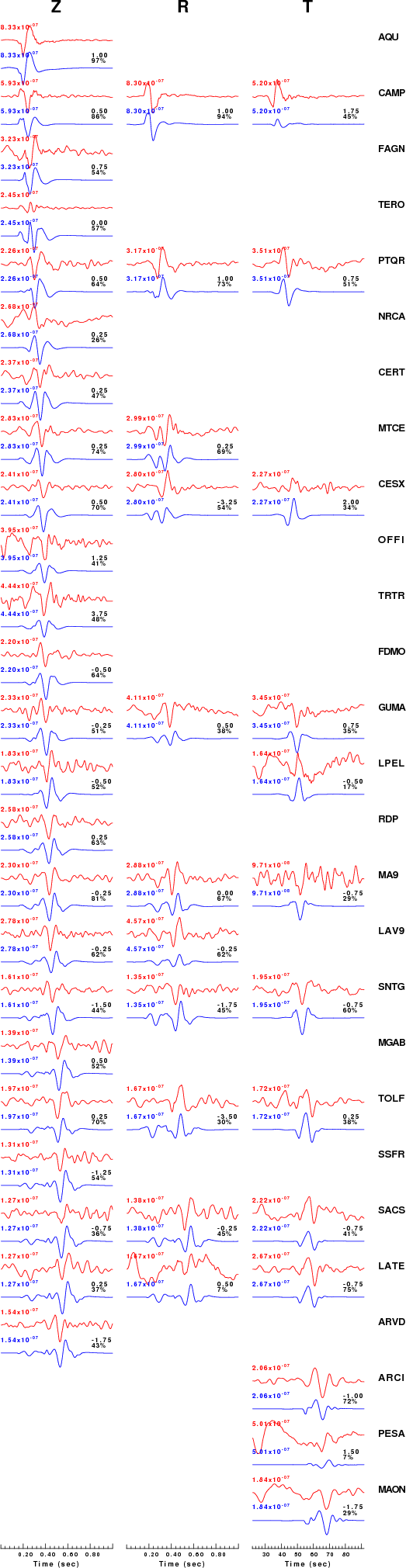

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
hp c 0.02 n 3 lp c 0.10 n 3
![]() |
|
![]() |

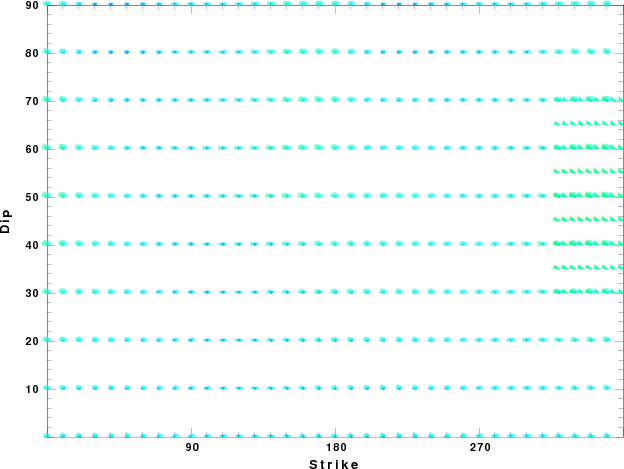

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

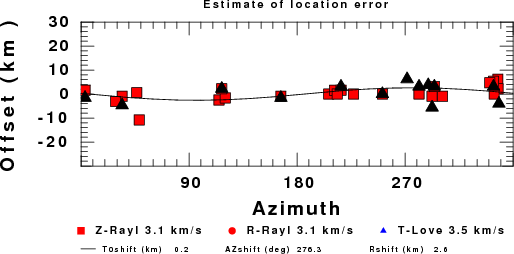

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The nnCIA used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:
MODEL.01 C.It. A. Di Luzio et al Earth Plan Lettrs 280 (2009) 1-12 Fig 5. 7-8 MODEL/SURF3 ISOTROPIC KGS FLAT EARTH 1-D CONSTANT VELOCITY LINE08 LINE09 LINE10 LINE11 H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS 1.5000 3.7497 2.1436 2.2753 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00 3.0000 4.9399 2.8210 2.4858 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00 3.0000 6.0129 3.4336 2.7058 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00 7.0000 5.5516 3.1475 2.6093 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00 15.0000 5.8805 3.3583 2.6770 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00 6.0000 7.1059 4.0081 3.0002 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00 8.0000 7.1000 3.9864 3.0120 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00 0.0000 7.9000 4.4036 3.2760 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
Here we tabulate the reasons for not using certain digital data sets
The following stations did not have a valid response files:
DATE=Mon Dec 17 16:03:44 CST 2012
